Old 01-09-2014, 10:47 AM   #801
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Those frame rails are a tight fit, and will likely scrape some of your freshly applied undercoating as you press them flush.

While the frame rails are off, make sure the drain holes in the car's rails are open.

One thing I did not like about the FM rails is that the mounting studs for the fuel/brake line clips are on the bottom. I've had off-track excursions where the frame rails got scraped. In fact, the main reason I put frame rails on my car was to act as a skid plate. I'm working on a safer track solution for the line clips. I'll let you know what I come up with. (In other words, I'm fully expecting you to race ahead of me and solve this problem for me ).

Remind me on the door card material you used . . . ABS?
hornetball is offline   Reply With Quote
Old 01-09-2014, 01:58 PM   #802
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 334
Total Cats: 30
Default

Nice one on the alternator! Glad I could inspire.

It really isn't that bad. Just don't be a fool like me and assemble the case backwards. Then after that don't forget to remove the brush holder pin before you re-install...
leboeuf is offline   Reply With Quote
Old 01-09-2014, 02:38 PM   #803
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by shlammed View Post
was it difficult to disassemble, or did you just have to undo the long bolts and slide it apart?

never played with alternators.
Undo the long bolts, then hit the philips screw heads with some penetrating spray(liquid wrench) and find a screwdriver that fits PERFECTLY. Then put it on the floor and with all your weight on top of the screw slowly loosen them, hell it may even help to tap the screw heads with a hammer a couple times. Mine were very seized and I stripped one head puling them out. Luckily I had a dremmel and recut the philips pattern and used a big-*** screwdriver to remove it.

Then after that is removed you'll think to try to pull the casing apart but first take out the middle assembly to reveal 4 more screws. Remove those and then you can separate the bottom of the housing from the alternator assembly.

Very easy, just need to be delicate

Quote:
Originally Posted by rleete View Post
Hey man, I just told you to spray it.

BTW, resist the urge to clean the shaft where the brush rides (copper section below the bearing). Sure, wipe it down (alcohol or acetone), but don't try to sand or wire brush it, as this will mean the brush has to re-seat, accelerating wear.
That you did! I'll blame my young age and less experience on that one!

Thanks for the info rleete! Props!

Quote:
Originally Posted by hornetball View Post
Those frame rails are a tight fit, and will likely scrape some of your freshly applied undercoating as you press them flush.

While the frame rails are off, make sure the drain holes in the car's rails are open.

One thing I did not like about the FM rails is that the mounting studs for the fuel/brake line clips are on the bottom. (In other words, I'm fully expecting you to race ahead of me and solve this problem for me ).

Remind me on the door card material you used . . . ABS?
I did it right this time and massaged, I.E hit with a big hammer, the rails so that they would go on really easily so that when I sprayed the undercoating it wouldn't cheese grate the protection off it.

I'm thinking of drilling a hole in the side of the rail and using my tap and die to match the bolt threads and relocate it to the factory mount locations. Or a simpler way would be to buy electrician stainless steel zip ties and zip tie it higher.

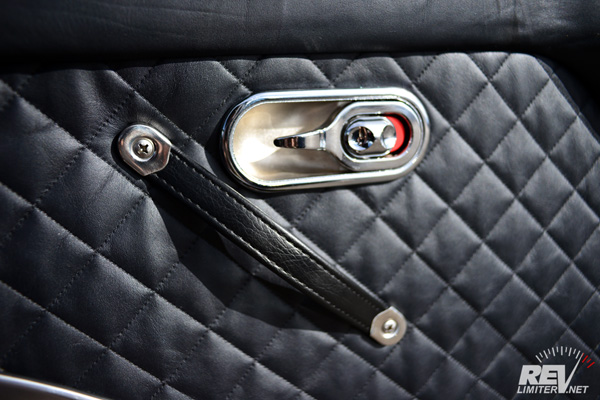

The door cards were abs plastic. Speaking of which I'm not too happy with the door pulls. They work yes but by protecting the exposed metal of the door from rattling via the door latch rod it binds a bit and doesn't give it a solid feel, I think I might just go back to the regular door handles. Especially since Revlimiter sent me his Leather door pulls for free in my order!



Quote:
Originally Posted by leboeuf View Post
Nice one on the alternator! Glad I could inspire.

It really isn't that bad. Just don't be a fool like me and assemble the case backwards. Then after that don't forget to remove the brush holder pin before you re-install...
Yeah I'm going to approach this one slowly. Is it worth buying electrical contact cleaner over say brake cleaner to clean it up a little?
Attached Thumbnails
93' Miata stolen and flipped build thread-strap3.jpg
Jeffbucc is offline   Reply With Quote
Old 01-09-2014, 02:56 PM   #804
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Also here are some color options I'm considering for the intake manifold.



I'm going for the far right, easier to clean since it is a smooth texture plus it matches the VHT wrinkle finish better.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_20140109_114609.jpg
Jeffbucc is offline   Reply With Quote
Old 01-09-2014, 03:32 PM   #805
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Agree. A glossy finish is always more resistant to dirt/easier to clean.
hornetball is offline   Reply With Quote
Old 01-09-2014, 03:58 PM   #806
Elite Member
iTrader: (32)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,532
Total Cats: 28
Default

A vote for the far right here. Moving right along, this has been a fun thread to follow!
RotorNutFD3S is offline   Reply With Quote
Old 01-09-2014, 04:59 PM   #807
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

do it in an aluminum color imo.

black im's I have personally never liked.
shlammed is offline   Reply With Quote
Old 01-09-2014, 11:10 PM   #808
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,094
Total Cats: 121
Default

I agree, aluminum is good looking.
jacob300zx is offline   Reply With Quote
Old 01-09-2014, 11:18 PM   #809
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,668
Total Cats: 227
Default

Personally agree with alum, i'd just brush the alum and call it a day though. That way, no matter how many times I pull and replace the engine (read: too many damn times), i cant scratch it and mess up the finish (LOL).
Fireindc is offline   Reply With Quote
Old 01-10-2014, 12:53 AM   #810
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

+1 on brushing the manifold. It lets the black valve cover stand out more and no chips.
revlimiter is offline   Reply With Quote
Old 01-10-2014, 12:57 AM   #811
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Well the problem is, it is currently being sandblasted at the powdercoaters. Should I just have them do a clear coat of some sort?(not sure if you can do that with powdercoating) or maybe even an "aluminum" color.
Jeffbucc is offline   Reply With Quote
Old 01-10-2014, 04:00 AM   #812
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

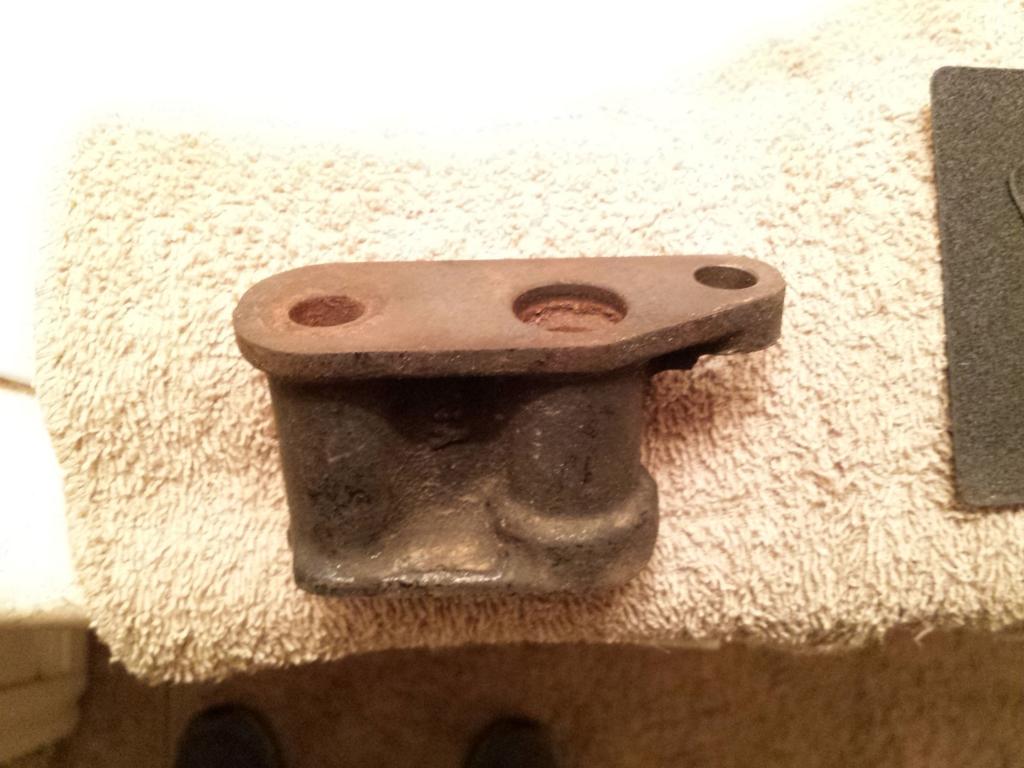

TorqueZombie is a badass, sent this to me for free since he knows me to well and didn't want me to have a cracked diff spacer. Major thanks.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_20140110_004553.jpg
Jeffbucc is offline   Reply With Quote
Old 01-10-2014, 06:25 AM   #813
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,484
Total Cats: 79
Default

And as we all know you - that thing is going to be sandblasted, 24k goldplated and polished... ;-)))))
Zaphod is offline   Reply With Quote
Old 01-10-2014, 12:45 PM   #814
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

Quote:
Originally Posted by Jeffbucc View Post
Well the problem is, it is currently being sandblasted at the powdercoaters. Should I just have them do a clear coat of some sort?(not sure if you can do that with powdercoating) or maybe even an "aluminum" color.
what I was suggesting was to p/c it in an aluminum color.
shlammed is offline   Reply With Quote
Old 01-10-2014, 01:07 PM   #815
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

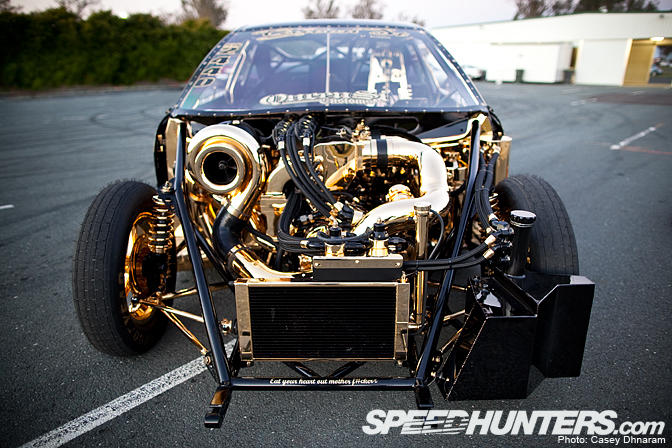

Come on Jeff. Ball hard.



Attached Thumbnails
93' Miata stolen and flipped build thread-30_0nvk_50.jpg
concealer404 is offline   Reply With Quote
Old 01-10-2014, 01:20 PM   #816
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by concealer404 View Post
Come on Jeff. Ball hard.

.
.
.
.
.



That is insanity
Attached Thumbnails
93' Miata stolen and flipped build thread-05yb7mo.gif   93' Miata stolen and flipped build thread-orwbeps.gif

Last edited by Jeffbucc; 02-21-2014 at 09:33 AM.
Jeffbucc is offline   Reply With Quote
Old 01-10-2014, 02:09 PM   #817
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,220
Total Cats: 339
Default

Like you aren't?
rleete is offline   Reply With Quote
Old 01-10-2014, 02:20 PM   #818
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,441
Total Cats: 2,038
Default

Quote:
Originally Posted by Jeffbucc View Post
[IMG]http://www.miataturbo.net/attachment.php?attachmentid=99483&dateline=1389374 409[IMG]
.
.
.
.
.

[IMG]http://www.miataturbo.net/attachment.php?attachmentid=99484&dateline=1389374 409[IMG]


As for the IM, I actually did what they're suggesting: sandblasted it then clear coated it in VHT satin clear. Check my thread for visual, I think it came out pretty nice, and looks "natural".

I too don't think an IM looks all that great in black.
18psi is offline   Reply With Quote
Old 01-10-2014, 03:10 PM   #819
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by rleete View Post
Like you aren't?
Oh I am, but in the words of spinal tap, "that one goes to 11!".

You guys didn't have me convinced on a natural look until I started looking at painted manifolds. It looks, as you said, just wrong. Not bad mind you, just doesn't look good. Called the powder coater and he recommended an actual aluminum Powdercoating color that comes off pretty exact, after researching issues with just clear coating I think I'll go with that.
Jeffbucc is offline   Reply With Quote
Old 01-10-2014, 07:22 PM   #820
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Sweetness! Just sold my 18" wheels/tires for $1100 off my Jetta, now I can start looking for a hard top. I want to get the one in Sacramento but I honestly for the life of me can't think of when I'd get a chance to make a 20 hour round trip drive to grab it. Unless Vlad, you want to ship it via Greyhound for me!
Jeffbucc is offline   Reply With Quote
