Onward with the dash project.

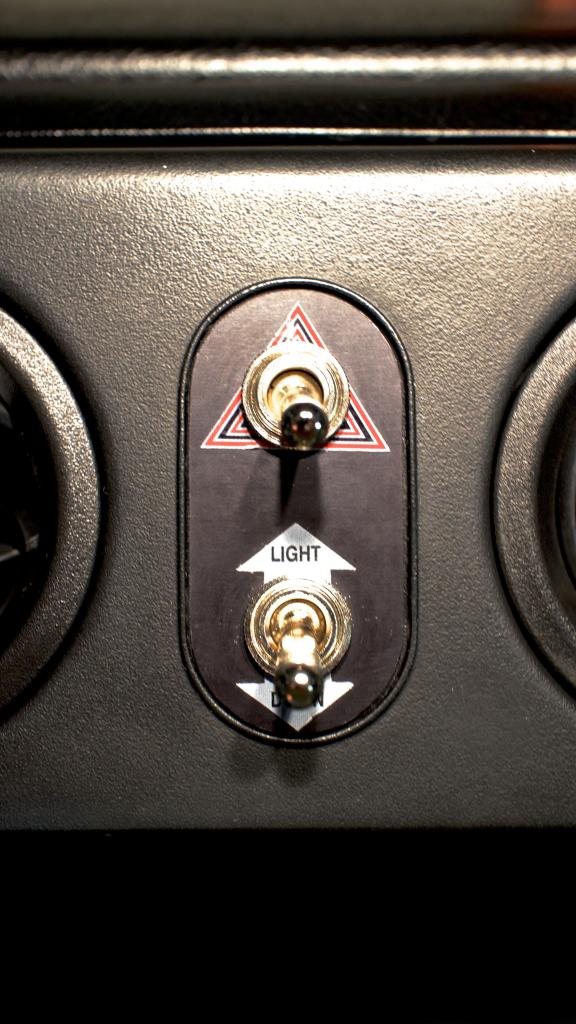

Revlimiter hazard switch with black anodized faceplate installed

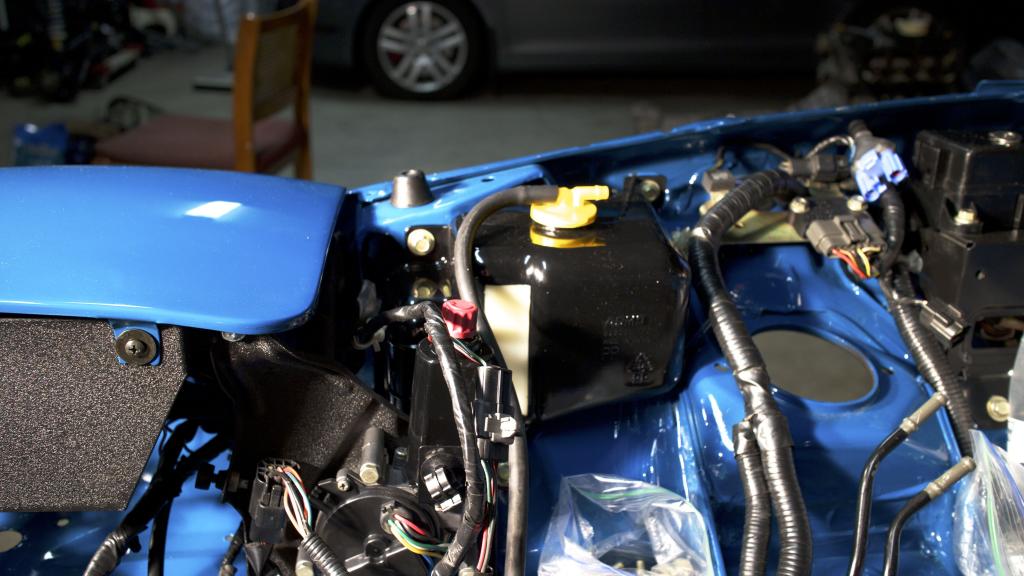

Coolant tank installed

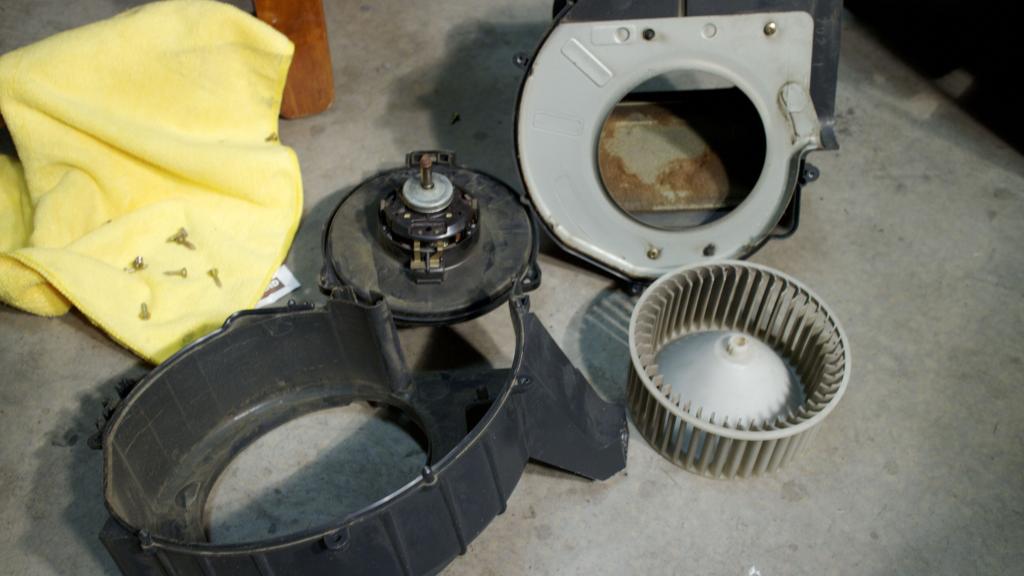

Started the blower restore, it was pretty damn dirty

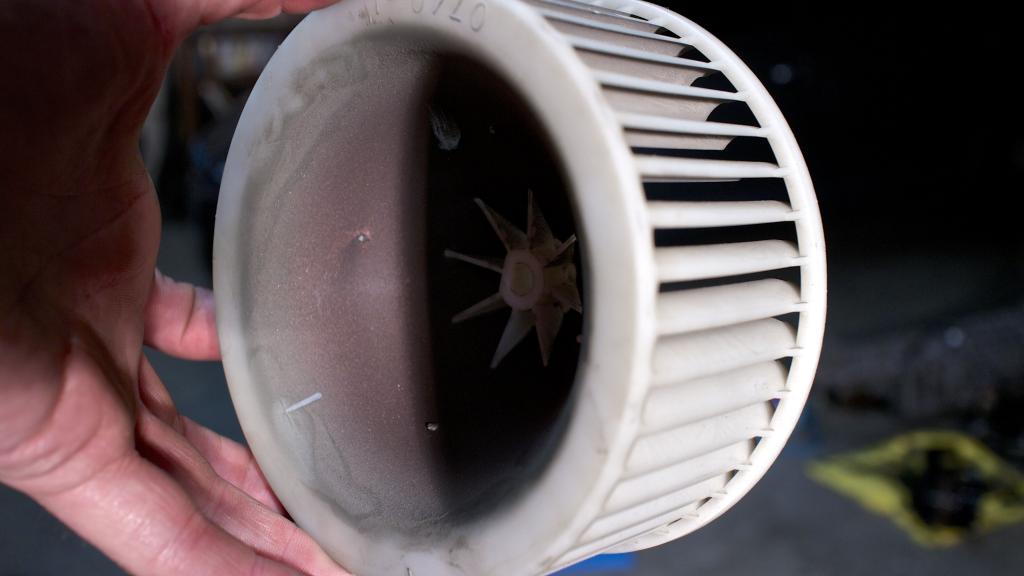

Blower fan before

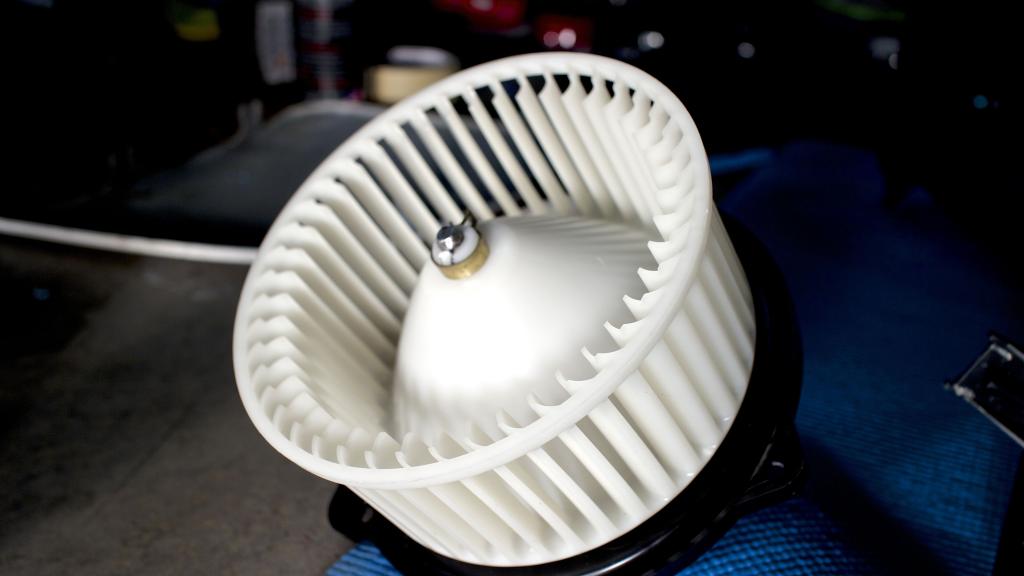

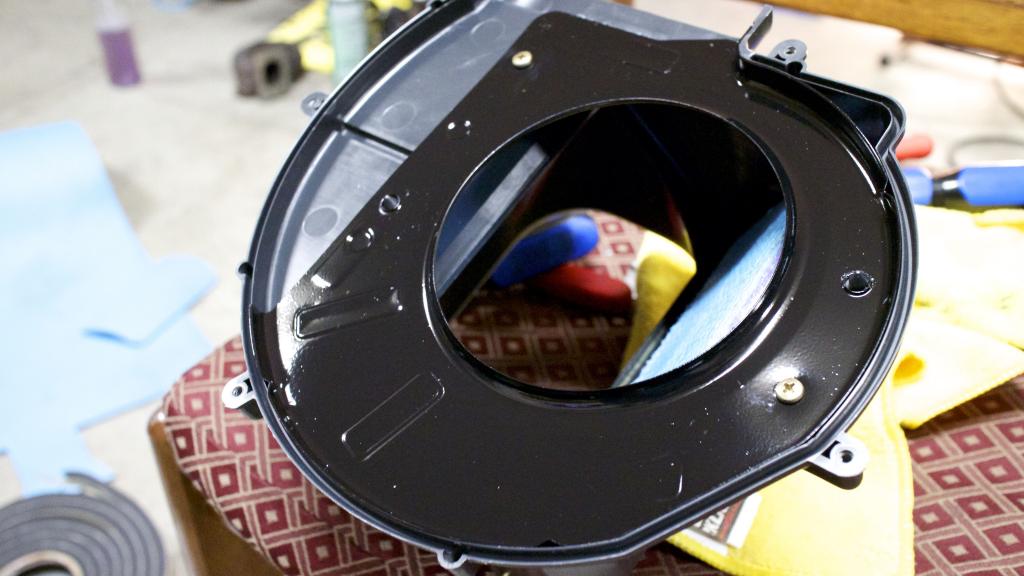

after, mounted on the blower motor. Used the air compressor to blow all the shisa out of the motor itself and then a microfiber towel on my flathead and cleaned all the metal contact points and leads.

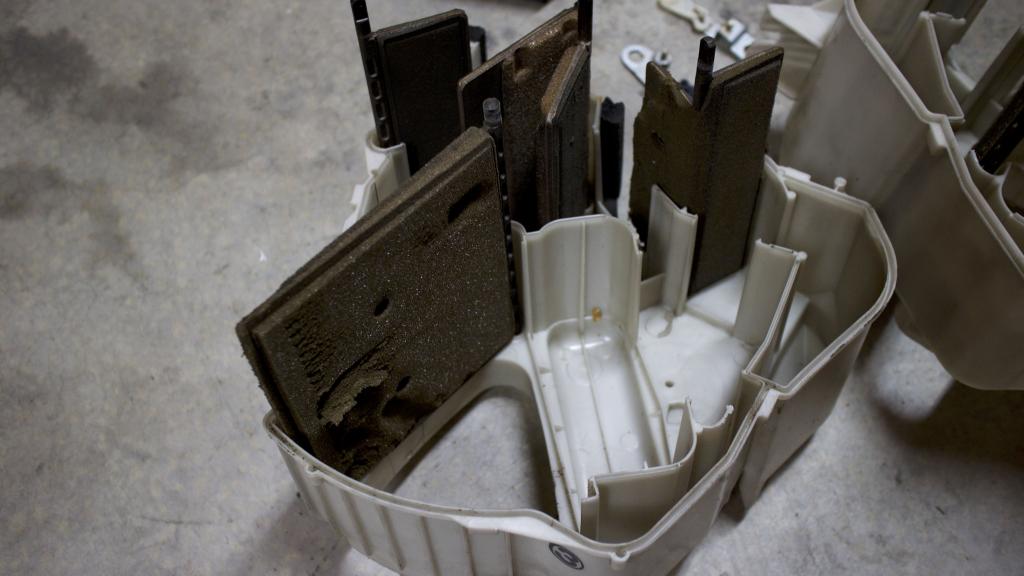

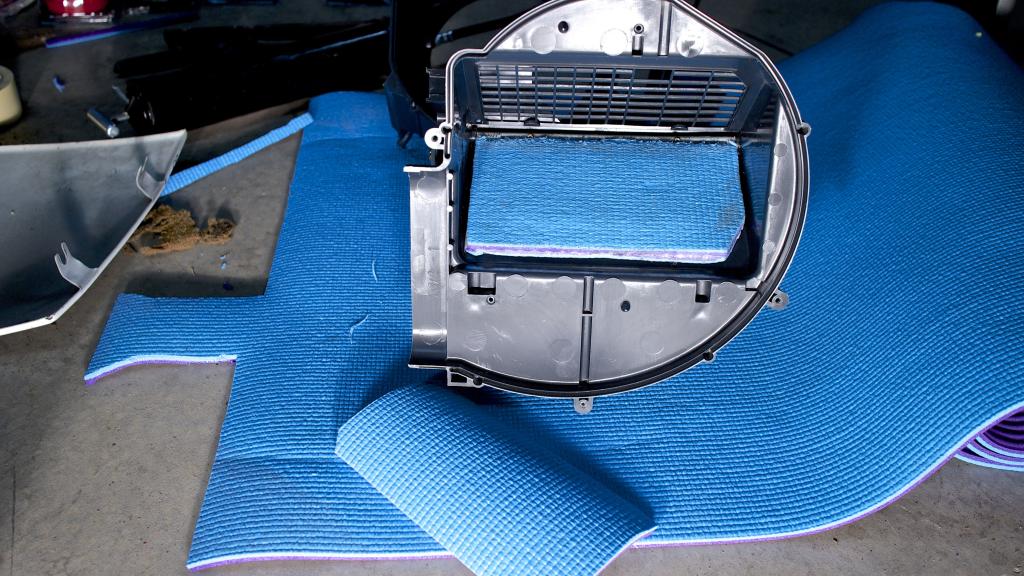

Foam was all rotted and missing in a lot of spots. Was barely sealing at all. I couldn't find a good foam to replace it with so I bought a 6mm thick yoga mat at Wal-mart for $8. As for the double take you just did on using a yoga mat....it makes a lot of sense. It is weatherproof, highly resistant to germs, doesn't get hard/corrode for a very very long time, and it is easy to work with. It also has an airtight seal, much better than foam could ever do. I also put a thin film of sealant around all the edges to make sure no chance of water getting into the mat was possible.

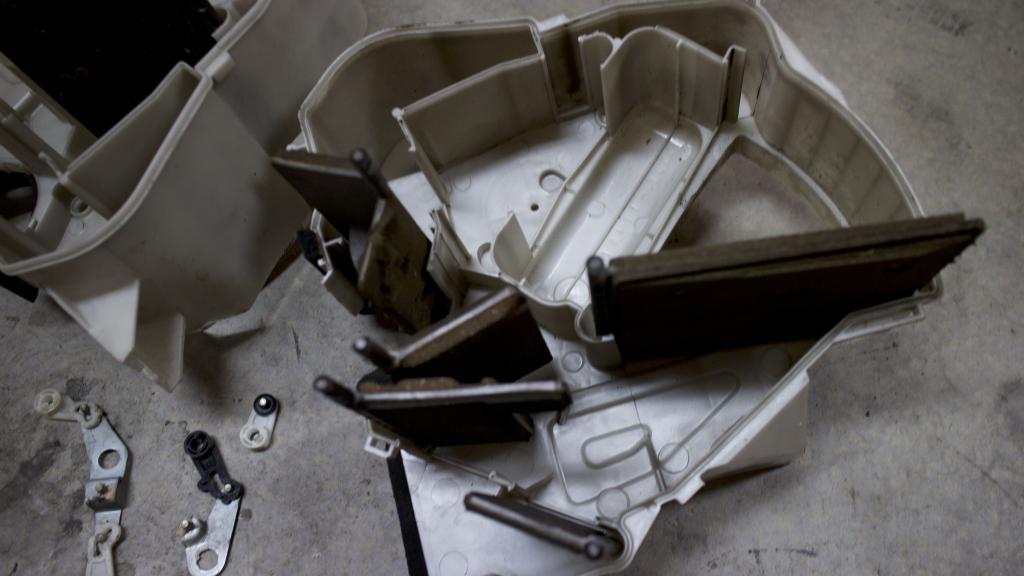

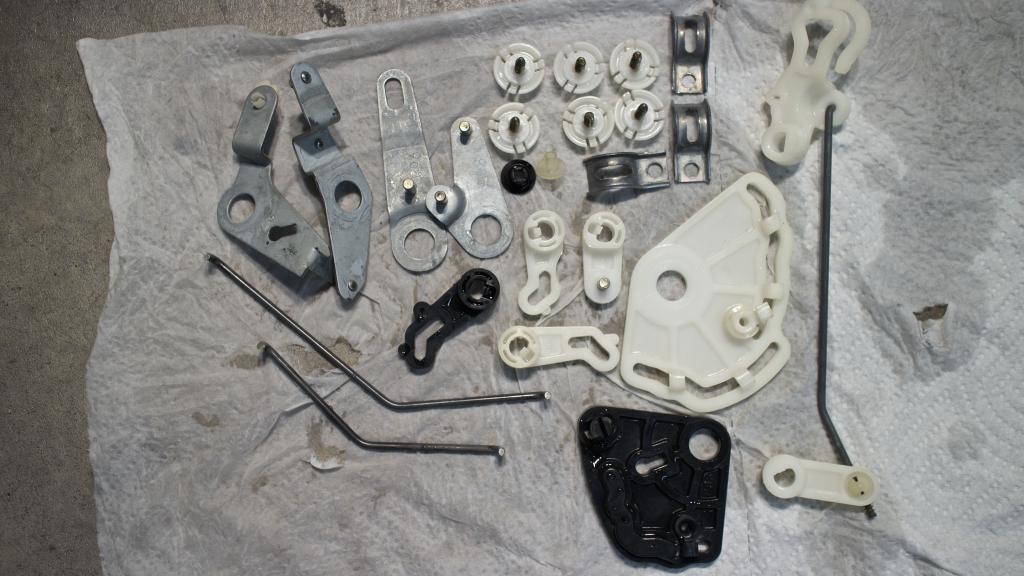

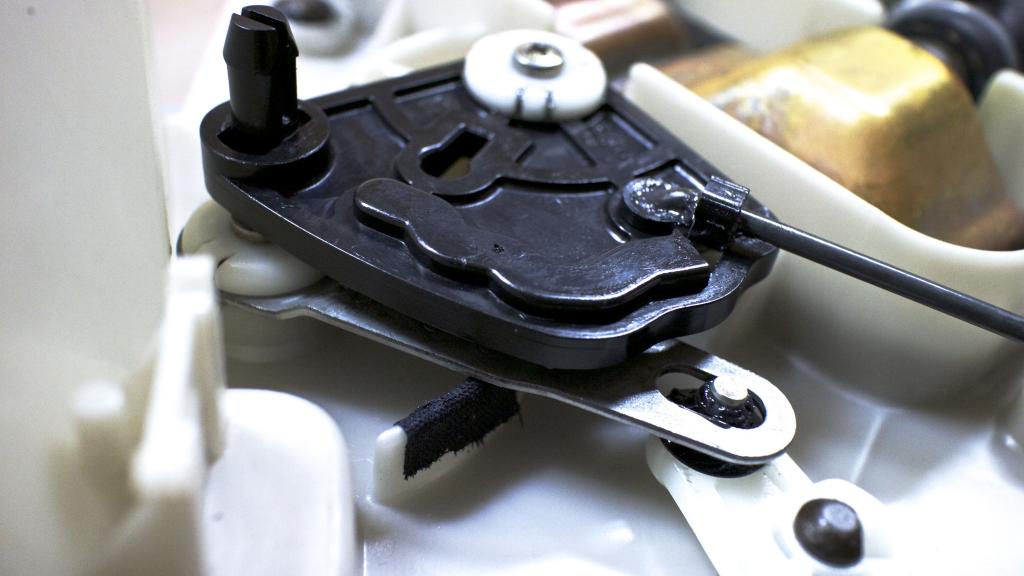

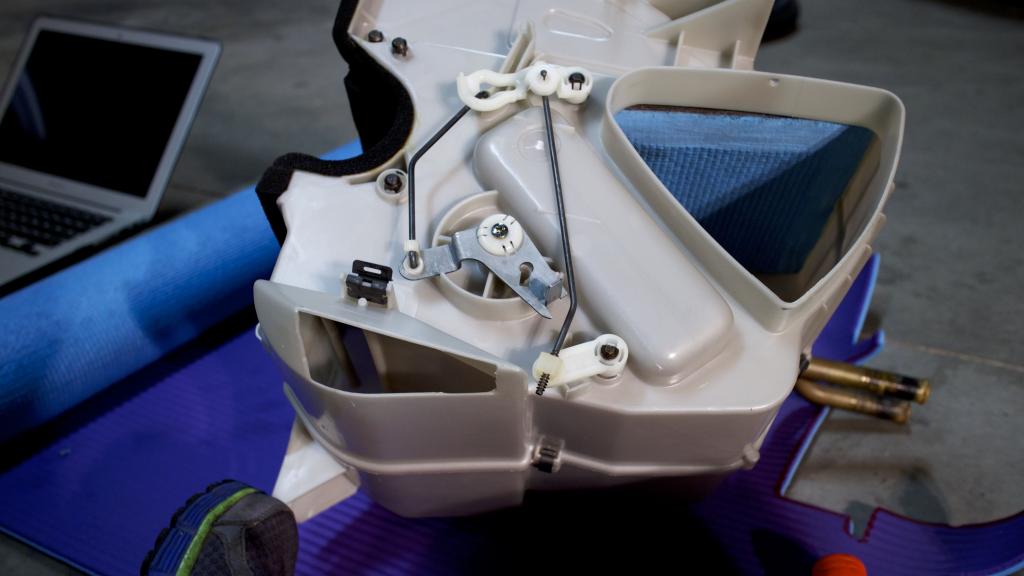

HVAC rod assembly taken apart and regreased

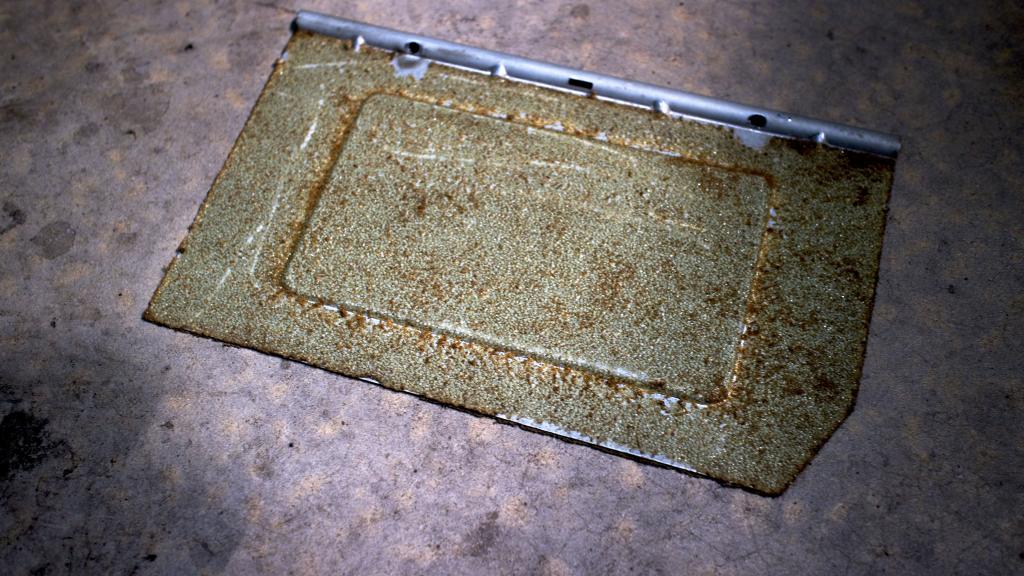

Metal bracket that is sandwiched between both sides of the plastic housing was quite rusty, so I sanded it all off and painted it.

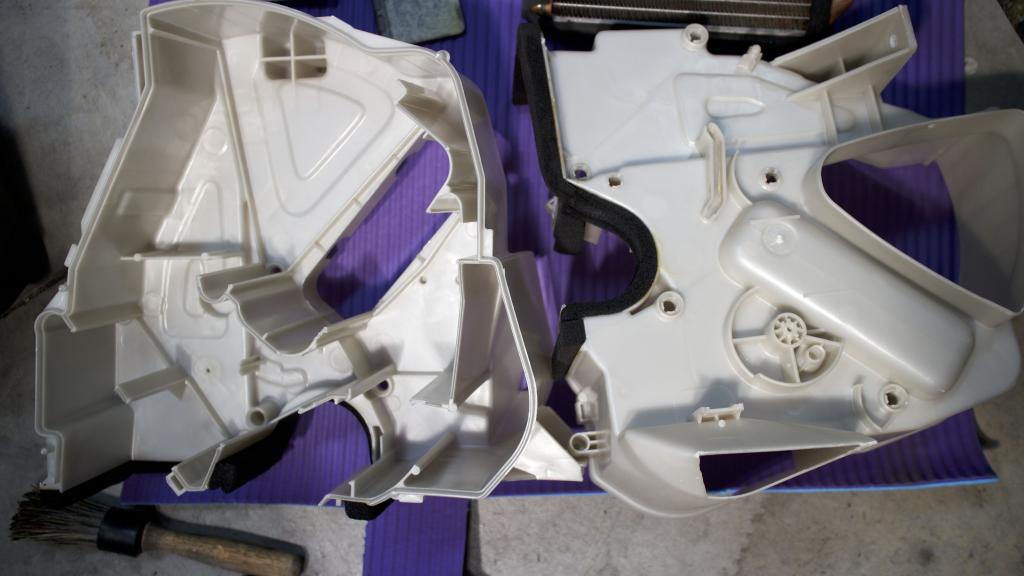

Housings all cleaned up and reconditioned

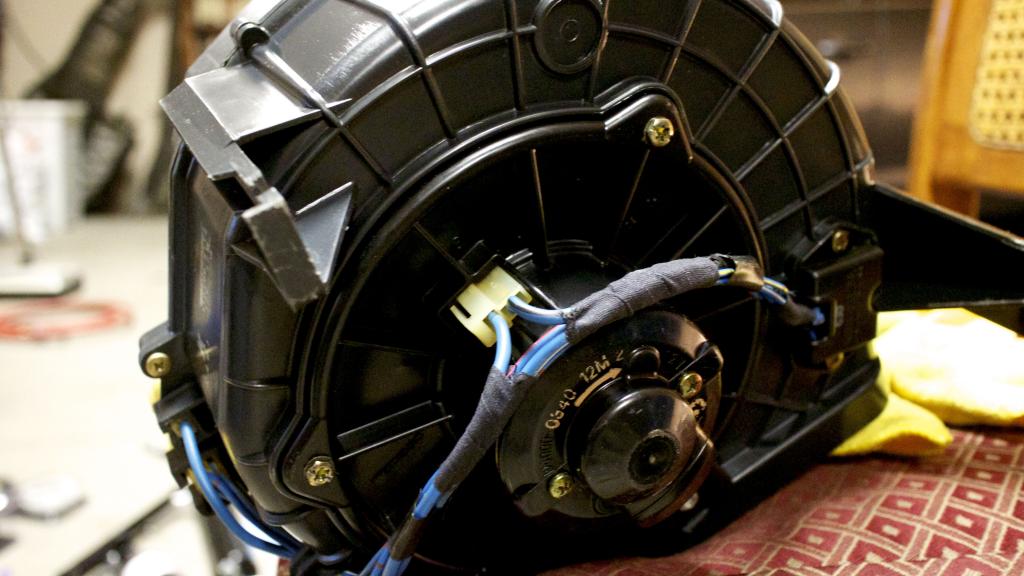

Friction tape added to the wires to help with rattling

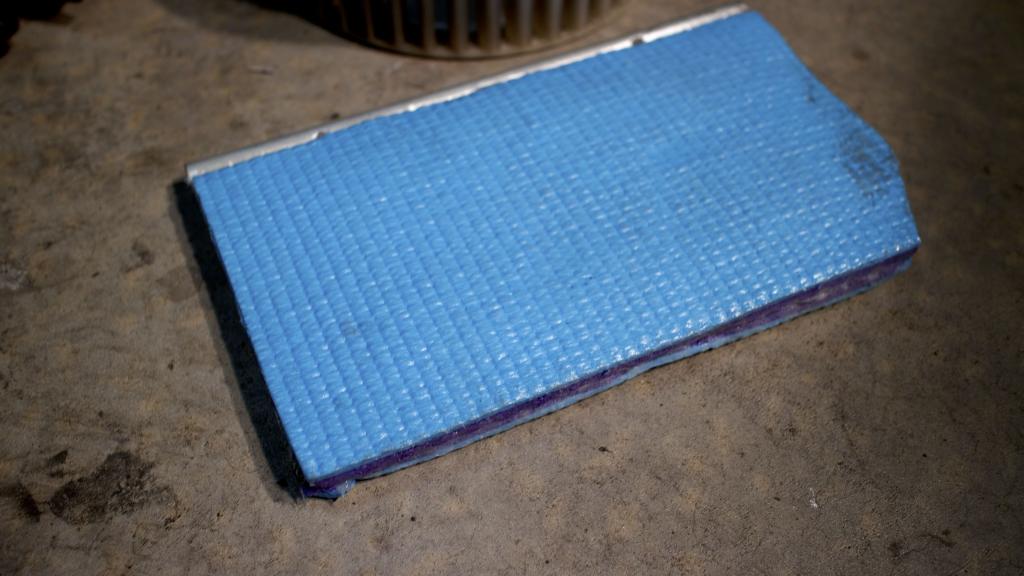

New foam tape to seal the "intake" portion of the blower that sits against the body

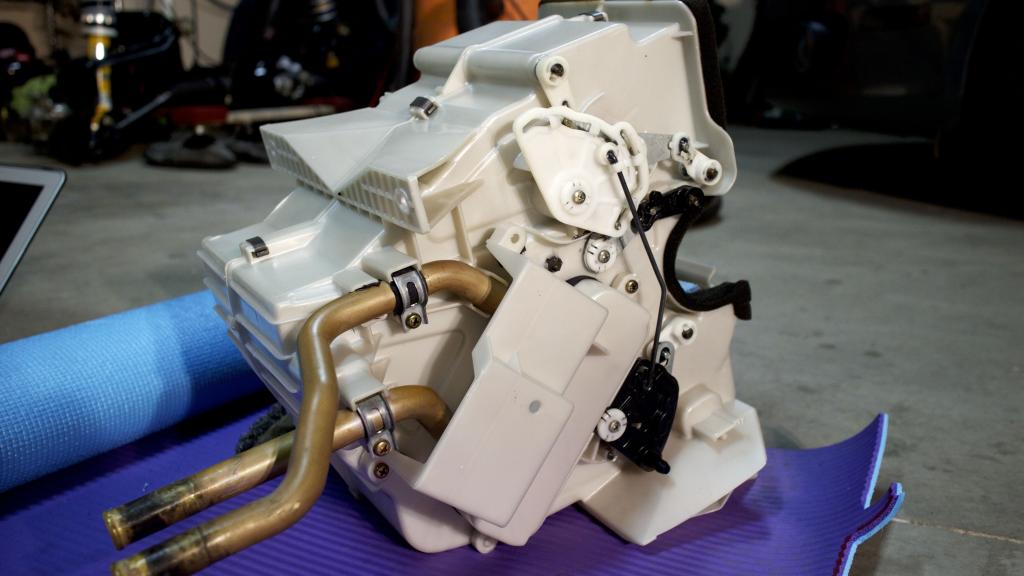

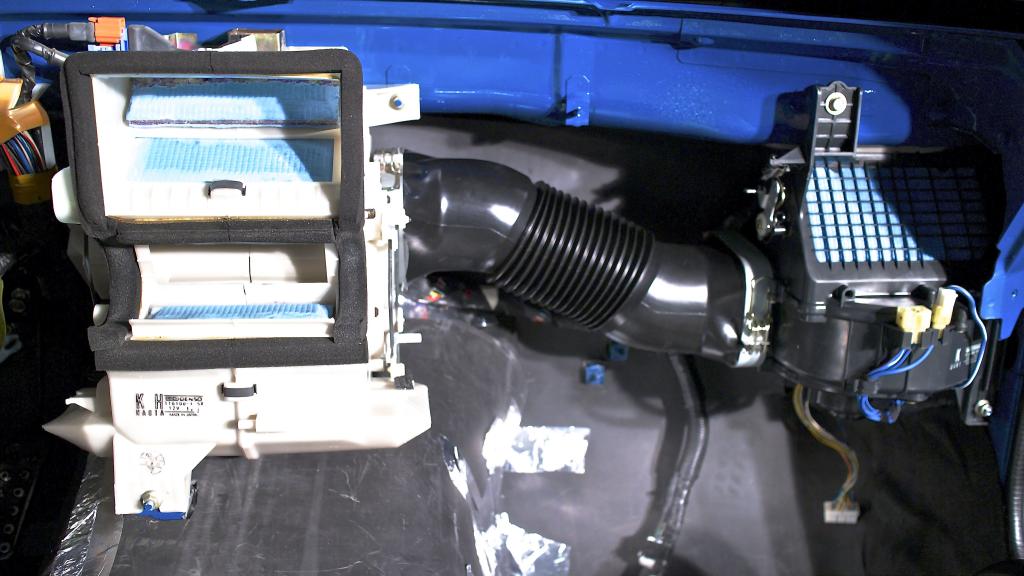

All assembled and installed with the new AC delete replacement pipe



On to the heater core.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_1343.jpg   93' Miata stolen and flipped build thread-img_1346.jpg   93' Miata stolen and flipped build thread-img_1347.jpg   93' Miata stolen and flipped build thread-img_1353.jpg   93' Miata stolen and flipped build thread-img_1358.jpg

93' Miata stolen and flipped build thread-img_1350.jpg   93' Miata stolen and flipped build thread-img_1351.jpg   93' Miata stolen and flipped build thread-img_1355.jpg   93' Miata stolen and flipped build thread-img_1357.jpg   93' Miata stolen and flipped build thread-img_1359.jpg

93' Miata stolen and flipped build thread-img_1365.jpg   93' Miata stolen and flipped build thread-img_1366.jpg   93' Miata stolen and flipped build thread-img_1364.jpg   93' Miata stolen and flipped build thread-img_1367.jpg   93' Miata stolen and flipped build thread-img_1368.jpg


Last edited by Jeffbucc; 01-31-2014 at 09:48 AM.
Jeffbucc is offline   Reply With Quote
Old 01-31-2014, 10:15 AM   #1004
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Wow... After seeing how dirty that blower motor is, it makes me want to rip mine out and refurbish it. Would it be hard to remove with the dash still in? That one bolt looks like it would be buried behind the dash.
BTMiata is offline   Reply With Quote
Old 01-31-2014, 10:33 AM   #1005
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

How many cans of black spray paint have you used up to this point...


Yoga mat use is ingenious, you never fail to impress.

Ugghghhhg
Efini~FC3S is offline   Reply With Quote
Old 01-31-2014, 10:34 AM   #1006
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by BTMiata View Post
Wow... After seeing how dirty that blower motor is, it makes me want to rip mine out and refurbish it. Would it be hard to remove with the dash still in? That one bolt looks like it would be buried behind the dash.
I don't think you can remove it without taking out the dash. Shouldn't take you more than an hour to remove the dash though.

I was honestly surprised how gnarly the inside was as well.
Jeffbucc is offline   Reply With Quote
Old 01-31-2014, 10:35 AM   #1007
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Efini~FC3S View Post
How many cans of black spray paint have you used up to this point...


Yoga mat use is ingenious, you never fail to impress.

Ugghghhhg
Way too many dude, that VHT Chassis & Roll Bar paint is money though!
Jeffbucc is offline   Reply With Quote
Old 01-31-2014, 10:38 AM   #1008
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,425
Total Cats: 2,034
Default

Oh man you're going to have one of the few old NA's that doesn't blow a dust storm when you turn on the air. My dads 92 makes me gag when he turns on the ac/heater
18psi is offline   Reply With Quote
Old 01-31-2014, 10:48 AM   #1009
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 177
Default

"Friction tape added to the wires to help with rattling"

I didn't even know that was a thing.
Scrappy Jack is offline   Reply With Quote
Old 01-31-2014, 01:16 PM   #1010
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,411
Total Cats: 1,426
Default

Quote:
Originally Posted by Jeffbucc View Post
I don't think you can remove it without taking out the dash. Shouldn't take you more than an hour to remove the dash though.

I was honestly surprised how gnarly the inside was as well.
It's like 3 screws...
Braineack is offline   Reply With Quote
Old 01-31-2014, 01:18 PM   #1011
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Braineack View Post

It's like 3 screws...
I just wasn't sure if you could get to them with the dash in place or slip it out under the dash.
Jeffbucc is offline   Reply With Quote
Old 01-31-2014, 10:15 PM   #1012
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

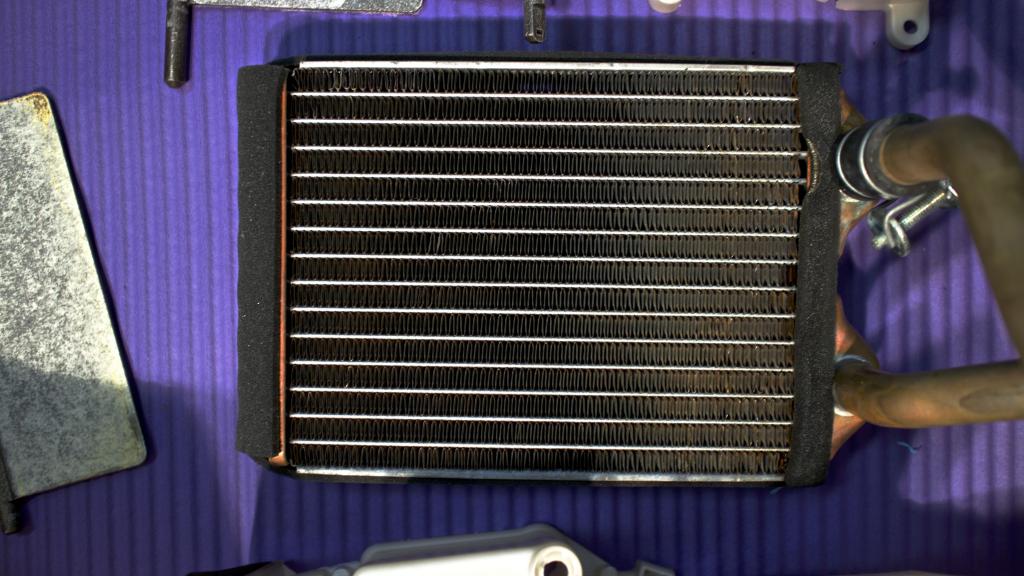

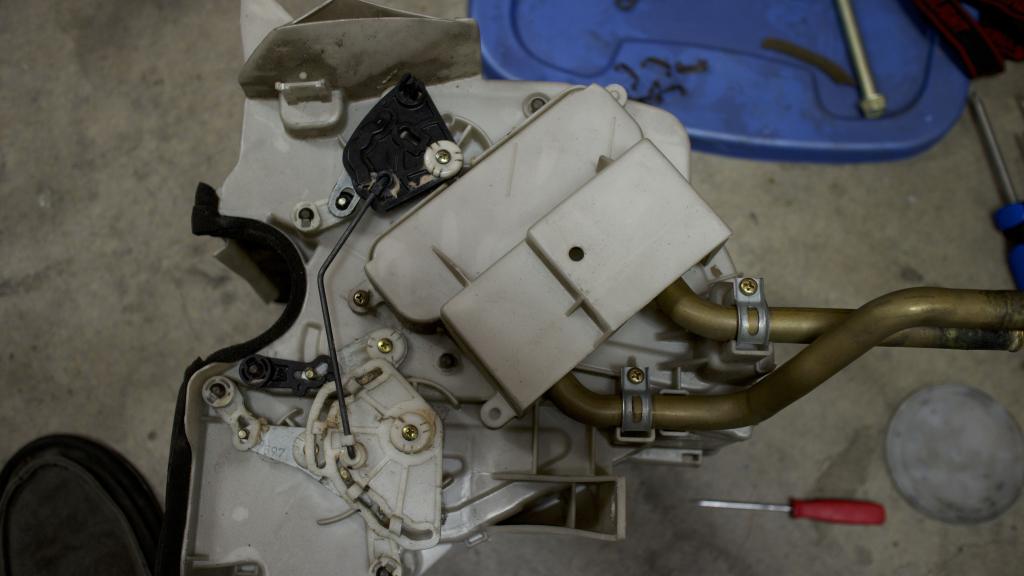

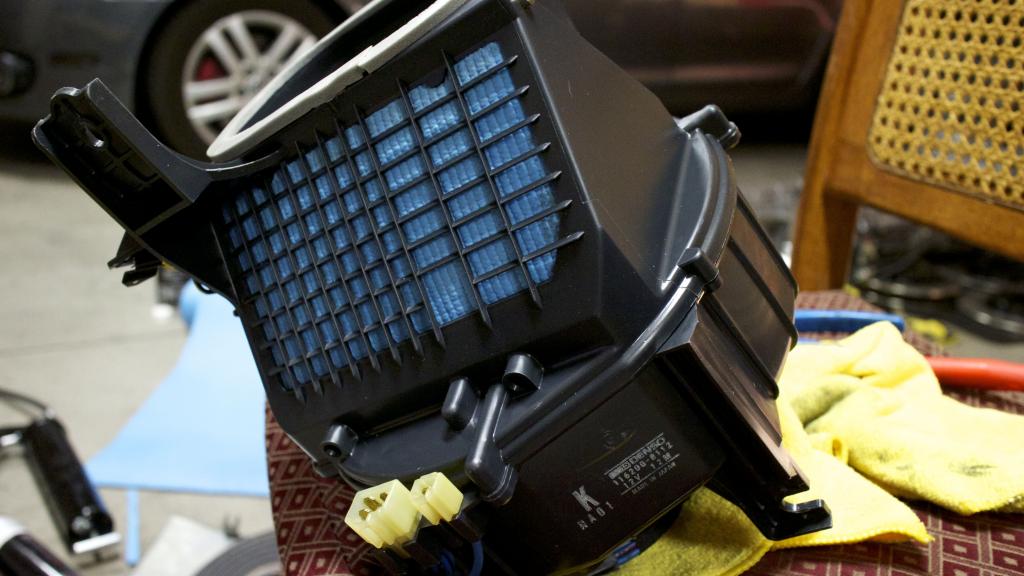

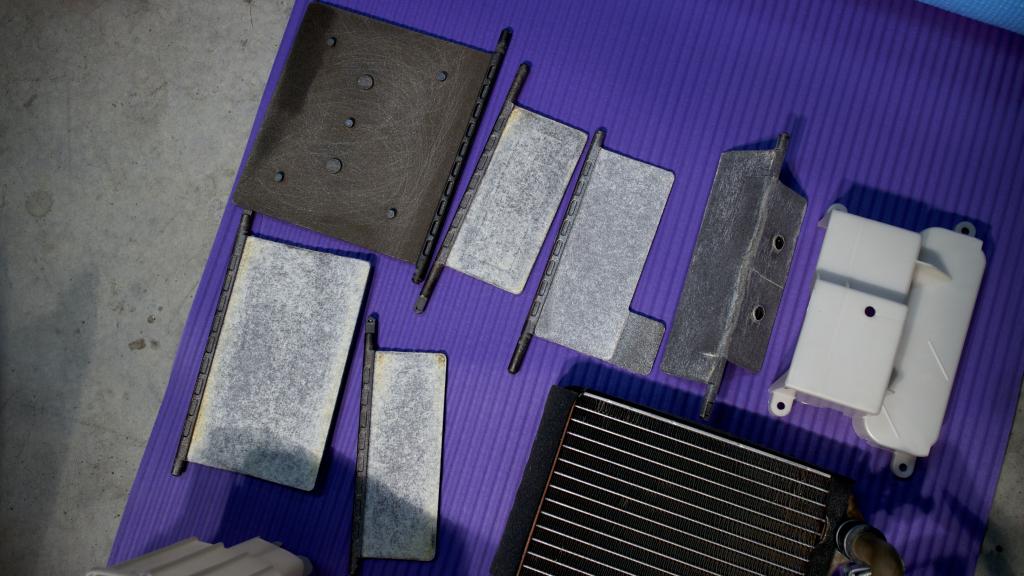

Been having a case of the lazies today so not much done other then tearing apart the heater core and cleaning all the old foam off of it, cleaning all the old grease and dirt, and getting it ready for new foam and reassembly.











Sprayed out all the old coolant and bent all the fins straight again.



ready for foam.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_1369.jpg   93' Miata stolen and flipped build thread-img_1373.jpg   93' Miata stolen and flipped build thread-img_1375.jpg   93' Miata stolen and flipped build thread-img_1378.jpg   93' Miata stolen and flipped build thread-img_1379.jpg

93' Miata stolen and flipped build thread-img_1380.jpg   93' Miata stolen and flipped build thread-img_1381.jpg
Jeffbucc is offline   Reply With Quote
Old 01-31-2014, 10:17 PM   #1013
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

I feel privileged these days when i get to be the first one to hit the prop button on one of your posts in this thread.
turbofan is offline   Reply With Quote
Old 01-31-2014, 10:33 PM   #1014
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by turbofan View Post
I feel privileged these days when i get to be the first one to hit the prop button on one of your posts in this thread.
First post!!! Haha. I wish I could be the one watching a thread like this sometimes rather than being the one doing all the work.

Every time I think I'm done with the dirty work something else pops up that I didn't do. Can't wait to have all the cleaning and restoration part of this build done. It has been the thing that has slowed me to a halt the past week.

I was going to start the subframe reassembly but I ran out of Amsoil Dominator grease so I can't do the bushings till my order ships. Can't believe I went through a whole tube of it already.
Jeffbucc is offline   Reply With Quote
Old 02-01-2014, 03:10 AM   #1015
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

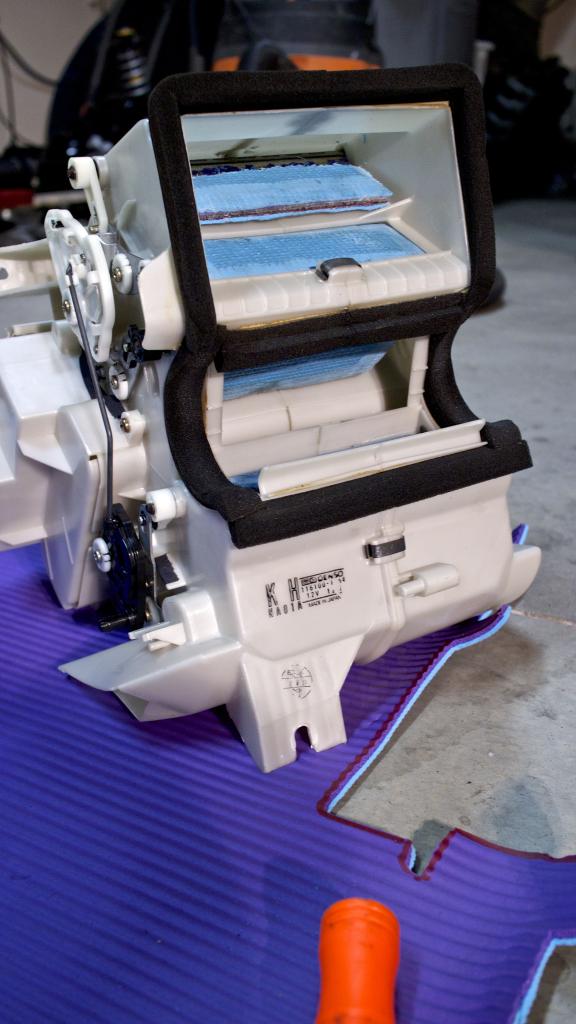

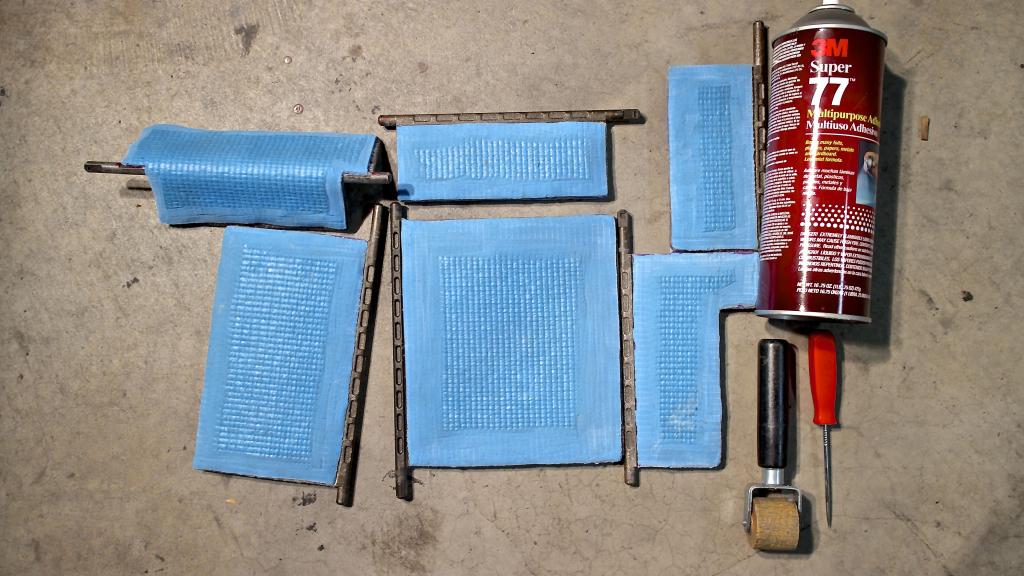

All cut to size and ready to install. Used a dremmel to angle to the edges so that it will close flushly. The yoga matt is just a little too stiff for the edges to compress and seal so you need to cut them down a couple millimeters so that it is a perfect seal.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_1385.jpg
Jeffbucc is offline   Reply With Quote
Old 02-01-2014, 03:56 AM   #1016
Senior Member
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

Damn! Your OCD beats mine! Props! Loving this build, er restoration.
99mx5 is offline   Reply With Quote
Old 02-01-2014, 07:00 AM   #1017
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by 99mx5 View Post
Damn! Your OCD beats mine! Props! Loving this build, er restoration.
Haha thanks, I'm guessing you considered this and then you were smart enough to stop and back away?

I am not so smart.

Took a lot of trial and error getting the fitment right so that everything opened and closed correctly. Amazing how complicated an HVAC system is. I can't even imagine how much harder more modern cars are.

Tracks all cleaned up and fresh grease applied. Stuck a tiny bit of friction tape under the metal arm after shaking it a bit and seeing how bad it would rattle with just me shaking it.

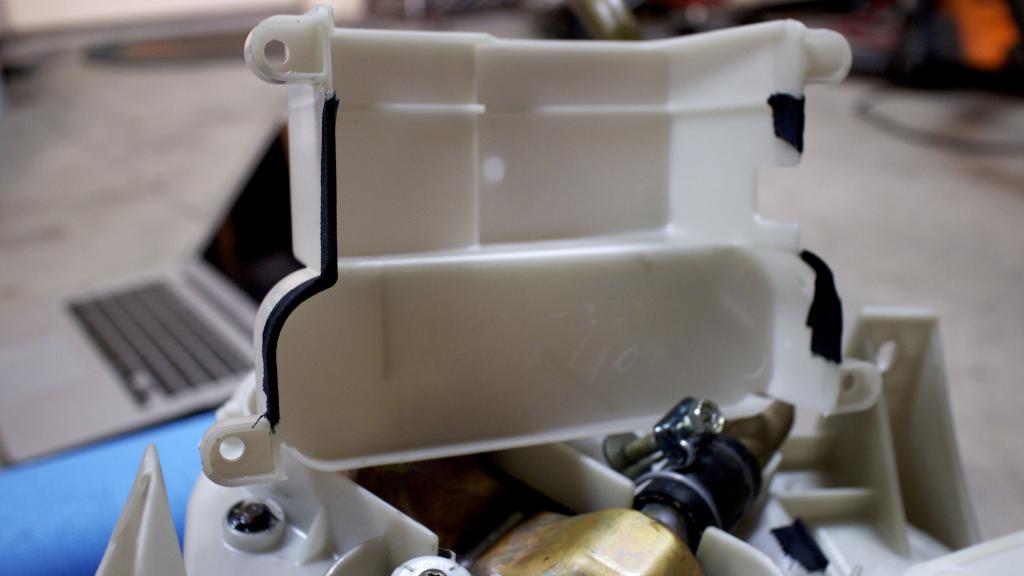

Another rattle spot on the heater core cover
