Old 02-17-2014, 12:30 AM   #1221
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Oh well. I'll probably see if I can just remove the lower leg bolts and pry it out of the way a little.

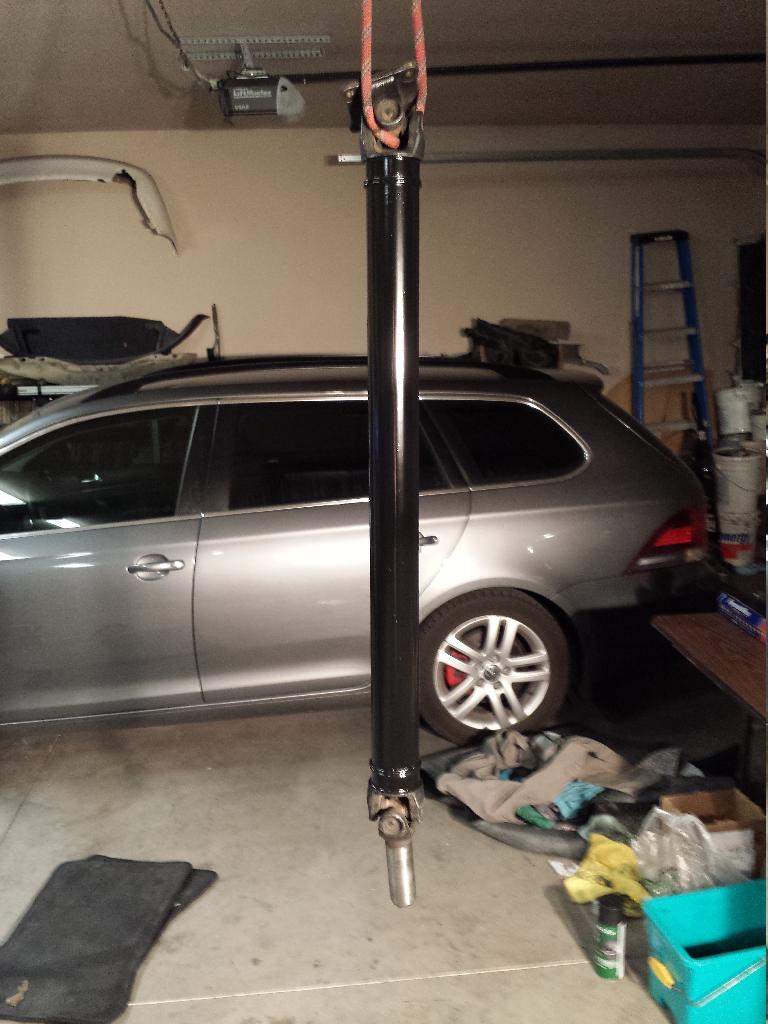

Driveshaft sanded to pull the rust off and given a quick lick of paint.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_20140216_212841.jpg
Jeffbucc is offline   Reply With Quote
Old 02-17-2014, 01:29 AM   #1222
Senior Member
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

Quote:
Originally Posted by Jeffbucc View Post
... Laziness makes me want...
At this point, laziness is not an option. Let the OCD flow.
99mx5 is offline   Reply With Quote
Old 02-17-2014, 02:07 AM   #1223
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by 99mx5 View Post
At this point, laziness is not an option. Let the OCD flow.
I want to let the laziness flow...This OCD hurts after a while!
Jeffbucc is offline   Reply With Quote
Old 02-17-2014, 06:49 AM   #1224
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

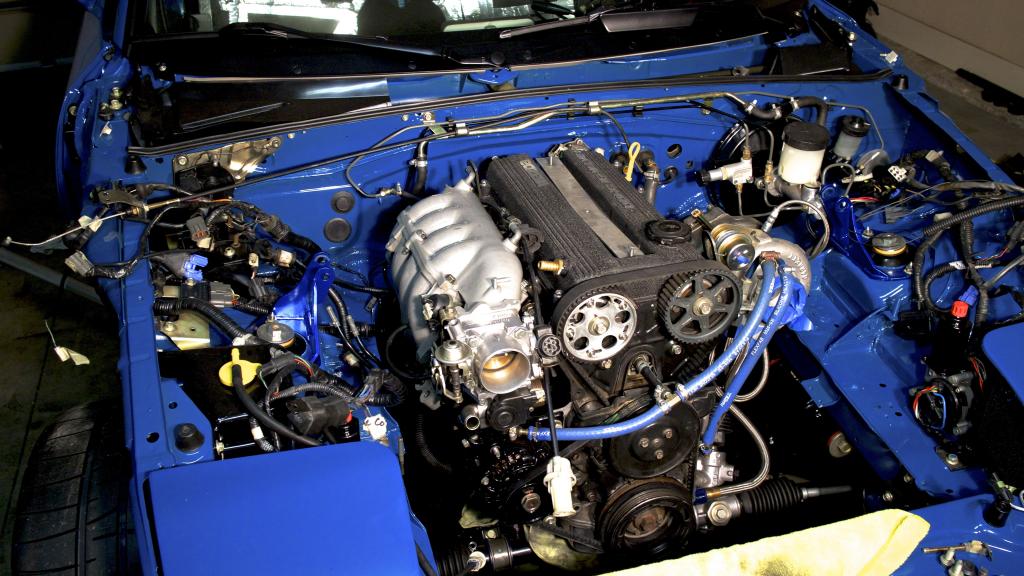

Well that wasn't fun. I still need to put on the passenger motor mount and then go to the hardware store to find a 14mm flare nut. I cant seem to find one with the right thread pitch and diameter.

Also need to install the PPF, but Ill do that tomorrow.

But it is in, and I did it solo for better or worse. Sorry for no pictures, it was a stress-filled hour trying to get it in with out damaging anything in the process. I should have waited for my brother tomorrow....but, for some reason I wanted to do it by myself. I have done the rest of the car myself, might as well make life harder and do this myself!

First time I dropped it in I didn't realize that it wouldn't fit with both motor mounts still attached to the engine. So after winching it back up and removing the passenger mount, it dropped right in.

So weird that I can't find that other 14mm flare nut.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_1734.jpg

Last edited by Jeffbucc; 02-17-2014 at 07:00 AM.
Jeffbucc is offline   Reply With Quote
Old 02-17-2014, 11:15 AM   #1225
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

I haven't checked this thread in a week and I missed EIGHT pages. Insanity.

Steering wheel: Just refinish the leather yourself. It's extremely easy.
revlimiter is offline   Reply With Quote
Old 02-17-2014, 11:24 AM   #1226
Crumple Zone Tester
iTrader: (6)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,528
Total Cats: 392
Default

Quote:
Originally Posted by Jeffbucc View Post
So weird that I can't find that other 14mm flare nut.
You're going to finish this build, take it out for the maiden voyage, and then stare at the dashboard as you hear a faint rattle that grows louder and louder as you contemplate its source and wonder why could you never find that 14mm flare nut.
mgeoffriau is online now   Reply With Quote
Old 02-17-2014, 11:28 AM   #1227
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

So what led you to run water into the mixing manifold rather than block it off and run a straight shot to the cold side?
ScottyP3821 is offline   Reply With Quote
Old 02-17-2014, 11:42 AM   #1228
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by ScottyP3821 View Post
So what led you to run water into the mixing manifold rather than block it off and run a straight shot to the cold side?
Honestly? No idea. I haven't looked into his coolant routing very much.
Jeffbucc is offline   Reply With Quote
Old 02-17-2014, 12:19 PM   #1229
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: Allen, TX
Posts: 86
Total Cats: 8
Default

Looking good! Only thing I didn't like was the overflow tank. Just get a nice new white one from the dealer. The painted on looks, well.... painted as opposed to the clean OEM look everything else is.
black roadster is offline   Reply With Quote
Old 02-17-2014, 02:09 PM   #1230
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Who cleans/restores seat belts?

Seriously

Who does this?

I am so utterly impressed every time I open this thread
Efini~FC3S is offline   Reply With Quote
Old 02-17-2014, 02:16 PM   #1231
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,667
Total Cats: 227
Default

I've said it before, but this thread has gone from impressive to disgusting. I love you Jeff, but i really don't know how you will even enjoy this car with your level of OCD. Good luck, lol.

In for first start :P
Fireindc is offline   Reply With Quote
Old 02-17-2014, 02:57 PM   #1232
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by revlimiter View Post
Steering wheel: Just refinish the leather yourself. It's extremely easy.
True, I was going to rewrap it but after seeing the results from refinishing your Protipo I'll go that direction. Especially since mine isn't nearly as gnarly as yours. Did you buy a kit with everything all together?

Quote:
Originally Posted by black roadster View Post
Looking good! Only thing I didn't like was the overflow tank. Just get a nice new white one from the dealer. The painted on looks, well.... painted as opposed to the clean OEM look everything else is.
I'll replace it some time later, it works for now and it doesn't bother me that much honestly.

Quote:
Originally Posted by Efini~FC3S View Post
Who cleans/restores seat belts?
Seriously
Who does this?
I am so utterly impressed every time I open this thread
You'd see my point of view if you were standing next to me when all the **** started to ooze out of the seat belts. It was honestly disgusting.

The restoration part? Yeah, that was crazy even for me.

Quote:
Originally Posted by Fireindc View Post
I've said it before, but this thread has gone from impressive to disgusting. I love you Jeff, but i really don't know how you will even enjoy this car with your level of OCD. Good luck, lol.

In for first start :P
I'm ok with being disgusting.

I've already said it multiple times but I'm only being this OCD once. I'll maintain things and clean them and detail them as I own the car over its life, but I won't go to this detail ever again until something needs to be replaced or fixed.

I was talking to my dad about this earlier this week and he agreed it is better to do it this way when you are "in that mode for restoration and cleaning" since you have no rush to do it, and you might as well do it while you have the part out of the car already.

The problem with restoring a car is you have to pick your baseline. if you start restoring your car at 6/10ths you have room to fluctuate between that and perfection.

When you start at 10/10ths, you have to keep adding to the craziness since the parts that you DON'T do perfect become an eye-sore to otherwise perfect surroundings.

Saying that, as much as I know I have to put the seat belts back in. I really don't want to tear apart the roll bar since it is such an awkward job for one person.

Saying all that, this is how I feel after a session of working on the car.



Attached Thumbnails
93' Miata stolen and flipped build thread-ted-mosby-something-wrong-me.gif   93' Miata stolen and flipped build thread-tumblr_m4h3okk75r1rwcc6bo1_500.gif   93' Miata stolen and flipped build thread-bradley-cooper-awkward.gif
Jeffbucc is offline   Reply With Quote
Old 02-17-2014, 03:03 PM   #1233
curiouser and curiouser
iTrader: (3)

dieselmiata's Avatar

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 139
Default

I've been doing the "OCD" cleaning myself, including the washing of the seatbelts so I absolutely understand why you are doing this. You've made much more progress in a much shorter time than I have, that's for sure.

It's good to see someone who hates a dirty piece of equipment as much as I do.

This is officially my favorite thread.
dieselmiata is offline   Reply With Quote
Old 02-17-2014, 03:09 PM   #1234
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Thanks Diesel, crazy understands crazy.


So I have a question about the timing of the engine. Do I need to worry about timing being off at all, if I have never removed the timing belt? Just want to make sure.
Jeffbucc is offline   Reply With Quote
Old 02-17-2014, 03:16 PM   #1235
curiouser and curiouser
iTrader: (3)

dieselmiata's Avatar

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 139
Default

If you never removed the belt, everything should be fine.
dieselmiata is offline   Reply With Quote
Old 02-17-2014, 03:18 PM   #1236
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,667
Total Cats: 227
Default

Quote:
Originally Posted by Jeffbucc View Post
Thanks Diesel, crazy understands crazy.


So I have a question about the timing of the engine. Do I need to worry about timing being off at all, if I have never removed the timing belt? Just want to make sure.
mechanical timing should be spot on, BUT i always recommend verifying the timing with MS before you hit big boosts.
Fireindc is offline   Reply With Quote
Old 02-17-2014, 04:27 PM   #1237
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Doesn't hurt to check timing at this stage. Do the following:

1. Turn the cranshaft bolt clockwise until the mark on the damper lines up with 0 degrees.
2. Verify that the camshaft sprockets are in the correct relationship to the indentations on the rear, sheet metal shield (I next to I, E next to E). They aren't? Then turn the crankshaft bolt on full turn and look again.
3. Remove the #1 spark plug, stick your dipstick into the hole (i.e., the engine's dipstick into the spark plug hole you perv), and verify the piston is at TDC.

All of the above good? Then proceed with confidence. And, once you're running, double check that MS's timing is correct.
hornetball is offline   Reply With Quote
Old 02-17-2014, 07:22 PM   #1238
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Efini~FC3S View Post
Who cleans/restores seat belts?

Seriously

Who does this?

I am so utterly impressed every time I open this thread
Luke this one is for you.

You know how I always say I never go into a project thinking I'm going to fully tear it apart and rebuild it so it is perfect?
.
.
.

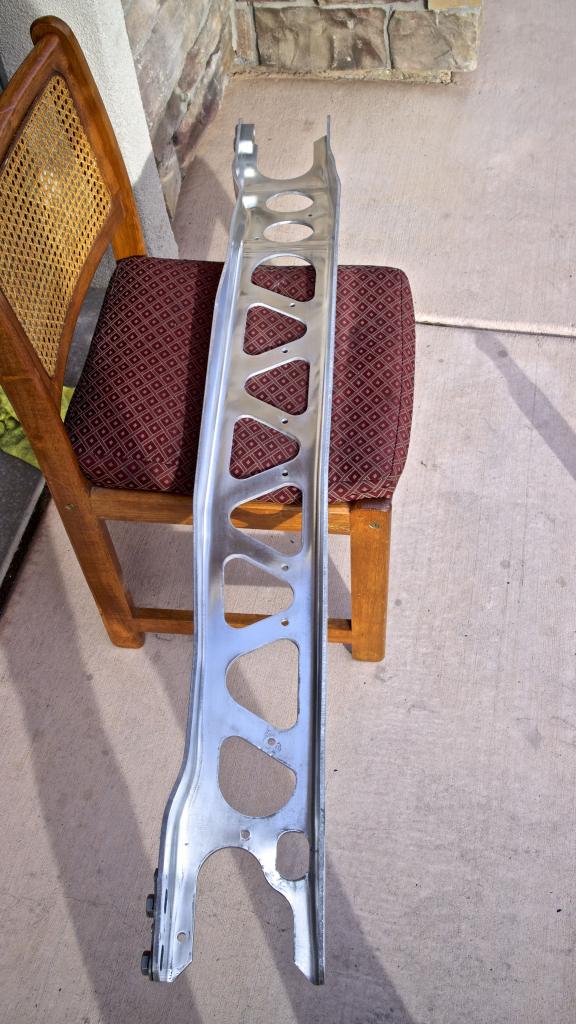

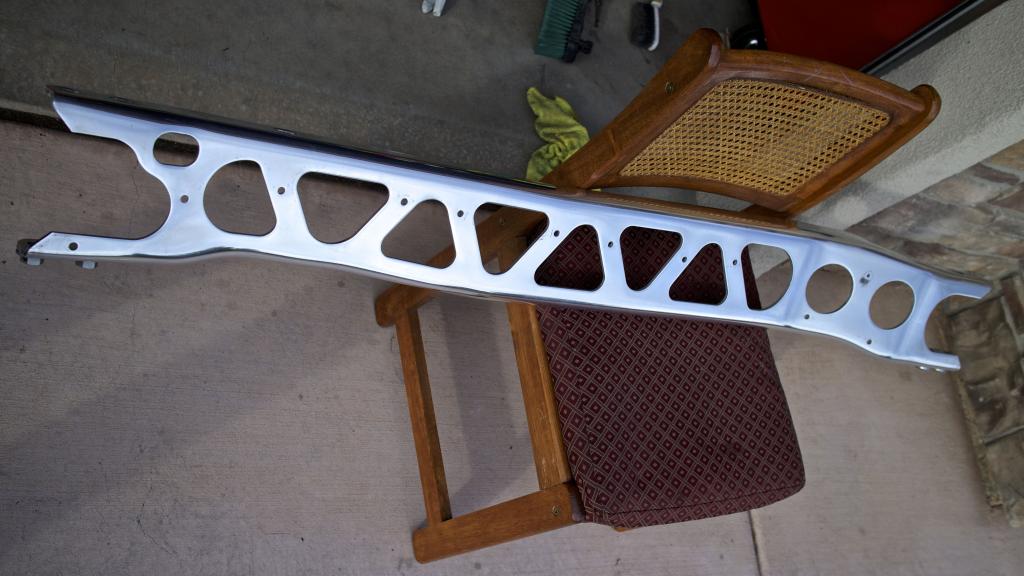

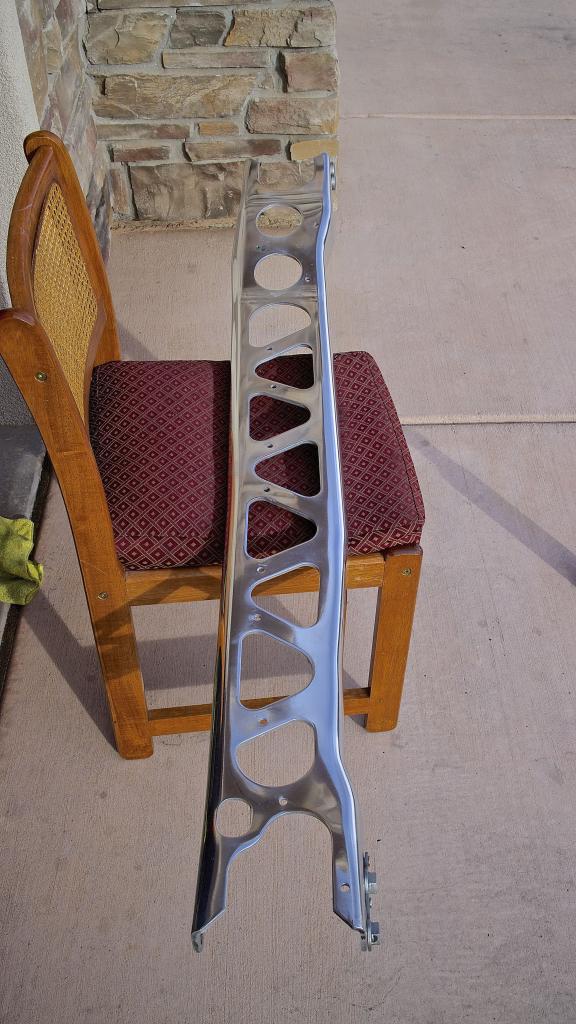

This one was on the "list" for a long time but I didn't want to do it until I was ready to install it due to it being scratched up a ton just sitting in the garage.

Wet sanded with 400
Wet sanded with 1000
Copious amounts of aluminum polish
2 layers of Menzerna Powerlock sealant

This is my "bling" for the bottom of the car. I know it will only last a couple drives but it made me happy to do it; so...that is all that matters!

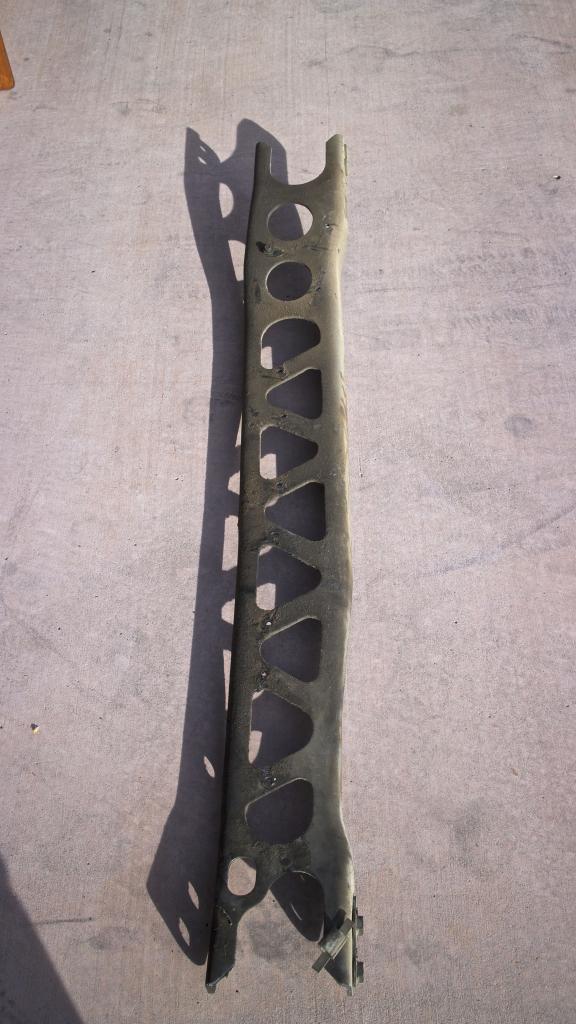

Before

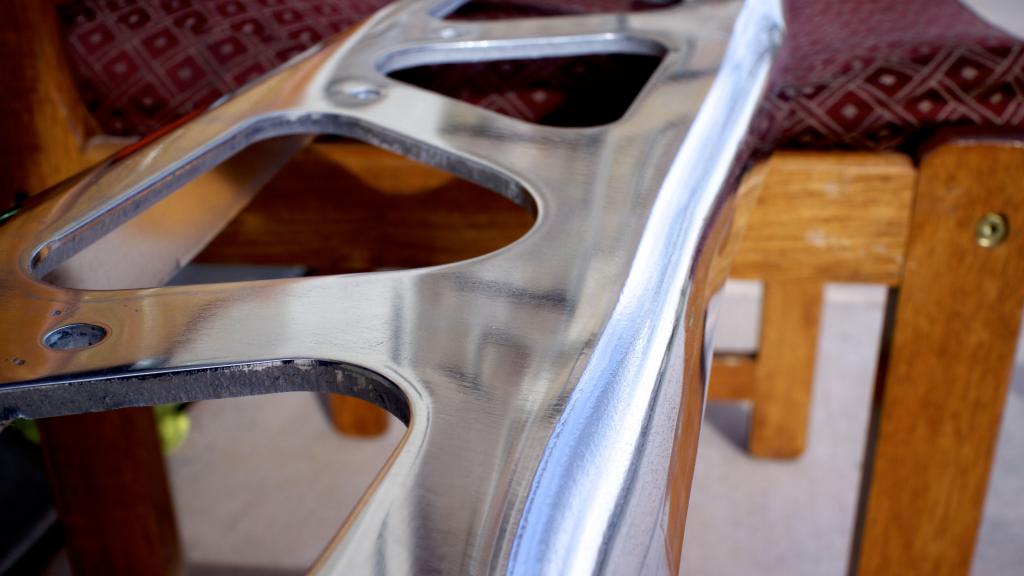

After







Attached Thumbnails
93' Miata stolen and flipped build thread-img_1738.jpg   93' Miata stolen and flipped build thread-img_1741.jpg   93' Miata stolen and flipped build thread-img_1742.jpg   93' Miata stolen and flipped build thread-img_1743.jpg   93' Miata stolen and flipped build thread-img_1745.jpg

Jeffbucc is offline   Reply With Quote
Old 02-17-2014, 07:31 PM   #1239
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

Attached Thumbnails
93' Miata stolen and flipped build thread-tumblr_m4cw81puua1r1vcx3.gif
turbofan is offline   Reply With Quote
Old 02-17-2014, 07:38 PM   #1240
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Oh... My... God...

I'm shocked each and every time I see an update!
BTMiata is offline   Reply With Quote
