Looks great man! Why go through the effort of making the cops PnP? I just hacked that plug off and wired them straight in. At this point if i EVER sell my car (no plans to) it's going to have to go with the MS installed at least anyways.
Fireindc is offline   Reply With Quote
Old 03-10-2014, 10:30 AM   #1522
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

Quote:
Originally Posted by Jeffbucc View Post
I'm guessing this is the adjustable fuel regulator? Has a bolt on the back of it that a ton of grounds bolt on to.

Can't see an AFPR in the pic? Only the stock FPR in the top of the pic.
Vuti is offline   Reply With Quote
Old 03-10-2014, 10:33 AM   #1523
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Vuti View Post
Can't see an AFPR in the pic? Only the stock FPR in the top of the pic.
The one in the middle of the picture with the Mitsubishi symbol on the top of the ****.

Quote:
Originally Posted by Fireindc View Post
Looks great man! Why go through the effort of making the cops PnP? I just hacked that plug off and wired them straight in. At this point if i EVER sell my car (no plans to) it's going to have to go with the MS installed at least anyways.
No clue man. Stick to the status quo I guess. I suck at wiring, so I figured it best to follow how it was down originally rather than get myself in trouble. In the words of Garth, "we fear change".
Jeffbucc is offline   Reply With Quote
Old 03-10-2014, 10:35 AM   #1524
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,668
Total Cats: 227
Default

Quote:
Originally Posted by Jeffbucc View Post
The one in the middle of the picture with the Mitsubishi symbol on the top of the ****.



No clue man. Stick to the status quo I guess. I suck at wiring, so I figured it best to follow how it was down originally rather than get myself in trouble. In the words of Garth, "we fear change".
lmfao, awesome man. Well, it's well done just like everything else, so props. Did you start this thing yet? :P
Fireindc is offline   Reply With Quote
Old 03-10-2014, 10:36 AM   #1525
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

Quote:
Originally Posted by Jeffbucc View Post
The one in the middle of the picture with the Mitsubishi symbol on the top of the ****.
That's your PRC valve for hot restarts or you VICS solenoid. You can remove it or not.
You don't have an adjustable fuel pressure regulator.

EDIT: Yeah that's the VICS in your case
Vuti is offline   Reply With Quote
Old 03-10-2014, 10:38 AM   #1526
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,484
Total Cats: 79
Default

Quote:
Originally Posted by Jeffbucc View Post
I'm guessing this is the adjustable fuel regulator? Has a bolt on the back of it that a ton of grounds bolt on to.

FPR has no wires to it only a vacuum line.
Zaphod is offline   Reply With Quote
Old 03-10-2014, 10:42 AM   #1527
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Fireindc View Post
lmfao, awesome man. Well, it's well done just like everything else, so props. Did you start this thing yet? :P
No clue on first start time dude. I still need to:
-Fix all the wiring issues with the MS3
-Wire in the new analog AEM AFR/Boost gauge
-Hook the intercooler up
-Probably need to order new silicone pipes since the intercooler is so much wider and the intake manifold piping has a lot of pin holes in the metal(soft steel).
-put the dash in once I finish the wiring.
-Actually put some gas in the tank.
-Pray to god that my battery isn't flat after sitting there for 5 months(probably need to put it on a battery tender)
Jeffbucc is offline   Reply With Quote
Old 03-10-2014, 10:43 AM   #1528
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,668
Total Cats: 227
Default

Quote:
Originally Posted by Jeffbucc View Post
No clue on first start time dude. I still need to:
-Fix all the wiring issues with the MS3
-Wire in the new analog AEM AFR/Boost gauge
-Hook the intercooler up
-Probably need to order new silicone pipes since the intercooler is so much wider and the intake manifold piping has a lot of pin holes in the metal(soft steel).
-put the dash in once I finish the wiring.
-Actually put some gas in the tank.
-Pray to god that my battery isn't flat after sitting there for 5 months(probably need to put it on a battery tender)
So.. sometime this afternoon then?

JK, but I'm stoked to see this thing run soon. I can taste it.
Fireindc is offline   Reply With Quote
Old 03-10-2014, 10:47 AM   #1529
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

Quote:
Originally Posted by Jeffbucc View Post
Thanks Vuti, where would one transfer the ground location to? About 7 wires are grounded to the PRC. I'm guessing the stud on the firewall?
Don't remove it
That's the VICS solenoid and you need it if you want to operate the flaps in the IM.

That same solenoid is used as a PRC depending on the engine...
Vuti is offline   Reply With Quote
Old 03-10-2014, 12:15 PM   #1530
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

Man, the engine shots took me a minute to figure exactly what was going on there... BP4W with CAS, M-Tuned fuel rail and stock FPR? Is that right? Not enough coffee yet this morning.

If the above is the case, is that a FM adapter to 1.6 TB with the On/Off TPS?

You FPR is the cylindrical object with the silver and blue sticker bolted to the fuel rail. It's got a vacuum line coming out of it. I'm actually wondering what FPR that is, because the 4W does not have a return with a regulator under the hood. As stated before, the thing with the Mitsubishi symbol on it is the VICS solenoid, but that's not a **** AFAIK.
EO2K is offline   Reply With Quote
Old 03-10-2014, 12:45 PM   #1531
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by EO2K View Post
Man, the engine shots took me a minute to figure exactly what was going on there... BP4W with CAS, M-Tuned fuel rail and stock FPR? Is that right? Not enough coffee yet this morning.

If the above is the case, is that a FM adapter to 1.6 TB with the On/Off TPS?

You FPR is the cylindrical object with the silver and blue sticker bolted to the fuel rail. It's got a vacuum line coming out of it. I'm actually wondering what FPR that is, because the 4W does not have a return with a regulator under the hood. As stated before, the thing with the Mitsubishi symbol on it is the VICS solenoid, but that's not a **** AFAIK.
It's probably the stock NA regulator.

Our NA8 has the same exact setup. BP4W, CAS, M-Tuned rail, stock FPR.

Andd..... COPs, for that matter. Jeff, i suppose this means that if you run into issues, i might be able to help since it looks like our setups are identical.
concealer404 is offline   Reply With Quote
Old 03-10-2014, 01:01 PM   #1532
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by concealer404 View Post
Andd..... COPs, for that matter. Jeff, i suppose this means that if you run into issues, i might be able to help since it looks like our setups are identical.
Attached Thumbnails
93' Miata stolen and flipped build thread-mr_burns_excellent_0.jpg
Jeffbucc is offline   Reply With Quote
Old 03-10-2014, 01:49 PM   #1533
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by EO2K View Post
Man, the engine shots took me a minute to figure exactly what was going on there... BP4W with CAS, M-Tuned fuel rail and stock FPR? Is that right?

If the above is the case, is that a FM adapter to 1.6 TB with the On/Off TPS?
but that's not a **** AFAIK.
Yup BP4W with CAS, M-tuned rail and as Concealer said, stock regulator.

And yes, a VICS 99 intake manifold with the Flyin' Miata adapter. Not sure about the on/off TPS

The **** turns so in my head it is a ****!

Concealer, that makes me happier to know another COP setup is like mine. Takes some of the nervousness out of the equation.

Playing around with the intake manifold piping it seems like there is no way in hell I'm going to be able to squeeze the radiator piping/throttle body piping etc etc between the roll bar/radiator fans.

How many have used a thick piece of steel and clocked the radiator a little bit more vertical? Doesn't seem like it would be too difficult to even modify the OEM radiator side rails. If I had an inch or two more space I could do a lot cleaner of a setup, or at least not worry about things being jammed up against each other.

I mean just look at that jumble of pipes in the original car...gotta be a better way!



Does any vendor make a one piece silicone hose with a 90 degree bend, then 2 foot straight, then another 90 degree bend? Or should I just get a straight aluminum pipe and 2 90 degree elbows. The aluminum seems to make the most sense in my head due to the need for the BOV bung.

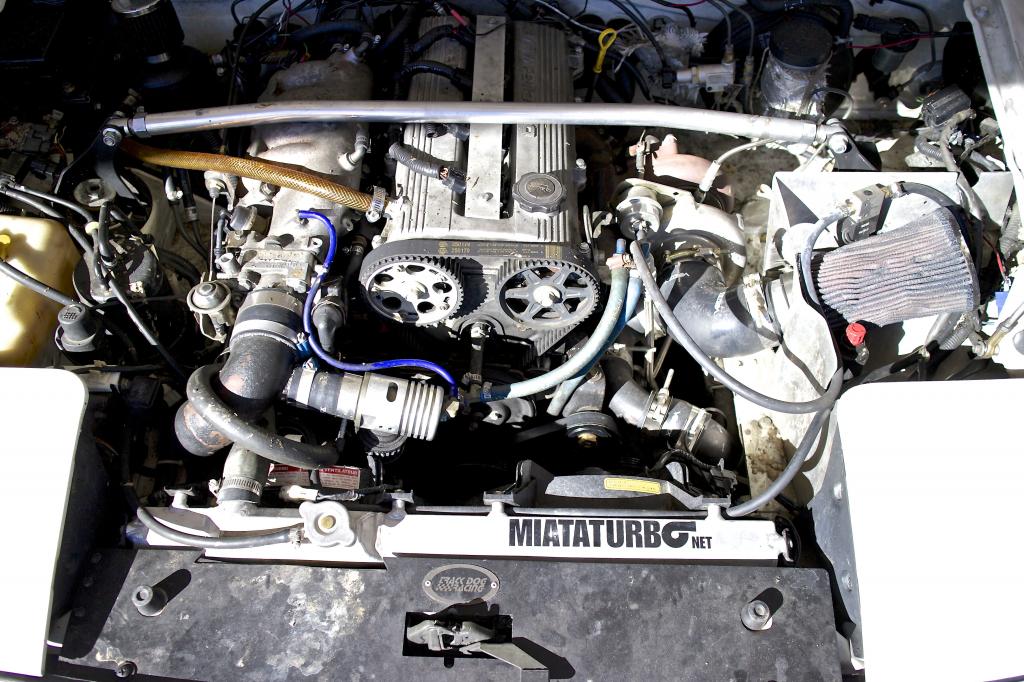

Attached Thumbnails
93' Miata stolen and flipped build thread-img_0266.jpg
Jeffbucc is offline   Reply With Quote
Old 03-10-2014, 02:00 PM   #1534
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Since you ditched the AC, you don't need the passenger-side radiator fan anymore -- unless you are rewiring for a dual-fan setup. That might buy you some room. Check out the pics on some of Emilio's cars (Crusher and the 95R). You'll see that he only uses the driver-side main cooling fan -- which is how Mazda delivered non-AC cars.
hornetball is offline   Reply With Quote
Old 03-10-2014, 02:07 PM   #1535
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by hornetball View Post
Since you ditched the AC, you don't need the passenger-side radiator fan anymore -- unless you are rewiring for a dual-fan setup. That might buy you some room. Check out the pics on some of Emilio's cars (Crusher and the 95R). You'll see that he only uses the driver-side main cooling fan -- which is how Mazda delivered non-AC cars.
Hmm interesting. That would give me tons of space.

I was going to rewire for dual fans but if one is really only necessary...hmmm. Need to think about that one.
Jeffbucc is offline   Reply With Quote
Old 03-10-2014, 02:13 PM   #1536
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

I'm not 100% sure if the COP setup is the same as ours. Just that the setup in general is.

Toyota Denso cops on ours, running full sequential.

Don't know what that FM adapter is doing, though? We don't have that.

VICS also isn't hooked up yet, need to do something about that. You know... because i need to spool a GT2554R even faster.
concealer404 is offline   Reply With Quote
Old 03-10-2014, 02:28 PM   #1537
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by concealer404 View Post
Don't know what that FM adapter is doing, though? We don't have that.

VICS also isn't hooked up yet, need to do something about that. You know... because i need to spool a GT2554R even faster.
Who knows....especially since it is a 99 I.M., seems like it shouldn't be necessary anymore now that I think about it.

Spool faster! Always better!

Jesus, I keep looking at the original cars engine bay....looks like someone just vomited parts into the bay(no offense intended Dave). It's only when I look at the original car, when I realize just how far it has come. The car has probably lost over 50+ lbs in just dirt build up.

I remember when I was pressure washing the shell in the driveway dirt just kept pouring off of it for a couple hours. Took me another hour just to clean off the garage doors, the driveway, and the street. I regret nothing!
Jeffbucc is offline   Reply With Quote
Old 03-10-2014, 04:01 PM   #1538
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 535
Total Cats: 15
Default

Quote:
Originally Posted by concealer404 View Post
I'm not 100% sure if the COP setup is the same as ours. Just that the setup in general is.

Toyota Denso cops on ours, running full sequential.

Don't know what that FM adapter is doing, though? We don't have that.

VICS also isn't hooked up yet, need to do something about that. You know... because i need to spool a GT2554R even faster.
Ben, I think they are running wasted spark, not sequential.

Also, you do not need any more tire spinning spool. It is stupid enough...
vteckiller2000 is offline   Reply With Quote
Old 03-10-2014, 04:07 PM   #1539
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by vteckiller2000 View Post
Ben, I think they are running wasted spark, not sequential.

Also, you do not need any more tire spinning spool. It is stupid enough...

Hrmm.... i need to jack into this thing this week and figure it all out.

And yes. There's VICS. It must be hooked up. More power.
concealer404 is offline   Reply With Quote
Old 03-10-2014, 04:29 PM   #1540
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,716
Total Cats: 472
Default

That's a 1.6 throttle body, adapted to the '99 intake. That engine never came with pop up headlights

You could get a '99 throttle body to free up an inch or so.
curly is offline   Reply With Quote
