Old 03-23-2014, 11:01 AM   #1761
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

OK that was a long day.

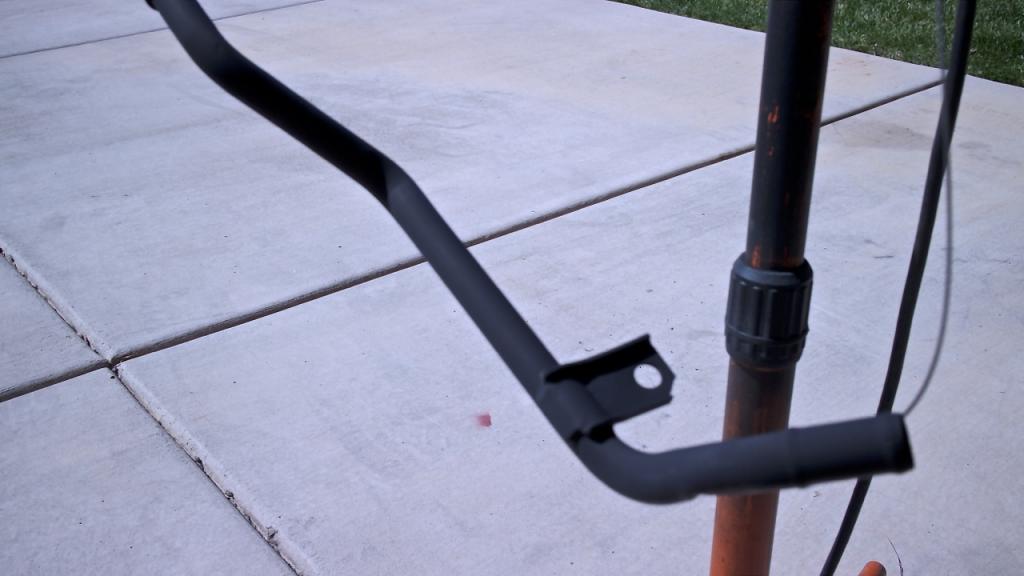

Lower coolant pipe ceramic coated. Pretty much just really high temp spray that you bake in your oven.

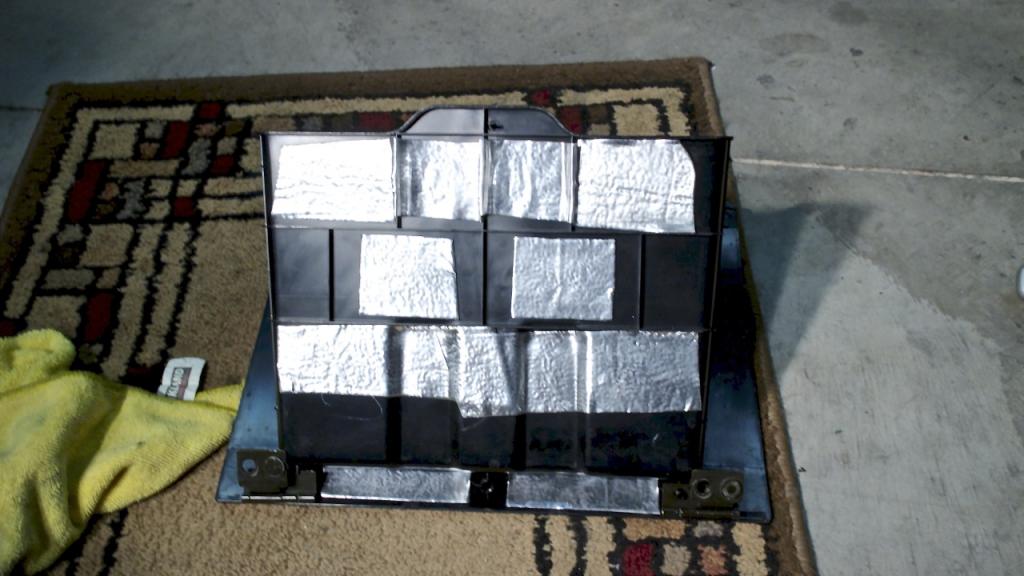

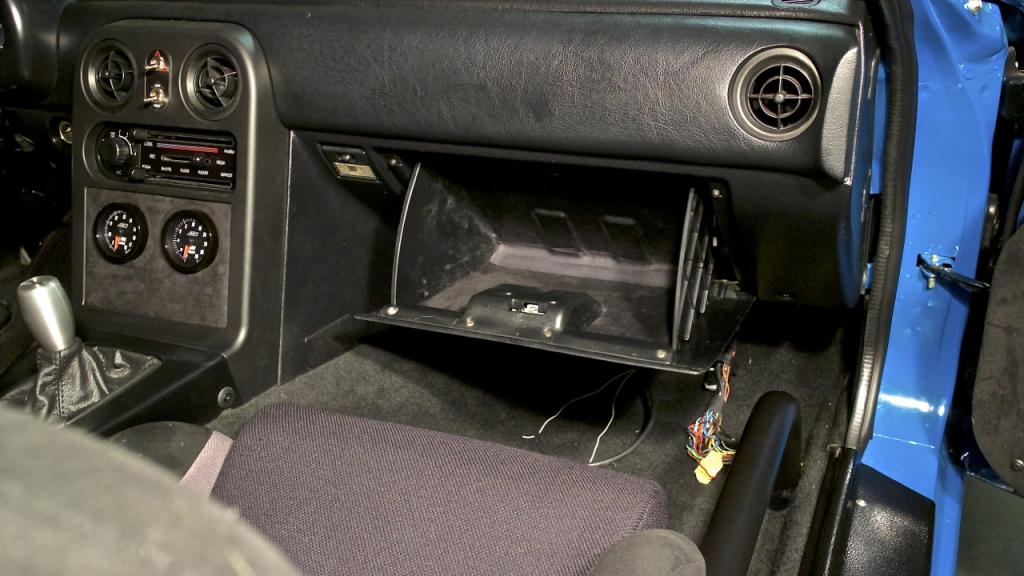

Put a little vibration dampening on the glove box



Need to clean the inside of the box but I put down some synthetic suede down in the glove box to stop anything from rattling. Looks horrible in the picture, but it looks great in person.

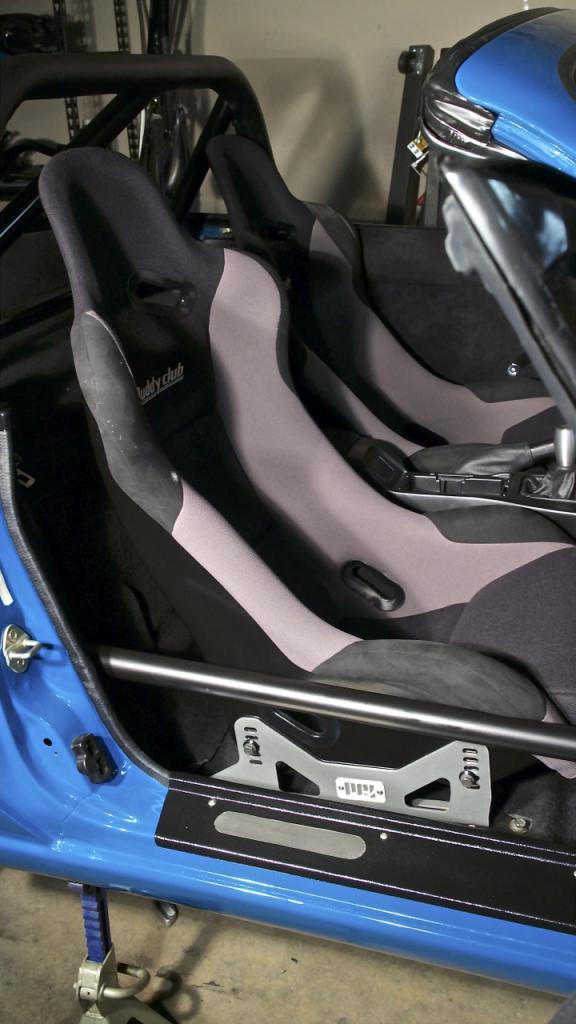

Got my seats put in. This took FOREVER. Drivers side was incredibly tight, took about 2 hours just to put it in. I had to tear the carpet padding out of the transmission tunnel and then gently persuade(read BFH) and pounded the **** out of it to give me an extra 1/2" of room.

THEN, due to how tight the brackets were to the sides of the transmission tunnel it took forever to line up all the bolts and then tighten it by little 3" turns(read 10 minutes a damn bolt). It finally went in though. Passenger side was a cinch since I didn't need the seating position as low as the drivers side.

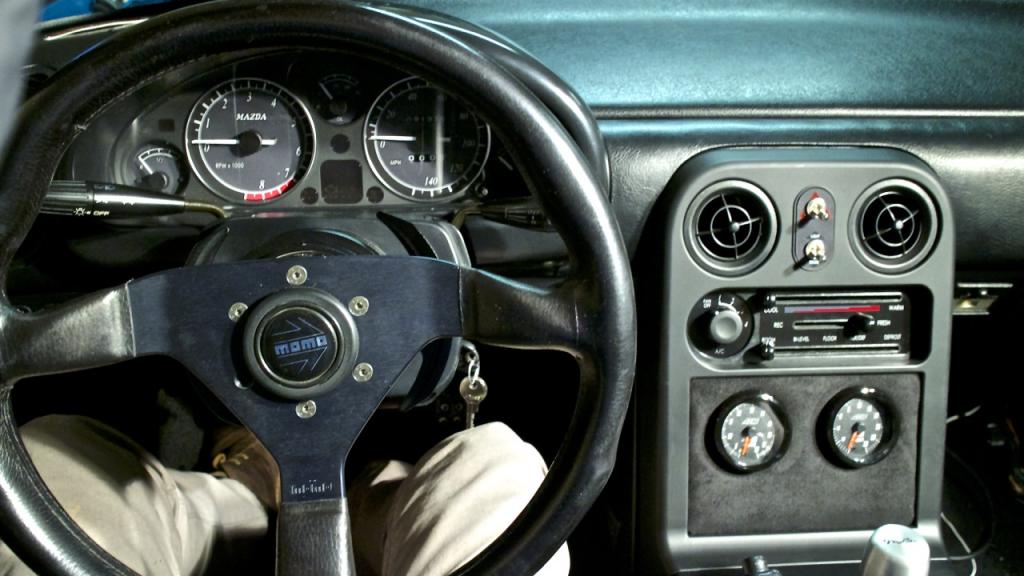

Viewing angle from the drivers side.

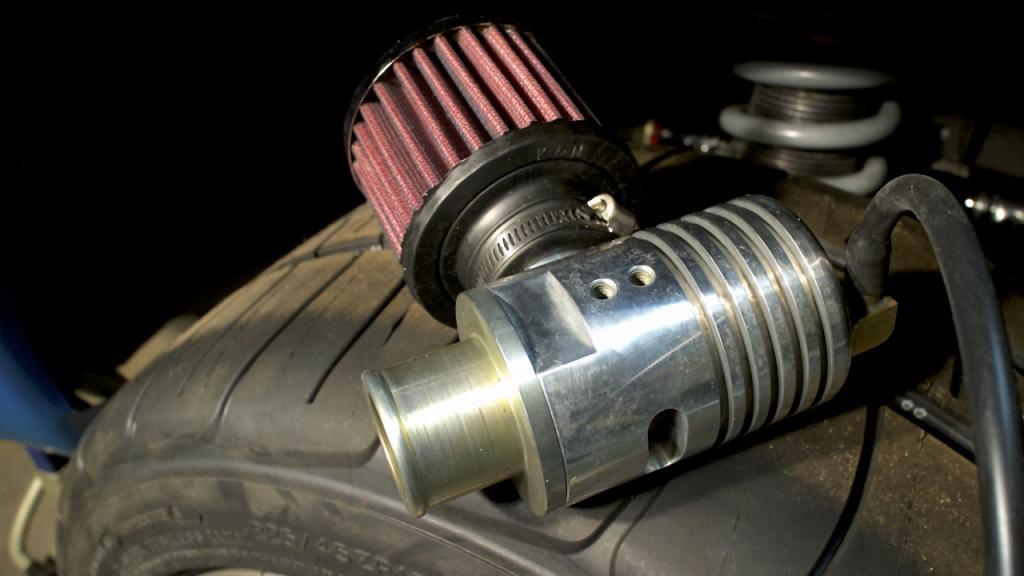

Cleaned and polished the B.O.V and put a new filter on it. Old filter was trashed.

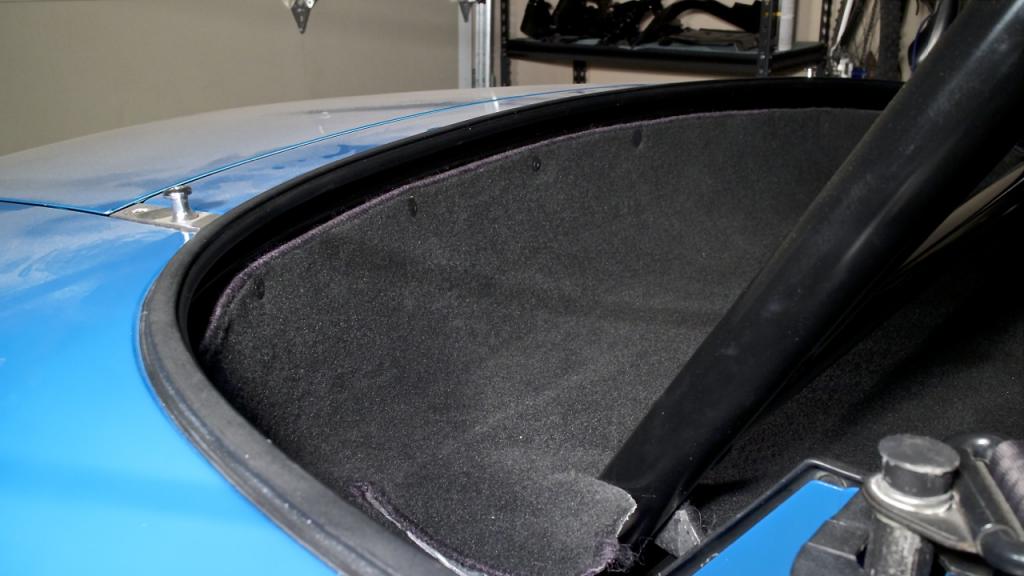

Rear finish tray carpet installed correctly.

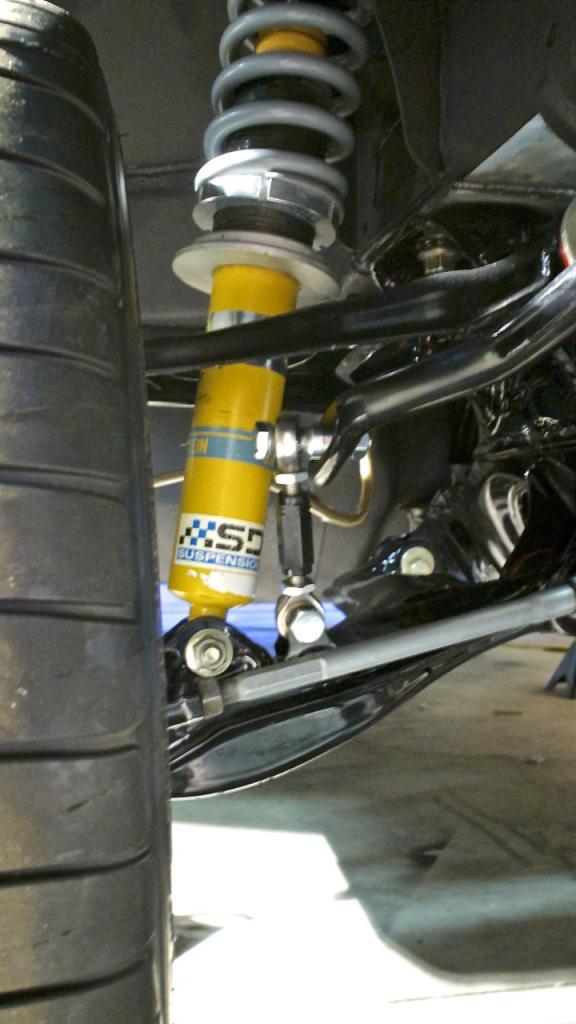

Actually used the spacers correctly on the 949 links, after jacking up each side they are perfectly 90 to the sway bar.

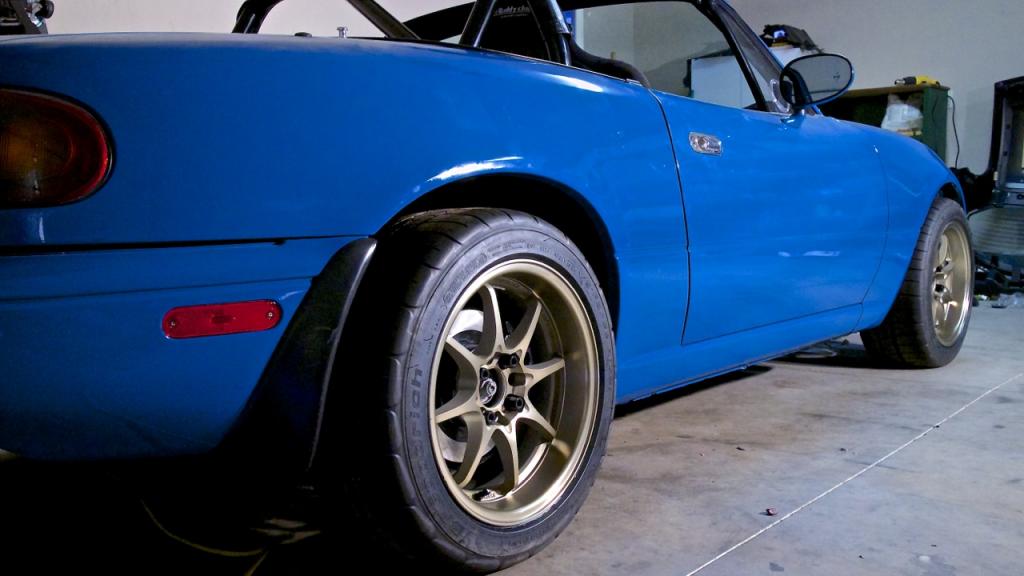

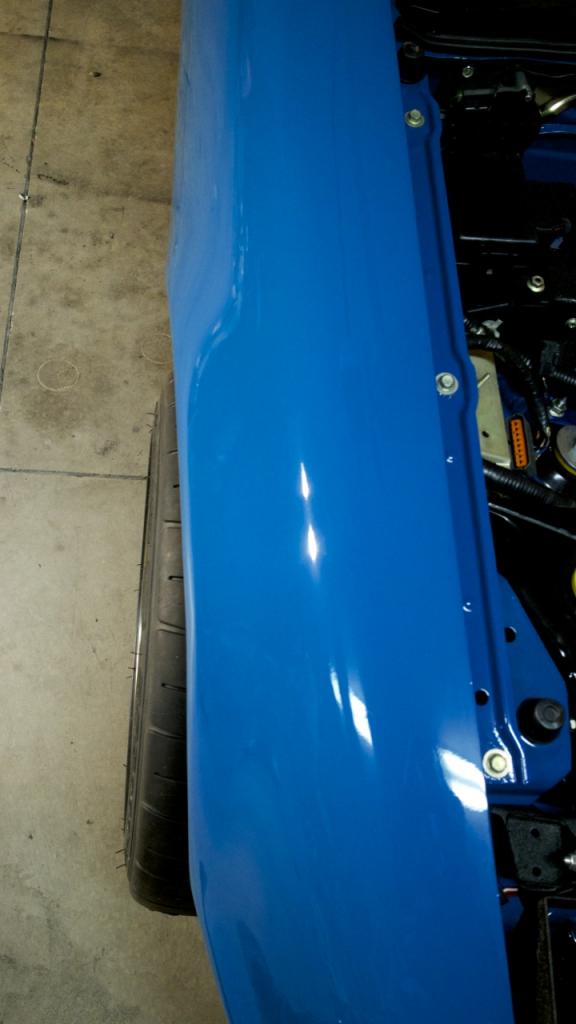

Put the fenders back on. Took a while to align it with the door properly.

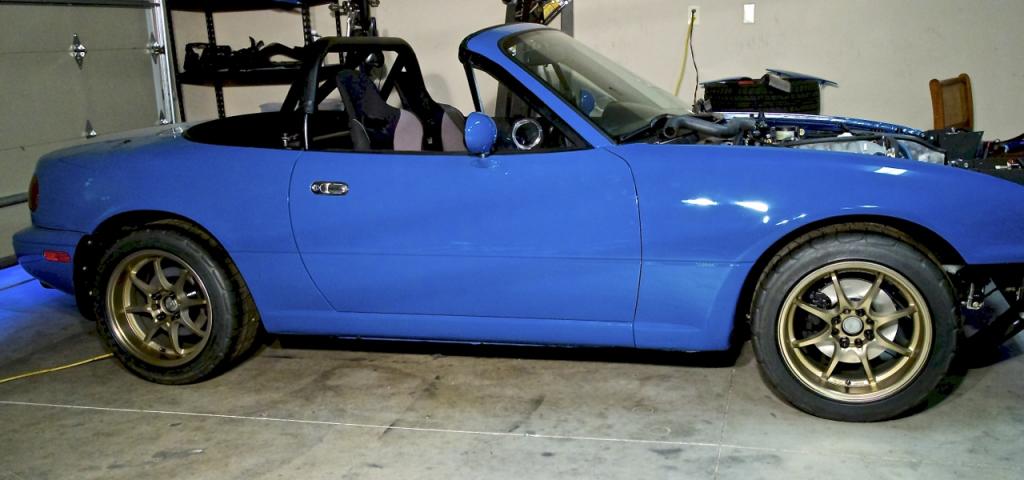

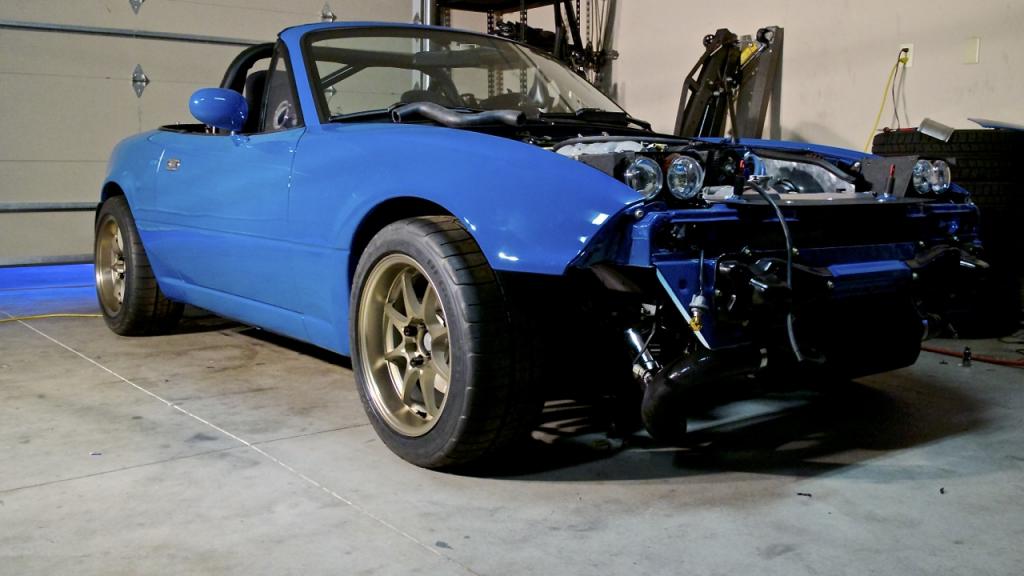

And decided to take it off the stilts and put it back on the ground, why? Why not!





Attached Thumbnails
93' Miata stolen and flipped build thread-img_2343.jpg   93' Miata stolen and flipped build thread-img_2349.jpg   93' Miata stolen and flipped build thread-img_2355.jpg   93' Miata stolen and flipped build thread-img_2351.jpg   93' Miata stolen and flipped build thread-img_2377.jpg

93' Miata stolen and flipped build thread-img_2360.jpg   93' Miata stolen and flipped build thread-img_2353.jpg   93' Miata stolen and flipped build thread-img_2359.jpg   93' Miata stolen and flipped build thread-img_2368.jpg   93' Miata stolen and flipped build thread-img_2362.jpg

93' Miata stolen and flipped build thread-img_2363.jpg   93' Miata stolen and flipped build thread-img_2365.jpg
Jeffbucc is offline   Reply With Quote
Old 03-23-2014, 11:01 AM
Jeffbucc
This message has been deleted by curly. Reason: double post
Old 03-23-2014, 11:06 AM   #1762
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Looks great!!! Anxiously waiting the first start!!
BTMiata is offline   Reply With Quote
Old 03-23-2014, 11:47 AM   #1763
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by BTMiata View Post
Looks great!!! Anxiously waiting the first start!!
Me too, me too...I can feel it in my plums!
Jeffbucc is offline   Reply With Quote
Old 03-23-2014, 12:00 PM   #1764
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Also, looking at my brakes in that photo, if I had an ounce less of self control, I'd be ordering the TSE 11.75" brake kit.

Much stop
So big
Because sorta race car
Jeffbucc is offline   Reply With Quote
Old 03-23-2014, 12:08 PM   #1765
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,290
Total Cats: 122
Default

Quote:
Originally Posted by Jeffbucc View Post
Also, looking at my brakes in that photo, if I had an ounce less of self control, I'd be ordering the TSE 11.75" brake kit.

Much stop
So big
Because sorta race car
Do you know if they fit under those Konigs? I thought I remembered the Konigs not having the clearance for them. Even if they would fit you would probably need a spacer which may result in the fenders needing to be rolled.
Ryan_G is online now   Reply With Quote
Old 03-23-2014, 12:10 PM   #1766
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
Also, looking at my brakes in that photo, if I had an ounce less of self control, I'd be ordering the TSE 11.75" brake kit.

Much stop
So big
Because sorta race car


If those fit with my Konig's I am about to get a little poorer myself!!!

**Edit** Never-mind def cant afford that yet anyway... Price was a bit deceiving at first until I realized that was only for the "Upgrade" for existing BBK owners.... Damn
BTMiata is offline   Reply With Quote
Old 03-23-2014, 01:14 PM   #1767
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,718
Total Cats: 472
Default

Double post #5,381 deleted...

I seriously don't think the 11.75" kit will fit under your wheels. I had issues with my 15" enkeis, K1s, and my current Konigs. I'm guessing our drums are the same, and they just threw in a different spoke pattern. And the drum is what was interfering with the calipers, not the spokes. So nothing a spacer would fix. If I were you, I'd just keep my wheel option open and run 11" brakes, unless you're super serious about tracking.

My wheel/tire/brake combo on Goodwin's site:

curly is offline   Reply With Quote
Old 03-23-2014, 01:21 PM   #1768
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,900
Total Cats: 775
Default

About the coolant lines... are you talking about hard mounting them to the chassis? So like engine -> chassis bracket -> turbo? That sounds like a bad idea as engine movement is going to be pulling on them every time you throttle up/down.

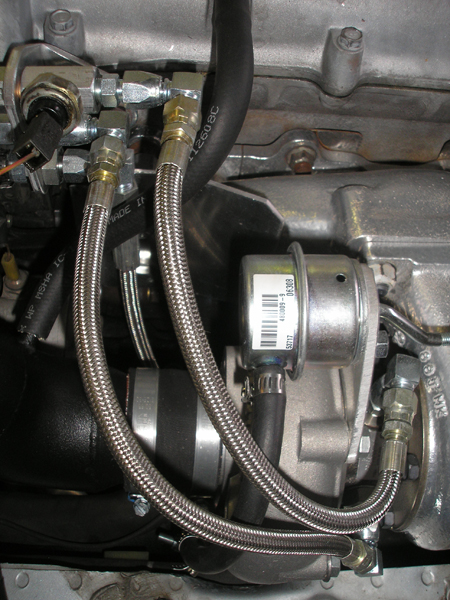

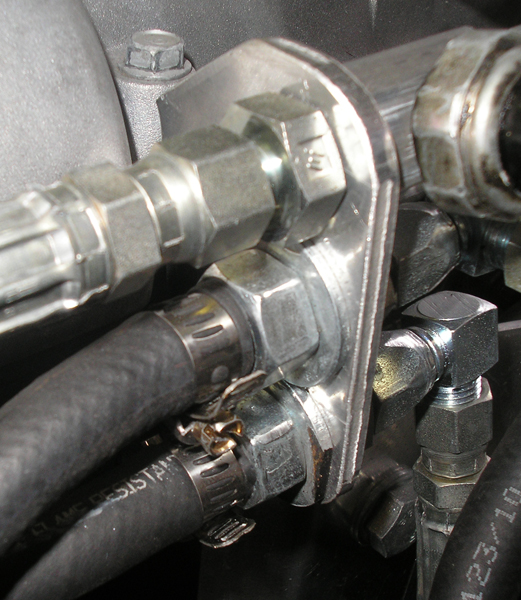

Check out what BEGI does with their line kit:





Building that aluminum bracket would be easy with basic tools, and it looks like your fittings and lines are almost the right length already.
Attached Thumbnails
93' Miata stolen and flipped build thread-a4226142.jpg   93' Miata stolen and flipped build thread-p4226145.jpg
EO2K is offline   Reply With Quote
Old 03-23-2014, 01:31 PM   #1769
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,718
Total Cats: 472
Default

For the lines, I'd honestly ditch the bulkhead fittings. They're just another place for potential leakage. Sell the water lines to someone who actually wants to put the time into a pretty bracket, or someone who doesn't care, and just buy lines long enough to go from turbo to source/return with one line.
curly is offline   Reply With Quote
Old 03-23-2014, 05:29 PM   #1770
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,084
Total Cats: 424
Default

^ that's what I'm thinking. I see that BEGI coolant setup and it looks like they thought "hmm, how can we introduce the most possible points of leakage into this system?"
turbofan is offline   Reply With Quote
Old 03-23-2014, 05:37 PM   #1771
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by turbofan View Post
^ that's what I'm thinking. I see that BEGI coolant setup and it looks like they thought "hmm, how can we introduce the most possible points of leakage into this system?"
The hard line in question was the engine coolant to heater core hose that goes under the engine towards the firewall.

Good call on the 11" brakes.

Curly I think it is the site. I never have double post problems elsewhere.
Jeffbucc is offline   Reply With Quote
Old 03-23-2014, 07:17 PM   #1772
Junior Member

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

Nice! Now close that wheel gap a bit!
Yezzir is offline   Reply With Quote
Old 03-23-2014, 10:44 PM   #1773
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Yezzir View Post
Nice! Now close that wheel gap a bit!
I think it will settle once I drive it, I hope at least.
Jeffbucc is offline   Reply With Quote
Old 03-24-2014, 11:06 AM   #1774
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Quote:
Originally Posted by Jeffbucc View Post
I think it will settle once I drive it, I hope at least.

it will
ScottyP3821 is offline   Reply With Quote
Old 03-24-2014, 12:36 PM   #1775
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

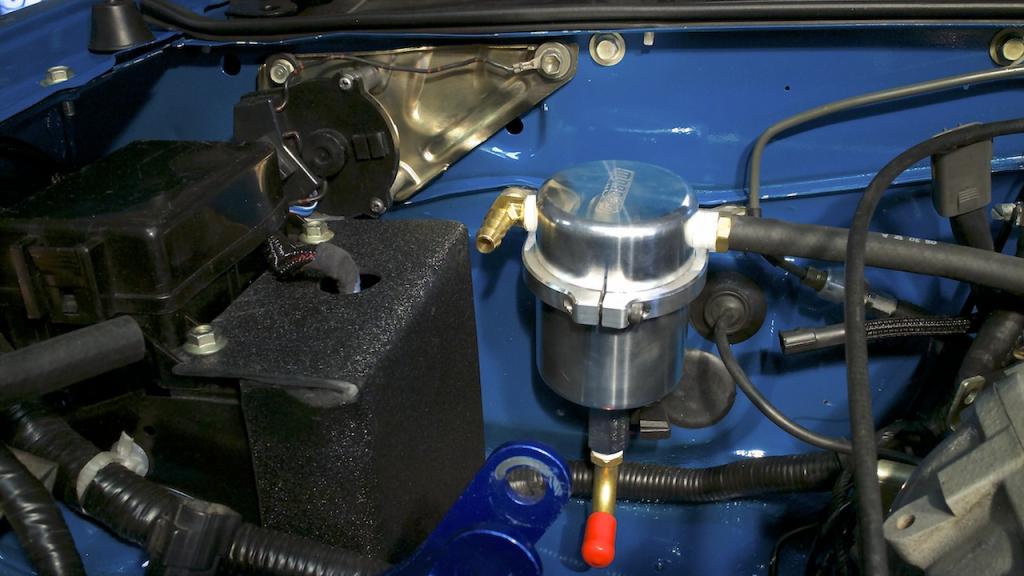

Rev 2 headlight wiring box done. If I really cared more I'd putty the seam at the top, sand it, and paint it...but I just don't care at the moment enough to do it. The way I did it this time is much sturdier since it mounts on the fuse box nuts.

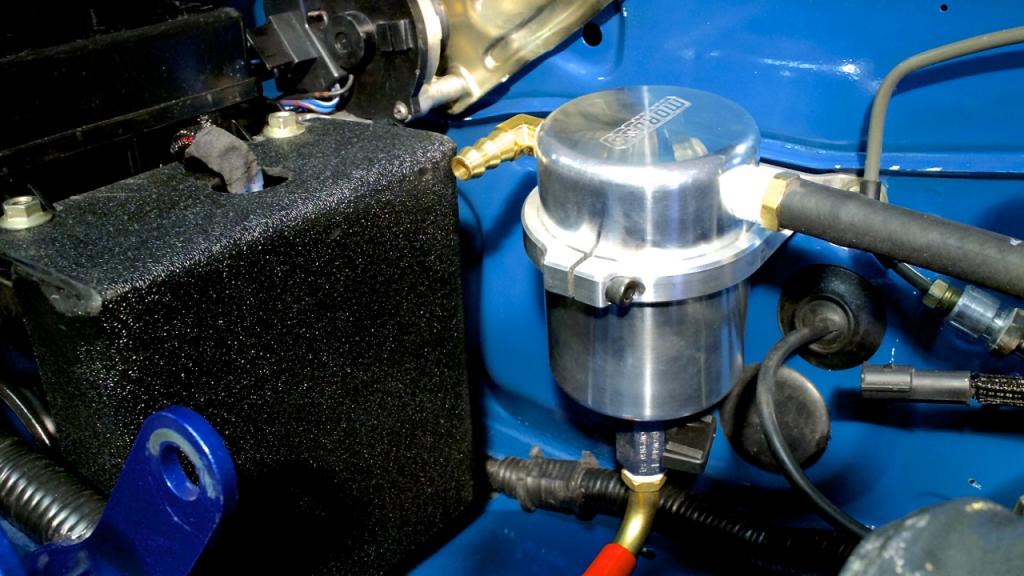

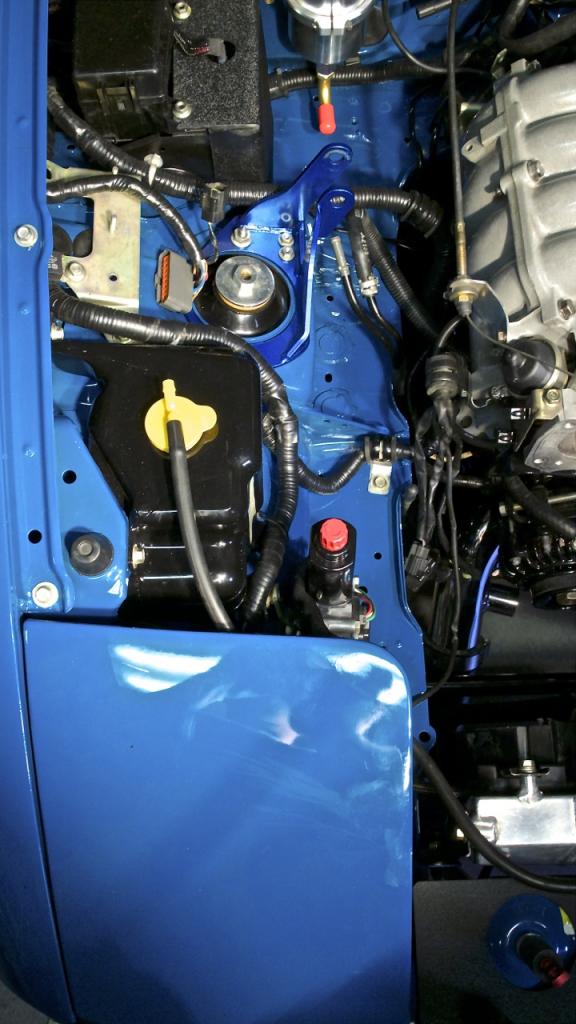

Also mounted the catch can in the easiest/most open spot on the passenger side. I bought a long while ago before I realized how cheaply you can make these things. Oh well, it looks good so who cares!





Also was able to hide a lot of the wiring under the headlight buckets. Zip tied it down well so it wouldn't interfere with the headlight motor rod.

Hopefully the new throttle body comes in today so I have more stuff to do.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2378.jpg   93' Miata stolen and flipped build thread-img_2379.jpg   93' Miata stolen and flipped build thread-img_2380.jpg

Last edited by Jeffbucc; 03-24-2014 at 01:27 PM.
Jeffbucc is offline   Reply With Quote
Old 03-24-2014, 01:52 PM   #1776
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

As usual - Beautiful. Nice choice on the Moroso separator. They do their job very well for the guys with smaller setups on pump gas that don't need the volume.
FAB is online now   Reply With Quote
Old 03-24-2014, 05:24 PM   #1777
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,964
Total Cats: 108
Default

Fab9, what would be your next step upgrade on that moroso? Why wouldn't it be sufficient for other setups?
Chiburbian is offline   Reply With Quote
Old 03-24-2014, 05:28 PM   #1778
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 252
Default

Quote:
Originally Posted by curly View Post
Double post #5,381 deleted...

I seriously don't think the 11.75" kit will fit under your wheels. I had issues with my 15" enkeis, K1s, and my current Konigs. I'm guessing our drums are the same, and they just threw in a different spoke pattern. And the drum is what was interfering with the calipers, not the spokes. So nothing a spacer would fix. If I were you, I'd just keep my wheel option open and run 11" brakes, unless you're super serious about tracking.

My wheel/tire/brake combo on Goodwin's site:

Don't listen to him!
11.75 brakes are full of win!
soviet is offline   Reply With Quote
Old 03-24-2014, 05:32 PM   #1779
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Chiburbian View Post
Fab9, what would be your next step upgrade on that moroso? Why wouldn't it be sufficient for other setups?
The only reason I would imagine needing to go bigger is if you had E85 or a water/methanol injection that would need to capture more water vapor and/or you don't want to think about emptying your catch can more often.

The old one in the car was this leaky huge universal plastic catch can that was about the size of a gallon milk container. I'm quite happy with the Moroso piece. Sure it is expensive but damn is it well made. The lever actuated drain pipe makes emptying it a breeze too. The old version had you unscrew the base, which would have made my mounting solution a pain in the *** to remove every time to do so.
Jeffbucc is offline   Reply With Quote
Old 03-24-2014, 05:36 PM   #1780
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
The only reason I would imagine needing to go bigger is if you had E85 or a water/methanol injection that would need to capture more water vapor and/or you don't want to think about emptying your catch can more often.

The old one in the car was this leaky huge universal plastic catch can that was about the size of a gallon milk container. I'm quite happy with the Moroso piece. Sure it is expensive but damn is it well made. The lever actuated drain pipe makes emptying it a breeze too. The old version had you unscrew the base, which would have made my mounting solution a pain in the *** to remove every time to do so.
Its not all that expensive when you compare it to this one...

Mishimoto Baffled Oil Catch Can, by Mishimoto
BTMiata is offline   Reply With Quote
