Old 04-27-2012, 07:11 PM   #261
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

I call BS on the numbers. I am sure it is fast but there is no way it is that fast.

That is A LOT of power at 12psi. Especially considering it is mustang dyno power. In fact, it's more power than a GT30 will put down at 15psi on a Miata.

The turbo is way too small to flow enough air for that HP at that psi. Even with e85 and all the timing and cams and headwork in the universe it wouldn't happen.
Faeflora is offline   Reply With Quote
Old 04-27-2012, 07:18 PM   #262
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 252
Default

also, RIP your 5spd transmission :(
soviet is offline   Reply With Quote
Old 04-27-2012, 07:20 PM   #263
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

That said, I am sure the car drives awesomely and grats for getting it completed and on the road! People don't drive numbers, they drive cars so yay
Faeflora is offline   Reply With Quote
Old 04-27-2012, 07:38 PM   #264
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Also Torque graph is fuked.
Faeflora is offline   Reply With Quote
Old 04-27-2012, 07:50 PM   #265
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

Quote:
Originally Posted by Faeflora View Post
The turbo is way too small to flow enough air for that HP at that psi. Even with e85 and all the timing and cams and headwork in the universe it wouldn't happen.
it's a 45 lb/min wheel. that's roughly 450 BHP.

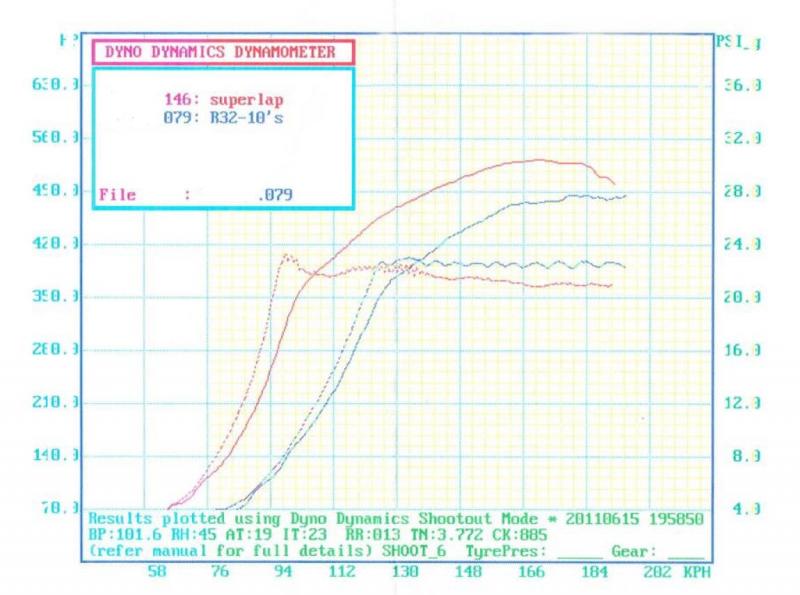

Full Race website has a dyno plot of the EFR 6258 putting down roughly 500rwhp on a dyno dynamics at 23psi of boost.



blue line is a 2871.
Attached Thumbnails
99mx5 EFR build-borgwarner-efr-6258-turbo-content-15.jpg
Braineack is offline   Reply With Quote
Old 04-27-2012, 07:50 PM   #266
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,001
Total Cats: 330
Default

I think the dyno was jacked-up.
hustler is offline   Reply With Quote
Old 04-27-2012, 07:51 PM   #267
Junior Member
iTrader: (8)

Join Date: Jul 2008
Location: Portland, OR
Posts: 395
Total Cats: 9
Default

Hmm, it's a 44lb wheel right?, 315 seems plausible. The EFR turbos are supposed to have pretty good spool characteristics and excellent mid range so doesnt seem too crazy.
Were there any correction factors applied by the dyno?-doesn't matter if it is a mustang you can tweak the software to make it say whatever you want
kaisersoze is offline   Reply With Quote
Old 04-27-2012, 07:54 PM   #268
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

btw looks like the dyno plot is in seconds for the x axis.


did you get a print out with rpm reference ari?
Braineack is offline   Reply With Quote
Old 04-27-2012, 08:03 PM   #269
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Quote:
Originally Posted by Braineack View Post
it's a 45 lb/min wheel. that's roughly 450 BHP.

Full Race website has a dyno plot of the EFR 6258 putting down roughly 500rwhp on a dyno dynamics at 23psi of boost.

blue line is a 2871.

That ain't no miata motor. You could put this turbo on a Viper and it would make 500hp with 0psi of boost.

Quote:
Originally Posted by kaisersoze View Post
Hmm, it's a 44lb wheel right?, 315 seems plausible. The EFR turbos are supposed to have pretty good spool characteristics and excellent mid range so doesnt seem too crazy.
Were there any correction factors applied by the dyno?-doesn't matter if it is a mustang you can tweak the software to make it say whatever you want

Yeah of course it's plausible but NOT at 12psi. This is not a s2000 and this is not a huge turbo. No.
Faeflora is offline   Reply With Quote
Old 04-27-2012, 08:05 PM   #270
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

umadbro?
Braineack is offline   Reply With Quote
Old 04-27-2012, 08:13 PM   #271
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Quote:
Originally Posted by Braineack View Post
umadbro?
Yes.
Faeflora is offline   Reply With Quote
Old 04-27-2012, 11:17 PM   #272
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,957
Total Cats: 228
Default

Quote:
Originally Posted by Faeflora View Post
Yes.

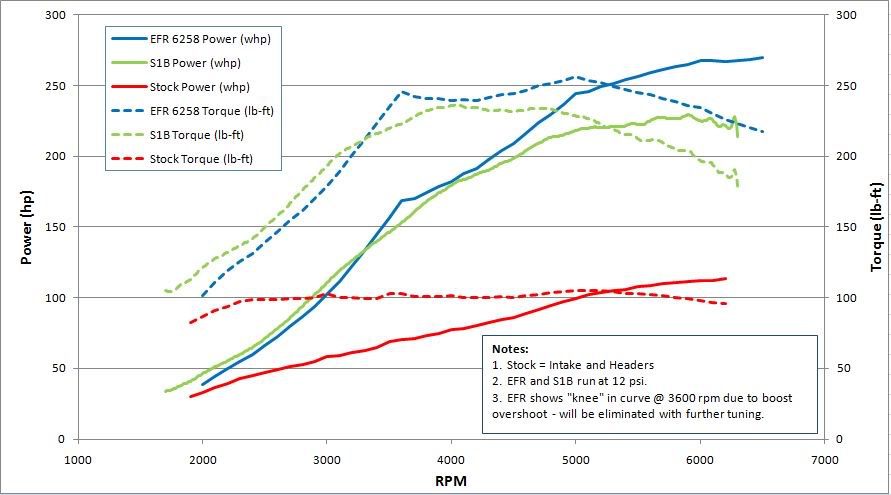

Well, look at it this way. The other guy who dyno'd his 6258 made 270whp @ 12psi....on a LOG manifold and a Link ecu.


The differences between Ari's setup and the other one are pretty significant.

Ari:
-ramhorn manifold vs. non-center flanged log
-Square top vs. stock 94 manifold
-Precision intercooler vs. a stock Saab unit
-better engine management vs. Link
-ported 99 head vs. stock 94 head
etc...
Attached Thumbnails
99mx5 EFR build-dynodataplot.jpg
viperormiata is offline   Reply With Quote
Old 04-28-2012, 12:54 AM   #273
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,285
Total Cats: 163
Default

Quote:
Originally Posted by Braineack View Post
btw looks like the dyno plot is in seconds for the x axis.

did you get a print out with rpm reference ari?
You are right Scott. I talked with him earlier and it is time-based. I will get a RPM plot from him and will post it.


Edit: Printer was FUBARed, only pics no prints.

Last edited by 99mx5; 04-28-2012 at 01:19 AM.
99mx5 is offline   Reply With Quote
Old 04-28-2012, 01:27 AM   #274
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,526
Total Cats: 878
Default

250wtq / 1.84bar (absolute) / 1.9 = 71.5tq/atm-L. Numbers are totally believable.

God damn.
Savington is offline   Reply With Quote
Old 04-28-2012, 01:32 AM   #275
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,526
Total Cats: 878
Default

God damn. Based on numbers (315whp, 251wtq) the operator stopped the pulls at 6600rpm.

315whp at 6600rpm from 12psi on a turbo that spools like a 2554R.
Savington is offline   Reply With Quote
Old 04-28-2012, 02:11 AM   #276
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,285
Total Cats: 163
Default

Thanks Andrew. The runs stopped at rev cut.

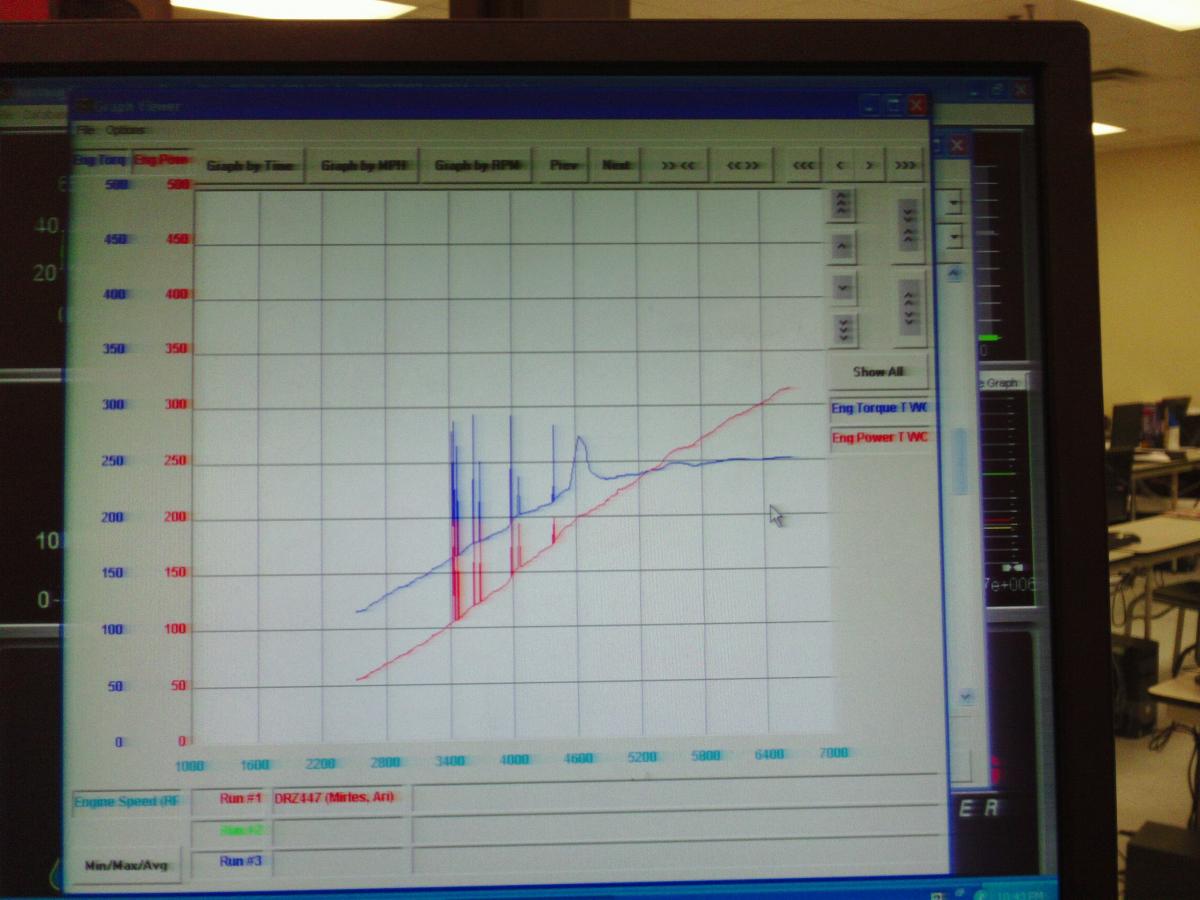

Here is the RPM plot...
Ignore the signal noise.
Attached Thumbnails
99mx5 EFR build-sam_0272.jpg
99mx5 is offline   Reply With Quote
Old 04-28-2012, 02:17 AM   #277
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,526
Total Cats: 878
Default

Can you do a spool test in your 1:1 gear (4th or 5th) from 2000rpm up? It looks like the turbo "hits" really late.

Still, though, 200lb.ft at 4000rpm, at 4000ft. lolol
Savington is offline   Reply With Quote
Old 04-28-2012, 02:24 AM   #278
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,285
Total Cats: 163
Default

Will do. I have a race tomorrow and will post vids of tests on the track.
99mx5 is offline   Reply With Quote
Old 04-28-2012, 02:33 AM   #279
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,445
Total Cats: 2,038
Default

Looks like more of a supercharger plot than turbo plot. Really weird
18psi is offline   Reply With Quote
Old 04-28-2012, 02:59 AM   #280
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 252
Default

ok i'm scheduling my dyno for next week.
soviet is offline   Reply With Quote
