Old 04-14-2012, 07:38 AM   #381
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

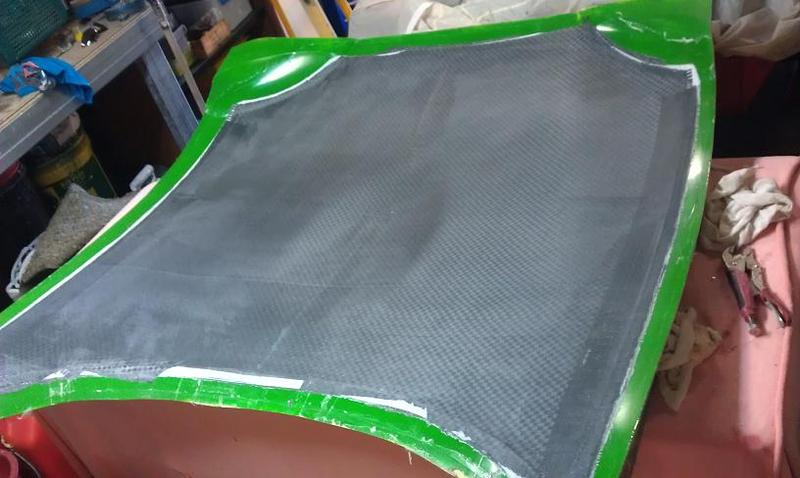

Hood after inf layers ripped off.

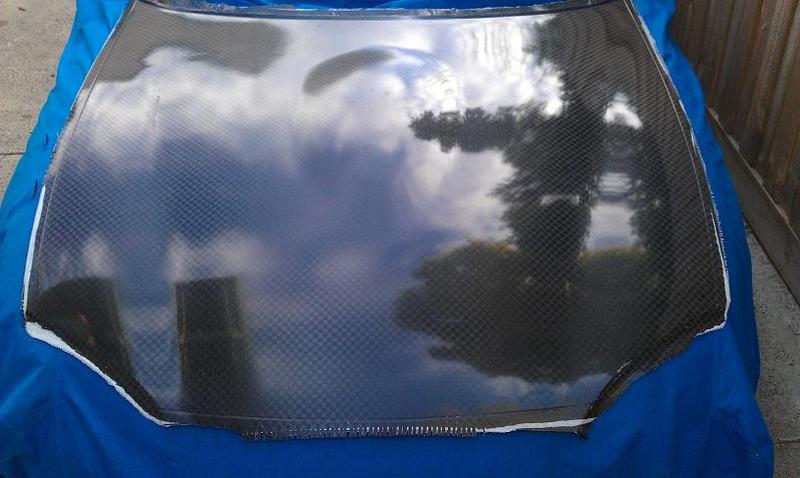

Other side. Still needs trimming. I put the frame on today too,as well as bonded one pair of door shells together.


Attached Thumbnails
Carbon fibre time attack twins-bonp.jpg   Carbon fibre time attack twins-bonff.jpg
lightyear is offline   Reply With Quote
Old 04-14-2012, 09:08 AM   #382
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,986
Total Cats: 142
Default

When you make your moulds, how many layers of FG do you use? Also, what's the green stuff on the mould - is that the gel coat for better releasing of the CF? Going back and finding more info
GeneSplicer is offline   Reply With Quote
Old 04-14-2012, 03:59 PM   #383
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,030
Total Cats: 535
Default

Man that's amazing.
triple88a is offline   Reply With Quote
Old 04-14-2012, 04:24 PM   #384
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

When you make a mold you first brush on a couple of coats of tooling resin, then as many layers as you can of fg. Till it is at least 5 layers thick. The more layers, the stronger the mold will be.
lightyear is offline   Reply With Quote
Old 04-18-2012, 07:43 AM   #385
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

A friend gave me a set of digital fish type scales to weigh my parts. I tried it on the hood, and it weighs 6.8lbs with the frame on before trimming. I will be trimming both the hoods in the morning, and see the final weight.
lightyear is offline   Reply With Quote
Old 04-19-2012, 02:21 AM   #386
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

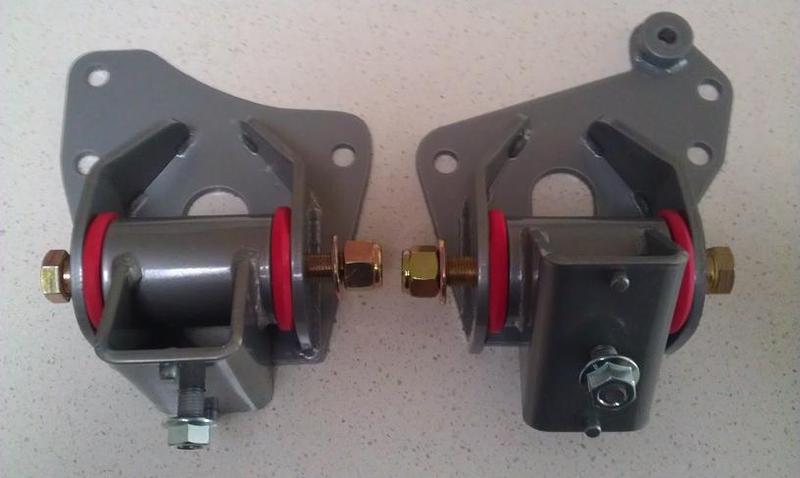

Engine mounts arrived today-


I weighed the hood finished 6.2lbs, and the doors finished weigh 4.0lbs. That order is finished, and all the panels are in my ute/truck ready to take down to be packaged for shipping.
Attached Thumbnails
Carbon fibre time attack twins-engmount.jpg
lightyear is offline   Reply With Quote
Old 04-19-2012, 08:09 AM   #387
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,986
Total Cats: 142
Default

So how to you finish the edges after you trim it?
GeneSplicer is offline   Reply With Quote
Old 04-20-2012, 06:16 AM   #388
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Just sand them. If you clearcoat the parts,the edge gets sealed.
lightyear is offline   Reply With Quote
Old 05-01-2012, 10:43 PM   #389
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

I went to the local track that i crashed the silver nb at with the crap tires. This is a video comparison of the old kumhos vs the new nittos. The nittos are a very good tire, can't believe the grip. I set a new class record by almost 4 seconds and beat every under 2l car out of a field of over 40.

lightyear is offline   Reply With Quote
Old 06-10-2012, 06:30 AM   #390
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

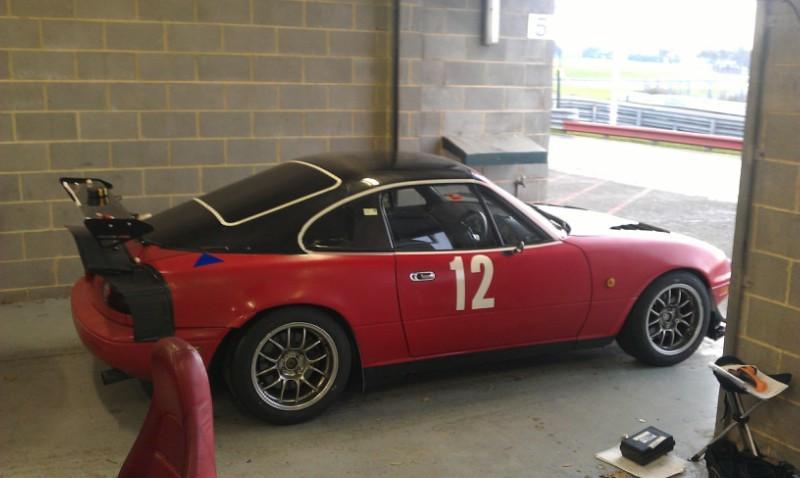

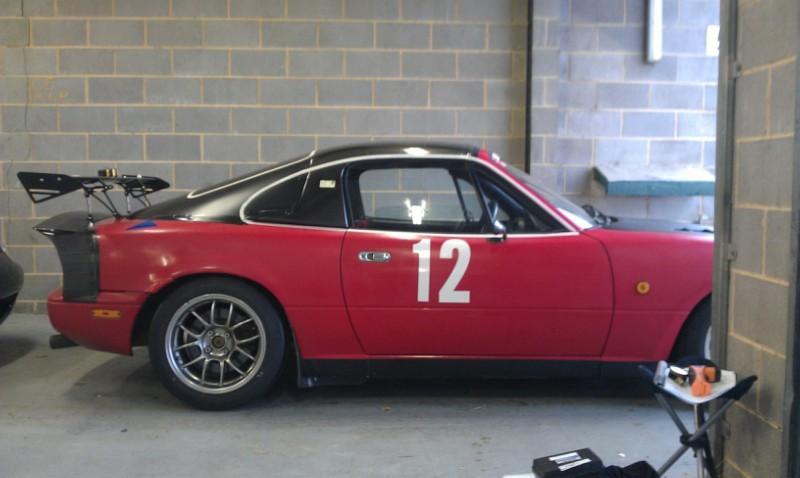

I am going to make a fastback like autokonexions, but with the look and function i want.

I was at the local track today, and in between sessions i designed the window shapes. The rear window will have square corners at the bottom edge. What do you guys think??





I wanted to get some data to show any improvement with a fastback, but the weather didnt want to play the game.
Attached Thumbnails
Carbon fibre time attack twins-fastb2.jpg   Carbon fibre time attack twins-fastb1.jpg
lightyear is offline   Reply With Quote
Old 06-10-2012, 06:37 AM   #391
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 676
Total Cats: 11
Default

Man that looks so freakin awesome..... I have been gearing up for a Autokonexion fastback roof but now I am intrigued to try and make one like you (one day). I just finshished painting the roll bar and slowly putting things back together.

How thick is that sign material you used, I got some for an undertray but I think mine is the thicker version, might be too hard to try and shape...
mx5-kiwi is offline   Reply With Quote
Old 06-10-2012, 06:37 AM   #392
Junior Member

Join Date: Dec 2009
Posts: 110
Total Cats: 27
Default

I like that. But I doubt you would be interested in making them for others
charlie_91 is offline   Reply With Quote
Old 06-10-2012, 06:44 AM   #393
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

I will be making them, just not for a few months.

And the material is 3mm i think.
lightyear is offline   Reply With Quote
Old 06-10-2012, 06:52 PM   #394
Junior Member

Join Date: Jan 2012
Location: Charleston, SC
Posts: 52
Total Cats: 1
Default

Holy crap, what a build thread!

I am thoroughly in awe, keep up the amazing work man!

What durometer did you get on those motor mounts? I was so close to getting the lowest duro ones a few months back but I chickened out and got Mazda Comp ones instead since I was afraid the poly would be too much.
Ciotti is offline   Reply With Quote
Old 06-11-2012, 05:04 PM   #395
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 96
Default

I particularly love that fast back version you made over the autokonexion's.
Pen2_the_penguin is offline   Reply With Quote
Old 06-11-2012, 05:52 PM   #396
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

They are the hardest durometer. I don't want any movement due to the intercooler having basically no pipe work.
I prefer the fastback to have a more incorporated side window. The others look like a porthole in the side. I think that is what makes it look better.
lightyear is offline   Reply With Quote
Old 06-11-2012, 05:56 PM   #397
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

And I was only 1 sec of my best time in this car on Sunday. And that is with the track drying, but very slippery on the last corner, meaning you couldn't get the power down to get a good run onto the straight. Plus turn 2 was slippery. On a fully dry track, It would have gone quicker.
lightyear is offline   Reply With Quote
Old 06-13-2012, 05:24 PM   #398
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Reminds me of a 599xx with the fast back
mx5autoxer is offline   Reply With Quote
Old 06-15-2012, 01:57 AM   #399
Junior Member
iTrader: (1)

Join Date: Feb 2012
Posts: 203
Total Cats: 0
Default

This thread is amazing!

Subscribed.
etikoner is offline   Reply With Quote
Old 06-16-2012, 06:49 AM   #400
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Vid of me chasing a worked lotus elise on sunday.


The memory card ran out, so didnt get the whole session. Pity, as it was an awesome battle with some very close "racing", especially under brakes at the end of the back straight going down the hill into the left corner.
lightyear is offline   Reply With Quote
