I figured I would post a few pictures of the exterior just because...

Before the new springs and before turbo...

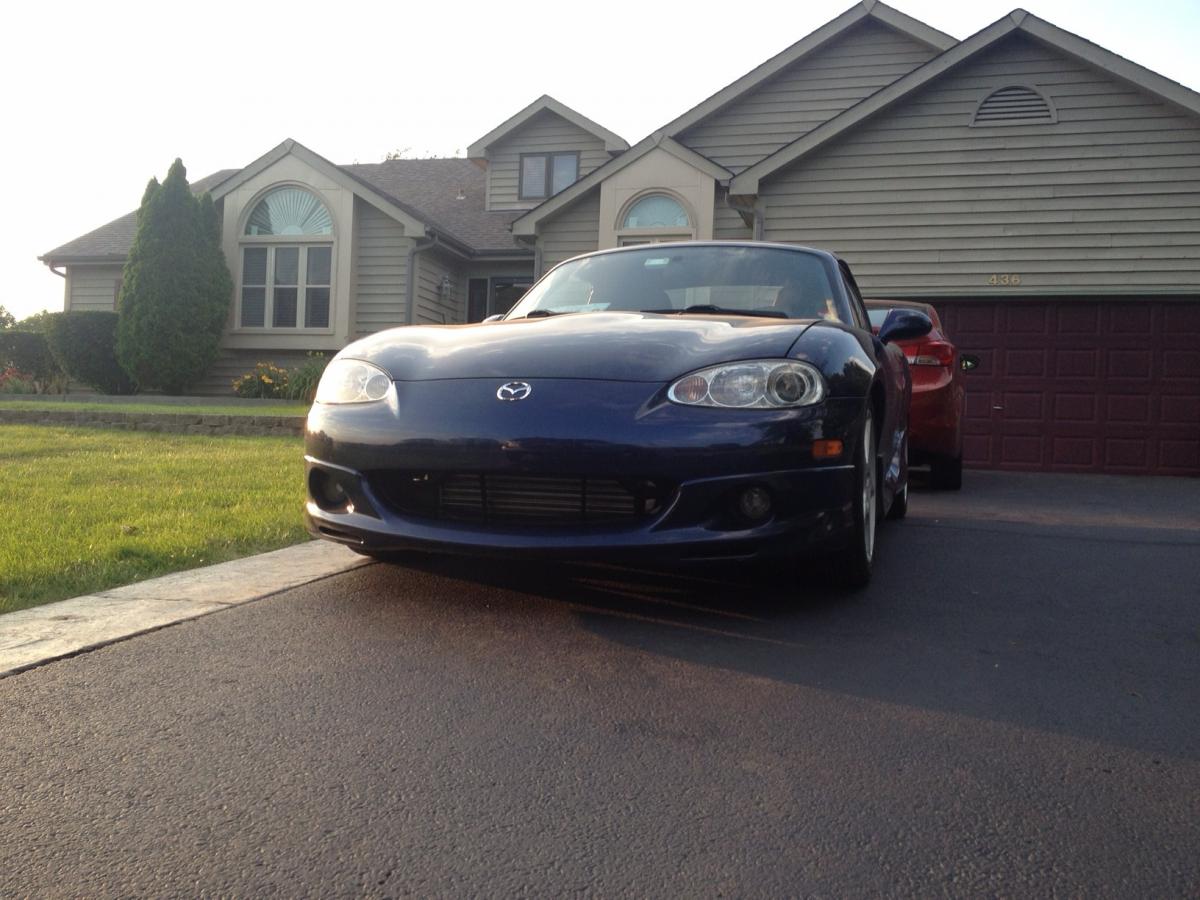

This picture is after springs and after turbo install... pretty much immediately after I pulled it ouf of the driveway and put the bumper cover back on...

Attached Thumbnails
Chiburbian's 01' Lots of potential, no follow-through build-image.jpeg   Chiburbian's 01' Lots of potential, no follow-through build-driveway.jpg

Last edited by Chiburbian; 01-31-2014 at 04:38 PM.
Chiburbian is offline   Reply With Quote
Old 02-03-2014, 07:34 PM   #182
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

I am considering doing a v.3 version of my jumper harness based on the DIYautotune "DIYBOB Breakout Adapter - Nippondenso 122 pin."

In order to do this, I will need to source a few parts that I have had a hard time getting in the past. Today I found a website that seems like it will be helpful.

Octopart - Electronic Parts, Electronic Components, Datasheets

Octopart lets you enter a part number and it tells you who has stock on that part. Now that I have found parts, I can proceed with my build order.

These are the parts I will need:
From DIY autotune:
$89.00 DIYBOB Breakout Adapter - Nippondenso 122 pin
$46.00 MegaSquirt Wiring Bundle - 12' Long
$48.00 MegaSquirt 3X Wiring Bundle - 12' long
$18.50 Metal DB37 Cover with Hardware & Gaskets ($9.25ea)
From Allied Electronics (http://www.alliedelec.com):
$2.02 TE/Tyco 31-way connector p/n: 353031-1
$1.73 TE/Tyco 24-way connector p/n: 353029-1
From Onlinecomponents.com:
$1.70 TE/Tyco 17-way connector p/n: 353027-1
$10.52 TE/Tyco crimp contact p/n: 316836-1 ($.146ea)
From Ebay (approximate)
$4.00 DB37 Crimp Shell - Female
$4.00 DB37 Crimp Shell - Male
$6.00 D-sub crimp connectors - male, lot of 100
$6.00 D-sub crimp connectors - female, lot of 100
Originally I had my adapter harness placing the MS3 under the drivers side dash, and it really didn't fit very well. I feel like I can make a much cleaner setup putting it under the passenger side dashboard.

As I get parts I will update with my build, but to be honest since it is running it's not high on my list. I just wanted to write down the parts list for those who would be interested.
Chiburbian is offline   Reply With Quote
Old 02-14-2014, 06:33 PM   #183
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default Some stuff happened

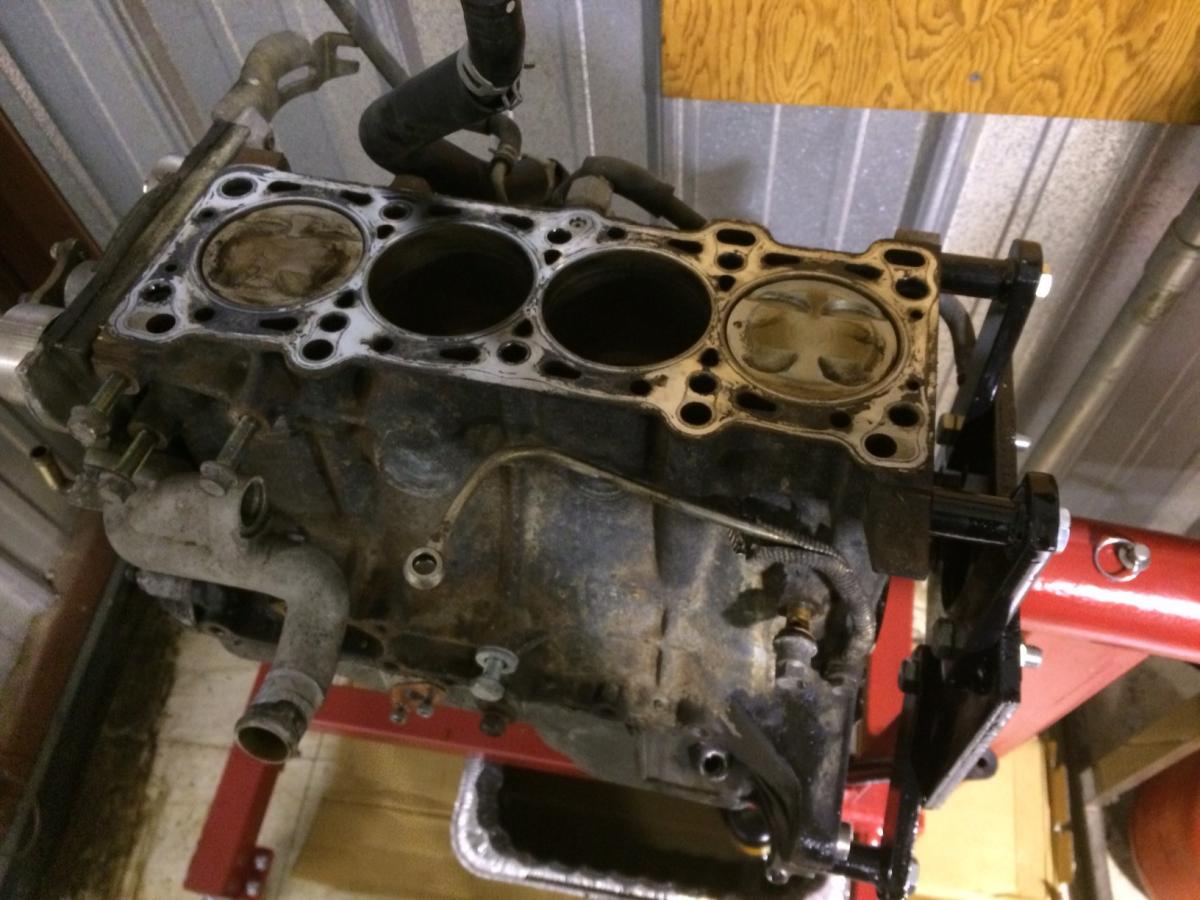

So, I had a motor come up locally for sale that I couldn't pass up:



What are my plans for it?

I haven't decided yet, but one option is to re-use everything but the head and do a rods-only build.

Another possibility is a motor that has all the upgrades like oil pump, pistons, dampener etc. That will cost significantly more. For the time being I have options though, and if something seriously bad happens I have a spare motor. Options are good.
Attached Thumbnails
Chiburbian's 01' Lots of potential, no follow-through build-image.jpg
Chiburbian is offline   Reply With Quote
Old 02-25-2014, 10:38 AM   #184
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

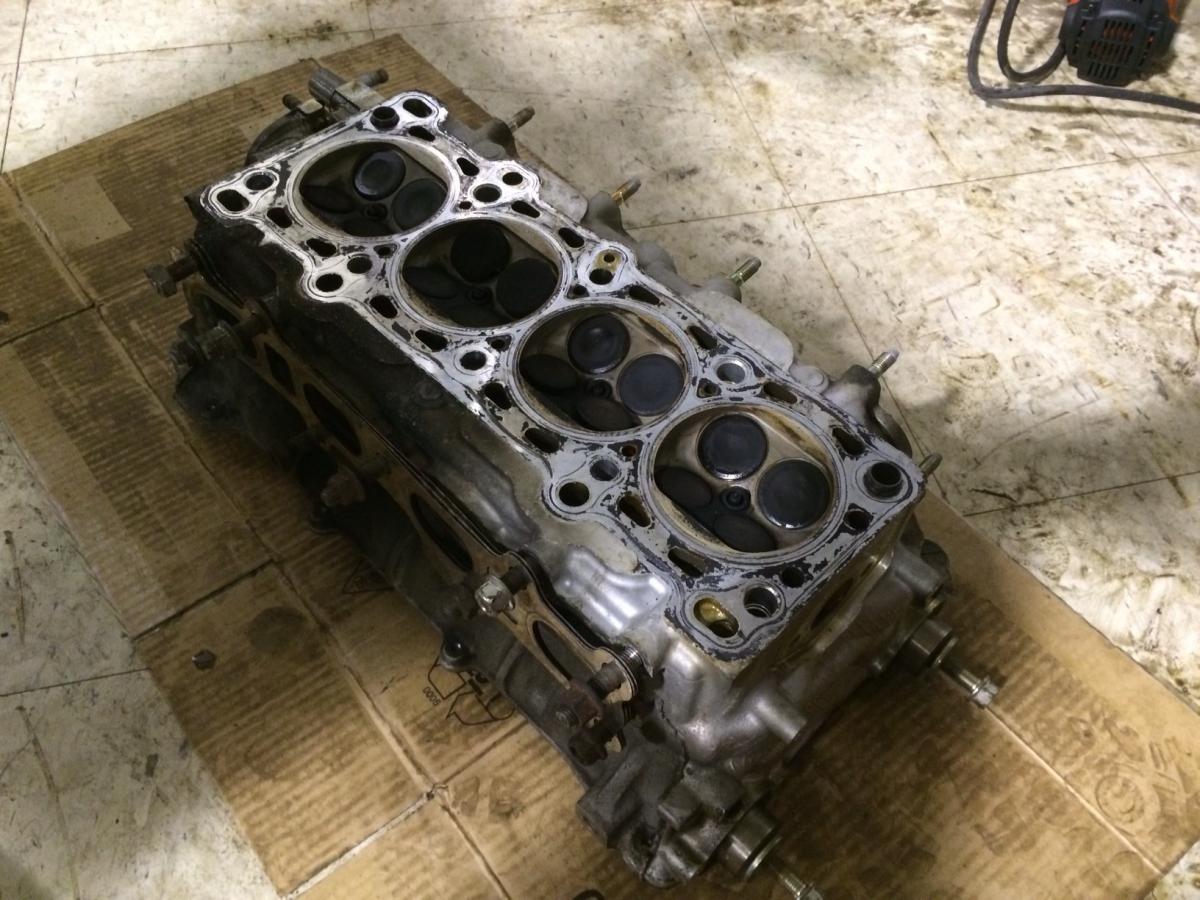

Last night we pulled the head of the spare motor to be shipped off to it's new owner.



Looks pretty clean. Anyone beg to differ?

Attached Thumbnails
Chiburbian's 01' Lots of potential, no follow-through build-image1.jpg   Chiburbian's 01' Lots of potential, no follow-through build-image2.jpg
Chiburbian is offline   Reply With Quote
Old 02-26-2014, 06:44 PM   #185
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

Since I had the car out for a bit yesterday I figured I would take a few pictures of how it sits with the TEIN-S springs. Comparing it to stock, I really like how it sits.





Attached Thumbnails
Chiburbian's 01' Lots of potential, no follow-through build-image1.jpg   Chiburbian's 01' Lots of potential, no follow-through build-image2.jpg   Chiburbian's 01' Lots of potential, no follow-through build-image3.jpg
Chiburbian is offline   Reply With Quote
Old 03-18-2014, 10:23 AM   #186
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

Did a pull on the way to work. It was a highway merge so I had to let off but I was interested in seeing my progress.

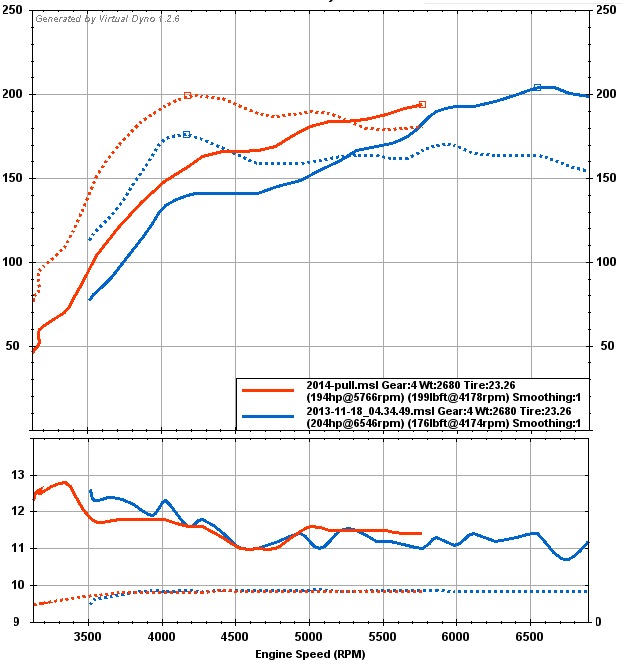

This is a pull vs my previous best. EDIT: I am running VirtualDyno uncorrected numbers so this is pretty close to what Blaen99 is seeing with his Precision4828 as well with the same boost level.

Attached Thumbnails
Chiburbian's 01' Lots of potential, no follow-through build-screen-shot-2014-03-18-8.20.06-am.jpg
Attached Files
File Type: msl 2014-pull.msl (57.7 KB, 49 views)

Last edited by Chiburbian; 03-18-2014 at 03:01 PM.
Chiburbian is offline   Reply With Quote
Old 03-21-2014, 03:15 PM   #187
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

Upped the boost to 10psi.

McLaren P1: 1
Miata: 0

I am kinda kidding because we were in highway traffic and neither of us was pushing hard (I don't believe I went above 40% throttle) but it was still fun.

The BMW Z4 (maybe Z4-M?) on the other hand was working far too hard and was putting people in danger. I am glad we all separated when we did.
Chiburbian is offline   Reply With Quote
Old 03-23-2014, 01:06 AM   #188
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

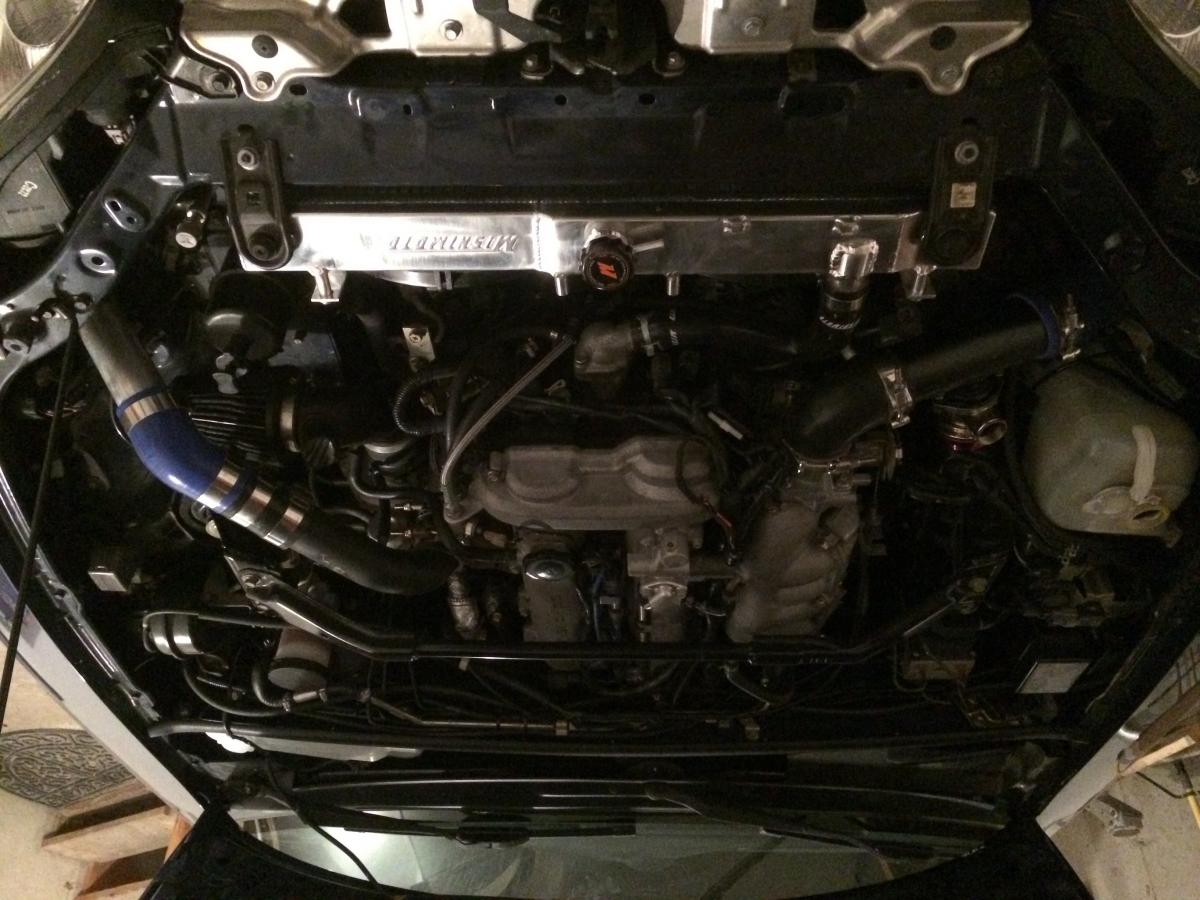

I installed Mishimoto radiator and fans today. I'll take better pictures in the light tomorrow.

For some reason the pics cane out upside down. Oh well time for sleep.
Attached Thumbnails
Chiburbian's 01' Lots of potential, no follow-through build-image.jpg
Chiburbian is offline   Reply With Quote
Old 04-01-2014, 03:38 PM   #189
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

Well, the Mishimoto radiator doesn't seem to do any better keeping my car cool than the stock radiator, but I blame the ducting. I DO have the undertray but there are a lot of places where air can sneak around without going through the radiator. At least now I won't be sealing up the front of the car twice.

On a side note, I disconnected my wastegate arm yesterday so I could tune the 100kpa part of my map easier. It seems that I hardly ever hit that part of my map anymore and it was full of garbage from when I had my old injectors. Before I got in the car to drive home from work yesterday I was going to reconnect the wastegate since I was happy with how the map smoothed out when I found that the end of the wastegate rod had vibrated off. I guess the lock nut didn't do a good enough job.

So, no boost until I can either borrow one or until the one I ordered arrives Saturday. Bah!

Btw, Mishimoto fans DO rape my idle.
Chiburbian is offline   Reply With Quote
Old 04-14-2014, 02:44 PM   #190
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

I think my intercooler is improperly positioned and it is blocking too much flow from my radiator. I have not overheated but it hasn't been really hot yet.

Also, I am going to a dyno/tuner on Wednesday. I am going to work with him on getting my closed loop boost control down solid and do a couple runs to see where I am at. I will post the results obviously. If we can get the closed loop boost consistant I am hoping to adjust the tune until I can get to about 240hp. I am willing to pay for up to three hours.
Chiburbian is offline   Reply With Quote
Old 04-15-2014, 11:48 PM   #191
Junior Member
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

Where are you having it tuned?
flying_solo is offline   Reply With Quote
Old 04-16-2014, 12:21 AM   #192
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

I am not going to have them push it... Underground Autosports... I won't really have them push it power wise because I don't know much about them. I will likely go to RC Autoworks for real power unless these guys impress me. Windy City Miata Club is having a dyno day there on Saturday.

By the way, I had a problem today so I won't be able to make my dyno time tomorrow.

My main relay failed and it took me all night to diagnose the problem. Hopefully I can get in on Thursday or Friday...
Chiburbian is offline   Reply With Quote
Old 04-16-2014, 01:01 PM   #193
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

Quote:
Originally Posted by Chiburbian View Post
I am not going to have them push it... Underground Autosports... I won't really have them push it power wise because I don't know much about them. I will likely go to RC Autoworks for real power unless these guys impress me. Windy City Miata Club is having a dyno day there on Saturday.

By the way, I had a problem today so I won't be able to make my dyno time tomorrow.

My main relay failed and it took me all night to diagnose the problem. Hopefully I can get in on Thursday or Friday...
Ok, I was tired and distracted last night when I wrote this... Translating:

I am taking it to Underground Autosports in Hoffman Estates. I really don't know much about them other than Windy City Miata Club is having a dyno day there on Saturday. If they impress me I will go for a bit more power. If I am not impressed I will just try and work out boost control and get a couple base line runs in.

RC Autoworks has a pretty solid reputation around here so if nothing else I will go there for big power tuning, but that will likely be after I build the engine, which will mean sometime next year. I also may have Mike Piecko at Red Mist do some work. I have known him for some time now and his shop is like two miles from my house, but he is pretty busy and he doesn't have a dyno so it is only street tunes for now.
Chiburbian is offline   Reply With Quote
Old 04-16-2014, 01:15 PM   #194
Junior Member
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

I didn't know WCMC was doing a dyno day. Are you going to WCMC's autox on the 26th? I've met Mike several times, he's a fast driver for sure and seems like a good guy. I haven't known anyone to ever use him though. He had offered to help with tuning on my FD.
flying_solo is offline   Reply With Quote
Old 04-16-2014, 01:21 PM   #195
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

Quote:
Originally Posted by flying_solo View Post
I didn't know WCMC was doing a dyno day. Are you going to WCMC's autox on the 26th? I've met Mike several times, he's a fast driver for sure and seems like a good guy. I haven't known anyone to ever use him though. He had offered to help with tuning on my FD.
Yeah, I'll be going to the Autocross on the 26th as well as the "WCMC Presidents tour" on the 27th.

Mike mostly does Subarus but he is planning on building a megasquirt for a honda project he is doing for fun.
Chiburbian is offline   Reply With Quote
Old 04-16-2014, 01:24 PM   #196
Junior Member
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

Cool, I'm going to tell DieselMiata (Aaron about the WCMC dyno day) he's got his back up and running pulling strong. Is it for members only, can you pm me more info?
flying_solo is offline   Reply With Quote
Old 04-16-2014, 01:33 PM   #197
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

It is for members only but worse comes to worse it's $35/yr for WCMC and it gets you $10 off each autocross event.

Look for Windy City Miata Club on facebook. You don't have to be a member of the club to be a member of the FB group. It is listed on their events page.

(I doubt they will turn away non-members especially if you are driving a Miata)
Chiburbian is offline   Reply With Quote
Old 04-18-2014, 02:48 PM   #198
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

At dyno now.

Tuning open loop boost on the dyno as a starting point. We are up to 30% duty on the EBC.

My last log attached. Somewhere around 197hp, 194lb/ft torque.

Dyno is Dynocom 15000
Attached Files
File Type: msl 2014-04-18_12.37.45.msl (66.8 KB, 47 views)
Chiburbian is offline   Reply With Quote
Old 04-18-2014, 04:27 PM   #199
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,950
Total Cats: 106
Default

Final pull brought me to 230hp and 228lb/ft.

I turned down the duty cycle and power to bring it to 220hp and torque. Pics of the plot are coming once I upload from my phone.
Attached Files
File Type: msl F2014-04-18_14.13.33.msl (68.1 KB, 45 views)
File Type: msq Full Boost end result.msq (227.5 KB, 57 views)
Chiburbian is offline   Reply With Quote
Old 04-18-2014, 08:40 PM   #200
Junior Member
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

Congrats!
flying_solo is offline   Reply With Quote
