Old 10-19-2015, 03:29 PM   #21
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,410
Total Cats: 778
Default

Quote:
Originally Posted by GeneSplicer View Post
Lmao - wait, wut?
Well I am planning on building a Locost7 for myself one day. When I have time between turbo setups and all my other miata's. I figured with how easily you get distracted with new builds I could easily just drop one off at your house, then you say this is cool, then never finish this build. Like all your others.
shuiend is offline   Reply With Quote
Old 10-19-2015, 03:58 PM   #22
Junior Member

Join Date: Oct 2015
Location: Hayden, CO
Posts: 109
Total Cats: -8
Default

Subbed. I'm wanting to do an Eliminator style build as well, but I'm interested in seeing how easy it is to adapt just to cage and do the rest myself... keep it up!
bawward is offline   Reply With Quote
Old 10-19-2015, 04:00 PM   #23
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 688
Total Cats: 26
Default

I don't know whats going on here... But I like it.
Mazduh is offline   Reply With Quote
Old 10-19-2015, 09:51 PM   #24
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Is there a way to contact them outside of facebook or running into them at the track?

I'm definitely interested in this kit.
BenR is offline   Reply With Quote
Old 10-19-2015, 10:21 PM   #25
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,710
Total Cats: 1,060
Default

I'll not take much convincing to start into a Locost. Or one of these.

I like light, minimalist stuff. But then I have trouble getting rid of my air conditioning...

Squirrel or something blah blah. What were we talking about?
sixshooter is offline   Reply With Quote
Old 10-19-2015, 10:37 PM   #26
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,707
Total Cats: 472
Default

Yes, keep the squirters. Remove them for forged pistons.
curly is offline   Reply With Quote
Old 10-20-2015, 03:09 PM   #27
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

Decisions... so I cracked open the 99 block and found everything looked great - until i pooped out the #2 piston (bad pun). Looks like something amiss happened. Some scoring on the piston and cylinder wall.

So -
1: take crank out of 99 and put in 94 block, using 94 pistons with less CR

2: same as above but throw in forged 93mm pistons

3: same but buy a single 99/00 piston and use the 3 good ones for the higher CR

4: **** it and use the slightly scored piston (and others) in '94 block

5: GeneSplicer goes bankrupts because he blows his load on machine work and forging it all.

I'm trying to at all avoid sending either block off for machining. The 99 certainly will need to be bored .020 if it's gonna be used. The 94 is a more desirable block because of side oil and coolant access.

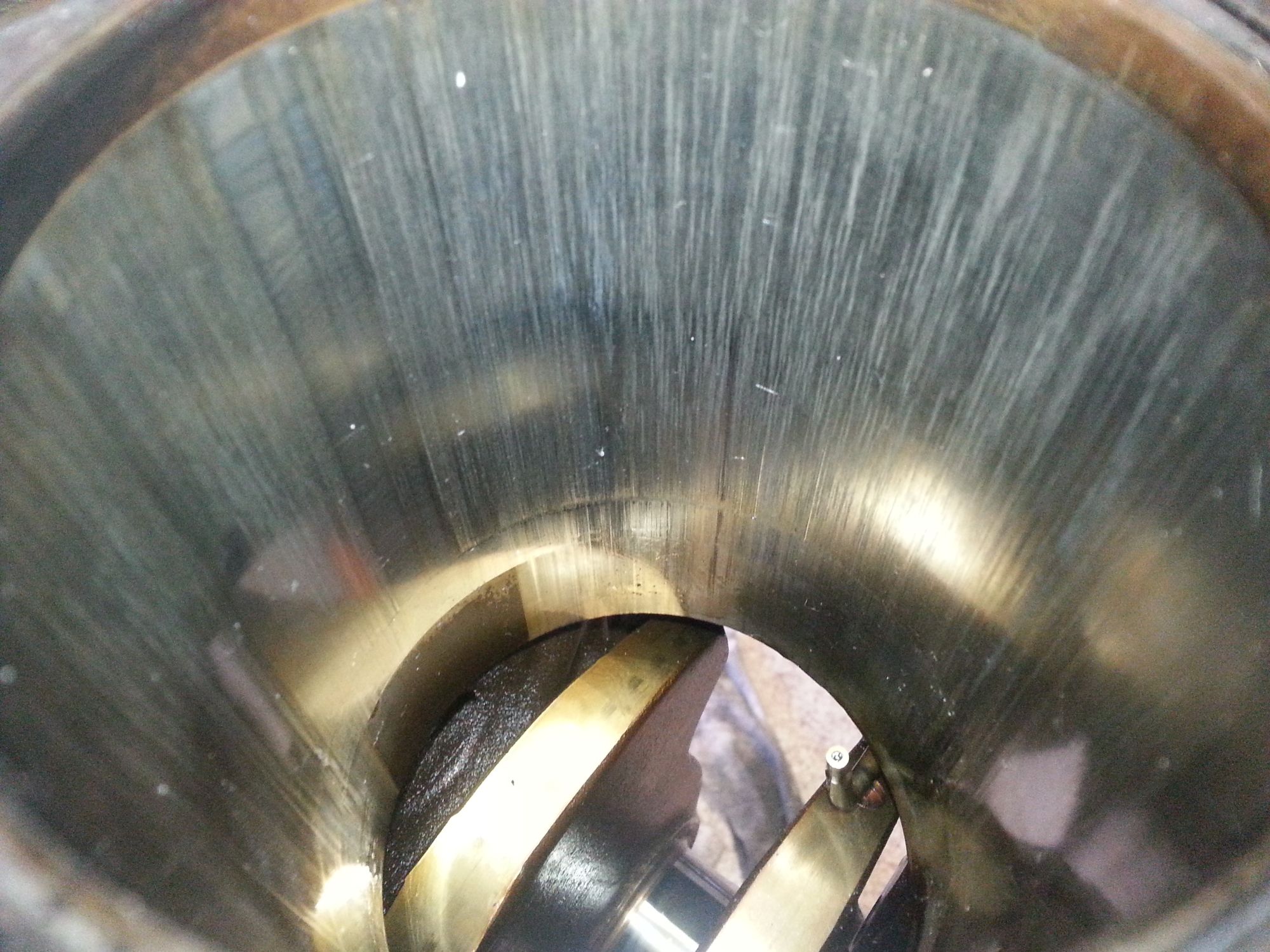

#2 cylinder wall

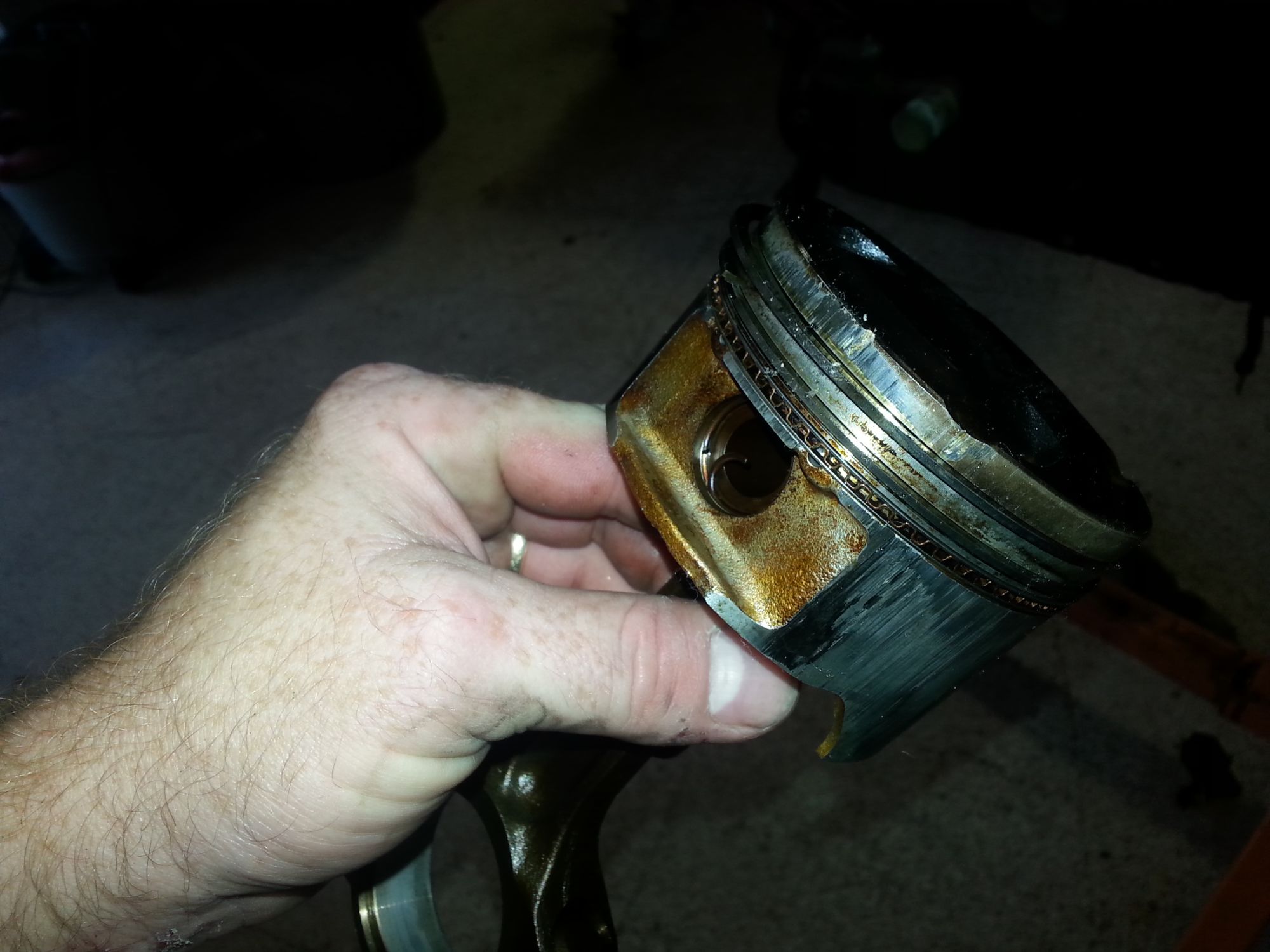

#2 piston

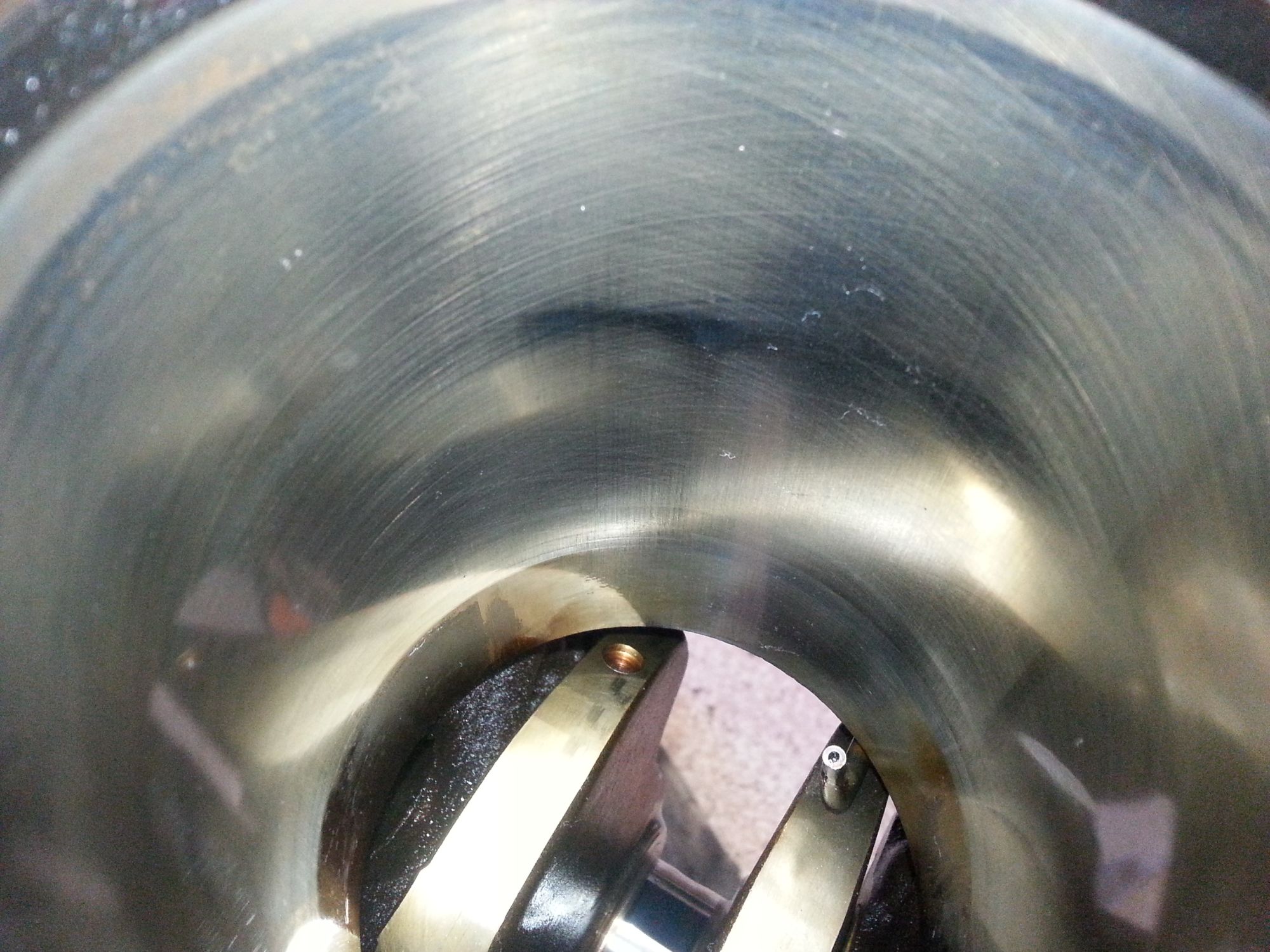

Cyl #1,3,4 look great like this
Attached Thumbnails
Genesplicer's ADD as f*ck turbo Eliminator bui - squirrel!!-80-20151020_124847_958b95d51c84a4b8567b48c15bb4b6c735e18608.jpg   Genesplicer's ADD as f*ck turbo Eliminator bui - squirrel!!-80-20151020_125341_0a7980e43d1a7eb9e434a75e76d10cbb79406162.jpg   Genesplicer's ADD as f*ck turbo Eliminator bui - squirrel!!-80-20151020_124854_f5c680a06fcb078f5d41275186b77275d2e1f019.jpg
GeneSplicer is offline   Reply With Quote
Old 10-20-2015, 03:11 PM   #28
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

I'd get it bored and put Weisco's in it. But I already said that.
patsmx5 is offline   Reply With Quote
Old 10-20-2015, 03:17 PM   #29
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

I didn't consider it until the 99 block showed issues as well. Now it's in consideration.
I truly am trying to stay cheap (in moderation) because I still have the track to car finish - and it's way more greedy with what funds I have.
It's not like i want this to make 350 - or do I... look!! Rabbit!!
GeneSplicer is offline   Reply With Quote
Old 10-20-2015, 03:22 PM   #30
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Quote:
Originally Posted by GeneSplicer View Post
I didn't consider it until the 99 block showed issues as well. Now it's in consideration.
I truly am trying to stay cheap (in moderation) because I still have the track to car finish - and it's way more greedy with what funds I have.
It's not like i want this to make 350 - or do I... look!! Rabbit!!
Cheapest I can invision that will work

Weisco pistons/rings
Ebay rods
Cheap set of decent bearings
Mazda gasket set
Gates timing belt kit, Fab9 has a deal on this and a water pump

That should be 1K in parts I think and be bullet proof.
patsmx5 is offline   Reply With Quote
Old 10-20-2015, 07:29 PM   #31
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

Well - the 94 block had a ring groove in #3 - so off to the machine shop we go. Ordered some 84mm supertechs 9.5:1 - with safe tune and good fuel, this'll rock.
While i was at it, ordered sway bar kit, comp mounts, cometic gasket, gates belt. ... yada yada yada
GeneSplicer is offline   Reply With Quote
Old 10-21-2015, 02:44 PM   #32
Senior Member
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 564
Total Cats: 32
Default

Quote:
Originally Posted by GeneSplicer View Post
I truly am trying to stay cheap (in moderation) because I still have the track to car finish - and it's way more greedy with what funds I have.
It's not like i want this to make 350 - or do I... look!! Rabbit!!
The most un-miataturbo thing I will ever say: dude just buy a 1.8 for $700, drop it in, and go have good clean NA fun in an awesome lightweight Eliminator. You can always add boost later. You've got two badazz boosted Miatas already!
nickt93 is offline   Reply With Quote
Old 10-21-2015, 02:54 PM   #33
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

All my track buddies tell me the same thing - I still think they're wrong
$85 for block bore and cleaning - that ain't bad at all - hell, even for the cleaning alone it'd be with it.
GeneSplicer is offline   Reply With Quote
Old 10-21-2015, 02:57 PM   #34
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,233
Total Cats: 978
Default

Quote:
Originally Posted by GeneSplicer View Post
All my track buddies tell me the same thing - I still think they're wrong
$85 for block bore and cleaning - that ain't bad at all - hell, even for the cleaning alone it'd be with it.
I agree. They're wrong.

Turbo is more fun. Thats just a given. Then you need to decide if the work required to be turbo is worth it. thats the personal choice.
aidandj is offline   Reply With Quote
Old 10-23-2015, 04:44 PM   #35
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

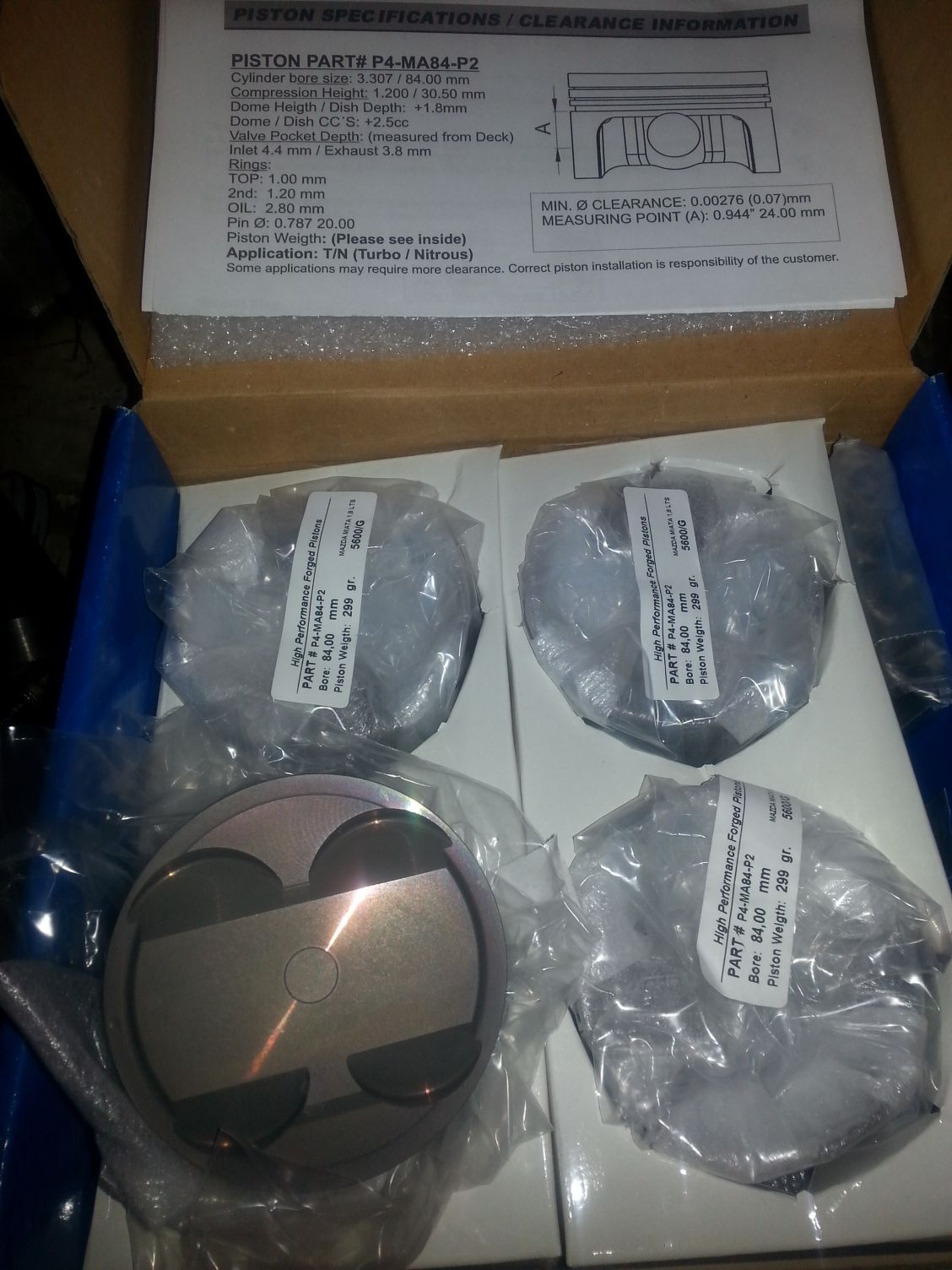

First set of goodies arrive

Attached Thumbnails
Genesplicer's ADD as f*ck turbo Eliminator bui - squirrel!!-80-20151023_142815_01403cd2cf593a1815febfcb53e88e3571f983a8.jpg
GeneSplicer is offline   Reply With Quote
Old 10-23-2015, 05:26 PM   #36
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,573
Total Cats: 224
Default

Quote:
Originally Posted by GeneSplicer View Post
First set of goodies arrive

thupertek


Will these be seeing EFR goodness?
Girz0r is offline   Reply With Quote
Old 10-23-2015, 07:45 PM   #37
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

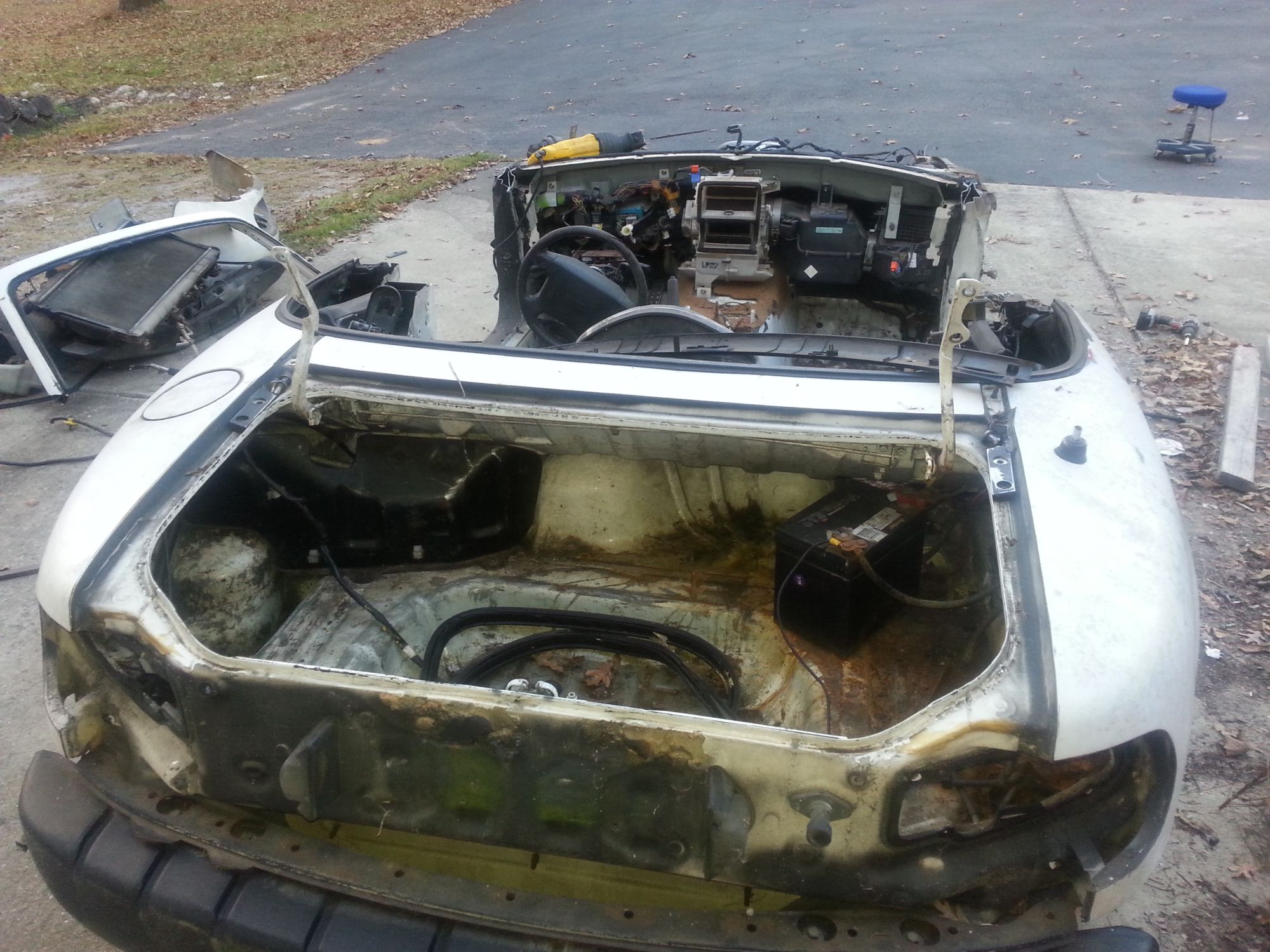

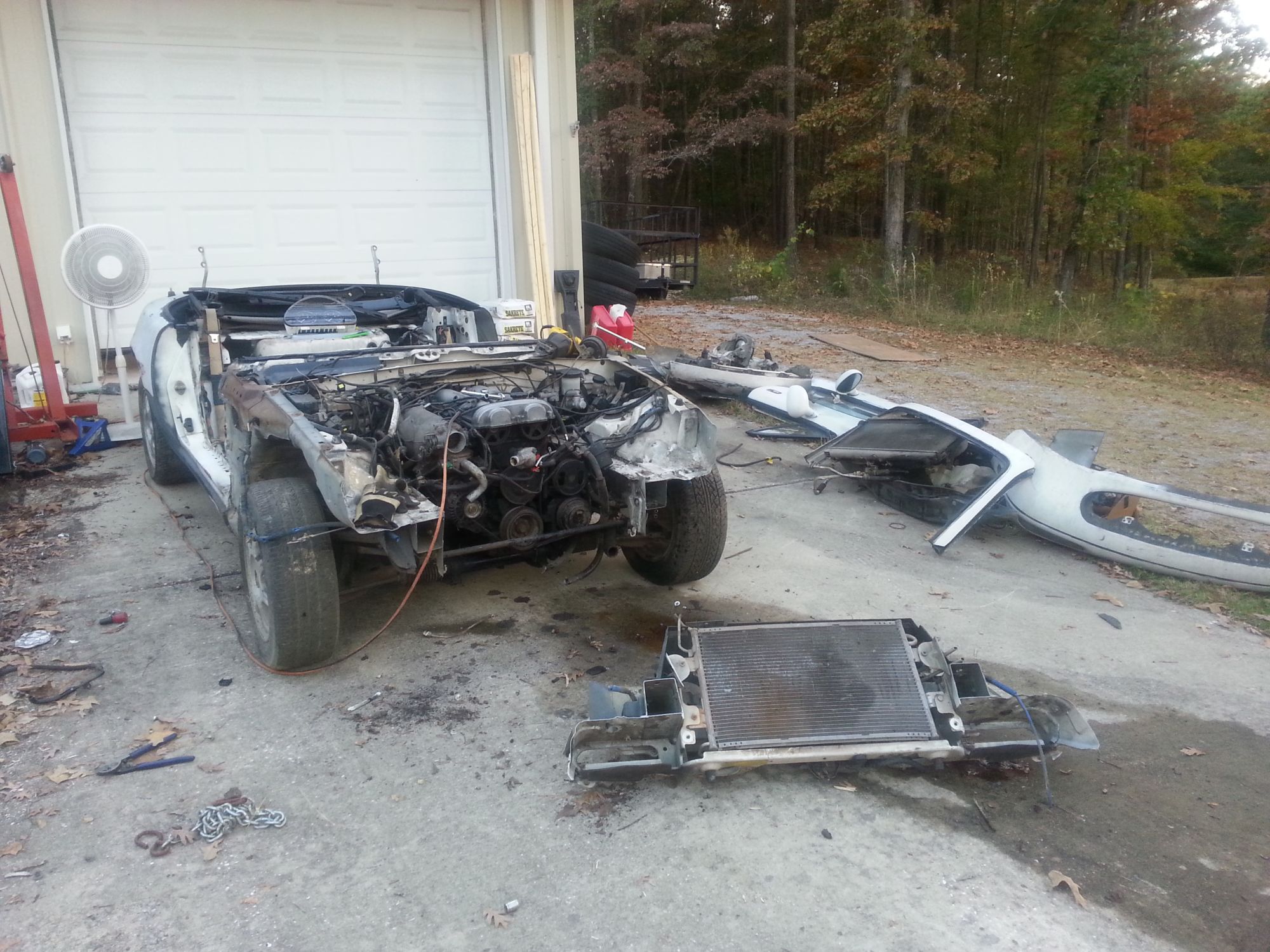

Disassembly and 1st eliminating cut - this is fun





Attached Thumbnails
Genesplicer's ADD as f*ck turbo Eliminator bui - squirrel!!-80-20151023_174232_87821a3ee7487c49b6663c4d5818967a32d2080f.jpg   Genesplicer's ADD as f*ck turbo Eliminator bui - squirrel!!-80-20151023_174251_5e33554fe4684e17515feb6c7d75eb96cc405889.jpg
GeneSplicer is offline   Reply With Quote
Old 10-23-2015, 08:28 PM   #38
Senior Member
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 564
Total Cats: 32
Default

Quote:
Originally Posted by GeneSplicer View Post
Disassembly and 1st eliminating cut - this is fun





Yes!!! It's real now. No turning back.
nickt93 is offline   Reply With Quote
Old 10-23-2015, 08:43 PM   #39
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

Quote:
Originally Posted by Girz0r View Post


Will these be seeing EFR goodness?

Not with this one - now if I had another $3k for the TSE kit and DP.
I've got a used FM kit to put on it. The turbo is currently being rebuilt with wheel upgrades. It's a T25. Should be plenty for 250rwhp.
GeneSplicer is offline   Reply With Quote
Old 10-23-2015, 08:45 PM   #40
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

Quote:
Originally Posted by nickt93 View Post
Yes!!! It's real now. No turning back.
One things for sure - it's gonna be easy pulling the engine n trans out!
GeneSplicer is offline   Reply With Quote
