Old 02-04-2014, 12:50 PM   #1021
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,900
Total Cats: 775
Default

Frustrating yes, but sounds like progress none the less. What exactly does the 01 have in that area that the 00 did not? Other than AC and PS I can't think of anything under the hood in that area that would be vastly different.

Hurry up and get that thing running so I can buy your WRX
EO2K is offline   Reply With Quote
Old 02-04-2014, 01:03 PM   #1022
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,444
Total Cats: 2,038
Default

Maybe the 00 did have all the lines and brackets there, and I just don't remember cause I did the awesome "behind the headlight" routing and didn't have to deal with that area at all.

The ps lines are all in the way. The ac compressor lines are also in the way. It all fits, obviously, but its all clustered together and touching, which I don't like mainly because I'm OCD like that.

I took thursday off to hopefully finish it up for real.

There really isn't much left, but I work really slowly cause I need everything to be flawless or I won't be able to sleep at night
18psi is offline   Reply With Quote
Old 02-04-2014, 01:04 PM   #1023
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,718
Total Cats: 472
Default

Just try to keep in mind what moves with the engine, and what doesn't. I wouldn't be concerned about the AC and compressor hose rubbing, but the lower rad hose and AC compressor will rub. Any way to shorten the part that goes onto the rad to draw it away from the engine?
curly is offline   Reply With Quote
Old 02-04-2014, 01:09 PM   #1024
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,444
Total Cats: 2,038
Default

well the lower rad hose basically "rests" on the ac pump. I've trimmed it and tried like eleventy billion different ways to get it all perfect, but tha'ts how it is. The part that touches moves with the engine, as does the compressor, so there will be no "rubbing". Just touching. lol

The rubbing I'm concerned about is the silicone hotside piping touching the control arm mount: the engine/turbo moves, the lca mount doesn't. Not sure if that's ok, but that is literally the only way to have it, and every new style FM kit on the planet uses this routing/piping so I guess it should be okay...I dunno

I'll snap some pics. I'm probably just overthinking this
18psi is offline   Reply With Quote
Old 02-04-2014, 02:20 PM   #1025
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,084
Total Cats: 424
Default

Could the BEGI parts be repositioning the turbo enough to cause different fitment?
turbofan is offline   Reply With Quote
Old 02-04-2014, 02:28 PM   #1026
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,900
Total Cats: 775
Default

Quote:
Originally Posted by 18psi View Post
I'll snap some pics. I'm probably just overthinking this
Sounds about right

Have you looked at the FMII install instructions? IIRC they actually recommend cutting up old radiator hose and using zip ties to create "wear patches" for the hoses for things that contact. I could be wrong though, I read a lot.

I've got both sections of the silicone FM piping as well. The IC -> TB pipe is money but I'm not completely sold on the compressor -> IC pipe. The more I look at it and the more I read the more I want to do the behind the headlight routing like I did with the Rotrex. Of course, I also want to do an airbox for the filter too keep the noise down, something like the FM "hush kit" and I'm not sure that's going to be compatible.
EO2K is offline   Reply With Quote
Old 02-04-2014, 03:04 PM   #1027
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,956
Total Cats: 228
Default

Quote:
Originally Posted by EO2K View Post

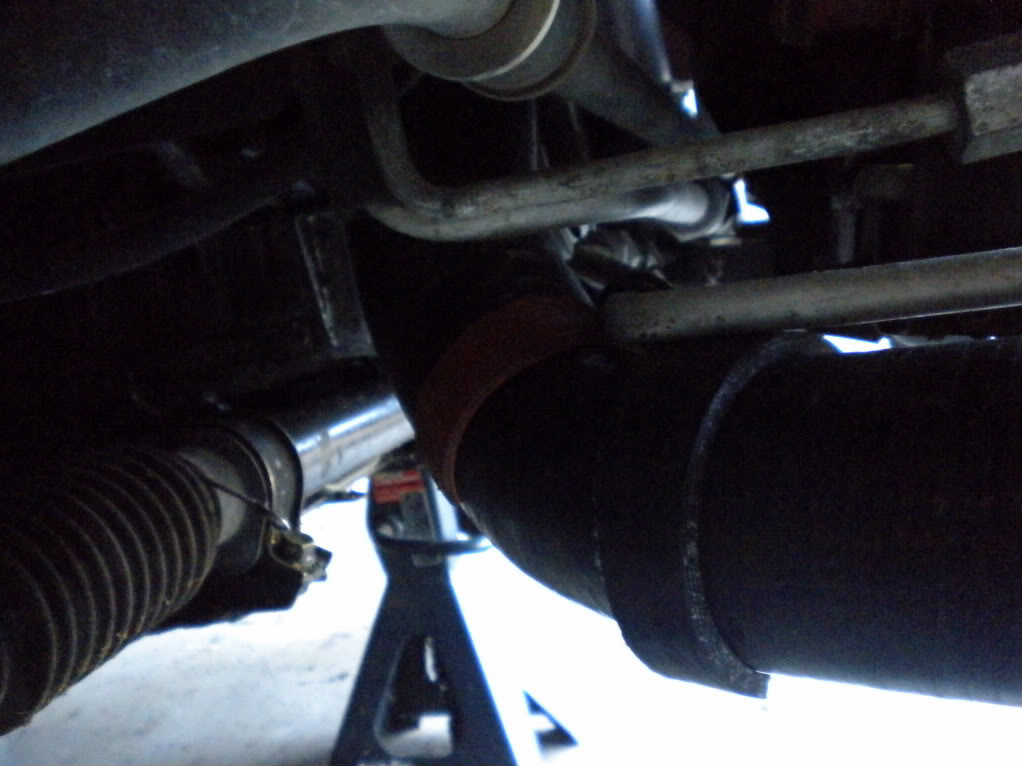

using zip ties to create "wear patches" for the hoses for things that contact
I did the same for my coldside pipe. My lower rad hose hasn't worn through, but I may do the same for it.

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-dscn0847.jpg
viperormiata is offline   Reply With Quote
Old 02-04-2014, 10:24 PM   #1028
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,444
Total Cats: 2,038
Default

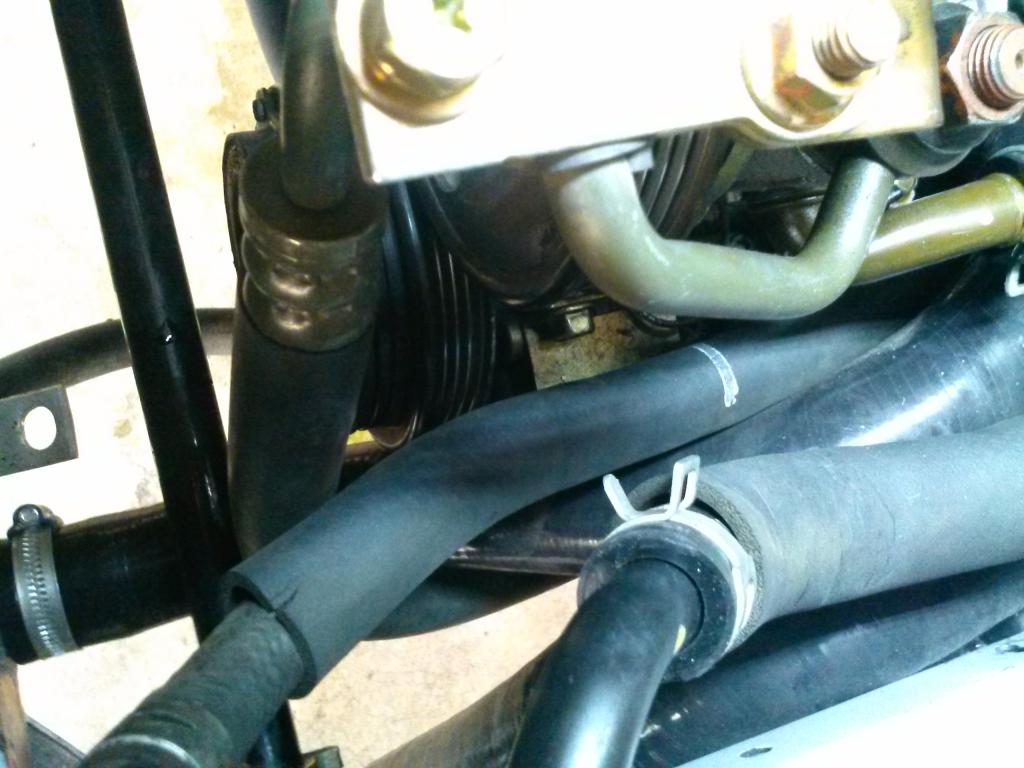

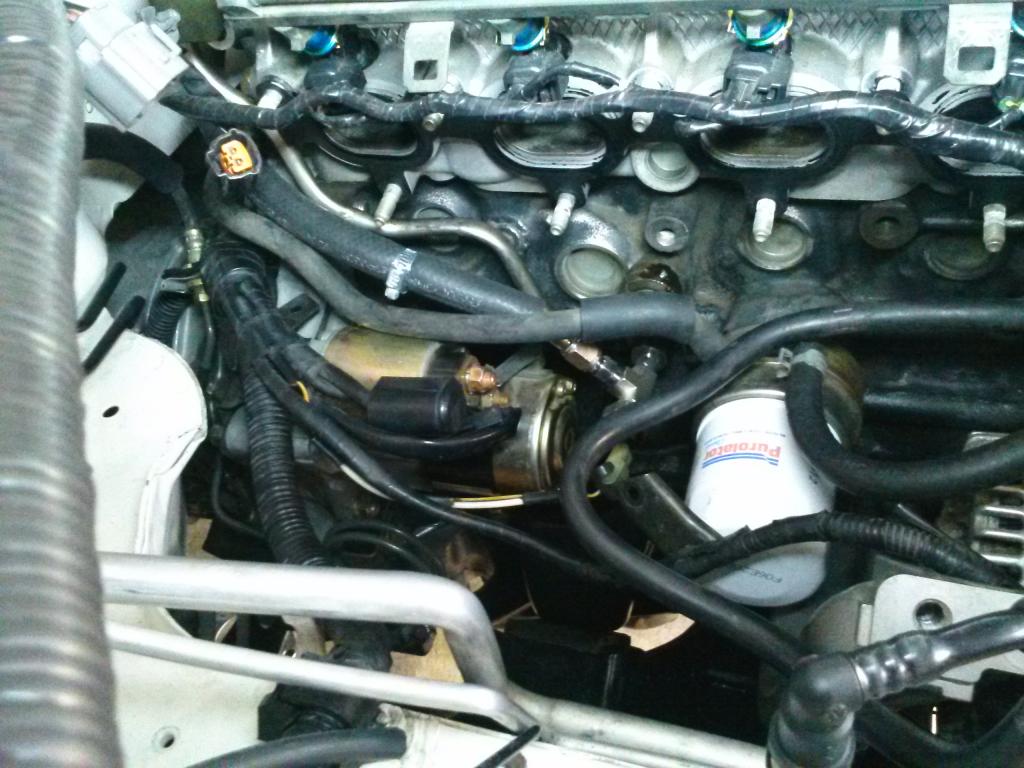

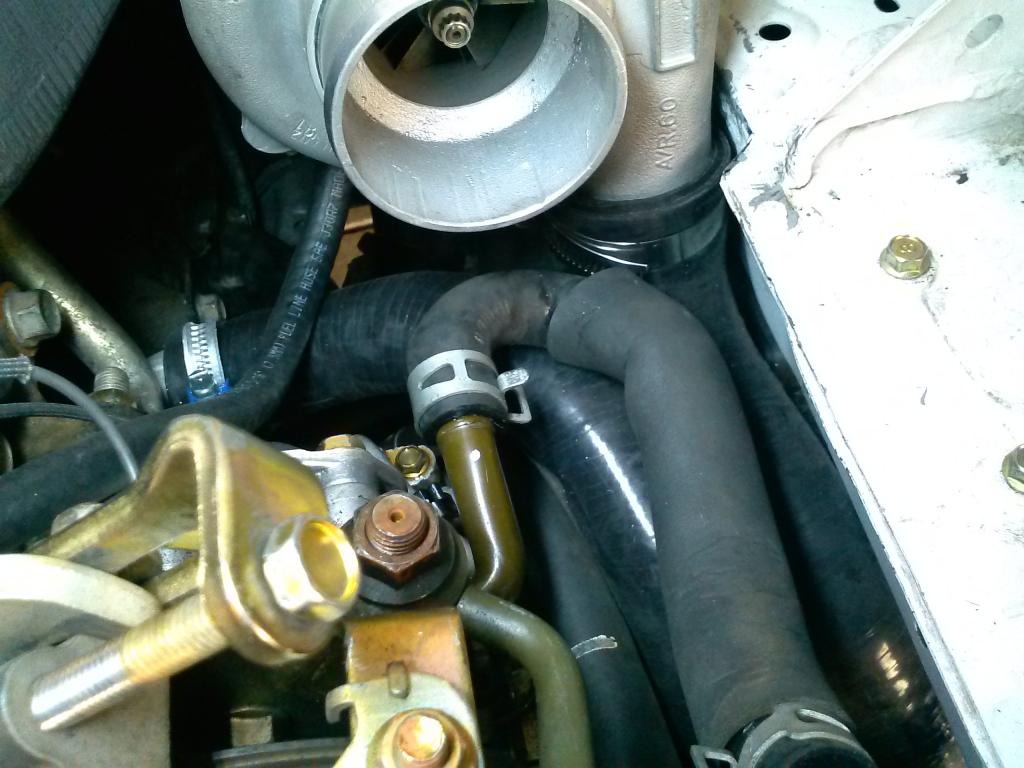

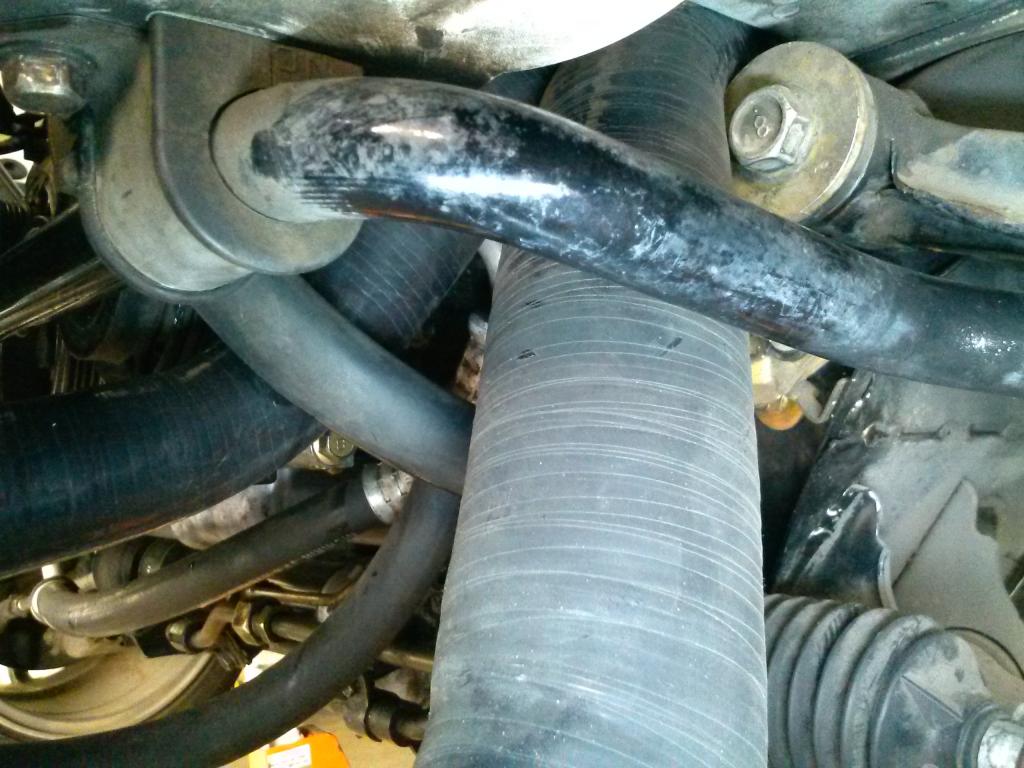

Here's some shots of what I was talking about:

Overall nothing terrible, so I guess I'll just deal with it.

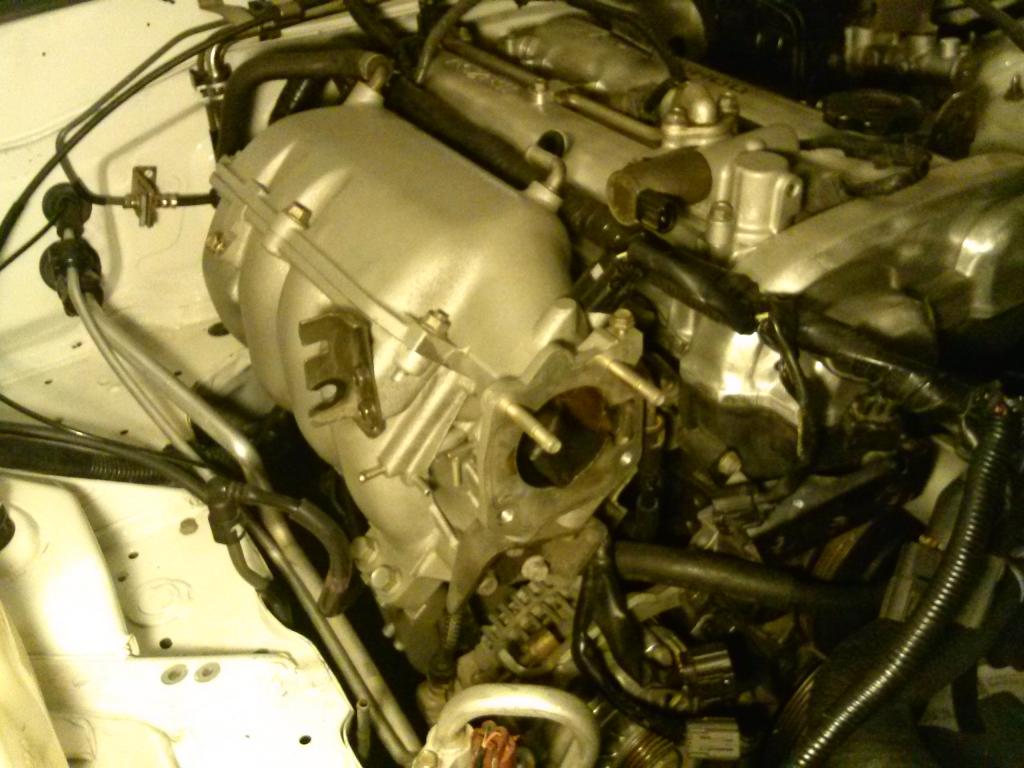

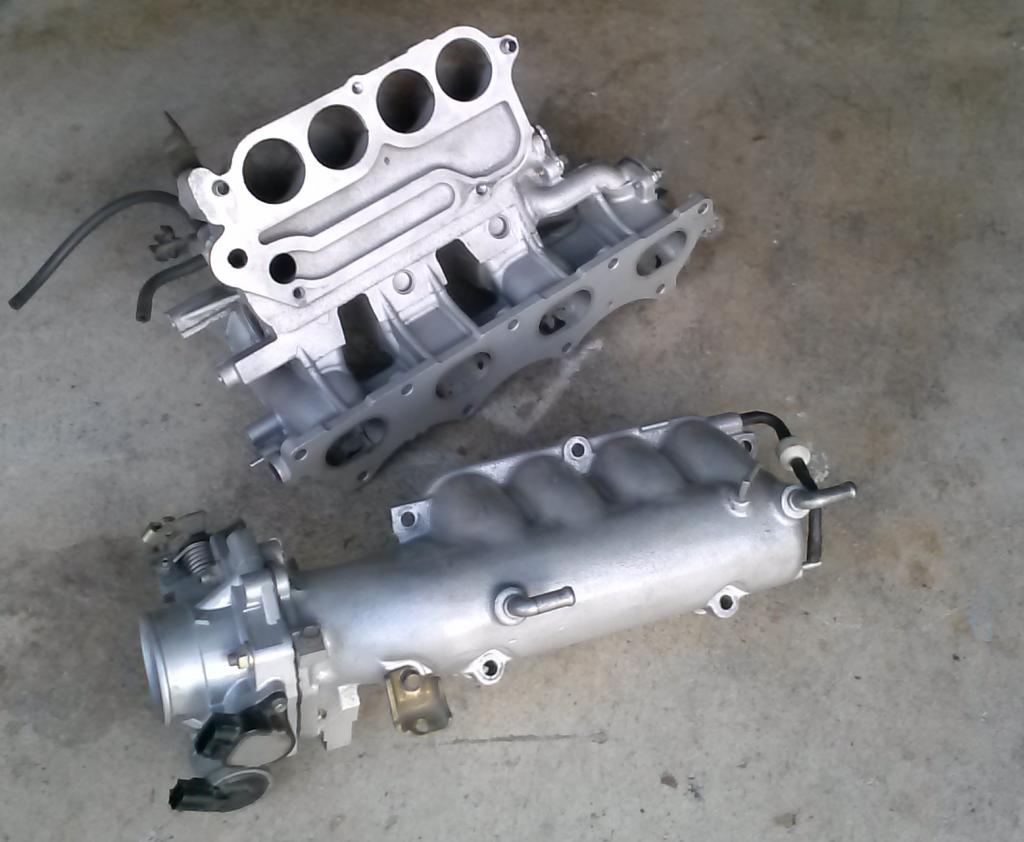

also VTCS manifold out

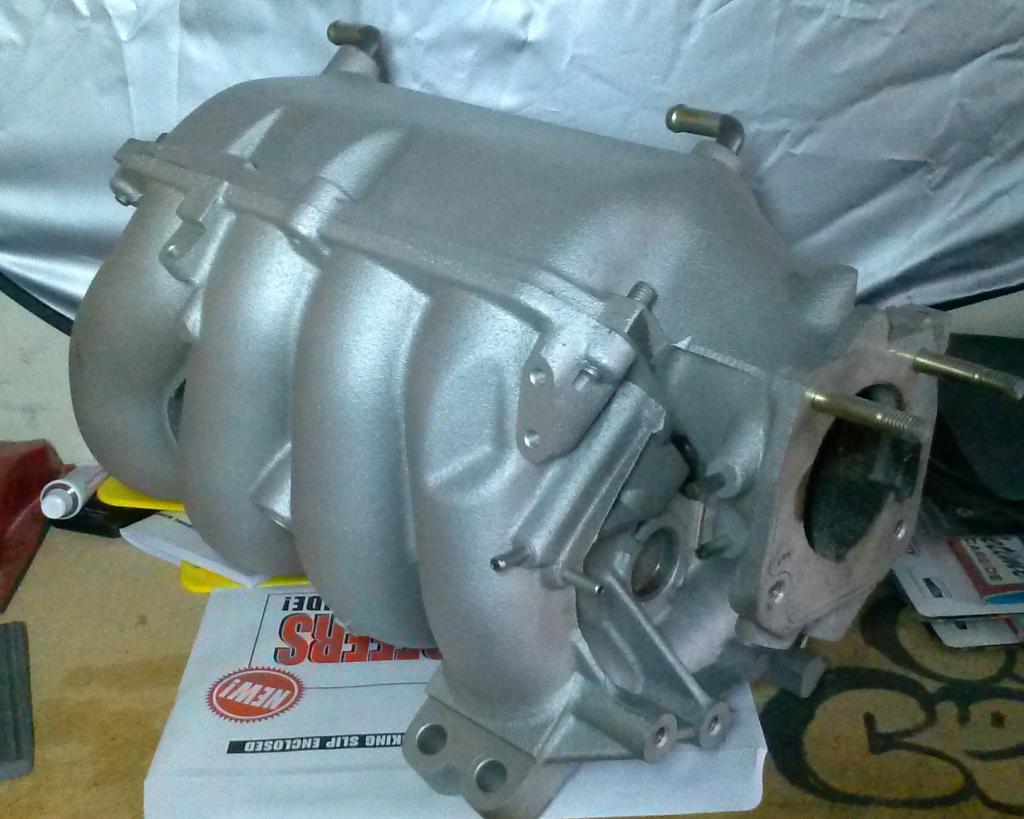

and Squaretop that will be going in

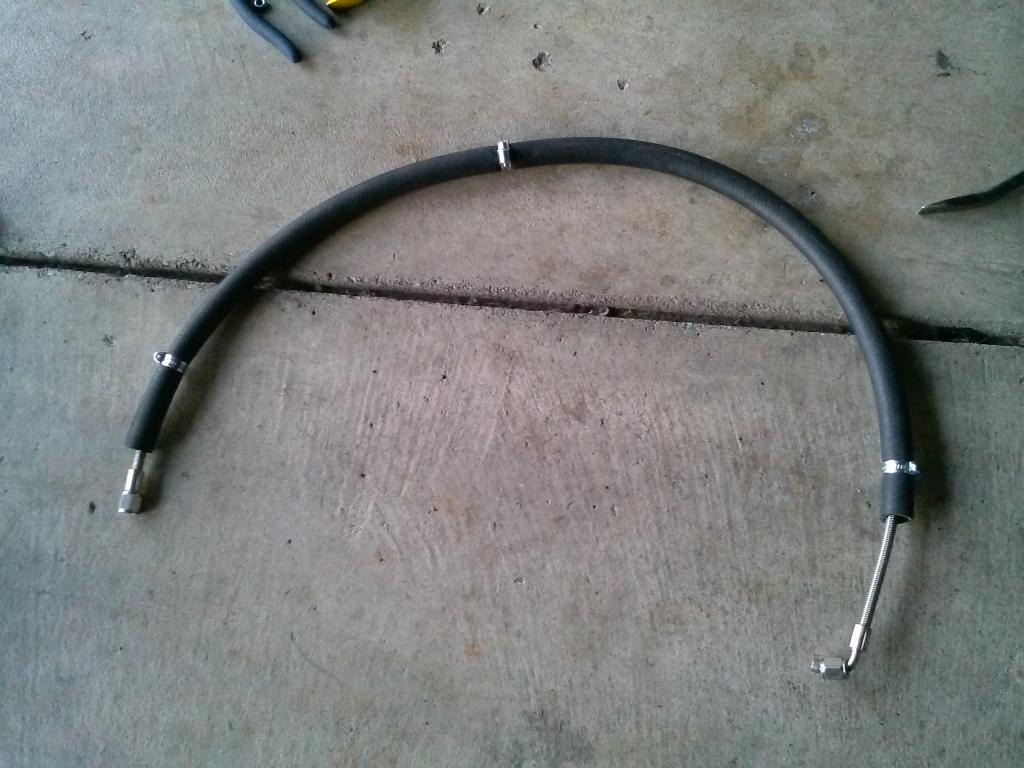

oil feed wrapped in my diy "sleeve" lol


oil feed hooked up

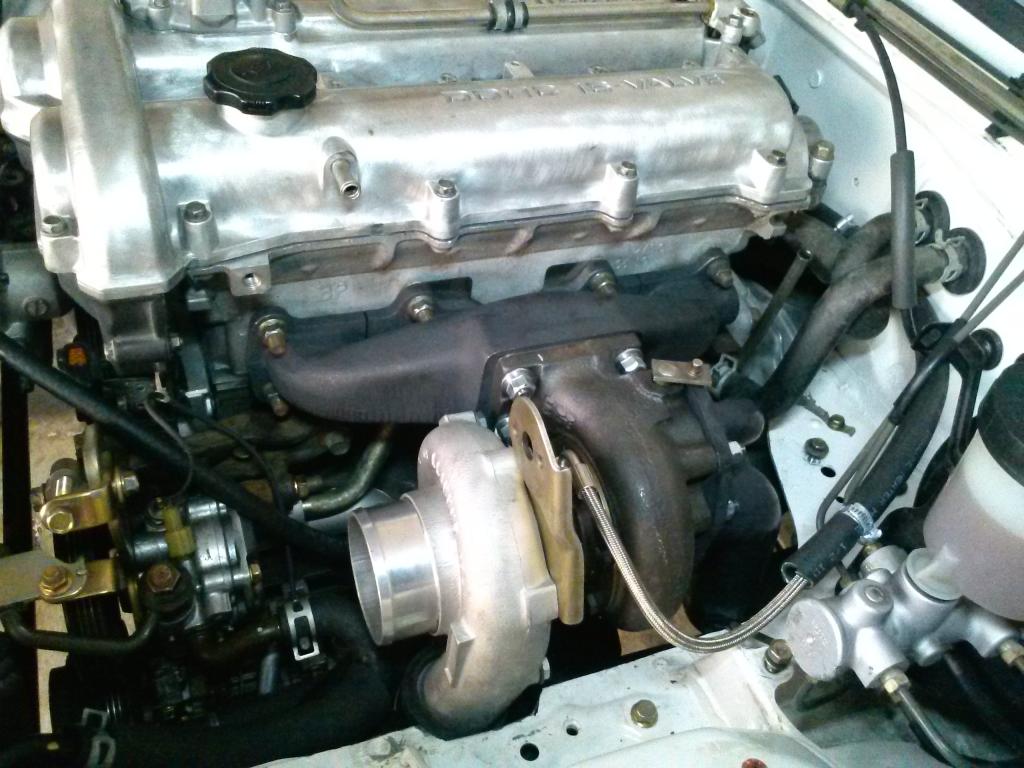

and turbo hooked up


can't wait to clean it all up, wash inside and out, and get this bad boy started
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-003.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-005.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-004.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-006.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-001.jpg

H3AVY to H3AVYER to...H3AV1EST P1G-009.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-008.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-012.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-010.jpg
18psi is offline   Reply With Quote
Old 02-04-2014, 10:27 PM   #1029
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,084
Total Cats: 424
Default

Wow that's quite a fustercluck in there.

That would make me nervous as well, I don't blame you.
turbofan is offline   Reply With Quote
Old 02-04-2014, 10:30 PM   #1030
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,900
Total Cats: 775
Default

Makes me even gladder I removed my AC. I don't like that charge pipe on the control arm and swaybar, that **** just moves too much. The rest I could deal with.

When is D Day?
EO2K is offline   Reply With Quote
Old 02-04-2014, 10:38 PM   #1031
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,444
Total Cats: 2,038
Default

the cool thing is that the part its touching isn't the part that moves up/down with the lca. its the hanger and is stationary. But yeah, I still don't like it. I'll figure something out if it becomes a problem. Its relatively easy to get to so that's a good thing.

I'm hoping to have it at least ready to fire up this week/weekend.

If I do, and it runs/drives fine, the wrx will be going for sale in the next few weeks.
18psi is offline   Reply With Quote
Old 02-04-2014, 10:50 PM   #1032
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,084
Total Cats: 424
Default

Well that was quick. Get it running tomorrow so I can see it complete on Thursday
turbofan is offline   Reply With Quote
Old 02-05-2014, 01:23 AM   #1033
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,718
Total Cats: 472
Default

Gah, move that clamp on the feed line to the end of the cover or I'm going to explode.
curly is offline   Reply With Quote
Old 02-05-2014, 02:08 AM   #1034
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,444
Total Cats: 2,038
Default

I will be fitting a FM heat shield soon (or a diy knockoff) so yeah it will likely be moved anyway
18psi is offline   Reply With Quote
Old 02-05-2014, 02:31 AM   #1035
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,900
Total Cats: 775
Default

Quote:
Originally Posted by 18psi View Post
I'm hoping to have it at least ready to fire up this week/weekend.

If I do, and it runs/drives fine, the wrx will be going for sale in the next few weeks.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-mr-burns-saying-excellent.gif
EO2K is offline   Reply With Quote
Old 02-05-2014, 11:41 PM   #1036
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,668
Total Cats: 227
Default

Looking awesome Vlad, love the "sleeve" for the oil feed. Next time I pull my motor (soon enough lol) I'm going to do this upon reassembly. Good idear.

Stoked to see this thing running..
Fireindc is offline   Reply With Quote
Old 02-06-2014, 09:09 PM   #1037
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,444
Total Cats: 2,038
Default

Thanks.

Mid-day update:

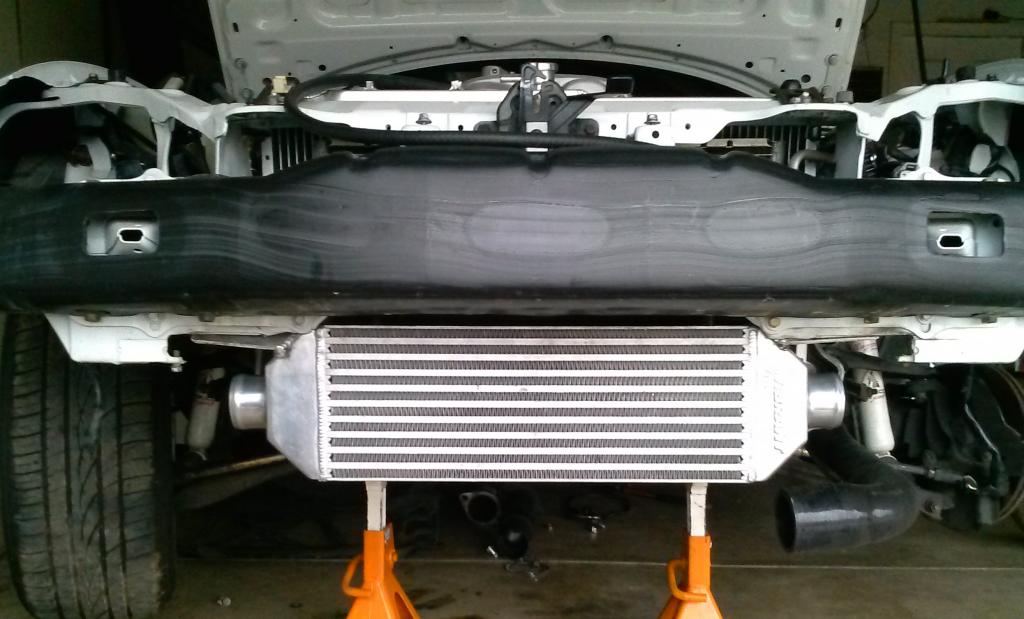

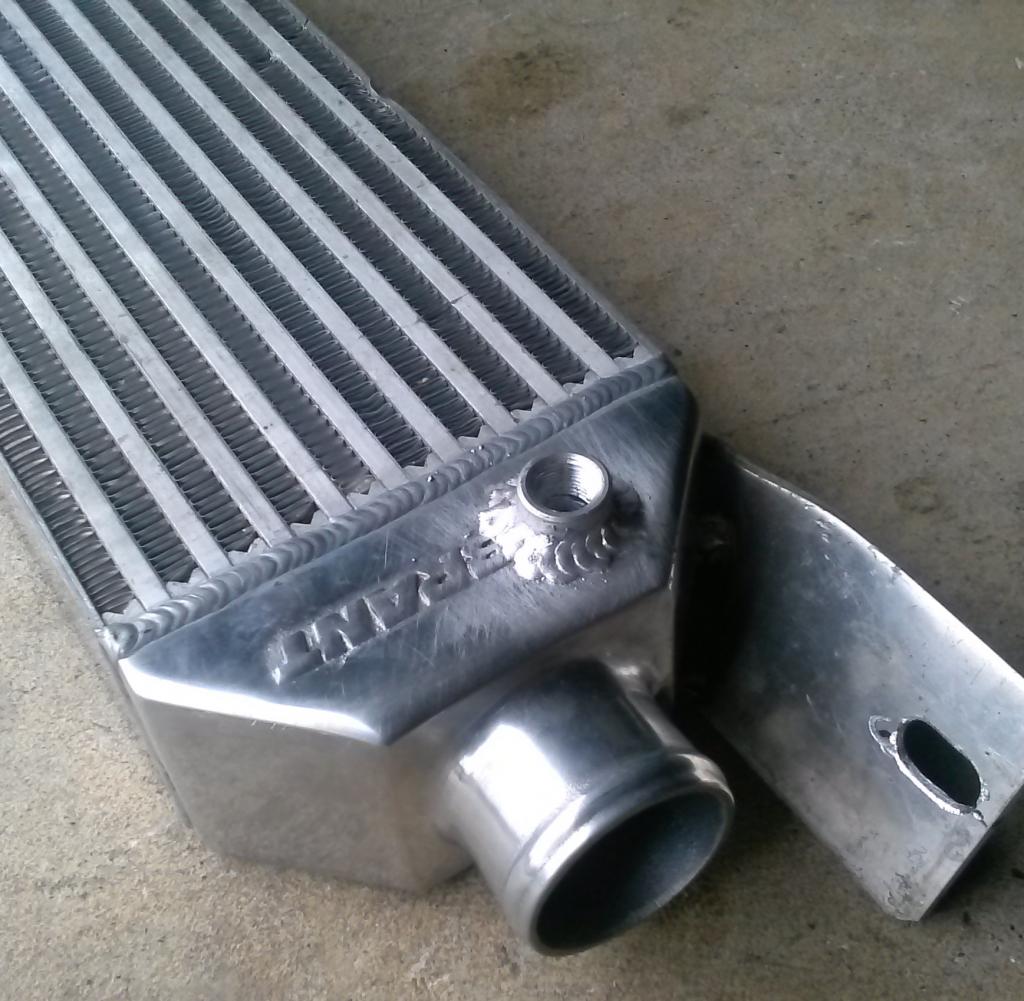

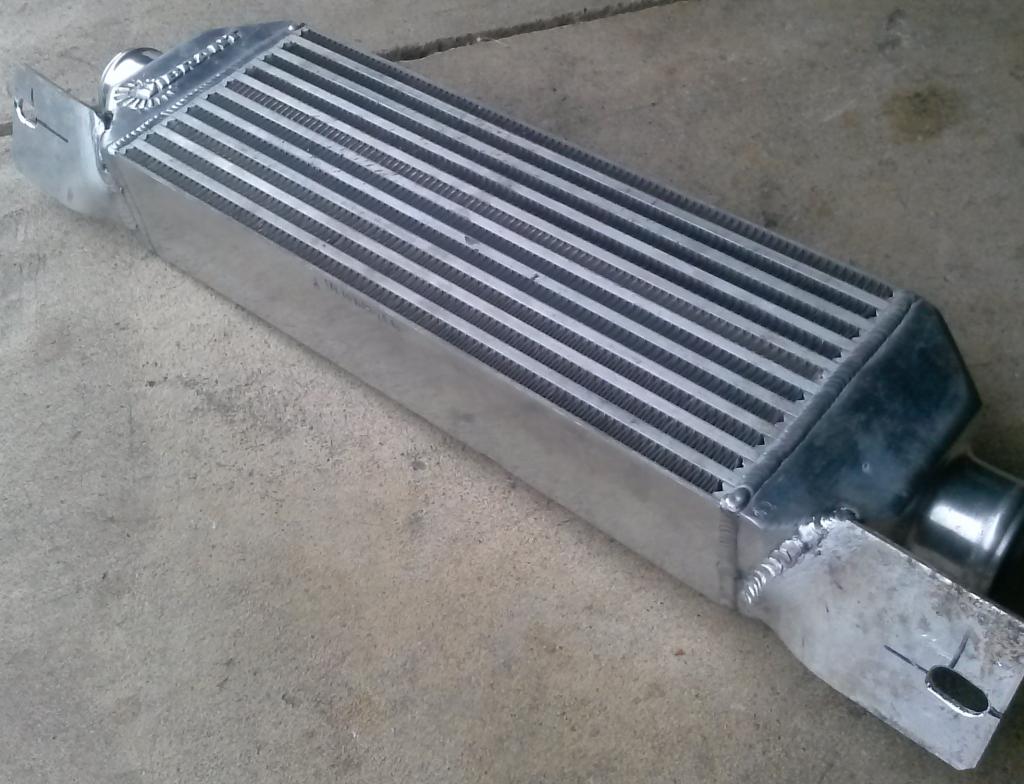

welded mounting tabs to intercooler for boss-style mounting


welded IAT sensor bung to intercooler for accurate temp readings


it fits, yay (we jigged it up on a spare car at the shop, not my car)

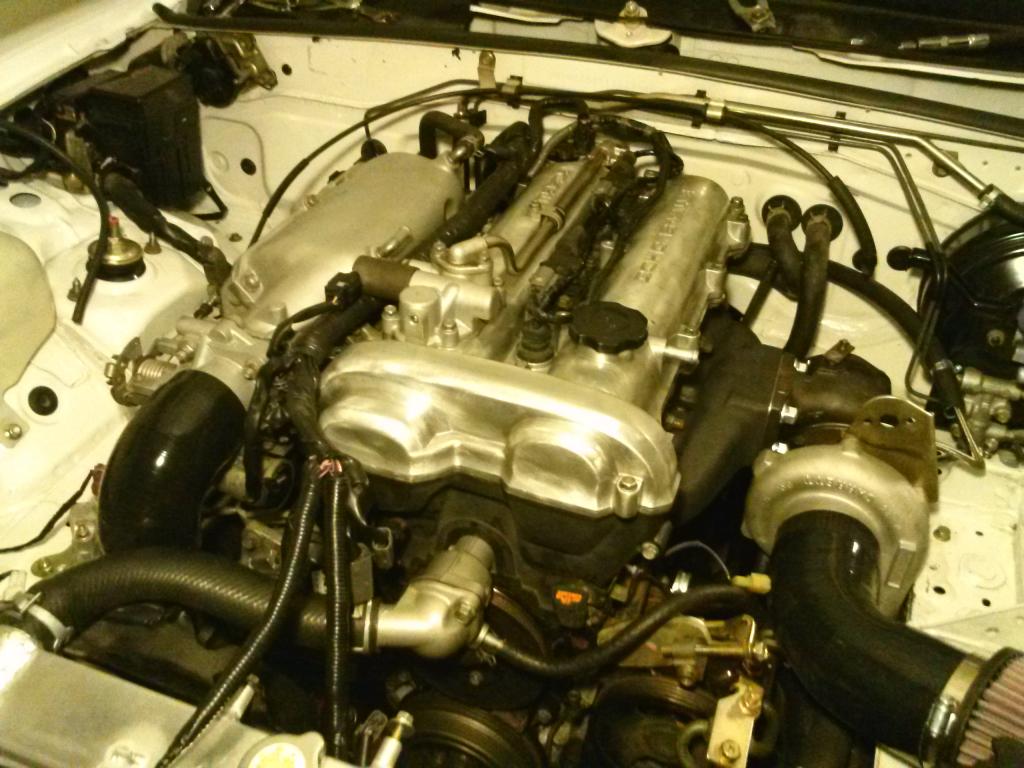

squaretop is INN

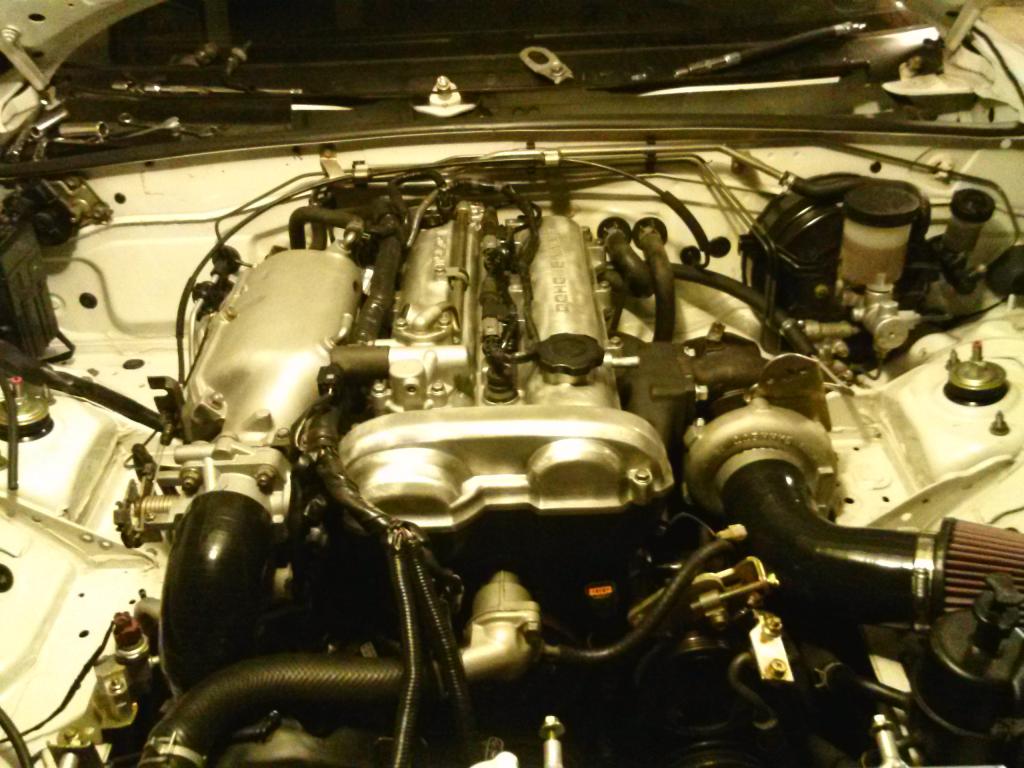

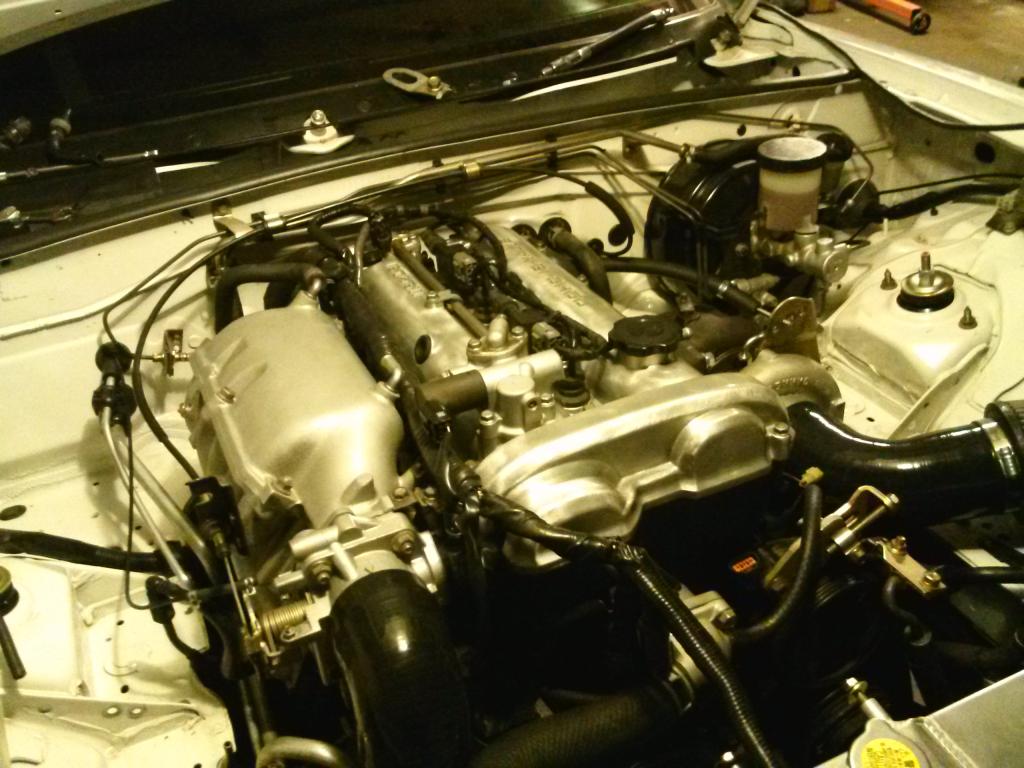

and pipes thrown on just to check clearances everywhere
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00489.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00490.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00491.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00492.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00493.jpg

H3AVY to H3AVYER to...H3AV1EST P1G-cam00496.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00494.jpg
18psi is offline   Reply With Quote
Old 02-06-2014, 09:16 PM   #1038
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,900
Total Cats: 775
Default

Neat! Vibrant 12800? I need to see if there is room to fit my IAT bung in that location. It'll look good painted black
EO2K is offline   Reply With Quote
Old 02-07-2014, 06:14 PM   #1039
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,444
Total Cats: 2,038
Default

Ok, so good news and bad:

I go to start the car just now, it fires up like a champ. I think the stupid gas station sold me regular gas not e85 so I adjust req fuel to pump gas setting and it runs great.

30 seconds later it shuts down abruptly. does not restart no matter what. I give it about 10 minutes, it restarts perfectly and runs for about 30 seconds, then same crap again: shuts down wont restart no matter what. Crank and crank til the battery dies. I put charger on it. Waiting for it to get some juice.

Also its showing "VVT1 error" on the bottom.
I'm pretty sure I set timing right, replaced all the vvt solenoid seals and gaskets, everything is top notch.


Its driving me bananas

What the crap is "VVT1 error"? Someone know? is it just the solenoid not operating, or cam out of place, or what?
18psi is offline   Reply With Quote
Old 02-07-2014, 07:25 PM   #1040
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

I had the VVT1 error when I set my base timing way too high. Are you sure the gap is fine on the crank sensor?
richyvrlimited is offline   Reply With Quote
