Default HOUSE CAT

Okay, it's a little early to start this thread but I'm starting a new in-house Catfish build. It will be another turbo, and will have a few items that I've been meaning to try, including a 5 speed mated to a 3.63 differential, new suspension, a V8 Roadster K member up front, and a few other tweaks that I've been meaning to try.

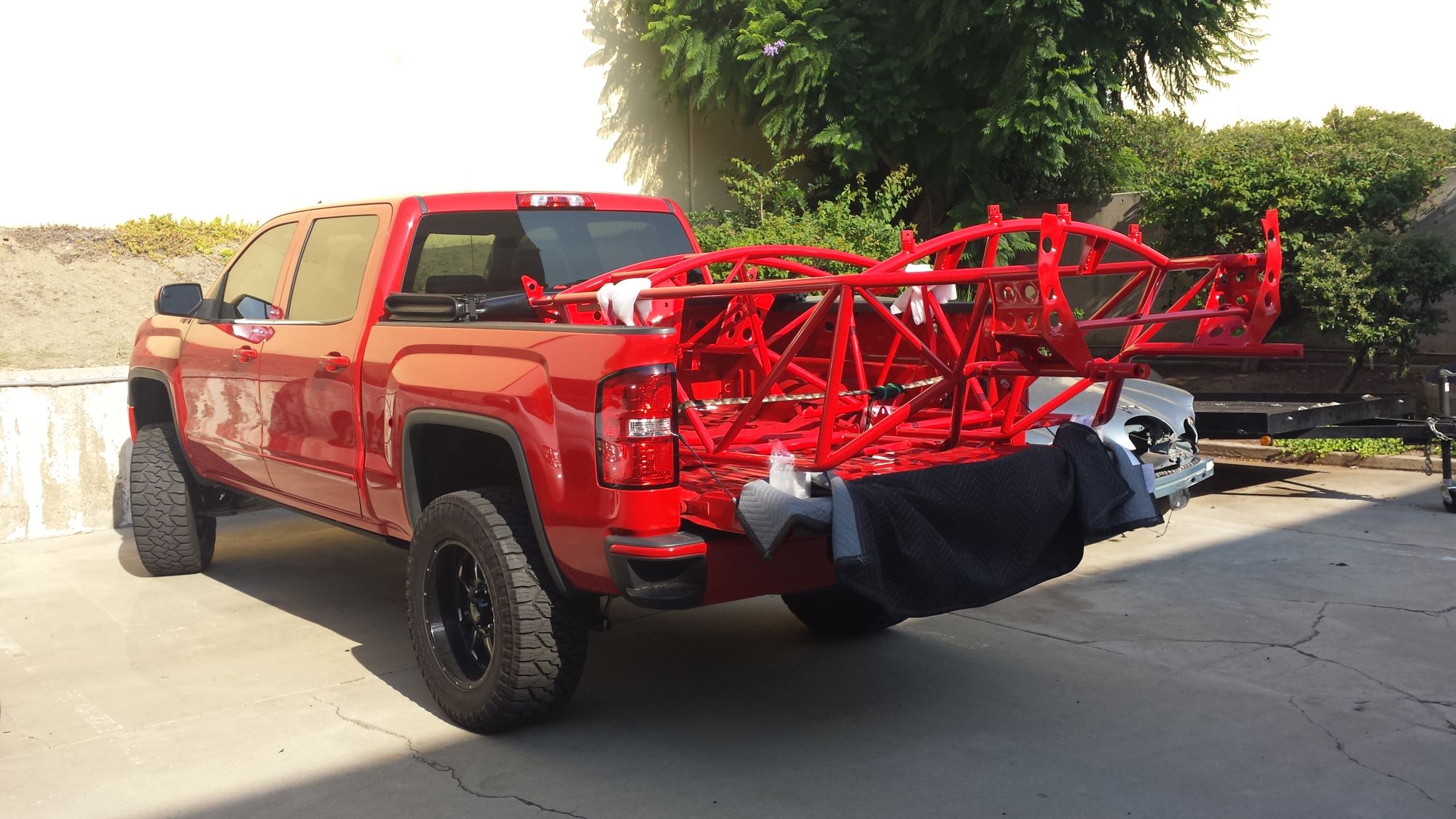

The frame came home today in the back of my truck. I thought for a second about adding some red safety flags to the back, but then thought that would be just silly.

Attached Thumbnails
HOUSE CAT-80-20150819_164422_6b21c211308cfbcd096d18601fef2b088f14fd37.jpg
cordycord is offline   Reply With Quote
Old 08-20-2015, 01:38 AM   #2
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,890
Total Cats: 1,093
Default

<p>Mucho sexy. Hurry up and bring one up here.</p>
aidandj is offline   Reply With Quote
Old 08-21-2015, 01:30 AM   #3
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,740
Total Cats: 135
Default

The main reason to start a new build was really because frame #1 is long in the tooth. We've learned much, and that learning curve has gone into the new frames...but not the one we drive around here. Time to change.

Time to change colors too. The LOUD colors will be covered up by something a bit more sedate. Should look nice, though.

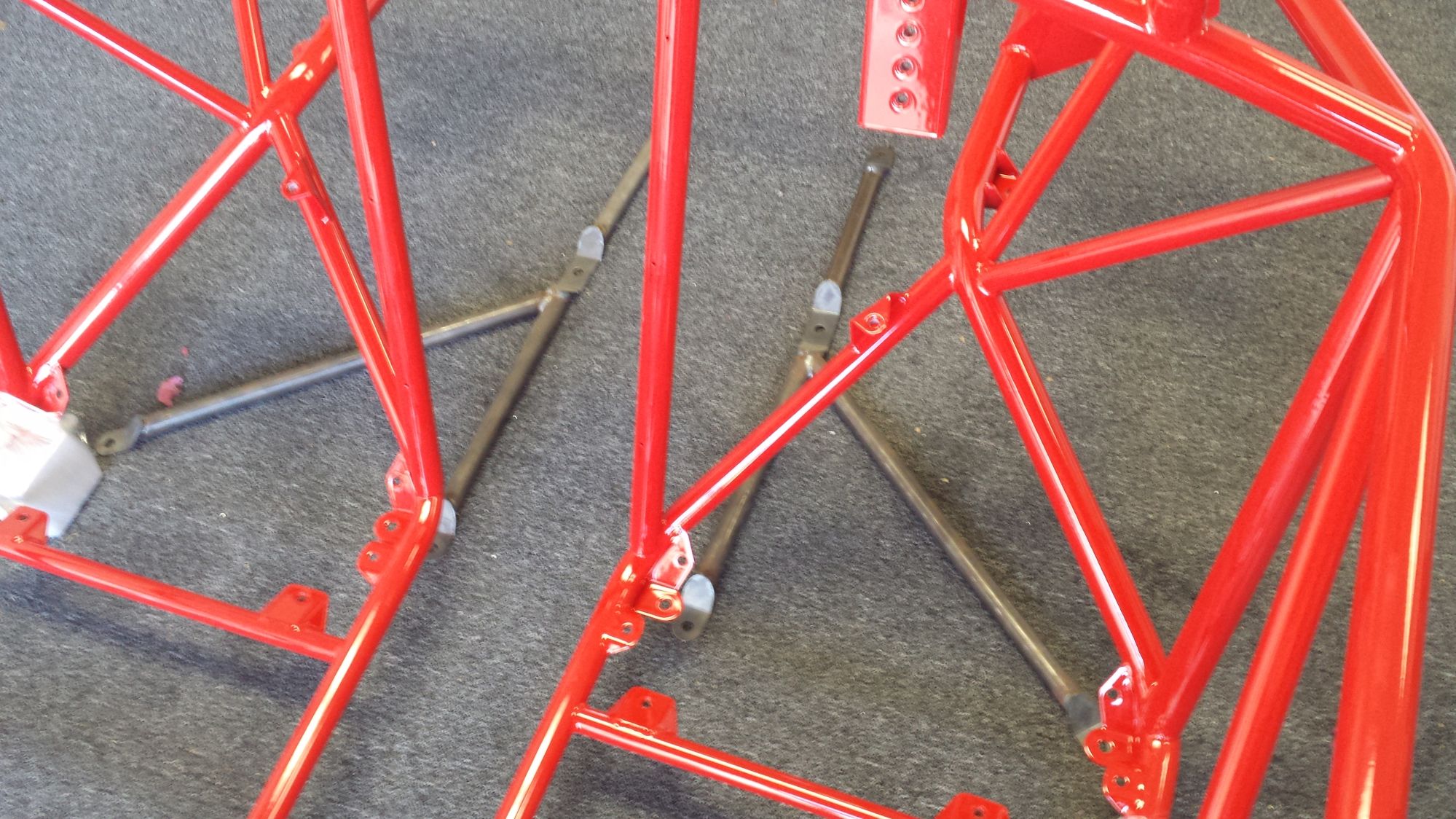

While cleaning out the closet of stuff for the car, I came across the first subassembly braces we made. They tie the subassembly to the frame reasonably well. Maybe we'll throw those on the car too.

Attached Thumbnails
HOUSE CAT-80-20150819_172305_05e2c1d8793d7735704ed32e2a4e1fd59c824238.jpg
cordycord is offline   Reply With Quote
Old 08-26-2015, 12:42 AM   #4
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,740
Total Cats: 135
Default

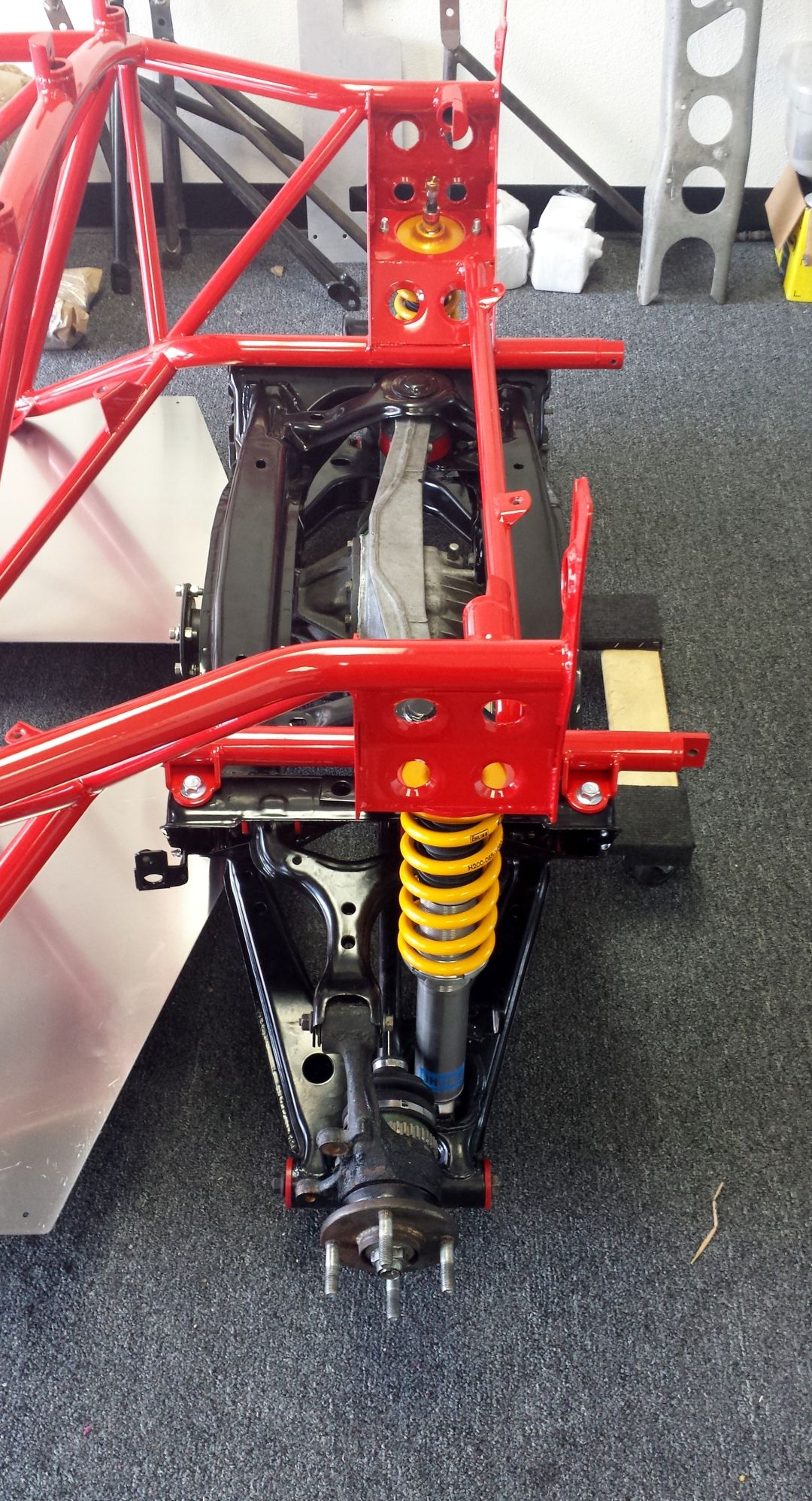

Red Baron Red holding a bright yellow Ohlins.

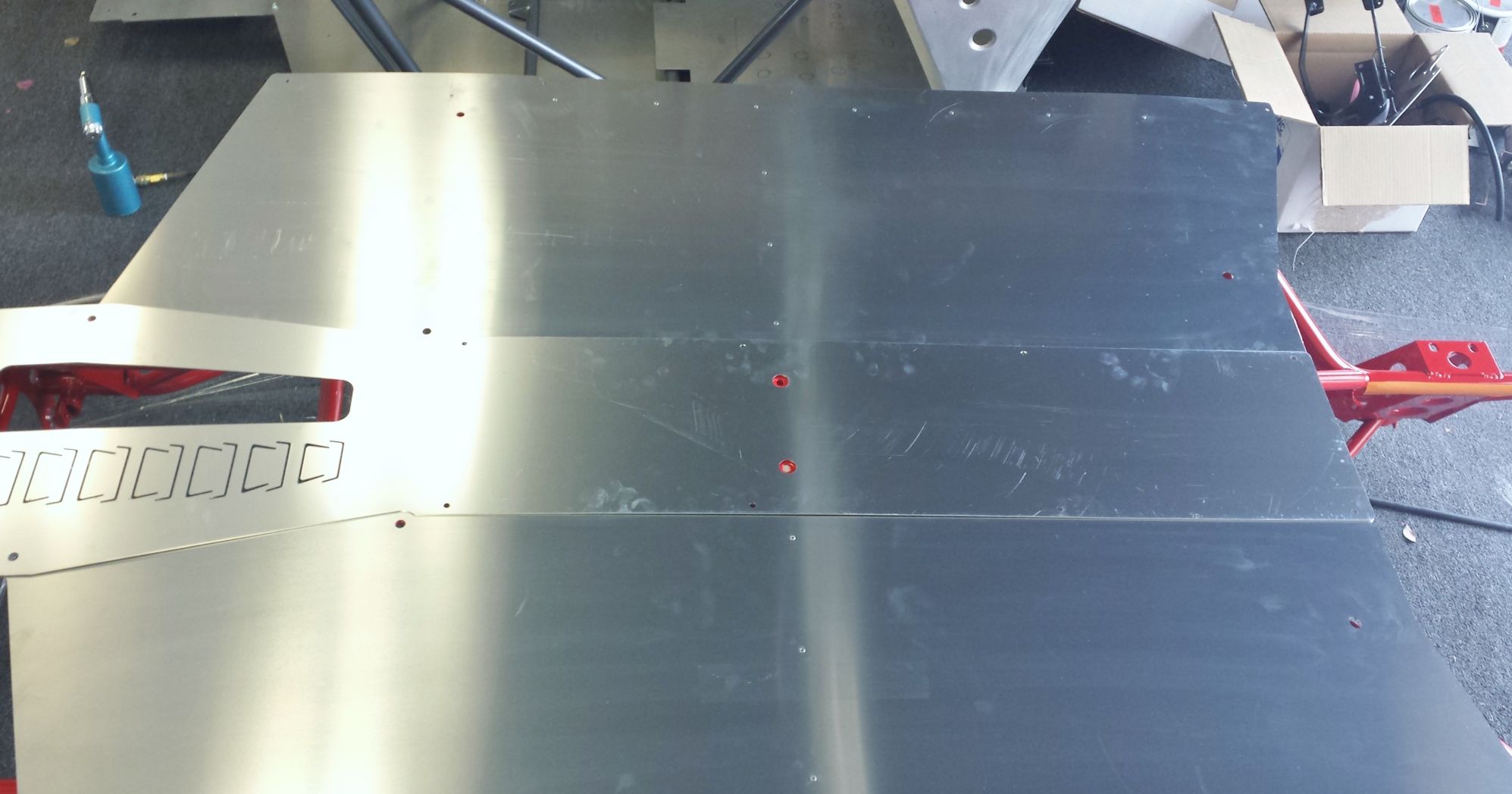

Floor installed with differential vents in closed position.

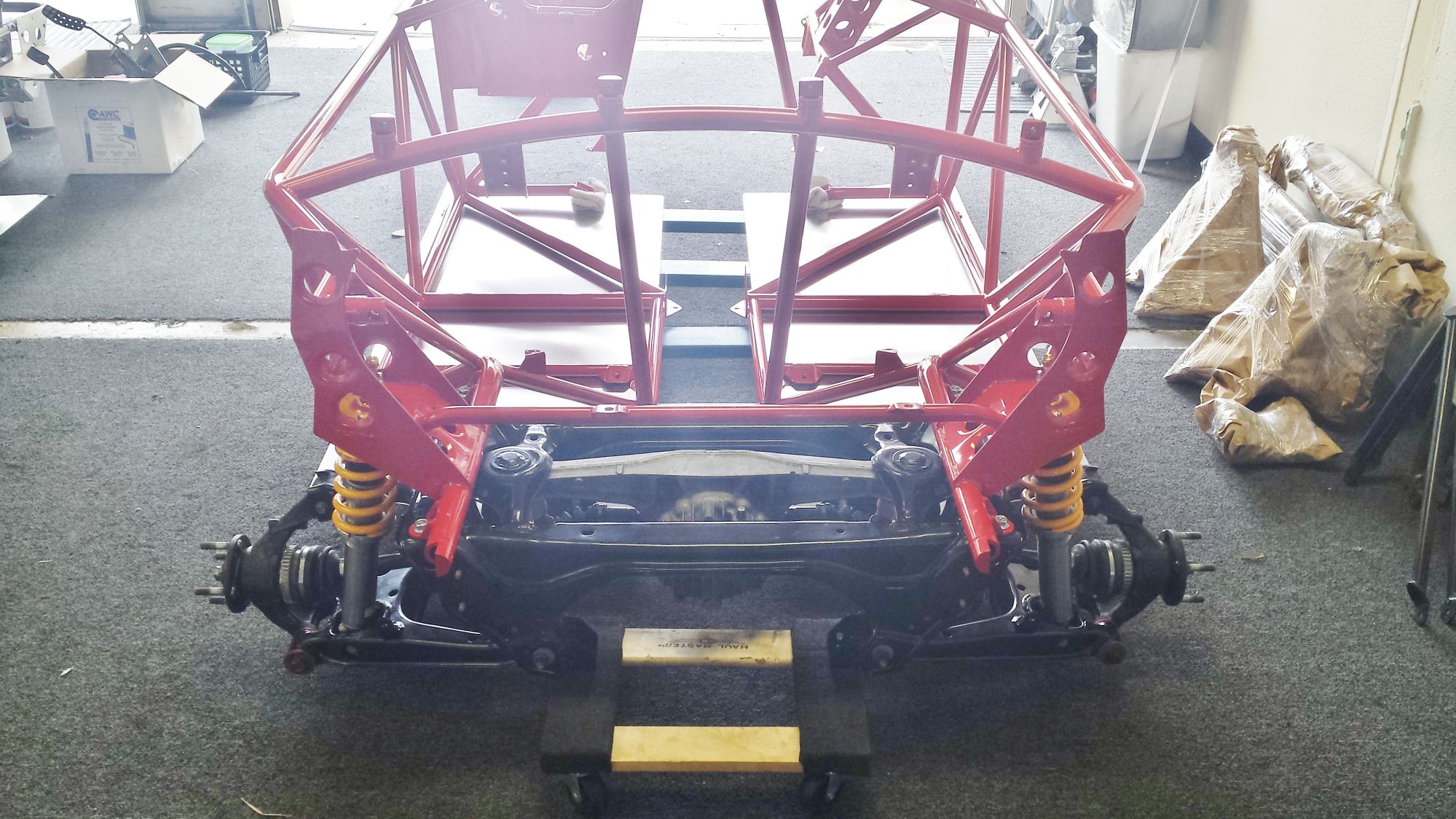

Powdercoated subassembly with 3.63 LSD.

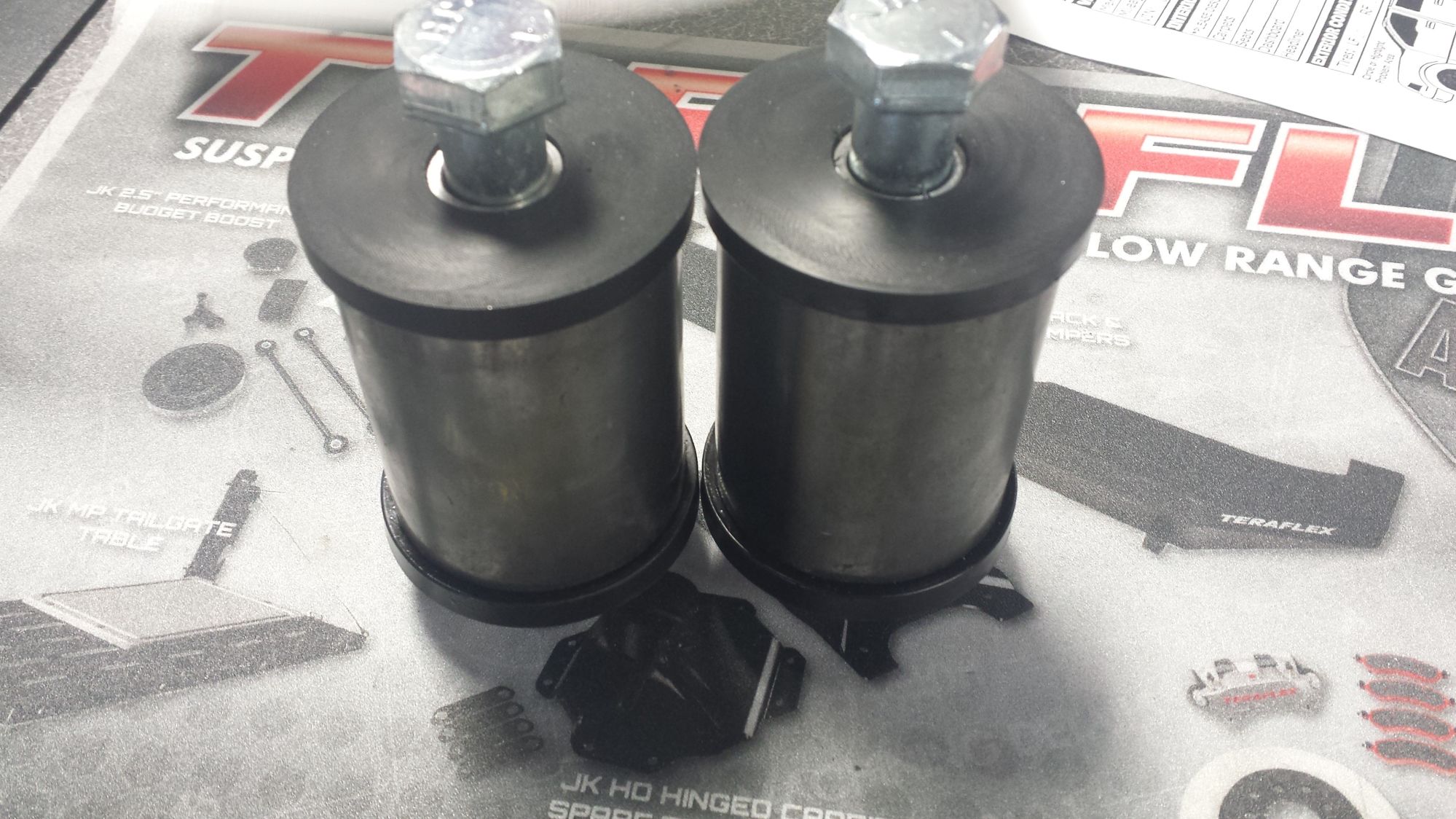

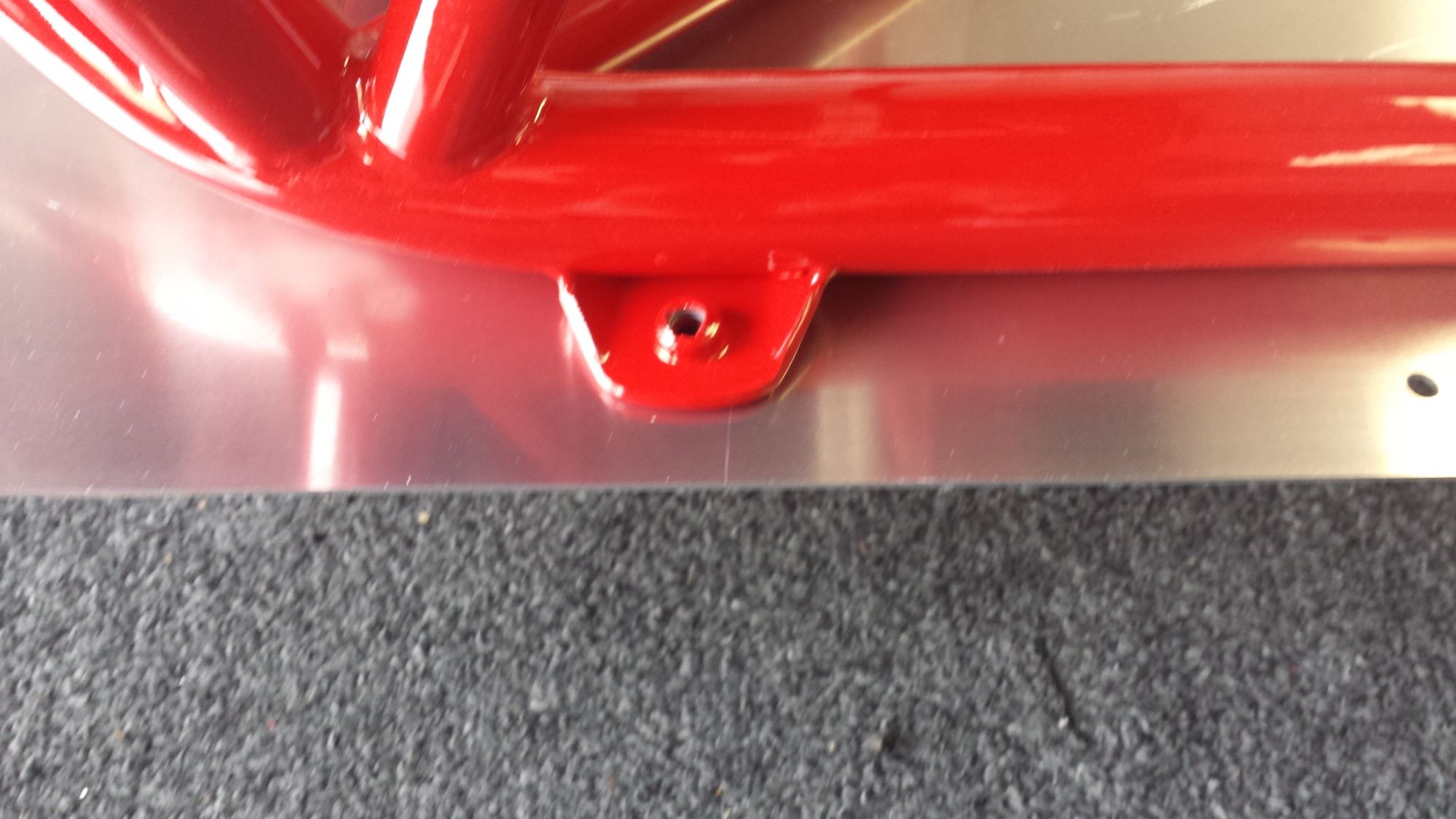

We added a little tab that will mount a Delrin puck. The puck will be a locator for the floor jack at the front of the car.





Custom engine mounts are next...
Attached Thumbnails
HOUSE CAT-80-20150825_164503_aeef2946ceb3fd09fa6a699356d92d0c74eb3a52.jpg   HOUSE CAT-80-20150825_131454_683bfb32a1cb646ac8f5139258be68977efc2333.jpg   HOUSE CAT-80-20150825_164452_463e35b7b3cfb9335c5425baeb42a48a4d1552a7.jpg   HOUSE CAT-80-20150825_132837_d00eff572e91871bc30cd1ca16ad2ab75be47ba4.jpg   HOUSE CAT-80-20150825_161103_6544027338ba3fa8bfc56aef54672695d3047fb7.jpg

cordycord is offline   Reply With Quote
Old 08-26-2015, 01:25 AM   #5
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,930
Total Cats: 227
Default

oh myyyy
psyber_0ptix is online now   Reply With Quote
Old 08-26-2015, 08:46 AM   #6
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,292
Total Cats: 225
Default

sub'ed.
TurboTim is offline   Reply With Quote
Old 08-26-2015, 08:49 AM   #7
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,903
Total Cats: 1,469
Default

would snuggle with.
Braineack is offline   Reply With Quote
Old 08-27-2015, 12:40 PM   #8
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,555
Total Cats: 379
Default

Boner'd
Monk is offline   Reply With Quote
Old 08-27-2015, 07:43 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

super duper awesome

will this one get a proper NB1 or 2 1.8? As much as I love the prev one, seeing you put shiny pretty and nice parts on 1.6 was kinda like seeing you polish a turd.
18psi is offline   Reply With Quote
Old 08-27-2015, 08:11 PM   #10
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,554
Total Cats: 446
Default

I love your builds. Sub'd
hi_im_sean is offline   Reply With Quote
Old 08-27-2015, 08:20 PM   #11
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Its certainly pretty, will it meet my expectations and taste like cherries should I lick it?

Also, I'm no engineer, but what exactly is keeping the rear shocks from "coming together" at the top? Is there some sort of structure that is not present or am I just not seeing something? That "box" section in the rear looks like it needs to be closed across the top.

Please don't think I'm talking smack, its seriously neat and I'm glad you have a thread going here on MT for assembly. It really helps wrap the brain around what it takes to put one of these things together.

Also also, THANKS AGAIN for the T-shirts and key ring and Catfish swag! You guys should be nicer to Cord, he's good people


(T-***** and key ring obviously not shown)
Attached Thumbnails
HOUSE CAT-a4ssg2wl.jpg
EO2K is offline   Reply With Quote
Old 08-27-2015, 08:43 PM   #12
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,555
Total Cats: 379
Default

Closed by like, the big red bar that spans the gap?

Who isn't nice to Cord?
I will fight for your honor.
Monk is offline   Reply With Quote
Old 08-27-2015, 11:00 PM   #13
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,174
Total Cats: 248
Default

Quote:
Originally Posted by Monk View Post
Closed by like, the big red bar that spans the gap?
Also, these are shocks, not struts. They pretty much only see vertical loads, not cornering ones.

--Ian
codrus is offline   Reply With Quote
Old 08-28-2015, 12:48 AM   #14
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,028
Total Cats: 535
Default

Btw what gauge is the sheet metal for the feet area floor? 2 layers?
triple88a is offline   Reply With Quote
Old 08-28-2015, 01:04 AM   #15
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,740
Total Cats: 135
Default

Quote:
Originally Posted by triple88a View Post
Btw what gauge is the sheet metal for the feet area floor? 2 layers?
.095 x 2, with the option to add anything from balsa core to aluminum honeycomb to plate steel, depending on your comfort level.

This is the first personal build since the very first Catfish was built in late 2012. I'm still driving that car, and I'm frankly trying to take everything we've learned in the past couple of years and apply it to this car.

And it's STILL not the newest design. The next frame--and all others afterwards--will have a secondary floor tube that will run just below the brake pedal....because that's what you'd do when you're stuffing a 320whp NA engine in your frame. That, and a WHOLE lot more. But that is a build thread for a different time...

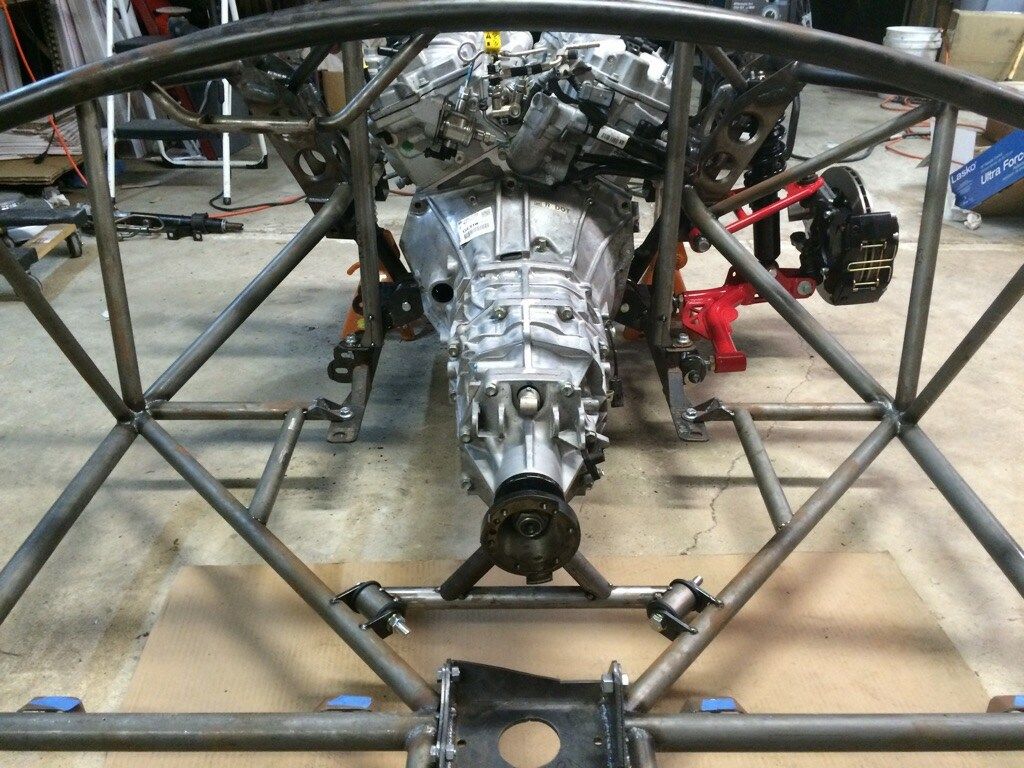

edit: you're looking at a GM LFX V6 all-aluminum direct injection engine with Aisin MV7 6 speed transmission (130lbs-ish wet).

Attached Thumbnails
HOUSE CAT-80-turret_with_rt_150fb3dd63864b26dfc3b85f9f41433c36ac7bc4.jpg

Last edited by cordycord; 08-28-2015 at 02:44 AM.
cordycord is offline   Reply With Quote
Old 08-28-2015, 01:07 AM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

/\ I just wet my panties seeing that engine there
18psi is offline   Reply With Quote
Old 08-28-2015, 02:21 AM   #17
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

Attached Thumbnails
HOUSE CAT-80-mother_of_god_by_rober_raik_d4cw2di_abee3e90e318308ca2a4d3e09e0519be2cc98d32.png
Zaphod is offline   Reply With Quote
Old 08-28-2015, 05:04 AM   #18
Junior Member

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

subbed for epic
DNA54 is offline   Reply With Quote
Old 08-29-2015, 11:45 PM   #19
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,740
Total Cats: 135
Default

Quote:
Originally Posted by 18psi View Post
super duper awesome

will this one get a proper NB1 or 2 1.8? As much as I love the prev one, seeing you put shiny pretty and nice parts on 1.6 was kinda like seeing you polish a turd.
Proper 99 NB, all forged 1883cc, MSPNP. I split the baby with 9.6 SuperTech pistons, but oh well. Still deciding on turbo, but will probably do a V-mount setup with the IC and radiator.

The brake inlets will be capped off, except for a 3" round hole with a hose that will snake over to some Singular Motorsports brake ducts. The front of the car gets way more air than it needs, so capping off the brake inlets will actually help cool the engine more...let ambient pressure behind the radiator.

Last, I parked next to a kinda nice car this morning:







Costa Mesa Cars n Coffee. Barry Meguair was personally welcoming all the cars.
Attached Thumbnails
HOUSE CAT-80-20150829_065347_7240b9146b8142e249e6eae272490998a058daa7.jpg
cordycord is offline   Reply With Quote
Old 08-30-2015, 12:11 AM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Ok now I'm really excited
Eagerly awaiting progress/pics
18psi is offline   Reply With Quote
