Default Itb Turbo 1.65L :)

Hey guys! just wanted to share my car on here.

Im still building it so I have no hp numbers/ track times yet. The plan is to have it up in running the spring of 2015.

Its a 1992, 1.6L with a whole long line of mods. im sure ill write up a detailed list. The car is being built for many purposes. highway runs/ occasional time attack/ drag racing and taking to car shows. Ive owned the car since 12/15/10. Hope yall enjoy!

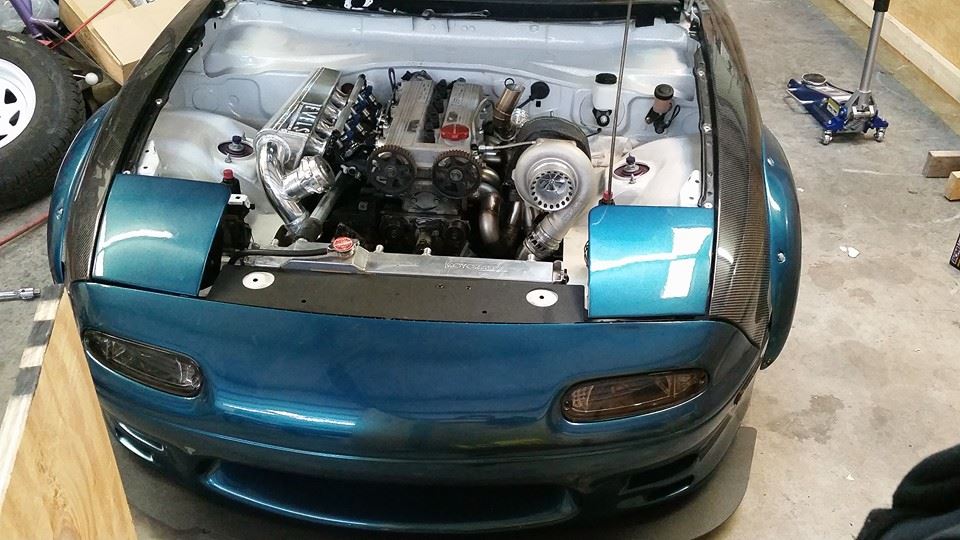

and here current day...









Attached Thumbnails

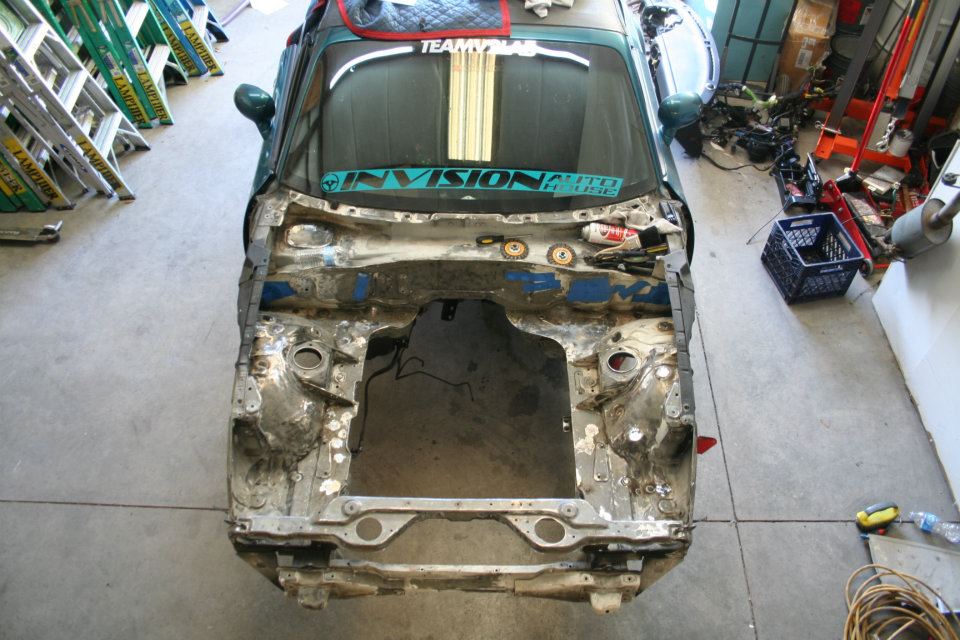

Itb Turbo 1.65L :)-163872_10150187629184498_809649497_8381756_8091129_n.jpg   Itb Turbo 1.65L :)-393413_10150609416874498_1808330421_n.jpg   Itb Turbo 1.65L :)-386519_10150593937769498_89234739_n.jpg   Itb Turbo 1.65L :)-405273_10150708698044498_1870029454_n.jpg   Itb Turbo 1.65L :)-409266_10150737013224498_337138692_n.jpg

Itb Turbo 1.65L :)-315392_10151355776114498_1110742549_n.jpg   Itb Turbo 1.65L :)-1506641_10152561779364498_1073019217_n.jpg   Itb Turbo 1.65L :)-1606932_10152562029359498_1818869019_n.jpg   Itb Turbo 1.65L :)-155480_10152997800329498_1118610935309340497_n.jpg   Itb Turbo 1.65L :)-10492035_10153037135509498_4343495591082620640_n.jpg

Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 09:11 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,433
Total Cats: 2,037
Default

welcome. looks like a healthy turbo setup. mod list?
18psi is offline   Reply With Quote
Old 07-14-2014, 09:12 PM   #3
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

for entire car? or engine wise?
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 09:16 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,433
Total Cats: 2,037
Default

don't care about car.

engine/turbo setup
18psi is offline   Reply With Quote
Old 07-14-2014, 09:23 PM   #5
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

too easy. I have all the internals but the motor hasn't been machined yet..


Engine

Supertech 1mm oversize SS valves
Supertech solid lifters
Supertech dual valve spring
Supertech valve seals
Supertech titanium retainers
Supertech seats
Delta 272 cams
Jenvey IRTBS w/ custom plenem box

Supertech 8:8:1 Compression 0.040 overbore pistons
Manley rods
ATI crank pulley
BE billet oil pump (2 shims)


Fuel/spark:

Deatschwerks 320lph pump
Deatschwerks 900cc injectors
AEM FPR
Jenvey fuel rail
AN -6 feed and return
Fab9 COPs

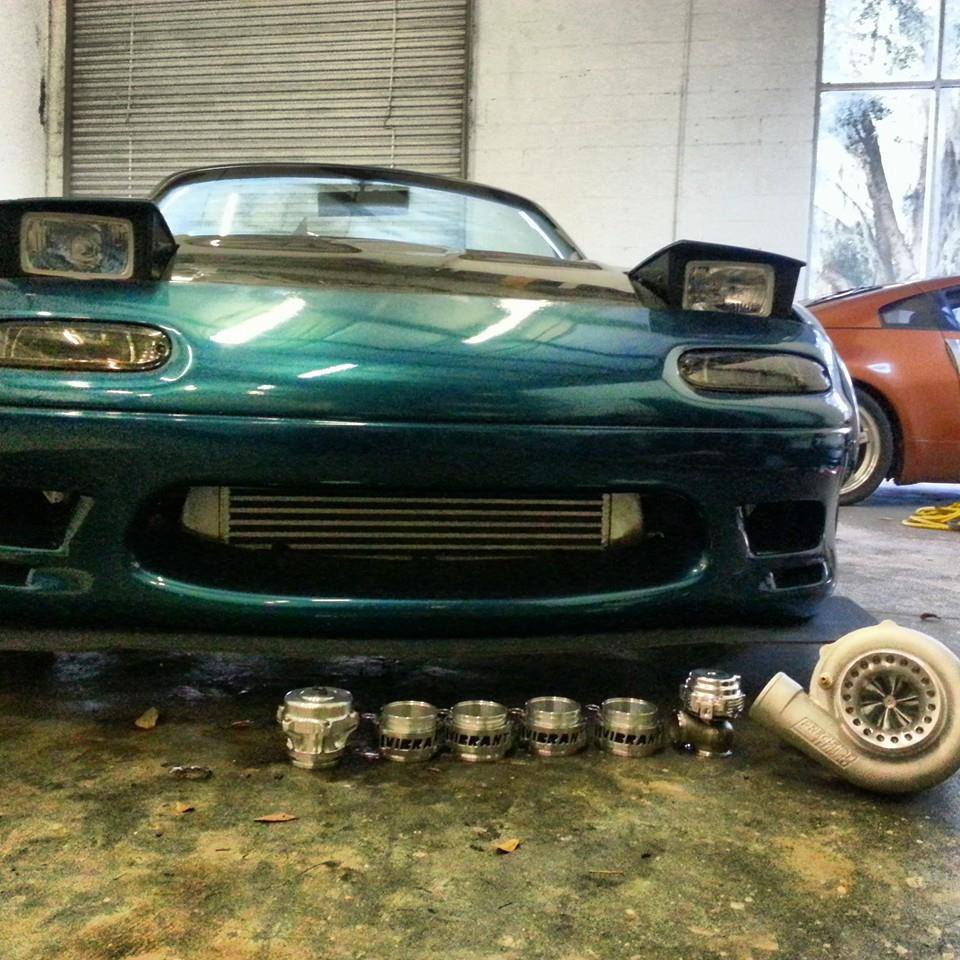

Turbo kit Custom built by levels performance in Orlando fla

Precision 5858 T3 .63 ar
Custom t3 top mount manifold
Full 3" ss turbo back
custom charge pipes with vibrant vanjen clamps
Tial Q bov
Tial 38mm EWG

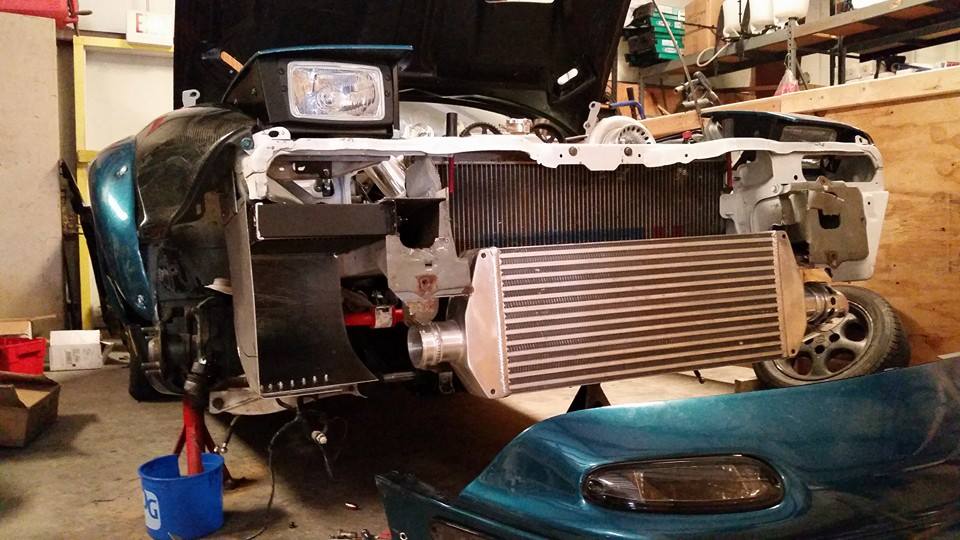

Fab9 550hp intercooler

Last edited by Mr. Mattman; 07-15-2014 at 12:07 AM.
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 09:29 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,433
Total Cats: 2,037
Default

sounds pretty good. looks awesome too

may I ask why you stuck with the 1.6?
18psi is offline   Reply With Quote
Old 07-14-2014, 09:30 PM   #7
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

already had it. Don't see too many 1.6 builds so just decided to go a different route.
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 09:46 PM   #8
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,084
Total Cats: 424
Default

I thought you were totally handicapped until I saw this:



Props for it and what you're doing. 1.6 is kinda fail but whatever it's your thing and by the looks of it, you're doing it well.
turbofan is offline   Reply With Quote
Old 07-14-2014, 09:49 PM   #9
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

thanks man!
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 09:52 PM   #10
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Matt_V2_Man!!!! Its about time you got on here... lol
Welcome! Been following you on instagram for a while now. You are making pretty good progress
supercooper is offline   Reply With Quote
Old 07-14-2014, 09:55 PM   #11
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

haha ive been hesitant about coming here with a useless 1.6 lol. But I understand theres a ton of information on here that would be usefull to my build and knowledge!

Thanks though!
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 10:02 PM   #12
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Portland, Oregon.
Posts: 6,841
Total Cats: 63
Default

Benn watching your progress on FB....and being jelly of having the time lol. Kepp up the good work.
Doppelgänger is offline   Reply With Quote
Old 07-14-2014, 10:15 PM   #13
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

hey buddy!! hopefully I can come up in the spring to IA and hangout with you again!
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 10:16 PM   #14
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Quote:
Originally Posted by Mr. Mattman View Post
haha ive been hesitant about coming here with a useless 1.6 lol. But I understand theres a ton of information on here that would be usefull to my build and knowledge!

Thanks though!
Not quite useless... just not optimal. lol
But, Being that you worked with what you had, you definitely did it properly.

Just.... considering the fact that you can get a 1.8 for sub-$500, and all the parts you have would have cost the same across the board for the 1.8, For the little bit extra, and a few extra hours (literally a few) you could have had a bit more room to play, and an "optimal" setup.
( NOT a diss in any way, just explaining the thought process of 1.8>1.6 in a build as extreme as yours)

But, you did what you did the right way, and made the best out of what you had, so for that you get lots of props
supercooper is offline   Reply With Quote
Old 07-14-2014, 10:23 PM   #15
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

Yeah It was one of those....well I already have it... already have the itb manifold... already wanted to go full custom turbo kit so I just owell ill stick with it. lol
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 10:54 PM   #16
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,655
Total Cats: 209
Default

Is it fast?
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-14-2014, 10:56 PM   #17
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

not at all. sleeps on jack stands and still has the mock up motor in it.
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 11:02 PM   #18
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,655
Total Cats: 209
Default

Do you have a cat?
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-14-2014, 11:03 PM   #19
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 51
Total Cats: 17
Default

whats that?
Mr. Mattman is offline   Reply With Quote
Old 07-14-2014, 11:11 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,433
Total Cats: 2,037
Default

a *****
