Old 06-09-2014, 12:27 PM   #21
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,703
Total Cats: 472
Default

Also pictured: A new solution to our stretching turbo stud issues.
curly is offline   Reply With Quote
Old 06-09-2014, 12:38 PM   #22
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by curly View Post
Also pictured: A new solution to our stretching turbo stud issues.
Didn't even mention the cutting edge weight saving techniques! Remove excess metal from those pesky flanges, and take out the compressor wheel! Turbo was included free for test fitting purposes with my manifold lol.

Zipties were on for a please-don't-hit-the-block-test I did initially in lieu of studs. So much easier to go to a spec miata builders shop than to drop my headers for a simple check. Though they could easily contain ALLOFIT, they are from Harbor Freight after all.
Schuyler is offline   Reply With Quote
Old 06-10-2014, 09:33 AM   #23
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

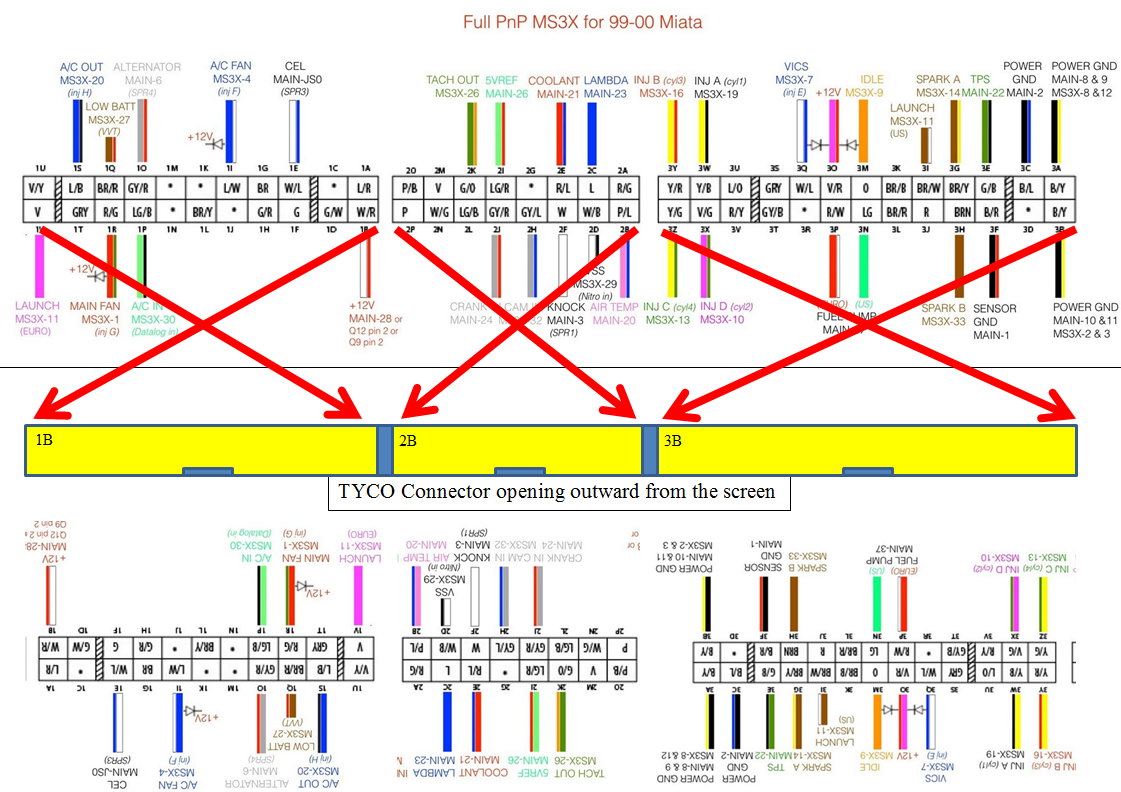

So, my ignorance (laziness?) got the best of me. I found the schematic for the tyco connector online, soldered it up, and never gave it a second thought or compared it to the ecu wiring diagram. Not my brightest hour. When I attempted to connect the MS, I noticed that it wasn't getting power, but everything seemed correct. So I looked at what wire was going to pin28 on the DB37, and it was NOT the 12V power wire...

When I found the schematic, i simply soldered it to the tyco as I read it. When in fact, everything needed to be flipped 180 degrees. If a pin was at the bottom right, it needed to be at the top left, and so on. The diagram below showing exactly what I mean. So, looks like I get to resolder my Db37->Tyco harness.

On a lighter note, firmware is loaded onto my MS, and it seems to react fine to the stim. Only thing that seemed odd while bench testing was that the barometric pressure was down around 96Kpa, when it should be closer to 99-100.

Anywho, I have a pretty hectic remainder of the week, so round 2 probably won't be until sometime next week. I hope to return with better news next time.

Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-qr4kl80.png
Schuyler is offline   Reply With Quote
Old 06-10-2014, 09:38 AM   #24
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,896
Total Cats: 166
Default

MAP is one of the set up calibrations. Not a problem.
DNMakinson is offline   Reply With Quote
Old 06-14-2014, 08:53 AM   #25
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,270
Total Cats: 32
Default

Quote:
Originally Posted by curly View Post
Also pictured: A new solution to our stretching turbo stud issues.
Haha I was going to make the same comment!
timk is offline   Reply With Quote
Old 06-17-2014, 01:25 AM   #26
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Just a quicky update so no one thinks I've abandoned ship.

I've been spending a fair bit of time trying to iron out the base tune I'll attempt my first start with on MS, mainly running into issues trying to adopt pre-existing tunes to the newest firmware with alternator support. TunerStudio seems to set the value of any new fields it doesn't know a value for to -214748364.8, so I've been having to go through and try to find all of them.

I am going to start remaking my adapter tomorrow, and will hopefully get it done by the end of Wednesday night, and attempt to start it on Thursday.

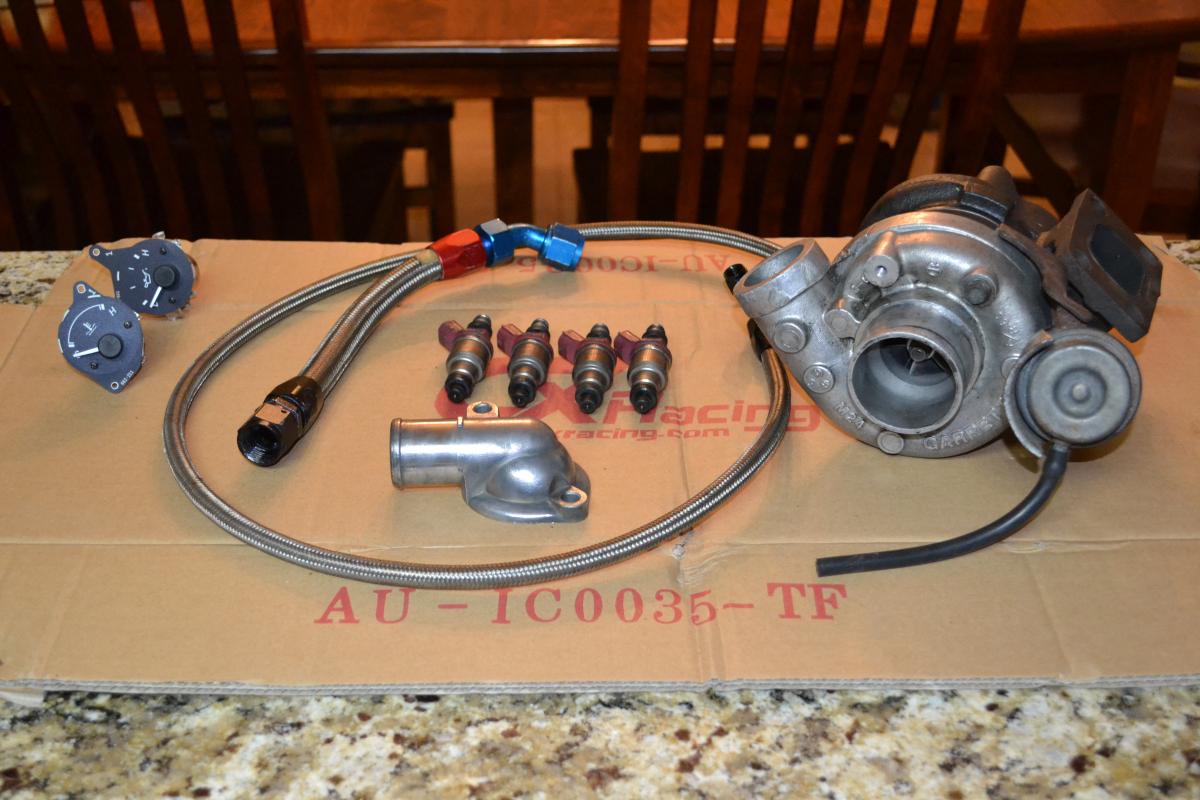

I took a few pictures of new things I've gotten since last updating:

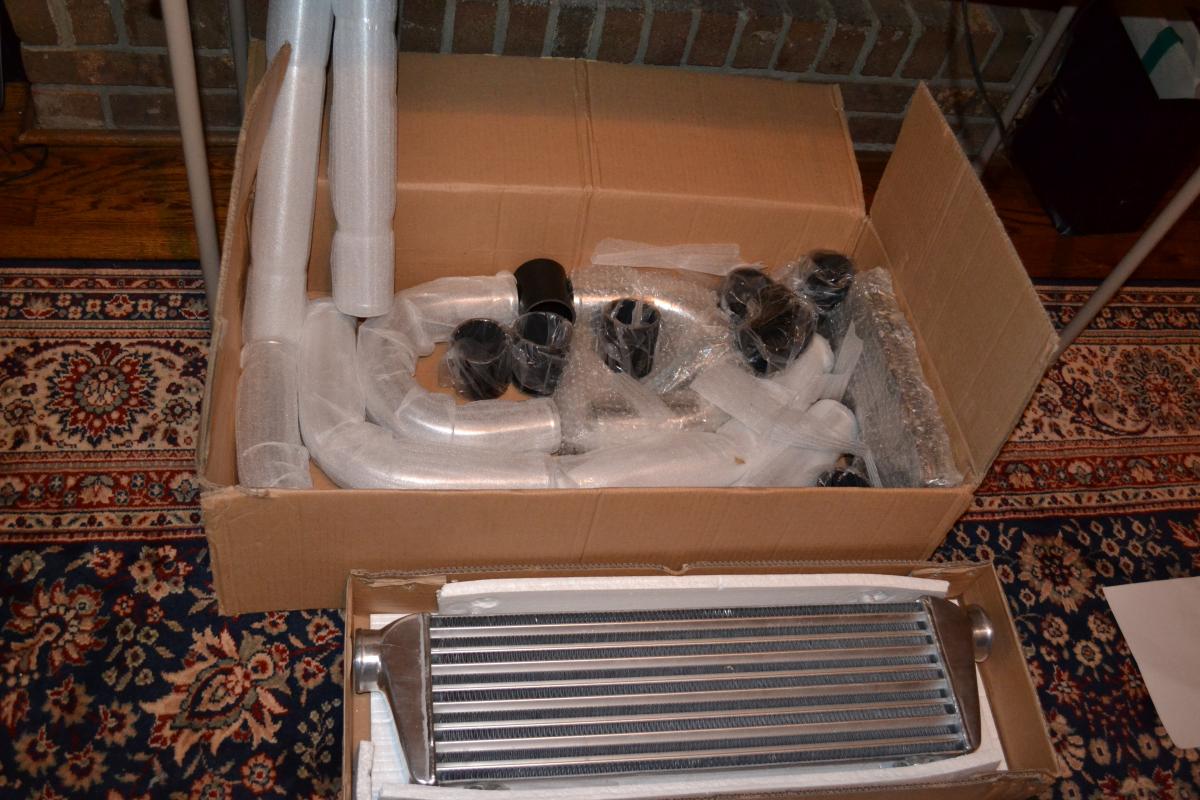

  • CX Racing intercooler with 2.5" piping and reinforced couplers (will probably tig some of this once everything is permanently aligned).

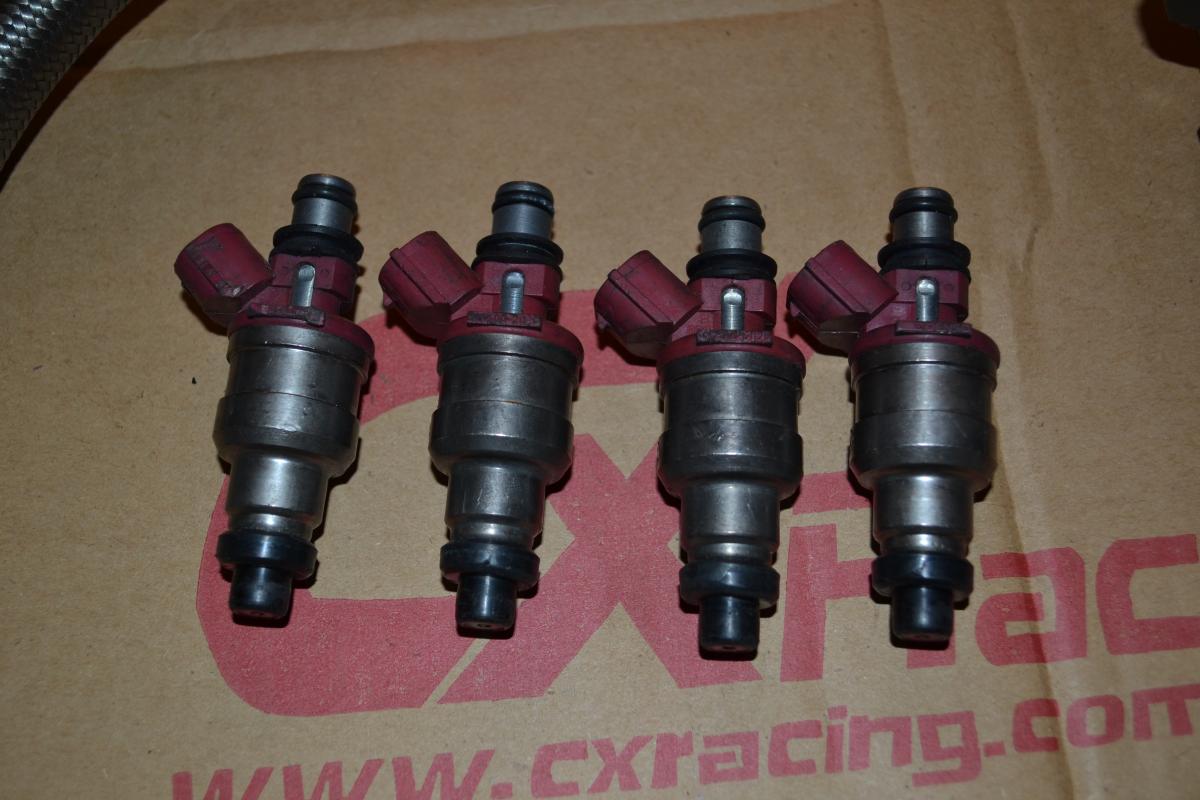

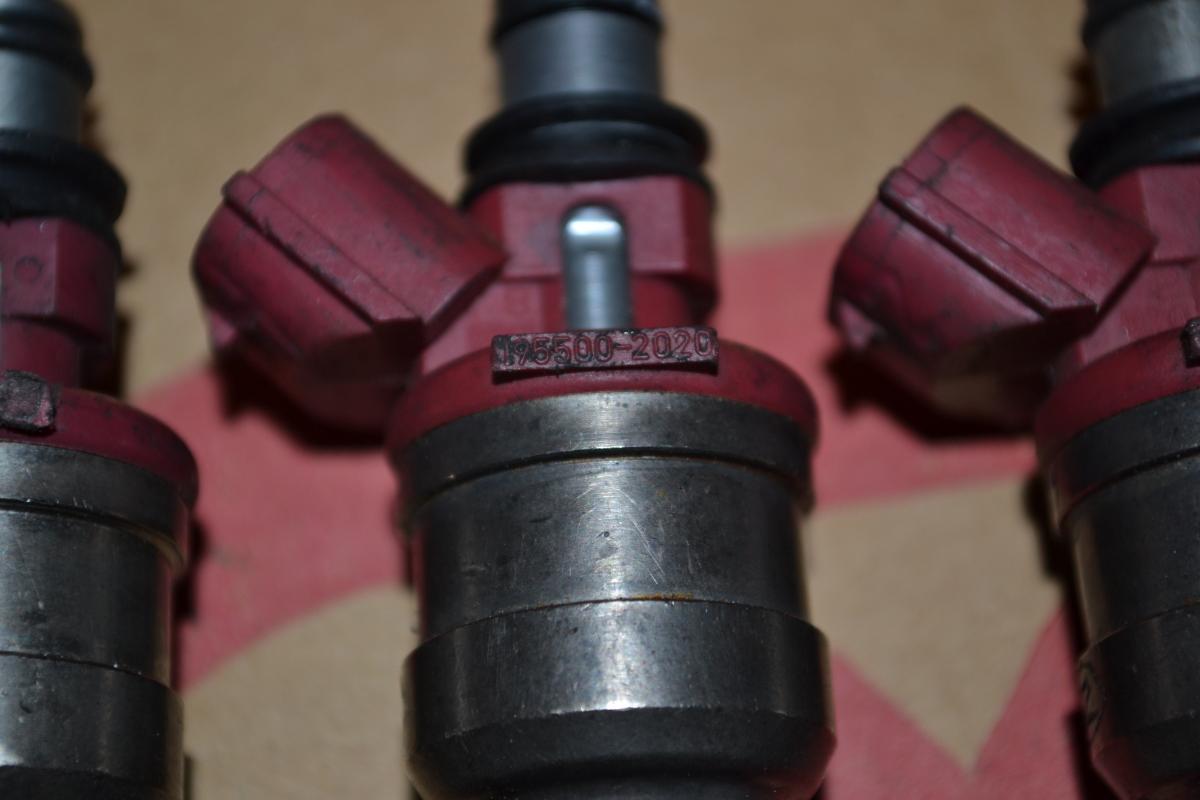

  • 545cc rx7 injectors. Haven't yet decided whether I'm going to send them off or not. My gut tells me I probably should...
  • Braided SS oil lines

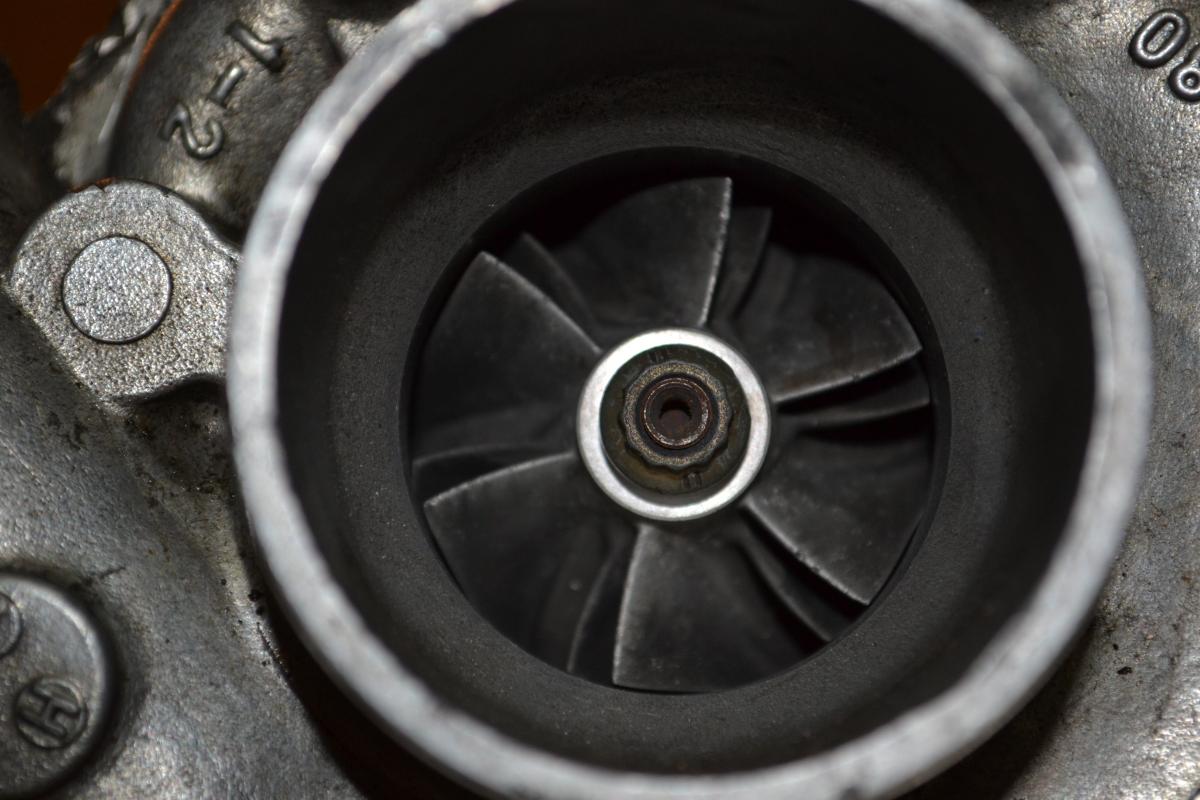

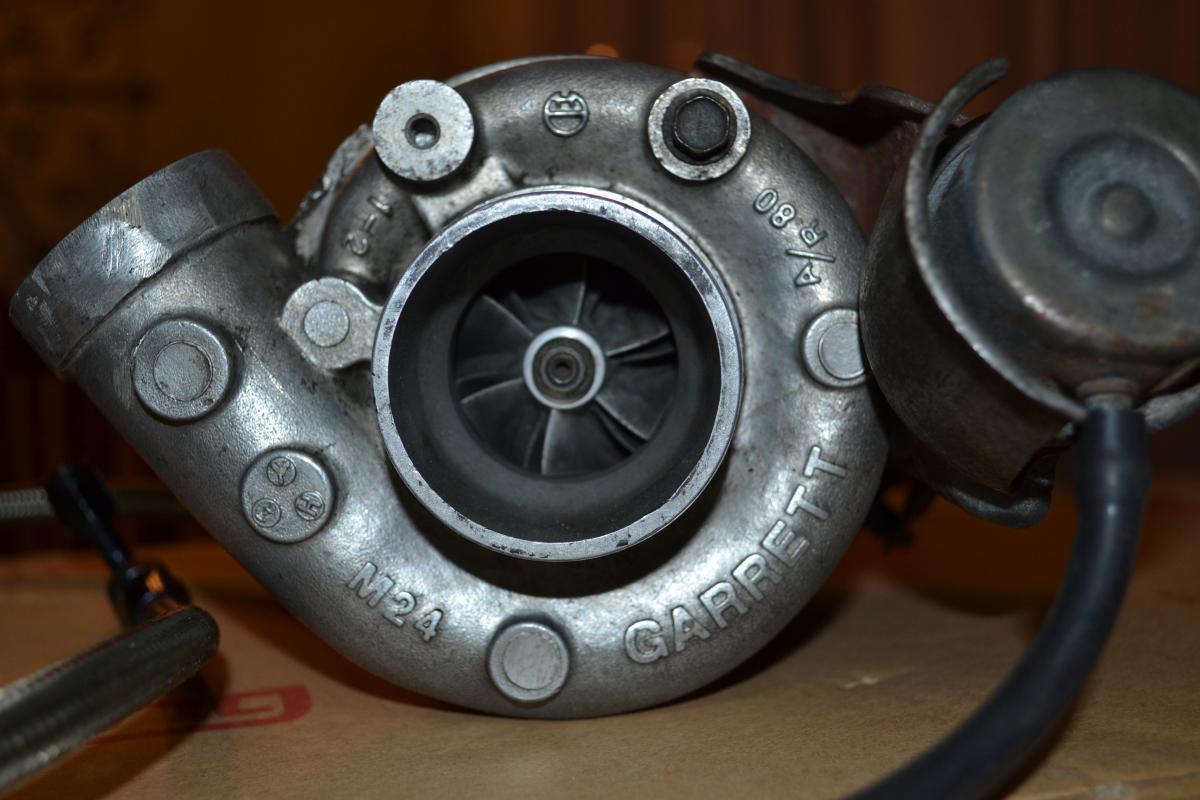

  • T25 0.80 A/R (I was told it smokes and needs a rebuild, so planning on doing that soon)

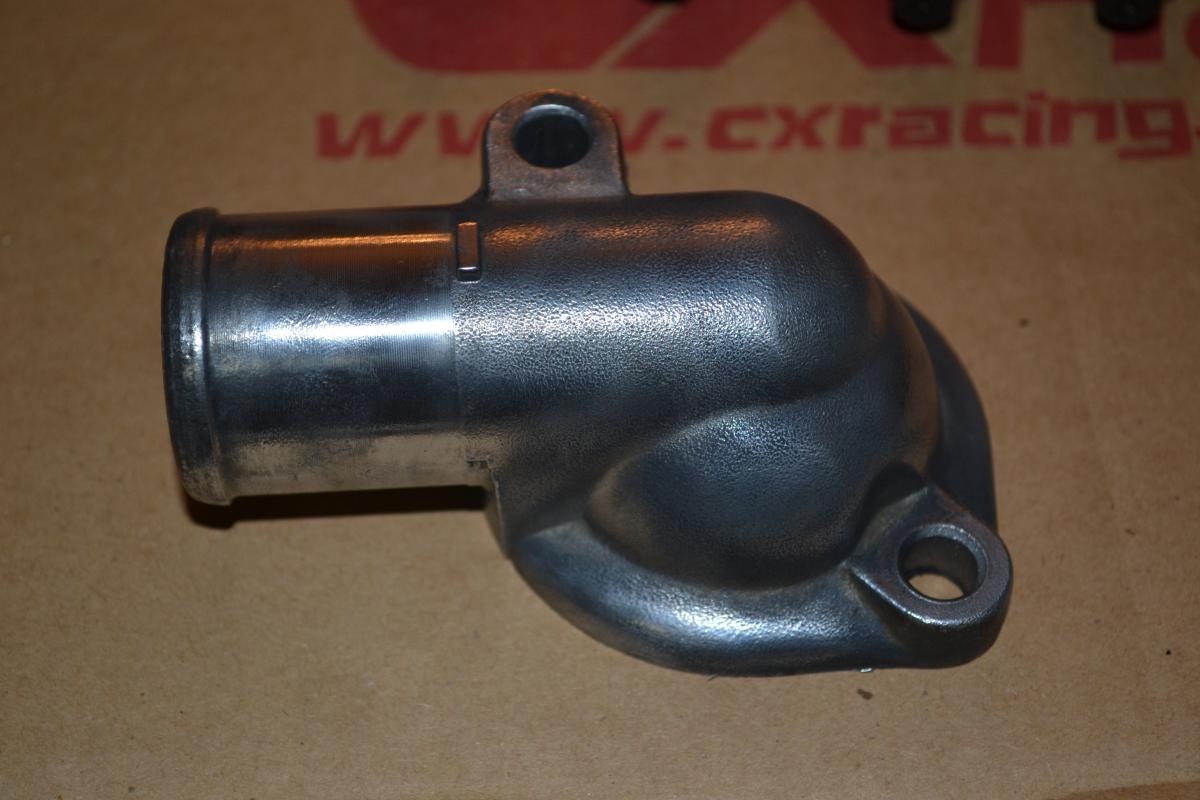

  • Kia part for coolant reroute from a junk yard (Polished it just because)
  • Oil pressure and coolant temperature gauges to do the linear modifications to (also from the junkyard)

More soon













Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-botvbfl.jpg   ITT we discuss why not to turbo your daily bent rod-giybrdd.jpg   ITT we discuss why not to turbo your daily bent rod-trolevz.jpg   ITT we discuss why not to turbo your daily bent rod-m2ssqyp.jpg   ITT we discuss why not to turbo your daily bent rod-obbssa5.jpg

ITT we discuss why not to turbo your daily bent rod-0be78yh.jpg   ITT we discuss why not to turbo your daily bent rod-ea44gsx.jpg

Last edited by Schuyler; 06-17-2014 at 12:09 PM. Reason: Fixed list
Schuyler is offline   Reply With Quote
Old 06-17-2014, 10:44 AM   #27
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,896
Total Cats: 166
Default

When you swap out the gauges, I'm interested in your old ones, as I'd like to do the same thing. The H2O I understand (change resistors), but on the oil, you must be planning to add a real sending unit as well?
DNMakinson is offline   Reply With Quote
Old 06-17-2014, 10:52 AM   #28
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by DNMakinson View Post
When you swap out the gauges, I'm interested in your old ones, as I'd like to do the same thing. The H2O I understand (change resistors), but on the oil, you must be planning to add a real sending unit as well?
I'd like to keep my old gauges just to have a set of unmodified ones, but I'll keep my eyes open in the junkyard next time a 99/00 shows up and grab them for you.

The oil pressure gauge modifications will require a new sender, so I'll probably be putting that mod off a little bit and do the clutch/coolant reroute/change the sender/tap the oil pan all at once.
Schuyler is offline   Reply With Quote
Old 06-17-2014, 12:23 PM   #29
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

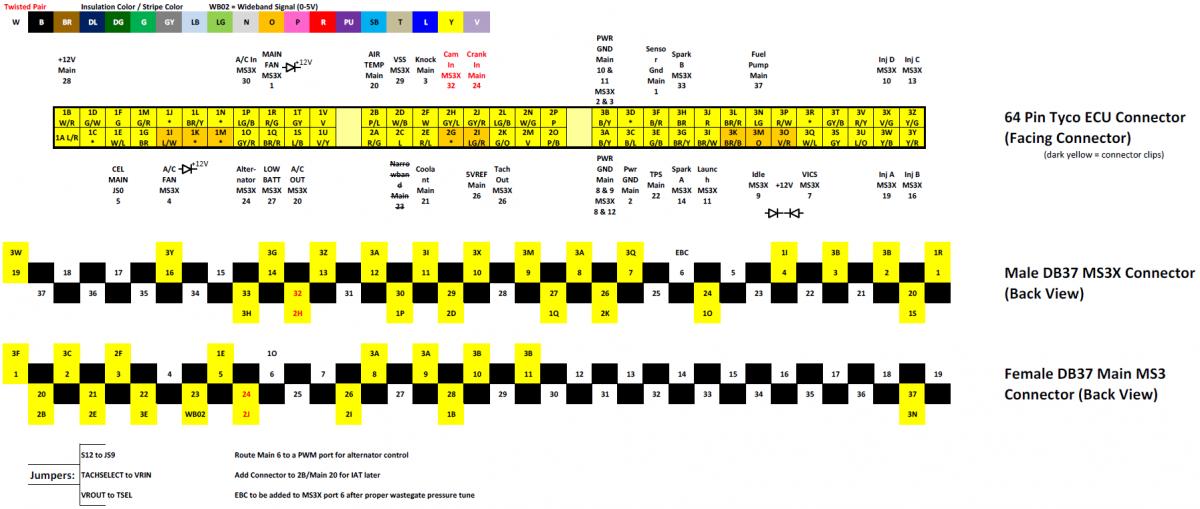

As I said above, I will be resoldering my db37 to tyco adapter in the next day or two. To avoid any connector confusion, I have made myself an idiot proof layout, so I can make sure that things are done properly this time, and now have the added benefit of making the diagram myself so I understand how it was designed and can read it properly. The ECU is done as the tyco connector itself, not the individual plugs, and is show EXACTLY as it will be layed out on the connector.

Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-gjulmxo.jpg
Schuyler is offline   Reply With Quote
Old 06-17-2014, 08:43 PM   #30
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,270
Total Cats: 32
Default

You probably don't want to hear it, but going from those injectors to RX-8 injectors was night and day for me as far as ease of tuning, economy and idle quality.

I'm running ID injectors now and I can't tell the difference in idle over the RX-8 ones (I guess that's fairly amazing in itself since they are twice the size).

Maybe consider getting some RX-8 injectors (they are cheap) instead of paying money to clean those?

Cheers
timk is offline   Reply With Quote
Old 06-17-2014, 11:56 PM   #31
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,452
Total Cats: 359
Default

Finally figured out why that mani seems so familiar.
Quote:
Originally Posted by shlammed View Post
Lots to keep coming!

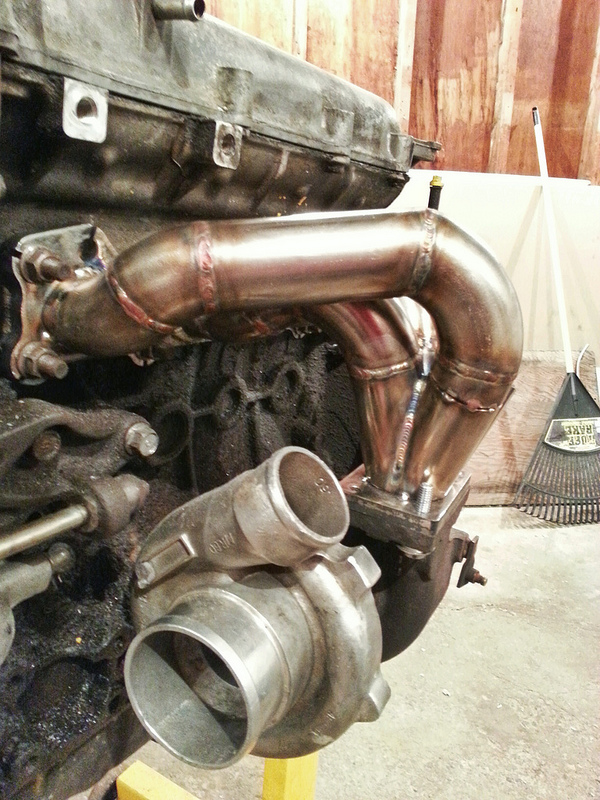

This is where I am at with the 1.6 Bottom mount pictured above.

HellaFabrication Miata 1.6 bottom mount turbo manifold by HellaFab, on Flickr
Not the same one, but dem welds.
Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-11323530126_14dd58037e_c.jpg
Monk is offline   Reply With Quote
Old 06-22-2014, 12:09 AM   #32
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by timk View Post
You probably don't want to hear it, but going from those injectors to RX-8 injectors was night and day for me as far as ease of tuning, economy and idle quality.

I'm running ID injectors now and I can't tell the difference in idle over the RX-8 ones (I guess that's fairly amazing in itself since they are twice the size).

Maybe consider getting some RX-8 injectors (they are cheap) instead of paying money to clean those?

Cheers
I'll certainly take that in to consideration, thanks.

Quote:
Originally Posted by Monk View Post
Finally figured out why that mani seems so familiar.
Not the same one, but dem welds.
Perty.


So, car started on first turn of the key. Idle needs a little tuning, but wasn't bad. Could blip the throttle and it went right back in to place. However, I have to be at 100% duty cycle for the idle to be at 890rpm. Still trying to look in to why this is, any help would be greatly appreciated.

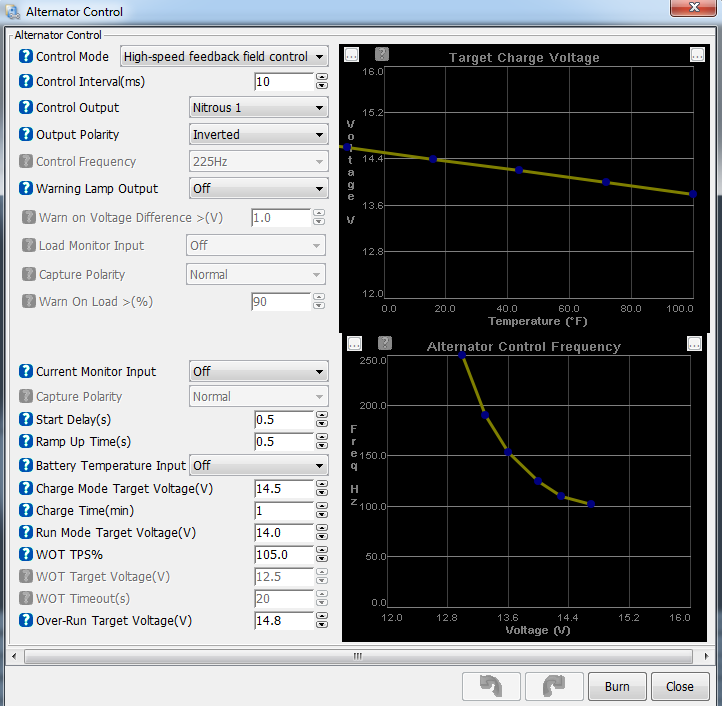

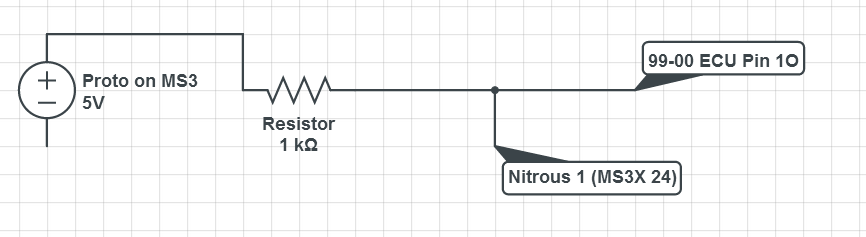

Bigger problem that put a hault to my tuning attempts for the evening: alternator control. I am using the newest firmware with the added support, and must just be wiring things improperly. Here's a screenshot of the settings just incase their incorrect. I've wired and configured it as shown below.



Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-j36hlss.png   ITT we discuss why not to turbo your daily bent rod-gwnxtsc.png
Schuyler is offline   Reply With Quote
Old 06-23-2014, 07:00 PM   #33
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 999
Total Cats: 38
Default

My settings are very similar and it seems to be working fine. Only difference is I'm using Nitrous 2 (that shouldn't make a difference) and a 470 Ohm resistor instead of a 1K.
stefanst is offline   Reply With Quote
Old 06-23-2014, 07:13 PM   #34
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by stefanst View Post
My settings are very similar and it seems to be working fine. Only difference is I'm using Nitrous 2 (that shouldn't make a difference) and a 470 Ohm resistor instead of a 1K.
You're using inverted output polarity?
Schuyler is offline   Reply With Quote
Old 06-23-2014, 07:22 PM   #35
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 999
Total Cats: 38
Default

Correct.
stefanst is offline   Reply With Quote
Old 06-23-2014, 07:28 PM   #36
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by stefanst View Post
Correct.
Interesting. I'll double check my wiring, and try non-inverted as per Ben's suggestion.

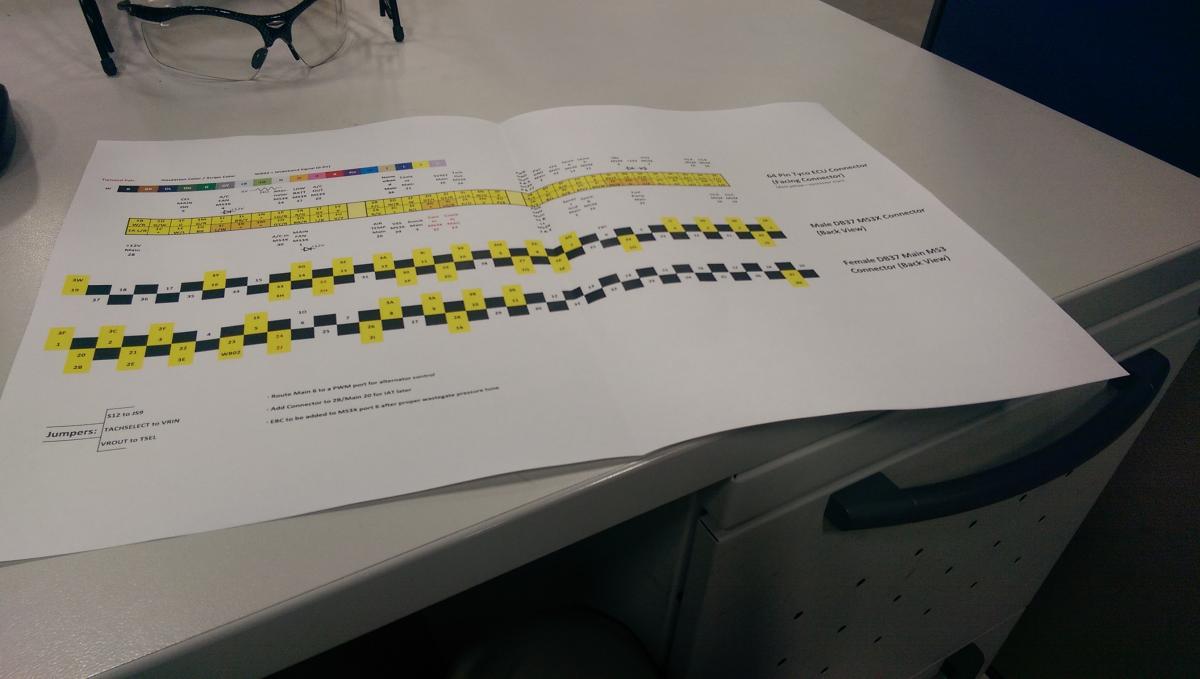

Sidenote: Tabloid paper is the bees knees.

Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-4ift6ox.jpg
Schuyler is offline   Reply With Quote
Old 06-23-2014, 07:38 PM   #37
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 999
Total Cats: 38
Default

Tabloid paper size is an erogenous zone of many state-building flying insects. Wouldn't restrict it to bees....
stefanst is offline   Reply With Quote
Old 06-24-2014, 11:27 PM   #38
Newb

Join Date: Jan 2014
Posts: 42
Total Cats: 10
Default

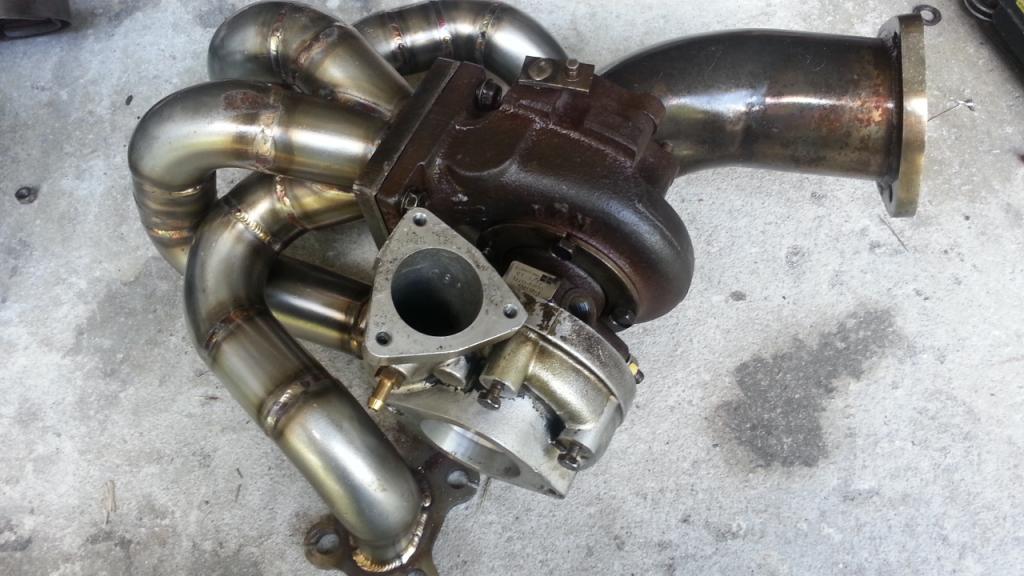

I recently bought a VERY simmalier looking manifold from SixShooter. It's new but has been passed around a few times before I got it, and I don't know anything about it beyond how well built it is. I wonder if anybody know's where these came from?

Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-20140426_133243_zpsd39d4c6b.jpg
BrilloHeadBen is offline   Reply With Quote
Old 06-24-2014, 11:42 PM   #39
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,445
Total Cats: 422
Default

Quote:
Originally Posted by Schuyler View Post
Only thing that seemed odd while bench testing was that the barometric pressure was down around 96Kpa, ]
i just happened to check mine for the first time yesterday and it read the exact same- 96kpa

i see my wiring offer is too late :(

lookin good otherwise

i got my rx8 injector from "TLF performance", cleaned and flowed for like $100 on ebay
http://www.tlfperformanceparts.com/c...4-08_RX-8.html
hi_im_sean is offline   Reply With Quote
Old 06-25-2014, 12:28 AM   #40
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

Quote:
Originally Posted by BrilloHeadBen View Post
know's
know's
know's
know's
know's
WHAT THE HELL IS THAT APOSTROPHE FOR???
turbofan is offline   Reply With Quote
