Old 06-19-2016, 11:04 PM   #421
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I won the IRPerformance street motor mounts so I just installed those. My motor mounts were pretty bad so anything would have felt stiffer and balance the cars drivetrain in a way we're it wouldn't have mattered what type of mount I put in. It would all felt equal and amazed me how well it feels. I really did want the Mazda competition mounts but hey are 900 dollars shipped.



Untitled by Gerald Mugar, on Flickr

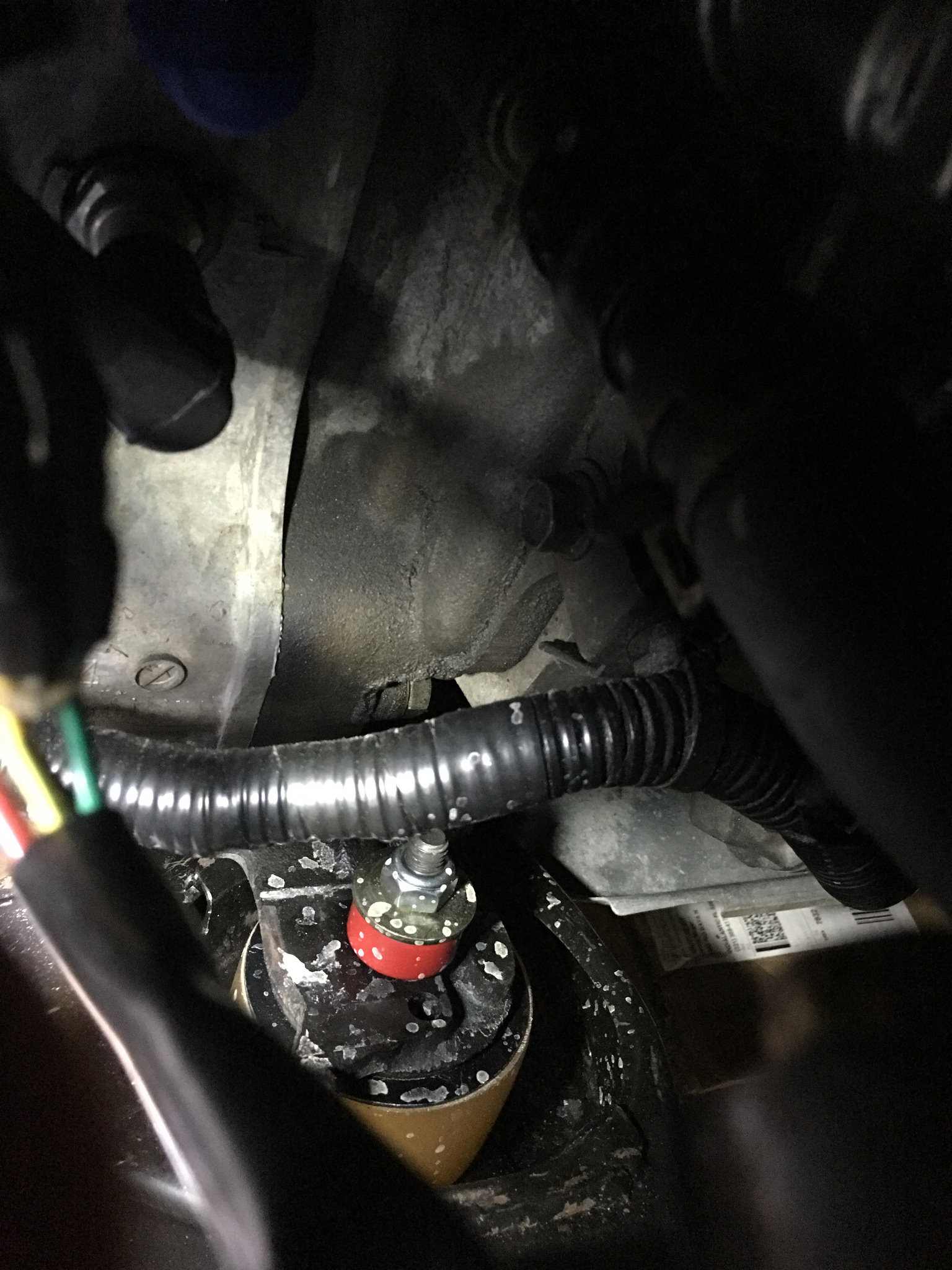

Today I was let aware by the pictures I posted of coolant dripping on top of the motor mount was installed incorrectly. The red bushing, bolt, nut was supposed to be underneath the subframe with the bolt gravity fed.

I also fixed a vacuum line that I had connected with a fitting to another line to extend the length to reach a port on the manifold with new silicone 3.5mm black silicone hose. I bought 10 feet of it for future fixes. I also purchased 7 feet of 6mm silicone hoses.


I installed a new start Lev-r cap for the AST.


And today I ordered new high rated 500•F rated rubber caps from McMaster-Carr for my new intake pipes.

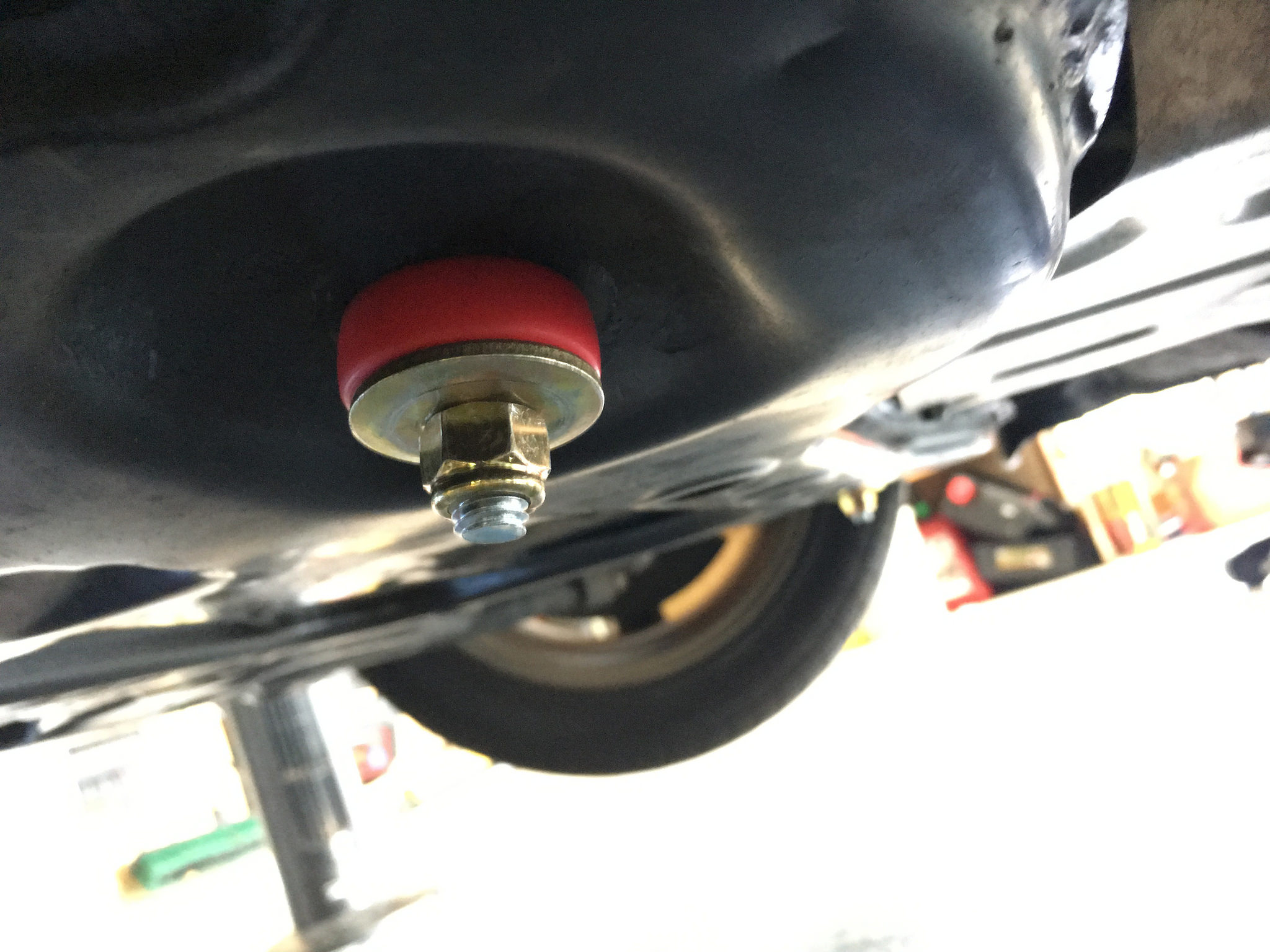

How the motor mounts should be installed

Untitled by Gerald Mugar, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-27647523442_b2ee3f4c48_k.jpg   Mini_FD '99 Flyin' Miata Turbo Build-27700907511_08fa62a70e_k.jpg
BlackBandit is offline   Reply With Quote
Old 06-21-2016, 06:55 PM   #422
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

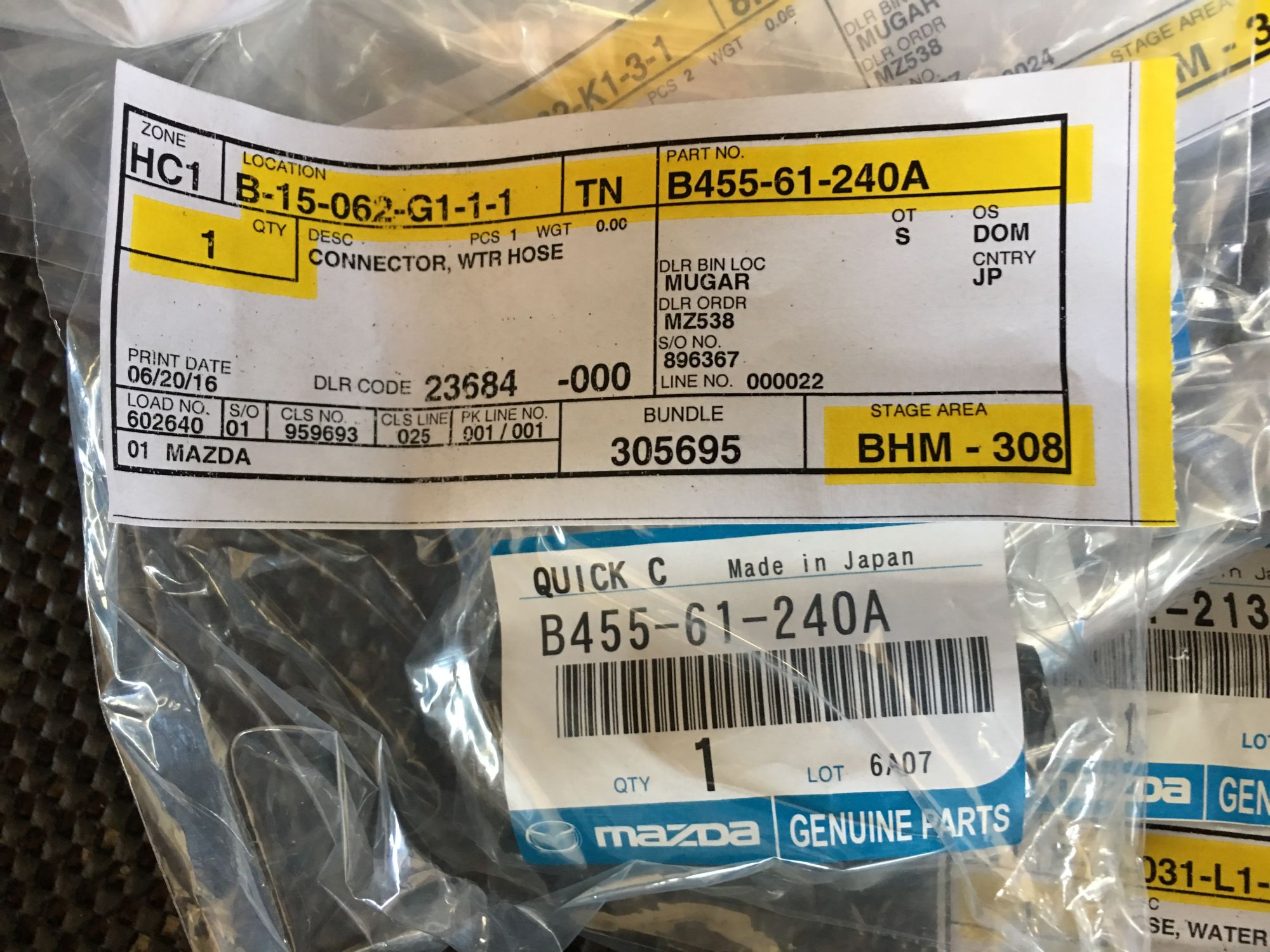

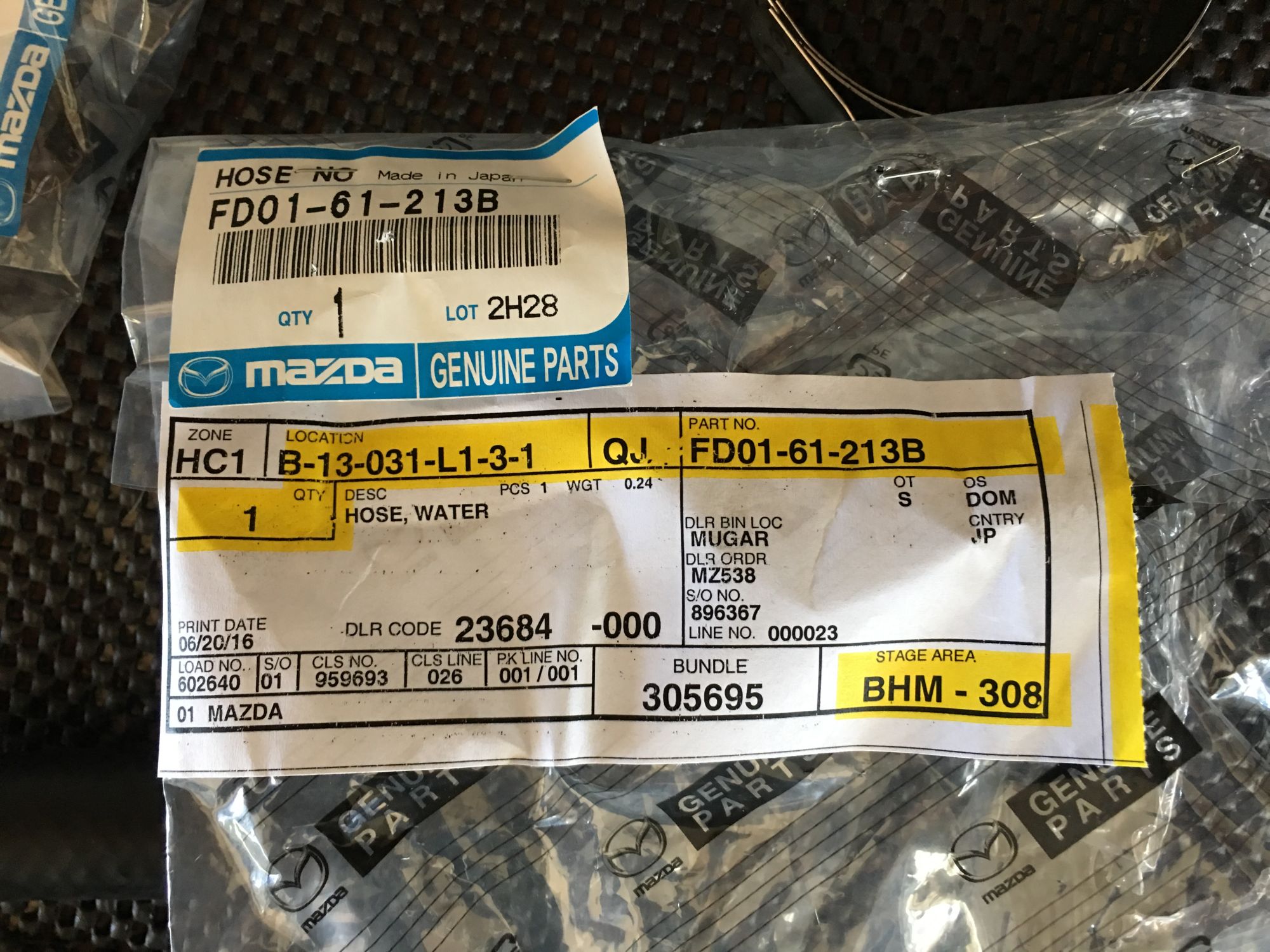

I changed out the plastic fitting going into the housing that twists itself to the heater core line running on the back side of the firewall. I believe that was the cause of the leak. I also replaced the 90* elbow hose from the bottom of the throttle body as well for good faith. I also burped the radiator system and added more coolant.



Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-80-image_f67043ebaecde548c0b43cf9058278f67156ff6b.jpeg   Mini_FD '99 Flyin' Miata Turbo Build-80-image_1b8cf3390229009c70924397ea38248ba6187aaf.jpeg
BlackBandit is offline   Reply With Quote
Old 06-22-2016, 05:19 PM   #423
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

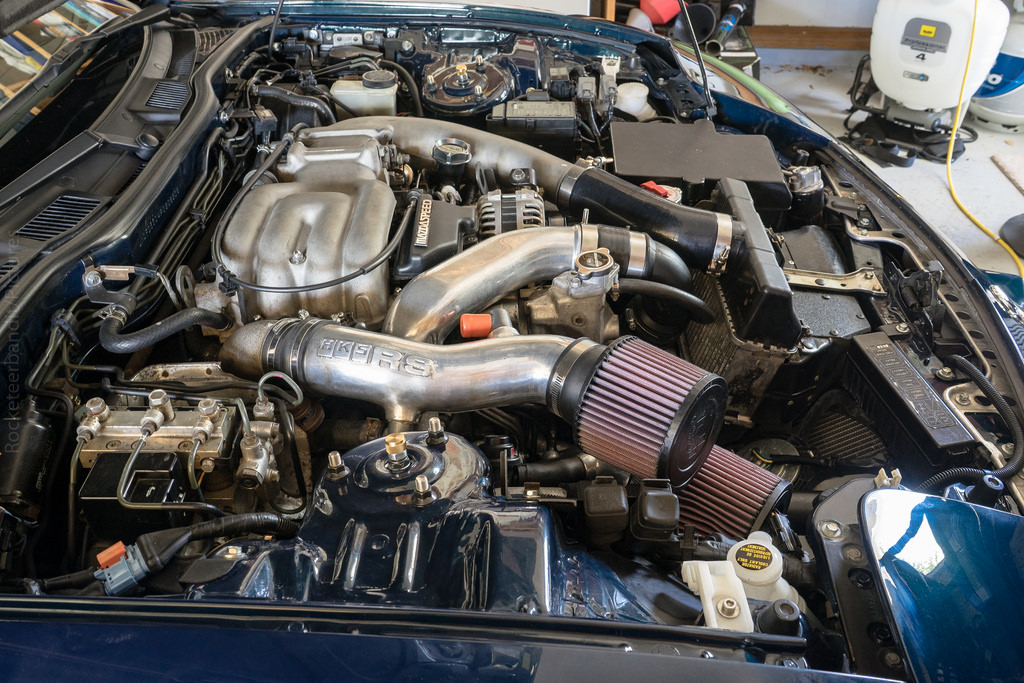

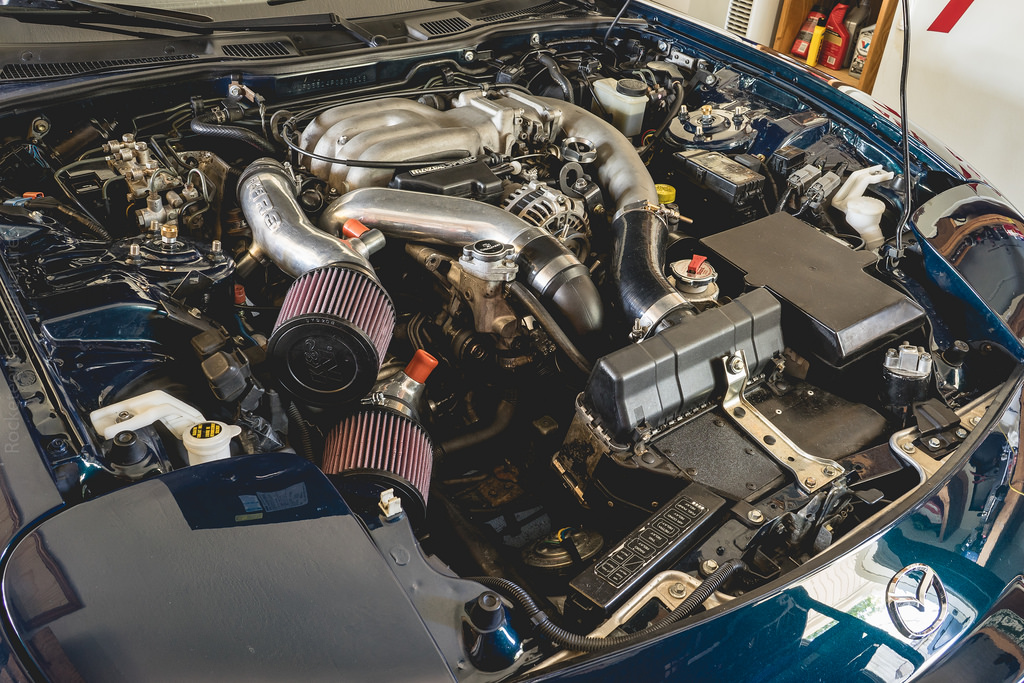

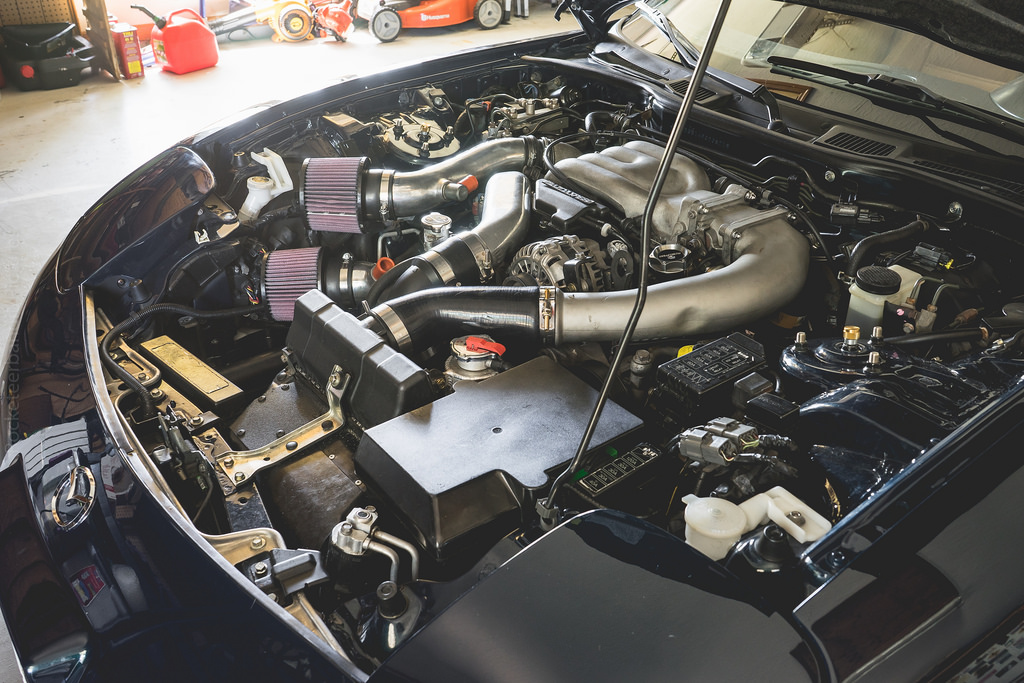

Just installed the HKS RS Intakes. I don't like the red caps that are high temperature rating.




DSC09474 by Gerald Mugar, on Flickr




DSC09483 by Gerald Mugar, on Flickr




DSC09488 by Gerald Mugar, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-27767523061_124ebbae81_b.jpg   Mini_FD '99 Flyin' Miata Turbo Build-27843511035_8780fff378_b.jpg   Mini_FD '99 Flyin' Miata Turbo Build-27843509065_833fddf7dc_b.jpg
BlackBandit is offline   Reply With Quote
Old 07-06-2016, 12:58 PM   #424
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

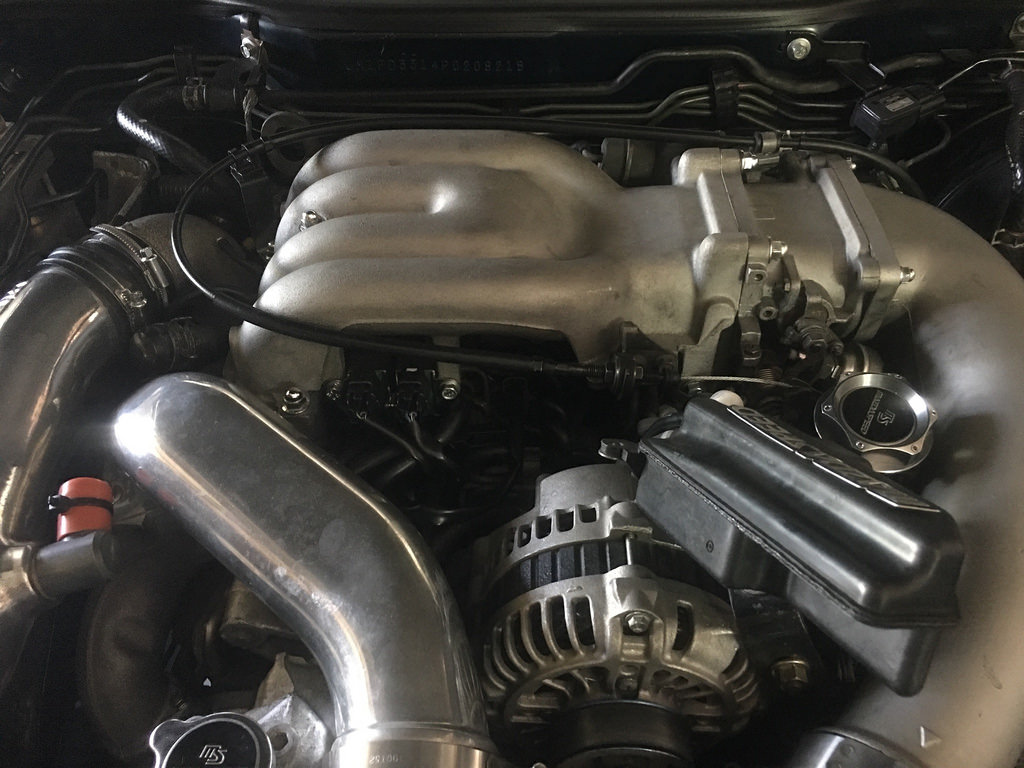

So this is how I've been cooling the car down after driving it around town and park it in my garage. I see high temps when I come back to the car after going into a store but they quickly drop once I start the car. It doesn't run hot. Just sits hot at unsettling high numbers.

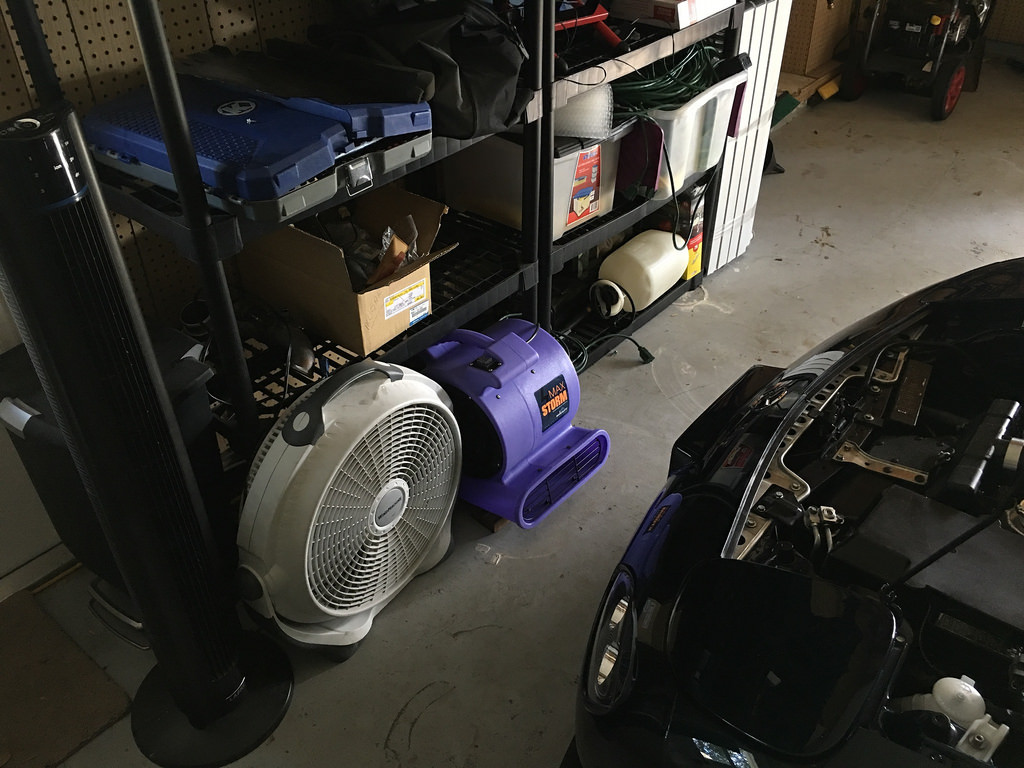

I have a 3 Fan set up. The 2800cfm air mover gets placed in front of the opening of the bumpers mouth, the white fan sits on the bumper mounts and in front of the intercooler while I remove the pressure chamber to the side to get air pushed under the intake manifold, then the oscillating fan to bow air to both of the other two. LOL paranoid yes. Getting the car to cool down faster, Yes.



Untitled by Gerald Mugar, on Flickr




Untitled by Gerald Mugar, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-27515525874_b6fc8c9402_b.jpg   Mini_FD '99 Flyin' Miata Turbo Build-28130842345_8fa6947041_b.jpg
BlackBandit is offline   Reply With Quote
Old 07-08-2016, 07:54 PM   #425
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Starting to look like a professional lol



Mini_FD '99 Flyin' Miata Turbo Build-28181209345_f1bac825ff_b.jpgDSC09497 by Gerald Mugar, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-28181209345_f1bac825ff_b.jpg
BlackBandit is offline   Reply With Quote
Old 07-13-2016, 01:31 PM   #426
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Videos of this past weekends autocross at the Lake Tech center in Tavares







BlackBandit is offline   Reply With Quote
Old 08-01-2016, 12:14 PM   #427
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

All 9s ngk plugs
Spark plugs were installed in January. I've done 4-5 autocross events, Deals Gap, mainly run on 93 non ethanol, use 20/50 idemitsu oil, and 1/2 oz per gallon of Idemistu premix on every fill up of 16 gallons. And HKS twin power


Untitled by Gerald Mugar, on Flickr
BlackBandit is offline   Reply With Quote
Old 08-18-2016, 04:42 PM   #428
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Well, the car was towed to Kilo Racing and the motor is going to be rebuilt. I won't know exactly what the cause was until he finishes up a couple jobs. So when he's cracking open the motor, I'll make sure to take pics so we all can Oooo and awe.



Untitled by Gerald Mugar, on Flickr
BlackBandit is offline   Reply With Quote
Old 08-18-2016, 04:46 PM   #429
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

well that sucks.
turbofan is offline   Reply With Quote
Old 08-18-2016, 04:50 PM   #430
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Oil is extremely sticky and it's accumulated and puddled a quarter size from the downpipe connecting to the midpipe.


Untitled by Gerald Mugar, on Flickr




Untitled by Gerald Mugar, on Flickr




Untitled by Gerald Mugar, on Flickr







BlackBandit is offline   Reply With Quote
Old 08-18-2016, 04:50 PM   #431
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,160
Total Cats: 1,990
Default

Bummer. Goes to show that even the cleanest, nicest, most well kept examples of these are horribly unreliable and live up to their reputation.

Still one of the sexiest cars though
18psi is offline   Reply With Quote
Old 08-18-2016, 06:53 PM   #432
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I agree. I'm wondering how it happened though. Maybe the previous builder? Maybe it was me going top speeds? I don't know. But what I do know is it'll be fixed up and ready to enjoy again mid-September
BlackBandit is offline   Reply With Quote
Old 08-18-2016, 10:42 PM   #433
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by BlackBandit View Post
I agree. I'm wondering how it happened though. Maybe the previous builder? Maybe it was me going top speeds? I don't know. But what I do know is it'll be fixed up and ready to enjoy again mid-September
soviet is offline   Reply With Quote
Old 08-20-2016, 08:51 AM   #434
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Lol or like crazy eyes Steve buschemi when your rotors go opposite direction
BlackBandit is offline   Reply With Quote
Old 09-06-2016, 06:50 PM   #435
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Rofl


So guess what?!




It was the primary turubo oil seal that blew! Not the motor. So the motor is still pulled out of the car. Kilo says that I have a slight e shaft crank pulley wobble. Says the motor is fine for another 3-5 years. I'm sure I'll be back on this thread in 2 years saying the motor blew. We'll see.


So I just bought stage 3 BNRs for my replacement turbos. Stock setup. Flows even better then the 99 twins and 2x as much as the oem. Runs cooler and pushes out more power.
BlackBandit is offline   Reply With Quote
Old 09-06-2016, 07:48 PM   #436
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,857
Total Cats: -4
Default

Well that's good news!!!

This thread still terrifies me...
Efini~FC3S is offline   Reply With Quote
Old 09-20-2016, 03:58 PM   #437
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Pictures of the BNR stage 3 twins:


Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr



Untitled by Gerald Mugar, on Flickr
BlackBandit is offline   Reply With Quote
Old 09-20-2016, 05:31 PM   #438
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

Am i the only one that is confused about the path of exhaust gases through that turbo setup?
turbofan is offline   Reply With Quote
Old 09-20-2016, 05:36 PM   #439
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,950
Total Cats: 212
Default

Quote:
Originally Posted by turbofan View Post
Am i the only one that is confused about the path of exhaust gases through that turbo setup?
No.

Boost Control Info

--Ian
codrus is offline   Reply With Quote
Old 09-20-2016, 05:59 PM   #440
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

I still don't get where the air flows, but that is helpful in understanding how the turbos play together.

It looks like both turbo outlets to go the same place with no outlet. Must be some passages inside that manifold.

Funky.
turbofan is offline   Reply With Quote
