Old 04-28-2014, 12:09 AM   #121
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Hmm I'm gonna have to pick one up from esteban. Question: every time I put my ac on my temps rise up alot. Is the fan not strong enough or another reason why a tray might help
BlackBandit is offline   Reply With Quote
Old 04-29-2014, 01:50 PM   #122
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Very nervous about tomorrows body work. I can never go back.

Going Under The Scapel by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-14066164674_f0d2d36bd3_c.jpg
BlackBandit is offline   Reply With Quote
Old 04-29-2014, 01:57 PM   #123
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Undertray or not (Yes, you need the undertray), there's no way your temps should be doing that with a good radiator, shroud, and those SPAL fans you said you installed earlier.

You sure the fans are running the right way? Do you have them both set to come on staggered?
concealer404 is offline   Reply With Quote
Old 04-29-2014, 02:01 PM   #124
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

yes, the bigger fan is on the engine side the smaller on the ac side. I am working on getting a oem under tray unless I can pick up a beatrush skid plate. But I dont feel like cutting up metal to make it fit. I also have a small drip of coolant by my temp sensor for the temperature gauge. I ordered new oem hoses for now and plan on getting heat wrap or a heat insulator that a member mentioned.
BlackBandit is offline   Reply With Quote
Old 04-29-2014, 02:02 PM   #125
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Your fans are different sizes? That's weird.

Make sure they're pulling and not pushing.
concealer404 is offline   Reply With Quote
Old 04-29-2014, 02:04 PM   #126
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Quote:
Originally Posted by concealer404 View Post
Your fans are different sizes? That's weird.

Make sure they're pulling and not pushing.
They are pushing towards the engine bay and pulling from the radiator
BlackBandit is offline   Reply With Quote
Old 04-29-2014, 02:05 PM   #127
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

Yeah, sounds right. That's what he meant by pulling, same as the OEM setup.

Undertray + ducting and you will not have overheating issues
Fireindc is offline   Reply With Quote
Old 04-29-2014, 02:06 PM   #128
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Gerald, does it overheat at idle in the same scenario?
concealer404 is offline   Reply With Quote
Old 04-29-2014, 02:13 PM   #129
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Quote:
Originally Posted by Fireindc View Post
Yeah, sounds right. That's what he meant by pulling, same as the OEM setup.

Undertray + ducting and you will not have overheating issues
Gotcha. And I am going to get a tray from esteban the next time Im in orlando.



Quote:
Originally Posted by concealer404 View Post
Gerald, does it overheat at idle in the same scenario?
It doesn't over heat idling, just when the ac is on driving around. This happened in Orlando driving back home.

I did find a small drip leaking from the temp sensor for my temp gauge. Other then that I totally agree with you. I have a great cooling system and this strikes me odd.
BlackBandit is offline   Reply With Quote
Old 04-29-2014, 02:31 PM   #130
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

What i'm asking is if it overheats when at idle, sitting still, with the A/C on.

If it's just while driving around, get an undertray on that bitch. Do that anyways. But if it's doing it while not moving with the a/c on, then you've got other issues.
concealer404 is offline   Reply With Quote
Old 04-29-2014, 02:33 PM   #131
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Okay I'll find out
BlackBandit is offline   Reply With Quote
Old 04-29-2014, 02:34 PM   #132
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

Quote:
Originally Posted by BlackBandit View Post
Gotcha. And I am going to get a tray from esteban the next time Im in orlando.





It doesn't over heat idling, just when the ac is on driving around. This happened in Orlando driving back home.

I did find a small drip leaking from the temp sensor for my temp gauge. Other then that I totally agree with you. I have a great cooling system and this strikes me odd.
Definitely ducting then, once the car is moving >30-40mph the fans arent doing anything and the car relies on air being pushed through the heat exchangers. If there is no ducting the air takes the path of least resistance and goes AROUND the exchangers instead of through them.

Edit: I also agree with concealer, if its overheating at idle than ducting won't do anything for you.
Fireindc is offline   Reply With Quote
Old 04-29-2014, 03:03 PM   #133
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

It's 83 windy and cloudy here atm. It's not overheating sitting in my drive way running for 15 mins with the ac on. Be it may that the occurrence happened at high speeds of 70 mph when I experienced high temps under ac.

Temps stayed around 175
BlackBandit is offline   Reply With Quote
Old 05-02-2014, 03:23 PM   #134
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

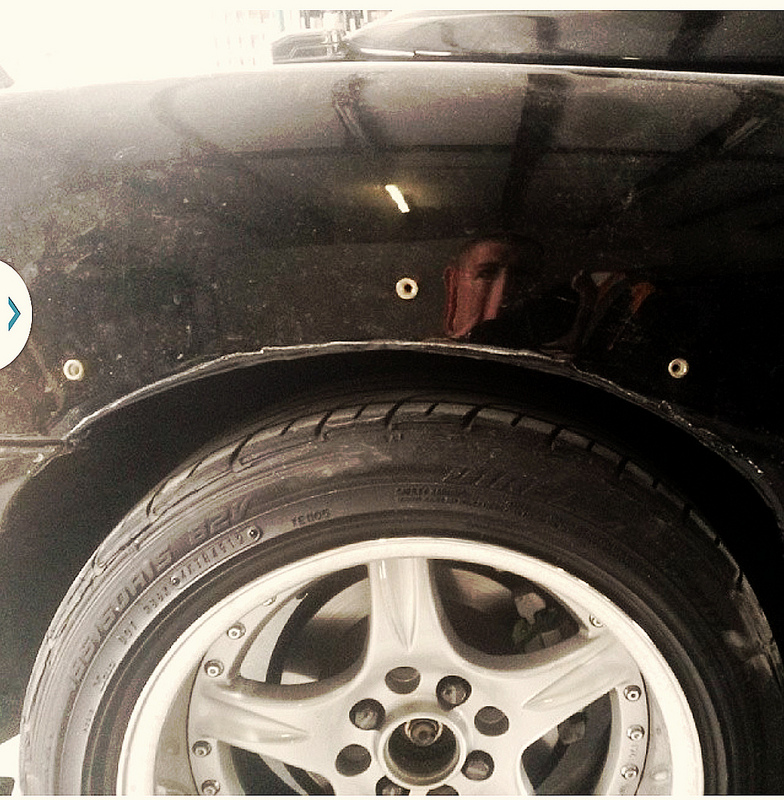

teaser

Screenshot_2014-05-02-14-14-27 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-14087332641_6b19f05495_c.jpg
BlackBandit is offline   Reply With Quote
Old 05-07-2014, 12:52 AM   #135
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

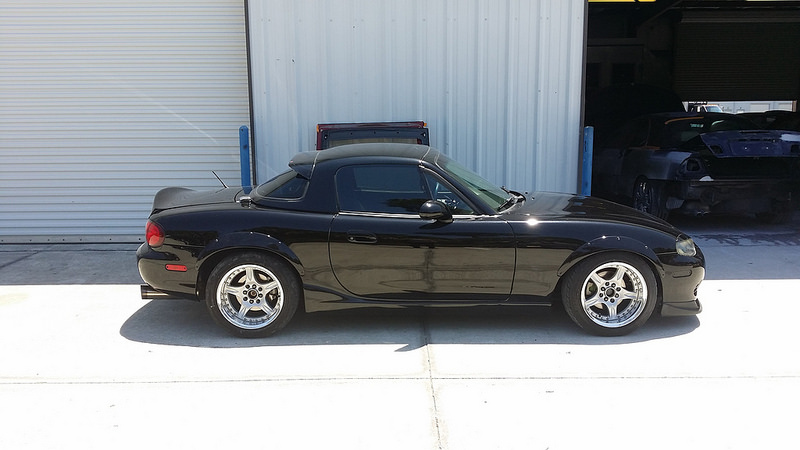

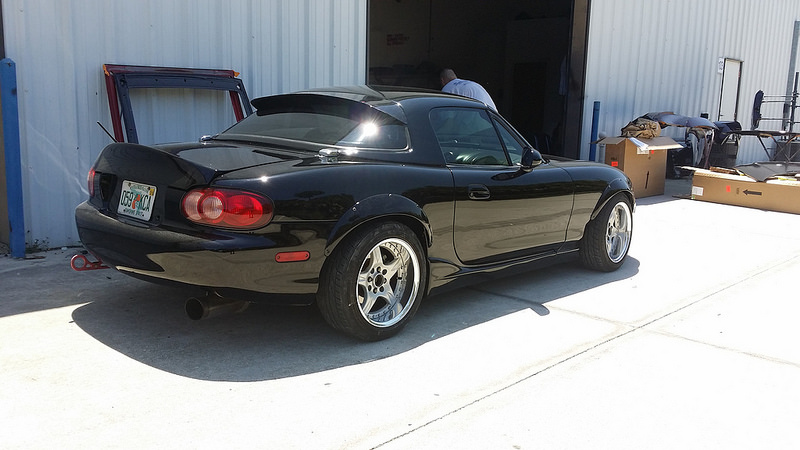

Almost there


20140506_122028 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-13940678068_5717969248_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-13939738219_9bd002728e_c.jpg
BlackBandit is offline   Reply With Quote
Old 05-11-2014, 01:45 AM   #136
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Going back to the heating issue, my thermostat is gutted.

Btw

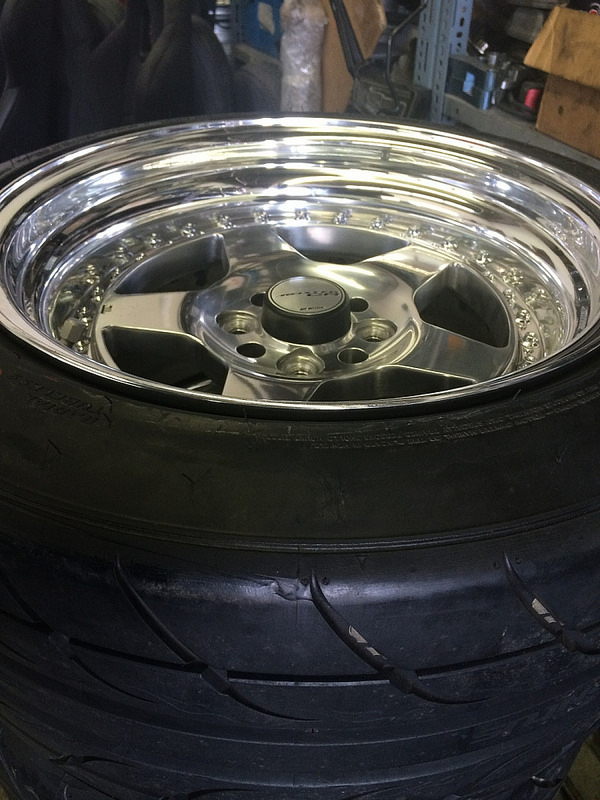

Live in the now!:




IMG_5109 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-14177136303_f77ceb55d5_c.jpg
BlackBandit is offline   Reply With Quote
Old 05-13-2014, 05:38 PM   #137
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Installed the om under tray and modified it to fm piping. Temps drop significantly. Thank you.

Btw I am experiencing issues with my tune. I will post them up in a bit.
BlackBandit is offline   Reply With Quote
Old 05-13-2014, 07:17 PM   #138
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I have been experiencing several issues. One of which I am at the point where I parked the car for a week and will be there longer if I can not fix the problem. I am barely familiar with MS and I don't mess around in the program.

Problem one is my car shuts off either in a few different scenearios:

Cruising and coasting to a stop while out of gear
Cruising and coasting to a stop and downshift gears to a stop and it's out of gear for the last 10 felt or so

I sometimes can take it out of gear and it keeps the gears idle high enough to keep driving without using the acceleration pedal

Shuts off at a stop of the other symptoms do not effect the idle prior

I have several logs of each issue in all 3.
Attached Files
File Type: msl test drive after new tune.msl (66.2 KB, 67 views)
File Type: msl test drive 2.msl (32.7 KB, 101 views)
File Type: msl test drive 3.msl (46.8 KB, 66 views)
File Type: msl last test driving home.msl (39.2 KB, 65 views)
BlackBandit is offline   Reply With Quote
Old 05-15-2014, 10:33 AM   #139
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

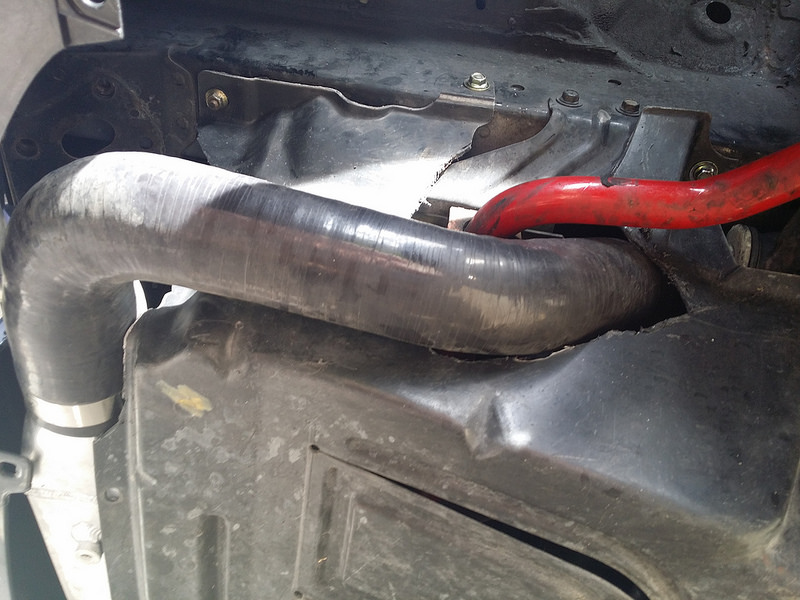

Custom undertray cutout. This side is much cleaner then the other side. Words of advice, use protective glasses when dremeling plastic. It can burn when it contacts your skin. Lol I put them on towards the end of the cutting and got some plastic under my eye and have a couple burns.


20140515_090139 by rocketeerbandit, on Flickr

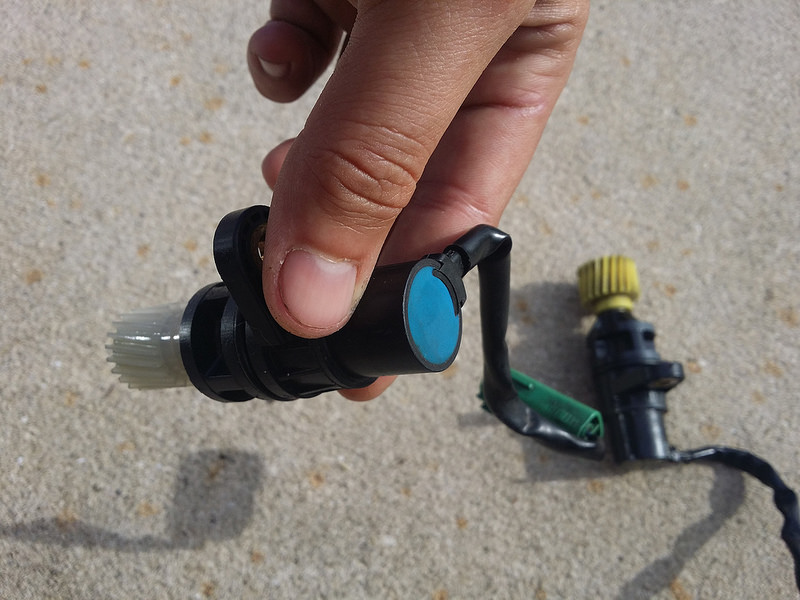

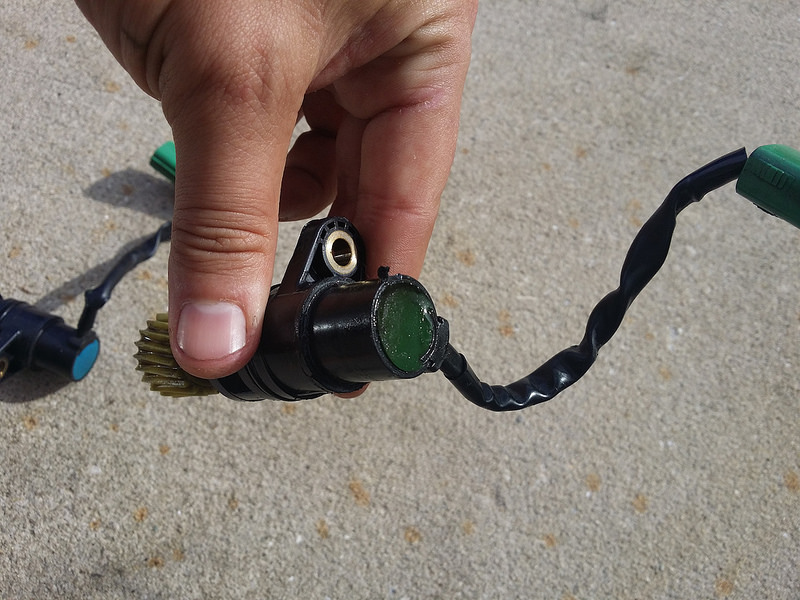

I tried searching but I didn't see a physical photo of the different gear ratio speed sensors. I am putting a 3.9 speed sensor in my 6speed msm for my 3.9 diff. This is the difference

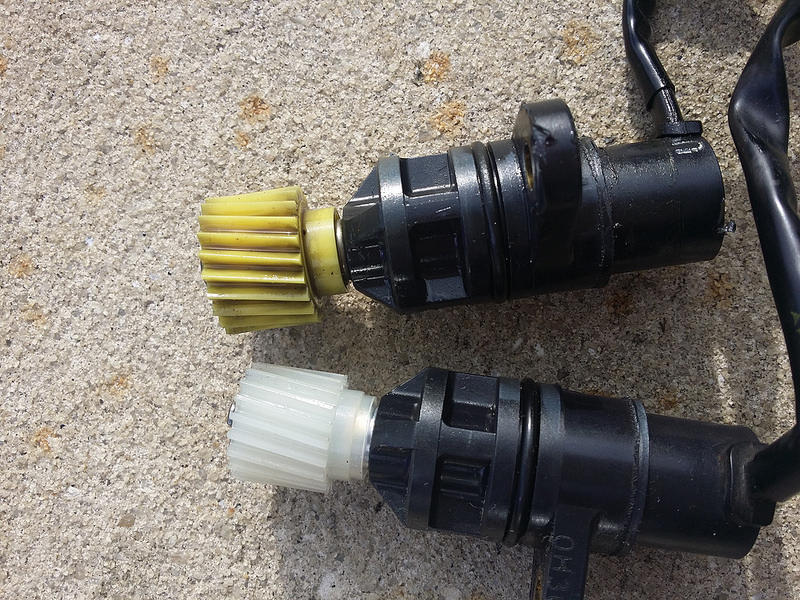

The size difference in gears. The 3.9 is much smaller then the 4.1 and the color of the gear. The 3.9 is white while the msm is yellow. And to tell which gear is in your transmission, there is a color coordinated circle on the outside. The 4.1 is green. The 3.9 is blue.



20140515_090331 by rocketeerbandit, on Flickr


20140515_090344 by rocketeerbandit, on Flickr


20140515_090356 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-14168370806_9841e97917_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-14004911207_5008c1c7d5_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-14188228781_34878643af_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-14211651083_7acf47ecb1_c.jpg
BlackBandit is offline   Reply With Quote
Old 05-15-2014, 12:46 PM   #140
Junior Member

Join Date: Jul 2009
Location: San Fran
Posts: 83
Total Cats: 3
Default

damn, will need to trim my undertray soon. Thanks for the advice about that sh*t getting hot and keeping it out of your eyeballs!
