Old 10-01-2015, 11:26 PM   #2221
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

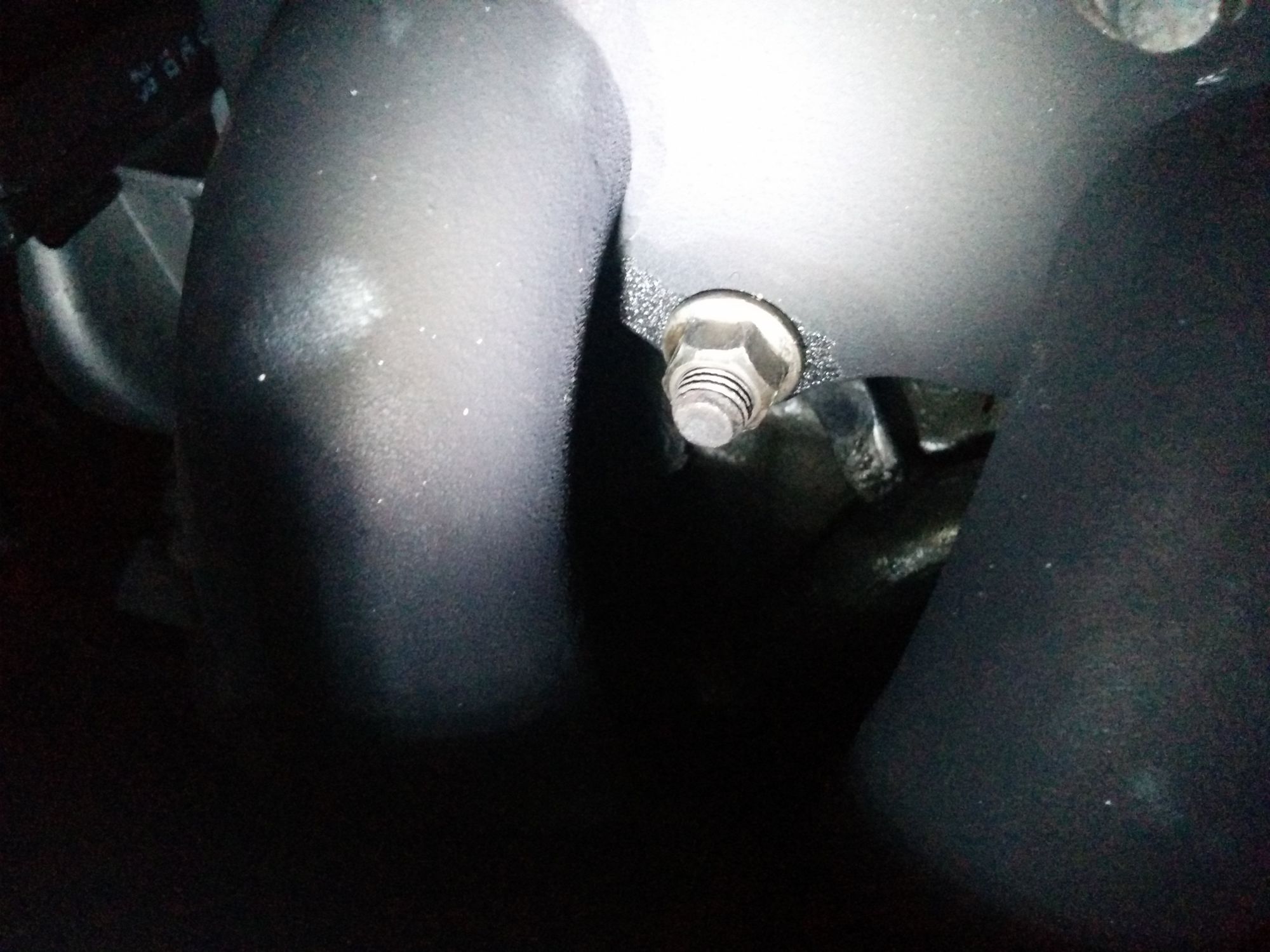

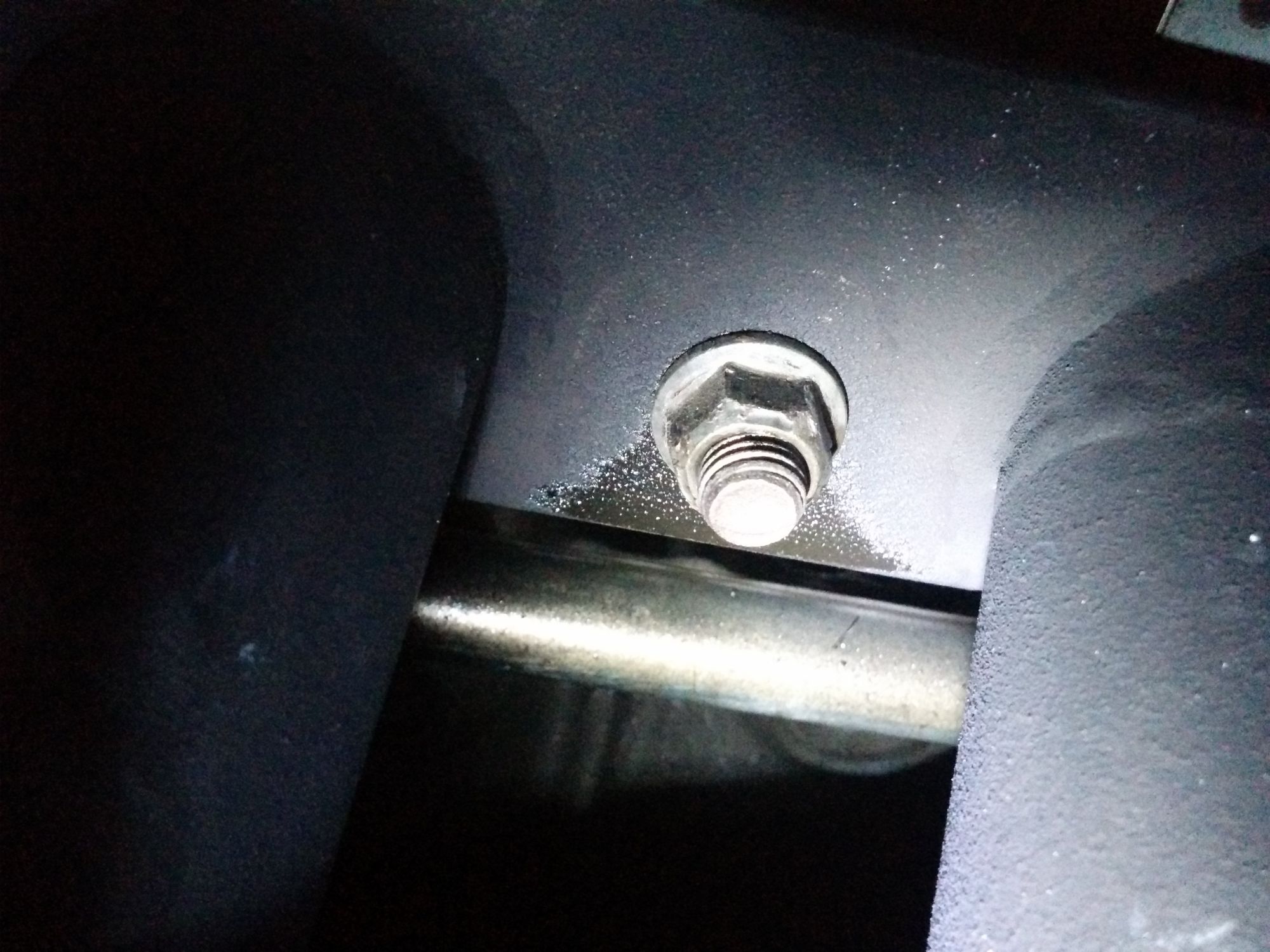

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-80-14437527387101381434315_b469f3fc24b47bef932970ee040a69392f0ca8da.jpg   Nothing to see here, just project Sisyphus, move along-80-1443752769580523693199_308472c24ecb13869b45b1473faa8aa15b1af57b.jpg
EO2K is online now   Reply With Quote
Old 10-01-2015, 11:47 PM   #2222
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 647
Total Cats: 107
Default

Boggle! WTF
gesso is offline   Reply With Quote
Old 10-01-2015, 11:57 PM   #2223
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Quote:
Originally Posted by EO2K View Post
...
Manifold is dry inside
Merge looks SWEET! Very well done.

Time to pull manifold.
patsmx5 is offline   Reply With Quote
Old 10-02-2015, 12:16 AM   #2224
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,024
Total Cats: 222
Default

Quote:
Originally Posted by gesso View Post
Boggle! WTF
You used too much anti-seize!

--Ian
codrus is offline   Reply With Quote
Old 10-02-2015, 12:27 AM   #2225
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

maybe only 1 valve seal is leaking and the rest of the exhaust flow is burning it off by the time it gets through mani?

Last edited by 18psi; 10-02-2015 at 12:38 AM.
18psi is offline   Reply With Quote
Old 10-02-2015, 01:46 AM   #2226
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

These pics are going to be terrible so bear with me

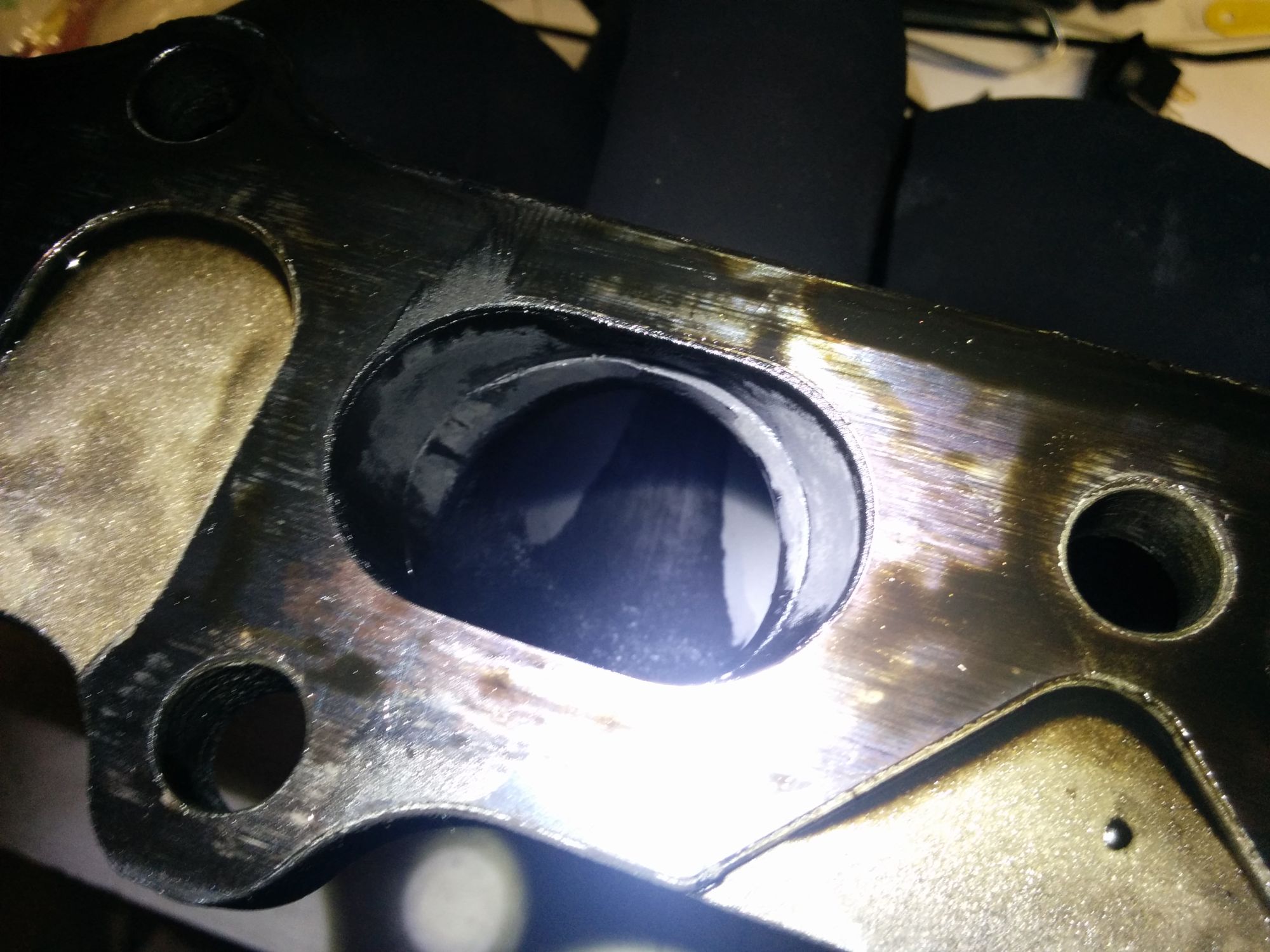

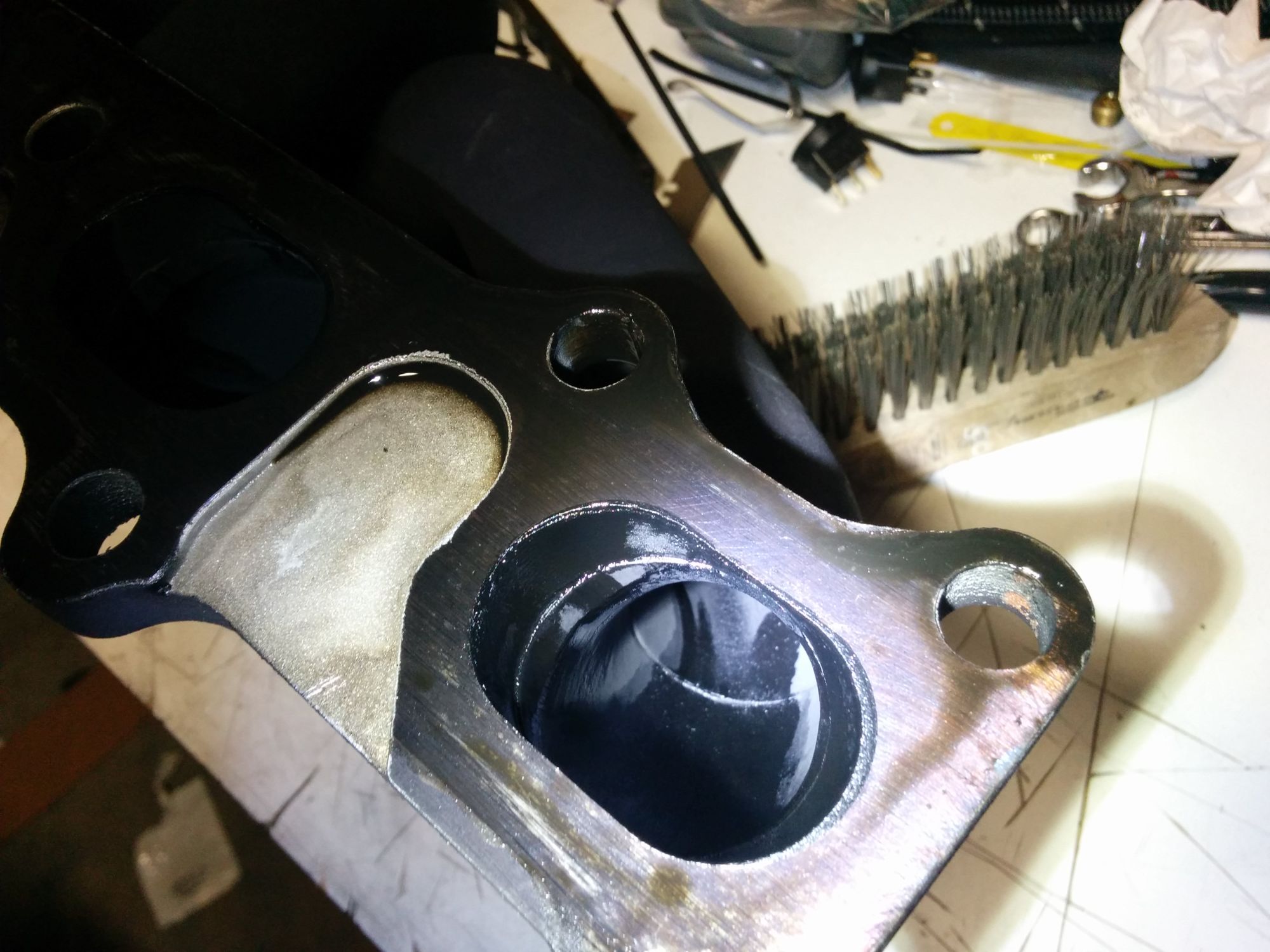

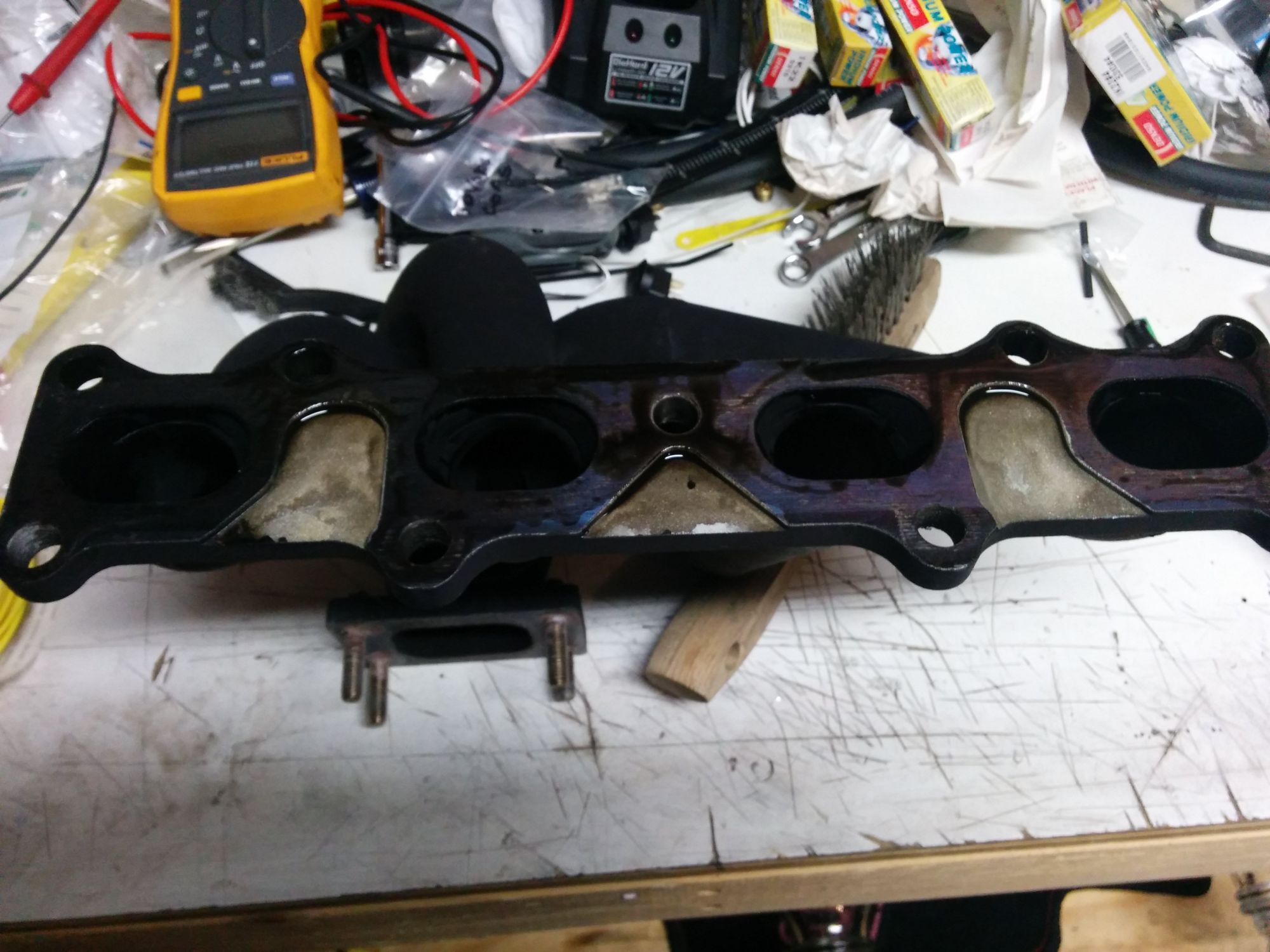

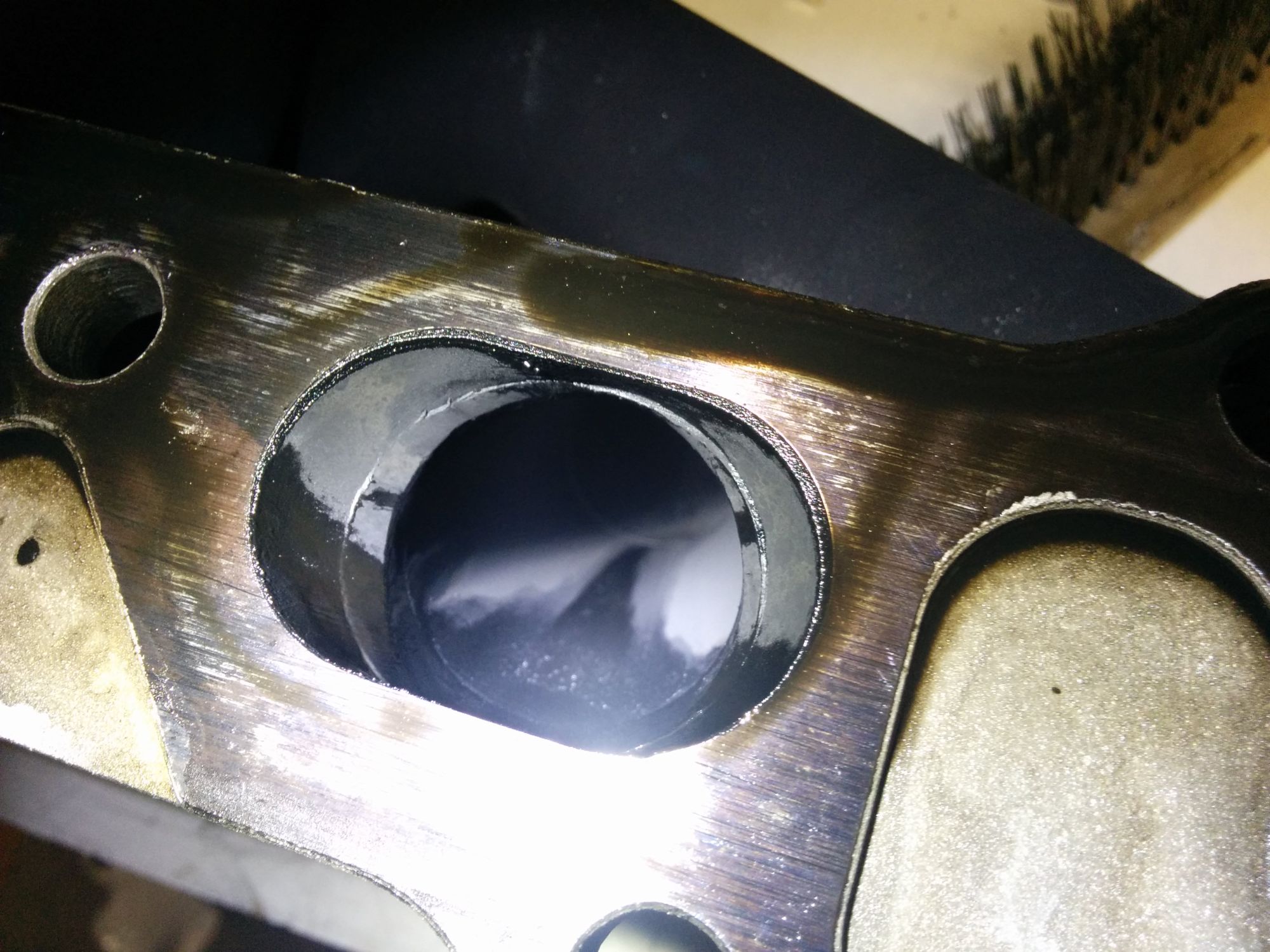

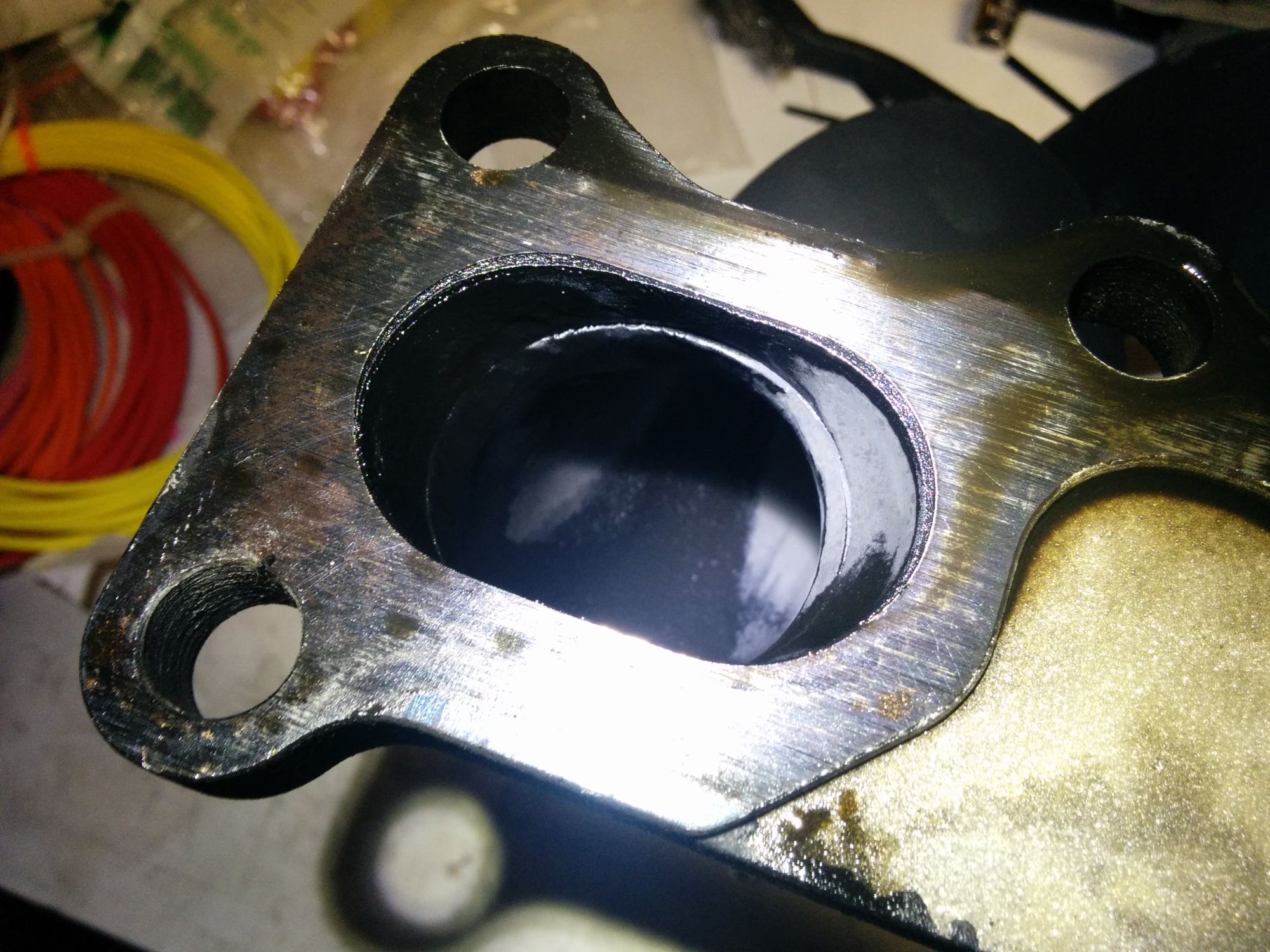

Manifold ports. Images are inverted, bottom of image is top of manifold.
















The wet streaks are on the ceiling of the runners.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-80-phone_pics_054_95e4bbf3b17a082e903ee3fe40aee4c96ce21bb5.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_055_ac861fa0bd170751ae0c1a66bb8c7eecebd1b898.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_056_58da47e56cf8a17759ee95cd79229e7d056e3a4c.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_058_8f43fc6d62fb4b26c27a7362a259a497120c36ac.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_060_c4178634ece2fba196ec8478c7f6560495cf01c5.jpg

EO2K is online now   Reply With Quote
Old 10-02-2015, 01:46 AM   #2227
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 647
Total Cats: 107
Default

Quote:
Originally Posted by codrus View Post
You used too much anti-seize!

--Ian
I was under the impression that isn't actually possible.
gesso is offline   Reply With Quote
Old 10-02-2015, 01:46 AM   #2228
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

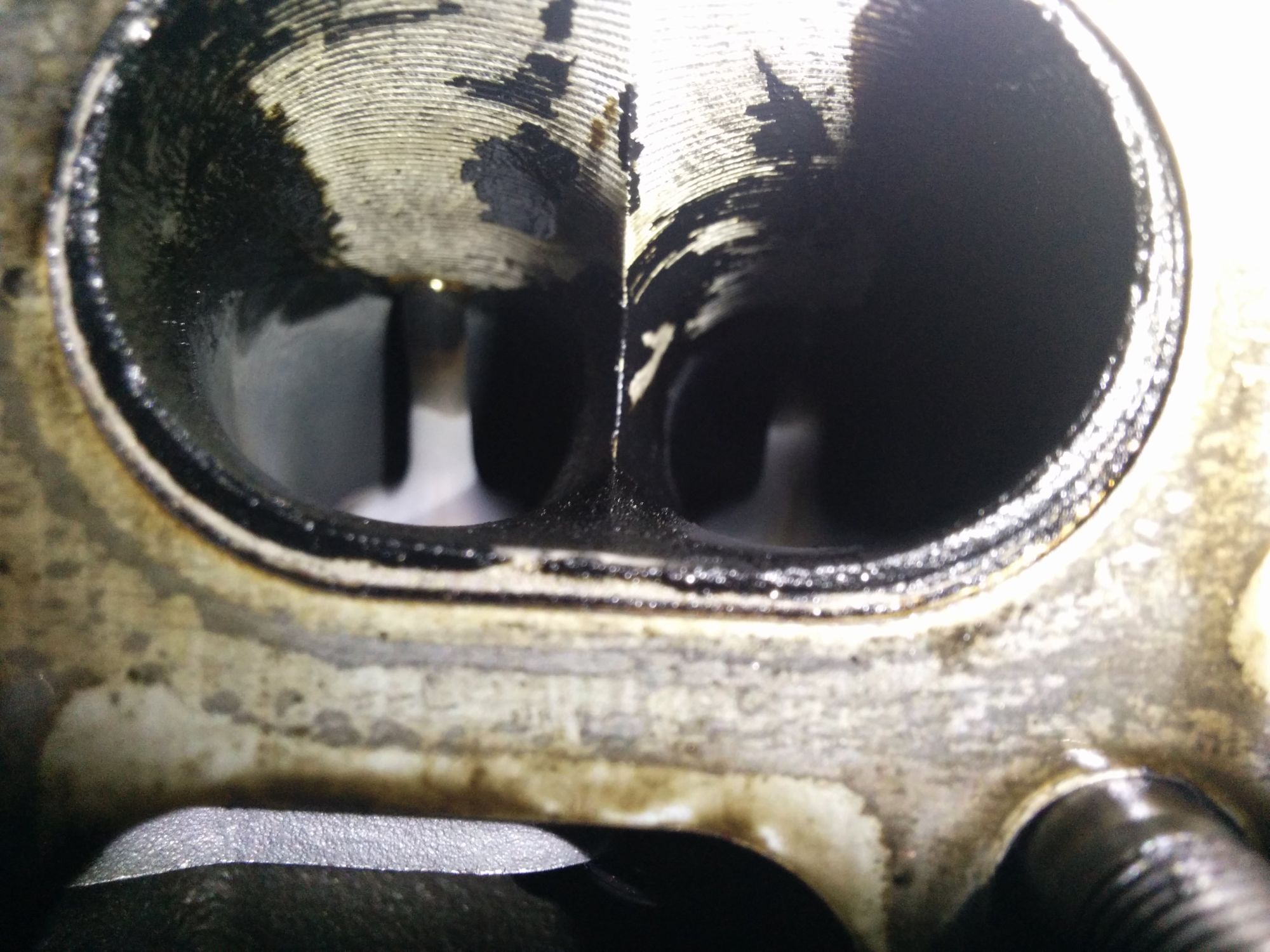

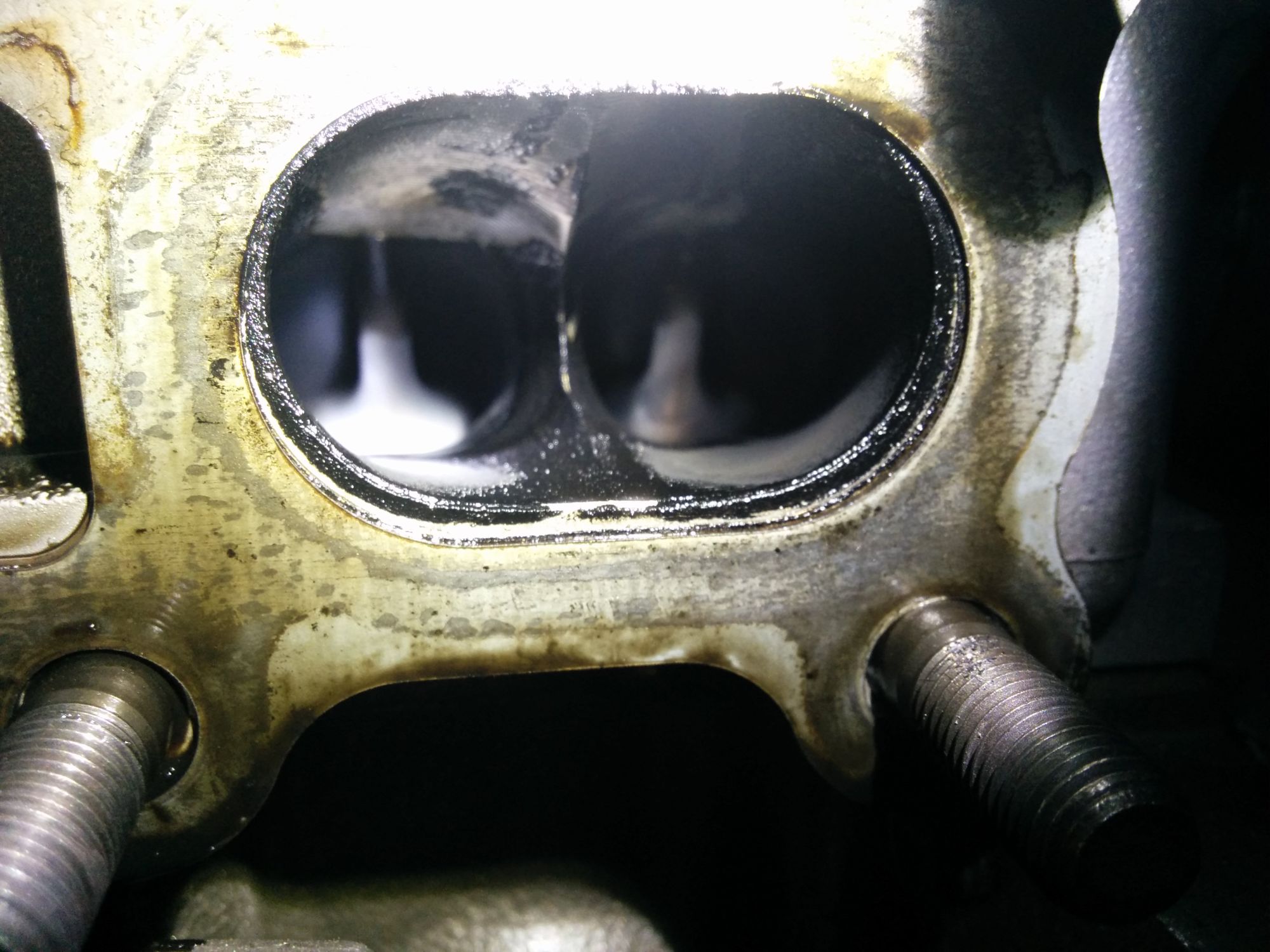

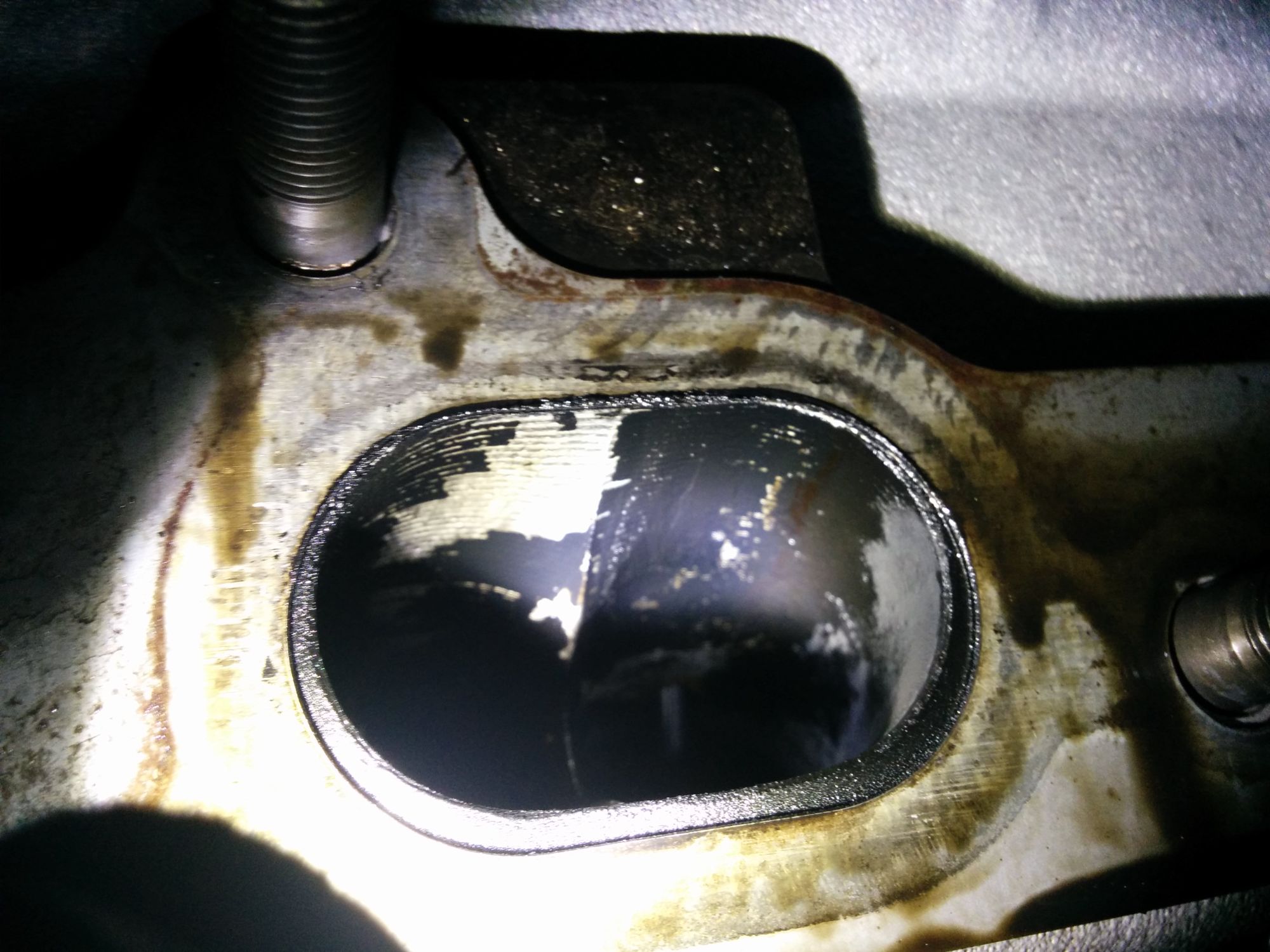

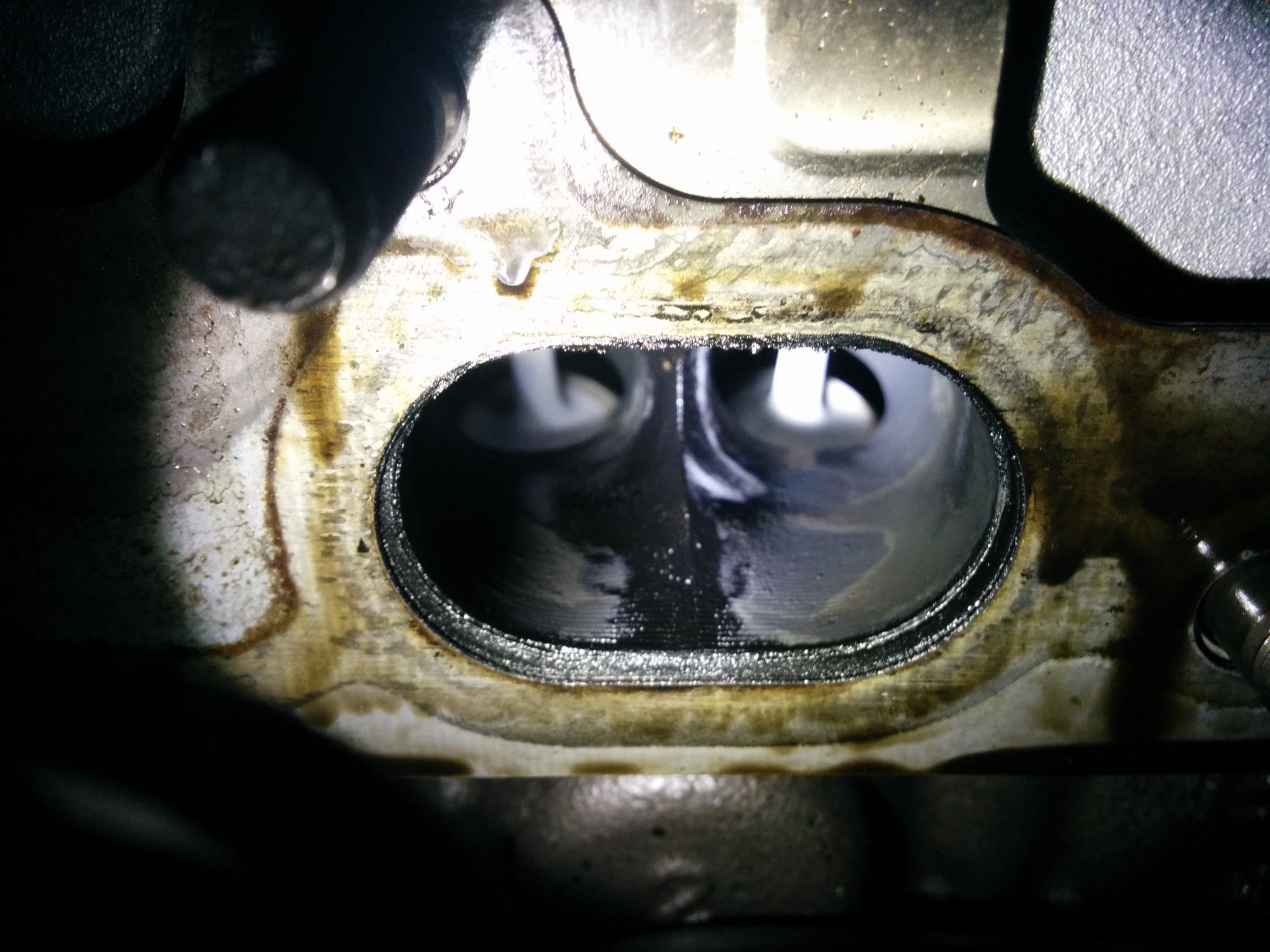

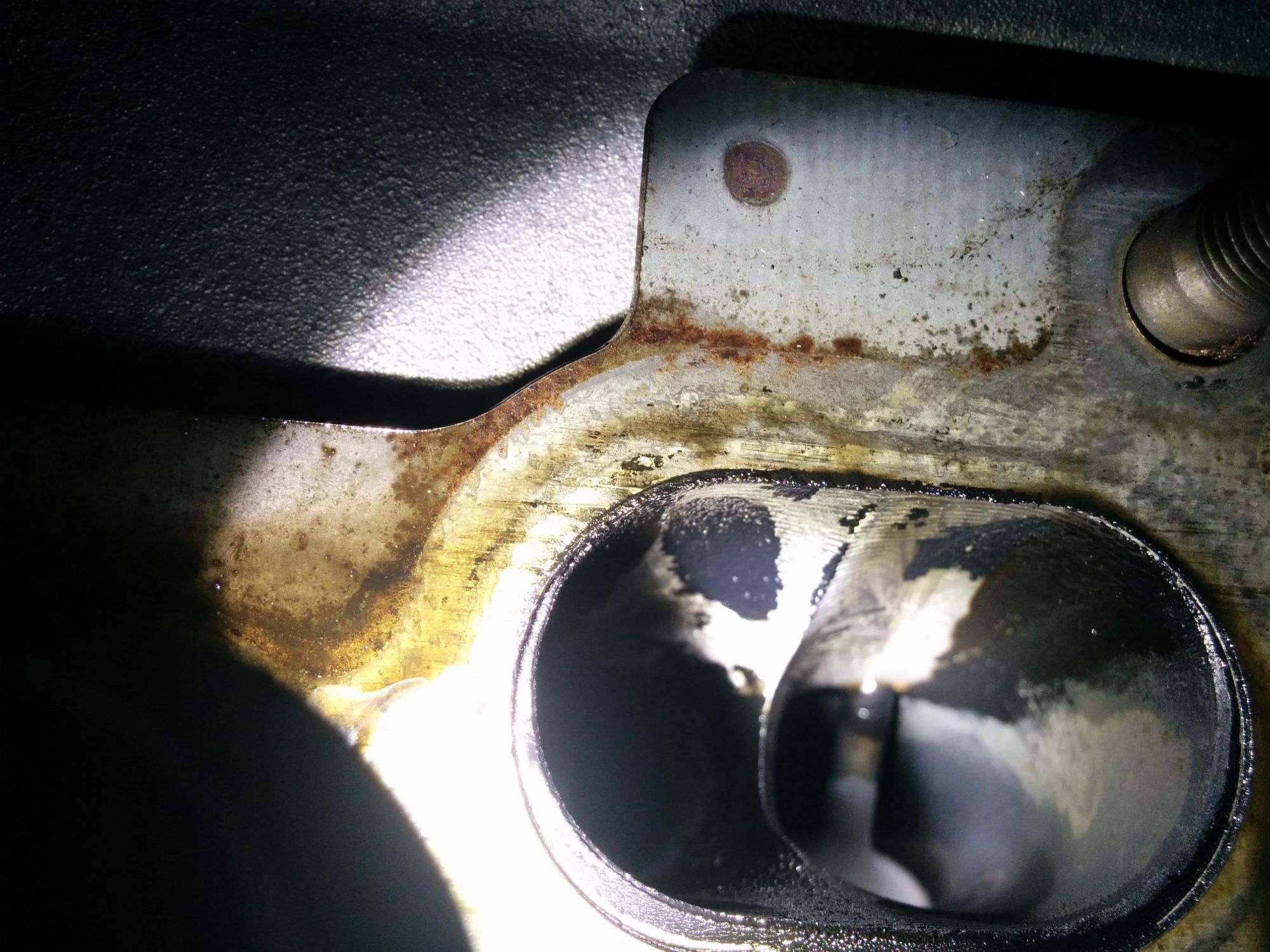

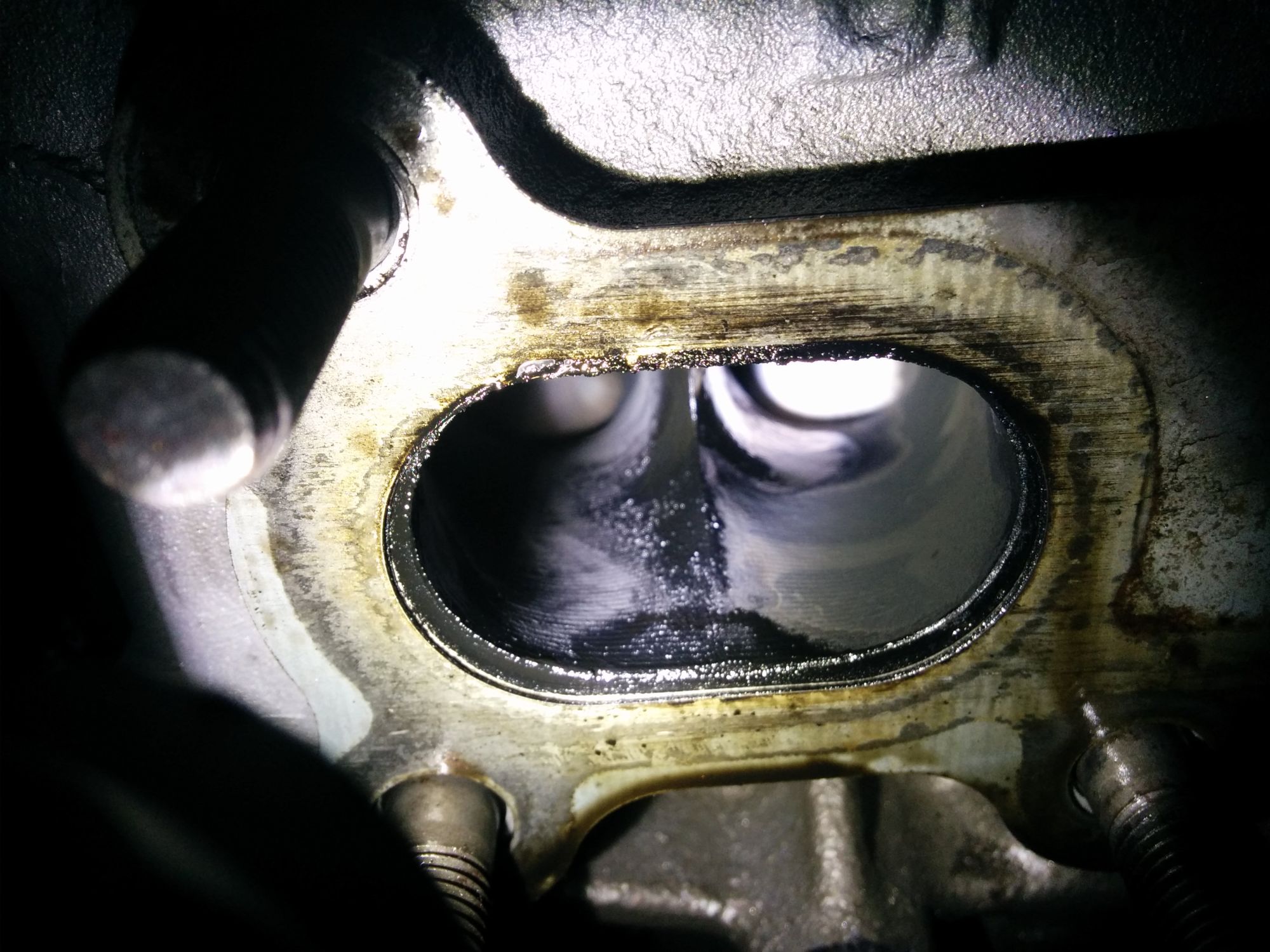

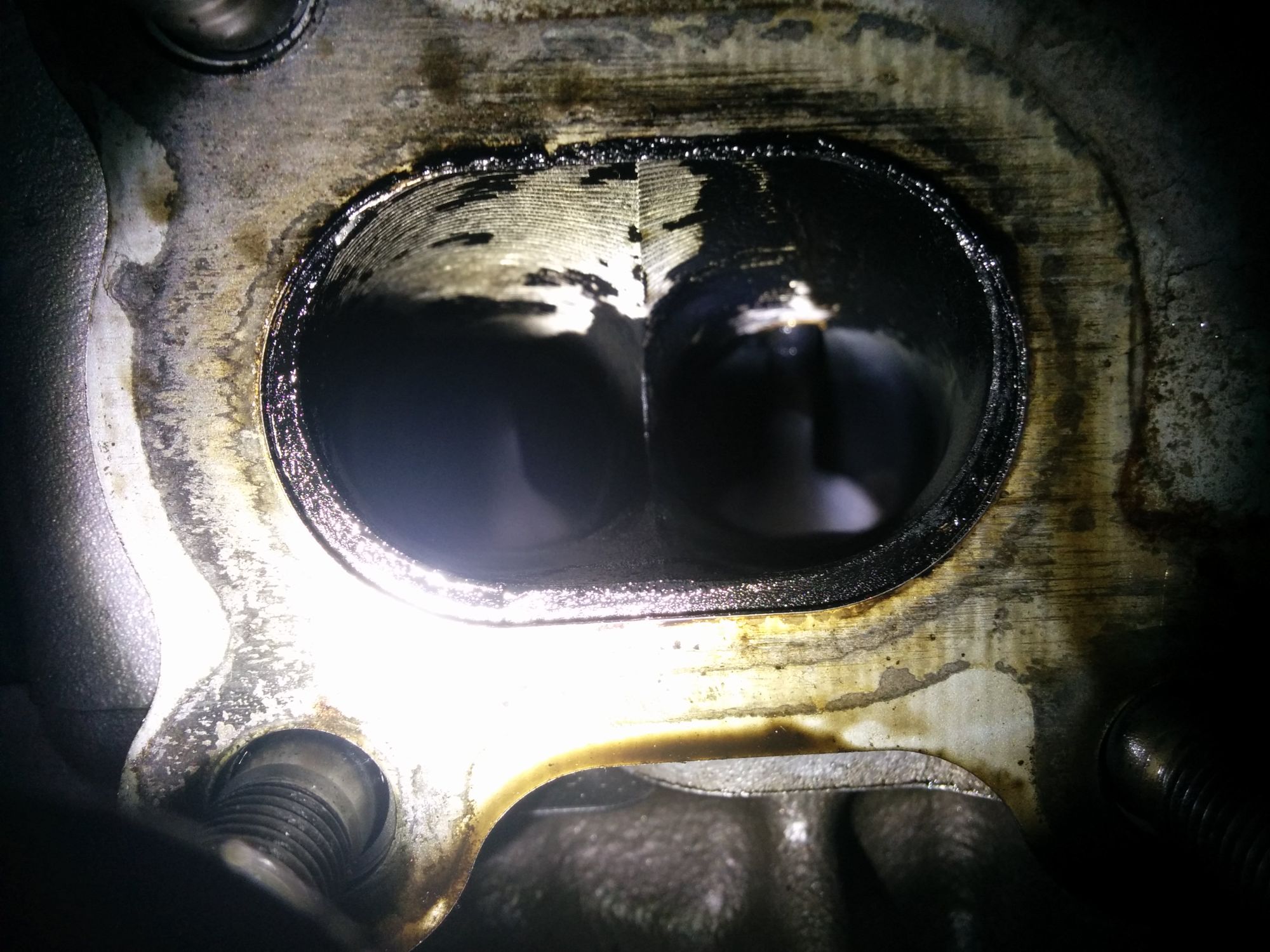

Exhaust ports. Sorry, this was done with a flashlight and cell phone

I tried to get a couple of angles on each of the ports. The second pic for #3 wasn't worth a damn so you only get one.

1A



1B



2A



2B



3A



4A



4B

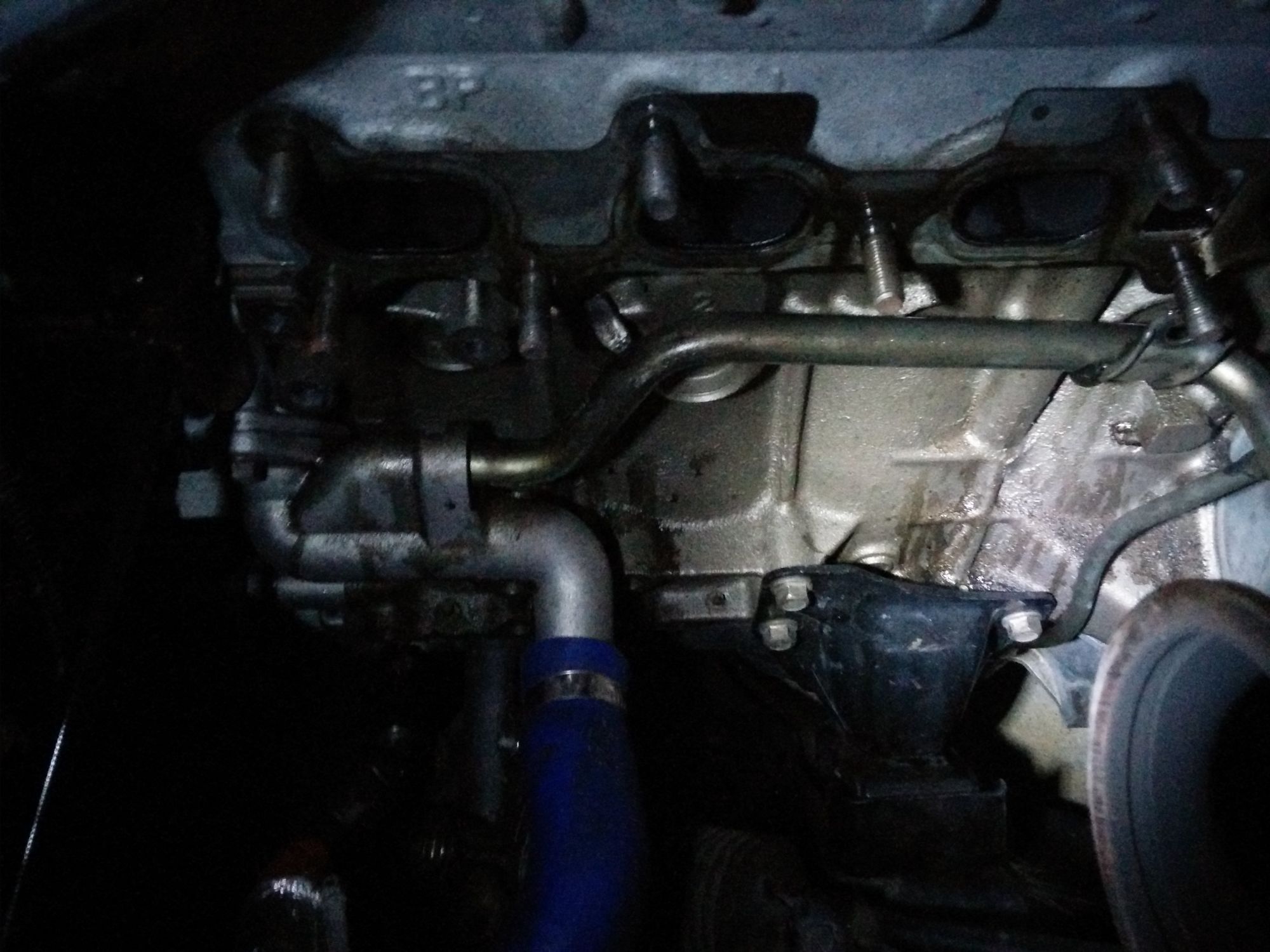

Oil AAAAALLLLLLLLLL down the side of my block, oil pan, subframe...

I just cleaned and/or painted all that crap.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-80-phone_pics_062_e65b073801162149a13ca55b03132d7ef136ae2a.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_063_ddc6e399e6127543a16e73118444e49560162eb4.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_064_80accecf86b9d519d8efd2da4acac7855cbe24f8.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_066_a152e6294485a38b33fa484d89a4746327292a3e.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_068_02a223c38ac0978a5762550c6e6a6c70297432e2.jpg

Nothing to see here, just project Sisyphus, move along-80-phone_pics_069_2c935415babf01cda03e403dd51d3a90ea8c74c3.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_070_0808a54eb679c78512f788483dbccb2aaabc929b.jpg   Nothing to see here, just project Sisyphus, move along-80-phone_pics_071_7177e072837af3c93960a4d64cee0262c5640ea5.jpg
EO2K is online now   Reply With Quote
Old 10-02-2015, 01:47 AM   #2229
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

It's obviously the valve stem seals.

Tops of the ports are wet, bottoms are mostly dry and there is a very distinct set of streaks where the oil flows down the port and down the runner. Interestingly enough there is no or very little oil on the valves themselves.

There is no point in pulling the head and trying to send it back to have the stem seals replaced. I'll be down for weeks, plus head gasket, plus that drama. There is also no point in taking it to a shop to have $12.49 worth of seals replaced for some obscene sum of money worth of labor charges. Pretty much the only option that's worth a damn is doing it myself.
EO2K is online now   Reply With Quote
Old 10-02-2015, 01:49 AM   #2230
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 647
Total Cats: 107
Default

Nvm
gesso is offline   Reply With Quote
Old 10-02-2015, 01:51 AM   #2231
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

Compressed air and/or the rope trick, the "tool", and a focused evening, and it can be done before MRLS
18psi is offline   Reply With Quote
Old 10-02-2015, 01:54 AM   #2232
Senior Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,288
Total Cats: 111
Default

Damn! First the coffee cup, then this; when will the third shoe drop?
good2go is offline   Reply With Quote
Old 10-02-2015, 01:55 AM   #2233
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

I have a set of brand new supertech seals in my garage, I don't have a valve spring compressor tool.
EO2K is online now   Reply With Quote
Old 10-02-2015, 02:06 AM   #2234
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

How To: Change Valve Stem Seals With Head On

My big question is WHY is this leaking? These are valve stem seals, they are pretty hard to **** up. This makes me think something else is going on here.
EO2K is online now   Reply With Quote
Old 10-02-2015, 02:07 AM   #2235
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

Or maybe that's just paranoia?
EO2K is online now   Reply With Quote
Old 10-02-2015, 02:24 AM   #2236
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,024
Total Cats: 222
Default

Sorry, a DOHC valve spring compressor tool is one I don't have.

Where did the head come from? Is it a 949 one?

--Ian
codrus is offline   Reply With Quote
Old 10-02-2015, 02:32 AM   #2237
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

I'll probably just order one, they are $60-80 on Amazon. The question is can I compress the Supertech übersprings with any of those compressors with the head on.

Yes, that's where its from.
EO2K is online now   Reply With Quote
Old 10-02-2015, 03:29 AM   #2238
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,024
Total Cats: 222
Default

So what are you doing about Laguna? Going to put it back together and run it anyway?

--Ian
codrus is offline   Reply With Quote
Old 10-02-2015, 03:53 AM   #2239
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,238
Total Cats: 978
Default

Quote:
Originally Posted by codrus View Post
So what are you doing about Laguna? Going to put it back together and run it anyway?

--Ian
Finally some common sense
aidandj is offline   Reply With Quote
Old 10-02-2015, 04:00 AM   #2240
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Quote:
Originally Posted by EO2K View Post
It's obviously the valve stem seals.

Tops of the ports are wet, bottoms are mostly dry and there is a very distinct set of streaks where the oil flows down the port and down the runner. Interestingly enough there is no or very little oil on the valves themselves.

There is no point in pulling the head and trying to send it back to have the stem seals replaced. I'll be down for weeks, plus head gasket, plus that drama. There is also no point in taking it to a shop to have $12.49 worth of seals replaced for some obscene sum of money worth of labor charges. Pretty much the only option that's worth a damn is doing it myself.
Damn! That really sucks man. From the pics it looks like ALL of them are pouring oil. Seeing is you just got it tuned I'm pretty sure it has hardly any miles on it. With all of them leaking you need to figure out what's wrong. You didn't just get 8 bad valve stem seals and they all failed together that fast. Something screwy is going on to cause them all to fail that bad that fast. Don't laugh, but pop the valve cover and see if they even installed valve stem seals.

Whatever brand valve stems seals were used, I'd probably make sure those are NOT the brand that goes back in it. I'm curious which ones you used, so I can make sure I never use those.

And you called me a troll when I said I would question whoever assembled that head. If I were you I'd yank the head and check EVERYTHING before something more catastropic than a bad valve stem seal happens. At least then you'll have peace of mind knowing it's all right. As an example, if all 8 exhaust valve stem seals are leaking, I think this would warrant pulling the intake manifold and having a peak on that side too.
patsmx5 is offline   Reply With Quote
