Old 10-08-2014, 07:37 PM   #501
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Quote:
Originally Posted by EO2K View Post
when at the track its a non issue and they are god damn amazing. Shifter NEVER moves.

The only reason I haven't put the MazdaComps in the car is the "cup" parts of the stock mounts are lost somewhere in Gessos garage from when we swapped my motor before he moved.
Hmmm . . . . maybe Honey Badger needs a set of these.

BTW, you can skip those cups and enjoy a bit of free weight savings. They do help protect the rubber engine mount bushings from spray/dust/deterioration. But they're not really necessary and they are heavy.
hornetball is online now   Reply With Quote
Old 10-08-2014, 07:57 PM   #502
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,079
Total Cats: 424
Default

Is it the design of the mounts or what? The Mazdacomp ones 949 sells are reportedly 75 durometer but end up being considerably softer from what I've heard.

Mazda Comp Motor Mounts 90-05 Miata
turbofan is offline   Reply With Quote
Old 10-08-2014, 07:59 PM   #503
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

Quote:
Originally Posted by hornetball View Post
Hmmm . . . . maybe Honey Badger needs a set of these.

BTW, you can skip those cups and enjoy a bit of free weight savings. They do help protect the rubber engine mount bushings from spray/dust/deterioration. But they're not really necessary and they are heavy.
Is this Red? Yes, Red needs a set of these. BECAUSERACECAR.

The only weight savings I need to worry about is the ouncespounds around my middle HOWEVER, this is fabulous information. Do I just cut the little clips off the engine mounts? Also, won't this drop my engine like 1/4" inside the bay?

Quote:
Originally Posted by turbofan View Post
Is it the design of the mounts or what? The Mazdacomp ones 949 sells are reportedly 75 durometer but end up being considerably softer from what I've heard.
Its a design thing. The factory mount is like an inch solid block of rubber. The AWR ones are like a 1/4" sleeve inbetween 2 solid tubes. It's exactly like a polly suspension bushing, but with WAY less material to flex/absorb vibration.

This:


Compared to this:


The factory style bushing would probably have to be something crazy like 140D to get the same level of stiffness that I have in my mounts now.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-nay139040_miata_motor_mt.jpg

Last edited by EO2K; 10-08-2014 at 08:10 PM.
EO2K is online now   Reply With Quote
Old 10-08-2014, 10:53 PM   #504
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by EO2K View Post
ok, I see what's going on here...
¿yo soy comprende mi amigo?
Yes sir. Most the time skimming things carries me through...apparently not this time.

I have the Mazdacomp ones from 949 and love them. A little bit of vibration at idle. But that is probably because I idle at 900 rather than 1k. I do get a decent amount of shifter movement though, something I have never been really happy about.

If you remember me talking about that cloth back tape I used in my car EO2LK, I put that on any plastic panels that touched metal/plastic/other parts and I get nary a rattle from my car. This is with fully poly, mazdacomp/door bars/fender bars yadda yadda.

Granted, I also have a lot more sound deadening than the average Miata.
Jeffbucc is offline   Reply With Quote
Old 10-09-2014, 12:42 AM   #505
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

The vast majority of the ***** noise is coming from the hood, hood latch and things under the nose that I can quite identify. I should remove my PS so there are less things under there to vibrate

Things are afoot this evening. Pics soon.
EO2K is online now   Reply With Quote
Old 10-09-2014, 01:26 AM   #506
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,699
Total Cats: 471
Default

Quote:
Originally Posted by EO2K View Post
won't this drop my engine like 1/4" inside the bay?
Yes. The mounts are designed to work with the cups, I'd suggest keeping them. They are heavy, but serve a purpose. Driver's side is a decent heat shield.
curly is offline   Reply With Quote
Old 10-09-2014, 09:30 AM   #507
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Quote:
Originally Posted by curly View Post
Yes. The mounts are designed to work with the cups, I'd suggest keeping them. They are heavy, but serve a purpose. Driver's side is a decent heat shield.
Engine drops a little bit.

The subframe has holes cutout, so you don't really do anything for the clips. The clips protrude from the cups too, so there really isn't anything different there.

I know some autocross types that run without the cups. Haven't done it myself. They do provide some shielding for the rubber, but based upon the looks of some of the OEM mounts I've replaced, not really that much.
hornetball is online now   Reply With Quote
Old 10-09-2014, 02:27 PM   #508
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

Sadness. I appear to be missing one of the OEM motor mount nuts. I hate losing OEM fasteners because they are almost impossible to source locally.

They appear to be the same as the exhaust nuts, except I need those so I can put my exhaust back on
EO2K is online now   Reply With Quote
Old 10-09-2014, 02:29 PM   #509
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 684
Total Cats: 47
Default

I hate when my nuts go missing!
rwyatt365 is offline   Reply With Quote
Old 10-09-2014, 03:09 PM   #510
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,272
Total Cats: 122
Default

Quote:
Originally Posted by EO2K View Post
They appear to be the same as the exhaust nuts, except I need those so I can put my exhaust back on
I guess you just have to convert to a vband exhaust now. It is the only way
Ryan_G is online now   Reply With Quote
Old 10-09-2014, 03:18 PM   #511
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

lol you guyth

As for Skunk2, box arrived today! They are getting closer...



I finally have the right 99-05 IACV mount, but they sent the 94-97 gasket pack I'm not sure if I should call them out on this or not. Part of me is like "Quit while you are ahead! Walk away!" and the other part is going "Make them do it till they get it right!"

Does anyone have one of these gaskets sitting in their garage? I will paypal you $5 to scan and email it to me, or photocopy and snail mail it so I can cut my own.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-phone-stuff-001.jpg
EO2K is online now   Reply With Quote
Old 10-09-2014, 03:47 PM   #512
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

Lets make this official:

If someone has a Skunk2 99-05 Miata throttle body sitting in their garage, I will Paypal you $5 if you scan these two gaskets and post them somewhere I can get to them.



Failing that, I'll just try to trace my IACV adapter and cut my own out of gasket material.
EO2K is online now   Reply With Quote
Old 10-09-2014, 07:52 PM   #513
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Didn't Bryan at Fab9 offer to get you the correct gasket at one point? Ask him, he has accommodated my weird requests numerous times in the past.
Jeffbucc is offline   Reply With Quote
Old 10-09-2014, 07:58 PM   #514
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

Quote:
Originally Posted by EO2K View Post
Lets make this official:

If someone has a Skunk2 99-05 Miata throttle body sitting in their garage, I will Paypal you $5 if you scan these two gaskets and post them somewhere I can get to them.



Failing that, I'll just try to trace my IACV adapter and cut my own out of gasket material.
Wow. Finally getting somewhere with this. At this point I'd use a pencil and a piece of paper to trace out the layout. Glad to see it's moved in the right direction.
FAB is online now   Reply With Quote
Old 10-09-2014, 07:59 PM   #515
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

What, no black RTV this time?

Quote:
Originally Posted by FAB View Post
Wow. Finally getting somewhere with this. At this point I'd use a pencil and a piece of paper to trace out the layout. Glad to see it's moved in the right direction.
I know, right? Its only been like a month Yep, that's the plan. I'm going to try tracing something out and see if I can get it to work.

I guess the upshot of this is that if anyone needs the 94-97 gaskets/bolts/IACV adapter/TPS adapter, shoot me a PM because I got extras Skunk2 said not to bother trying to send them back.
EO2K is online now   Reply With Quote
Old 10-09-2014, 08:30 PM   #516
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,795
Total Cats: 212
Default

Mazdacomp will happily overnight you your missing nuts for a modest shipping fee

Use one of your exhaust nuts, and just go grab a stainless nut to use on the exhaust until you can replace it for reals if you want.
Mobius is offline   Reply With Quote
Old 10-09-2014, 09:34 PM   #517
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

Quote:
Originally Posted by Mobius View Post
Mazdacomp will happily overnight you your missing nuts for a modest shipping fee
What am I doing, running showroom stock autox here?
EO2K is online now   Reply With Quote
Old 10-14-2014, 09:33 PM   #518
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

So this happened...

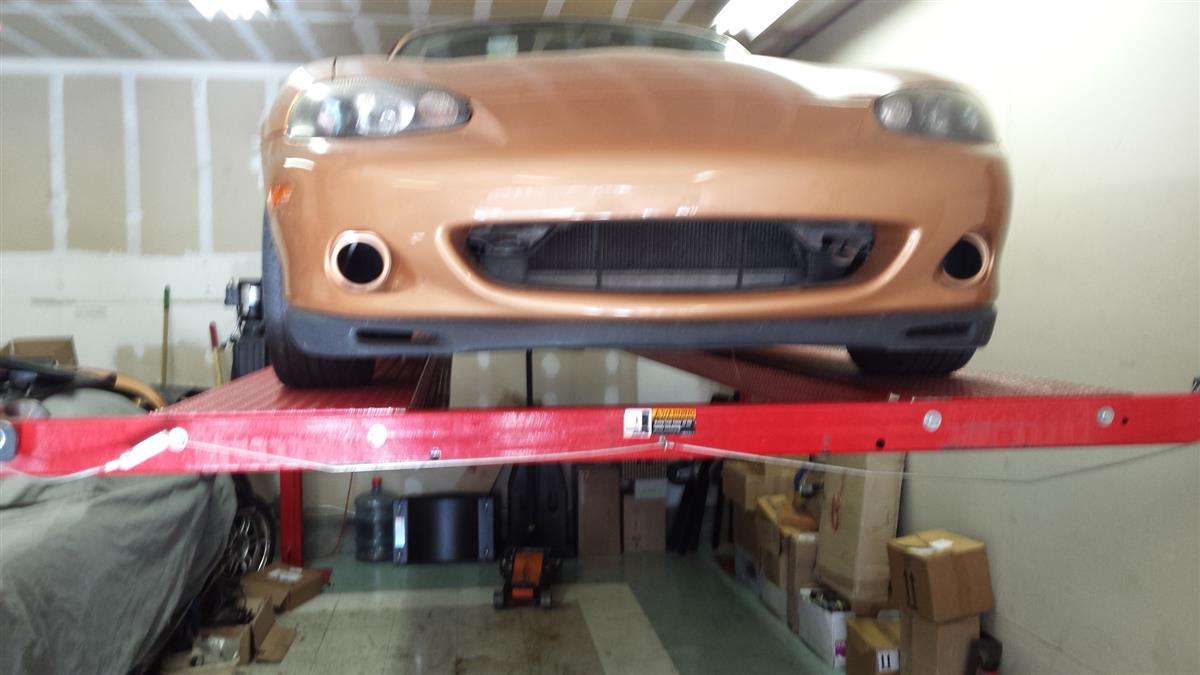

Dat lift doe. I <3 Gessos garage. I was sad that he moved 1.5hrs away, but its starting to show some benefits

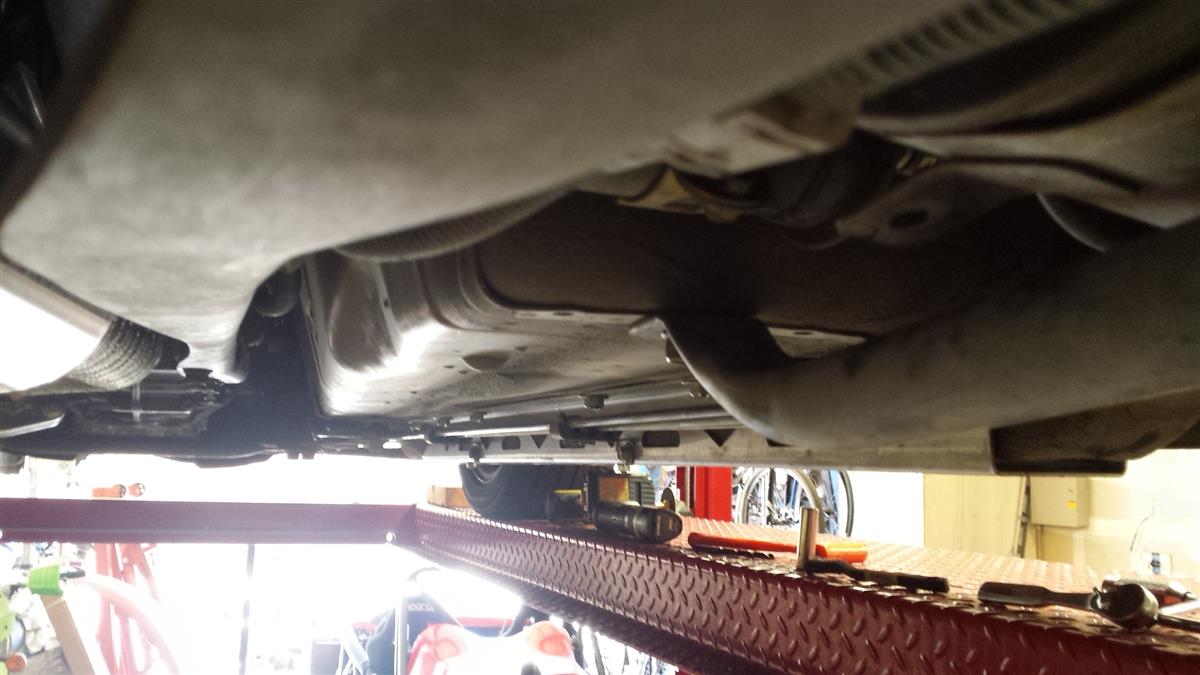

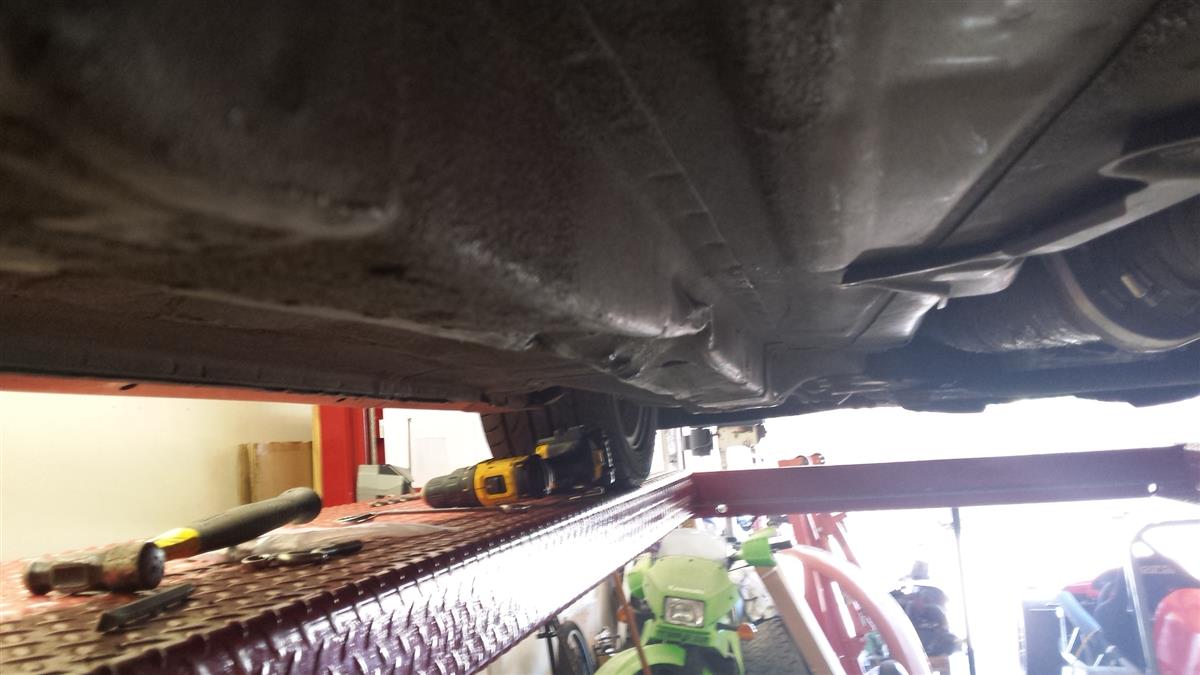

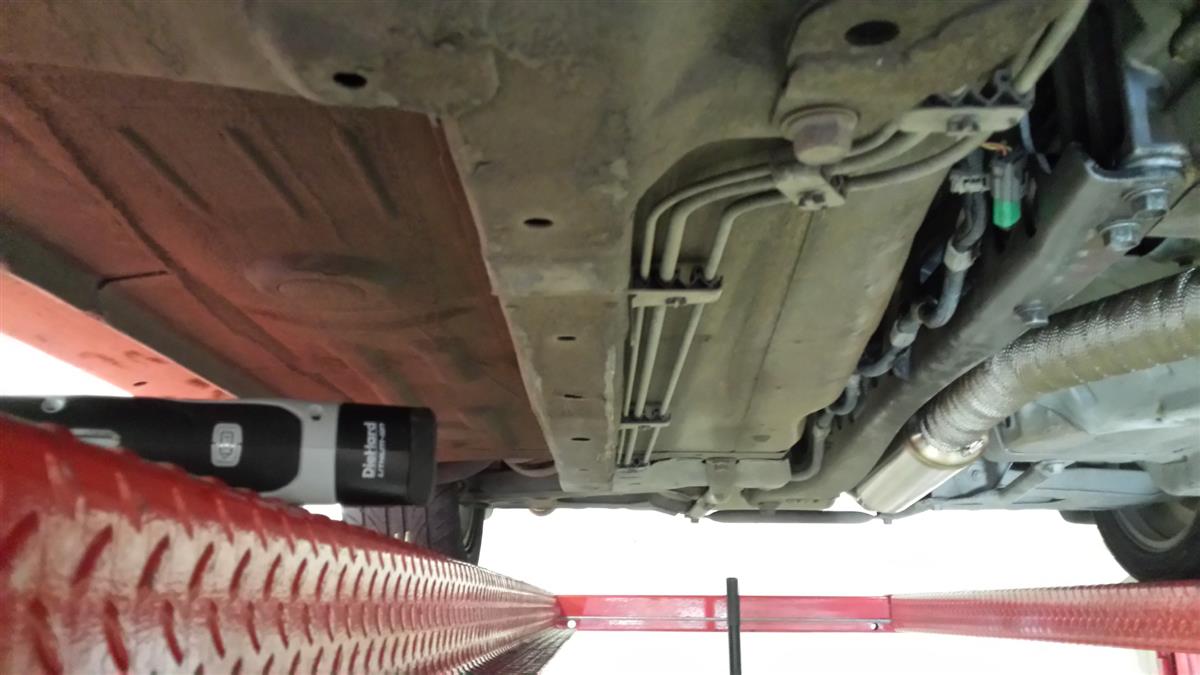

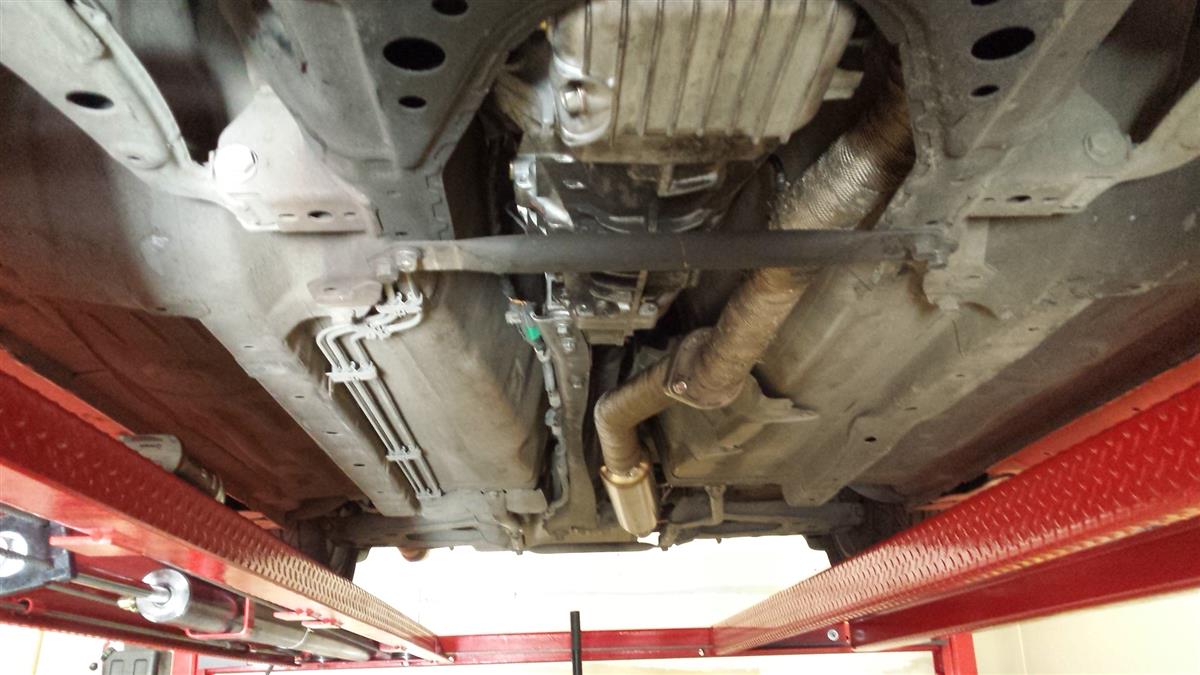

My glorious underside. Can you spot the problem?

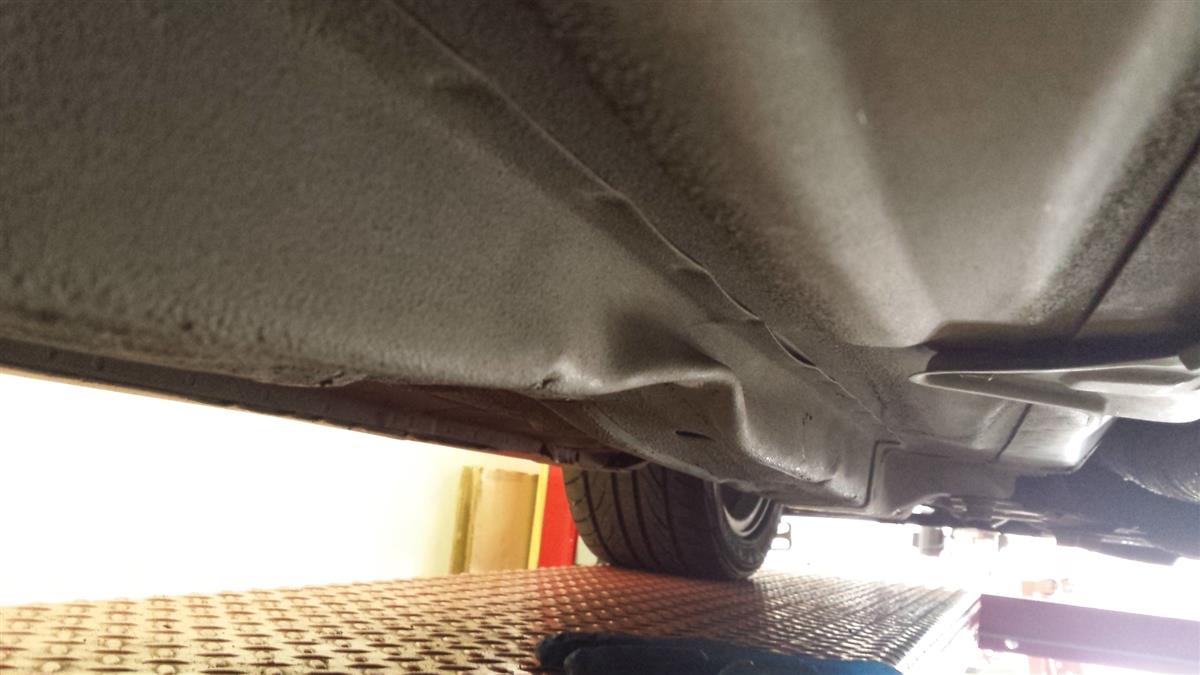

Pax side: looks okay...

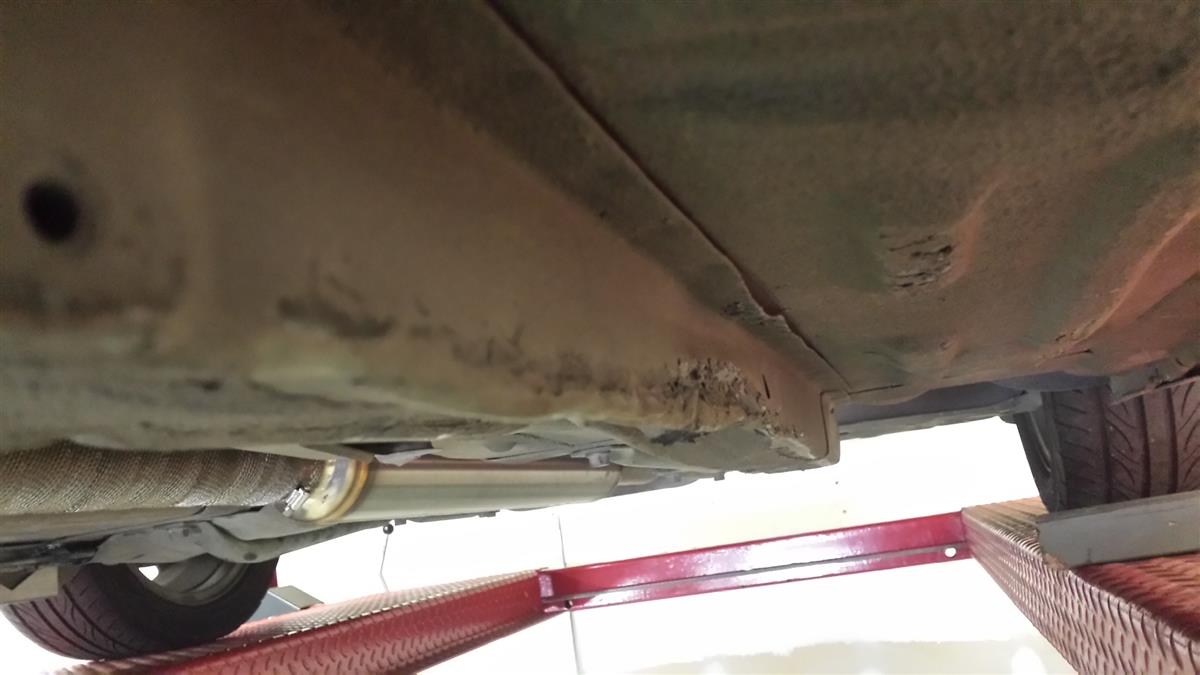

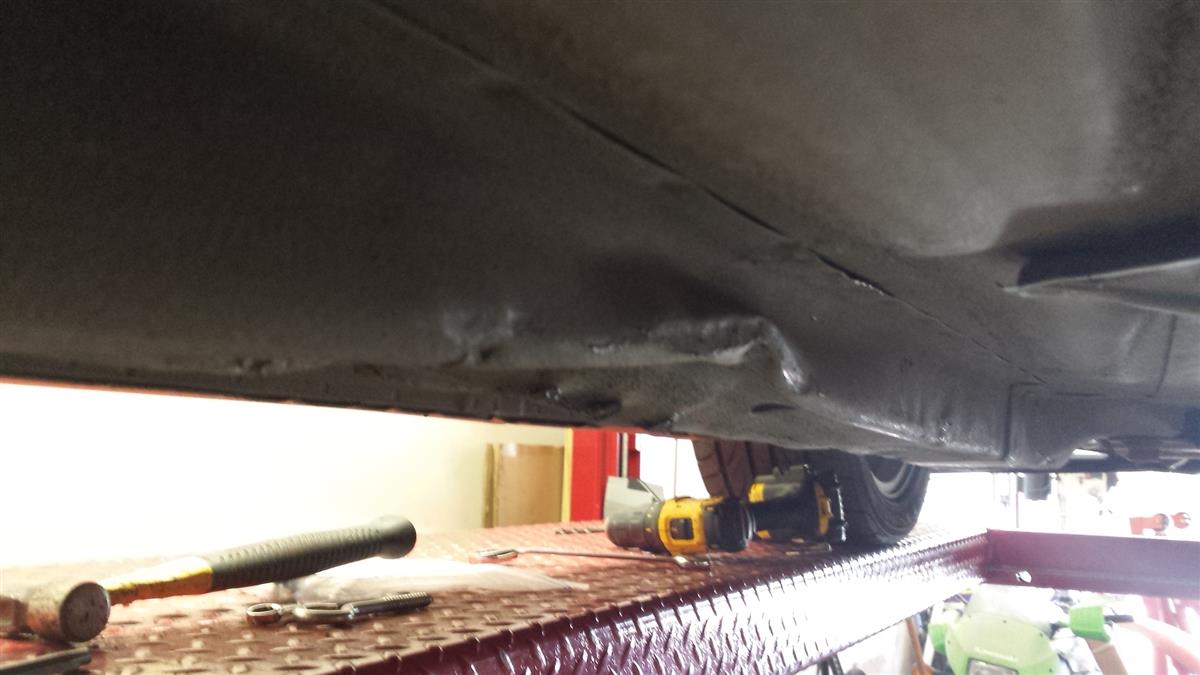

Drivers side: something is amiss...

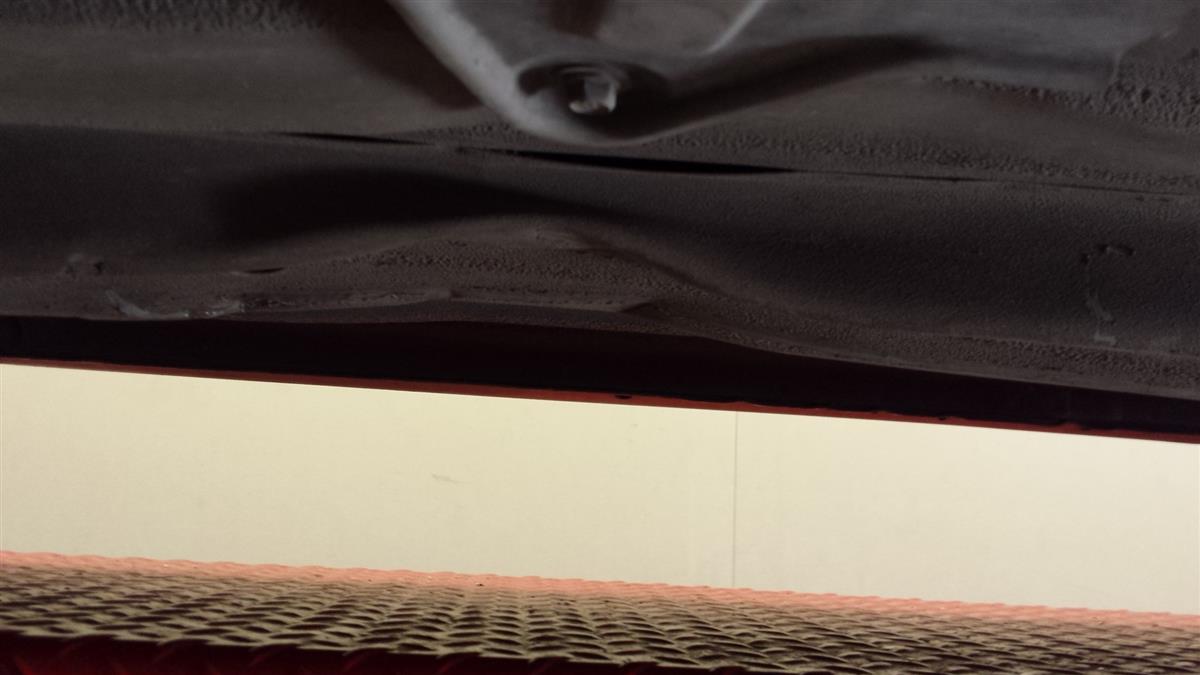

SWEET BABY JESUS!

This is damage I've known about for quite some time and have wanted to do something about it, but have had no time. Well, the time finally presented itself.

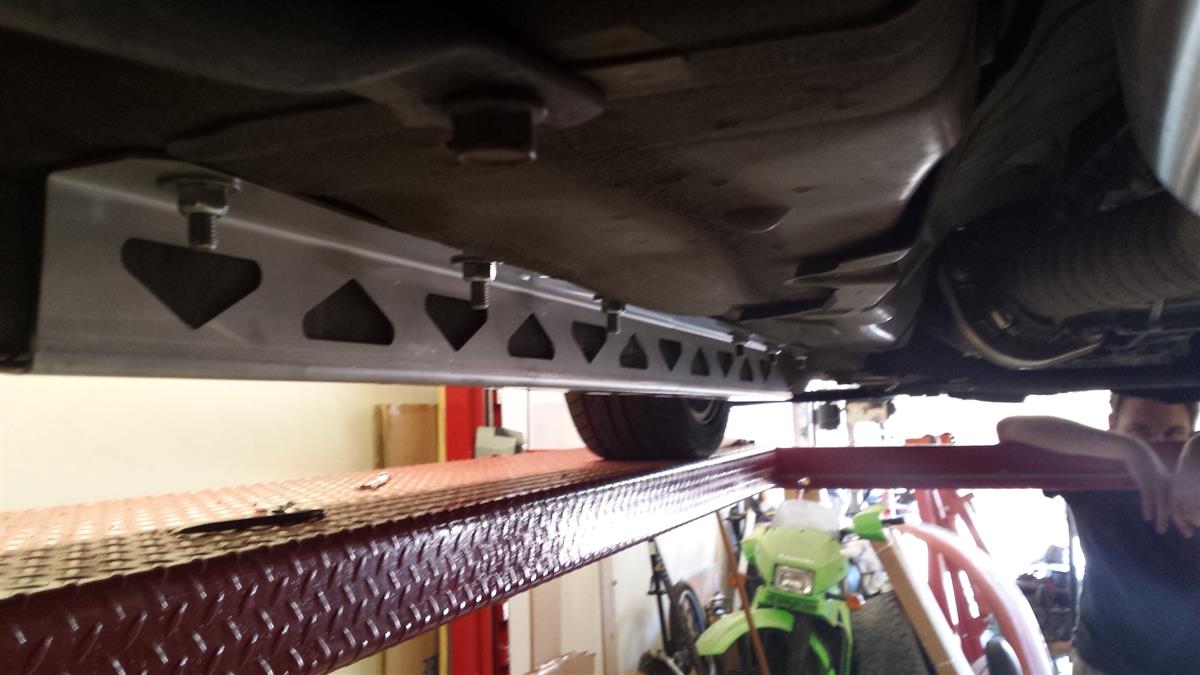

So we started with the passenger side rail because it slipped on with no issues. Normally I have ZERO complaints about Flyin' Miata goodies, but I found something lacking with the way they wanted to me mount the brackets for the brake/fuel/emissions lines. Per FMs instructions, they want to to flatten the stock bracket and attach it to studs that stick out of the bottom of the rail. That's all well and good, but my car (like many others) is a bit lower than stock and my driveway requires a pretty aggressive angle of attack to prevent rubbing. The last thing I wanted to do was snap off the stud that holds on the bracket. So what do?


Drill baby, drill! And tap! That's a 6mm hole tapped in the side of the FM rail about an inch to the rear of the FM provided nut and stud on the bottom of the rail.


Did the same for both the front and rear mount locations. We also went through and chopped off the extra bolt head sticking out of the nuts to completely prevent any possibility of line rubbage.

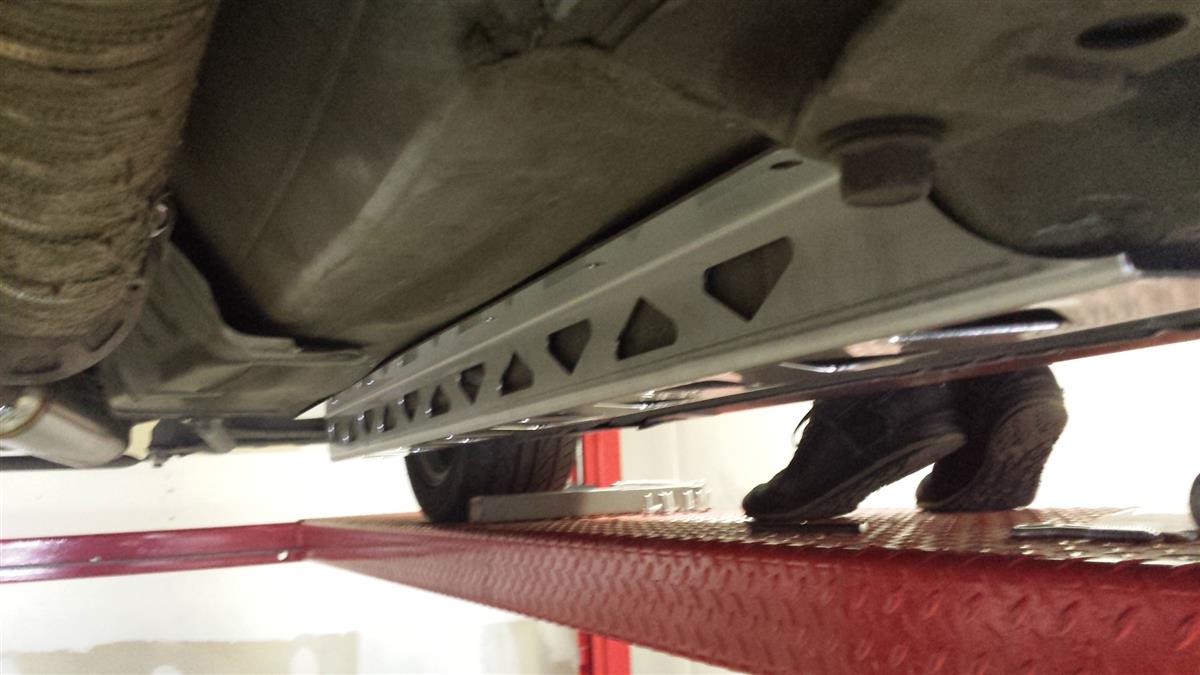

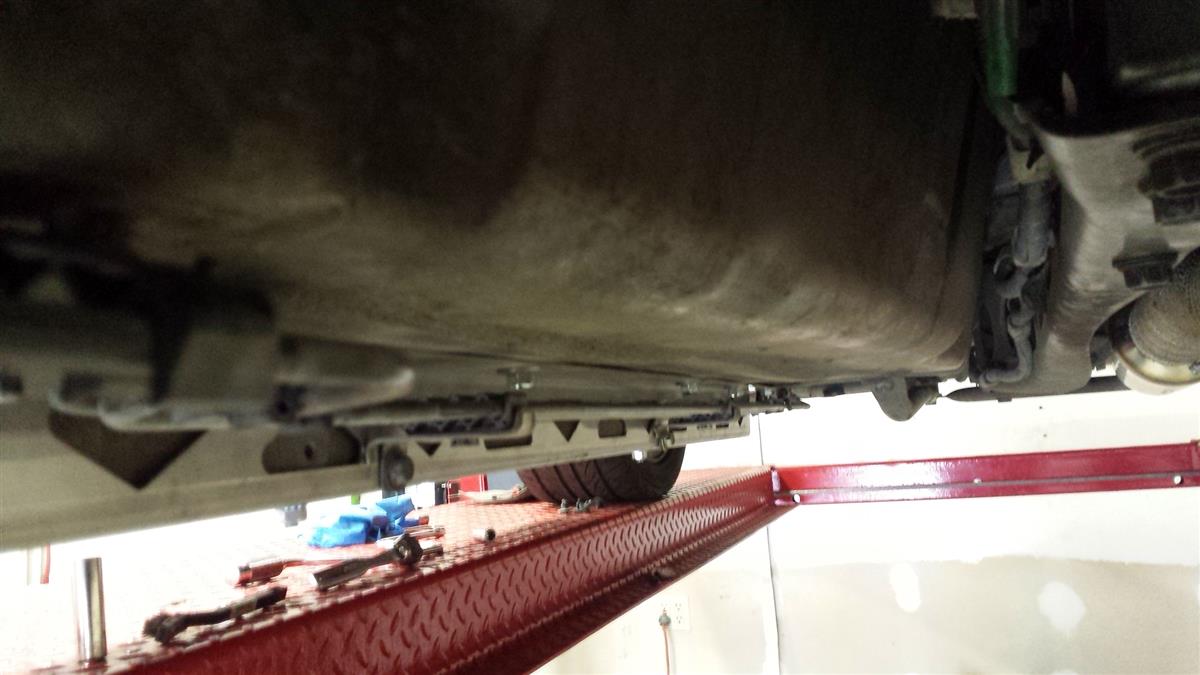

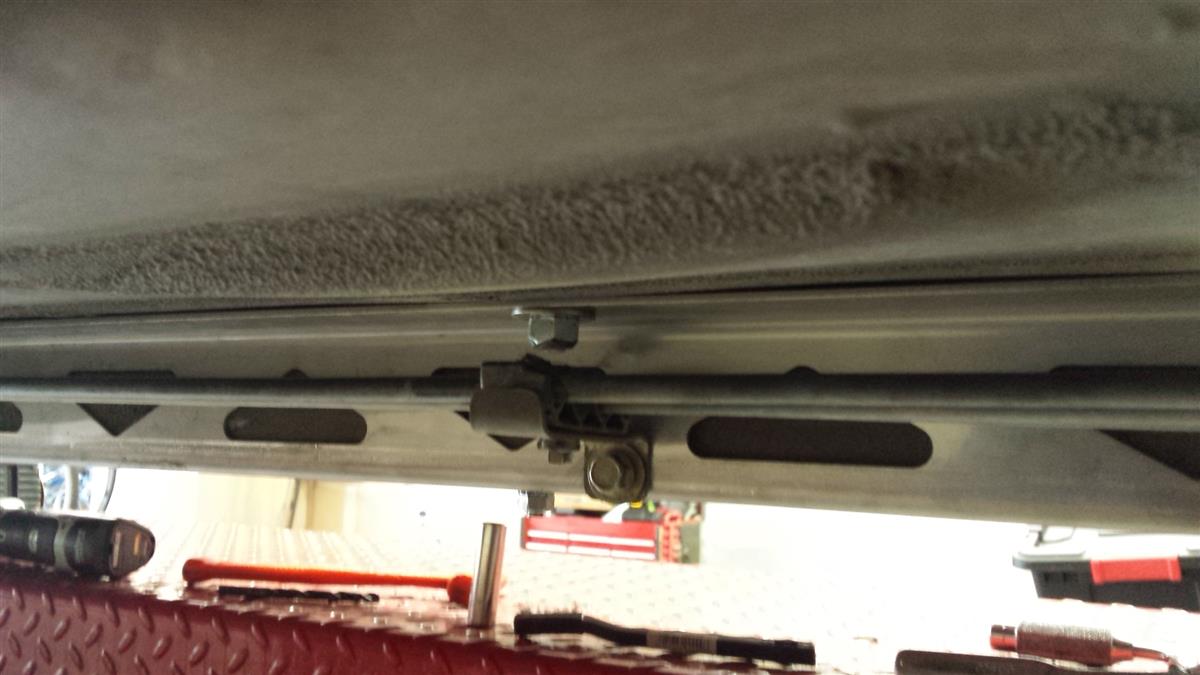

Here it is with the bracket fully bolted down. I don't often have to re-engineer something from FM, but when I do, I try to make sure I do it right.

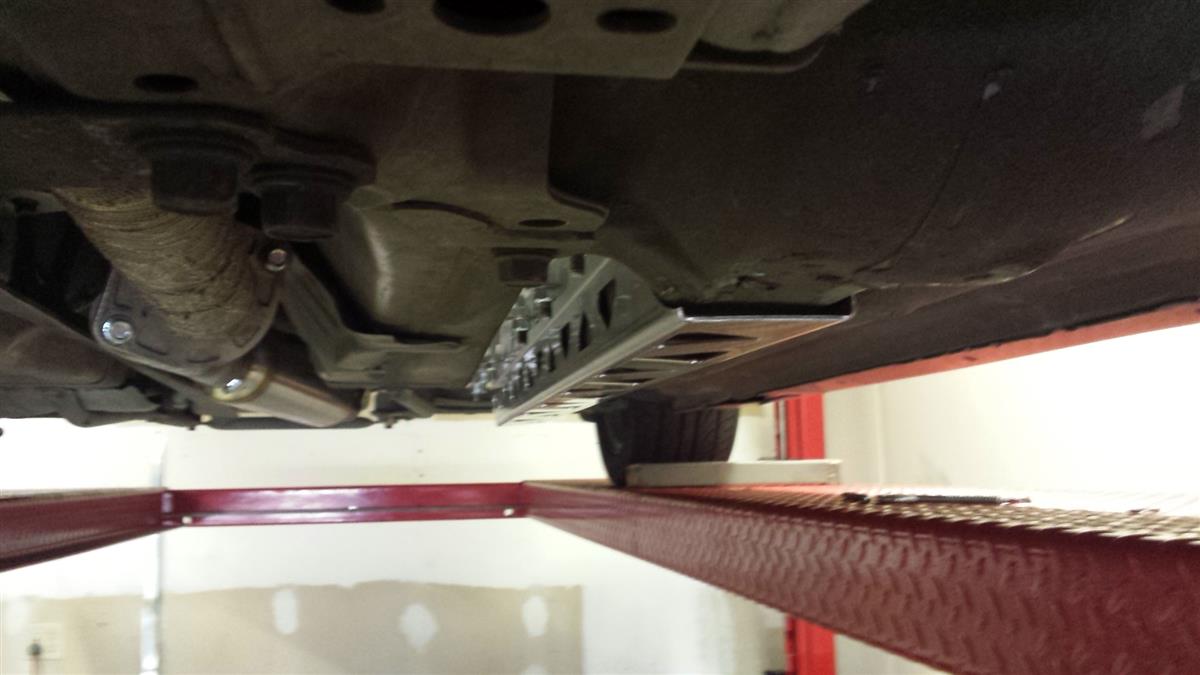

Gesso also "shortened" the bracket to allow the lines to sit closer to the underside of the car. As you can see, plenty of clearance from the front

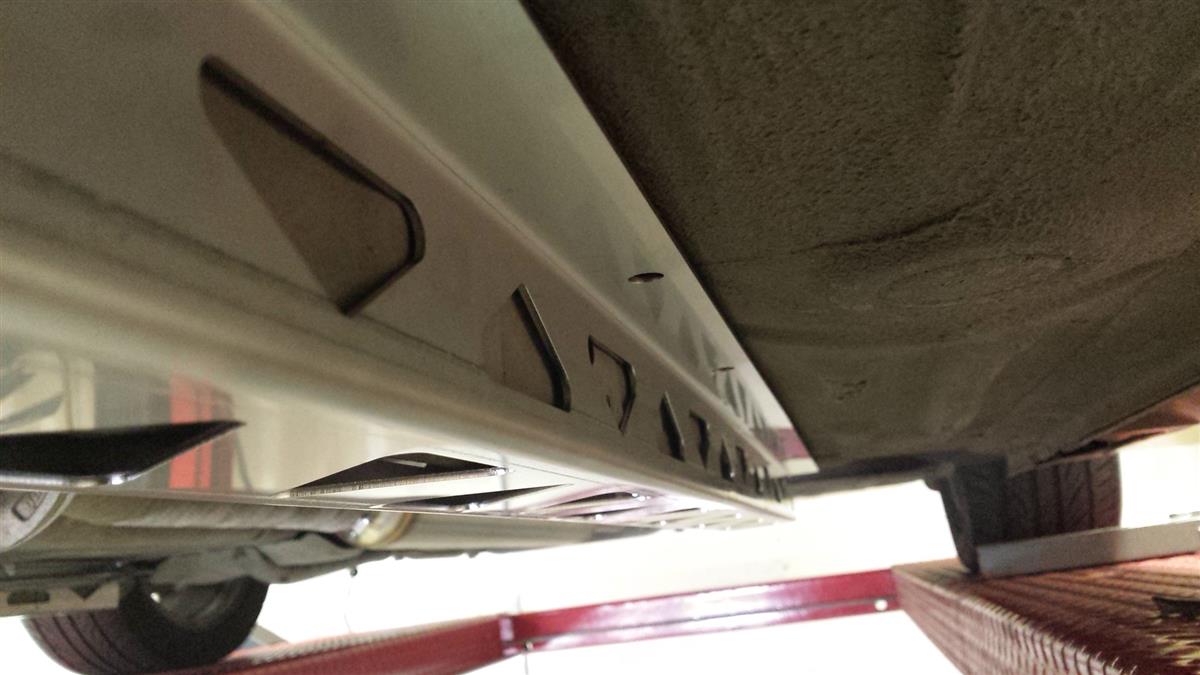

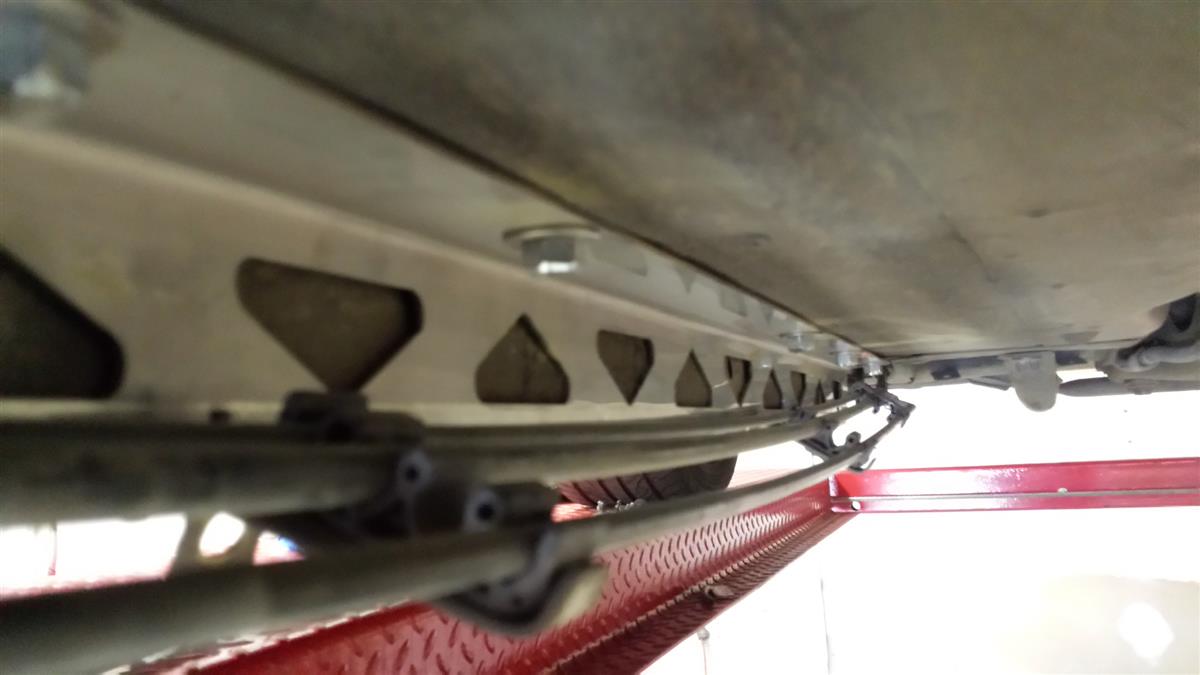

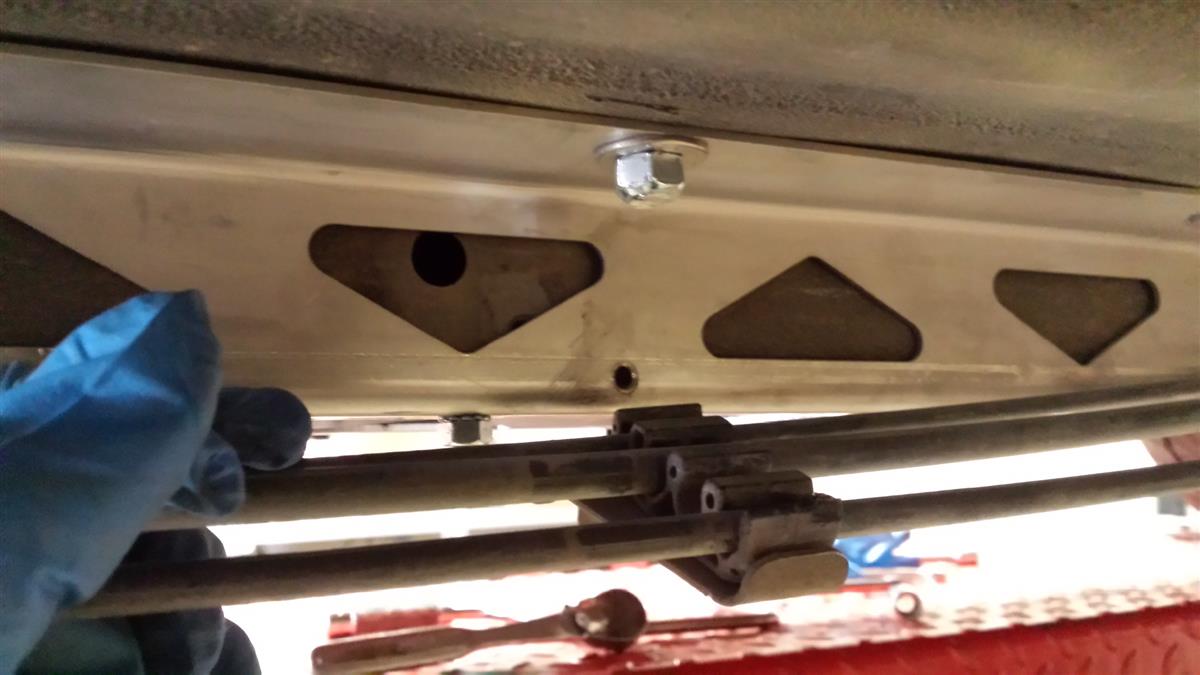

...and from the rear. I really, really like that the lines are now completely protected by the body of the rail itself.

Notice how low the FM stud/nut sits below the rail in the last couple pics? I was just way too uncomfortable with that and his looks much safer. Anyway, on to the drivers side.


Another angle BECAUSE YOU DIDN'T THINK IT COULD GET WORSE, DID YOU?! How do you fix this ****?


You hit it with a hammer


and keep hitting it


and keep ******* hitting it


and you hit it some more until the rail drops in. This was about an hours worth of work trying to only hit the places where it was required to get the rail in position. I didn't want to smash things up any worse than they already were.

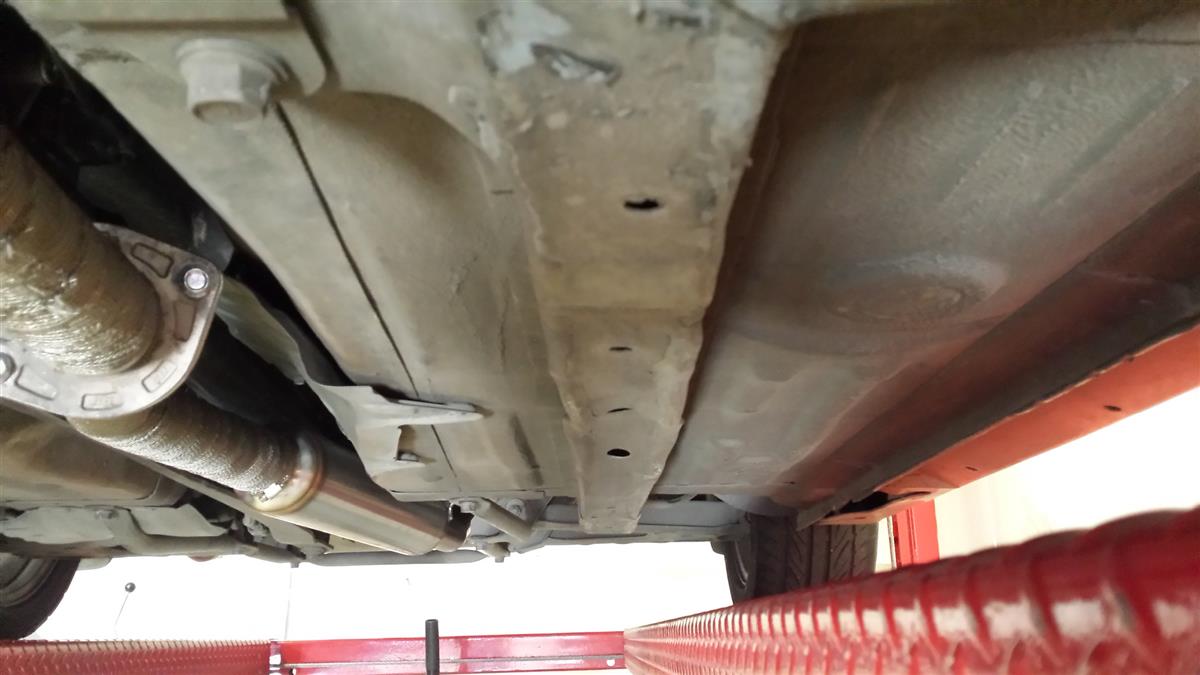

How much better does that look? I mean, seriously.


Drill some holes, add some bolts... and voilà!


Gesso inner monolog "Why is it so hot? What are you still here? You've been here for 2 days... the **** are you still in my garage?"

The result? Nothing short of amazing. 10/10: would install again on another car. This level of rigidity reminds me a lot of driving Gesso's 3/4 completed seam welding job on his NB. Keep in mind that we both have roll bars, but I have Frog Arms and he as the seam welding. The car feels MUCH more rigid, planted and in control just driving around town. Interestingly enough, this is the 3rd set of rails I've installed on Miatas, but a first for one of my vehicles.

Somthing I DID notice once I had a full tank of gas is I'm absolutely on the rear bumpstops EVEN MORE. Ungh. I need to figure out how to get more travel. I'm thinking I might need a set of extended tophats

ALSO!

Replaced the FM front bar with a Racing Beat 1.125" OD .188" wall (#54103) sway bar and a fresh set of 949/Supermiata endlinks. The front bar change was done to better match my MazdaSpeed 14mm sway bar (#NE45-28-151) that I've had disconnected for quite some time. I just never felt the FM front and the MSM rear was a good combo for me. Please don't think I'm badmouthing the FM bar because its a great bar, its just not what I was looking for. I'll have the FM set for sale on the classifieds eventually.

ALSO ALSO!

Replaced the AWR/Supermiata 70D mounts with good ol' fashioned Mazda Competition motor mounts. I was SO overjoyed when I drove the car off the rack it was silly. Waves of joy washed over my soul as I enjoyed the sound of the exhaust, rather than the hood. My words are insufficient to express the feeling adequately, much like trying to illuminate the interior of a giant hollow cavern with naught but a single candle. Gesso's GF managed to gouge my hard top with some terrible steel bike pedal thing while it was sitting outside but I was so happy that there were zero ***** given. She felt rather bad, but honestly you would have had to punch me in the nuts at that point to **** me off.

Needless to say, the car is fun to drive again and the nightmare is over.

As I've said before and will continue to say, big THANK YOU to Gesso for once again allowing me to use his garage, lift, tools and time for my silly project. I cannot thank this guy enough
EO2K is online now   Reply With Quote
Old 10-14-2014, 09:49 PM   #519
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,012
Total Cats: 222
Default

Quote:
Originally Posted by EO2K View Post
Lets make this official:

If someone has a Skunk2 99-05 Miata throttle body sitting in their garage, I will Paypal you $5 if you scan these two gaskets and post them somewhere I can get to them.

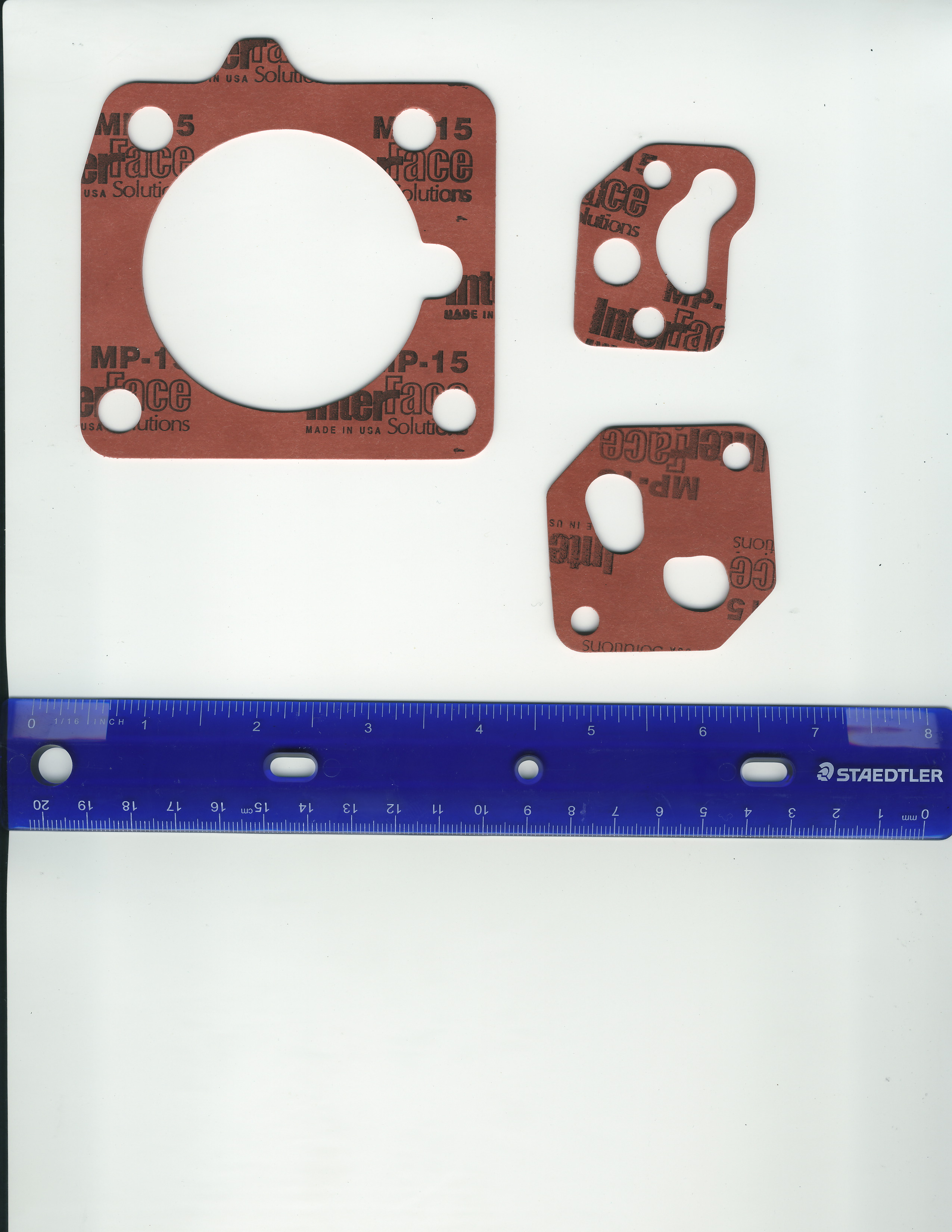

Here ya go, no need for the $5:


(high res: http://www.codrus.com/misc/skunk2gasket.jpg)

--Ian
codrus is offline   Reply With Quote
Old 10-14-2014, 10:26 PM   #520
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,867
Total Cats: 774
Default

Woo! Thank you Ian, you are the man! :bow: I regret that I have only one +prop to give that post, so all probably spent 20 minutes just +1ing as many of your posts as I can find.
EO2K is online now   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Help me test MS3 firmware! Win stuff! Ben MEGAsquirt 16 01-13-2017 08:56 PM
3d scanned miata parts- interest check asmasm General Miata Chat 32 01-05-2017 10:22 AM
Noob from Arizona, Hi Richard here! Richard346 Meet and Greet 11 12-16-2016 05:48 PM
Move to Florida. Buy Miata vtbandit Meet and Greet 7 12-15-2016 09:33 PM
The Slowest Miata in Tampa Build vtbandit Build Threads 4 12-13-2016 06:08 PM


Tags
begi isn't helping, buttsex, doubt, efr=tits man, failure is an option, iono mang, longing, manifold mastectomy, moist b-hole, offending tits, procrastination, silent but deadly, tartar sauce massage oil, uncertainty, yearning

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 03:17 PM.
