Old 02-14-2016, 05:51 AM   #261
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,779
Total Cats: 205
Default

Keep up the good work. In a week you do what most of us contemplate doing all year.

No video will cause extreme disappoints ... I might unsubscribe and pre-emptively unfriend you on the Facewebs.
Mobius is offline   Reply With Quote
Old 02-14-2016, 09:55 AM   #262
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 994
Total Cats: 38
Default

Quote:
Originally Posted by patsmx5 View Post
....
I tested it to see if it will lift oil. The pump was super clean/dry since I cleaned it with brake parts cleaner. It lifted oil 2' up with a dead battery and dry pump. As soon as it got oil and primed, this thing honks oil out. Will probably end up building a PWM system to slow the pump down, it's honking like 5 GPM probably, it's way more than ever needed for this application.
...
Way more flow than needed sounds like an understatement. It may actually generate quite some heat trying to reduce the flow mechanically with a restrictor. And reducing the rpms with PWM won't get you all the way to where you need to be and it will also lower the suction-ability.
You could also reduce the flow by grinding the gears down to maybe half height and putting a spacer on top of them to fill the void.
stefanst is offline   Reply With Quote
Old 02-14-2016, 11:39 AM   #263
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,958
Total Cats: 128
Default

Quote:
Originally Posted by Mobius View Post
Keep up the good work. In a week you do what most of us contemplate doing all year.

No video will cause extreme disappoints ... I might unsubscribe and pre-emptively unfriend you on the Facewebs.
Thanks man! I'm working hard to get this thing built and on the road. Can't wait to drive it.

There will be videos. I just meant a first-startup video. Never done one, but why not?

Quote:
Originally Posted by stefanst View Post
Way more flow than needed sounds like an understatement. It may actually generate quite some heat trying to reduce the flow mechanically with a restrictor. And reducing the rpms with PWM won't get you all the way to where you need to be and it will also lower the suction-ability.
You could also reduce the flow by grinding the gears down to maybe half height and putting a spacer on top of them to fill the void.
I think PWM would be the easiest/best way with this pump. Or maybe just let it honk, the turbo will restrict the flow of oil into it anyways, so it shouldn't be working that hard vs my test when I stuck the hose in a bottle of oil. Hooked to the turbo should be like a LS7 at idle so to speak.

Back to work!
patsmx5 is offline   Reply With Quote
Old 02-14-2016, 11:40 AM   #264
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

I've got that Northern Tool brand welder too. I've noticed the same thing about wirefeed . . . sometimes its spot on, sometimes . . . .

I guess you get what you pay for (mine was actually a refurbished special -- so really cheap). Before my next significant welding project, I may upgrade too.
hornetball is offline   Reply With Quote
Old 02-14-2016, 03:49 PM   #265
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,950
Total Cats: 213
Default

Quote:
Originally Posted by patsmx5 View Post
There will be videos. I just meant a first-startup video. Never done one, but why not?
I dunno, most first startup videos I've seen involve fire extinguishers or the wish that one actually had one standing by.

--Ian
codrus is offline   Reply With Quote
Old 02-14-2016, 03:51 PM   #266
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,958
Total Cats: 128
Default

Quote:
Originally Posted by codrus View Post
I dunno, most first startup videos I've seen involve fire extinguishers or the wish that one actually had one standing by.

--Ian
I have two fire extinguishers and a water hose ready right now. I always do when doing fab work. And a huge one in the trunk I carry all the time.

Source: Lost a sweet car to a fire before, it sucks.

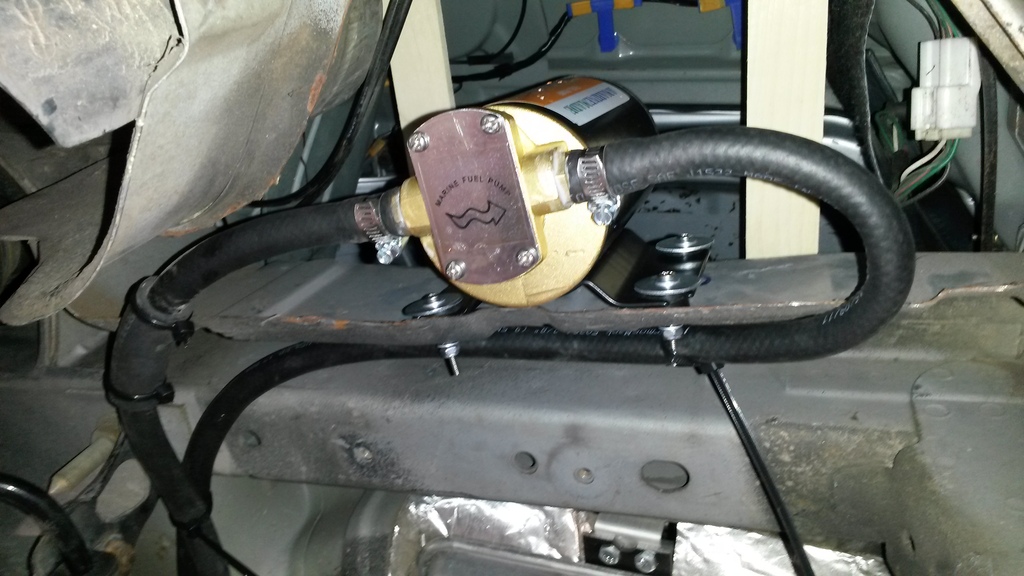

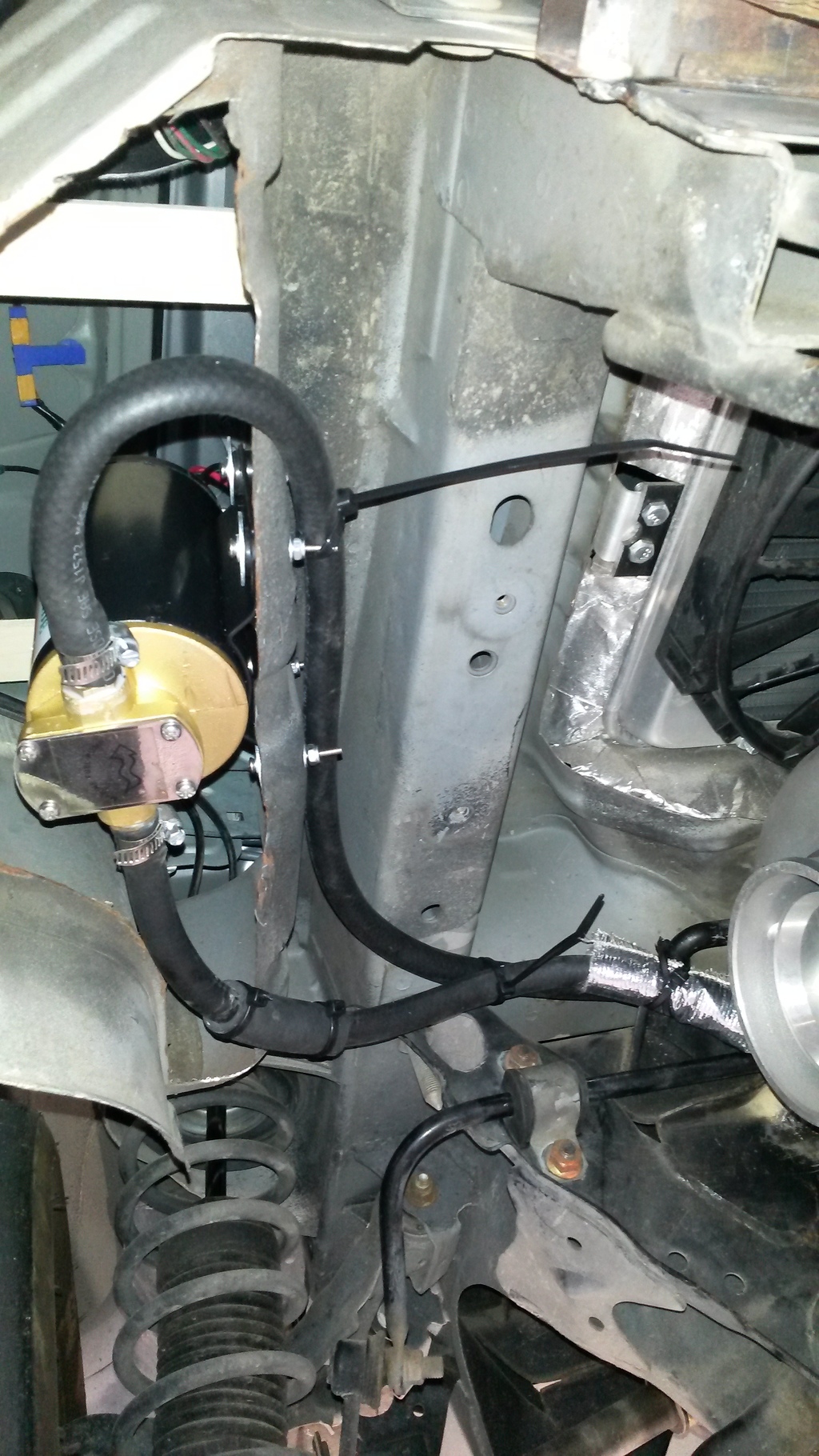

Oil pump is mounted! Making progress.
patsmx5 is offline   Reply With Quote
Old 02-15-2016, 02:42 AM   #267
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,958
Total Cats: 128
Default

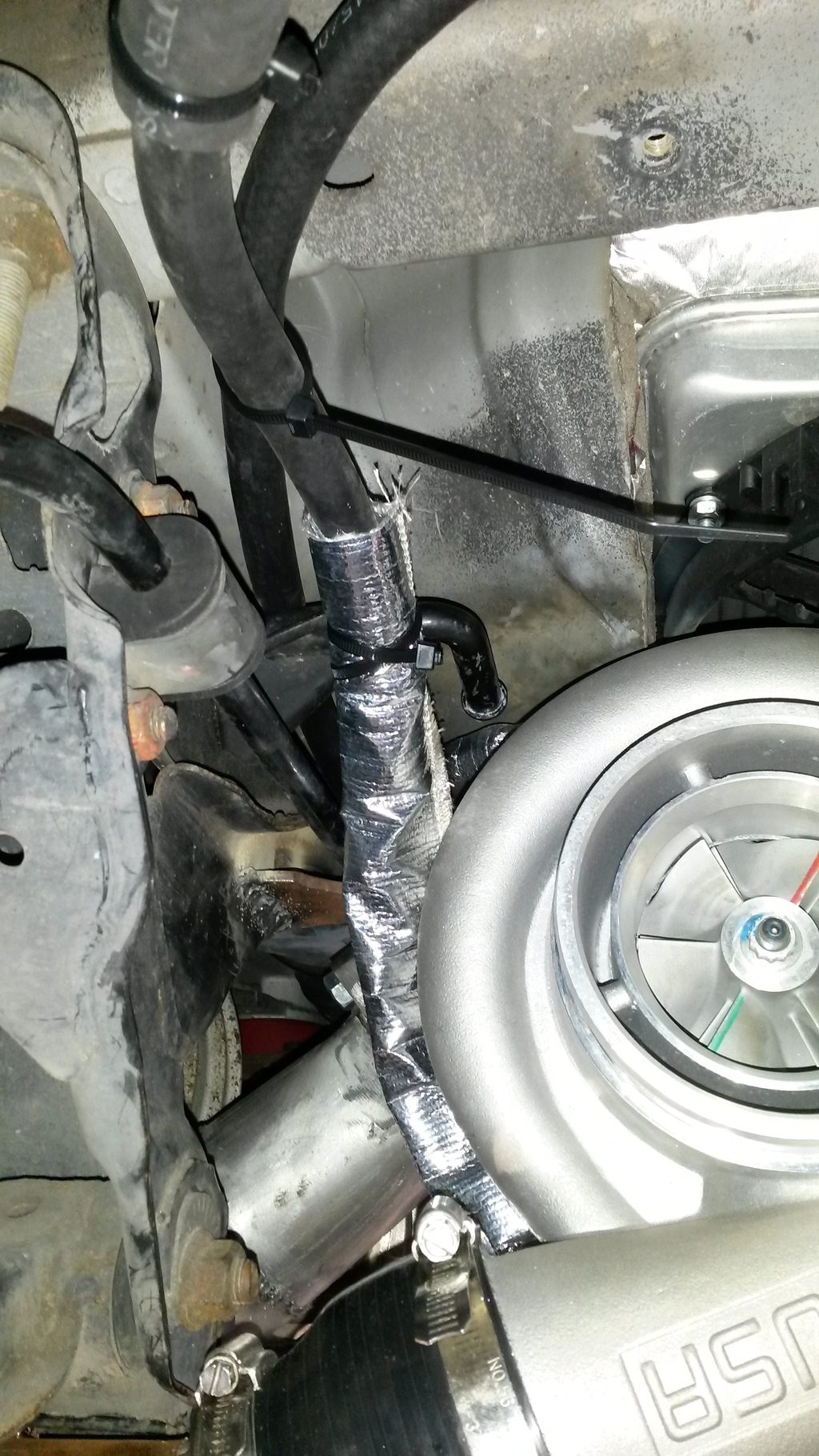

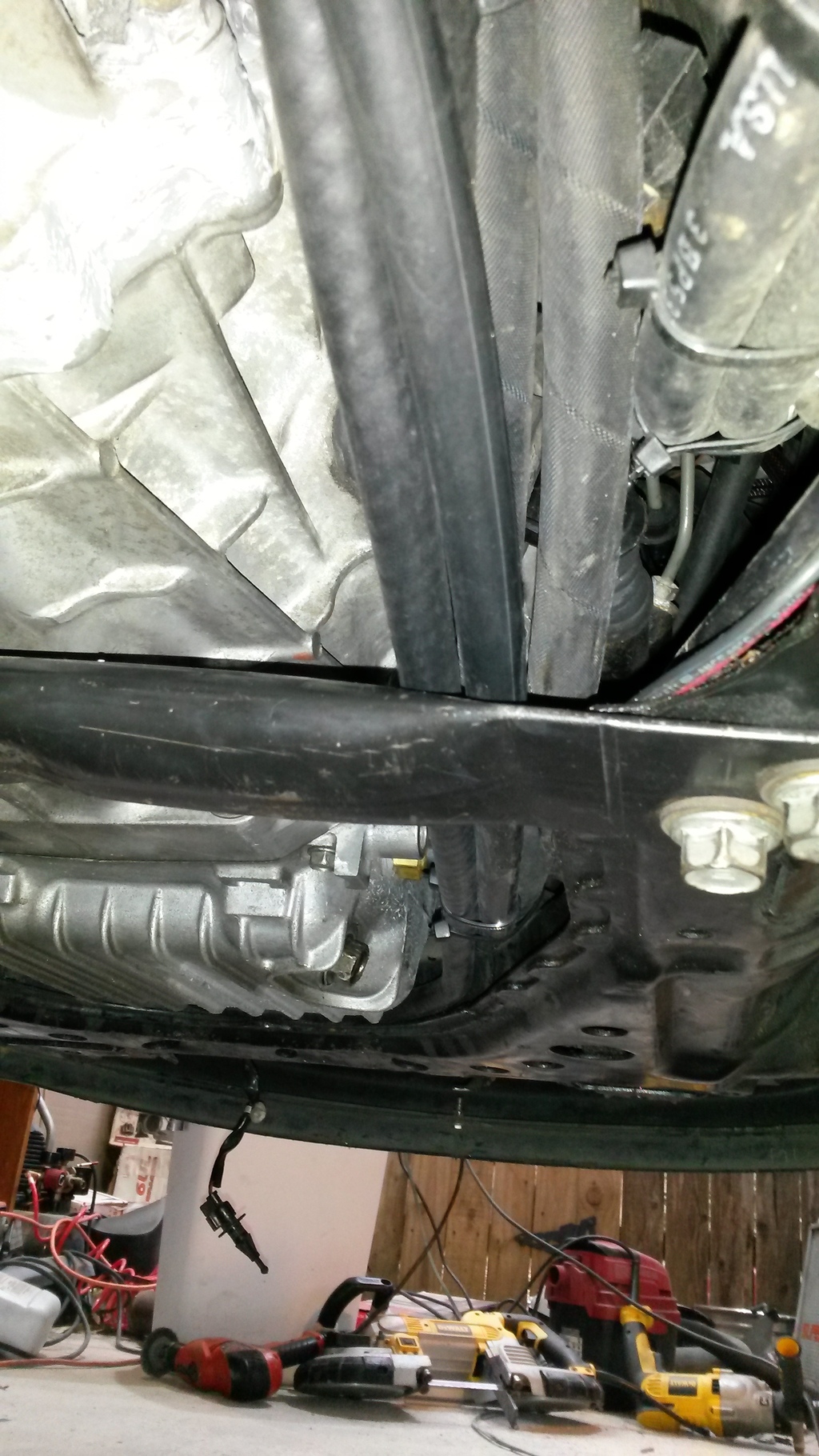

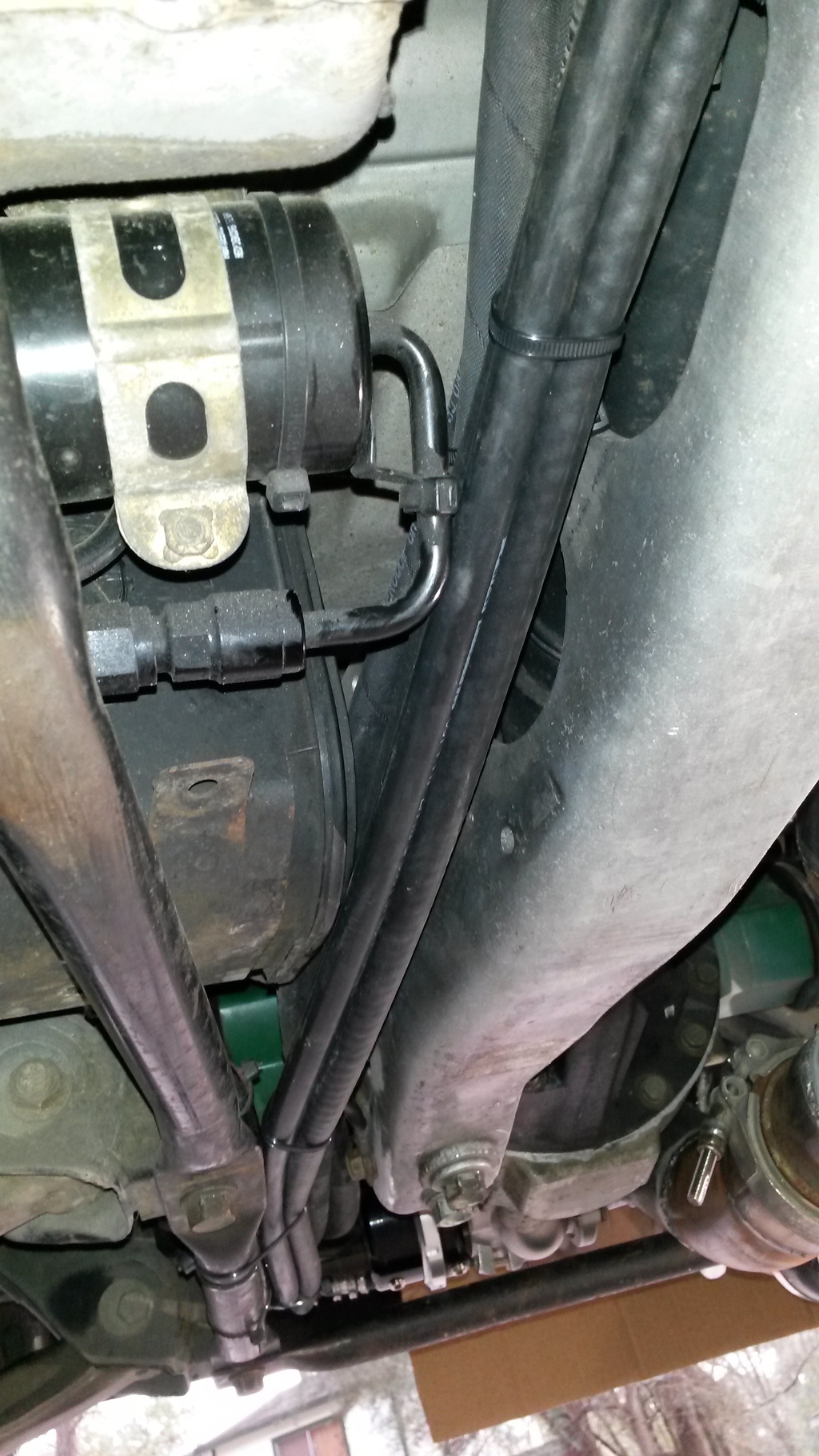

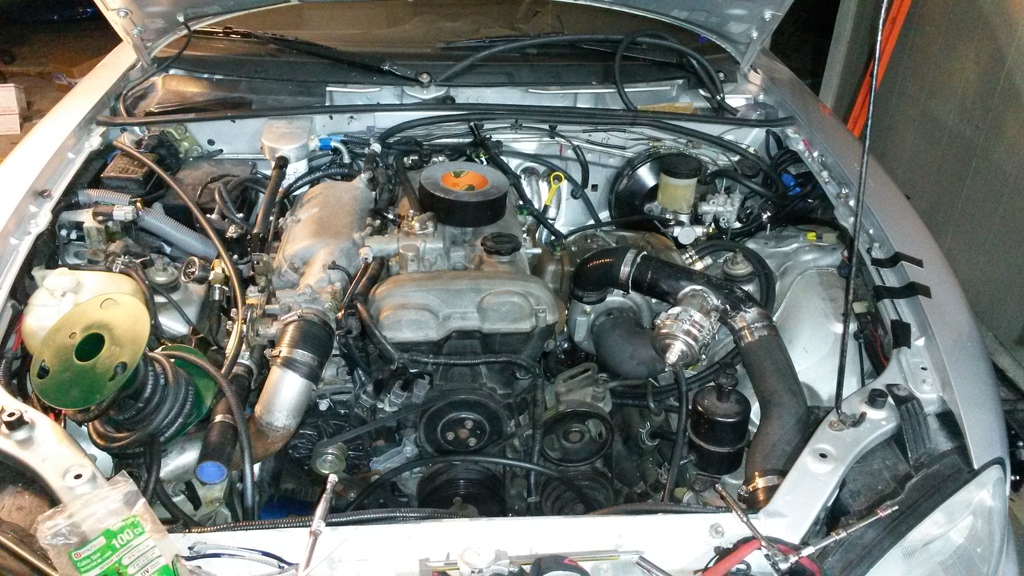

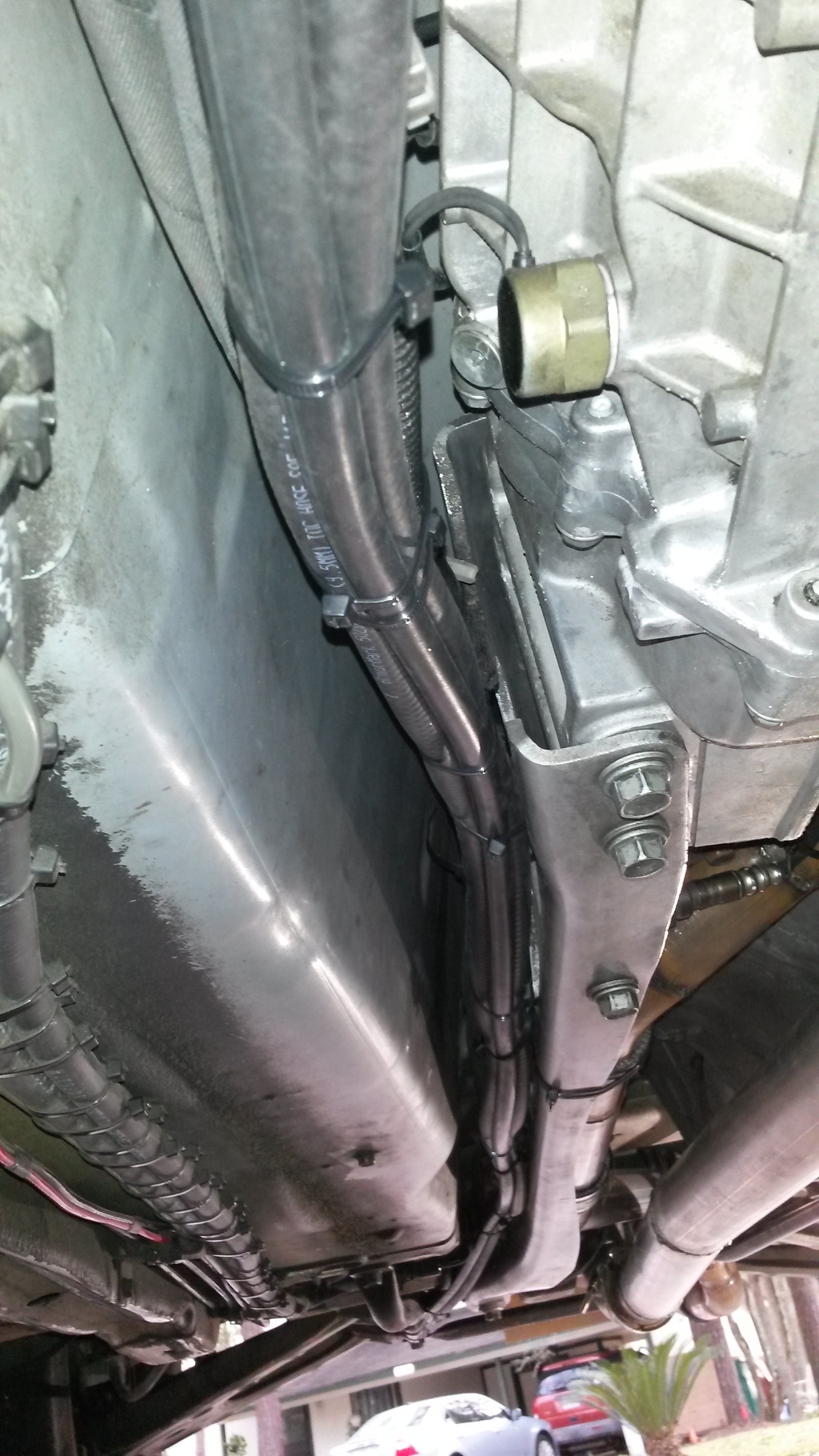

Still doesn't run, but very close. Here's my "list" for tomorrow. Everything else is done or I forgot to do it. Went and watched Dead Pool tonight, was good, highly recommend, but not good for building fast car.

Quote:
BOV hose, install it.
Wire up relay/fuse for oil pump.
Install radiator/fan assembly/coolant hoses/plug in fans
Install ground wire to chassis
Install hose/Tee for Secondary MAP sensor
Install ignition coils
Add coolant
Add oil
Idle car, check oil drains, check for leaks
Test drive
It's almost done. Should be firing it up tomorrow for sure!

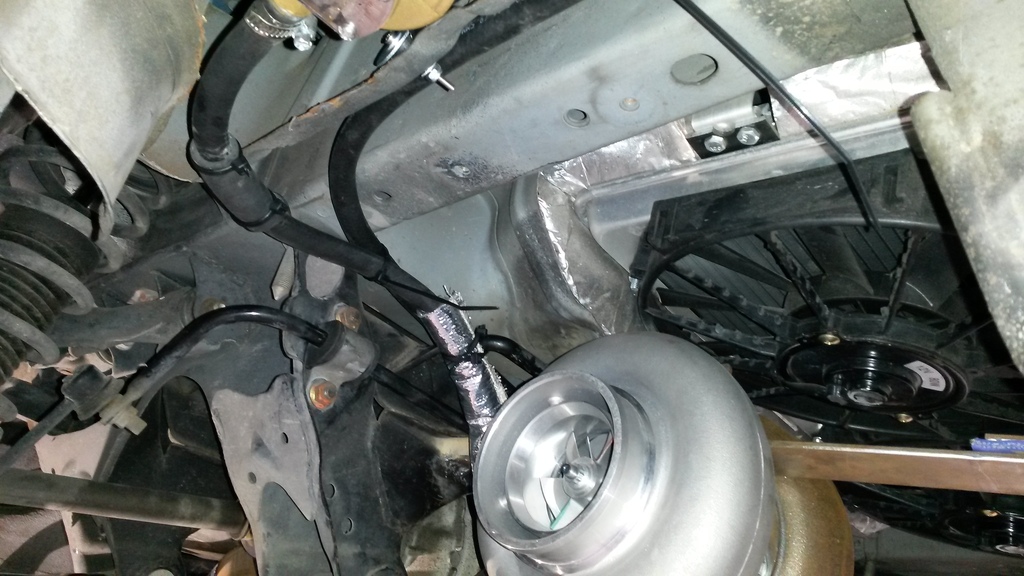

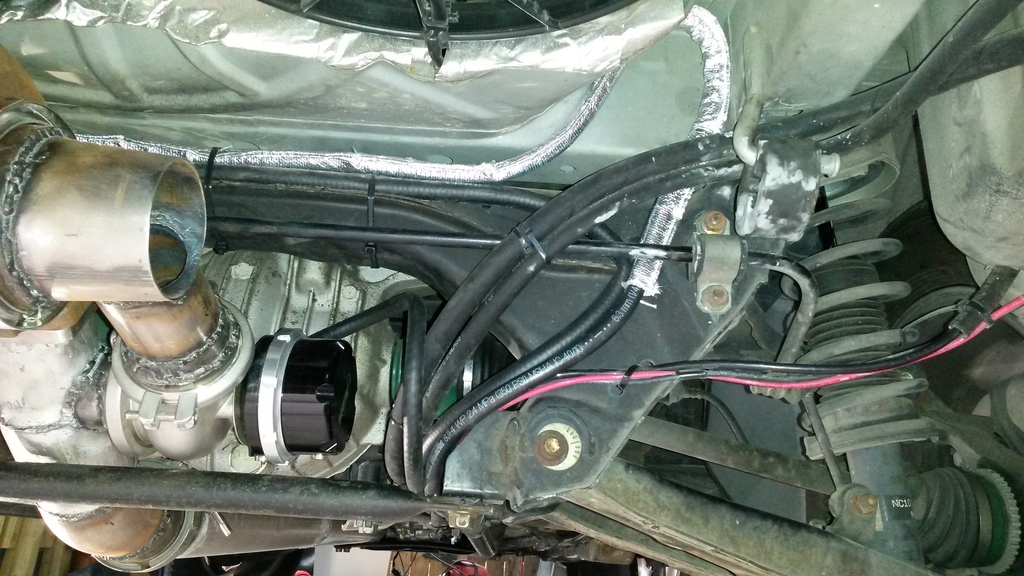

Attached Thumbnails

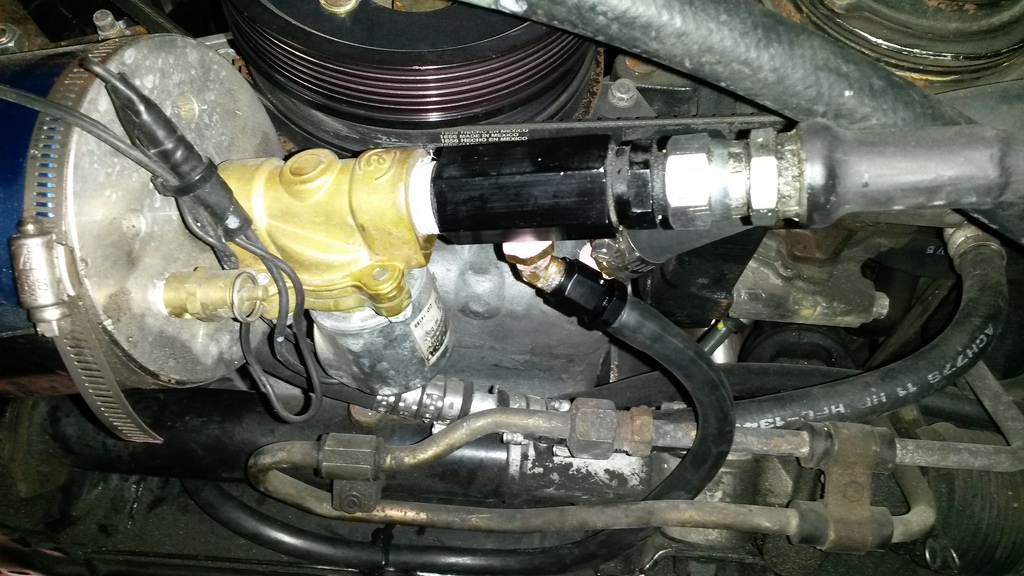

Pat's Ebay Turbo Compound Boost Build-20160214_172021_zpsybds9ut5.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172058_zpszncy3jzn.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172105_zpshywmrnlm.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172115_zpsn4zfkeet.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172123_zpsq9f1dawa.jpg

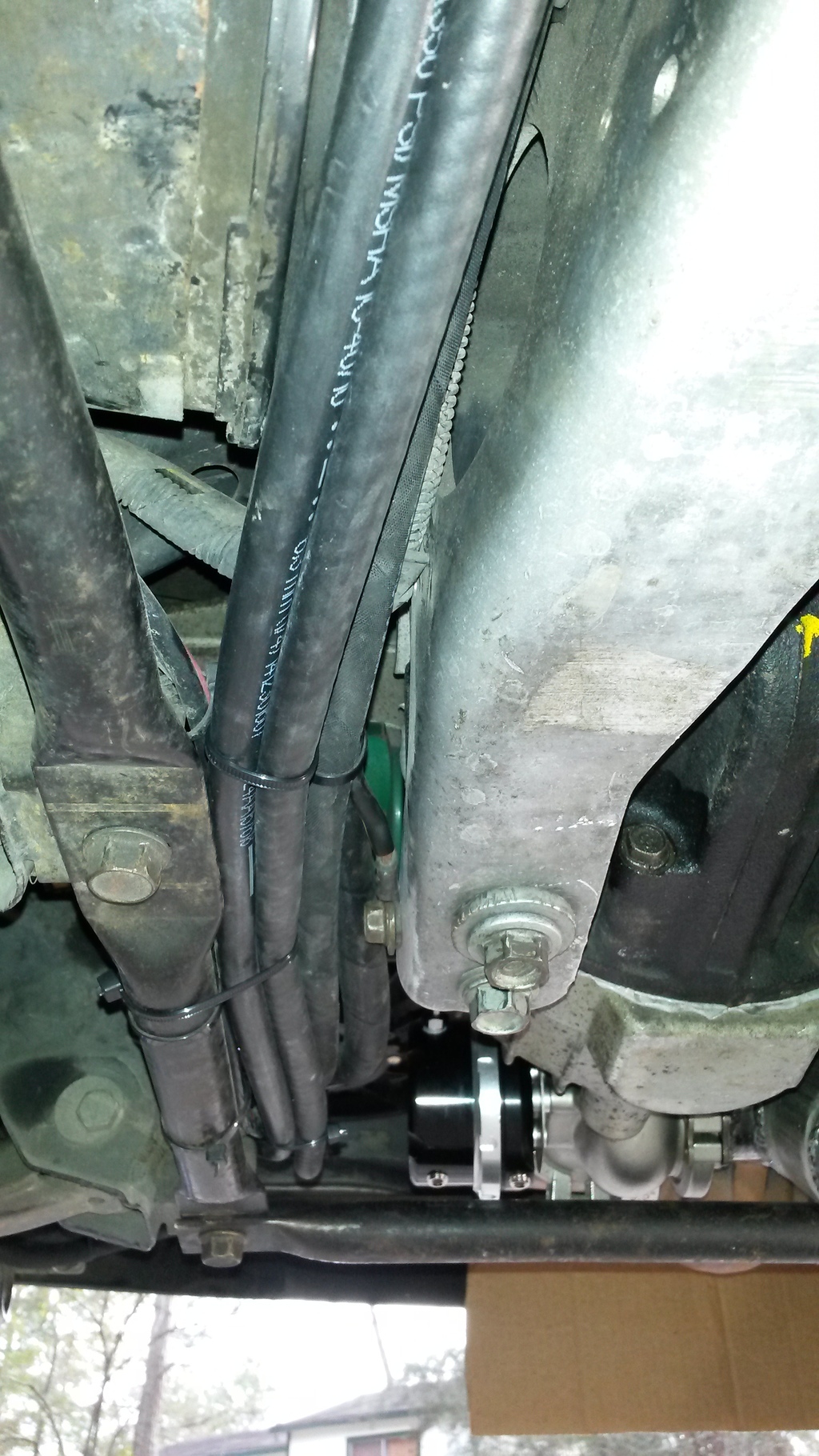

Pat's Ebay Turbo Compound Boost Build-20160214_172128_zpstns0utko.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172158_zpsiqfmeolq.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172208_zps8fzsebgi.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172222_zpsgom7fgeu.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172226_zpsgjuaqqm8.jpg

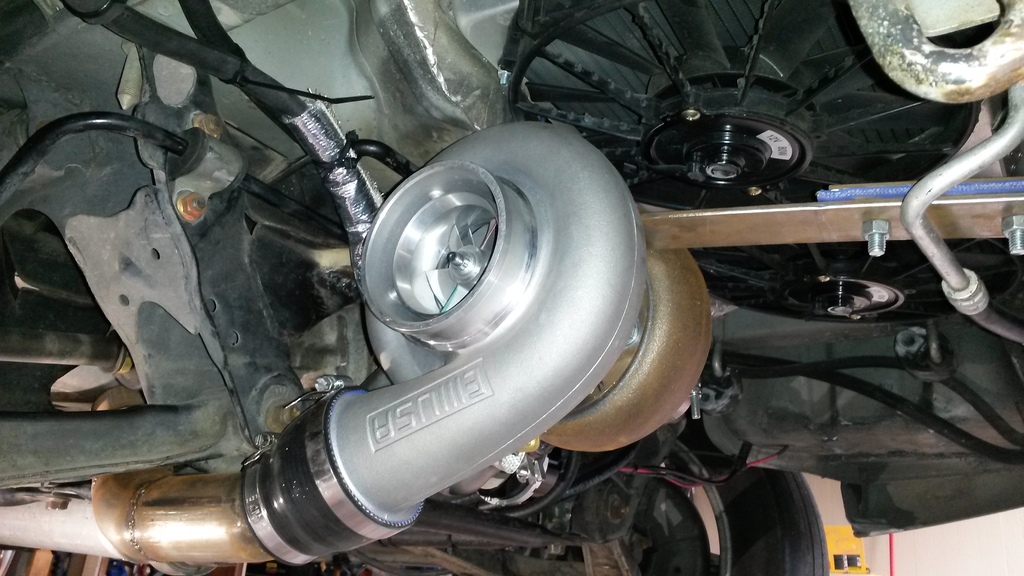

Pat's Ebay Turbo Compound Boost Build-20160214_172235_zpsm6ksswtn.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172240_zpsjxwx03pu.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172248_zpswmuzizgi.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_172258_zpsbuiz6bit.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_205830_zpstvionj3z.jpg

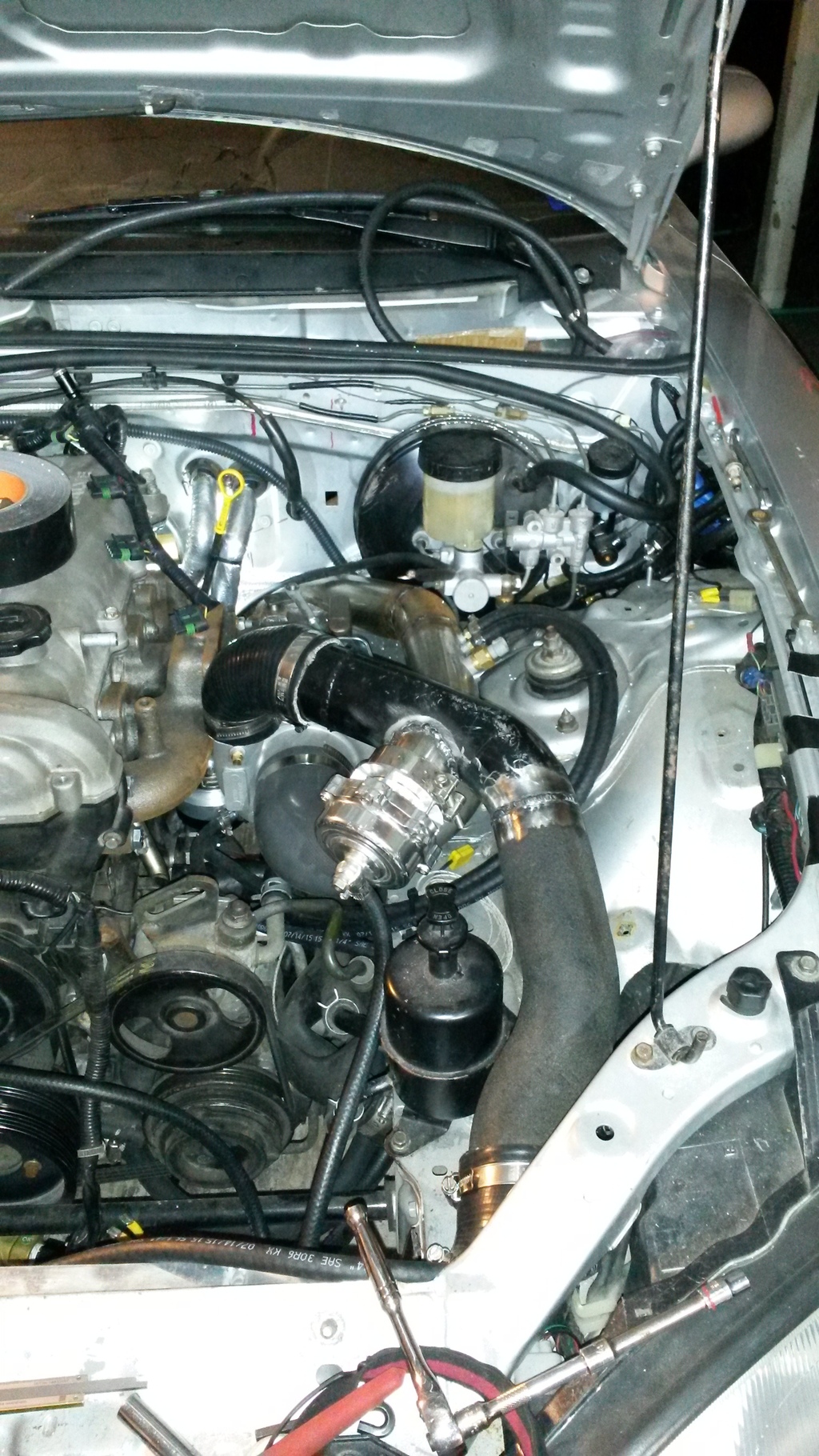

Pat's Ebay Turbo Compound Boost Build-20160214_205834_zpsnzncrq8v.jpg   Pat's Ebay Turbo Compound Boost Build-20160214_205841_zpsf8k3ikh2.jpg
patsmx5 is offline   Reply With Quote
Old 02-15-2016, 03:23 PM   #268
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,958
Total Cats: 128
Default

Current list:

Wire up relay/fuse for oil pump.
Install radiator/fan assembly/coolant hoses/plug in fans
Install ignition coils
Add coolant
Add oil
Idle car, check oil drains, check for leaks
Test drive

Did a few things today that weren't on the list I forgot about, but I think now it's pretty much this and hit the key. Going to look over the engine bay again for anything I've missed that's not on the list, then begin on oil pump wiring. It will be driven by a relay that operates when the fuel pump is on.
patsmx5 is offline   Reply With Quote
Old 02-15-2016, 03:30 PM   #269
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-plumbing-pipe-big.jpg
hornetball is offline   Reply With Quote
Old 02-15-2016, 08:13 PM   #270
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,958
Total Cats: 128
Default

Runs!

Just did a 15 mile test drive. Making 13.2 PSI from front turbo, 4.4 from rear. So not a lot of boost, total at motor was 17 PSI. Front turbo is laggy as I figured being an ebay special, it's making full boost around 5,000 in 2nd gear starting at 3,000, rear is at full boost in 2nd gear by 6,000. Better in higher gears obviously. This is wastegate on both, no boost controllers for shake down.

Will be putting a boost controller on big turbo tonight to get the boost up.

Surprisingly no failures that I know of! Ran great. Given all the stuff that's new, that's awesome.

Oil pump for rear turbo is loud, need to PWM it down the road. 15 mile trip it was 165*F on the motor, so kinda hot too. PWM it will help that too.

Exhaust is retarded loud, will be maping out the rear of the car and ordering some cat/muffler stuff tonight.

Stupidcharged to compound turbo'd in 16 days!
patsmx5 is offline   Reply With Quote
Old 02-15-2016, 08:19 PM   #271
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,958
Total Cats: 128
Default

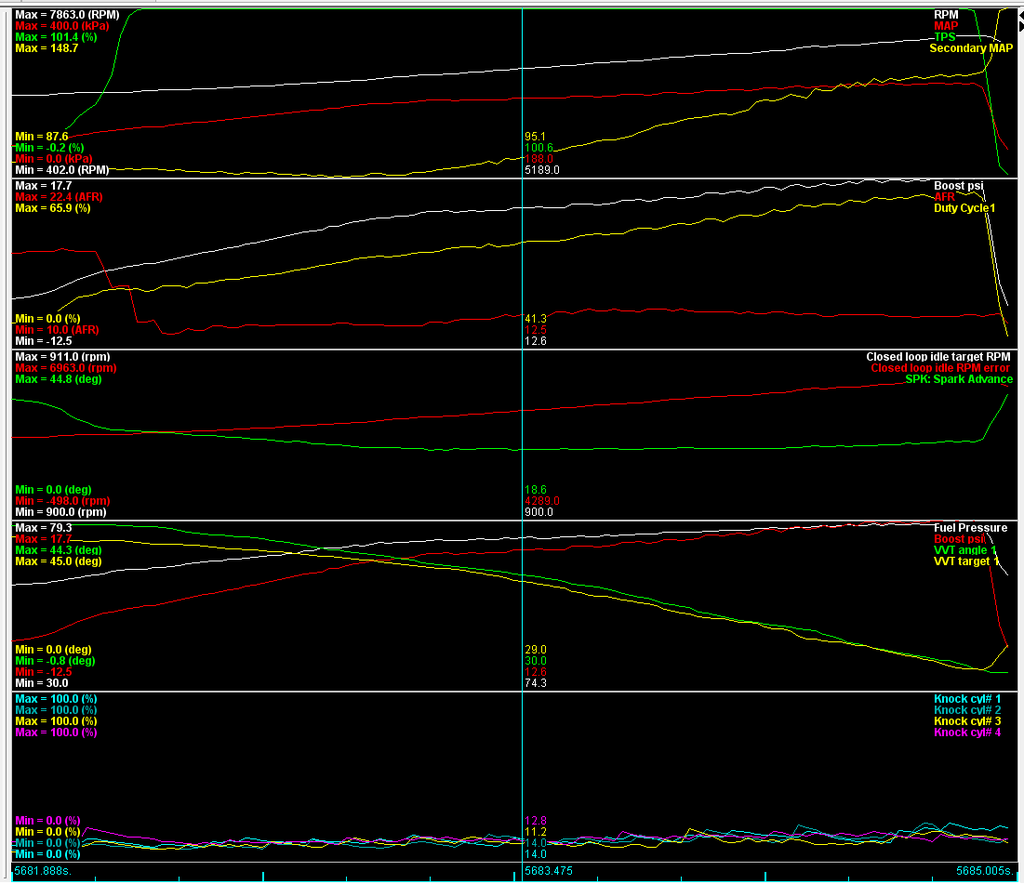

Wastegate only on each turbo

EDIT: Since I didn't say, red is total map, Yellow is pressure entering small turbo to show the big turbo spooling.

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-compound_zpsxfx4atzp.png

Last edited by patsmx5; 02-15-2016 at 10:41 PM.
patsmx5 is offline   Reply With Quote
Old 02-15-2016, 08:23 PM   #272
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 121
Total Cats: 6
Default

That's a hell of a project! MacGyver ain't got nothin' on you.
fivehundredton is offline   Reply With Quote
Old 02-15-2016, 08:25 PM   #273
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,687
Total Cats: 113
Default

Should switch to ebay t3
deezums is offline   Reply With Quote
Old 02-15-2016, 08:25 PM   #274
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,958
Total Cats: 128
Default

Full boost from little turbo at 4,500 in 3rd, at 5,000 in 2nd.
patsmx5 is offline   Reply With Quote
Old 02-15-2016, 08:30 PM   #275
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,687
Total Cats: 113
Default

Yeah, that's pretty ******* terrible and I bet it has nothing to do with it being an ebay turbo. Although I've heard similar numbers from begi t2's, so maybe...

All the 1.8's can spool the larger t3 by 3K, and I can do the same on a 1.6 with corn. So why's your smaller turbo suck so much? Is something broken or did you just pick the wrong one?
deezums is offline   Reply With Quote
Old 02-15-2016, 08:32 PM   #276
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,399
Total Cats: 356
Default

Any vids with exhaust noise?
I'm really curious what it sounds like.
I'm definitely not faulting you for wanting a quiet car, but I have a feeling a lot of us are more tolerant of noise.
Monk is offline   Reply With Quote
Old 02-15-2016, 08:34 PM   #277
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,841
Total Cats: 936
Default

i bet its wastegate related
aidandj is offline   Reply With Quote
Old 02-15-2016, 08:55 PM   #278
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

Quote:
Originally Posted by deezums View Post
Yeah, that's pretty ******* terrible and I bet it has nothing to do with it being an ebay turbo. Although I've heard similar numbers from begi t2's, so maybe...

All the 1.8's can spool the larger t3 by 3K, and I can do the same on a 1.6 with corn. So why's your smaller turbo suck so much? Is something broken or did you just pick the wrong one?
his "smaller" turbo is a 2860 or something.
it's small only relatively to the "large" one

also he's running like the crappiest exhaust manifold known to mankind

...even still, I'm kinda excited to see this thing driving
18psi is offline   Reply With Quote
Old 02-15-2016, 09:11 PM   #279
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,605
Total Cats: 91
Default

Quote:
Originally Posted by 18psi View Post
his "smaller" turbo is a 2860 or something.
it's small only relatively to the "large" one

also he's running like the crappiest exhaust manifold known to mankind

...even still, I'm kinda excited to see this thing driving
He's also on only the wastegate, even an MBC would help. If you're going to put just 1 MBC in this car it should be the front turbo.
Leafy is offline   Reply With Quote
Old 02-15-2016, 09:33 PM   #280
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Quote:
Originally Posted by patsmx5 View Post
Stupidcharged to compound turbo'd in 16 days!
Amazing. Really.

So, what's next?
hornetball is offline   Reply With Quote
