Old 03-01-2016, 06:02 PM   #601
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 262
Total Cats: 13
Default

Also, what about the clutch delay valve I've seen on high horsepower supras and rx7?

It results in a mechanical slip, via slow clutch engagement.. but could be a KISS method for reducing shock load
glade is offline   Reply With Quote
Old 03-01-2016, 06:16 PM   #602
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,941
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
you go underneath the dash, undo the 17mm nut and thread the switch back/forward and adjust it.

fm has some instructions about it too (it's included with their clutch kit)


.......I honestly don't think you're gonna "save" your drivetrain with that much power/torque either way. but ok do what you will.

my settings for lc/ffs are similar to aidans/deezums I think. in that thread. let me see
Cool, thanks. Just follow FM's instructions to adjust?

Maybe save isn't the best word. But anything that I can do that will help keep the drivetrain alive, I'm listening. I know barking 2nd, 3rd, and 4th with drag radials means the flat shift settings are off. And they were off when I broke an axle. I'm going to try to get them setup as to minimize drivetrain shock as much as possible. I like your VSS idea, that's getting hooked up!

glade- I'll have to look into those, don't know much about them. I don't think my clutch would like slipping much, but it's also pretty cheap to replace if it dies vs a diff or transmission. I'll look into that.
patsmx5 is offline   Reply With Quote
Old 03-01-2016, 07:45 PM   #603
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 120
Total Cats: 6
Default

If your shifting at nearly 9000 rpm can you stand an even lighter flywheel? Not practical, I know but...
fivehundredton is offline   Reply With Quote
Old 03-01-2016, 07:47 PM   #604
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,390
Total Cats: 1,015
Default

Quote:
Originally Posted by patsmx5 View Post
But anything that I can do that will help keep the drivetrain alive, I'm listening.
Wrinkle wall slicks. They are specifically designed to absorb the shock load and moderate the pulses of power. This maintains traction but it also evens out the loads.
sixshooter is offline   Reply With Quote
Old 03-01-2016, 07:53 PM   #605
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,390
Total Cats: 1,015
Default

Quote:
Originally Posted by fivehundredton View Post
If your shifting at nearly 9000 rpm can you stand an even lighter flywheel? Not practical, I know but...
Light flywheels help shifts but hurt launches. Light flywheels reduce the pulse smoothing effects of the flywheel, increasing the likelihood of transmission failure in high power cars. If our transmissions weren't already trouble I would say go for it.
sixshooter is offline   Reply With Quote
Old 03-01-2016, 07:55 PM   #606
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 120
Total Cats: 6
Default

^ True that.
fivehundredton is offline   Reply With Quote
Old 03-01-2016, 07:59 PM   #607
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,146
Total Cats: 1,987
Default

Quote:
Originally Posted by sixshooter View Post
Wrinkle wall slicks. They are specifically designed to absorb the shock load and moderate the pulses of power. This maintains traction but it also evens out the loads.
he's already on slicks

it's probably the biggest reason the trans is still together
18psi is offline   Reply With Quote
Old 03-01-2016, 08:03 PM   #608
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,774
Total Cats: 929
Default

moar boost = moar air flow, moar airflow = moar power. If you are making boost then your engine is making power.

Unless you are able to retard spark so ridiculously late that your ignition event happens with an open exhaust valve. Wonder if that would work...

You're ebay turbo would go byby pretty quick.
aidandj is offline   Reply With Quote
Old 03-01-2016, 08:04 PM   #609
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,595
Total Cats: 91
Default

Quote:
Originally Posted by 18psi View Post
he's already on slicks

it's probably the biggest reason the trans is still together
I thought he was on drag radials, like with treads and not wrinkle walls.
Leafy is online now   Reply With Quote
Old 03-01-2016, 08:05 PM   #610
Junior Member

Join Date: Sep 2013
Posts: 193
Total Cats: 10
Default

Is there a reason to not just put in a proper rear end? If you are already making 500whp and plan on turning it up at what point will the internals of the dif its self blow apart?

Monster miata seems to have a pretty cheap setup and if somehow you do break axles once you have it all in then they are only $450 for another set.
That and youd be able to easily re gear the car to match the new power better if you felt the need to.
Shortpersonbk is offline   Reply With Quote
Old 03-01-2016, 08:07 PM   #611
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,146
Total Cats: 1,987
Default

the reason is that he's exploring limits of these parts for the sake of doing it.
which is pretty cool if you ask me. but at 500whp he's gonna be fighting a super uphill battle lol
18psi is offline   Reply With Quote
Old 03-01-2016, 08:23 PM   #612
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,941
Total Cats: 126
Default

Quote:
Originally Posted by sixshooter View Post
Wrinkle wall slicks. They are specifically designed to absorb the shock load and moderate the pulses of power. This maintains traction but it also evens out the loads.
Yeah, I haven't ruled those out. If I snap another axle with better launch/flat shift setting then that's probably my next step. I'm currently on drag radials, and I air them down at the track. They are way better than street tires, but not as forgiving as wrinkle wall slicks. Main reason I'm on DR's right now is so I can drive on them on the street too. When I get to track, I just air down and I'm ready to race. Air up and drive it home.

Also keeping the stock flywheel for reasons already mentioned, mainly transmission life. No way this trans would live with a light weight flywheel given what I'm doing to it.

And yes just having fun and seeing what these parts will take. These parts bolt right in, and I have spares, so why not.
patsmx5 is offline   Reply With Quote
Old 03-01-2016, 08:31 PM   #613
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,146
Total Cats: 1,987
Default

oh wow, in that case get wrinkle wall like yesterday

all this other stuff is silliness compared to how much those should help
18psi is offline   Reply With Quote
Old 03-01-2016, 08:35 PM   #614
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,941
Total Cats: 126
Default

It's not silly, anything that will improve reliability or make it faster, I'm interested. These do wrinkle some, just not as much as a slick. I air them down to 16 PSI when I race.

Plus I already have drag radials, and swapping at the track means I need at minimum, two tires/wheels and a jack. Jack would fit in trunk, tires would not fit anywhere. There's an obvious problem here, and the "solutions" suck.
patsmx5 is offline   Reply With Quote
Old 03-01-2016, 08:38 PM   #615
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,595
Total Cats: 91
Default

Plenty of jacks fit in the trunk. its fitting the tires without a tire trailer that is hard, unless you dont need that passenger seat.
Leafy is online now   Reply With Quote
Old 03-01-2016, 08:39 PM   #616
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 262
Total Cats: 13
Default

Use trailer hitch as mechanical bump stop?

Picture a suuuuuuuper ghetto wheelie bar in the form of the reciever....
glade is offline   Reply With Quote
Old 03-01-2016, 09:03 PM   #617
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,390
Total Cats: 1,015
Default

Do you have any friends? Whoever is taking videos can carry 2 tires in their car, right?
sixshooter is offline   Reply With Quote
Old 03-01-2016, 09:07 PM   #618
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,675
Total Cats: 112
Default

Wheelie bar that also doubles as a tire hauling rack?

lol
deezums is offline   Reply With Quote
Old 03-01-2016, 09:09 PM   #619
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,938
Total Cats: 212
Default

Quote:
Originally Posted by patsmx5 View Post
There's an obvious problem here, and the "solutions" suck.
Tire tails seem to mostly not suck. They don't sell them any more for some reason, but I can't imagine it's hard to weld one up, and you seem to be handy with a welder.

--Ian
codrus is offline   Reply With Quote
Old 03-01-2016, 09:10 PM   #620
Junior Member

Join Date: May 2012
Location: NYC
Posts: 250
Total Cats: 37
Default

Quote:
Originally Posted by patsmx5 View Post
Plus I already have drag radials, and swapping at the track means I need at minimum, two tires/wheels and a jack. Jack would fit in trunk, tires would not fit anywhere. There's an obvious problem here, and the "solutions" suck.

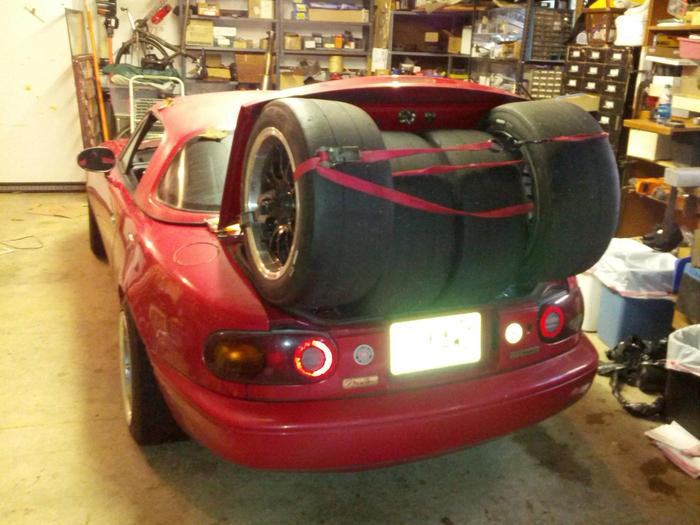

I'm not saying this solution doesn't suck, but it gets the job done if the track isn't too far. Worked for me for years until I got a proper tire trailer.

dasting is offline   Reply With Quote
