Still not sure how the little turbo can handle all the flow (exhaust and air) from the big turbo. Therefore...
Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-80-undefined_05f06c2871a67a9b93ca8b238c0702f7df6004e3.png
stefanst is online now   Reply With Quote
Old 02-08-2016, 12:42 PM   #122
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,944
Total Cats: 126
Default

It will not be able to handle the exhaust, that's why I'm using a 38mm external gate and ported the crap out of the factory internal gate. Gotta order a boost can for the internal gate that's dual port though.

Intake will be fine, this is a traditional compound setup regarding design and routing of pipes (except my big turbo is in the back, would never fit in engine bay) and they work fine for those setups.
patsmx5 is offline   Reply With Quote
Old 02-08-2016, 12:49 PM   #123
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,944
Total Cats: 126
Default

Quote:
Originally Posted by Mobius View Post
You work fast and entertain us for free, like we expect and deserve. Cats.
Thanks! I want this done quick and on a budget.

Quote:
Originally Posted by 18psi View Post
looks like clocking the compressor was indeed a good idea and you did it. Cats
Yeap, thanks man! It's going to looks sweet when it's all put together under the bumper, this turbo looks nasty.
patsmx5 is offline   Reply With Quote
Old 02-08-2016, 03:55 PM   #124
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,611
Total Cats: 101
Default

I love how the boost pipe squeezed in next to the PPF. I was wondering how you'd manage to run it and exhaust. Can't wait to see what this thing does. Nice to see a build thread progress so quickly too, great work so far.
pdexta is online now   Reply With Quote
Old 02-08-2016, 06:02 PM   #125
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,941
Total Cats: 212
Default

Quote:
Originally Posted by stefanst View Post
Still not sure how the little turbo can handle all the flow (exhaust and air) from the big turbo. Therefore...
On the intake side it's because the compressor will flow a certain volume of air at a certain pressure ratio. 100 kpa inlet and 200 kpa outlet is a 2:1 pressure ratio, at which you can flow N CFM. Double the inlet pressure to 200 kpa with an secondary turbo and you can run that same 2:1 pressure ratio with the same N CFM of flow but you get 400 kpa out.

Fundamentally it's because flow limits are related to the speed of sound, and the speed of sound is mostly not affected by pressure.

--Ian
codrus is offline   Reply With Quote
Old 02-08-2016, 07:38 PM   #126
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 990
Total Cats: 38
Default

I think I got confused by the term " Corrected airflow (lb/min)" on the x-axis on compressor maps. This looked to me like it can only flow a certain mass-flow. That little word "corrected" sure packs a punch here!
stefanst is online now   Reply With Quote
Old 02-08-2016, 07:41 PM   #127
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,149
Total Cats: 1,988
Default

so what you're saying is, run allofit from both turbos and see how fast your ears pick up the speed of sound of the engine ventilating?

18psi is offline   Reply With Quote
Old 02-08-2016, 08:11 PM   #128
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,941
Total Cats: 212
Default

Quote:
Originally Posted by stefanst View Post
I think I got confused by the term " Corrected airflow (lb/min)" on the x-axis on compressor maps. This looked to me like it can only flow a certain mass-flow. That little word "corrected" sure packs a punch here!
Yeah, I think that has a built-in assumption that the inlet pressure is 100 kpa.

--Ian
codrus is offline   Reply With Quote
Old 02-08-2016, 08:32 PM   #129
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,805
Total Cats: 551
Default

Quote:
Originally Posted by 18psi View Post
so what you're saying is, run allofit from both turbos and see how fast your ears pick up the speed of sound of the engine ventilating?

I can't wait for the audio! (and video)
hornetball is offline   Reply With Quote
Old 02-08-2016, 09:53 PM   #130
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,944
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
... run allofit ...
You got it. I always do.
patsmx5 is offline   Reply With Quote
Old 02-09-2016, 03:28 AM   #131
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,944
Total Cats: 126
Default

Got a little done today, not nearly as productive as I would have liked but got sick for a while and couldn't work.

Anyways made good progress on boost pipe, but it's still not quite done. Will finish it tomorrow. The easy part is left, I tried to make it earlier but cut a couple pieces wrong and decided to call it a night.

Pics of what I did do though.








And this little guy still looking good!

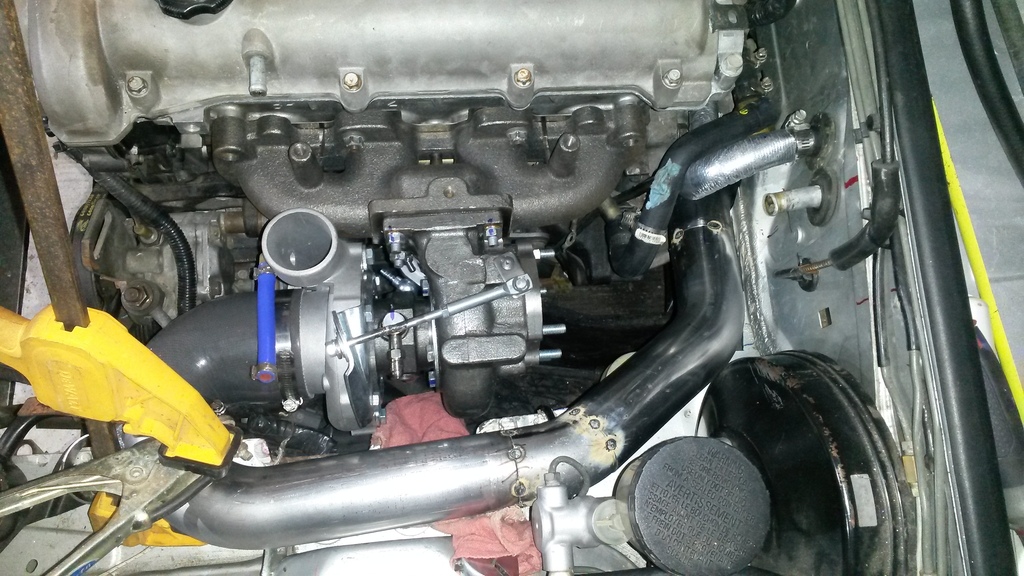

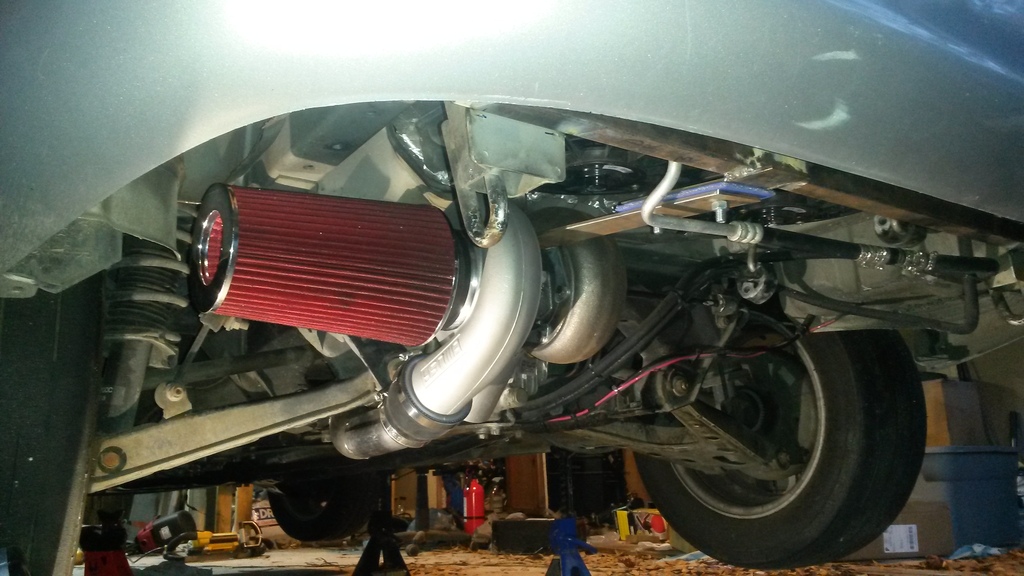

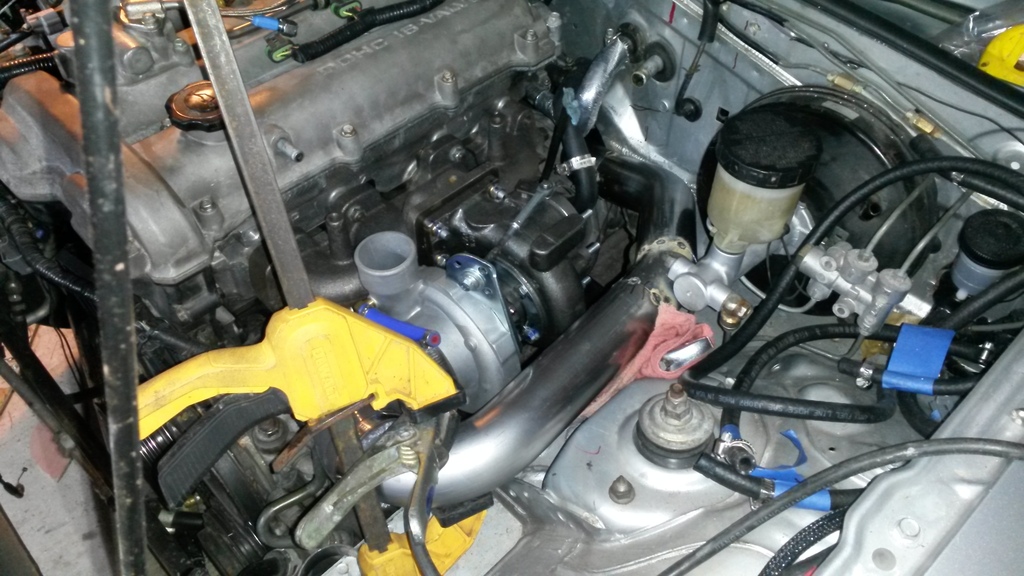

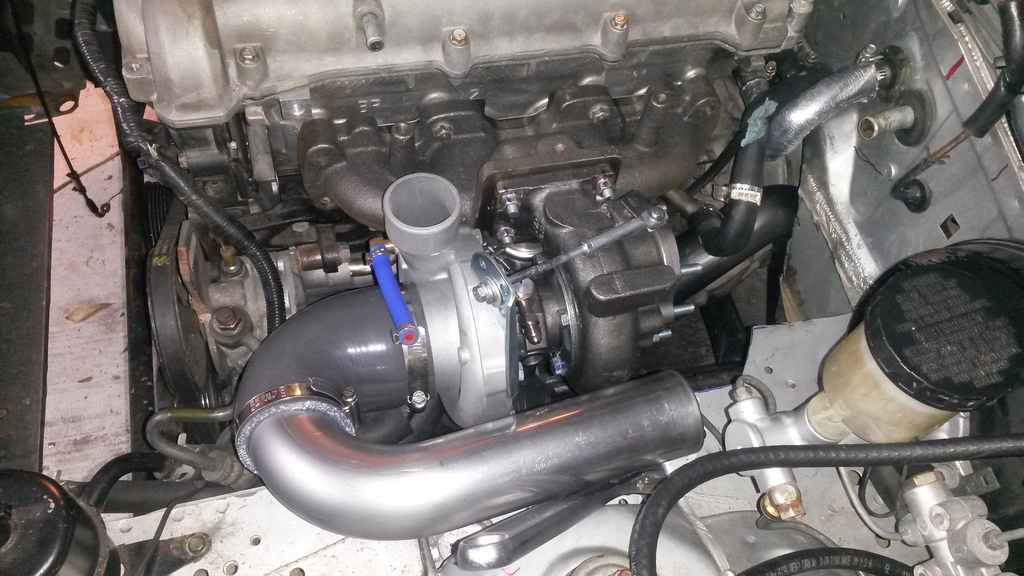

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-20160208_180239_zpsmn5qm3iw.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_220059_zpsvh3a7p9o.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_220110_zps0rdjh36g.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_180446_zpsvamfkqkl.jpg
patsmx5 is offline   Reply With Quote
Old 02-09-2016, 04:26 AM   #132
Junior Member

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 365
Total Cats: 49
Default

subbed for epic ending of this thread
DNA54 is offline   Reply With Quote
Old 02-09-2016, 04:43 AM   #133
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,941
Total Cats: 212
Default

Hm. Given the location of the intake, I'm thinking that driving this car in the rain is likely to be unwise.

--Ian
codrus is offline   Reply With Quote
Old 02-09-2016, 11:01 AM   #134
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,805
Total Cats: 551
Default

Quote:
Originally Posted by codrus View Post
Hm. Given the location of the intake, I'm thinking that driving this car in the rain is likely to be unwise.

--Ian
That's the water injection.
hornetball is offline   Reply With Quote
Old 02-09-2016, 11:04 AM   #135
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,781
Total Cats: 930
Default

Quote:
Originally Posted by hornetball View Post
That's the water injection.
aidandj is offline   Reply With Quote
Old 02-09-2016, 11:22 AM   #136
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,184
Total Cats: 748
Default

Quote:
Originally Posted by hornetball View Post
That's the water injection.
"e-cool" technology.
shuiend is offline   Reply With Quote
Old 02-09-2016, 11:28 AM   #137
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,855
Total Cats: -3
Default

I haz excite for this.

Things were getting a little stale around here...thanks for spicing things up a bit!
Efini~FC3S is offline   Reply With Quote
Old 02-09-2016, 11:32 AM   #138
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,149
Total Cats: 1,988
Default

Quote:
Originally Posted by shuiend View Post
"e-cool" technology.
lost it

depending on how the dump pipe is routed, it might also have Direct Exhaust Injection

Last edited by 18psi; 02-09-2016 at 01:02 PM.
18psi is offline   Reply With Quote
Old 02-09-2016, 12:59 PM   #139
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,944
Total Cats: 126
Default

Quote:
Originally Posted by codrus View Post
Hm. Given the location of the intake, I'm thinking that driving this car in the rain is likely to be unwise.

--Ian
It's tucked up pretty high, and inside the rear fender well too. I actually think it might stay dry. Will test, and change something if it gets wet. The filter barely fits there, but it fits, so sticking with simplicity until proven that it needs to be more complex.
patsmx5 is offline   Reply With Quote
Old 02-09-2016, 01:01 PM   #140
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,805
Total Cats: 551
Default

Quote:
Originally Posted by patsmx5 View Post
sticking with simplicity until proven that it needs to be more complex.
Pat, you MUST make this your sig quote.
hornetball is offline   Reply With Quote
