Old 08-10-2015, 03:44 PM   #2021
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,157
Total Cats: 1,990
Default

The fuel drain should be fine as is.
The oil drain looks really terrible.
Absolutely terrible
18psi is offline   Reply With Quote
Old 08-10-2015, 03:47 PM   #2022
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

<p>My words exactly.&nbsp;</p><p>It looks like a fukit solution to me. I ran into a similar issue and almost had to scrap my manifold.</p><p>TurboTim is this standard with the low mount AF setups?</p>
aidandj is offline   Reply With Quote
Old 08-10-2015, 03:51 PM   #2023
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

<p>This is the oil drain solution Andrew came up with. it has that long curlyq in it because it actually went around the steering shaft.</p>
turbofan is offline   Reply With Quote
Old 08-10-2015, 03:51 PM   #2024
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

<p>Even FM's spot is going to be putting a lot of line running parallel to the ground. Which garrett advises against.</p><p>I think you need one of the compact 45 degree fittings on both ends.</p>
aidandj is offline   Reply With Quote
Old 08-10-2015, 03:58 PM   #2025
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Short answer: yes.

Long answer: Wrapping your oil line around like that is not good. I've built short stainless braided oil drain lines for low mount setups and, while certainly more difficult to install than would be with a higher BEGI/FM location, I don't remember them being particularly troublesome. IIRC, I've gone more forward than you.

But...I've never had to live with a low mount setup...Huster or Savington would have better suggestions on that one. They had their kits in and out a bunch of times.

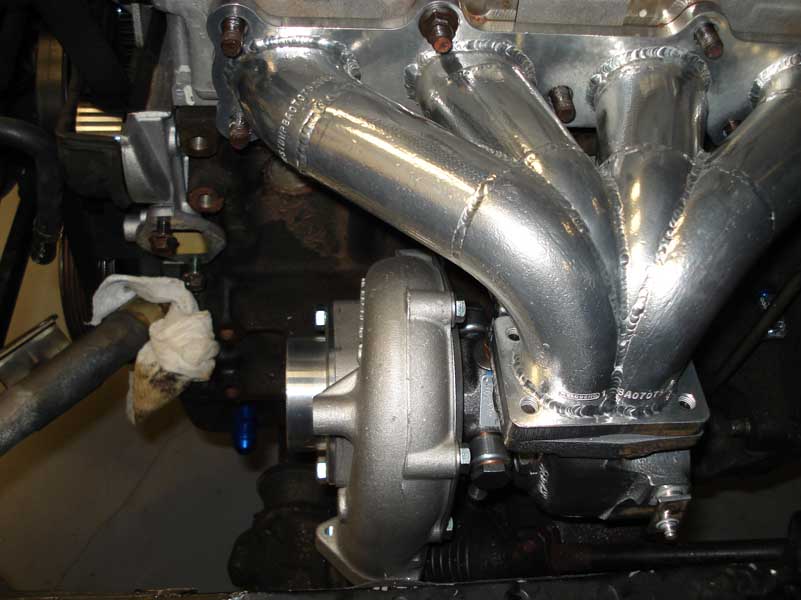

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-artiemanifold3.jpg
TurboTim is offline   Reply With Quote
Old 08-10-2015, 03:59 PM   #2026
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,157
Total Cats: 1,990
Default

Quote:
Originally Posted by aidandj View Post
><p>I think you need one of the compact 45 degree fittings on both ends.</p>
Yeah, I can kinda sorta see a way for it to be downhill with more tight bends or smaller tube or something.
18psi is offline   Reply With Quote
Old 08-10-2015, 04:10 PM   #2027
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

<p>I think they were trying to use the standard MSM bung in the pan which causes some of the problem. I think moving it further forward would work.</p><p>Can I put it lower in the pan, or would that cause drainage issues? Like, can i put it towards the front but down low?</p><p>&nbsp;</p><p>I don't know how to tag people... Paging Savington!</p>
turbofan is offline   Reply With Quote
Old 08-10-2015, 04:23 PM   #2028
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

Follow FMs location, it's really forward and low for AC compatible setups. Ryan's oil pan has dopples old drain location I think it's in his CR build thread.

And yes, sacrifices were made to keep that stock drain location.
curly is offline   Reply With Quote
Old 08-10-2015, 04:38 PM   #2029
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

I used tight radius -8AN fittings. one swivel, one not swivel. The not swivel were more compact, but at some point they weren't available. Russell brand.
TurboTim is offline   Reply With Quote
Old 08-10-2015, 05:03 PM   #2030
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

That oil drain is the very definition of what you do NOT want in an oil drain.
concealer404 is offline   Reply With Quote
Old 08-10-2015, 05:14 PM   #2031
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

<p>Yes, you need to get non-swivel fittings Ed. They exist, but some shopping is needed. Push-loc fittings are also much shorter.</p>
aidandj is offline   Reply With Quote
Old 08-11-2015, 02:37 AM   #2032
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

Got the brakes all mounted and bled. Pedal feels great. Next I'll start installing interior stuff (seat mounts, carpet, roll bar, hvac stuff maybe?) and prep the block for the oil pan to go back on.
<br />
<br />Ordered the ac delete crossover tube too, and fuel return conversion is figured out. Can I leave the charcoal canister junk out of the engine bay and just cap it at the rear canister?
<br />
<br />Ben (Yank) is going to weld a new bung on. I'll shorten the oil return line and I'm quite sure it will work nicely. Better than before, and it did work fine before.
<br />
<br />Oi. So many details to still figure out.
turbofan is offline   Reply With Quote
Old 08-11-2015, 03:15 PM   #2033
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,747
Total Cats: 748
Default

Oo! good progress is good! I won't repeat the commentary about the oil drain.

Please take lots of pics of what you end up doing around the fuel tank and filter with the fuel line stuff, I'm trying to prepare myself for the insanity.
EO2K is offline   Reply With Quote
Old 08-11-2015, 03:22 PM   #2034
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

<p>The way I have it routed is really, really, REALLY simple. I'll take some pics.</p>
turbofan is offline   Reply With Quote
Old 08-11-2015, 03:25 PM   #2035
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,747
Total Cats: 748
Default

My primary concerns (because I haven't take it apart yet) are that swapping the stock lines back in will be a nightmare, and the lines I'm going to have to rig in there are going to chafe on everyfuckingthing and burn my car to the ground.

But that might just be me.
EO2K is offline   Reply With Quote
Old 08-11-2015, 03:26 PM   #2036
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

<p>Its literally an extra NB fuel line. The fuel line clips have a provision for it already for some reason lol.</p>
aidandj is offline   Reply With Quote
Old 08-11-2015, 03:43 PM   #2037
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,747
Total Cats: 748
Default

Yes, I know about THAT part, I'm the one who recommended he save the main fuel line from the wrecked NB tub for this project I'm more interested in the stuff between the tank and the 2 hardlines.
EO2K is offline   Reply With Quote
Old 08-11-2015, 03:44 PM   #2038
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

<p>from what I saw its literally a fuel line to the return port on the tank.</p>
aidandj is offline   Reply With Quote
Old 08-11-2015, 03:49 PM   #2039
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

<p>I have thought about abrasion. I will probably pull and check it this winter after the couple track days and few thousand miles I'll be driving, but I really don't expect to find anything. For one, this hose is seriously beefy, and for another, there's just not much for it to chafe on.</p>
turbofan is offline   Reply With Quote
Old 08-11-2015, 04:56 PM   #2040
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,747
Total Cats: 748
Default

Quote:
Originally Posted by aidandj View Post
<p>from what I saw its literally a fuel line to the return port on the tank.</p>
Yep, that's exactly the kind of stuff I'm talking about. I want to see how other people are doing it so I can over complicate it and figure out how to spend 2x$ for the same result.

Quote:
Originally Posted by turbofan View Post
<p>I have thought about abrasion. I will probably pull and check it this winter after the couple track days and few thousand miles I'll be driving, but I really don't expect to find anything. For one, this hose is seriously beefy, and for another, there's just not much for it to chafe on.</p>
These are good things to know. What fittings and what hose specifically? I've been trying to figure out if I can get away with this and not do -6AN errywhere and still sleep at night
EO2K is offline   Reply With Quote
