Old 09-15-2015, 08:07 PM   #2201
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 333
Total Cats: 30
Default

Miata rally project
post 72
leboeuf is offline   Reply With Quote
Old 09-15-2015, 08:09 PM   #2202
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,775
Total Cats: 930
Default

<p>I thought that using the singular bracket there were plug'n'play coils.</p>
aidandj is offline   Reply With Quote
Old 09-15-2015, 10:13 PM   #2203
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

Brackets are just brackets. There's 3 sets in existence. It's not pnp
curly is online now   Reply With Quote
Old 09-15-2015, 10:23 PM   #2204
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,779
Total Cats: 158
Default

<p>
Quote:
Originally Posted by Mobius View Post
Get to 12hp/lb or better, though, and you start to work the brakes a lot more at ORP.
</p><p>I want a car with 12hp/lb! &nbsp;<img alt="Giggle" src="http://www.miataturbo.net/images/smilies/gay.gif" style="height:21px; width:15px" title="Giggle" /></p>
DNMakinson is offline   Reply With Quote
Old 09-15-2015, 10:29 PM   #2205
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,775
Total Cats: 930
Default

News to me. Would FM plug wires work? If not were ordering supplies for new wires asap
aidandj is offline   Reply With Quote
Old 09-15-2015, 10:34 PM   #2206
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,942
Total Cats: 126
Default

Quote:
Originally Posted by aidandj View Post
<p>What is the best spark plug wire solution for GM coils. Ed has a mismatched set, and i think one of them didn't even fit in the hole when I messed around with it.</p>
I made my own for my setup, but I believe FM sells wires for GM coils on a miata engine. On my setup the boots I ordered were smaller than advertised, and made assembly a HUGE pain in the butt. Otherwise they work fine. If someone sells a solution, I'd buy them. I've made wires for my miata twice now and each time was expensive and sucked.
patsmx5 is online now   Reply With Quote
Old 09-15-2015, 11:51 PM   #2207
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,941
Total Cats: 212
Default

Quote:
Originally Posted by patsmx5 View Post
I made my own for my setup, but I believe FM sells wires for GM coils on a miata engine. On my setup the boots I ordered were smaller than advertised, and made assembly a HUGE pain in the butt. Otherwise they work fine. If someone sells a solution, I'd buy them. I've made wires for my miata twice now and each time was expensive and sucked.
FM sells wires for using the LS3 coils on a Miata using their bracket. Since it mounts to the back of the head where the stock coils go, those wires may or may not be long enough if you mount the coils somewhere else.

--Ian
codrus is offline   Reply With Quote
Old 09-16-2015, 01:29 AM   #2208
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,982
Total Cats: 409
Default

<p>Wiring diagram for injector harness? Need the pinout for the front connectors to make sure i got the injectors in the right order.</p><p>#sp00nf33dm3pl3as3</p>
turbofan is offline   Reply With Quote
Old 09-16-2015, 01:30 AM   #2209
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,982
Total Cats: 409
Default

<p>Also need the pinout for the coil connectors. Power, groudn, trigger. But don't know which trigger is wich.</p>
turbofan is offline   Reply With Quote
Old 09-16-2015, 01:40 AM   #2210
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,941
Total Cats: 212
Default

For which harness? 99 or MSM?

You can use the megasquirt test mode to turn on individual coil and injector outputs and check them with a scope.

--Ian
codrus is offline   Reply With Quote
Old 09-16-2015, 01:55 AM   #2211
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,982
Total Cats: 409
Default

<p>99. I'm making the harness right now. I'm just going to continuity test, but a diagram would help. All I can find is broken links.</p>
turbofan is offline   Reply With Quote
Old 09-16-2015, 02:21 AM   #2212
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,941
Total Cats: 212
Default

Quote:
Originally Posted by turbofan View Post
<p>99. I'm making the harness right now. I'm just going to continuity test, but a diagram would help. All I can find is broken links.</p>

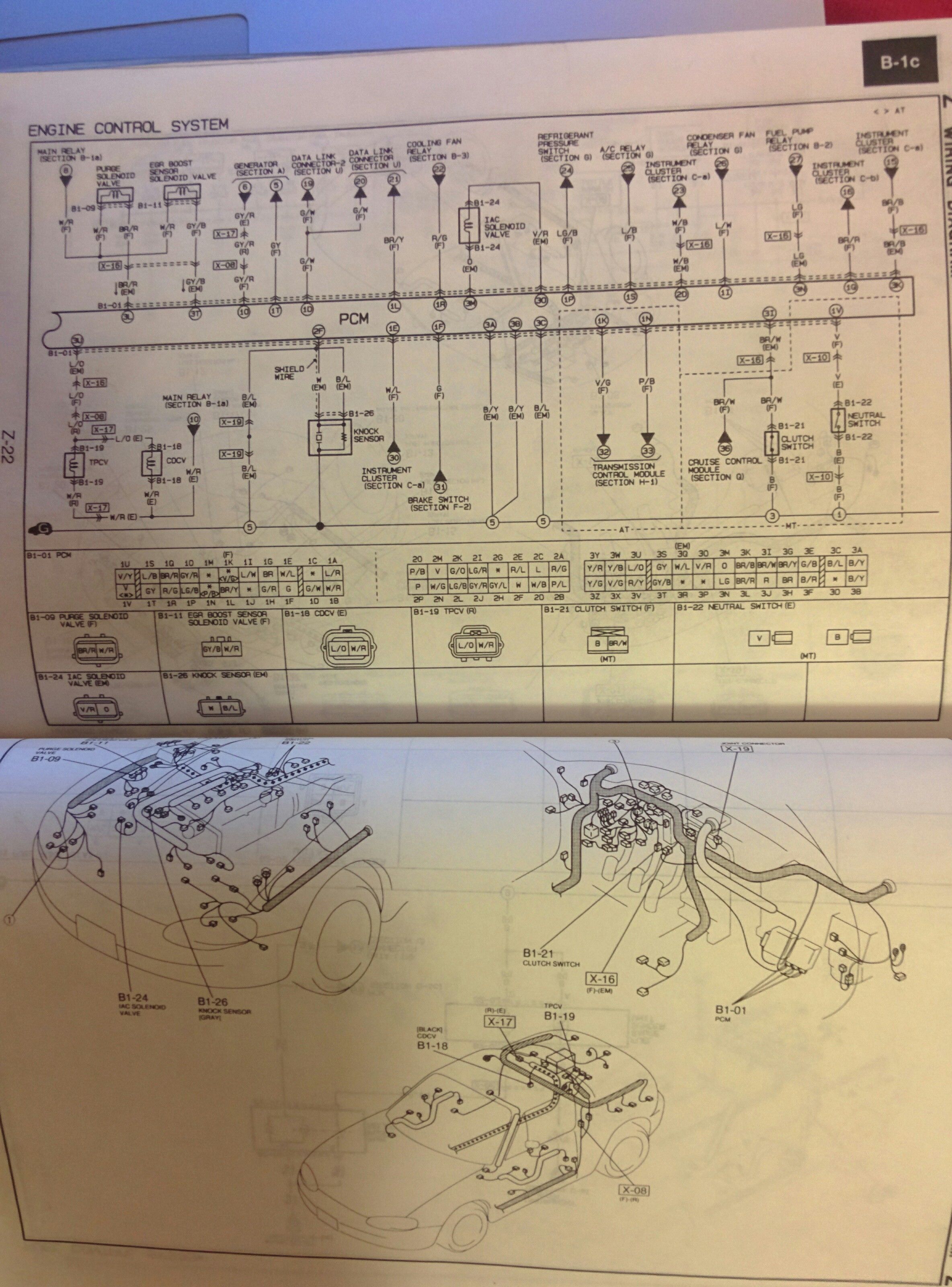

http://www.codrus.com/miata/wiring/99-ecu-wiring-1.jpg
http://www.codrus.com/miata/wiring/99-ecu-wiring-2.jpg
http://www.codrus.com/miata/wiring/99-ecu-wiring-3.jpg

--Ian
codrus is offline   Reply With Quote
Old 09-16-2015, 02:27 AM   #2213
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,775
Total Cats: 930
Default

Thank you!!!
<br />Injector harness is done. Going over again tomorrow to get ignition harness done.
<br />Wires are run for seq spark, boost, VVT.
<br />Curly do we have a VVT pigtail?
<br />Also am I right in remembering that the 99/00. CAS is on the front of the engine and the VVT is on the back? So I need to extend those wires too?
aidandj is offline   Reply With Quote
Old 09-16-2015, 02:34 AM   #2214
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

They were already extended, until we unwrapped them cause we thought it might be our short.

The vvt head is finiky with wires. Ideally it needs to be drilled out to 90-00 dimensiones, by a machinist, not you guys. I tried, but my bit walked. But it can work without doing all that. I made 350 hp with NA ngk wires and a vvt valve cover
curly is online now   Reply With Quote
Old 09-16-2015, 02:50 AM   #2215
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,775
Total Cats: 930
Default

OK good. So run spark wires from the ecu, and Wire it up from the injector harness.
<br />What about the VVT actuator pigtail?
aidandj is offline   Reply With Quote
Old 09-16-2015, 02:55 AM   #2216
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,775
Total Cats: 930
Default

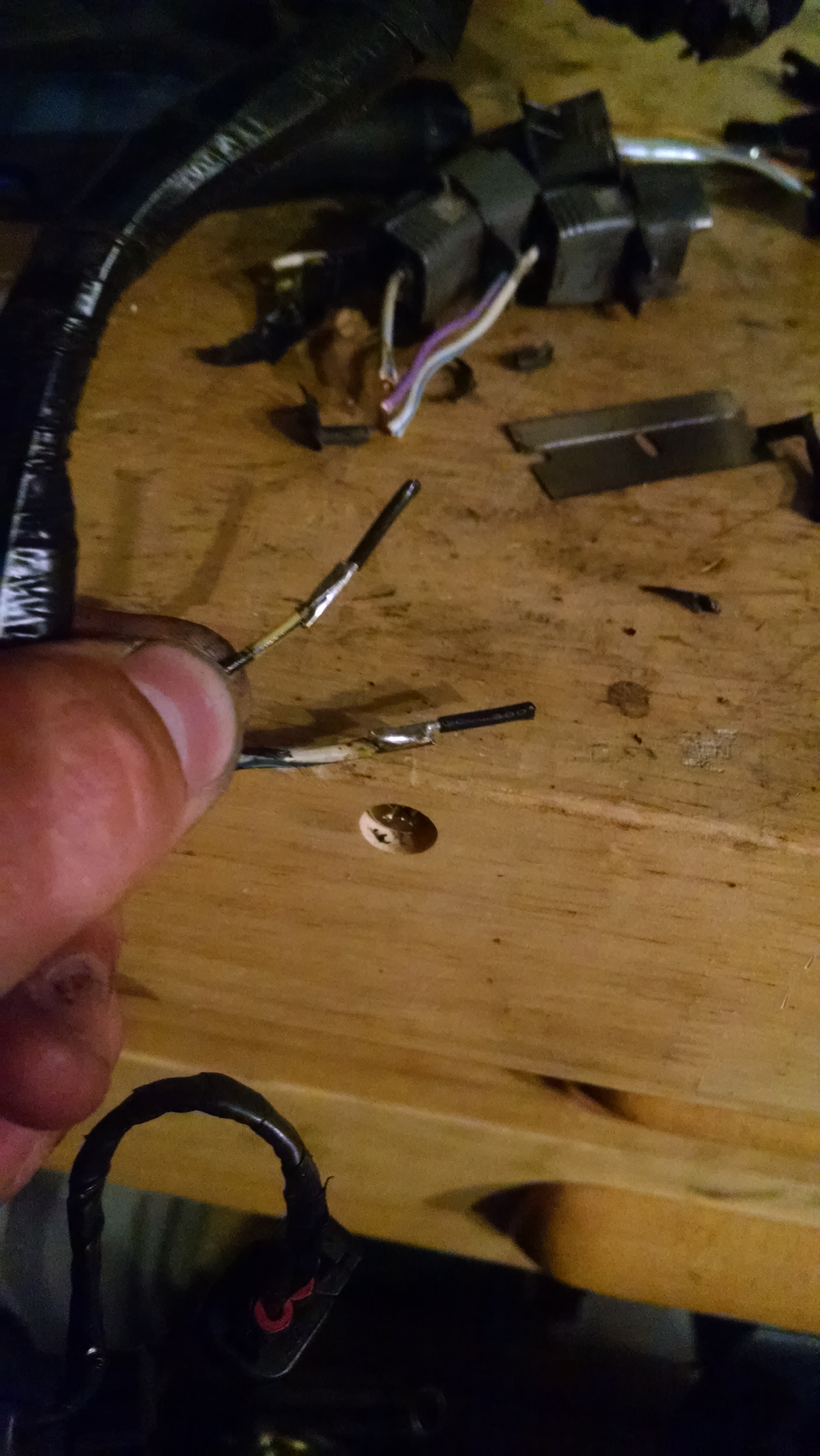

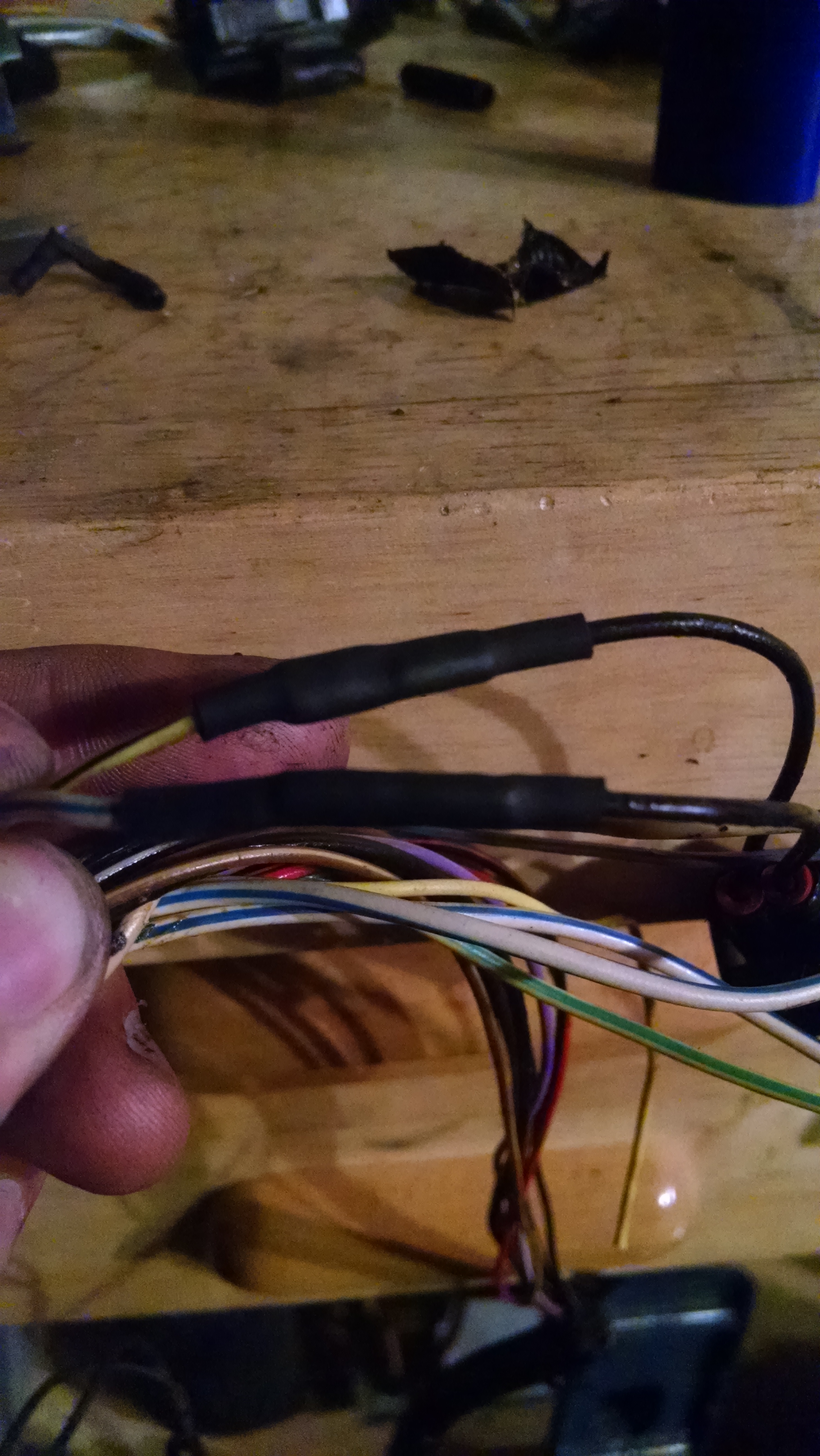

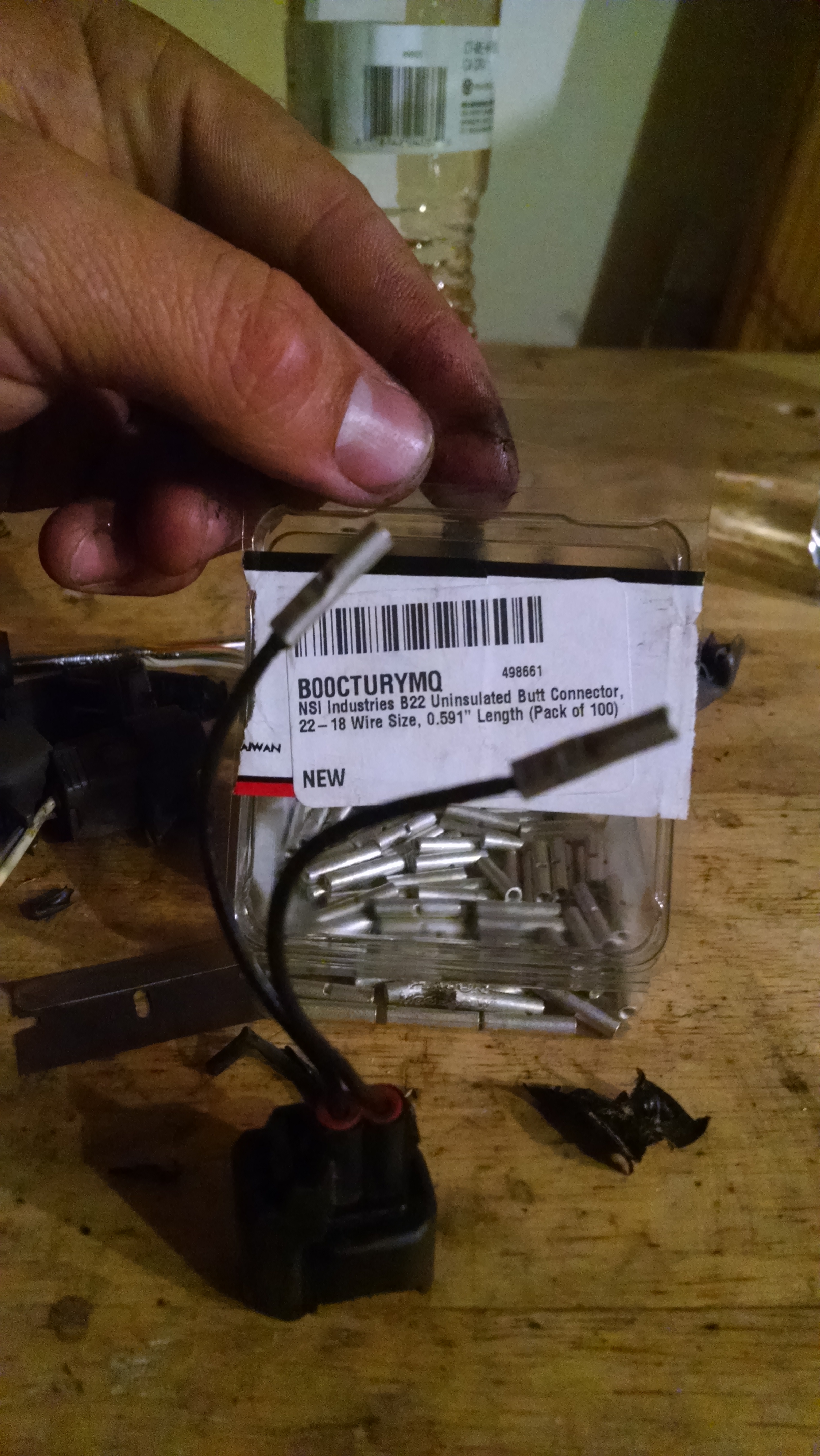

Tsk tsk Andrew. Soldering on the injector harness?
<br />
<br />Replaced with crimps and heat shrink
<br />
<br />
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-csxzccc.jpg   Rebuild all the salvage Miatas! ASS!-dtenm5i.jpg   Rebuild all the salvage Miatas! ASS!-ywhjdzi.jpg
aidandj is offline   Reply With Quote
Old 09-16-2015, 03:24 AM   #2217
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,982
Total Cats: 409
Default

Ben and Aidan came out tonight and worked on wiring while I finished intercooler plumbing. Super huge help guys. Hoping for first fire tomorrow says Aidan.
<br />
<br />Got the passenger side NB2 door card fitted what a PITA. Driver side next, my dad is likely going to do that while I'm at work tomorrow.
<br />
<br />Reinstalled the Xidas. List to finish:
<br />
<br />-finish ignition wiring stuffs
<br />-wideband, MS mount, oil pressure and coolant temo gauge and senders.
<br />-brake ducts
<br />-install rear end links and re-bleed brakes
<br />-dash, seats, front glass. Going without radio stuffs for now I think.
<br />-vent windows. Not looking forward to this.
<br />-tune
<br />-Alignment
<br />
<br />... I think that's it.
turbofan is offline   Reply With Quote
