Old 09-18-2015, 03:41 PM   #2241
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>Going to have ed call them and see if we can schedule something for tomorrow.</p>
aidandj is offline   Reply With Quote
Old 09-18-2015, 03:46 PM   #2242
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

They did the windshield on my work 2005 F-250 back in the day. The replacement cracked in the corner shortly after the install and they fixed it again, no questions asked. Second one held up for 3-4 years until we got a new truck.

I can't fathom that you can't find a mobile glass shop anywhere.
EO2K is offline   Reply With Quote
Old 09-18-2015, 03:47 PM   #2243
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>I haven't even looked. I've been too busy with other stuff. If I can just roll the car out saturday morning, and come back to it with glass on it that would be ideal.</p>
aidandj is offline   Reply With Quote
Old 09-18-2015, 03:55 PM   #2244
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Ahh, OK. I misread the intent of that comment.
EO2K is offline   Reply With Quote
Old 09-18-2015, 03:56 PM   #2245
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>Haha, no that is helpful. I had thought of safelite. Just hadn't had ed call them. He is driving like 12 hours right now and service is spotty, so no clue when he will actually be able to call them.</p>
aidandj is offline   Reply With Quote
Old 09-19-2015, 01:01 AM   #2246
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

<p>Are the MSM and 99/00 window switches different? Right now the passenger switch controls the drivers window and the passenger window is stuck trying to go down.</p>
turbofan is offline   Reply With Quote
Old 09-19-2015, 01:53 AM   #2247
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Yeah, don't leave that plugged in, it'll burn out the window motor.

The plug ant the switch are the same but you have to swap 2 wires. Check m.net for articles about retrofitting the NB2 window switch into the NB1. Once you figure out how to get the connectors out of the harness plug post a picture, because I cannot for the life of me figure out how to do it without destroying the connector.
EO2K is offline   Reply With Quote
Old 09-19-2015, 01:57 AM   #2248
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>Ed picked windows down, so they are staying like that until he gets around to it.</p><p>Don't think the wideband is wired into the car, so no driving tonight. I have the energy/motivation to get this thing started, but not to get a wideband in.</p>
aidandj is offline   Reply With Quote
Old 09-19-2015, 02:20 AM   #2249
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

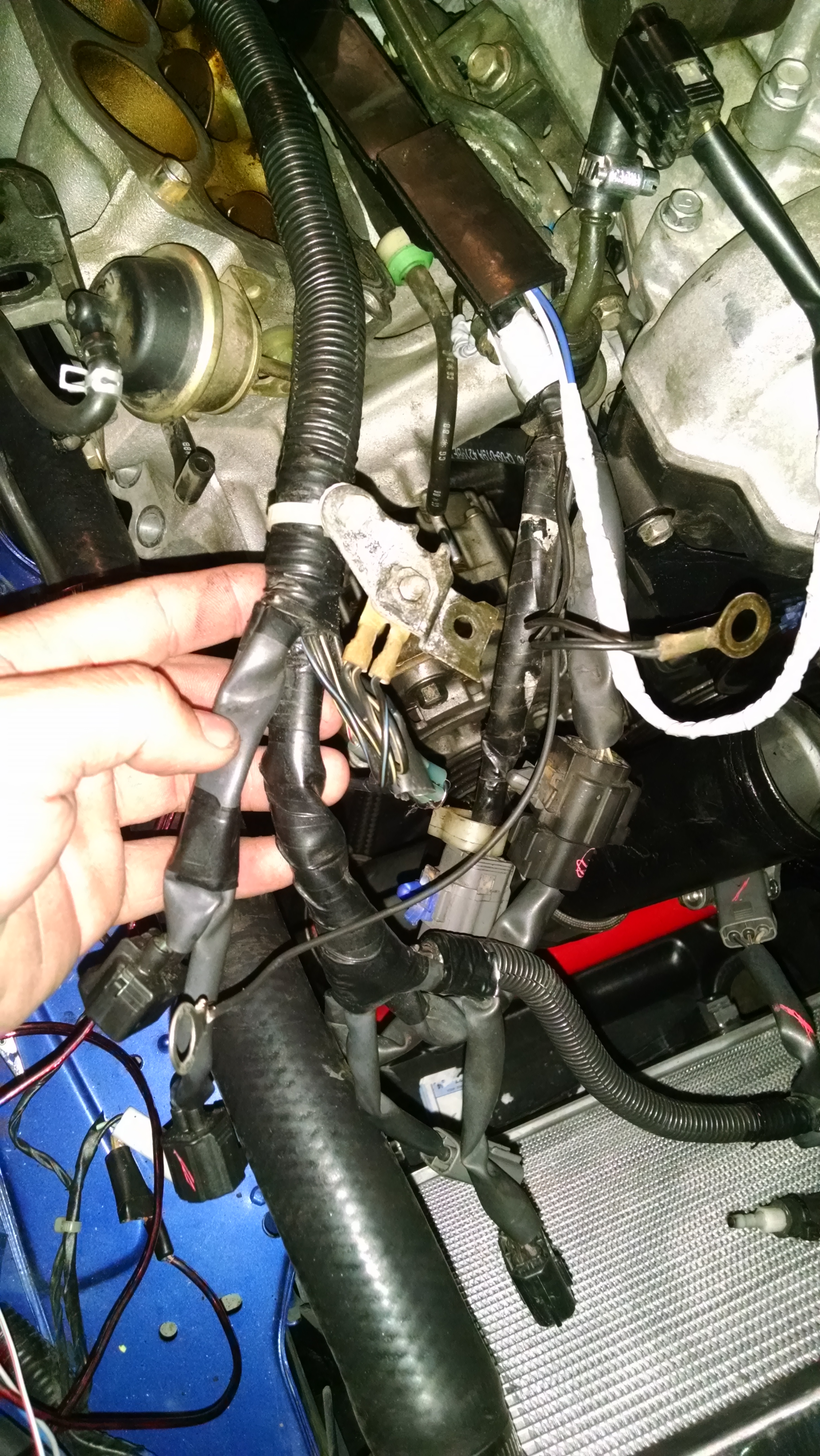

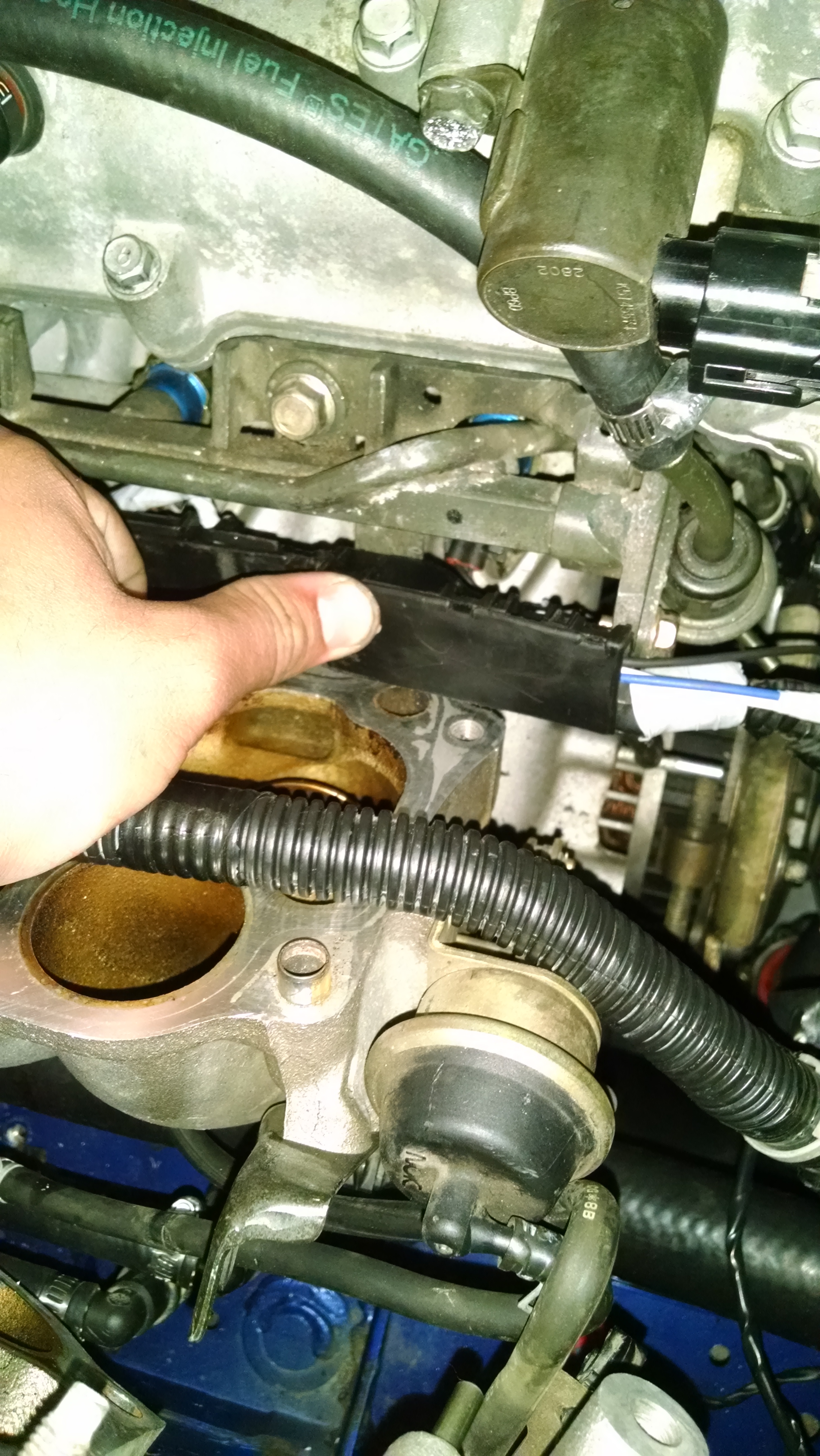

<p>How the **** does the fuel injector harness clip into the valley of the manifold</p><p></p><p>And where do these ground go?</p><p></p>
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-lufrcxq.jpg   Rebuild all the salvage Miatas! ASS!-eewbzln.jpg
aidandj is offline   Reply With Quote
Old 09-19-2015, 02:46 AM   #2250
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,959
Total Cats: 215
Default

The fuel injector harness clips onto the fuel rail, IIRC. I don't remember if it's supposed to be on top or underneath.

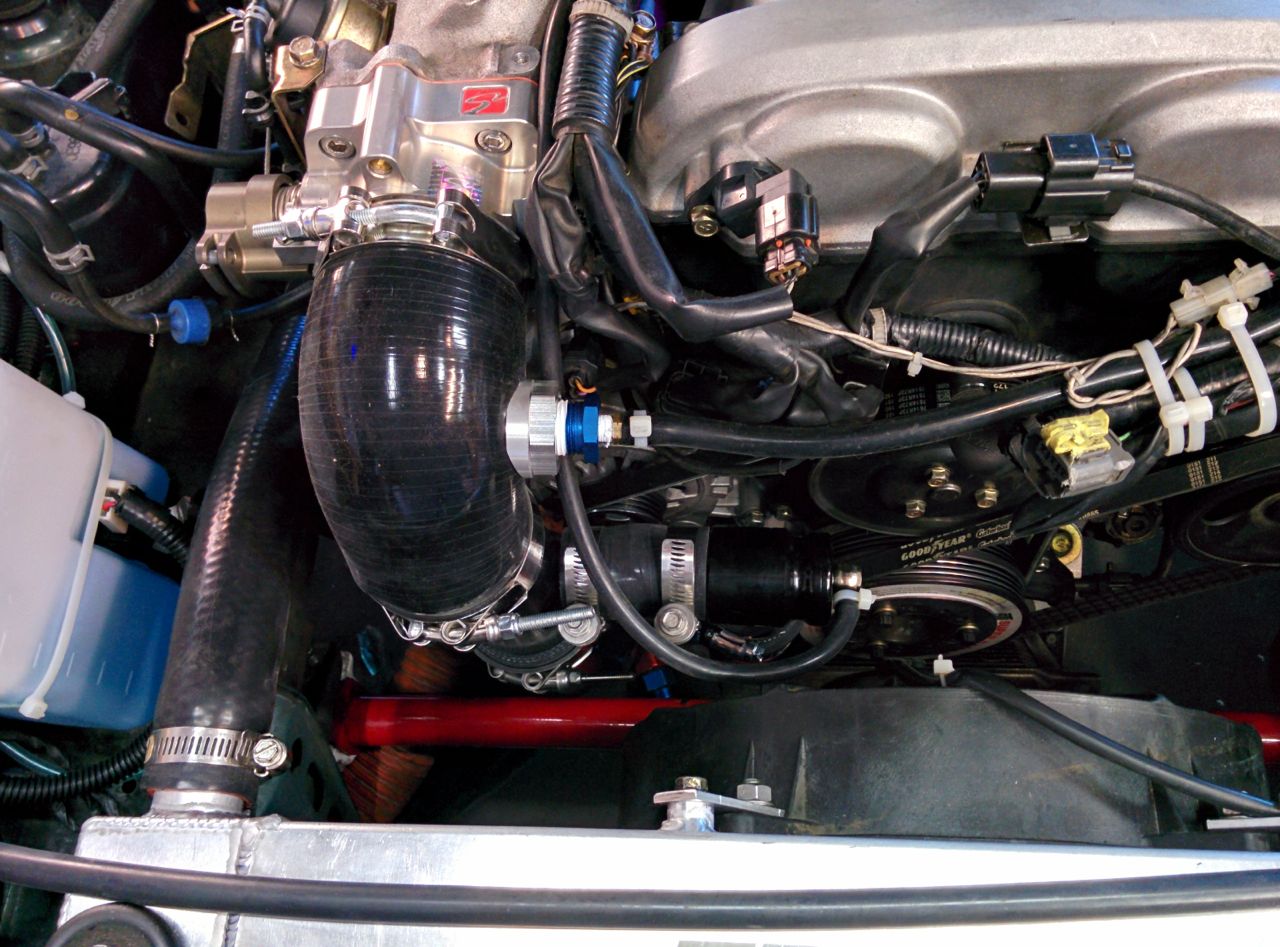

The grounds attach to the top of the intake manifold. They're supposed to go under a bolt that's right next to the throttle body, that hole is stripped out on my car, so I flipped the bracket over and bolted it to the valve cover instead. You can see the bare hole right at the top of this photo though:

That's the ground for all of the electronic systems in the car, BTW, it does very strange things if it's loose.



--Ian
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-intake10.jpg
codrus is online now   Reply With Quote
Old 09-19-2015, 02:49 AM   #2251
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>Ditched the plastic thing, it wasn't happening.</p><p>Thanks for the picture I think I know where it is. I have already found out avout the weird things it does.</p>
aidandj is offline   Reply With Quote
Old 09-19-2015, 04:24 AM   #2252
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>No dice.</p><p>There is positive pressure coming out of the intake manifold when cranking.</p><p>Here is the composite log. Everything look alright?</p><p><img src="http://cimg4.ibsrv.net/gimg/www.miataturbo.net-vbulletin/994x475/80-hukjfsh_6345bec9daf12589edc8d9d55752c5c0780ee954.p ng" title="" /><br /><br />&nbsp;</p>
aidandj is offline   Reply With Quote
Old 09-19-2015, 04:35 AM   #2253
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Its looking like a timing issue. Not sure who timed this engine, but there shouldn't be positive pressure in the intake manifold while cranking.
aidandj is offline   Reply With Quote
Old 09-19-2015, 11:15 AM   #2254
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,637
Total Cats: 463
Default

I did.

Did you hook up the fpr vacuum source? The plastic injector harness cover is usually brittle and destroyed. I ditch them all and zip tie the harness to the rail.
curly is offline   Reply With Quote
Old 09-19-2015, 11:25 AM   #2255
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Will try that. But TS is registering maybe 96kpa at min. Goes up to like 106kpa
<br />I'm going to compile a few things to try then head over.
<br />Good news is all spark and coils worked under output test mode.
aidandj is offline   Reply With Quote
Old 09-19-2015, 11:31 AM   #2256
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Quote:
Originally Posted by aidandj View Post
Its looking like a timing issue. Not sure who timed this engine, but there shouldn't be positive pressure in the intake manifold while cranking.
I've had MS on my miata since 2007 or 2008, never seen positive pressure in the intake manifold while on the starter unless it backfired. That does seem odd to me.

I dunno what timing wheel setup you're running, or what ignition settings. But it's not a stock wheel since there's a ton of teeth showing up in that log. If you can't get it working, the stock timing wheels work perfect if that proves good enough.
patsmx5 is offline   Reply With Quote
Old 09-19-2015, 11:34 AM   #2257
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Ed is this not a stock wheel? It might be some AEM thing....I'll have to count later.
aidandj is offline   Reply With Quote
Old 09-19-2015, 11:46 AM   #2258
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,637
Total Cats: 463
Default

It's a TSE wheel. 12t I think.

What're those two separate grounds coming forward though? They're supposed to be at the back of the head.
curly is offline   Reply With Quote
Old 09-19-2015, 11:48 AM   #2259
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

****, I don't think MS supports that.
<br />Guess we need a stock NB wheel. The auction car may have one. It also may have been destroyed. I'll check when I go to my old house.
aidandj is offline   Reply With Quote
Old 09-19-2015, 11:49 AM   #2260
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,637
Total Cats: 463
Default

Well check first
curly is offline   Reply With Quote
