Old 01-28-2016, 03:20 PM   #2541
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

This is happening at 12psi
aidandj is offline   Reply With Quote
Old 01-28-2016, 03:23 PM   #2542
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,957
Total Cats: 128
Default

Quote:
Originally Posted by turbofan View Post
So for a second here everyone's saying the car is pinging.

We know it's misfiring. Do you think it's pinging and that's causing the misfire, or is it just misfiring? It doesn't feel like the knock I've experienced (in other vehicles) in the past, but I am not extremely well calibrated to say the least. If it's knock causing the misfire, that's a helluva lot of knock. Like insane knock. But I really don't think that's it...

When we tuned it, we did gap the plugs, and I'm running LS coils. We should NOT be having issues with spark blowout. WTF.

anyway, back to Aidan's game plan posted above. Ordering new plugs (this will be the third or 4th set since I put the car back together) and will work on the knock module. Will probably also try to get back on a dyno. Will be having Ben do alignment and corner balance at PRE after the new tophats and control arm/offset bushings, so I might pay for an hour or two on their load bearing dyno while it's up there. Get the SPM damper, make sure it's all correct, and do caveman work on Aidans car (brake lines) while he does engineer work on my car (knock sensor and tuning and such).
I'm not saying it's pinging, it's probably not. Just needs to be tuned. You can pull the plugs and inspect them for black specs and metal under 10x magnification and good lighting to check for detonation. If you see anything, it has detonated at some point since those plugs were installed. If they are spotless, you're not detonating.
patsmx5 is offline   Reply With Quote
Old 01-28-2016, 03:28 PM   #2543
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

They are not genuine coils.

Going to go talk to the parts department and look at genuine coils to see what my cost is on them. Shouldn't have bought knockoffs. Let's remove some variables here.
turbofan is offline   Reply With Quote
Old 01-28-2016, 03:30 PM   #2544
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

found at least 1 of the problems
after that inspect the wires too, we had one come apart internally and had an intermittent connection.
and then start looking at the settings make sure dwell and everything is peachy
18psi is offline   Reply With Quote
Old 01-28-2016, 03:33 PM   #2545
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

All this troubleshooting. And your valve cover is in my truck.

Should have taken my spare.
aidandj is offline   Reply With Quote
Old 01-28-2016, 03:39 PM   #2546
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,754
Total Cats: 748
Default

If you are interested in used, I think I may have a set of 5-6 of the super duper LS2 flexfuel truck coils if you are interested. Genuine GM parts, the ones with the little heatsinks on the back. I'll have to look for them tonight but I'm almost positive I have a spare set + extras (for track spares)
EO2K is online now   Reply With Quote
Old 01-28-2016, 03:39 PM   #2547
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

damnit G. I need LS coils. Try and find 8
aidandj is offline   Reply With Quote
Old 01-28-2016, 03:41 PM   #2548
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,754
Total Cats: 748
Default

IF I have them. My garage is a nightmare, it would make Vlad have a conniption fit. It's like an episode of 'Hoarders' in there
EO2K is online now   Reply With Quote
Old 01-28-2016, 03:44 PM   #2549
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

a couple weeks ago my garage got seriously cluttered

I was so upset I took a day off just to clean it


But also:

y'all exchange parts so often FedEx/USPS should just dedicate a route from G's house directly to aidans/eds
18psi is offline   Reply With Quote
Old 01-28-2016, 03:47 PM   #2550
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

text message sent

i love this place
turbofan is offline   Reply With Quote
Old 01-28-2016, 04:29 PM   #2551
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,754
Total Cats: 748
Default

I'll try not to disappoint
EO2K is online now   Reply With Quote
Old 01-28-2016, 07:27 PM   #2552
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,950
Total Cats: 212
Default

Quote:
Originally Posted by 18psi View Post
a couple weeks ago my garage got seriously cluttered

I was so upset I took a day off just to clean it
I need to do that.

--Ian
codrus is offline   Reply With Quote
Old 01-28-2016, 11:41 PM   #2553
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,634
Total Cats: 463
Default

I said it was pinging at higher advance. It definitely wasn't when it left the dyno. We even did a glory run didn't we? Made a little too much power and definitely showed a weakness in the spark but multiple runs at the high boost setting made good power without ignition issues. Of course a dozen dyno pulls can't predict what will happen after a couple trips to the coast and California plus track time. I've personally replaced one coil on my car with a genuine GM coil, but I'm also not making nearly what Ed is making. 185 with a 1.6t, now 137 on my 99.
curly is online now   Reply With Quote
Old 01-29-2016, 02:55 PM   #2554
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

I should post a picture of my garage just to **** you all off. Pretty sure it's worse than Aidan's currently. Maybe.

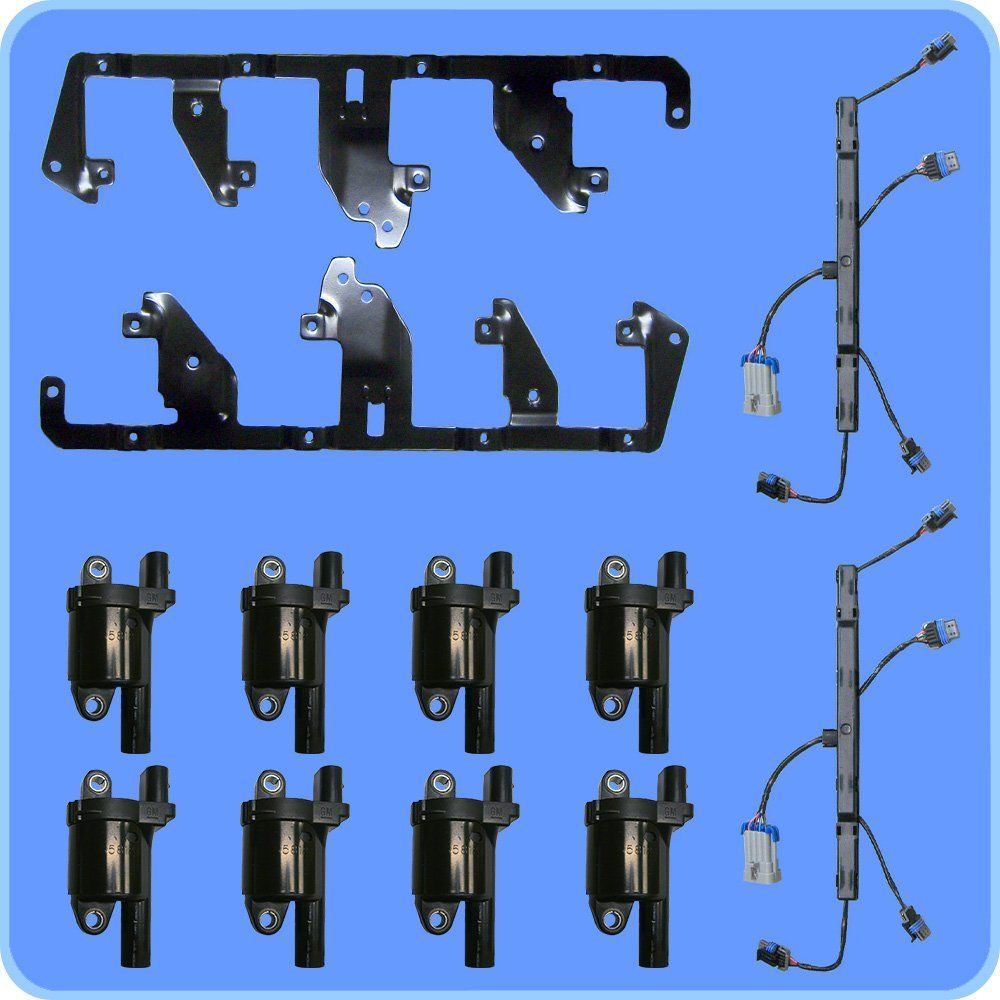

EO2k, these are the coils I need:

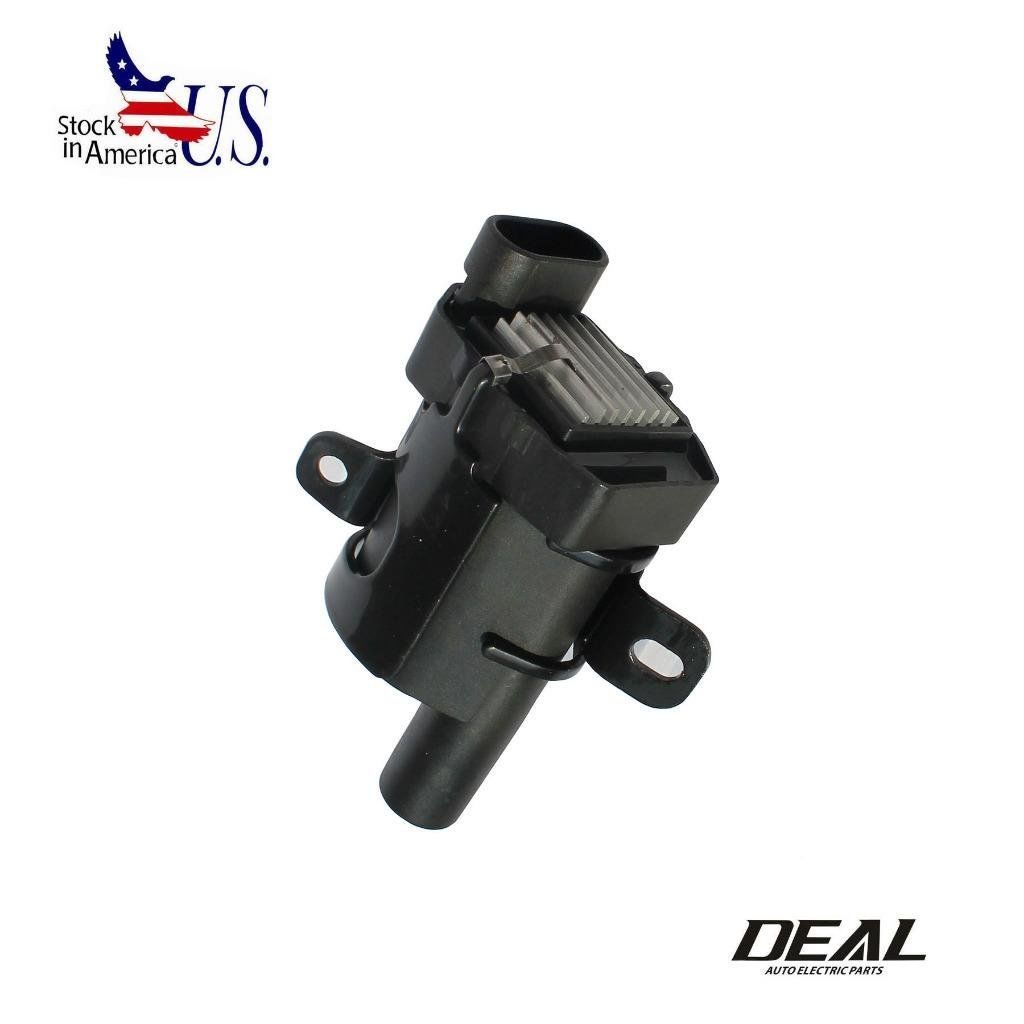

Aidan says these other kinds are more powerful, but they won't work with my singular brackets:


My dealer cost on the right type is $73. But there are sellers on Amazon selling 8 for $230... much better price.
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-80-coils_275ecaf3e3e158480507ae71c9c96d8dd2cf5063.jpg   Rebuild all the salvage Miatas! ASS!-80-wrong_coil_94bdb4b7d7005b74284897cdf2548a08ec87b2ca.jpg
turbofan is offline   Reply With Quote
Old 01-29-2016, 02:57 PM   #2555
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

Mine is pretty bad...control arms and bushings everywhere.

are the amazon ones genuine?
aidandj is offline   Reply With Quote
Old 01-29-2016, 02:59 PM   #2556
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

Yes, the amazon ones are genuine Delphi coils. This listing has a bunch of stuff I don't need, but I'm going to look a little more. Waiting to hear back from G about whether his coils fit, but I'm betting they don't work with my bracket.

Robot Check Robot Check
turbofan is offline   Reply With Quote
Old 01-29-2016, 03:01 PM   #2557
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

Well, this looks really good:
Robot Check Robot Check

except for this disclaimer in the listing:
Quote:
ACDelco partners with other manufacturers to supply the parts your car was originally built with. This product is in an ACDelco package, however the part may have been manufactured by an independent ACDelco supplier and could have a different color or shape than the product image above.
I feel like i'm on something of a wild goose chase. Do you guys really think the OEM coils are much more powerful than the Chinese ones? Hmmm....
turbofan is offline   Reply With Quote
Old 01-29-2016, 03:11 PM   #2558
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

I'm 90% sure i used dwell settings from codrus's scope measurements.
aidandj is offline   Reply With Quote
Old 01-29-2016, 03:16 PM   #2559
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

What if we turn up the dwell and see what happens? Not a big deal if we burn up some of these cheapy coils. I already have two spares...

Remember, I'm an ***, so that might be where this suggestion comes from.
turbofan is offline   Reply With Quote
Old 01-29-2016, 06:27 PM   #2560
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,957
Total Cats: 128
Default

Quote:
Originally Posted by turbofan View Post
What if we turn up the dwell and see what happens? Not a big deal if we burn up some of these cheapy coils. I already have two spares...

Remember, I'm an ***, so that might be where this suggestion comes from.
Dunno which coils it is, but some GM coils auto-discharge if they are dwell'd too long to protect the coil. This has the unpleasant affect of destroying your engine from very high advance.

I wouldn't try that if it were my motor.

IGN1A race coils are beast, and 68 dollars each. I'm running .034" gap at 30 PSI without any problem at 6ms dwell.
patsmx5 is offline   Reply With Quote
