Anyone know if the earlier BP oil pans are different than the NB ones?
turbofan is offline   Reply With Quote
Old 03-07-2015, 05:06 PM   #1582
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

This might help: 99 vs 01 short block differences
aidandj is offline   Reply With Quote
Old 03-07-2015, 05:08 PM   #1583
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

From what I read you either need 01+ oil pan and MBSP, or early oil pan without MBSP.

Basically this in reverse: 99 vs 01 short block differences
aidandj is offline   Reply With Quote
Old 03-07-2015, 05:09 PM   #1584
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

That does help a little, just knowing that the MBSP is different for '01+.

What Andrew said makes me wonder what's actually in my engine. I wonder if he dumped the MBSP? He said it won't clear ARP hardware without significant machining, and my engine should have ARP hardware.

Josh, what are the chances you can drop my pan and have a look at what's on there now? I'm gonna replace it, just need to know what to replace it with...
turbofan is offline   Reply With Quote
Old 03-07-2015, 05:17 PM   #1585
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Oh and this clears up that MSM pans have MBSP's too. The other thread only mentioned VVT/01+.

oil pan not fitting with MBSP?
aidandj is offline   Reply With Quote
Old 03-07-2015, 05:20 PM   #1586
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Wait isn't that the stock MSM return line port? Which means you have the MSM pan and MBSP?

If you get an older pan you just need to ditch the MBSP and you are good to go.
aidandj is offline   Reply With Quote
Old 03-07-2015, 05:38 PM   #1587
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,946
Total Cats: 212
Default

If you want a non mbsp pan, I have a couple spares that are taking up space.

IIRC the "machining" required to put ARP hardware on mbsp is just enlarging a few holes.

--Ian
codrus is offline   Reply With Quote
Old 03-07-2015, 06:09 PM   #1588
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

You need the baffle for whatever 1.8 pan you buy. Clearance get for main studs only requires 8 holes drilled and dremeled a little bit. It's a msm pan, so I'm assuming a msm/vvt mbsp. Keep that current mbsp, and find a 01+ oil pan, that's NOT from a msm. Then we can have a proper NPT bung welded up front, and have room for a drain line.
curly is offline   Reply With Quote
Old 03-07-2015, 06:17 PM   #1589
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

So maybe I should just get that eBay pan and then I can always re-sell the MBSP. Yes?
turbofan is offline   Reply With Quote
Old 03-07-2015, 06:38 PM   #1590
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

I thought the MBSP was useless. Or thats what the other thread said. So I guess cheapest option would be the cheapest 1.8 pan you can find. One that is already cleaned would save money.
aidandj is offline   Reply With Quote
Old 03-07-2015, 07:32 PM   #1591
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

pm me your addy and i'll get it out on monday, you can pay me later
I'll try to stuff it into usps flat rate box so its fast and cheap
18psi is offline   Reply With Quote
Old 03-07-2015, 09:49 PM   #1592
Senior Member
iTrader: (2)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 683
Total Cats: 27
Default

Main bearing support plate is usesless...
that's s good one lol
greddygalant is offline   Reply With Quote
Old 03-07-2015, 09:56 PM   #1593
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Quote:
Originally Posted by Savington View Post
Oil pan matches to MBSP, yes. Windage tray is part of the MBSP. Caps are the same. Pump pickup is the same.

MBSP is useless, BTW. Not strong enough to hold the motor together, and won't clear ARP studs without significant machining. You're better off just using a '99 pan/tray.
Quote:
Originally Posted by EO2K View Post
Thanks Andrew & Lars. I've not had a 01-05 MBSP in my hands so I wasn't sure. I was pretty damn sure it needed to match the pan though, thank you for confirming. I dug up some pics and it looks like the Mazda one is just a stamped piece of steel. When I think of an effective MBSP, I think of something like the domestic guys run:

Not my words.
aidandj is offline   Reply With Quote
Old 03-07-2015, 11:59 PM   #1594
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Lol quoting me You want me to take pics of both for you tomorrow?
EO2K is offline   Reply With Quote
Old 03-08-2015, 12:02 AM   #1595
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

pics of both of what? I just wants the oil pan and if he's got the MBSP then whatevs, I'll take that too. I just needs it. I don't care how dirty it is, the eBay one is dirty too.
turbofan is offline   Reply With Quote
Old 03-08-2015, 12:03 AM   #1596
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Different discussion, we were discussing the usefulness of the MBSP.
aidandj is offline   Reply With Quote
Old 03-08-2015, 02:39 PM   #1597
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 656
Total Cats: 28
Default

Let me know if you need help welding that NPT bung. I have a welder at the shop i can use after hours.
yank is offline   Reply With Quote
Old 03-08-2015, 10:26 PM   #1598
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Ben. You're awesome. I very well may need that bit of assistance. I'll let you know once I get the pan.
turbofan is offline   Reply With Quote
Old 03-12-2015, 10:28 PM   #1599
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Vlad sent me the timing cover. He is my favorite. Propped.

I haven't gotten G's package yet but I await the filthy contents of VVT oil line and a dirty pan from Gesso.

But wait, what's this?

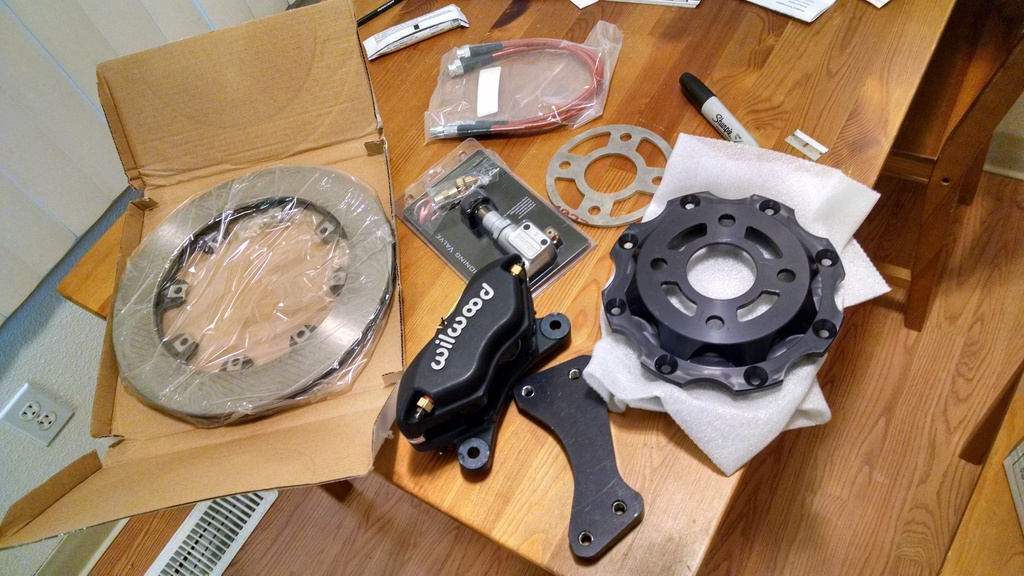

for what it's worth, I found another difference between 949's BBK and TSE's... I believe Andrew assembles the rotors to the hats with nifty safety wiring and such if I'm not mistaken. This kit from 949 does not include that work. Honestly if I had known that I would have probably paid the extra for the kit from TSE EXCEPT... due to my previous order I'm on club orange so the price difference would have been pretty huge.

Either way, I'm really excited to get all this stuff going. Bought a work bench and vise so I have a place to work while doing the bushings. I hope to start on those this weekend. Hope. Still feeling overwhelmed, but I'm not going to give up, and due to the addition of the S2k I'm not in a huge rush on the Miata because I'll have something really fun to drive in the meantime.

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-img_20150311_183334973_hdr.jpg   Rebuild all the salvage Miatas! ASS!-img_20150311_183400619_hdr.jpg   Rebuild all the salvage Miatas! ASS!-img_20150311_183419998_hdr.jpg   Rebuild all the salvage Miatas! ASS!-img_20150311_183942976_hdr.jpg
turbofan is offline   Reply With Quote
Old 03-12-2015, 11:09 PM   #1600
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Baller as ****! Jealous dude.
