Old 06-10-2013, 12:49 PM   #241
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Leafy View Post

And the MSM uses the s2000 spline in the diff. And they're also the only miata axle that you can buy new rather than getting used or rebuilt. All other miata axles, even from mazda are rebuilt units.
So you need those fancy rear hubs to fit the spline to have better axles?
Impuls is offline   Reply With Quote
Old 06-10-2013, 12:56 PM   #242
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,604
Total Cats: 91
Default

Quote:
Originally Posted by Impuls View Post
So you need those fancy rear hubs to fit the spline to have better axles?
What fancy rear hubs? According to mazda the msm and the normal miata use the same rear hub.
Leafy is offline   Reply With Quote
Old 06-10-2013, 01:38 PM   #243
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Leafy View Post

What fancy rear hubs? According to mazda the msm and the normal miata use the same rear hub.
OHHHH s2000 spline to the diff, my bad.
But I was talking about these:
RX7/S2000 spline hubs.
http://www.miataroadster.com/miataro.../i-581084.aspx

Mainly I hear our axles are incredibly weak.
Impuls is offline   Reply With Quote
Old 06-10-2013, 02:48 PM   #244
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Those hubs are interesting!
soviet is offline   Reply With Quote
Old 06-10-2013, 02:51 PM   #245
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,604
Total Cats: 91
Default

Those are interesting. But what axles is the question. If you put an MSM/S2k Giken or torsen in a miata case, and use those hubs, can you just use s2k axles? Or do you call drive shaft shop and tell them you want s2k axles in a different length?
Leafy is offline   Reply With Quote
Old 06-10-2013, 03:19 PM   #246
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Leafy View Post
Those are interesting. But what axles is the question. If you put an MSM/S2k Giken or torsen in a miata case, and use those hubs, can you just use s2k axles? Or do you call drive shaft shop and tell them you want s2k axles in a different length?
The rx7/s2000's use a beefier shaft/28spline I go believe. Yes, different length, exactly what I planned on doing. The last thing I want on my car to go is something I need to move/baby it home. I've heard our stock axles braking with stock power.

Taken from: Solomiata : Drivetrain : Interchange

differential shaft diameters and splines:
7" small axle = 25mm x 24 spline (808, RX-3, 79-83 RX-7)
7" large axle = 27mm x 26 spline
7" S2000 = 29mm x 28 spline
7.5" small axle = 27mm x 26 spline '84-03 B2000/B2200 & early 95-97 Sportage
7.5" large axle = 29mm x 28 spline ('98-05 Sportage)
8" = 31mm x 30 spline. TT/TII/929
Impuls is offline   Reply With Quote
Old 06-10-2013, 03:23 PM   #247
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,604
Total Cats: 91
Default

The only cars I've personally seen break axles have been cars on 275 hoosiers with bolt on+tune power, and we determined they were breaking them because they were too low. Raised the ride height up on one of them and it hasn't broken an axle yet after ~20 drag launches at this point.
Leafy is offline   Reply With Quote
Old 06-10-2013, 03:24 PM   #248
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,153
Total Cats: 1,990
Default

meh like Bryan was saying in his thread I'd rather keep stock axles and replace one every once in a blue moon then worry about exploding the 6sp or torsen or clutch.

Gotta keep the weakest link the least expensive.
Or just build EVERYTHING (which is not cheap to say the least)
18psi is offline   Reply With Quote
Old 06-10-2013, 03:45 PM   #249
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,604
Total Cats: 91
Default

Quote:
Originally Posted by 18psi View Post
meh like Bryan was saying in his thread I'd rather keep stock axles and replace one every once in a blue moon then worry about exploding the 6sp or torsen or clutch.

Gotta keep the weakest link the least expensive.
Or just build EVERYTHING (which is not cheap to say the least)
I dont even really think its the cost. The option for a stronger diff that goes in easy, the RX7TII with 929 front and fab'ed PPF mount, doesnt have good ratio options. The 7.5" or 8.8" dont really have very good LSD options, there's torsens, "clutch types", and lockers but no salsibury diffs, and take a bit more fabrication to put in, but are dirt *** cheap. Or the speedway quickchange diffs are expensive and require the same fab work as the ford diffs but have even more ratio options and good LSD selection.

Trannys, theres the TII with a bell housing adapter and PPF adapter. which I'm still not 100% I like the ratios or confident that its significantly stronger than the 6 speed. The T5Z with BEGI's new bell housing and shifter and PPF adapter thats about to come out, which sounds like the best option on paper if you can get the right rear end ratio behind it, or custom gear ratios, assuming the BEGI parts fit. Or the SFI bell housing adapter that gets you adapted to any circle track or drag tranny you could hope for that have near infinite gear ratio choices and can be had to support 800hp for under 3k with custom ratios, downside is 4 speed, 4th gear is 1:1, or using a TKO500 but it comes with the same problems as the T5Z.
Leafy is offline   Reply With Quote
Old 06-10-2013, 04:05 PM   #250
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Leafy View Post

I dont even really think its the cost. The option for a stronger diff that goes in easy, the RX7TII with 929 front and fab'ed PPF mount, doesnt have good ratio options. The 7.5" or 8.8" dont really have very good LSD options, there's torsens, "clutch types", and lockers but no salsibury diffs, and take a bit more fabrication to put in, but are dirt *** cheap. Or the speedway quickchange diffs are expensive and require the same fab work as the ford diffs but have even more ratio options and good LSD selection.

Trannys, theres the TII with a bell housing adapter and PPF adapter. which I'm still not 100% I like the ratios or confident that its significantly stronger than the 6 speed. The T5Z with BEGI's new bell housing and shifter and PPF adapter thats about to come out, which sounds like the best option on paper if you can get the right rear end ratio behind it, or custom gear ratios, assuming the BEGI parts fit. Or the SFI bell housing adapter that gets you adapted to any circle track or drag tranny you could hope for that have near infinite gear ratio choices and can be had to support 800hp for under 3k with custom ratios, downside is 4 speed, 4th gear is 1:1, or using a TKO500 but it comes with the same problems as the T5Z.
I like the idea of T5Z
Specs and discussion I found: http://www.ffcars.com/forums/66-2006...nsmission.html
So begi is making to where we can use this trans with stock rear? The 330 ft/lbs rating is nice scine its made for v8 torque it's made to handle it all at once not the inset of boost. I like having 6 speeds if it was anywhere near being good for a "cruising gear" but nope not with my rear diff.
I've been thinking about the rx7 rear to it seems to be strong anyone have numbers they can throw out of how much they can handle?
Sorry ryan I seemed to of jacked your thread for diffs :P
Impuls is offline   Reply With Quote
Old 06-10-2013, 06:14 PM   #251
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,669
Total Cats: 83
Default

That is some really good MPH you have there, enough to put you in the mid elevens if you can get the car to work better in the first 60'.

What are the dimensions of the Hoosiers you have in the pic?
miata2fast is offline   Reply With Quote
Old 06-10-2013, 08:01 PM   #252
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Quote:
Originally Posted by Impuls View Post
Sorry ryan I seemed to of jacked your thread for diffs :P
No worries, it's all good info to have.

Troy, they are 880 Racing Hoosier 26.5/8.0-15 "Roadster Edition." They are the tires we use on our race cars, so I have quite a few spares and old good used ones that work good for doing stuff like this
RyanRaduechel is offline   Reply With Quote
Old 06-10-2013, 08:22 PM   #253
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Coils shipped today Ryan, should get them in a few days so you should be getting them early next week!
FowlerMotorsports is offline   Reply With Quote
Old 06-25-2013, 12:24 PM   #254
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

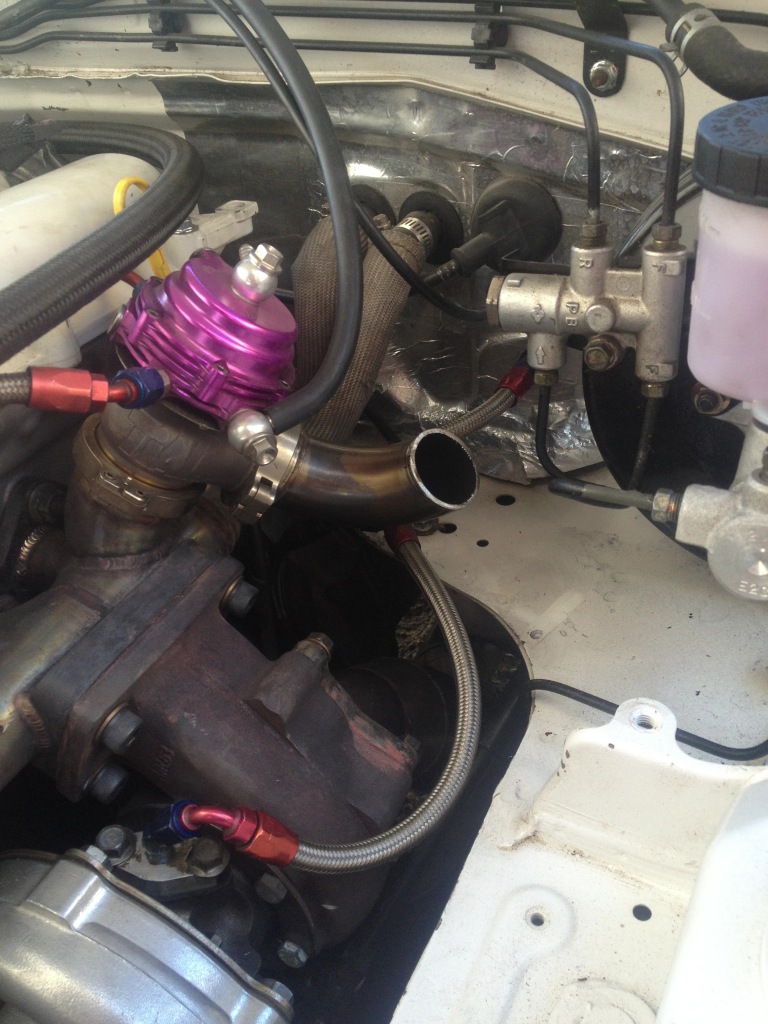

No real updates, I have scheduled a dyno session for the 8th of July. I want to see what it is putting down currently before buying my new Borg Warner. After the drag strip I had a terrible noise around 2500-3200 RPM, I swore it was the turbo. So I rebuilt the turbo, the thrust bearing was completely smoked and black. So I thought that was the issue, well it wasn't. Rebuilt it again using a different CHRA, same thing. Well after looking and looking and looking I found the tab for the dump tube broke, causing it to vibrate on the downpipe which traveled up to the turbo.

TL;DR Had noise, found noise, fixed it.

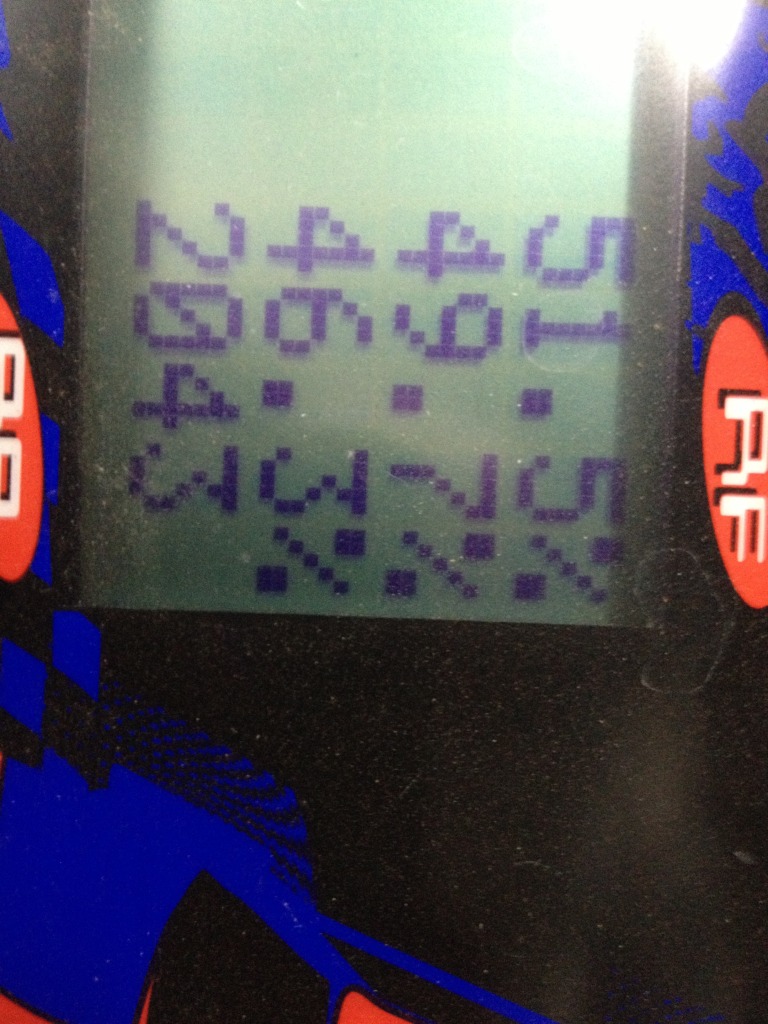

As the car sits with a half tank of gas in it.
Attached Thumbnails
Ryan's turbo build-null_zps5aa638d1.jpg   Ryan's turbo build-null_zps11c5c409.jpg   Ryan's turbo build-null_zpsfa8b7365.jpg
RyanRaduechel is offline   Reply With Quote
Old 06-25-2013, 12:28 PM   #255
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,150
Total Cats: 1,402
Default

Correction:

tl;dr: Had noise, replaced a bunch of non-related things, replaced them again, found noise, fixed it.
Braineack is online now   Reply With Quote
Old 06-25-2013, 12:38 PM   #256
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,153
Total Cats: 1,990
Default

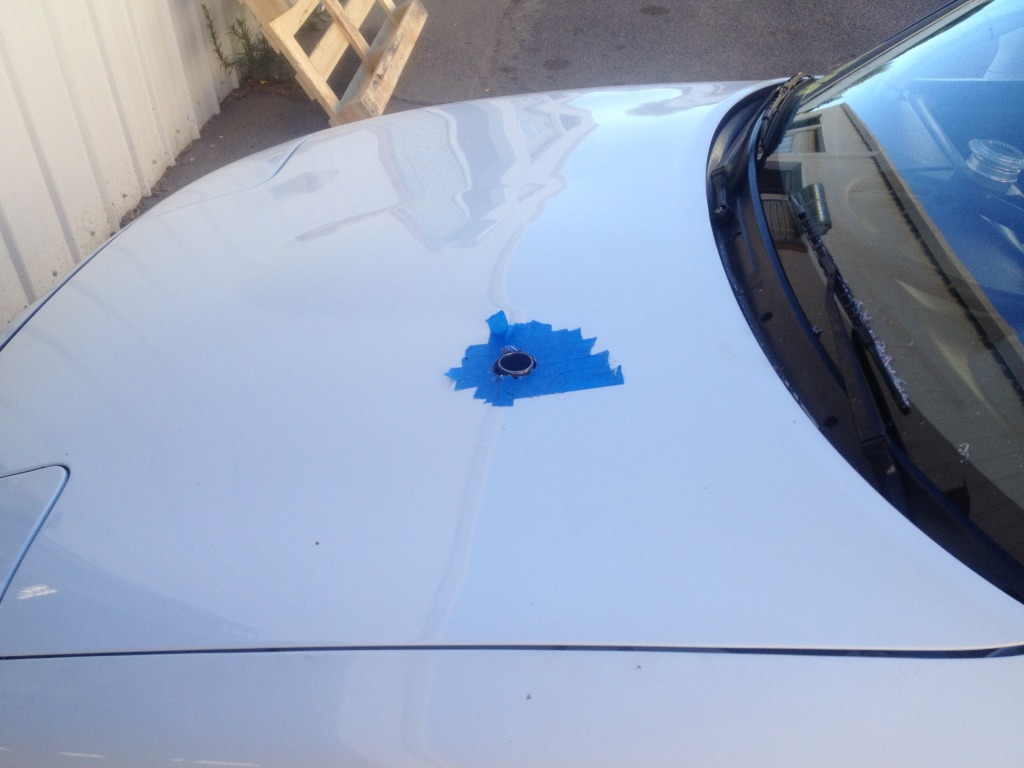

did you make a smoke stack through the hood?

18psi is offline   Reply With Quote
Old 06-25-2013, 12:49 PM   #257
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Shooting flames out your hood now huh
Impuls is offline   Reply With Quote
Old 06-25-2013, 01:44 PM   #258
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

LOL, awesome.
Fireindc is offline   Reply With Quote
Old 07-08-2013, 02:58 PM   #259
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,153
Total Cats: 1,990
Default

Post up the dyno plot Ryan
18psi is offline   Reply With Quote
Old 07-08-2013, 02:59 PM   #260
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

This sounds good...
FowlerMotorsports is offline   Reply With Quote
