Old 07-27-2015, 08:13 PM   #481
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

Quote:
Originally Posted by hi_im_sean View Post
Now that you mention it, i think youve told me that before.

The most challenging stuff ive worked with was 304, maybe it was 316... Im not experienced so it was difficult to say the least. Ive heard what a bitch the nickel super alloys can be even compared to 304. I was happy to find 750x as it is supposed to one of the easiest to machine among the inconels.


I did some reasearch and found this wonderful publication. Look at the "work hardening graph" on page one. youll see how 750 approximates 304SS.
http://www.specialmetals.com/assets/smw_docs/Mach.pdf

Another benefit is, the linear CTE of 750 is almost identical to 1018.

X-750 Data Sheet

And heres a decent article on thermal creep.
Creep and Creep Failures
304 is a bugger, it's not as free machining as 303 so it likes to gum up cutters so chip evacuation is pretty important. You can't piddle around milling it either, as it and the chips will harden up and start destroying cutters. Weldments are usually 304, those big *** chicken winging machines I built were all 304. Lots of full depth slot and hole milling, sucked bad..

Failure of a HSS roughing mill is pretty spectacular, it starts smoking a bit more, then a little more, then it's on fire melted on the table after a loud bang. Don't bother trying to save that part, hehe, the heat it made beforehand means you'll cook some cutters trying to get back where you were! 316 and 304 are pretty similar in that regard.

I really liked turning monel 400, it's got a beautiful metallic finish when you get it going right. K500 has to be annealed and once we figured that process out it wasn't all that bad. More than anything you just need to make proper sized chips with the right spindle speed which keeps heat on the tool and workpiece down, really the same process for any material when it comes down to it.

I doubt you'd have a problem turning some yourself if you had to
deezums is offline   Reply With Quote
Old 07-27-2015, 08:54 PM   #482
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,813
Total Cats: 92
Default

416 is the **** if you need to machine stainless steel, 1146 is the **** if you want to machine non-stainless steel. **** a whole bunch of welding either of them.
Leafy is offline   Reply With Quote
Old 07-28-2015, 05:51 AM   #483
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

Have you got a copy of the dimensions on that water inlet adapter to share, Sean? I need to replace my coolant lines and should probably ditch the two piece crap.
deezums is offline   Reply With Quote
Old 07-28-2015, 09:45 AM   #484
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

I pretty much winged both of those. I measured the bolt hole center to center, and the flange width and knocked them out without writing anything down.

But,

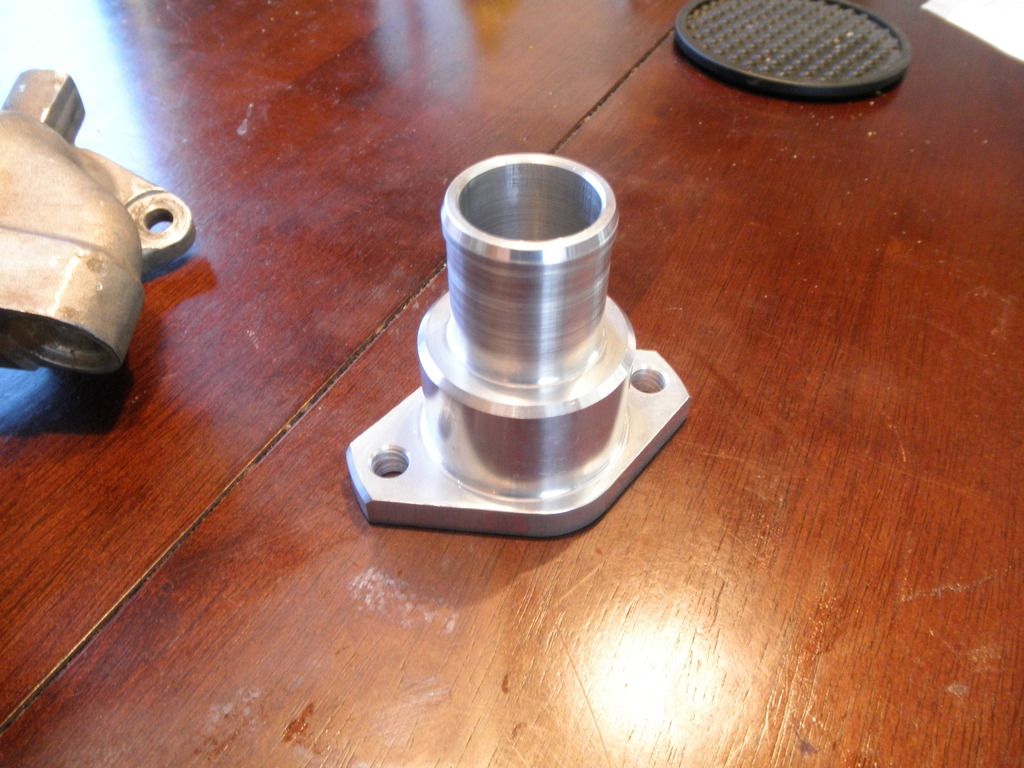

I have this one for sale if you want it, or id be glad to get whatever measurements you want off of it.




I have a 1/8npt to 8mm 90 degree barb and a 3/8NPT to 5/8 straight barb to go with it. holes not drilled yet so you can choose where the fitting point.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-p6250061_zpsjwg1jd12_e07861f2b0af1a623b6606a88ba305d68fe9caab.jpg
hi_im_sean is online now   Reply With Quote
Old 07-28-2015, 10:21 AM   #485
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

You guys and all you're big machines. Jealous.
hornetball is offline   Reply With Quote
Old 07-28-2015, 10:23 AM   #486
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

Quote:
Originally Posted by hornetball View Post
You guys and all you're big machines. Jealous.
I bought my first house in 2010. If you recall, first time home buyers got a check for $8k. I bought a mill and a lathe.

Thanks Obama!
hi_im_sean is online now   Reply With Quote
Old 07-28-2015, 10:54 AM   #487
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,072
Total Cats: 1,164
Default

Quote:
Originally Posted by hi_im_sean View Post
Also whats the consensus on wrapping the DP.
It is good.
Quote:
Originally Posted by aidandj View Post
I thought the wrapping held the heat in and caused corrosion
If you live in a place with salty roads it can retain corrosives. Otherwise it is no issue.
Quote:
Originally Posted by 18psi View Post
I've wrapped stuff here with excellent results, because CA.
...personally tho I like heat shielding
I have it wrapped and shielded. It preserves components better than one or the other alone. Protect your transmission all you can. And your brakes. And your hoses.

And it keeps heat out of the car.
sixshooter is online now   Reply With Quote
Old 07-28-2015, 10:56 AM   #488
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

Quote:
Originally Posted by hi_im_sean View Post
I bought my first house in 2010. If you recall, first time home buyers got a check for $8k. I bought a mill and a lathe.

Thanks Obama!
Clearly you have your priorities straight
Kudos
Quote:
Originally Posted by sixshooter View Post
I have it wrapped and shielded. It preserves components better than one or the other alone. Protect your transmission all you can. And your brakes. And your hoses.
abso-lutely.
you should see the engine bay of my thubawu
18psi is offline   Reply With Quote
Old 07-28-2015, 11:28 AM   #489
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

See what i mean about the back and forth

Is there any issue with just wrapping the main pipe and leaving the WG tube alone?
hi_im_sean is online now   Reply With Quote
Old 07-28-2015, 11:30 AM   #490
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

there's no back and forth. me and shooter agree that both are best
18psi is offline   Reply With Quote
Old 07-28-2015, 11:32 AM   #491
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,859
Total Cats: 1,089
Default

<p>Even on a mild steel downpipe?</p>
aidandj is offline   Reply With Quote
Old 07-28-2015, 11:33 AM   #492
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

I meant me.
hi_im_sean is online now   Reply With Quote
Old 07-28-2015, 11:34 AM   #493
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

Quote:
Originally Posted by aidandj View Post
<p>Even on a mild steel downpipe?</p>
This was my concern.

Is there something offered in a rattle can that I could coat the DP with before I wrap it that will actually hold up? Like that ceramic paint good to 1200F? Its expensive for a rattle can, but I think one can would do.
hi_im_sean is online now   Reply With Quote
Old 07-28-2015, 11:42 AM   #494
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

VHT will kinda sorta hold up for a bit.

I don't think it's nearly as big of an issue for you since you said you never drive in the rain, or even have the car outside
18psi is offline   Reply With Quote
Old 07-28-2015, 11:42 AM   #495
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

hi_im_sean is online now   Reply With Quote
Old 07-28-2015, 11:43 AM   #496
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,859
Total Cats: 1,089
Default

<p>
Quote:
Originally Posted by 18psi View Post
VHT will kinda sorta hold up for a bit. I don't think it's nearly as big of an issue for you since you said you never drive in the rain
</p><p>That's putting it nicely about VHT.</p>
aidandj is offline   Reply With Quote
Old 07-28-2015, 11:43 AM   #497
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

Quote:
Originally Posted by 18psi View Post
VHT will kinda sorta hold up for a bit.

I don't think it's nearly as big of an issue for you since you said you never drive in the rain, or even have the car outside

I have some of this in the garage for some reason. 2000F my ***. I dont believe you VHT.
http://www.summitracing.com/parts/vht-sp106/overview/
hi_im_sean is online now   Reply With Quote
Old 07-28-2015, 11:55 AM   #498
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

I like how KBS publishes empirical data instead of just marketing BS. I thought POR15 used to, not sure what happened. I want to see a continuous heat rating. Not "trust us, its good to 2000F!".

Click the "Tech Data" tab.
https://www.kbs-coatings.com/XTC.html

Its also interesting that the KBS is silicone based, not ceramic or whatever.
hi_im_sean is online now   Reply With Quote
Old 07-28-2015, 01:47 PM   #499
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,072
Total Cats: 1,164
Default sean's cheap thrills, 90 1.6 with subaru td04

Quote:
Originally Posted by aidandj View Post
<p>Even on a mild steel downpipe?</p>
Mine is mild steel. I used the cold galvanizing paint on my cast manifold and it doesn't fail and protects it from rust. That stuff would work great on the dp, thanks for the idea. If i ever need to rewrap it I will spray it with that, but mine is three years old and is just fine under the wrap (I accidentally cut the wrap in one spot recently ).
sixshooter is online now   Reply With Quote
Old 07-28-2015, 02:35 PM   #500
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

Quote:
Originally Posted by sixshooter View Post
Mine is mild steel. I used the cold galvanizing paint on my cast manifold and it doesn't fail and protects it from rust. That stuff would work great on the dp, thanks for the idea. If i ever need to rewrap it I will spray it with that, but mine is three years old and is just fine under the wrap (I accidentally cut the wrap in one spot recently ).
Which brand of cold galvi?
hi_im_sean is online now   Reply With Quote
