Old 07-17-2014, 06:45 PM   #101
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

Quote:
Originally Posted by curly View Post
Relief cuts yes!

I had massive warping issues. If you're worried about flange thickness, definitely cut it, or you'll be milling it every month down to nothing.

After cutting between 1&2 and 3&4, I've had no issues.
i only ask because i have found so much conflicting info. some say absolutely no need with a log, some say it cant hurt. long runners and cast stuff, it seems mandatory.

at this point i figure it cant hurt if i do, but if i dont we know what can happen. my latest concern was, do i do all 3 cuts, or just 1 cut between 2 and 3, or 2 cuts between 1 and 2 and 3 and 4 like you suggest. the latter seem most appropriate and popular.



regarding whether to mill flat before or after the relief cuts are made:

if i relive first, then mill flat i run the risk of different flange thicknesses at each port. this becomes a problem on the nuts that will bridge across 2 different port flanges.

if i mill flat first then relieve, then i maintain the stresses perpendicular to the flange mating surface, which really shouldnt be that big of a deal (my assumption anyway). the nuts shoudl pull eberything in line against the head with little problem.

this is of course assuming there are any significant stresses in that direction.

so i think mill first, relief cuts last.
hi_im_sean is offline   Reply With Quote
Old 07-17-2014, 06:49 PM   #102
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,686
Total Cats: 93
Default

With a log I most certainly would. Most of the growth with heat on a log manifold is along the length of the flange, and its going to grow at a different rather than the flange. which is where the warpage comes from. My tubular has way less growth in that direction, it actually moves the towards and away from the block instead. Trust me, I nearly melted my work computer running the simulations.
Leafy is offline   Reply With Quote
Old 07-17-2014, 11:49 PM   #103
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

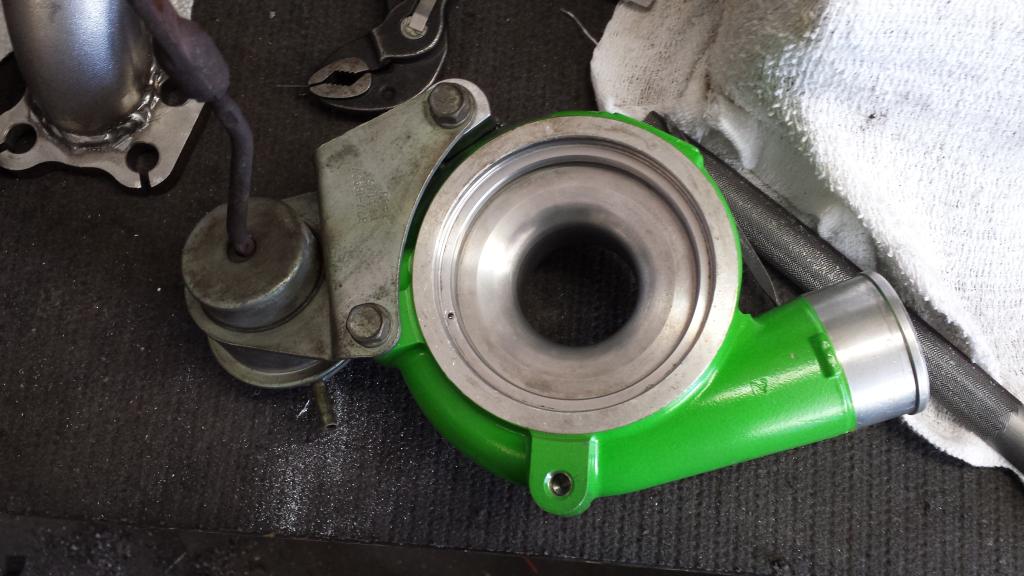

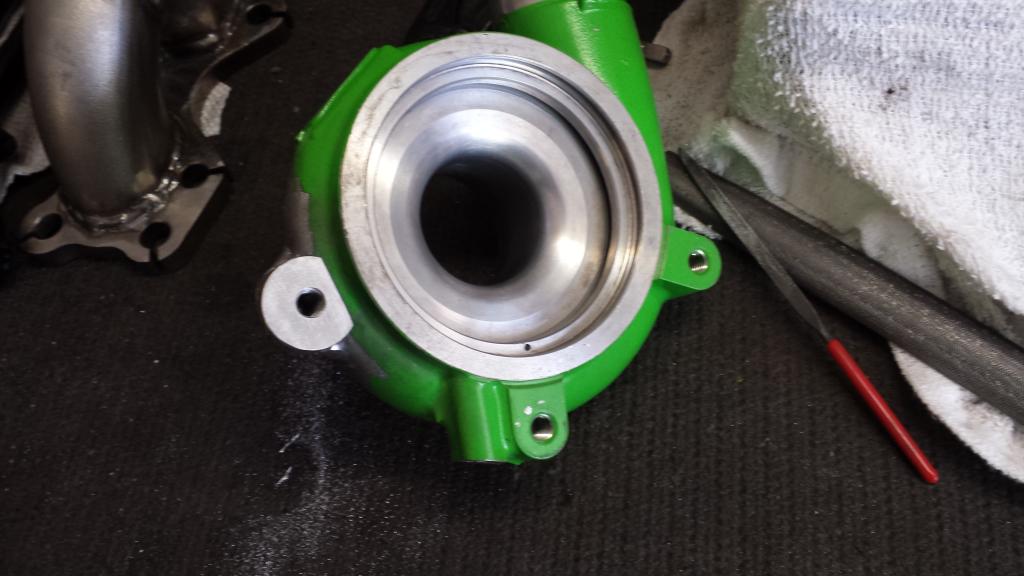

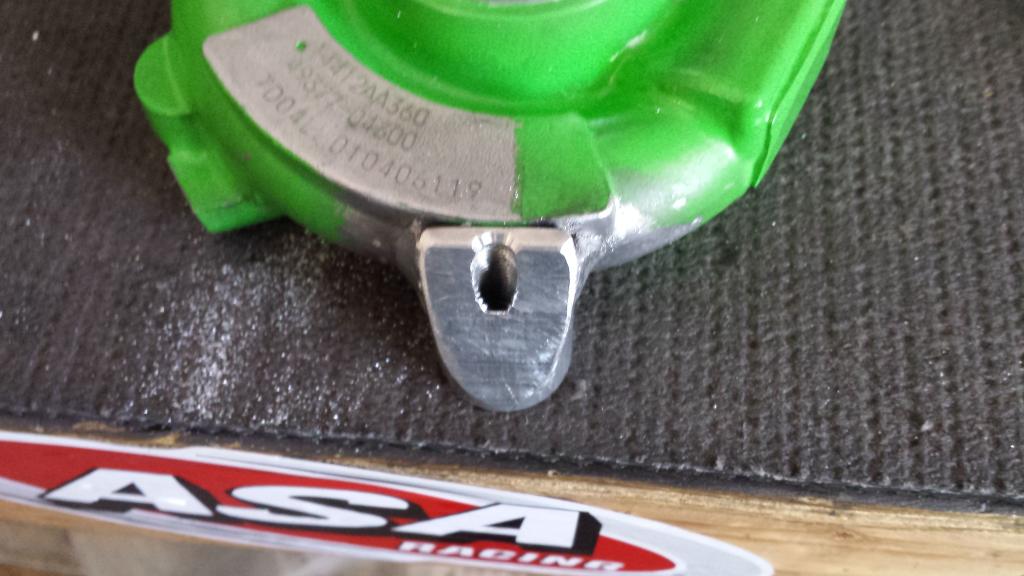

i borrowed and aluminum mig setup and welded a boss on the compressor housing to reclock the actuator

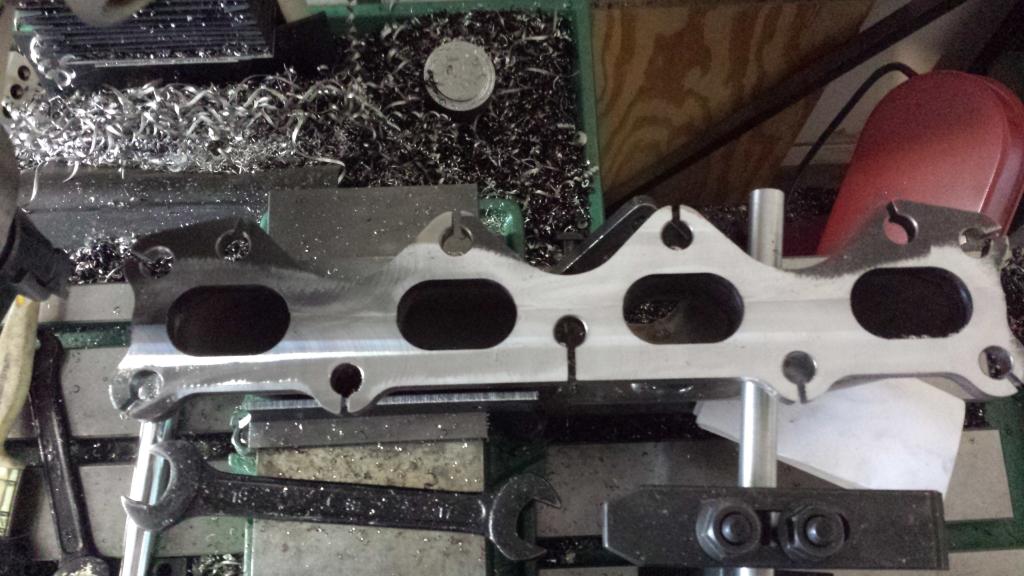

i milled the exhaust mani flat

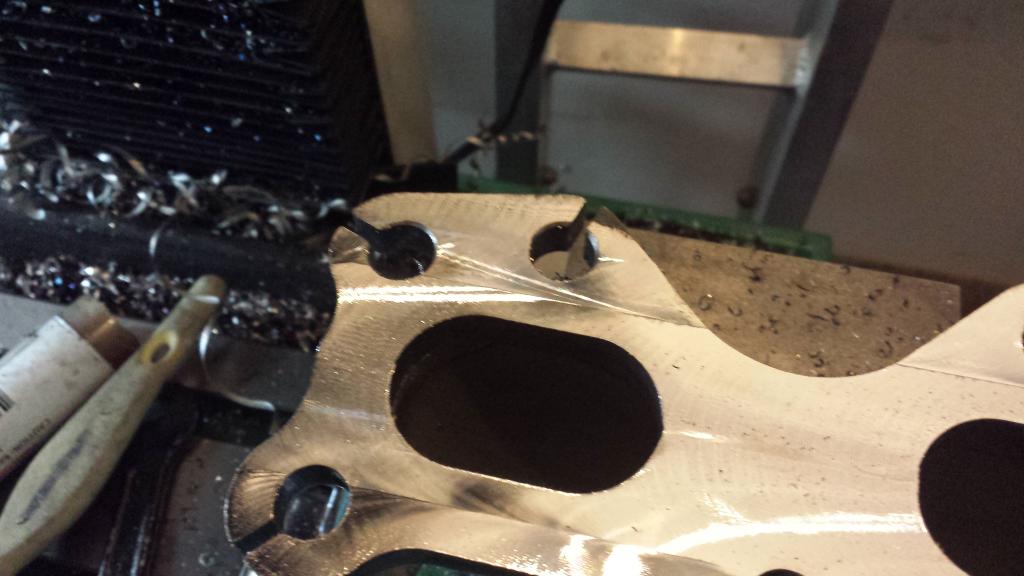

i zeroed out between 2 and 3 and it took this cut. the area above the port is from filing.


+0.005


+0.0065 and that little corner of the bolt hole above the port is the only thing that is low with some mill scale sill left. done




so it was warped by roughly 0.0115"

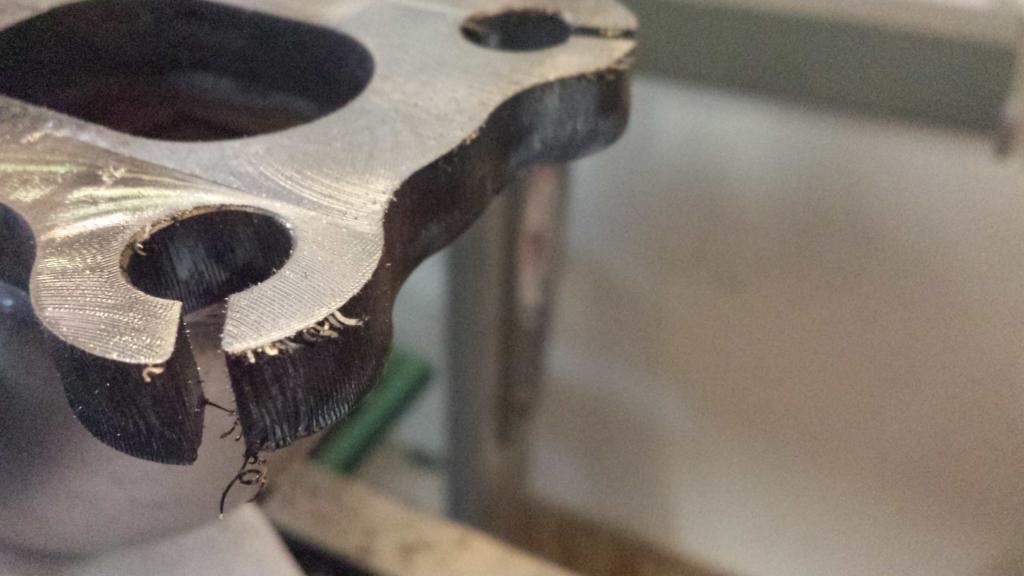

and here is an artsy whatever closeup picture


and here is my ridiculous setup



just need to do relief cuts and deburr
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20140717_154414_zpsdad60akm.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140717_154431_zps3o9jrorn.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140717_154522_zps4a62bhim.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140717_171752_zps4frtcqsq.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140717_190551_zps78paw4bw.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20140717_190546_zpszpqkhm9o.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140717_190624_zps06s7whe5.jpg
hi_im_sean is offline   Reply With Quote
Old 07-19-2014, 12:47 AM   #104
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
fwiw, if you're jumping the fuel pump in the AFM connector going to 2P, you dont need to pull the st_sign fuse.
Did you mean 2O? I haven't had a chance to work on my MS1 since I updated the firmware but last I recall I could hear my fuel pump turn on every time and I'm wired to 2O like you told me.

Sean, I'm loving your fab skills!
RayinNorCal is offline   Reply With Quote
Old 07-19-2014, 01:41 AM   #105
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

Thanks ray.

You could use either 2O or P as they are both spare wires once you remove the afm. Its just a matter of which pins to jump at the afm. I used O for the iat sensor.
hi_im_sean is offline   Reply With Quote
Old 07-19-2014, 03:28 AM   #106
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

ah, I see. Ours is just reversed one from another, and either way the st_sign fuse doesn't need to be pulled. I didn't know that before. I'm so lazy...need to read more.
RayinNorCal is offline   Reply With Quote
Old 07-26-2014, 06:16 PM   #107
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

Quote:
Originally Posted by RayinNorCal View Post
ah, I see. Ours is just reversed one from another, and either way the st_sign fuse doesn't need to be pulled. I didn't know that before. I'm so lazy...need to read more.
i researched the fukin **** out of this stuff, and that was never mentioned once. meh

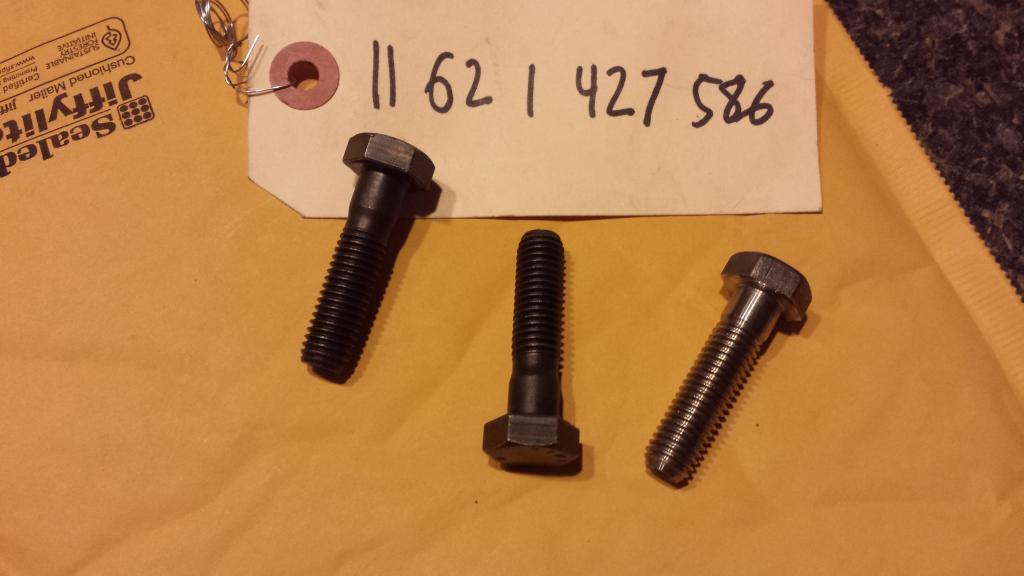

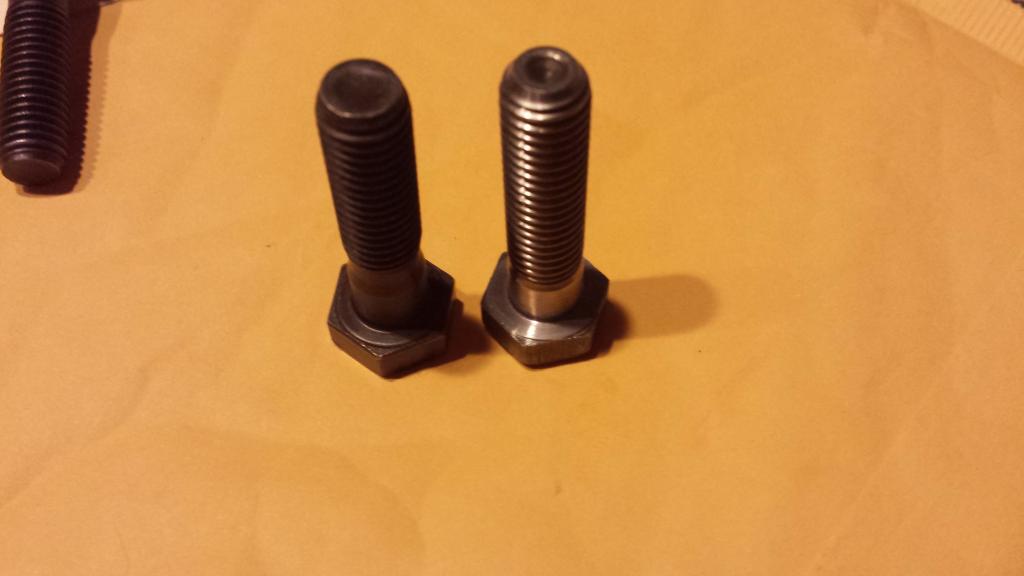

so the internet rumor is that BMW pt no 11-62-1-427-586 is an inconel m10-1.50x40mm. they retail for around $30, but i find em as low as $15. i ordered 2 from one ebay seller and 1 from another. this is what they look like.









2 are black oxide and one looks to be raw, and was clearly machined on a lathe. you can even see where it was mounted on a live center. the threads were rolled on all 3 of them as far as i can tell by the surface finish.

they are certainly m10-1.50x40, the only question is are they really inconel? the machined one is consistent with what ive seen in the aftermarket for inconel hardware. the oxide one would be consistent with other known oem inconel fasteners like the nissans.
i read that inconel should spark test a very dull red with fine particles. i was thinking about trying it, but i dont do sparks tests and i dont know that i could distinguish it between anything else. i guess ill run em and see what happens when turbo gets installed.

are helicoils in the manifold side turbo flange a bad idea, anyone have track use with a helicoil?

on a side note, i made a foot switch starter for cranking the engine from the front of the car when im alone.

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20140724_192548_zpsmll0fheb.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140724_192619_zpss6iigl0c.jpg
hi_im_sean is offline   Reply With Quote
Old 07-27-2014, 10:22 AM   #108
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

If you sent me one I could tell you exactly what the chemistry was, ie exactly what grade it is. It would be a destructive test though
Efini~FC3S is offline   Reply With Quote
Old 07-27-2014, 11:05 AM   #109
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

Quote:
Originally Posted by Efini~FC3S View Post
If you sent me one I could tell you exactly what the chemistry was, ie exactly what grade it is. It would be a destructive test though
that would be fugin awesome; and if it turns out to be inconel, very beneficial to the forum. they are all a little long for my use so i can cut some of the ends off. ill send you one of each (natural and oxide). i assume a piece as long as the diameter should suffice? what process are you using out of shear curiosity.

will PM for address. thanks!
hi_im_sean is offline   Reply With Quote
Old 07-27-2014, 11:43 AM   #110
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Optical Emission Spectography most likely. Maybe wet chemistries but that's a bit over the top for this purpose.

The cut pieces you described should be sufficient.
Efini~FC3S is offline   Reply With Quote
Old 07-27-2014, 03:03 PM   #111
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

Quote:
Originally Posted by Braineack View Post
when i fubared one of my toyota cops, that's what was happening. basically the single coil was holding the signal to ground so I lost my tach.

It should pulse from 12v to ground when working properly. the 1K resistor you add is providing the pull-up to 12v that you remove when you pull out the stock ECU (b/w 2I) that normally connects to the y/b wire on the ignitor, which goes to the diagnostics box and dash tach.

with jusy key on, you should see 12v on that signal, then see it pulse to ground as teh coils fire. the signal is converted, based on the rate of 4 pulses, to move your tachometer.


so back to this.

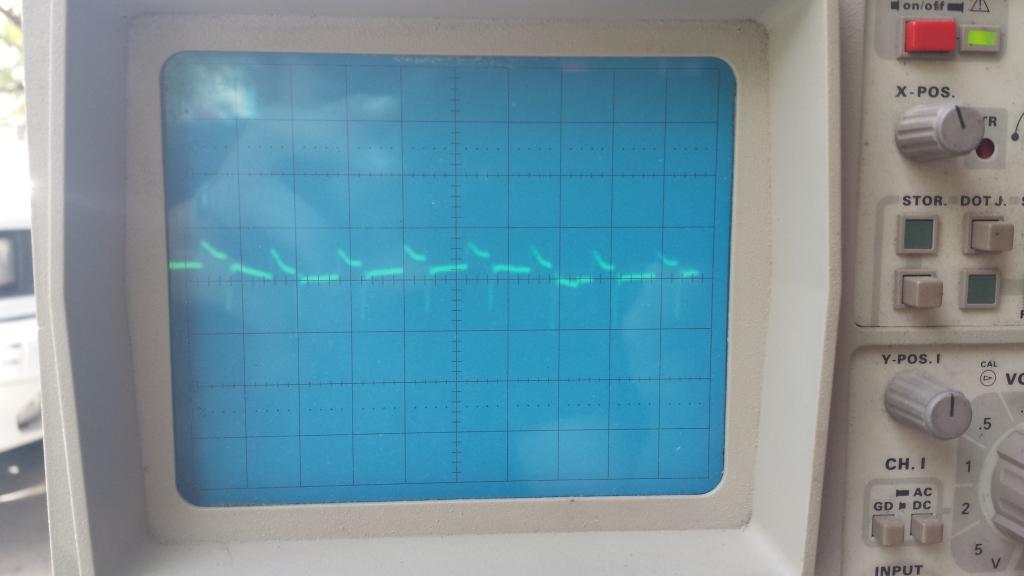

this is probing the yel/blu wire at the ignition connector, probe grounded to chassis
the wave looks like ****, and was fluctuating in waveform and what appeared to be a small fluctuating dc offset. no pulse width or frequency change with rpm.

about 0.9V P-P(and i mean from the very bottom of that nasty spike, not the actual square). i dont recall whether time was on 1 or 2 milliseconds/div, maybe it was microseconds lol. i dont see why it matters when it doesnt change with rpm.
these were all taken about 1/2 second apart








Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20140727_090639_zpsmlhginl8.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140727_090637_zpsdckzsajw.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140727_090635_zpsgomc1qag.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140727_090634_zpsbqcemczk.jpg
hi_im_sean is offline   Reply With Quote
Old 07-27-2014, 10:13 PM   #112
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,686
Total Cats: 93
Default

Why did you need bolts? You could have gotten that sizeish inconel stud from mazda for the FD RX7 turbo to manifold studs. Those are M10 studs, I forget the length.
Leafy is offline   Reply With Quote
Old 07-27-2014, 10:47 PM   #113
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

I was not aware of that. Im was curious if I could heli coil the manifold because I already drilled for m10 bolts, and if the bmws didn't work out, I was going to go with tse studs or maybe try the m8 nissan bolts. I don't see why heli coils wont work but everybody seems to have the opinion they won't.

I found a thread where one of the moderators mentions that he runs a heli coil with out issues in a cast mani.

I would prefer bolts for a number reasons and the Subaru flange allows for them. But if things don't work out, those would a good alternative. Is anyone using them on the track with success to verify?
hi_im_sean is offline   Reply With Quote
Old 07-27-2014, 10:52 PM   #114
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,686
Total Cats: 93
Default

No I dont know of any miata running them at the track. But they seem fine with the 15billion F EGTs of the rotaries. Why would you ever choose bolts when studs are an option? Thats like choosing to buy a 1.6 when there's a 1.8 for sale right next to it for the same price.
Leafy is offline   Reply With Quote
Old 07-27-2014, 11:22 PM   #115
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

Quote:
Originally Posted by Leafy View Post
No I dont know of any miata running them at the track. But they seem fine with the 15billion F EGTs of the rotaries. Why would you ever choose bolts when studs are an option? Thats like choosing to buy a 1.6 when there's a 1.8 for sale right next to it for the same price.
no need for locking compound, easier removal, if something seizes just cut it off. and please correct me if im wrong but im lead to believe a bolted joint is stronger than a studded joint? especially in a cyclically loaded fastener.
hi_im_sean is offline   Reply With Quote
Old 08-07-2014, 11:43 PM   #116
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

many thanks to Efini~FC3S for material testing these bolts, we now have conclusive evidence that the bimmer crowd is full of ****. BMW part number 11-62-1-427-586 is NOT inconel. its a SS. we believe it to be of the 422 variety. comparison to inco found here

Compare Materials: Inconel 718 (2.4668, N07718, NiCr19NbMo, NA51) vs. AISI 422 (S42200) Stainless Steel :: MakeItFrom.com

422 is of the high tempurature variety, but obviously not to the extent of inconel. they will more than likely make great downpipe bolts.

results:

Cr = 11%
V = 0.3%
Mn = 0.6%
Mo = 0.8%
Ni = 0.45%
Fe = ~86%


in other news, i got a new used ignitor from ebay. "guranteed" working, tested blah blah blah. also got some bits to finish the dash panel. a usb charger and volt meter setup, and a panel mount usb for the MS. ordered an ultrashield camlock with individual shoulders. so now i need to go pick up some steel and a co2 tank to make a harness bar. door bars may be the cards to but i still need to get started on my diy frog arms. its too hot outside lately to work on anything though. bleh.
hi_im_sean is offline   Reply With Quote
Old 10-03-2014, 12:25 AM   #117
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,446
Total Cats: 424
Default

ive been chipping away at it slowly

i still wasnt quite happy with the seat angle, it needed to recline more. i took it back out and shaved the rear mounts as thin as they could go and added a 6mm spacer to the front mounts. this gave me another 1.5 degrees. it made all the difference in the world, which surprised me for such a small change.

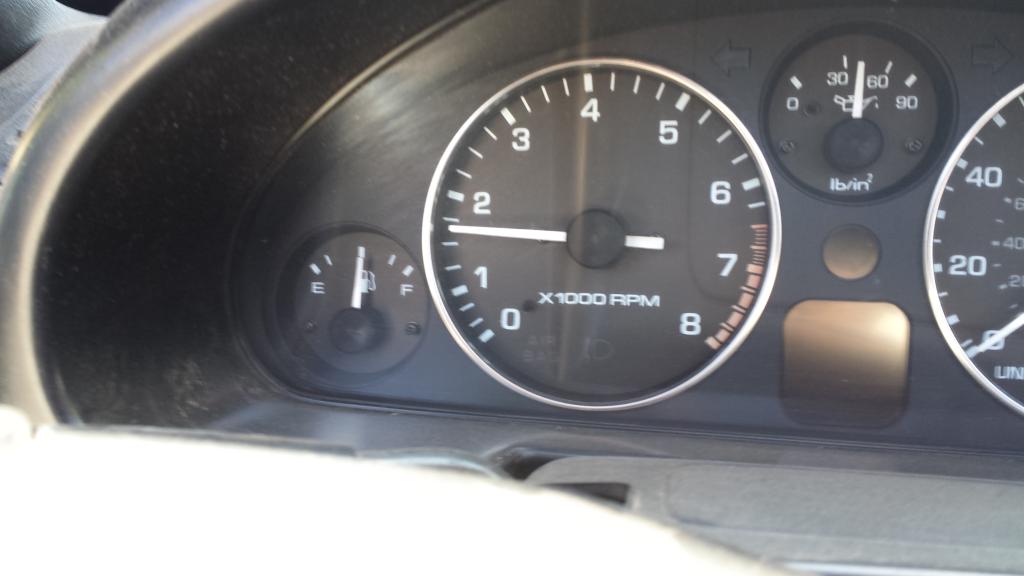

used ignitor from ebay=yay!

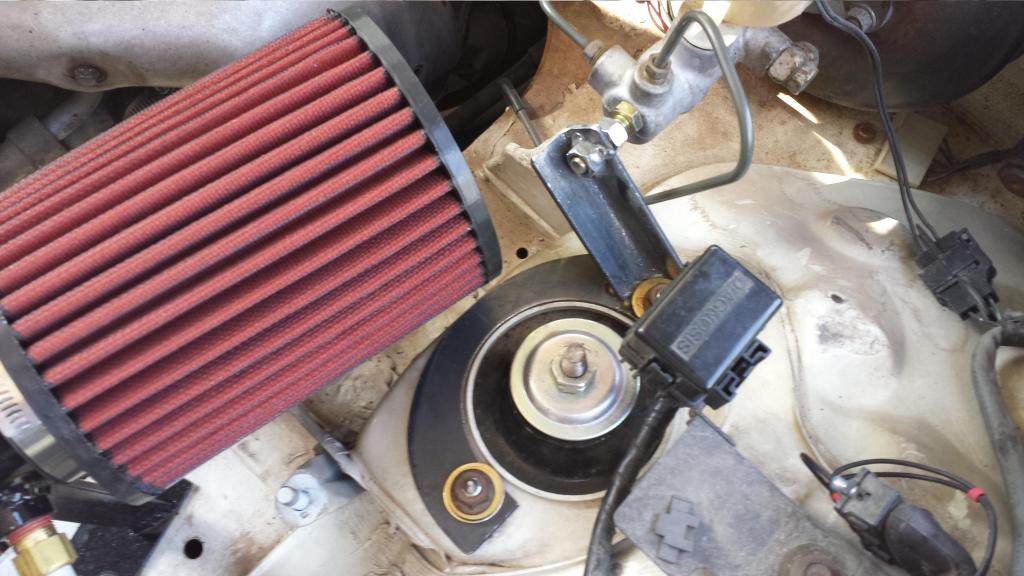

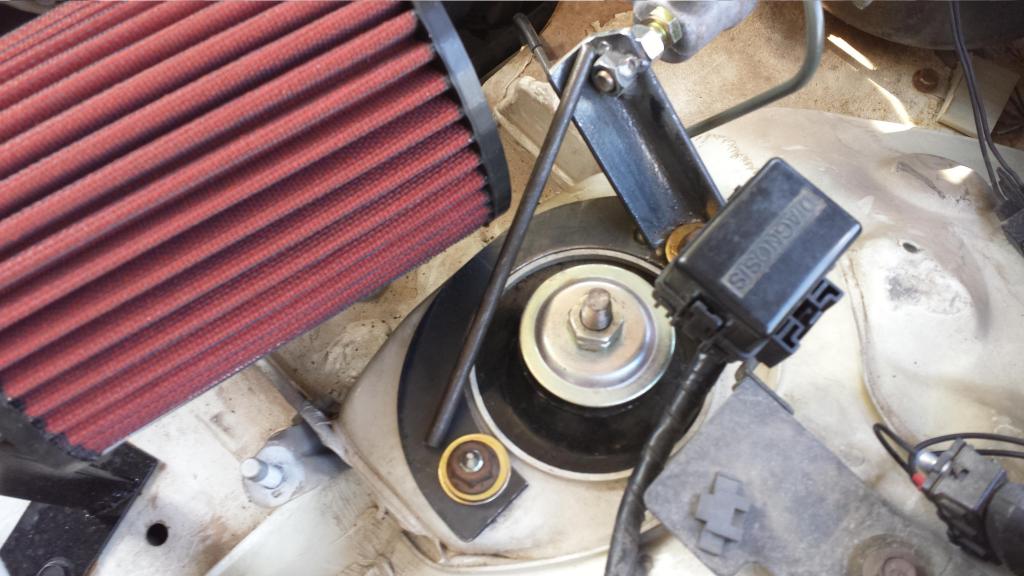

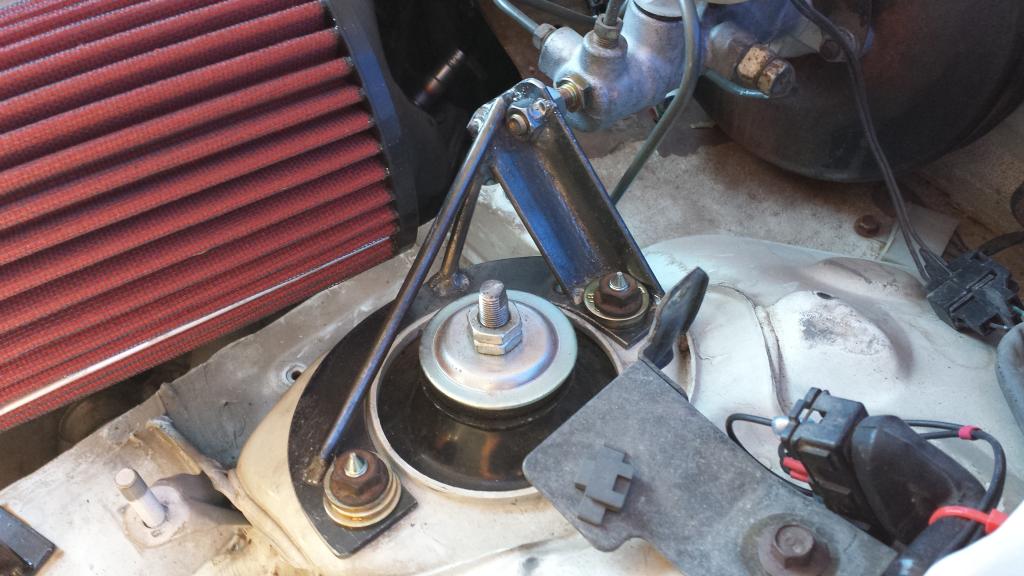

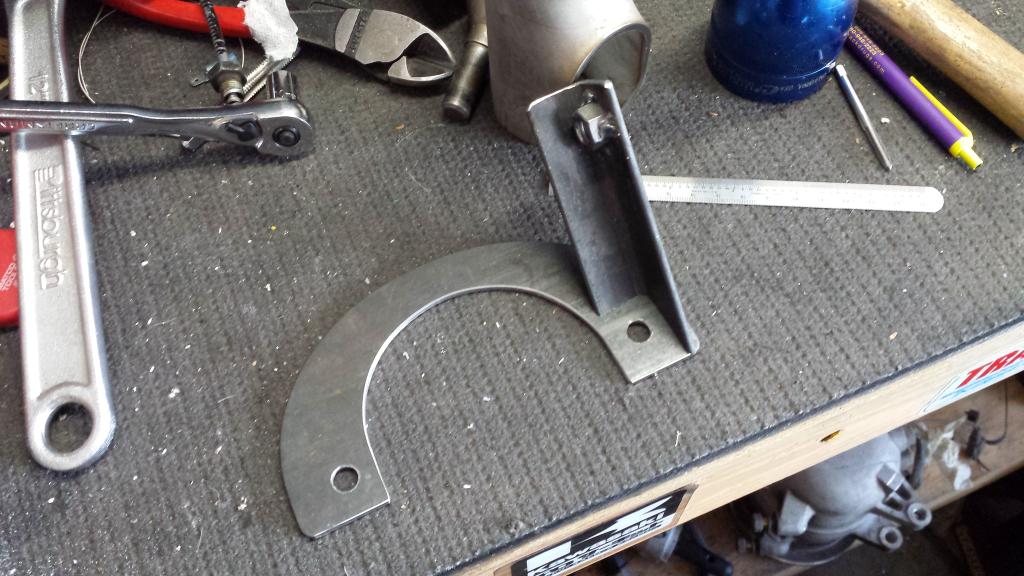

here is the evolution of a MC brace

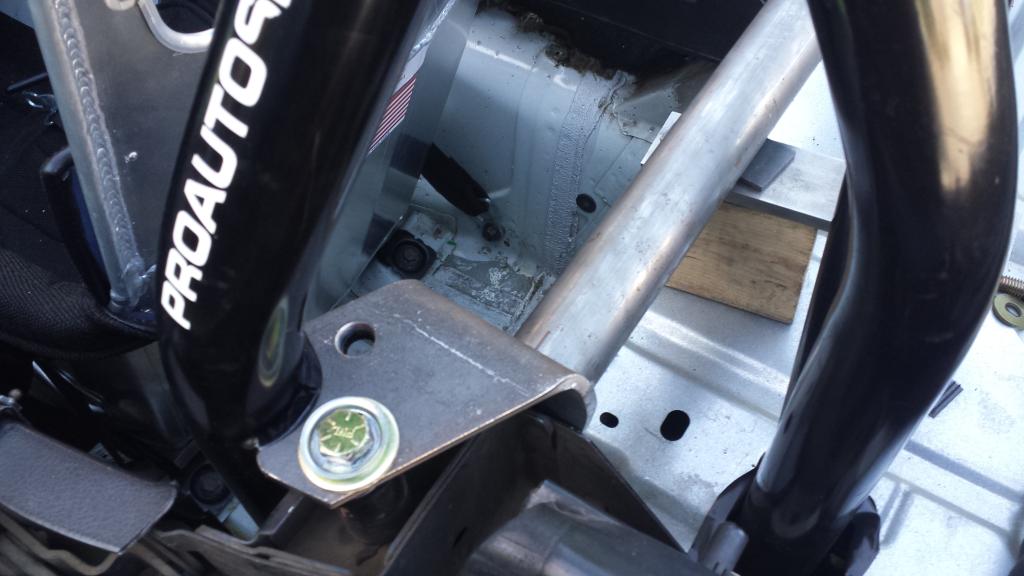

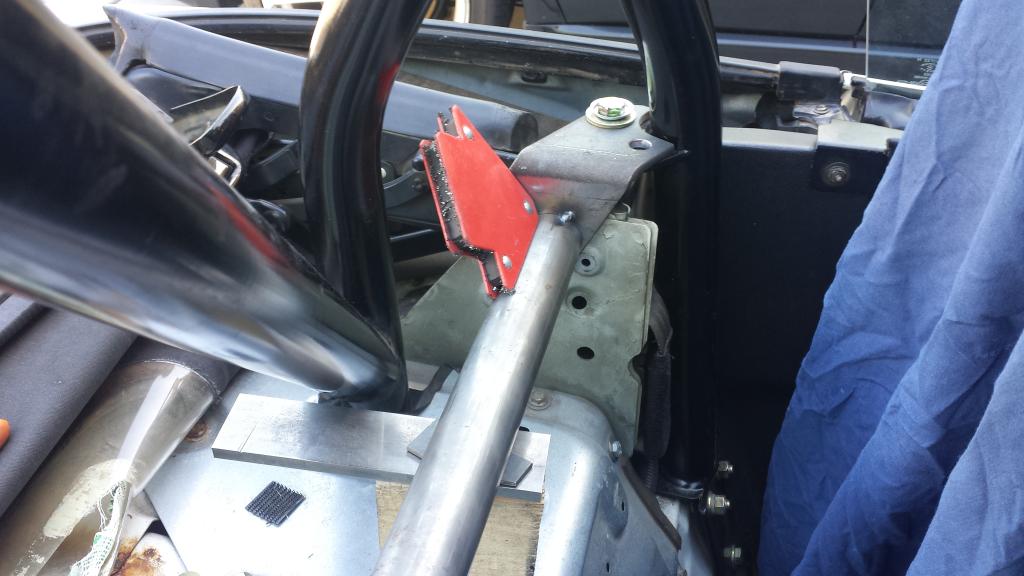

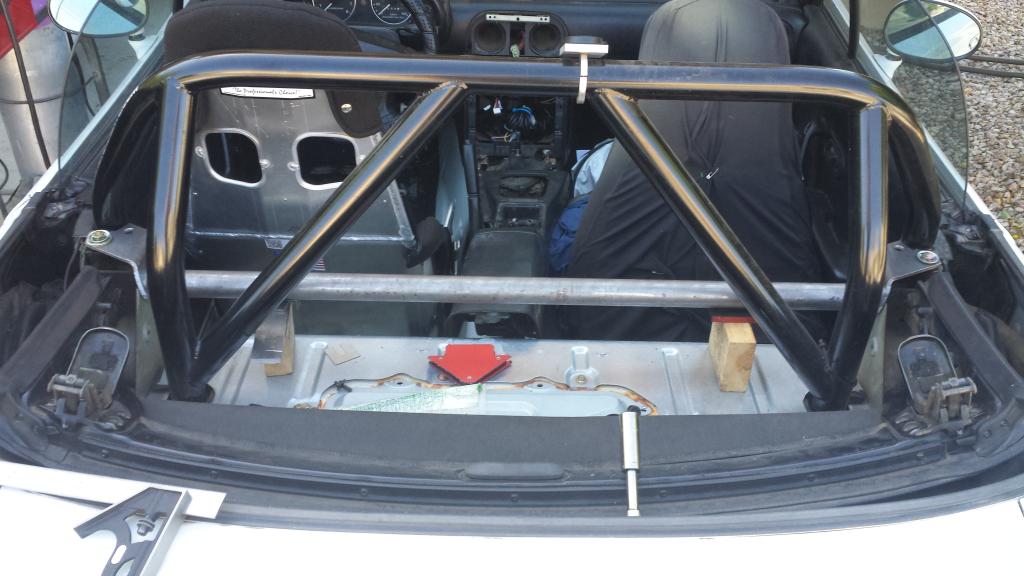

harness bar

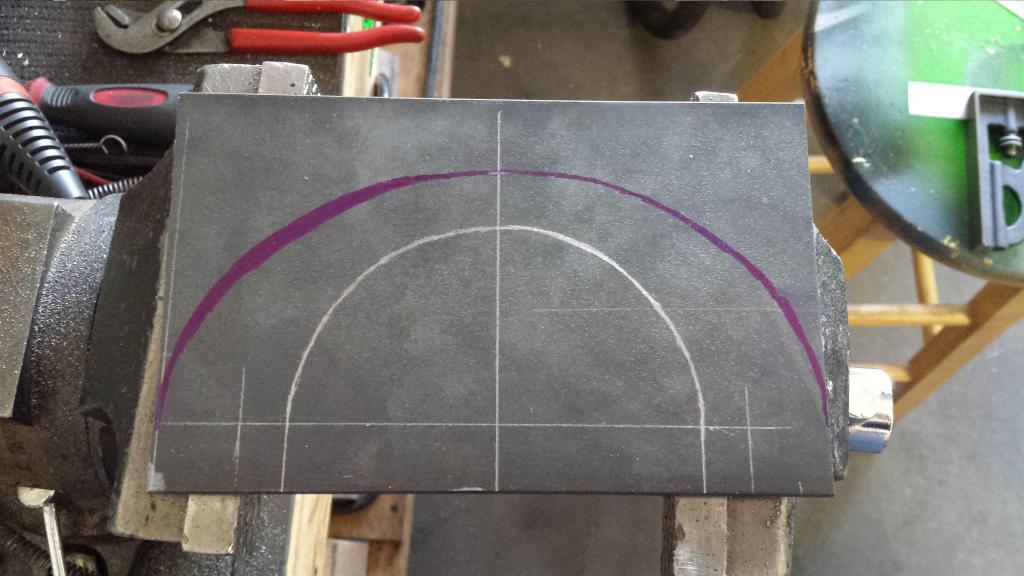

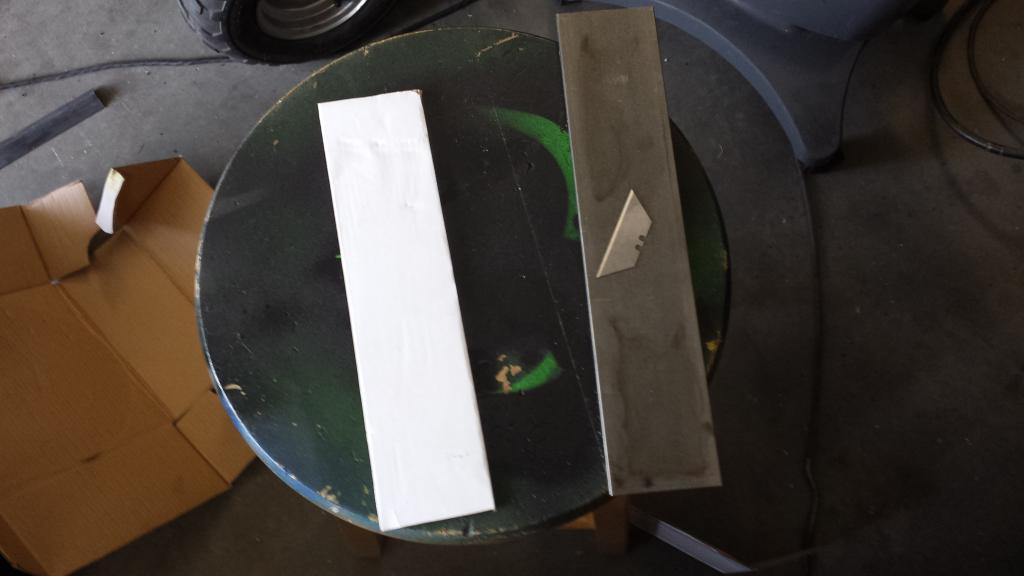

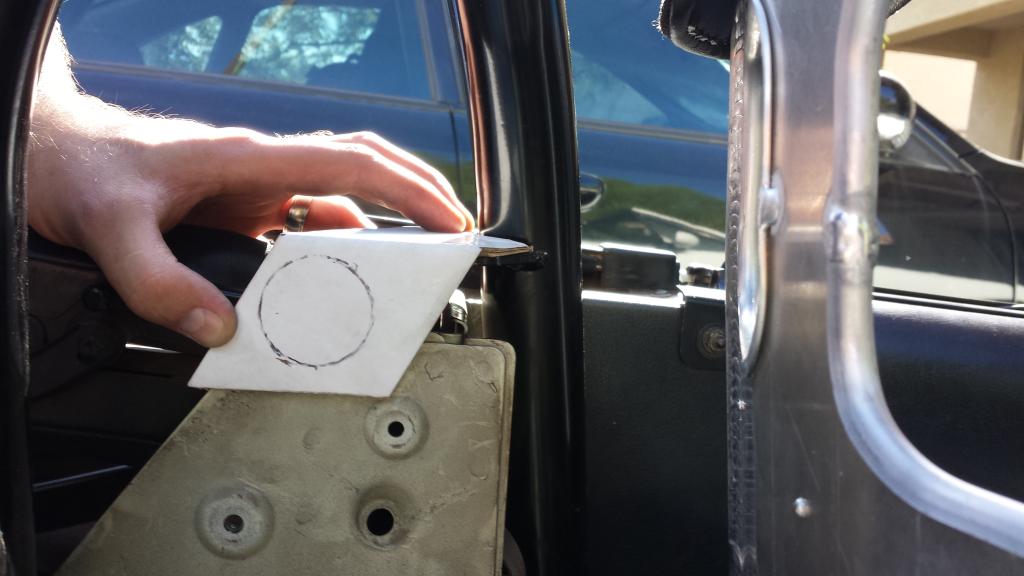

i started with this piece of cold rolled and made a template.

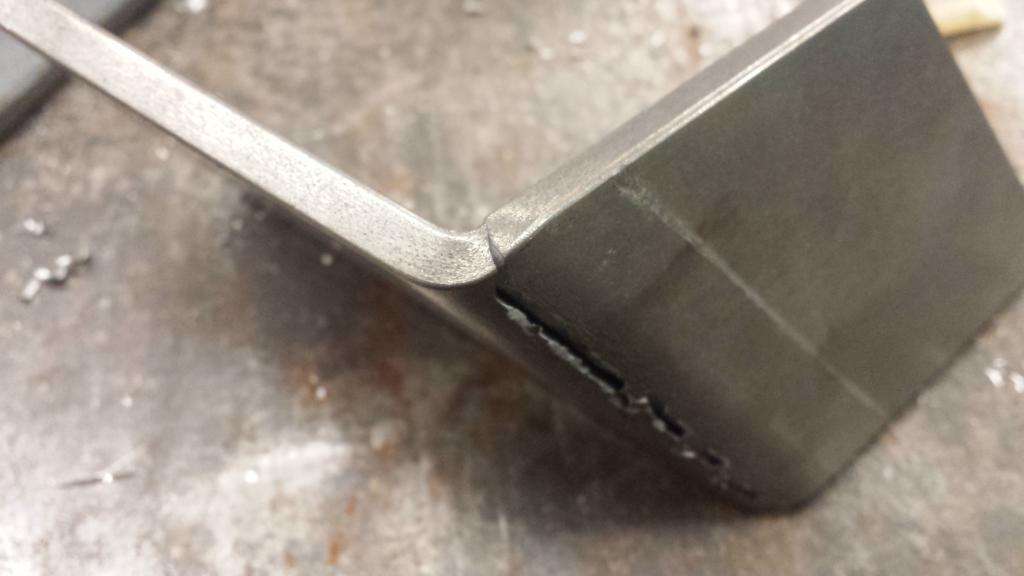

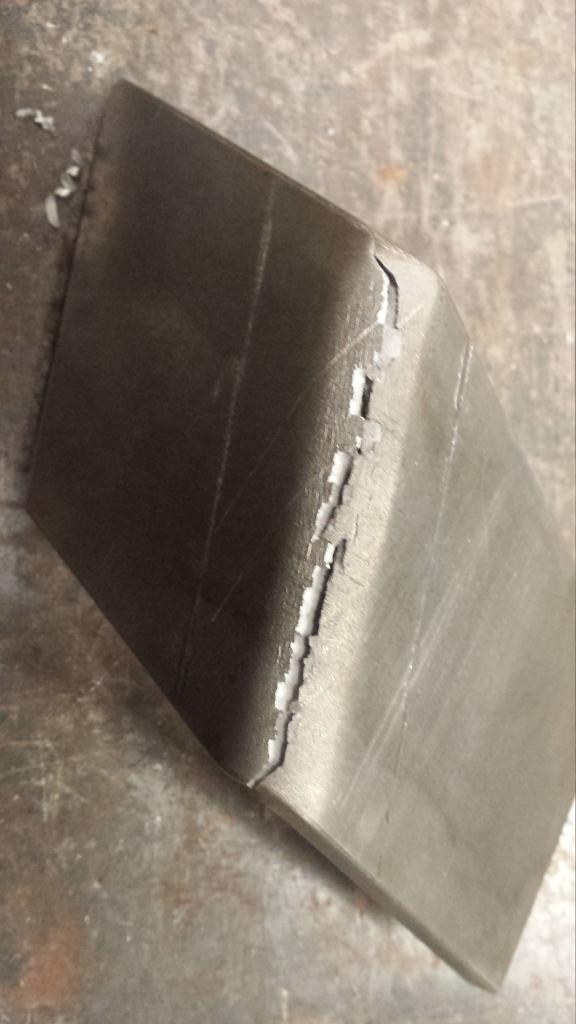

i bent it on an iron worker and this happens




no V-braking 1/4" cold rolled i guess. switched to hot rolled.

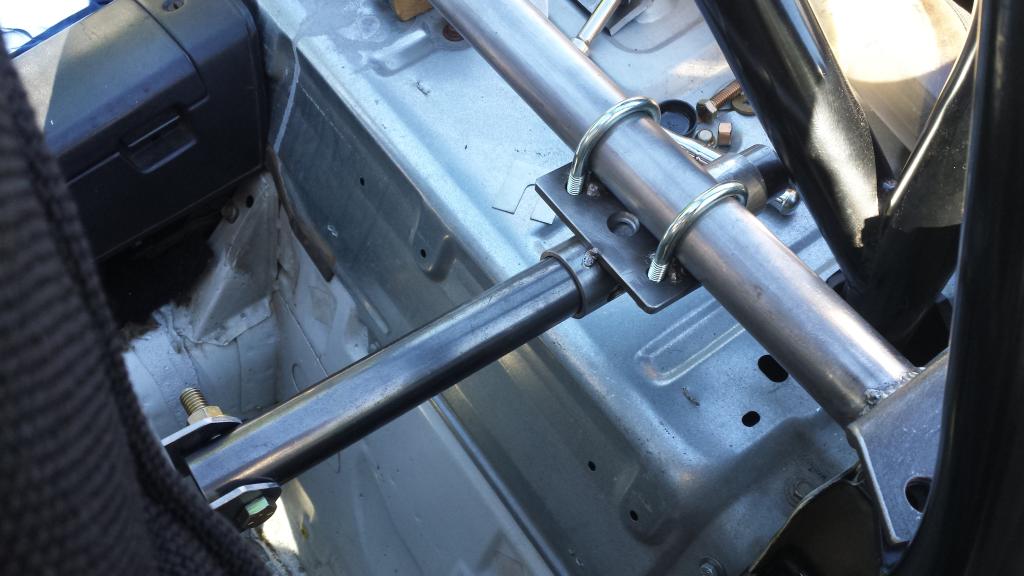

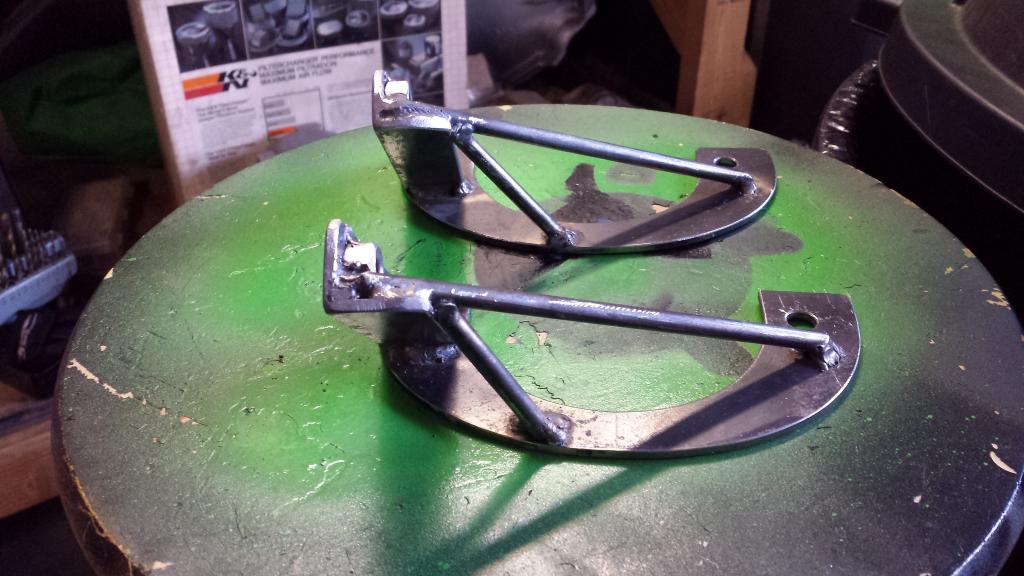

back brace

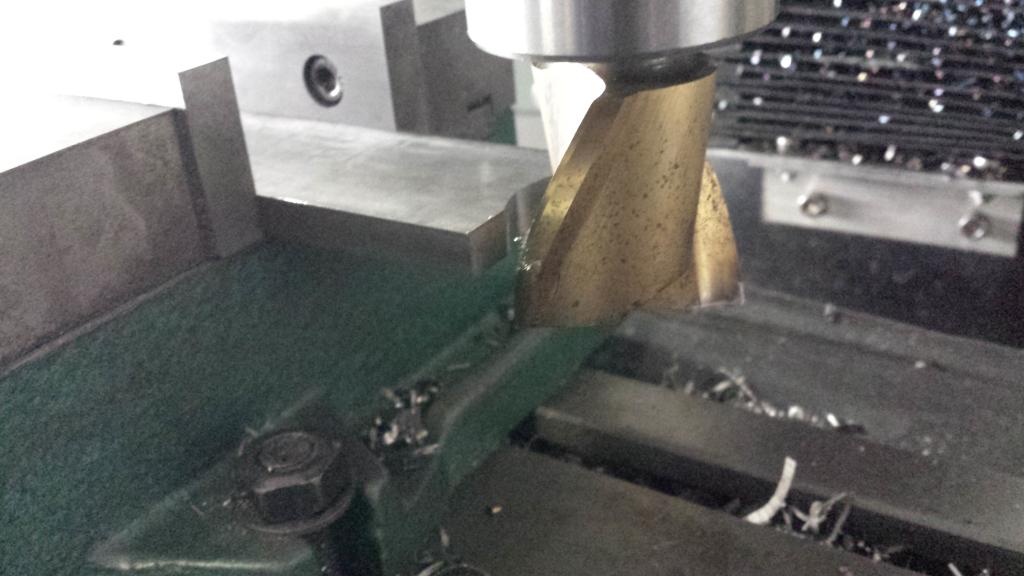

i milled the ends of a peice of 5/16x1.5" plate to half rounds with a 1.5" end mill.

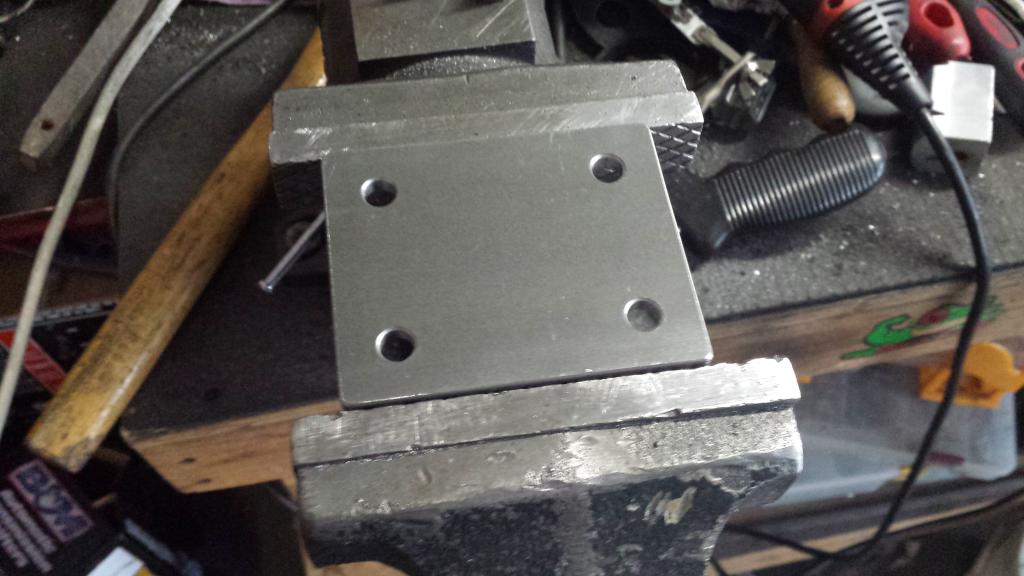

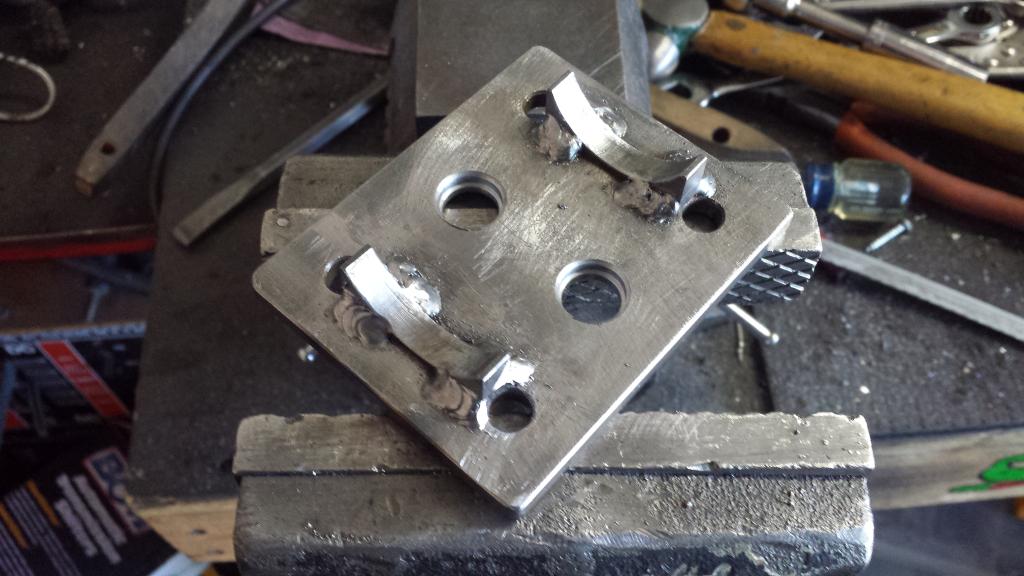

i installed holes into a plate

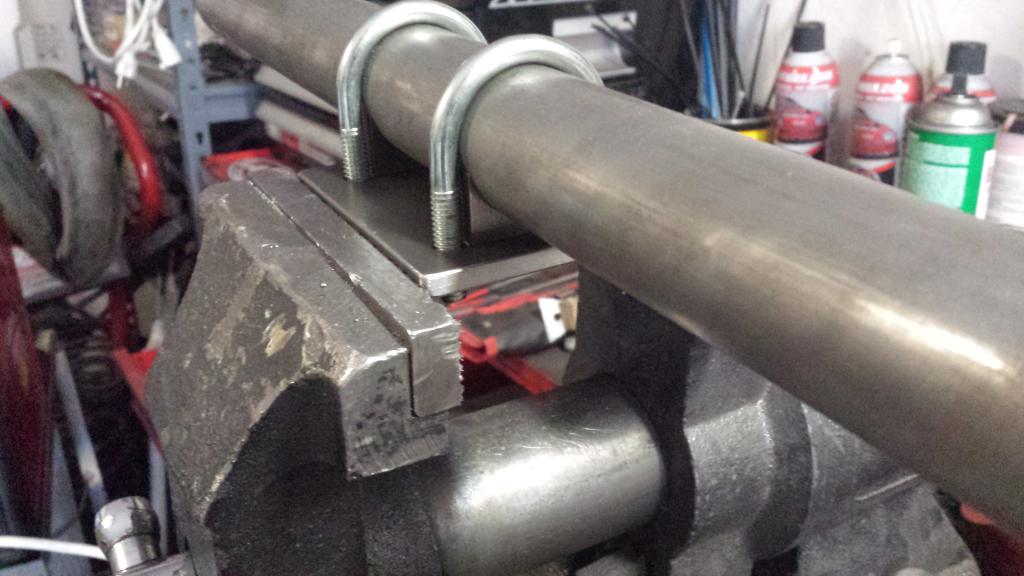

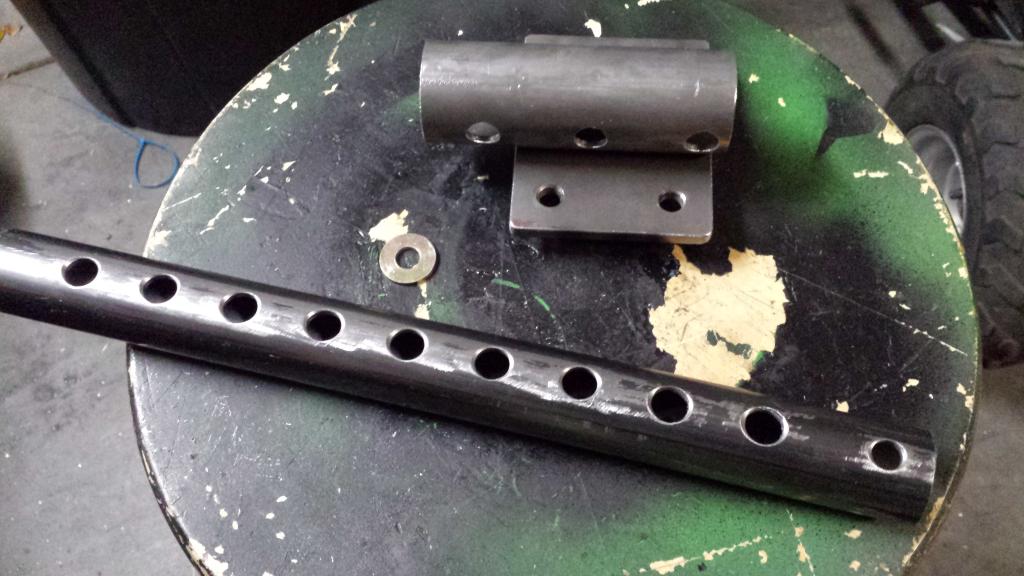

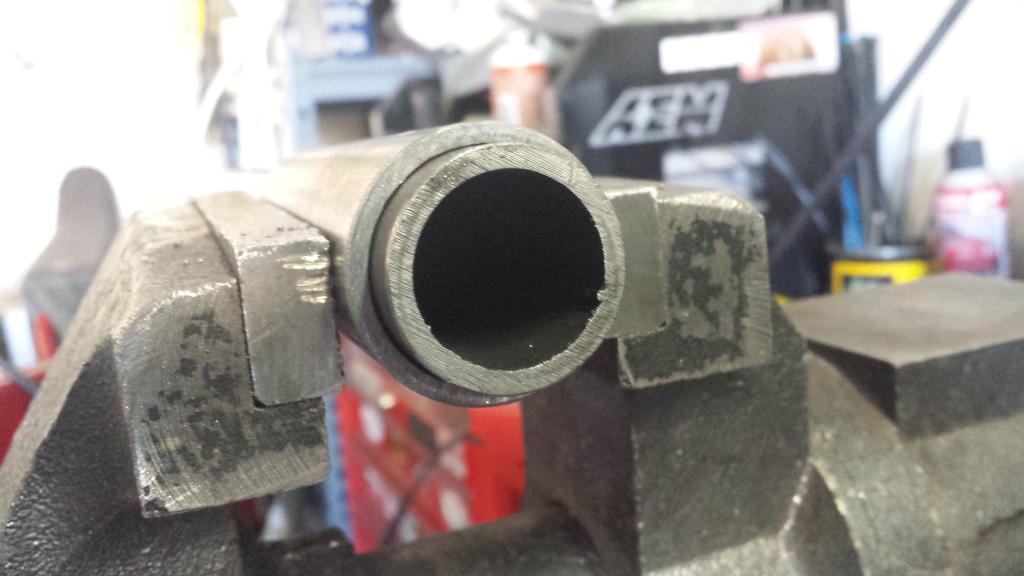

left over 1.5"x0.120" DOM from the harness bar and 1.25"x0.137" from a previous project

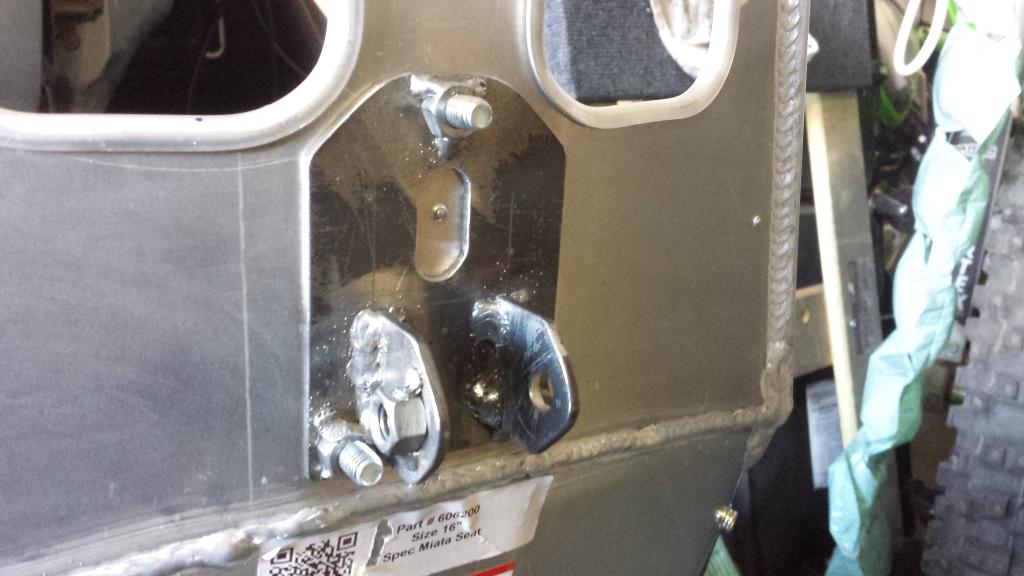

seat plate thingy

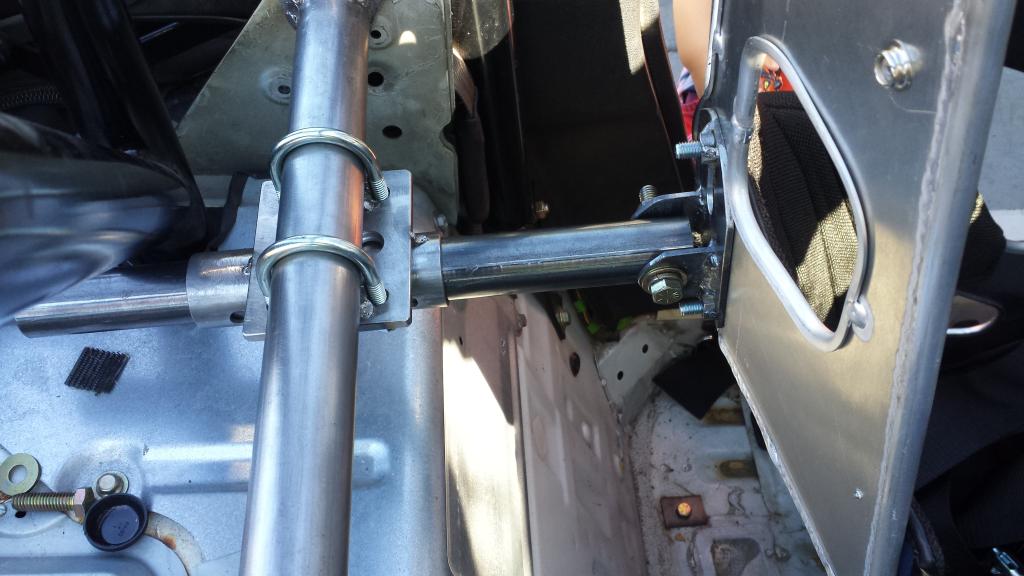

all mounted up, it really solidifies the seat




the seat sliders adjust in 10mm increments. im going to turn a 7/16" pin on the lathe and obviously couldnt drill holes every 10mm. so i drilled them 30mm apart on the inner bar, and 3, 40mm apart on the outer bar. i can now use every increment on the sliders because math.




i just need to finish weld and paint everything

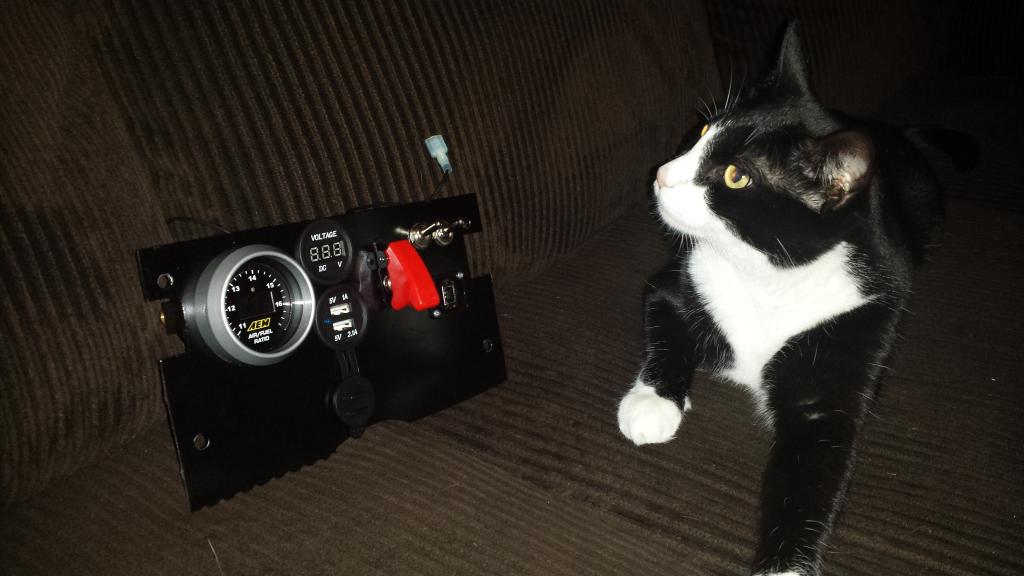

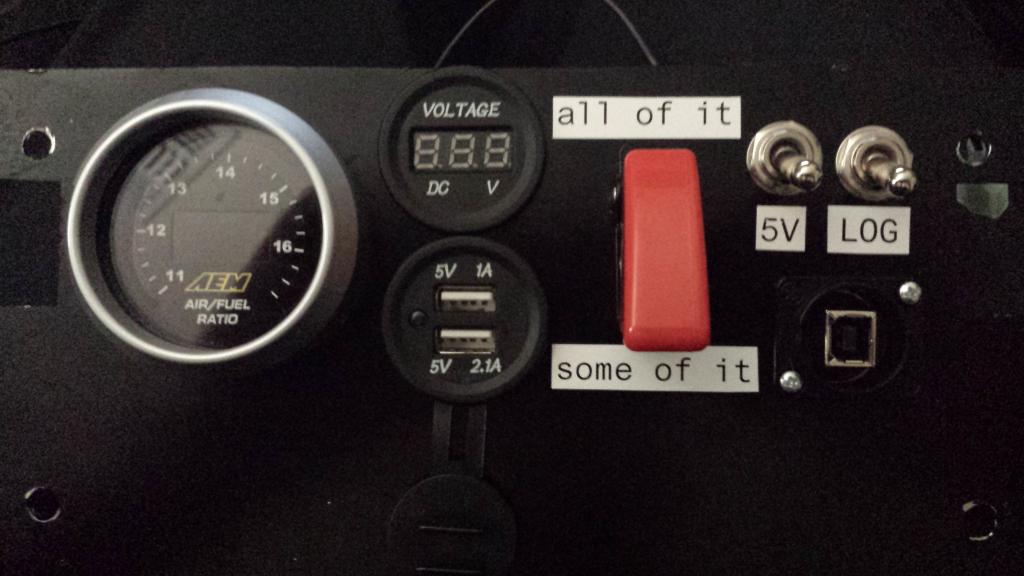

i added a usb charger, volt meter, panel mount usb for the megasquirt, and some various switches to the gauge panel.



and i put some labels on crooked.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20140818_134744_zpsnztfs5kz.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140818_141726_zpst1jg5oqi.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140824_153337_zpsgj7oyenq.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140824_153351_zpsututt2jv.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140824_153404_zpsyzot1zar.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20140824_162024_zpsjflpdkx4.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140824_170917_zpshltl5z0z.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140825_083244_zpst0guj3g7.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140825_090458_zpspsfmc6jv.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140827_093547_zpsnljdydt1.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20140827_093609_zpsamvbeiyc.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140929_105916_zpsnt2aic5h.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140929_110642_zpshifpbj9x.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140929_105923_zpsvbb1clhh.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140915_080021_zpsx2gl6tzb.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20140926_162647_zpscneai24c.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140926_162710_zpsnadgucxe.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140926_162818_zpst6xzuofr.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140929_100611_zpsuzm7zypu.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140929_124211_zpscz3eyonq.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20141002_085324_zpsrhojhkwx.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141002_132036_zpszo8fgosr.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141002_152750_zps9lgekcha.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141002_200435_zpsyxpdu5yx.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20140903_201406_zpslsumwc3n.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20140904_154145_zps0nrttbbx.jpg

Last edited by hi_im_sean; 10-03-2014 at 12:36 AM.
hi_im_sean is offline   Reply With Quote
Old 10-03-2014, 09:49 AM   #118
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,814
Total Cats: 224
Default

lol

"All of it"

"Some of it"
psyber_0ptix is offline   Reply With Quote
Old 10-03-2014, 10:40 AM   #119
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,433
Total Cats: 2,037
Default



You LITERALLY executed my plan for an ebc switch, very well done, props.

I also really like the "log" switch. Is that wired to a signal for SD card logging?
18psi is offline   Reply With Quote
Old 10-03-2014, 11:00 AM   #120
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

This thread is too damn cool.
concealer404 is offline   Reply With Quote
