Old 10-11-2016, 03:10 PM   #2021
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Somebody did AN fittings on their heater core. One of the Ryan's maybe?

Blue car. Atlanta maybe? Was totalled and he fixed it?
aidandj is offline   Reply With Quote
Old 10-11-2016, 03:10 PM   #2022
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Another option is to sweat some length of copper pipe and do a flare nut/sleeve style fitting.
soviet is offline   Reply With Quote
Old 10-11-2016, 03:14 PM   #2023
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

**** YEAH STEAMPUNK STYLEEE

soviet is offline   Reply With Quote
Old 10-11-2016, 03:22 PM   #2024
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

OK I win at internetting.

NB heater core is aluminum. Weld fittings on.

bbundy did it here: Removing Heater Core

Now I'm regretting throwing away that NB heater core last week.
aidandj is offline   Reply With Quote
Old 10-11-2016, 03:36 PM   #2025
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

lol, so many options. I will stick with NA core for now and see what I can do
soviet is offline   Reply With Quote
Old 10-11-2016, 03:54 PM   #2026
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,214
Total Cats: 750
Default

I might be able to get you a NB2 heater core and bring it up this weekend.
shuiend is offline   Reply With Quote
Old 10-11-2016, 04:07 PM   #2027
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 384
Total Cats: 49
Default

Quote:
Originally Posted by shuiend View Post
I might be able to get you a NB2 heater core and bring it up this weekend.
Per that thread that was linked a few posts up, it appears the heater cores are only interchangeable if the entire housing thingy goes along with it, is that not the case?
Downmented is offline   Reply With Quote
Old 10-11-2016, 04:08 PM   #2028
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 626
Total Cats: 10
Default

Quote:
Originally Posted by shuiend View Post
I might be able to get you a NB2 heater core and bring it up this weekend.
Orly? if you do come up this weekend, you should talk Soviet into coming up to the Frederick autox for some with me.
swimming108 is offline   Reply With Quote
Old 10-11-2016, 04:14 PM   #2029
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,214
Total Cats: 750
Default

Quote:
Originally Posted by Downmented View Post
Per that thread that was linked a few posts up, it appears the heater cores are only interchangeable if the entire housing thingy goes along with it, is that not the case?
I have no clue, I just believe I have access to a NB2 heater core in a friends parts car.

Quote:
Originally Posted by swimming108 View Post
Orly? if you do come up this weekend, you should talk Soviet into coming up to the Frederick autox for some with me.
Ohh where at in Fredrick is it? I will be up Pasadena Saturday morning picking up more NB mid pipes for my turbo setup. I might be able to swing by and say hey and give you stickers and **** or something.
shuiend is offline   Reply With Quote
Old 10-11-2016, 04:17 PM   #2030
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 384
Total Cats: 49
Default

Quote:
Originally Posted by shuiend View Post
I have no clue, I just believe I have access to a NB2 heater core in a friends parts car.



Ohh where at in Fredrick is it? I will be up Pasadena Saturday morning picking up more NB mid pipes for my turbo setup. I might be able to swing by and say hey and give you stickers and **** or something.
Pasadena, MD? If so you should stop by my place and say hi, Pasadena is right next door (literally 10 minutes away depending where at)
Downmented is offline   Reply With Quote
Old 10-11-2016, 04:33 PM   #2031
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Quote:
Originally Posted by shuiend View Post
I have no clue, I just believe I have access to a NB2 heater core in a friends parts car.



Ohh where at in Fredrick is it? I will be up Pasadena Saturday morning picking up more NB mid pipes for my turbo setup. I might be able to swing by and say hey and give you stickers and **** or something.
Can I have 4th hanger and A/C switch plug?
psyber_0ptix is offline   Reply With Quote
Old 10-11-2016, 04:36 PM   #2032
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Quote:
Originally Posted by psyber_0ptix View Post
Can I have 4th hanger and A/C switch plug?
Did the AC switch plug I sent you ever show?
aidandj is offline   Reply With Quote
Old 10-11-2016, 04:38 PM   #2033
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Quote:
Originally Posted by aidandj View Post
Did the AC switch plug I sent you ever show?
sadly, while similar, it doesn't fit :/
psyber_0ptix is offline   Reply With Quote
Old 10-11-2016, 04:40 PM   #2034
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

That's odd. I believe it was off of an NB1 of that helps your search.
aidandj is offline   Reply With Quote
Old 10-11-2016, 04:43 PM   #2035
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 626
Total Cats: 10
Default

Quote:
Originally Posted by shuiend View Post
Ohh where at in Fredrick is it? I will be up Pasadena Saturday morning picking up more NB mid pipes for my turbo setup. I might be able to swing by and say hey and give you stickers and **** or something.
http://www.capitaldrivingclub.com/schedule.php
Join us for the fun and drag Soviet out. I haven't seen him in forever.
If you are by your self, I should still be easy to spot. Miata is back to green now and I will email you my cell #.
swimming108 is offline   Reply With Quote
Old 10-11-2016, 07:17 PM   #2036
Junior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 399
Total Cats: 11
Default

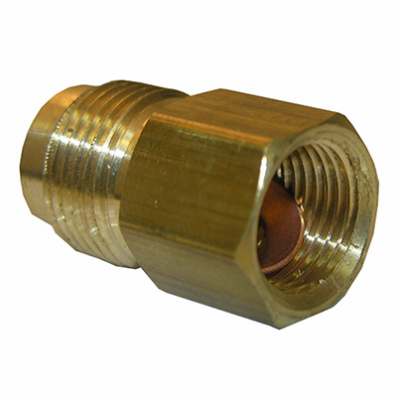

This is what i'm referring to. It's brass and you would need to drill out the threaded portion to slip over the heater pipe. I can't find anything that is sweat by flare.

Larsen Supply 3/8 Female x 1/2M Flare Adapter 17-5833

3/8" pipe has a nominal outside dia of .675" so that means if you got rid of all the threads you would have .050" of diameter slip fit which I think is a bit much. A 1/2" fitting for brazing has ID between .627" and .631" and 1/2" tubing OD is .622" to .626" so max to min you only need .001" clearance for brazing. So I'd say a 5/8 drill bit should be good to go with a little wobble drill if needed. Or try and get a 16mm drill bit? Or don't compress the 17mm heater nipple and get a 43/64" drill bit?

In any case I think this fits your need of being cheap, tidy, and failproof as when properly done, a brazed connection will never fail and when properly tightened, flared connections never come undone or leak. And the fitting has the added bonus of having a hex head that you can use to properly tighten the AN fitting with.

There are two things I'm uncertain of: is there any issue with brass to aluminum touching and the flare angle of these particular fittings. The flare tool you bought is what is commonly used to make flares for gas fittings which is what this fitting would be used for. Some research says it is JIC/AN which is 37*. The ASE flare is 45*. But I just can't say for sure as the fitting doesn't have a spec.
Attached Thumbnails
In Soviet Russia car build YOU!-167038.jpg
hector is offline   Reply With Quote
Old 10-12-2016, 09:38 AM   #2037
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 6,950
Total Cats: 139
Default re: AN heater core fittings

I welded steel -10 bungs to some scrap steel tubing that fit the inset on them. Slid those steel tubes into the heater core tubes and brazed them. Both tubes pressure tested OK to 20psi and have not leaked with maybe 10 hours on them.


Used some ford/chevy v8 valve cover breather grommets for the firewall heater tubes. They make for a very snug and sturdy fit compared to the stock pieces.

m2cupcar is offline   Reply With Quote
Old 10-12-2016, 02:08 PM   #2038
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by m2cupcar View Post
I welded steel -10 bungs to some scrap steel tubing that fit the inset on them. Slid those steel tubes into the heater core tubes and brazed them. Both tubes pressure tested OK to 20psi and have not leaked with maybe 10 hours on them.
Looks awesome.
Can you dumb down the brazing part for me? If I want to attach stainless fittings that slide onto brass tube, how can I do it? I read about brazing, silver brazing, soldering, and they are all different temperature. I've only sweated copper pipe in the past.
soviet is offline   Reply With Quote
Old 10-12-2016, 02:50 PM   #2039
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 6,950
Total Cats: 139
Default

I use Harris Safety-Silv 56% and their Stay-Silv flux. I take the same approach I do to sweating copper pipes. I head the heavy stuff (bungs) and the thin stuff heats by default. Then do test "dabs" with your rod/wire. When the temp is good it will flow to the joint. I'm by no means an expert, just serious time on youtube watching brazing. I've managed to do these heater core lines, a high pressure AC line with the same metals and aluminum AC lines. No leaks on any of them. Key advice: practice first. I brazed a brass tube to a big steel nut first fwiw.

I used the steel tubes because the brass heater core tubes were too large to fit the inset/recess in the AN fittings. Could have just as easily used a lathe to open that up- if I had one. You just need to be discrete with heat around the heater core tubes given their lack of wall thickness.
m2cupcar is offline   Reply With Quote
Old 10-14-2016, 12:11 PM   #2040
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Installed SadFab coil bracket, removed like 10% of the car's total rust.

Wires are less than ideal length but fits fine

soviet is offline   Reply With Quote
