Old 05-23-2012, 01:34 PM   #281
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by shuiend View Post
I do not see any fireballs shooting out the back. I am disappointed.
he lifted before the limiter because NA tach is awesome and reads 7200rpm as 7800. Last run was with 2' of fire but no vidya.

I actually just went there again. Brought in my valve cover for welding. -12AN bung driver side, weld shut passenger side, $60 and should be done today
soviet is offline   Reply With Quote
Old 05-23-2012, 01:37 PM   #282
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,131
Total Cats: 1,401
Default

I am so not a fan of welding shut the passenger passage.
Braineack is online now   Reply With Quote
Old 05-23-2012, 01:41 PM   #283
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

I can always put another -12AN there if I have excessive oil.
soviet is offline   Reply With Quote
Old 05-23-2012, 02:02 PM   #284
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,131
Total Cats: 1,401
Default

Like I wanna start seeing swiss-cheesed valve covers...while stupid, yes, at lesat I know you guys are headed in the right direction.
Braineack is online now   Reply With Quote
Old 05-23-2012, 02:53 PM   #285
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,933
Total Cats: 222
Default

Nice video. You have a nice street car Leonid, just needs more conditioned air
viperormiata is offline   Reply With Quote
Old 05-23-2012, 03:03 PM   #286
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,196
Total Cats: 748
Default

Quote:
Originally Posted by soviet View Post
I actually just went there again. Brought in my valve cover for welding. -12AN bung driver side, weld shut passenger side, $60 and should be done today
Stupid, stupid, stupid idea. I am having my VC welded up and I am getting 2 -10an fittings on the driver side and 1 -10an fitting on the passenger side. I am also getting new baffle plates welded in like the picture in my build thread.
shuiend is offline   Reply With Quote
Old 05-23-2012, 03:17 PM   #287
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,131
Total Cats: 1,401
Default

Quote:
Originally Posted by shuiend View Post
Stupid, stupid, stupid idea. I am having my VC welded up and I am getting 2 -10an fittings on the driver side and 1 -10an fitting on the passenger side. I am also getting new baffle plates welded in like the picture in my build thread.
right direction.


Braineack is online now   Reply With Quote
Old 05-23-2012, 03:20 PM   #288
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

My -12AN line is about 50% bigger than -10AN line. I think I'll live.

In any case, this is a free valve cover. I have 2 more.

I want to see your baffle plates, though. Didn't see any pictures in your thread...
soviet is offline   Reply With Quote
Old 05-23-2012, 03:24 PM   #289
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,196
Total Cats: 748
Default

Quote:
Originally Posted by soviet View Post
My -12AN line is about 50% bigger than -10AN line. I think I'll live.

In any case, this is a free valve cover. I have 2 more.

I want to see your baffle plates, though. Didn't see any pictures in your thread...

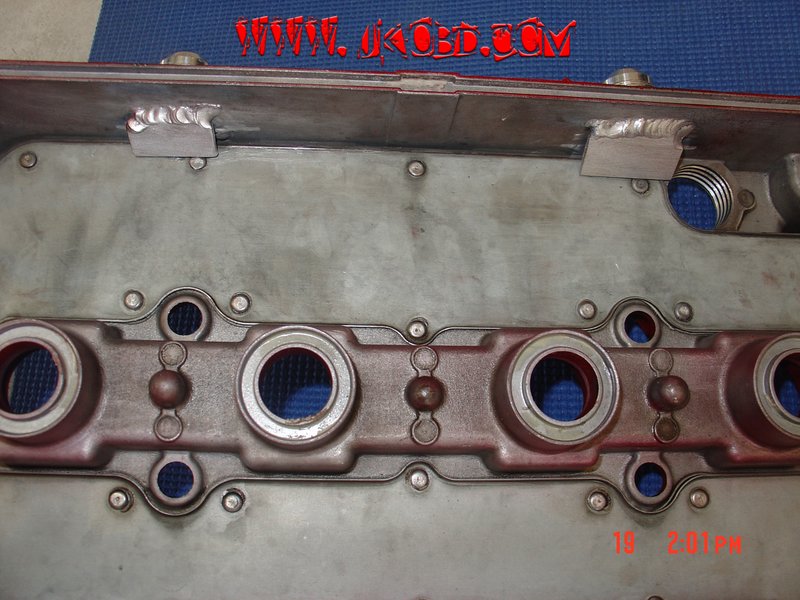

That is a picture of how I am having my baffles done. I need to call the shop and see if they are actually done with my VC. As soon as i have it back I will be posting pictures for sure.
Attached Thumbnails
In Soviet Russia car build YOU!-vcbottom.jpg
shuiend is offline   Reply With Quote
Old 05-23-2012, 03:31 PM   #290
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Ok, so you're not going to run the stock baffles?

I got my VC back already and they welded the -12AN bung from the inside. Because of that, the stock baffle "edge" is now missing a piece. I could probably seal it up with RTV just fine but not sure what to do.

Suggestions? Could also go back and ask them to "fill" that spot up and grind it back to same height as edges around.

Attached Thumbnails
In Soviet Russia car build YOU!-imag0333.jpg
soviet is offline   Reply With Quote
Old 05-23-2012, 03:33 PM   #291
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,196
Total Cats: 748
Default

Quote:
Originally Posted by soviet View Post
Ok, so you're not going to run the stock baffles?

I got my VC back already and they welded the -12AN bung from the inside. Because of that, the stock baffle "edge" is now missing a piece. I could probably seal it up with RTV just fine but not sure what to do.

Suggestions? Could also go back and ask them to "fill" that spot up and grind it back to same height as edges around.
I am not planning on running the stock baffles. I am actually going to be heading up to the shop in a little bit to talk to them about it more. The welder is not sure how exactly he is going to do it.

I would at a minimum have them add in welds and grind down. I do not think you could get that to seal now even with lots of RTV.
shuiend is offline   Reply With Quote
Old 05-23-2012, 03:39 PM   #292
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,131
Total Cats: 1,401
Default

Quote:
Originally Posted by soviet View Post
My -12AN line is about 50% bigger than -10AN line. I think I'll live.
.75" is not 50% larger than .625"

it's 17% larger.

of flow area is .4415 sq in" vs .3066 sq in which is still only 30% larger
Braineack is online now   Reply With Quote
Old 05-23-2012, 03:53 PM   #293
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by Braineack View Post
.75" is not 50% larger than .625"

it's 17% larger.

of flow area is .4415 sq in" vs .3066 sq in which is still only 30% larger
your math logic is wrong and you should be ashamed

flow area of -12AN is 44% larger than -10AN
flow area of -10AN is 30% smaller than -12AN

0.4415/0.3066 = 1.44
0.3066/0.4415 = 0.69

In layman terms, a single -12AN is like one-and-a-half -10AN fittings.
soviet is offline   Reply With Quote
Old 05-23-2012, 03:55 PM   #294
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,196
Total Cats: 748
Default

Quote:
Originally Posted by soviet View Post
your math logic is wrong and you should be ashamed

flow area of -12AN is 44% larger than -10AN
flow area of -10AN is 30% smaller than -12AN

0.4415/0.3066 = 1.44
0.3066/0.4415 = 0.69

In layman terms, a single -12AN is like one-and-a-half -10AN fittings.
Whatever it is I still do not think it is enough flow. At least not all on one side. I will get pics a bit later from the welding shop.
shuiend is offline   Reply With Quote
Old 05-23-2012, 03:56 PM   #295
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by shuiend View Post
I would at a minimum have them add in welds and grind down. I do not think you could get that to seal now even with lots of RTV.
I feel like I should do that. But then wouldn't that hole actually kind of allow more evacuation (which is what I want)?

I think I'll try it as-is and see if it fails.
soviet is offline   Reply With Quote
Old 05-23-2012, 04:02 PM   #296
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,131
Total Cats: 1,401
Default

Quote:
Originally Posted by soviet View Post
your math logic is wrong and you should be ashamed

not really, im an art student. but i will conceed.
Braineack is online now   Reply With Quote
Old 05-23-2012, 04:29 PM   #297
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Lars prepare to weep tears of joy for I shall type this like I know the meaning of a shift key.


OK my opinion is as follows.

The mini baffles Lars posted are ideal. I think that the factory baffles will have higher pressure because of all the baffling. Swiss cheese valve covers are also ideal. Honda/Evo/DSM boost R&D has proven that.

Lenny, if you go with the single -12, I think you will be OK. If you are going to use the factory baffle though, make sure you:

a) drill out the tiny hole

b) make sure the baffle plate seals flushly to the baffle. That means yes, that weld goober needs to be filled and ground down. And yes, seal the plate with RTV and make sure you let it dry before you run the car.

The only reason why I am not running a -12 on BOTH sides of my valve cover is because I am using the slashcut. It would be a real bitch to run the -12 line from the passenger side as well. There just isn't that much room and a -12 line is recalcitrant.

Brain I was an art major too. Then I failed out of college.
Faeflora is offline   Reply With Quote
Old 05-23-2012, 04:29 PM
Faeflora
This message has been deleted by Braineack.
Old 05-24-2012, 04:19 PM   #298
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

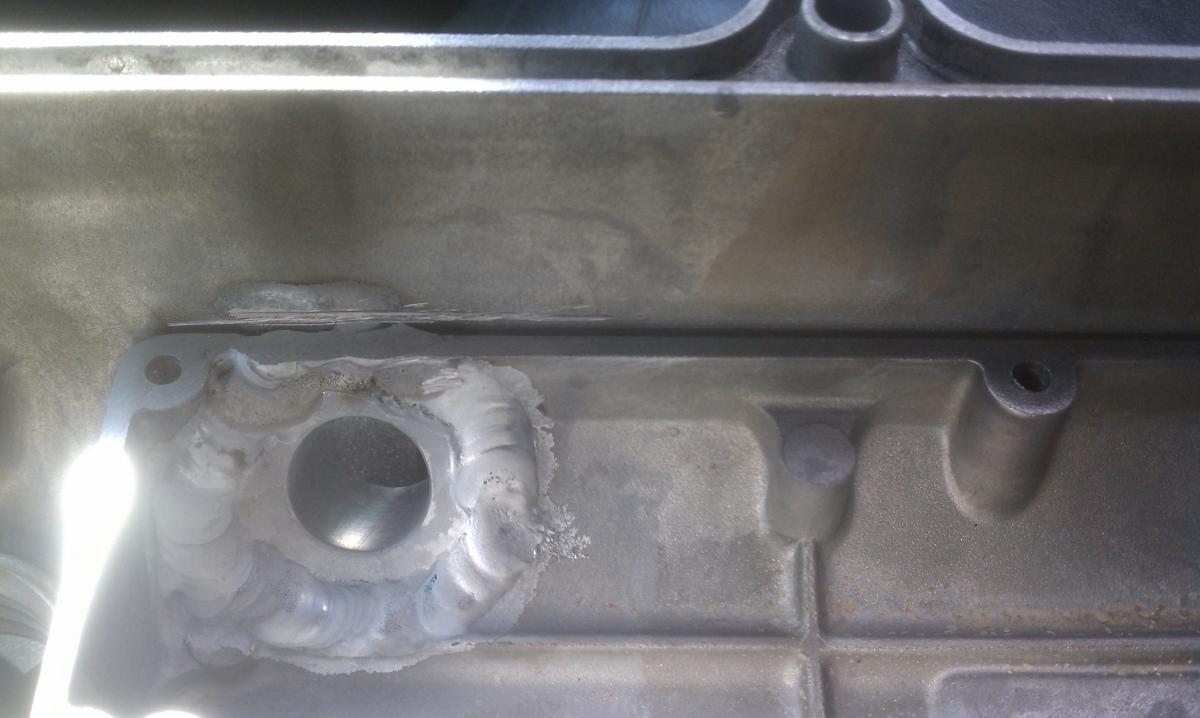

valve cover take 2. now with more sexy.


I tried to cancel the ignition wire order but was too late and it arrived today.
1) just as Lars said, they go all the way in but don't sit tight in the hole
2) 12" is pretty long. 8-10" would be a good size if coils sit above the fuel rail

Coil/stock bracket/wiring will arrive Friday so I'll probably ghetto-wire it and plan my bracket. I want to keep all wires same length and re-use as much of the stock bracket as possible.
Attached Thumbnails
In Soviet Russia car build YOU!-imag0336.jpg
soviet is offline   Reply With Quote
Old 05-24-2012, 04:24 PM   #299
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,131
Total Cats: 1,401
Default

did they fill it for you or is that jb weld or just sanded down?
Braineack is online now   Reply With Quote
Old 05-24-2012, 04:26 PM   #300
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by Braineack View Post
did they fill it for you or is that jb weld or just sanded down?
They filled it and grinded it for me for free. in like, 2 hours after I brought it in.
I don't have any JBWeld on my car and I plan on keeping it that way.
soviet is offline   Reply With Quote
