Old 08-31-2012, 03:43 PM   #701
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Quote:
Originally Posted by soviet View Post
sure.
could have a setting to automatically submit an RMA request if turbine spins over 300k or something
No, put a turbine speed sensor before your muffler.

If it reads any value, submit an RMA request.
thenuge26 is offline   Reply With Quote
Old 08-31-2012, 03:44 PM   #702
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,107
Total Cats: 1,400
Default

rofl.
Braineack is offline   Reply With Quote
Old 08-31-2012, 03:54 PM   #703
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by Fireindc View Post
Holy ****, had no idea those had a speed sensor. That is rad.
They are optional accessory but every EFR is ready to use one. There is a *ton* of cool things they have compared to any other turbo.

My favorite part is probably the giant clamp that holds the compressor housing. just loosen a single 10mm and the housing spins freely. vs dealing with 6 bolts and a circlip....
soviet is offline   Reply With Quote
Old 08-31-2012, 04:10 PM   #704
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,323
Total Cats: 182
Default

I already have plans to support the speed sensor in my Enhanced ECUs, hence the question. I would just buy an EFR turbo to get some measurements and then sell it at some minor loss, but they are unobtanium right now.
Reverant is offline   Reply With Quote
Old 08-31-2012, 04:37 PM   #705
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

Quote:
Originally Posted by soviet View Post
sure.
could have a setting to automatically submit an RMA request if turbine spins over 300k or something
LOL'd IRL
18psi is offline   Reply With Quote
Old 09-05-2012, 04:21 AM   #706
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Worked on the car today & yesterday.

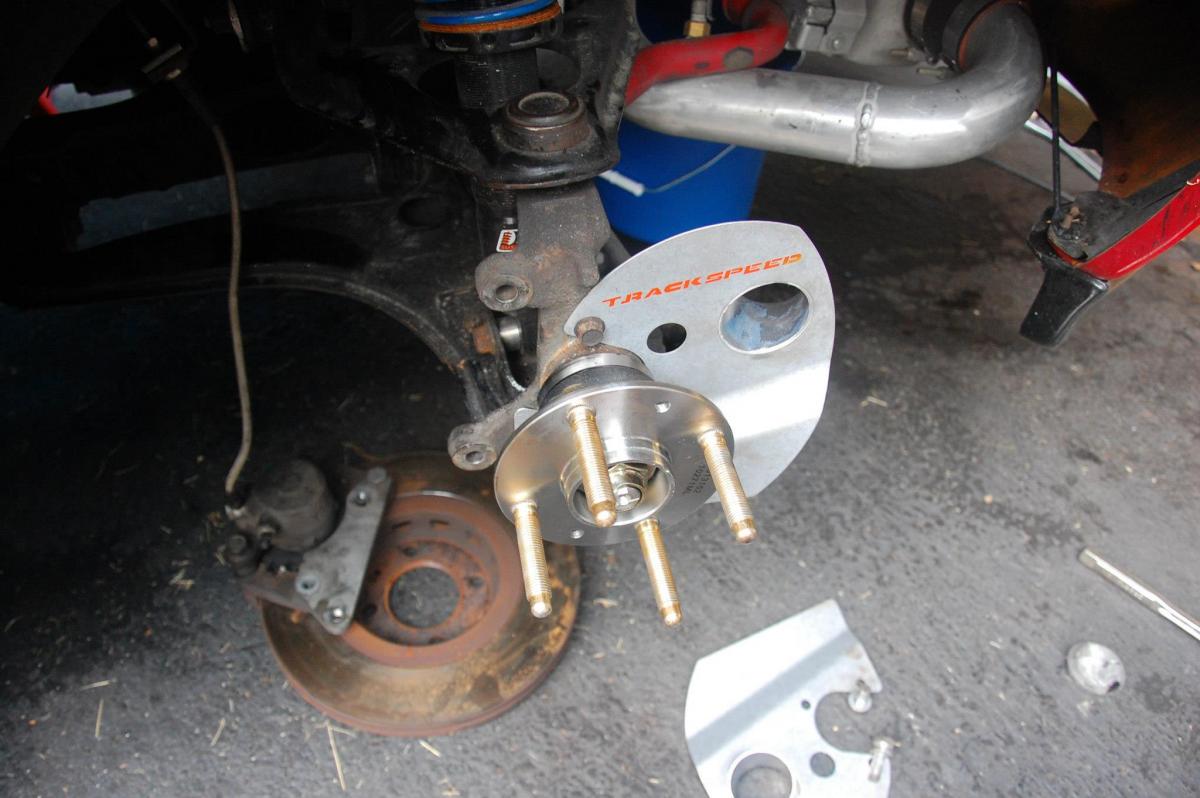

Repacked front ebay hubs. The hub casing had heat discoloring - does this mean they were heat treated? Had that "rainbow" look on them.

Pressed in front ARP studs. For anyone who cares - front ebay hubs use 90-93 ARP bolts - 0.507" diameter, not the later ones (which are bigger).

Front hub spindles literally looked BRAND NEW. The bearing cap does an amazing job of keeping moisture out. Seriously, the hub nuts looked absolutely new!

Original hub nut in this picture

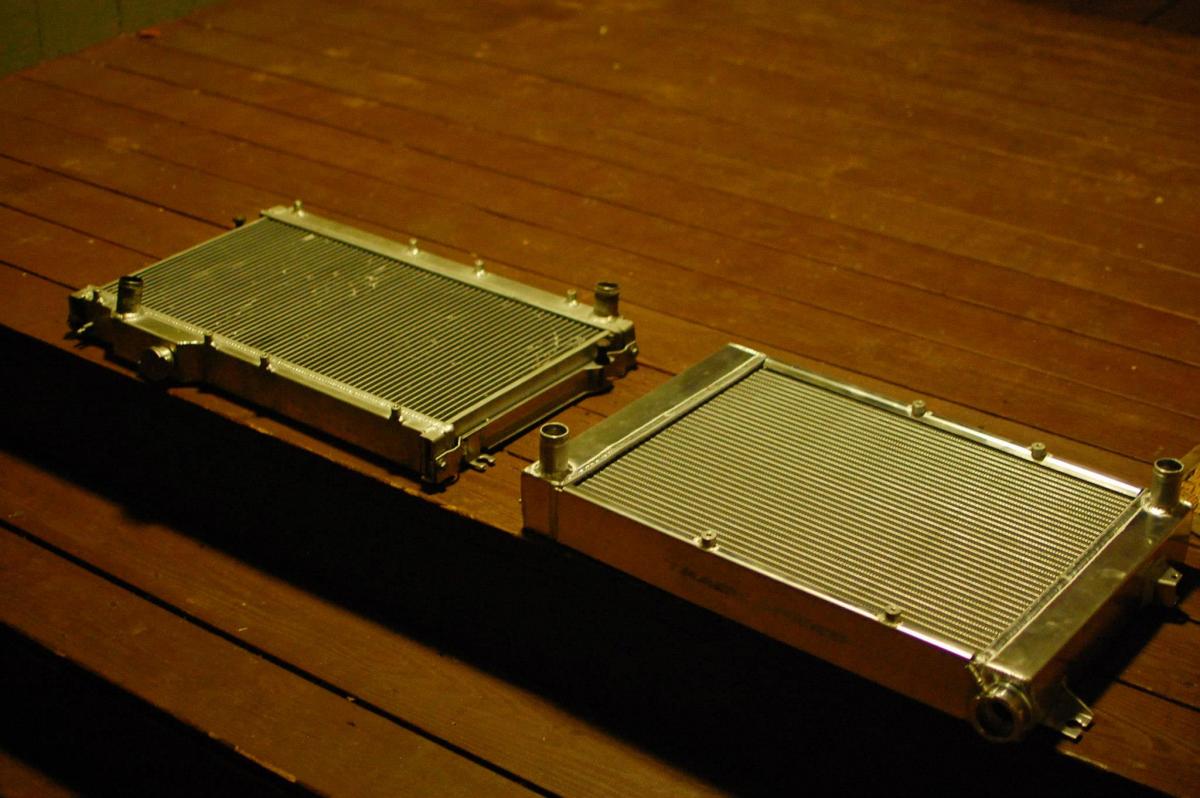

Radiator also fits effortlessly - actually better than ebay one. 14" spal fan has plenty of room - I just eyeballed it and it pretty obvious.

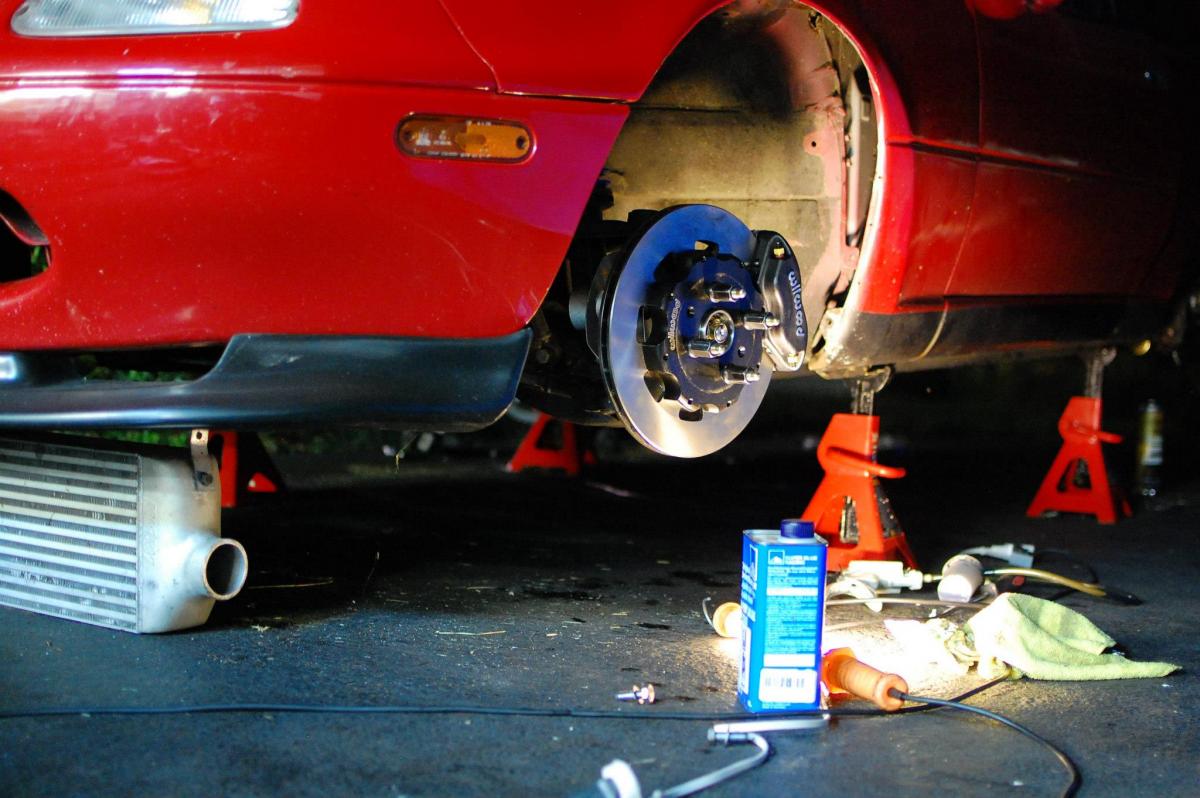

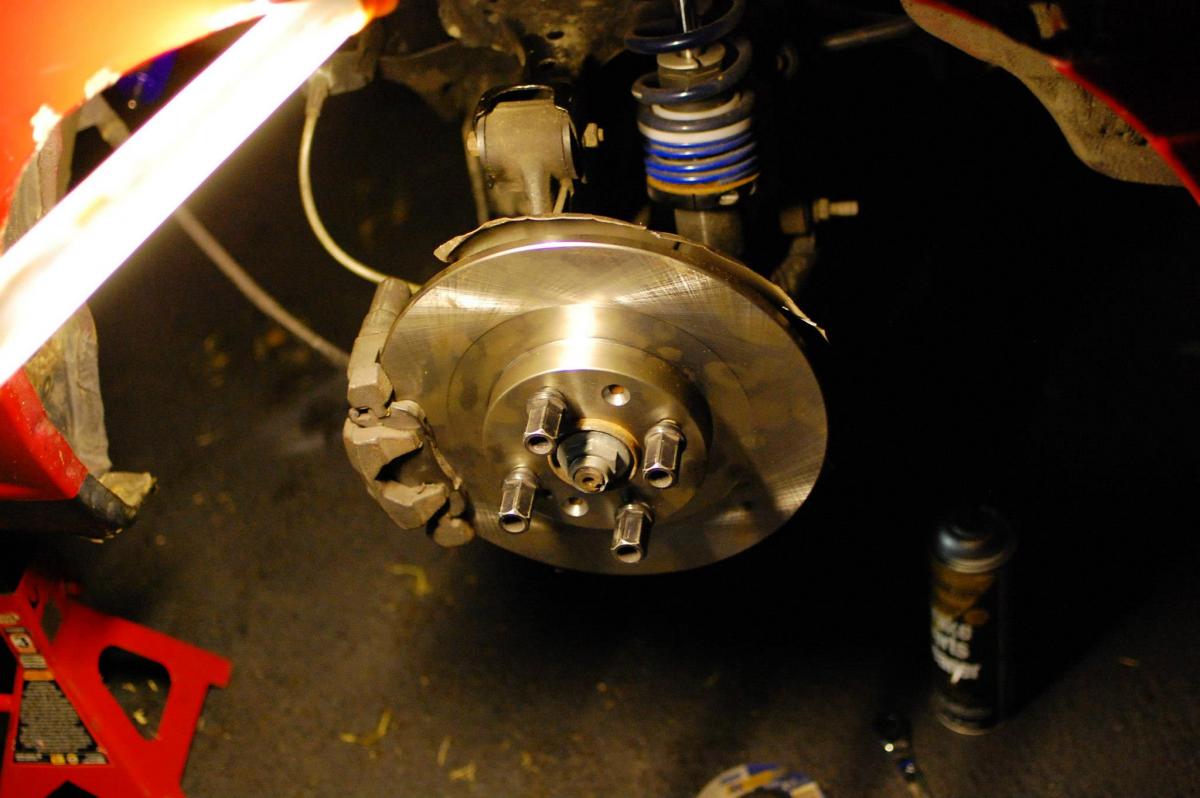

Today put front 11.75" Trackspeed breaks and rear sports brackets



Some more parts are coming in this week. I'll do some more work on Thursday (maybe...).
Attached Thumbnails
In Soviet Russia car build YOU!-620757_10151218080836823_1335690522_o.jpg   In Soviet Russia car build YOU!-415125_10151218081721823_1084310453_o.jpg   In Soviet Russia car build YOU!-415112_10151218080551823_1793443017_o.jpg   In Soviet Russia car build YOU!-241209_10151218082111823_255275152_o.jpg
soviet is offline   Reply With Quote
Old 09-07-2012, 07:32 PM   #707
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

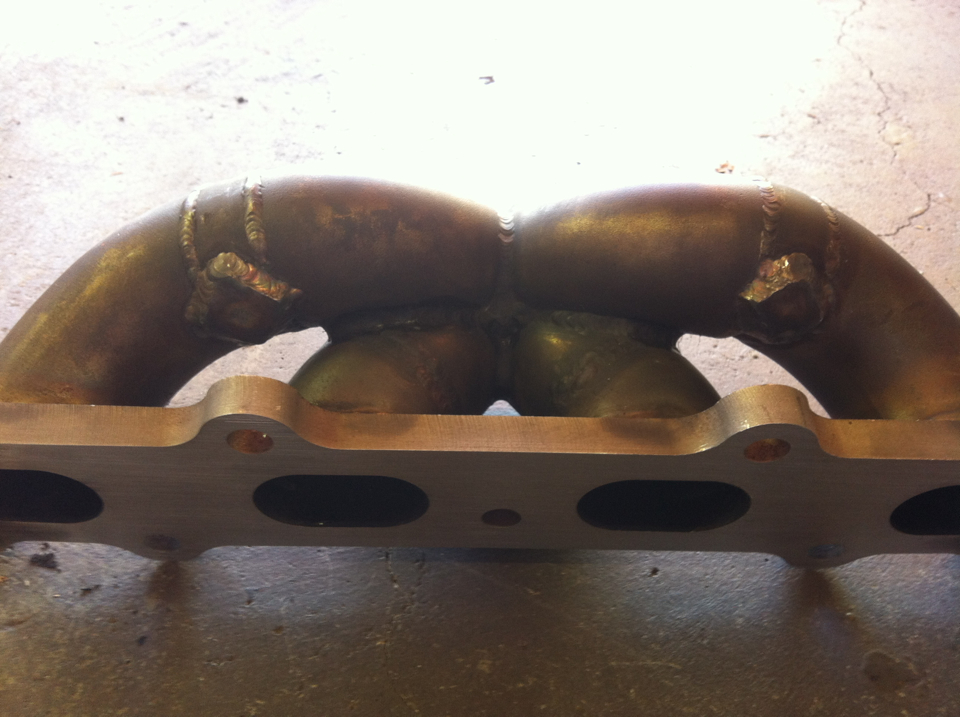

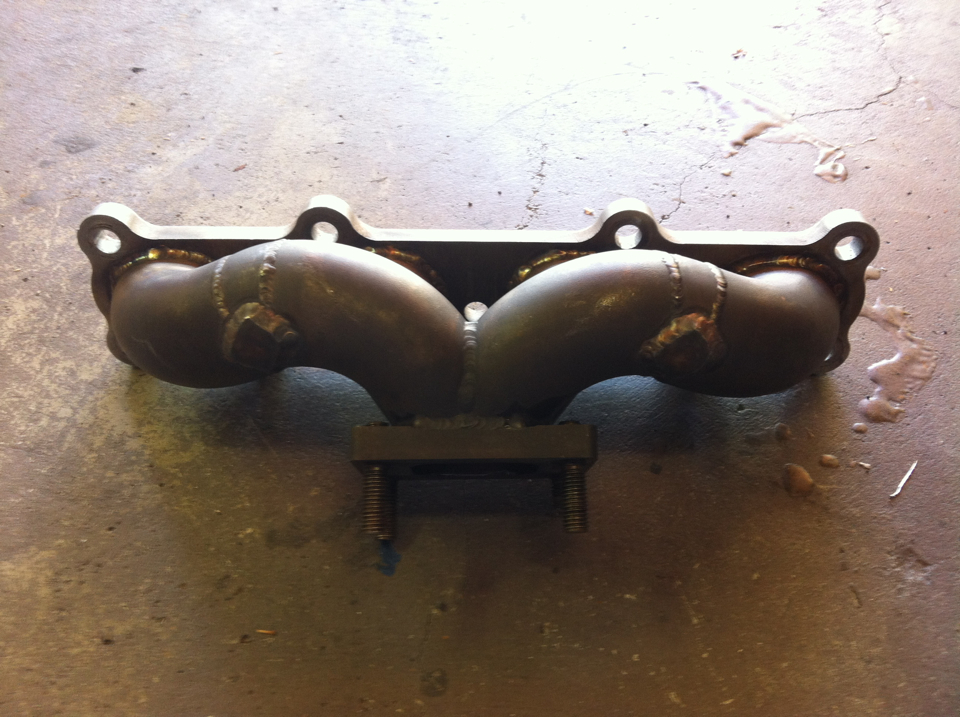

manifold just got mailed from Cali so I should have it next week.



and it's looking pretty epic.
Attached Thumbnails
In Soviet Russia car build YOU!-image_1347055758640975.jpg   In Soviet Russia car build YOU!-image_1347055812546145.jpg
soviet is offline   Reply With Quote
Old 09-07-2012, 08:06 PM   #708
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Looks good. Mr. Witty did you do any work to the collectorrectum or was that aok?
Faeflora is offline   Reply With Quote
Old 09-07-2012, 08:13 PM   #709
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,932
Total Cats: 222
Default

Nice gusset. Welcome back to the man club.
viperormiata is offline   Reply With Quote
Old 09-07-2012, 08:17 PM   #710
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

Crap like this makes me want to get nasty with my ETD longtube and gusset the hell out of every damn weld on it. Might do it too

Looking good you Russian *****. I envy your setup.
18psi is offline   Reply With Quote
Old 09-07-2012, 08:27 PM   #711
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Quote:
Originally Posted by Faeflora View Post
Looks good. Mr. Witty did you do any work to the collectorrectum or was that aok?
I didn't do any work to the collectorrectum, it looked nice and tight just like when it was created . I just fixed the cracks and added the gussets seen in the pics.

For anyone wondering about the repair process that I performed, here is what I did. I had two potential options for repair. The first is the normal crack repair method that I have learned from word of mouth/forums/mentors. The process is to drill out the crack (sligghtly smaller than 1/8") on each end at the point where the crack stops. This is done to terminate the crack all the way through the metal, so it doesn't reappear if you just weld over it. Then I welded up the holes, and over the entire crack, at a pretty high amperage with lots of filler>going for more penetration this time. I also back-purged the entire manifold.

The other option i was thinking about was cutting the two cracked welds completely through, to let the obvious stress at those locations settle. I asked arguably the best welder I have seen (unobtanium welding-major **** on his facebook page and website) his opinion on the two methods, and he basically said that although cutting the entire weld would take the stress out, re-welding the entire weld instead of just the crack would add that much more stress back into the piece.

All in all, drilling out the cracks and making anice hot pass over the crack should be a sufficient repair. After the welding was done, I had to resurface the head flange, which had warped some due to the welding.

I hope this bad boy lasts many more track days and makes the sickest miata dyno plot ever with the new 6758!!!!
wittyworks is offline   Reply With Quote
Old 09-07-2012, 08:31 PM   #712
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

In for 400whp pulls of GLORY
18psi is offline   Reply With Quote
Old 09-08-2012, 02:09 AM   #713
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
In for 400whp pulls of GLORY
oh, it's coming

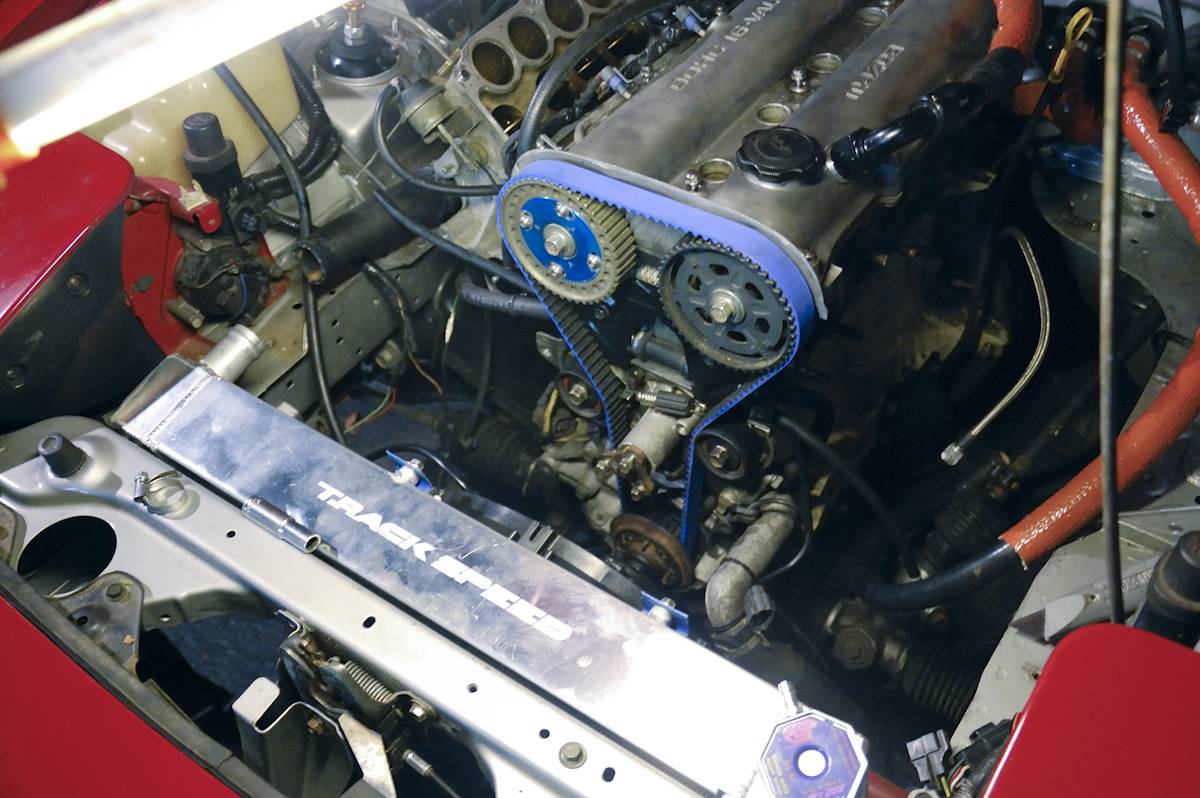

I put on my BLUE RACECAR TIMING BELT and crank pulley #4571, courtesy of _spyder. I'll get the BALLER 949 damper eventually but for now the stock one will suffice (I'm broke now)

BTW the logic behind $50 blue timing belt is that it should stretch less at high rpm.
soviet is offline   Reply With Quote
Old 09-10-2012, 12:48 AM   #714
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,776
Total Cats: 205
Default

Quote:
Originally Posted by soviet View Post
BTW the logic behind $50 blue timing belt is that it should stretch less at high rpm.
Timing belt stretch bad. Good call.
Mobius is offline   Reply With Quote
Old 09-10-2012, 09:31 AM   #715
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,107
Total Cats: 1,400
Default

Quote:
Originally Posted by soviet View Post
oh, it's coming

I put on my BLUE RACECAR TIMING BELT and crank pulley #4571, courtesy of _spyder. I'll get the BALLER 949 damper eventually but for now the stock one will suffice (I'm broke now)

BTW the logic behind $50 blue timing belt is that it should stretch less at high rpm.

my mom drove my miata to the store the other day, wanna race her?
Braineack is offline   Reply With Quote
Old 09-10-2012, 01:53 PM   #716
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by Braineack View Post
my mom drove my miata to the store the other day, wanna race her?
I bet she's a better driver, singer, lover than you are
soviet is offline   Reply With Quote
Old 09-10-2012, 02:00 PM   #717
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,107
Total Cats: 1,400
Default

I'm by far the better singer.
Braineack is offline   Reply With Quote
Old 09-10-2012, 10:40 PM   #718
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,189
Total Cats: 748
Default

Quote:
Originally Posted by Braineack View Post
I'm by far the better singer.
But your mom does bake some amazing cookies.
shuiend is offline   Reply With Quote
Old 09-11-2012, 02:54 AM   #719
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Quote:
Originally Posted by shuiend View Post
But your mom does bake some amazing cookies.
Is this a metaphor?
Faeflora is offline   Reply With Quote
Old 09-12-2012, 02:33 AM   #720
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

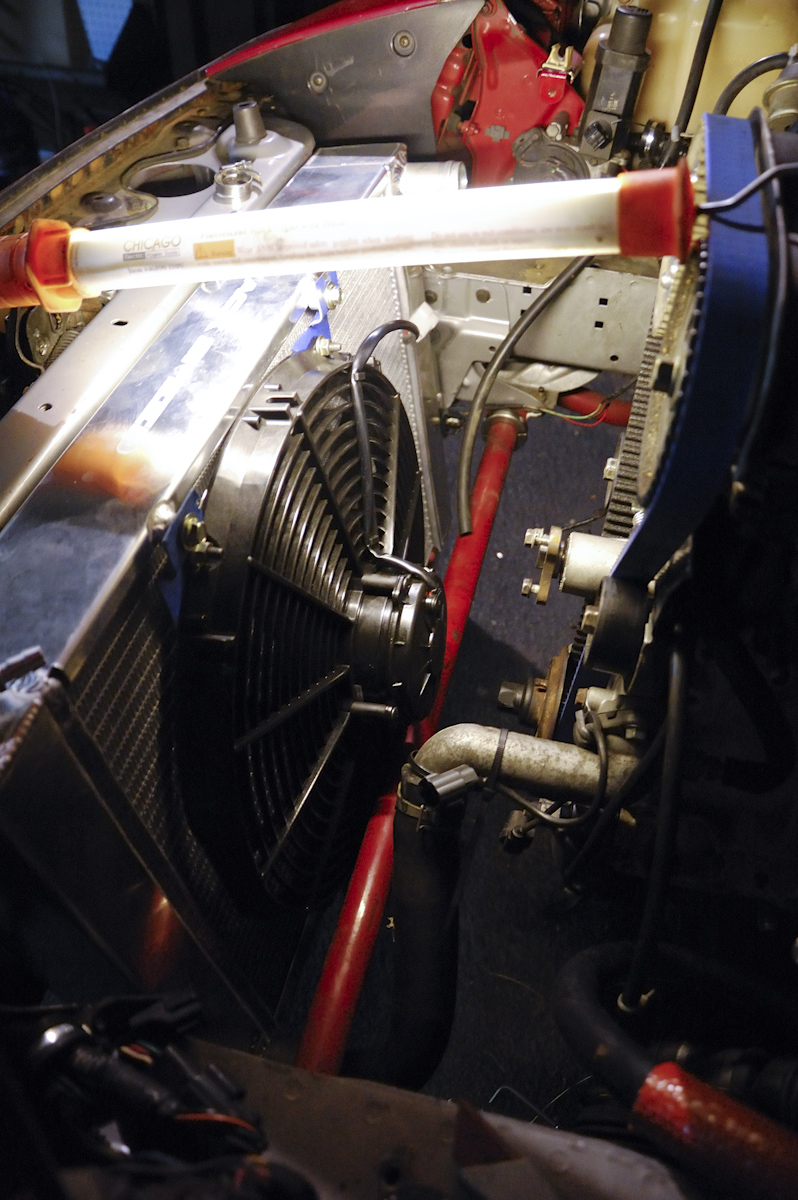

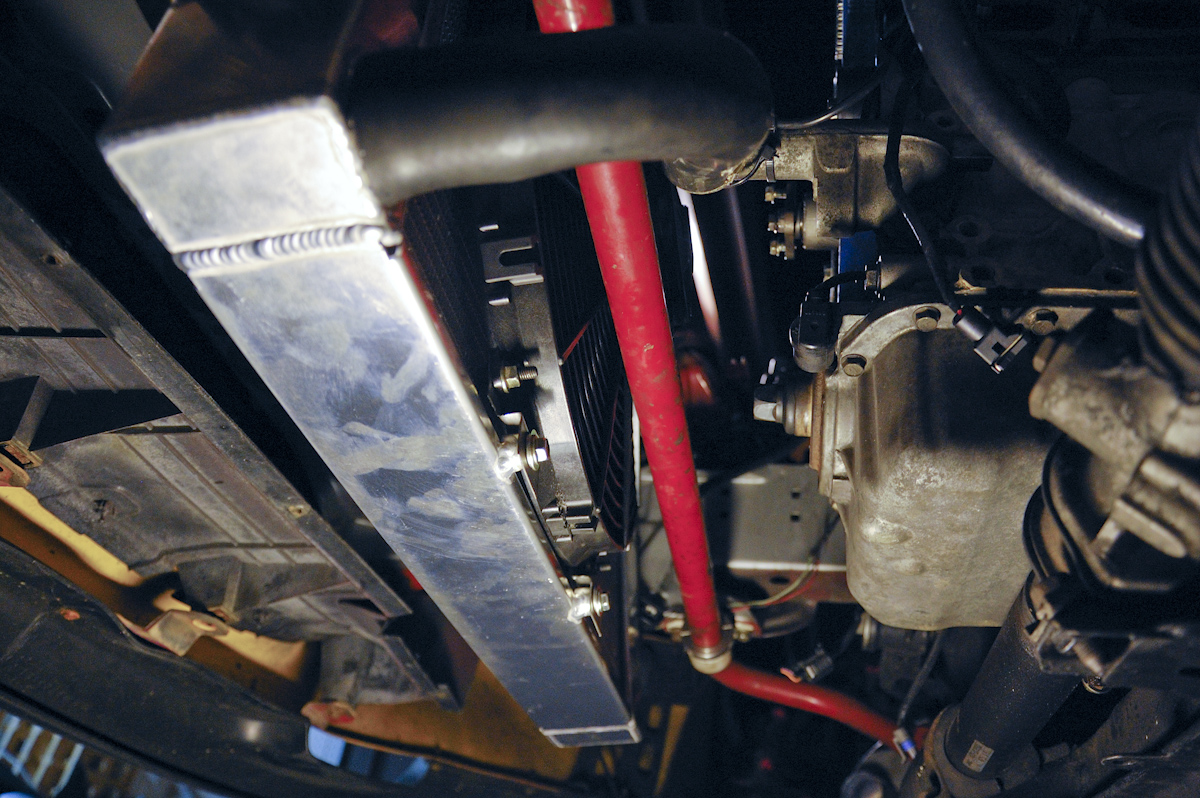

after a long struggle I can now last 30 minutes in bed put my 14" tool fan on the radiator. Initially I just made flat brackets out of 22gauge steel. Fan hit sway bar. Then I made new brackets that are an 'S' bend kind of. This way the fan is RIGHT UP against the radiator (blades are about 5-10mm away). The images don't really show it but the clearance between sway and fan is about 5-10mm as well. It's tight.





Also took off the intake manifold - god damn my car is filthy. 7000 miles does that I guess. Oh and block is no longer white but more like diluted **** yellow. Great!
Attached Thumbnails
In Soviet Russia car build YOU!-dsc_1825.jpg   In Soviet Russia car build YOU!-dsc_1831.jpg   In Soviet Russia car build YOU!-dsc_1836.jpg
soviet is offline   Reply With Quote
