Old 04-06-2012, 07:56 PM   #101
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

I haven't been updating this as much as I should have. I've been working on this сука almost every day. I'm hoping to get it started in a few days.

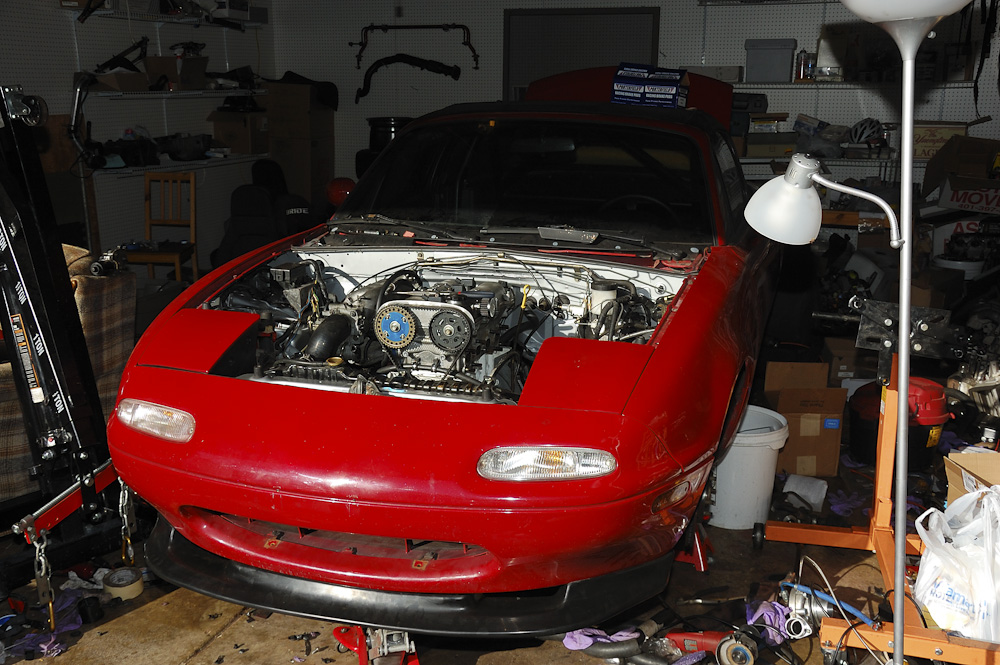

Current state:

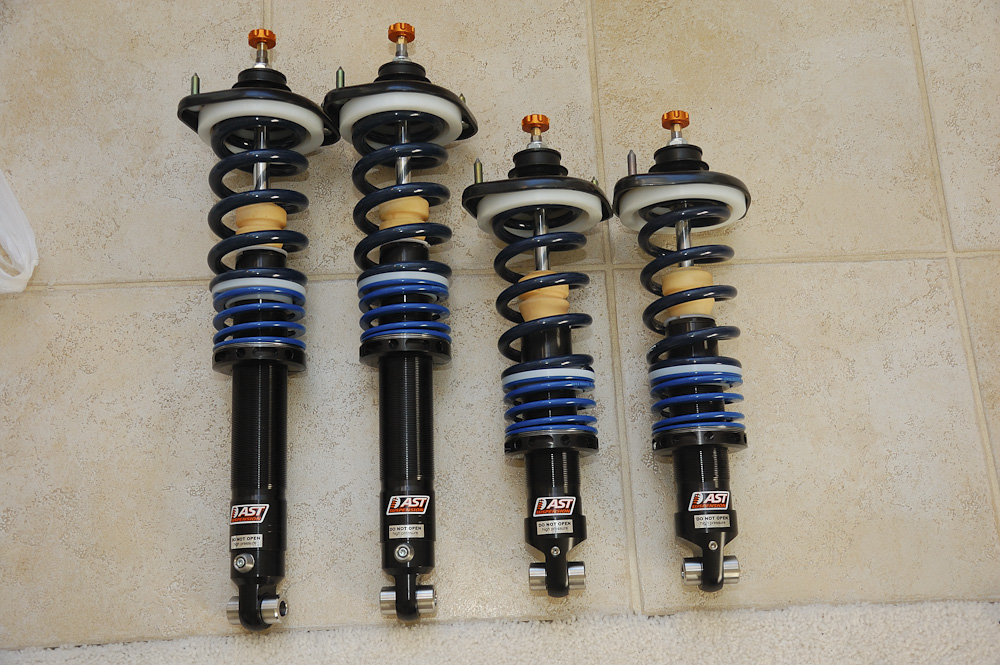

Reason for this post? More baller parts! Today was a good day - after a long wait XIDAs finally arrived. Apparently this is the latest and greatest iteration and has some improvements over the earlier versions.

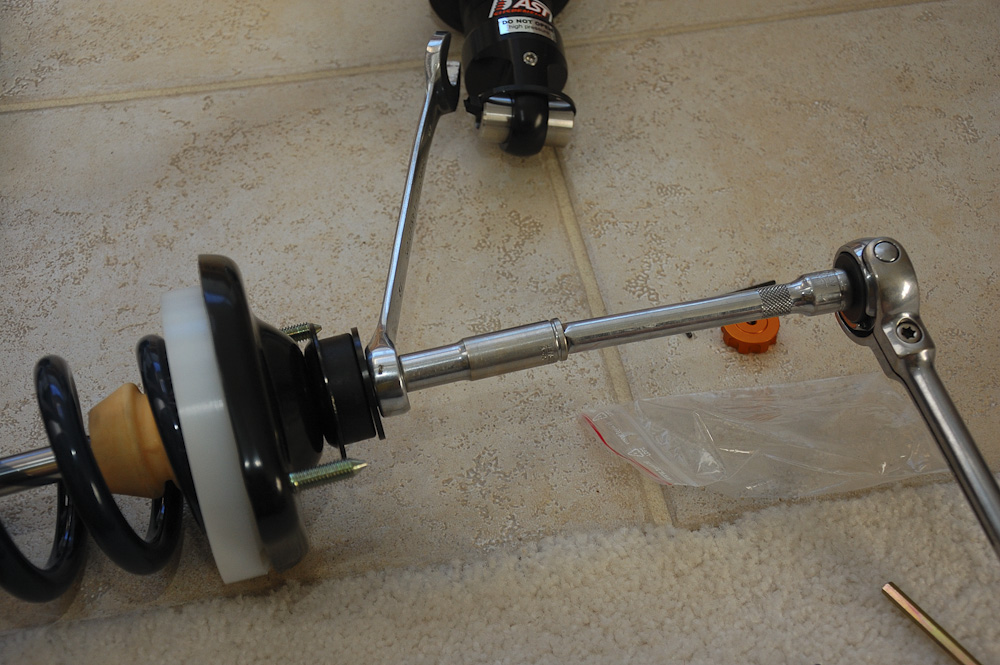

Also, this is how you tighten the top nut. Just don't over do it (10ft/lbs)

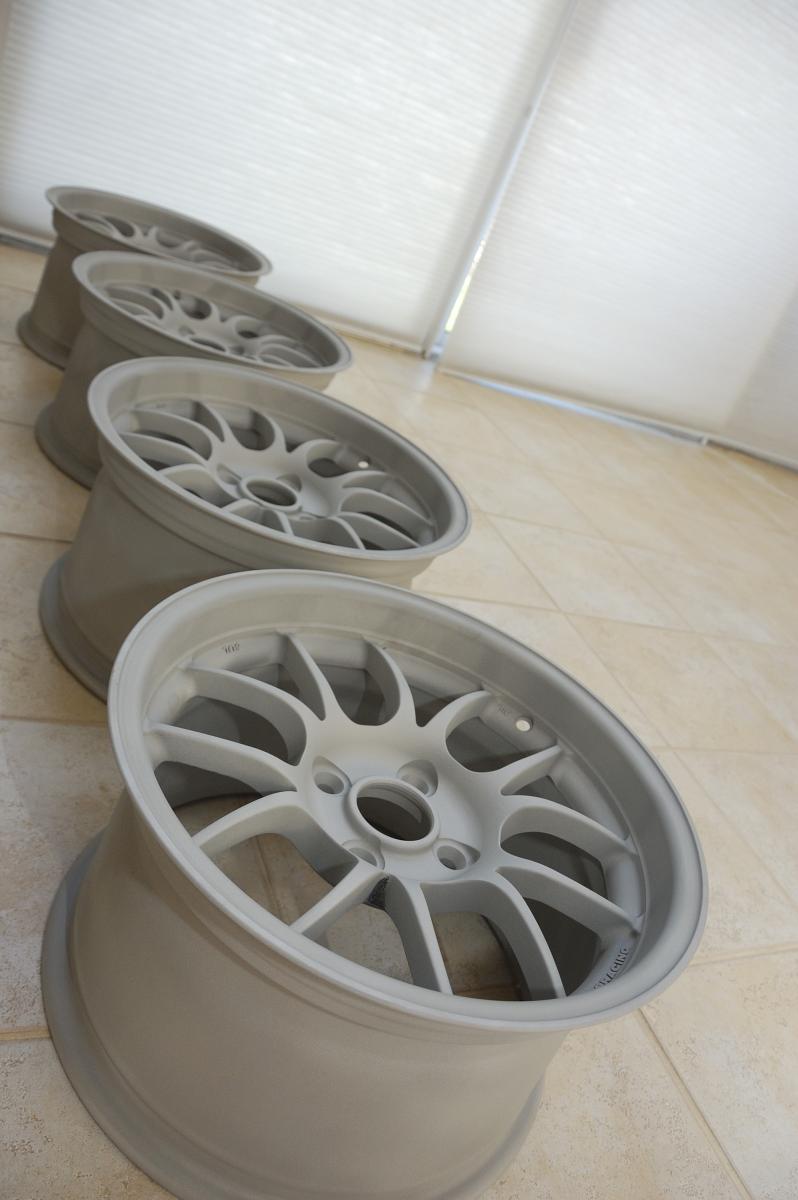

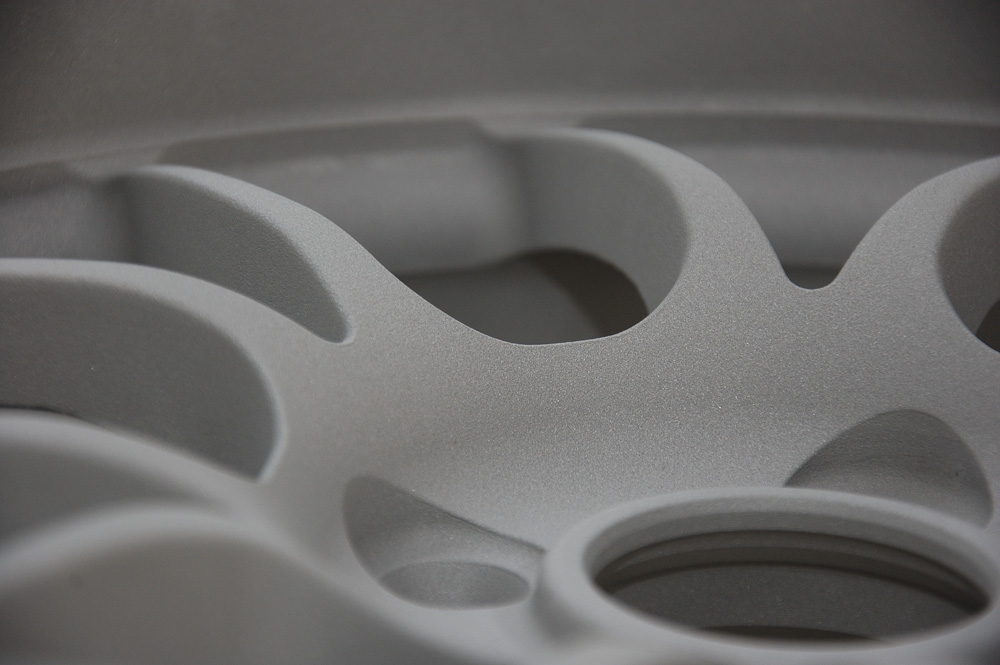

Finally, 6ULs were finished getting sandblasted. It cost me a lot more than I expected (4 hours of sandblasting...) but end result is pretty awesome. In retrospect I should have asked just to get the front blasted - but they did the whole rim.

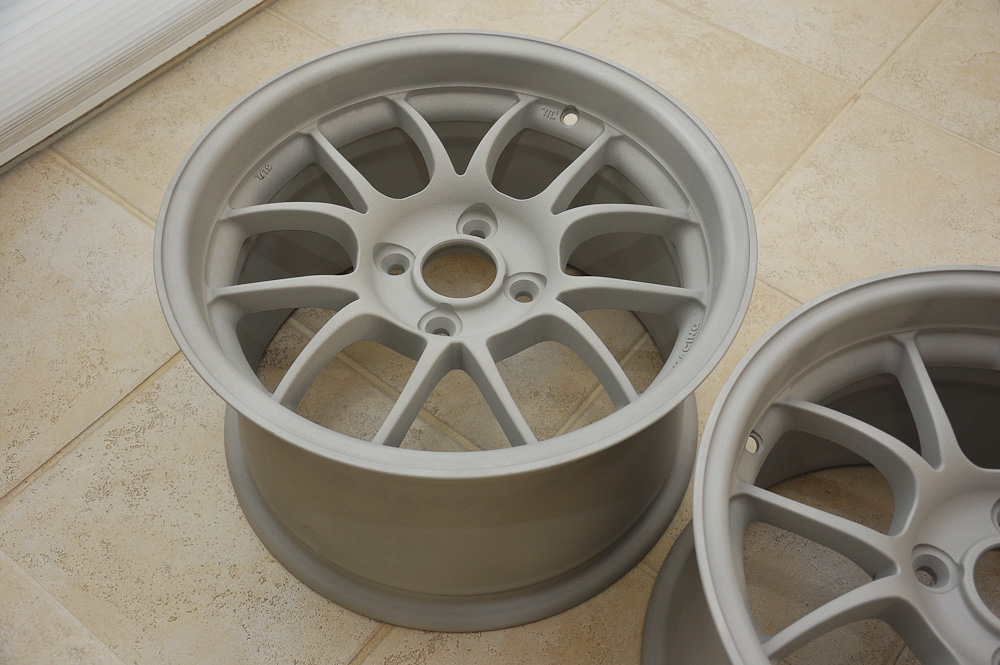

This is how naked 6UL looks like.


Attached Thumbnails
In Soviet Russia car build YOU!-dsc_0042.jpg   In Soviet Russia car build YOU!-dsc_0032.jpg   In Soviet Russia car build YOU!-dsc_0017.jpg   In Soviet Russia car build YOU!-dsc_0038.jpg   In Soviet Russia car build YOU!-dsc_0037.jpg

In Soviet Russia car build YOU!-dsc_0039.jpg   In Soviet Russia car build YOU!-dsc_0040.jpg
soviet is offline   Reply With Quote
Old 04-06-2012, 08:33 PM   #102
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

How are you going to coat the wheels? I like the sandblast look actually
Faeflora is offline   Reply With Quote
Old 04-06-2012, 08:43 PM   #103
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by Faeflora View Post
How are you going to coat the wheels? I like the sandblast look actually
Me too. They look super purposeful.
I'll primer them (etching primer -> filler primer -> normal primer (Rustoleum)), then paint white (DupliColor wheel paint) and 2-part topcoat (Glisten PC, same guys who make POR15)

Should be bomb-proof finish
soviet is offline   Reply With Quote
Old 04-06-2012, 09:49 PM   #104
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,934
Total Cats: 222
Default

Sanded looks great.
viperormiata is offline   Reply With Quote
Old 04-07-2012, 01:44 AM   #105
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

it turned out a lot better in pictures. IRL the finish is alright but not nearly as good as a painted finish.
soviet is offline   Reply With Quote
Old 04-07-2012, 02:01 AM   #106
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

A bunch more pictures.

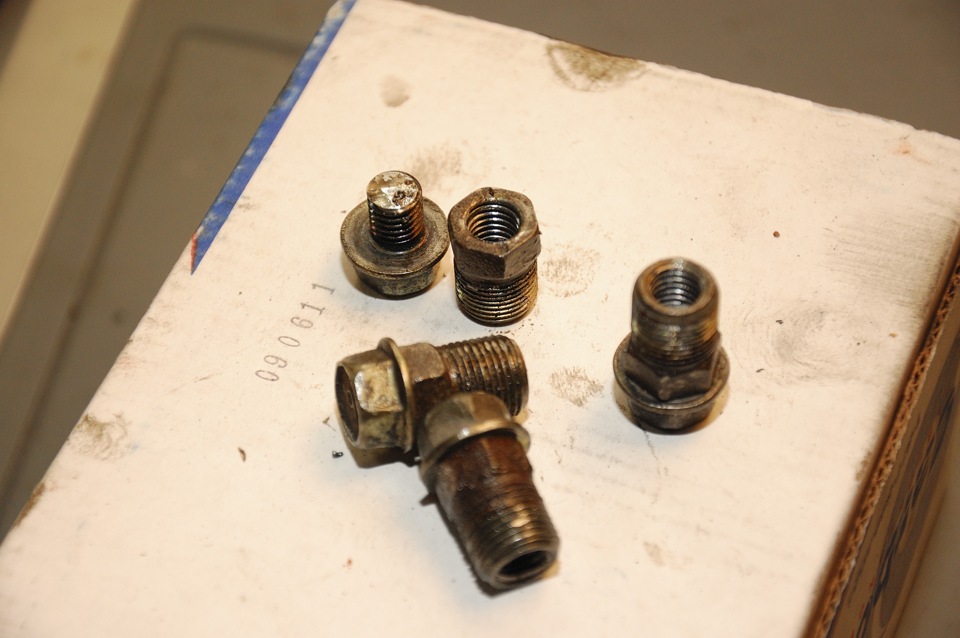

Steering rack plugs. Take stock power steering lines (the ones on rack). Cut them, take the ends off, tap & drill (M8 in this case) and you have plugs.

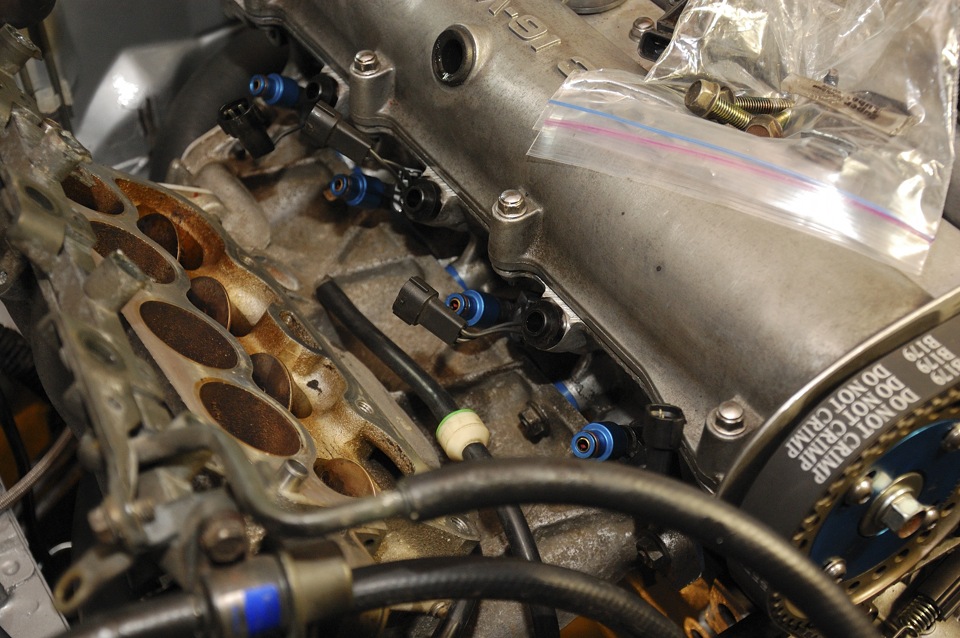

ID1000s installed

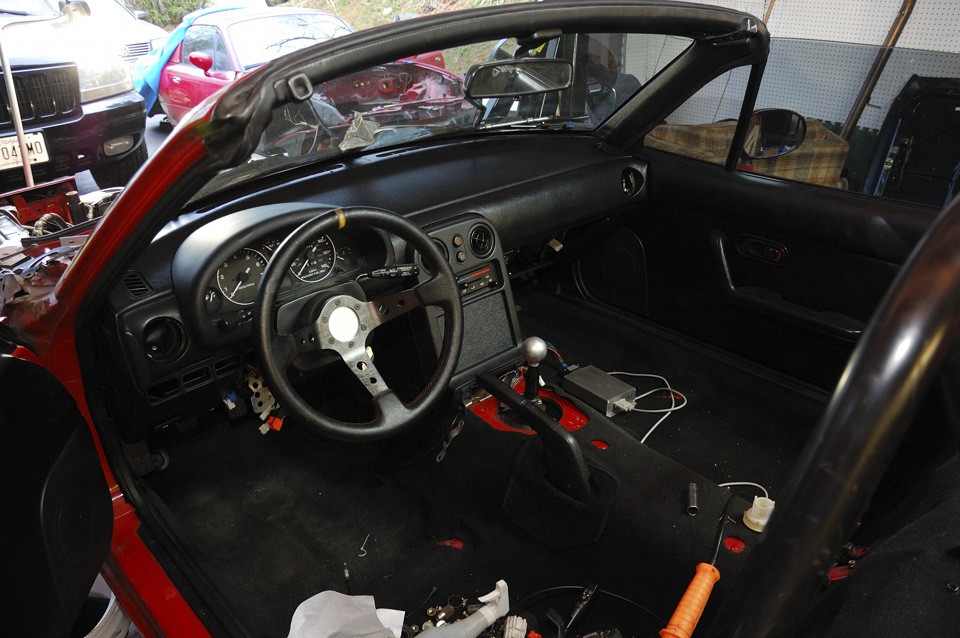

interior mostly done. Just gotta wire up boost gauge, swap to manual window regulators, install harness and seats.

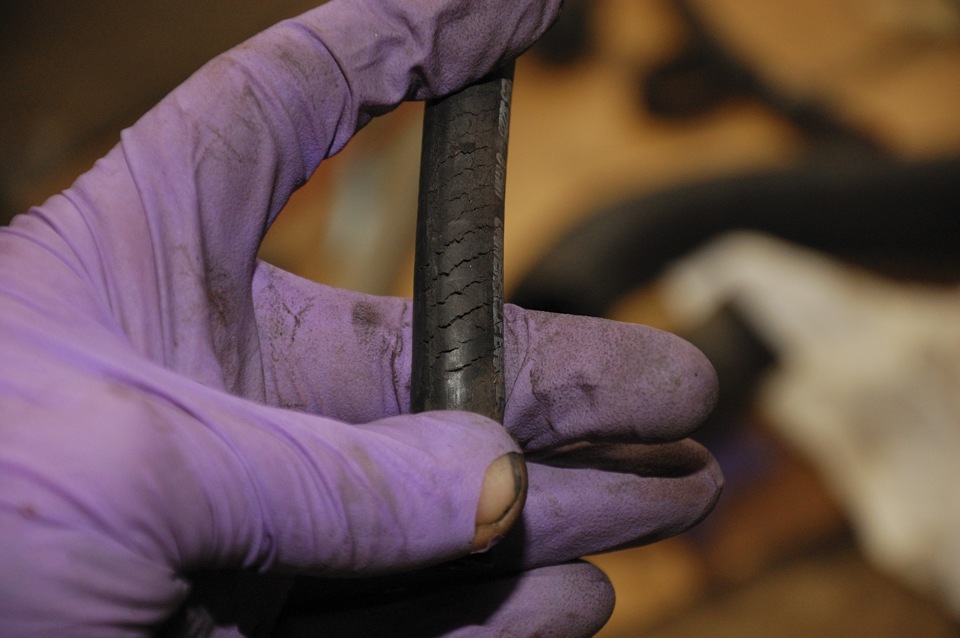

Old fuel hose. lol.


Went with this hose - http://www.napaonline.com/Catalog/Ca...349_0006447045 should be good for E85 and locally available. 8ft replaced all my fuel lines (gas tank, fuel finter, 99 regulator + NA fpr) with about 1.5 ft left.

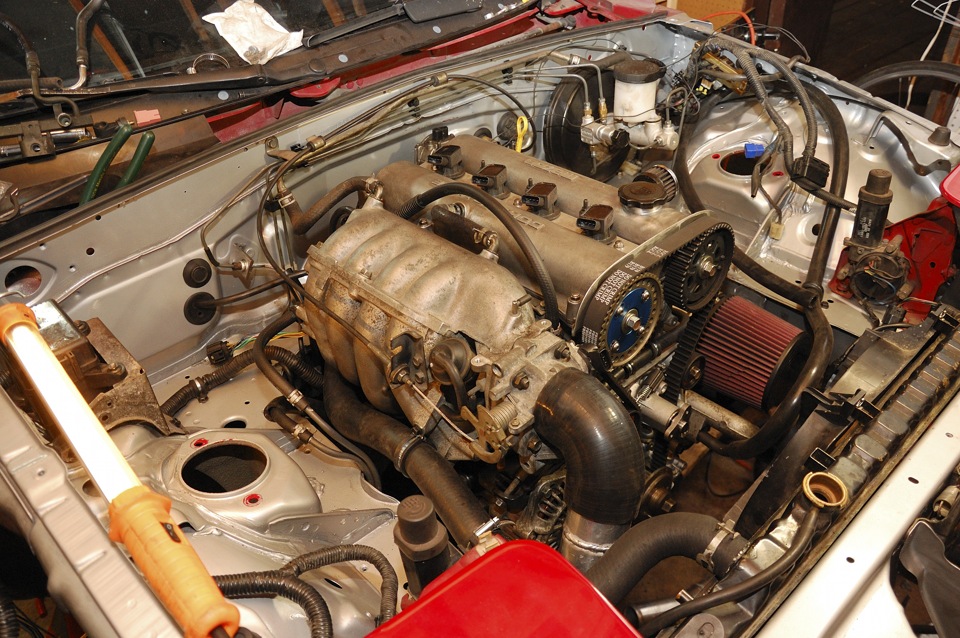

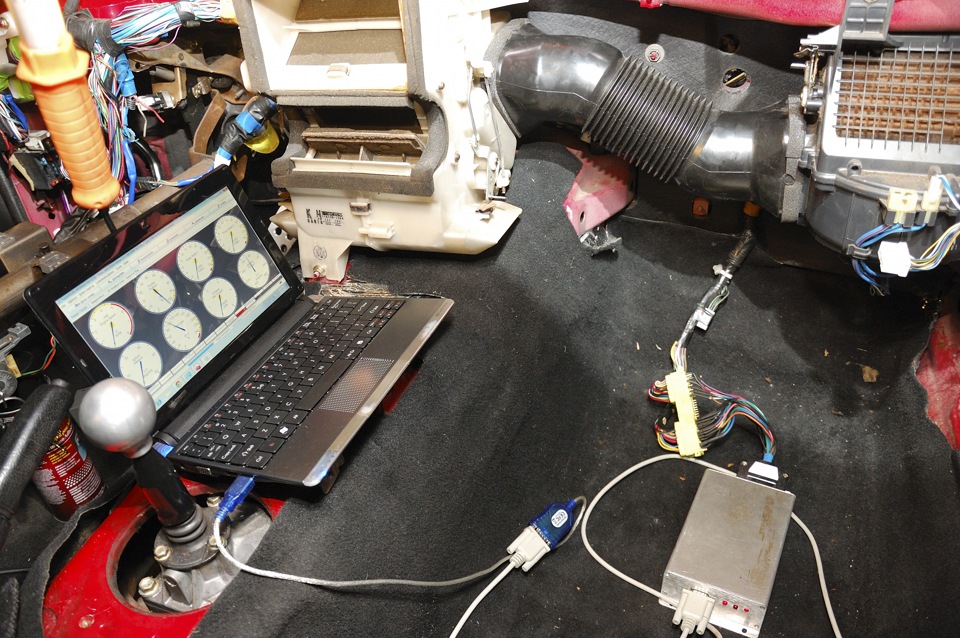

Wiring harness almost entirely hooked up. Just gotta do headlights (cut those wires off.. oops) and a few other things.

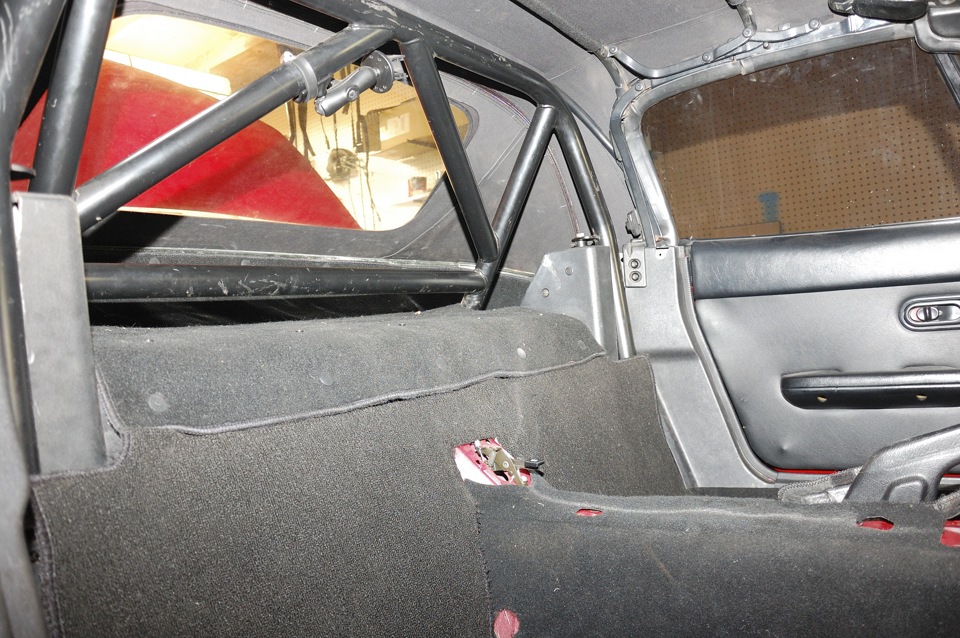

Roll-bar in. This was pretty easy since I just took it from old car and put it in new car - including all the cut trim panels and stuff. Decided to ditch both stock seat belts (---- the passengers)

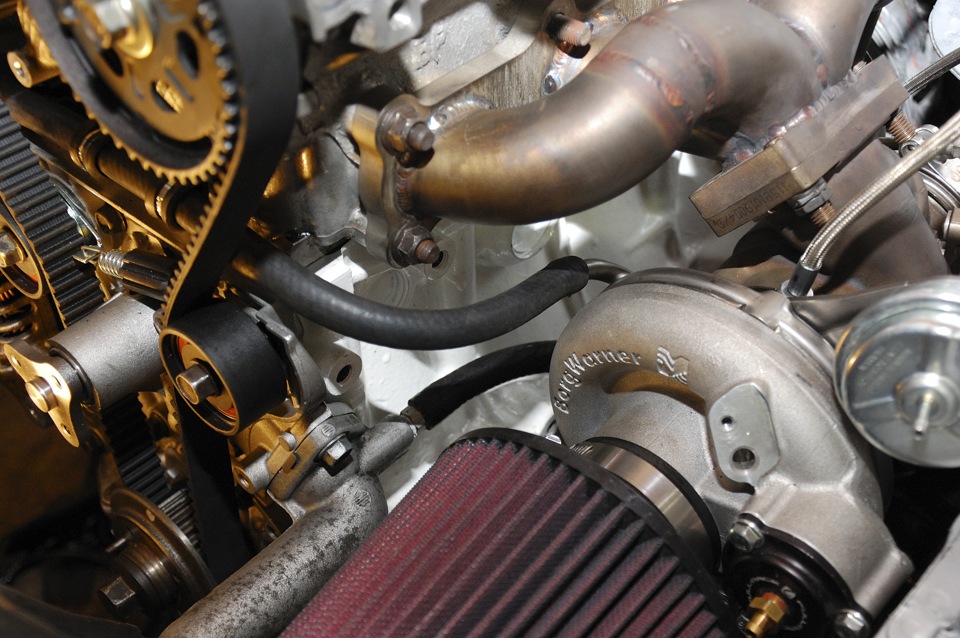

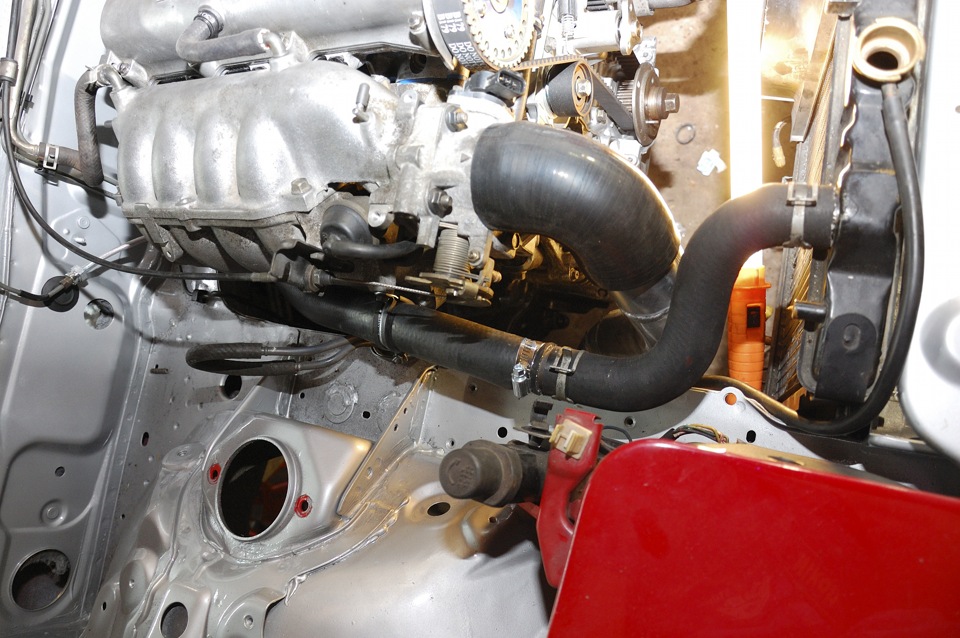

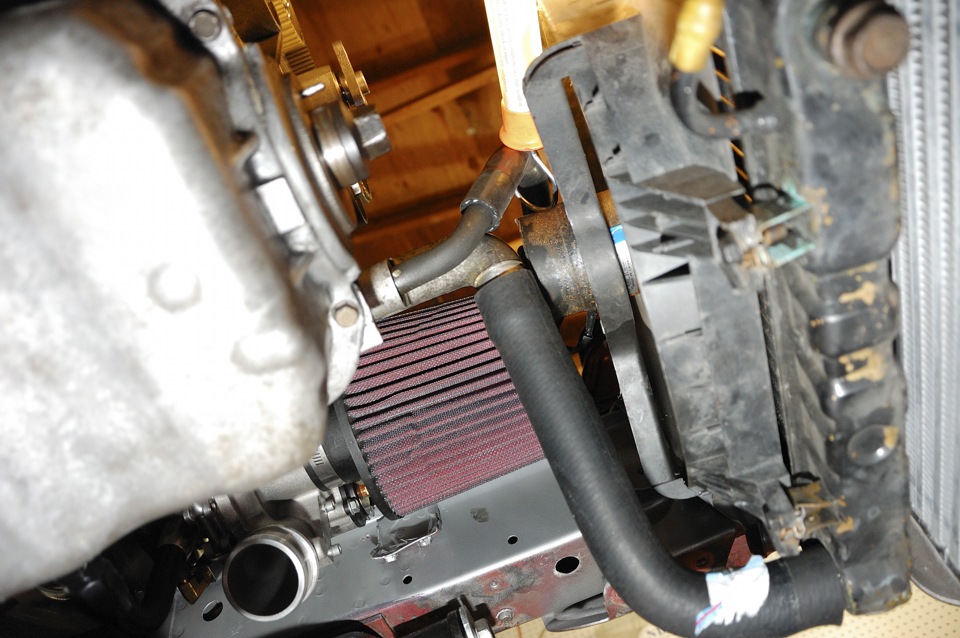

Coolant reroute

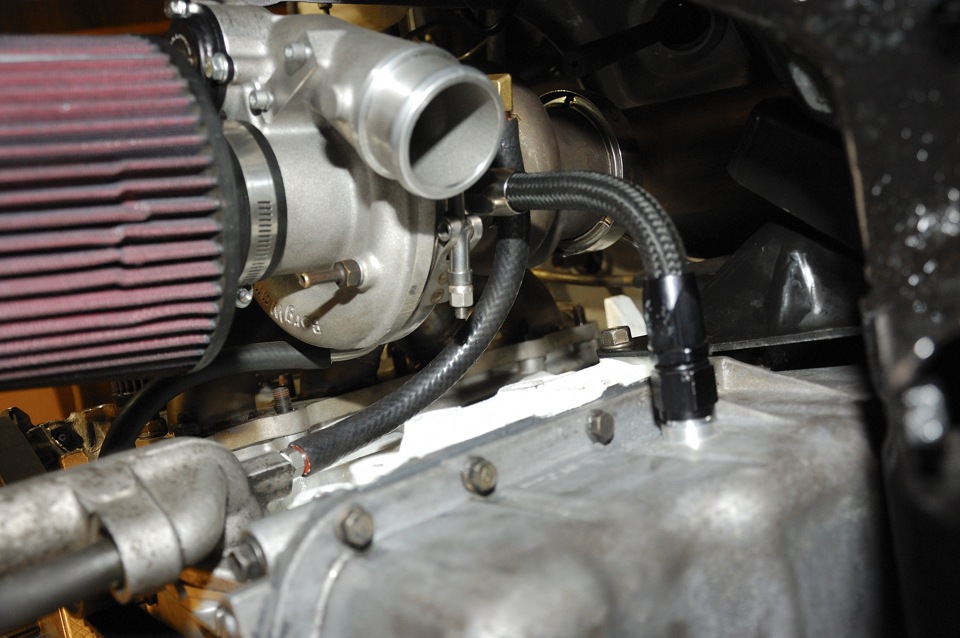

Le sexy oil drain


water outlet using a hotness 90* fitting

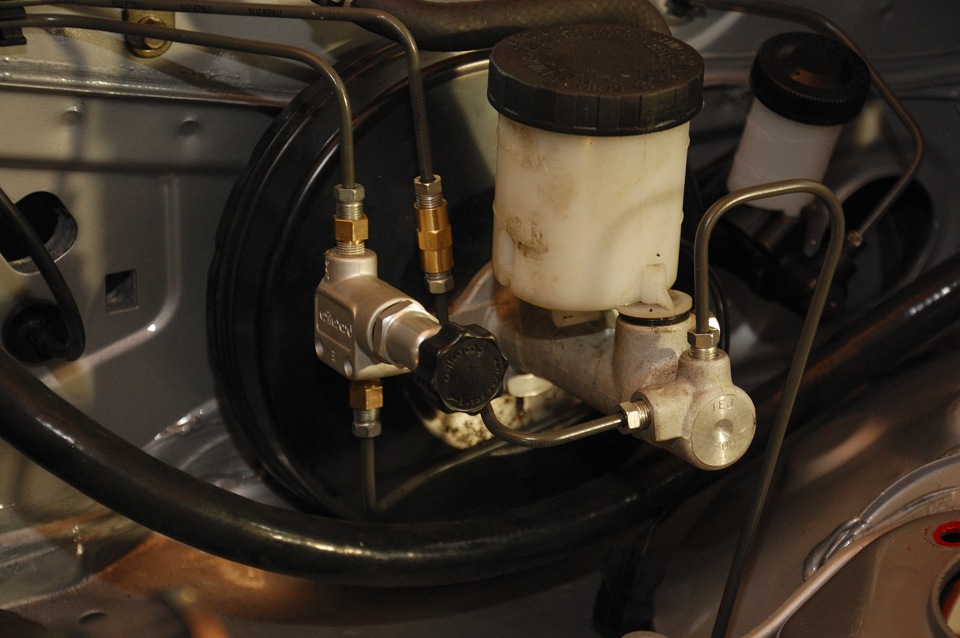

prop valve (i gotta put the bracket that holds it back in)

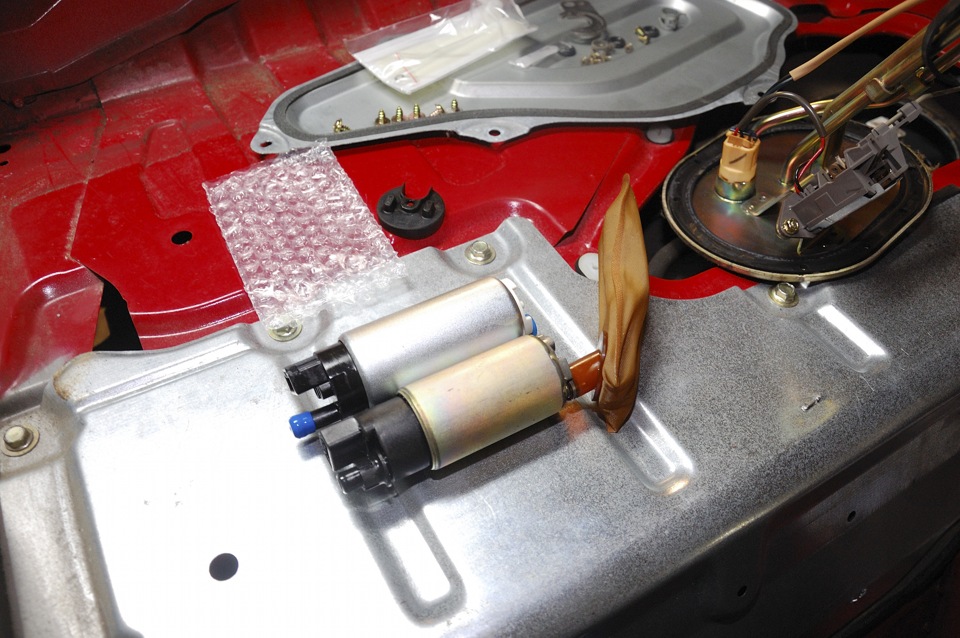

deatschwerks dw300 going in


frame rails installed (quite a pita, surprisingly)
Attached Thumbnails
In Soviet Russia car build YOU!-48cee0374d31bf26-large.jpg   In Soviet Russia car build YOU!-48cedf63cabe53bc-large.jpg   In Soviet Russia car build YOU!-48cedf685ef80e6c-large.jpg   In Soviet Russia car build YOU!-48cede7adeab35ab-large.jpg   In Soviet Russia car build YOU!-48cedc4b1a226281-large.jpg

In Soviet Russia car build YOU!-48cedb8105736886-large.jpg   In Soviet Russia car build YOU!-48cedb81455087d2-large.jpg   In Soviet Russia car build YOU!-48ced9e74716ce47-large.jpg   In Soviet Russia car build YOU!-48ced9e7953e9825-large.jpg   In Soviet Russia car build YOU!-48ced9e7e5f2a12f-large.jpg

In Soviet Russia car build YOU!-48ced9e882f71f33-large.jpg   In Soviet Russia car build YOU!-48ced9e9ab52d8cd-large.jpg   In Soviet Russia car build YOU!-48ced79b80510958-large.jpg   In Soviet Russia car build YOU!-48ced79c37ab4cc2-large.jpg
soviet is offline   Reply With Quote
Old 04-07-2012, 03:00 AM   #107
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,782
Total Cats: 205
Default

Man you blaze through stuff! Looks great.
Mobius is offline   Reply With Quote
Old 04-07-2012, 03:20 AM   #108
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

The stuff in the last post I did over the last 10 days or so. But yeah I'm pushing it hard. I need to have the car on the road - weather is great and with the amount of money spent, every day I'm not driving it feels like a waste.

Oh and did I mention my jeep (current DD) gets 15mpg? So yeah, I need this car on the road like NOW.
soviet is offline   Reply With Quote
Old 04-07-2012, 04:53 AM   #109
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,637
Total Cats: 463
Default

Nice, I'm doing the same thing with my mixing manifold and water return. Actually both water lines, although I dunno if you're feeding from the same place. Interesting location, behind the timing belt. Hope it stays put, looks fairly close to the timing belt in that picture.
curly is online now   Reply With Quote
Old 04-07-2012, 04:47 PM   #110
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,215
Total Cats: 750
Default

Quote:
Originally Posted by curly View Post
Nice, I'm doing the same thing with my mixing manifold and water return. Actually both water lines, although I dunno if you're feeding from the same place. Interesting location, behind the timing belt. Hope it stays put, looks fairly close to the timing belt in that picture.
Yeah I would be a bit afraid of routing coolant hoses behind the timing belt. Way to high of a chance for them to hit timing belt and be cut.
shuiend is online now   Reply With Quote
Old 04-09-2012, 02:54 AM   #111
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

I'll probably take a sheet of aluminum and make a cover for it and attach it where the original cover was.

We'll see. Other idea was to reroute it under the engine and eeeeh that didn't look too good either.
soviet is offline   Reply With Quote
Old 04-09-2012, 09:45 AM   #112
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

cant wait to see this thing running! this build has really taken off!
Braineack is offline   Reply With Quote
Old 04-09-2012, 11:27 AM   #113
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,215
Total Cats: 750
Default

I like how he will dyno the car before Min dynos his car.
shuiend is online now   Reply With Quote
Old 04-09-2012, 11:57 AM   #114
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

Quote:
Originally Posted by shuiend View Post
I like how he will dyno the car before Min dynos his car.
QFT

Attached Thumbnails
In Soviet Russia car build YOU!-weatherdong.jpg
devin mac is offline   Reply With Quote
Old 04-09-2012, 12:03 PM   #115
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

lol, i'll have it dyno'd by the end of the month, hopefully @ 20psi. then its MS3X time.
soviet is offline   Reply With Quote
Old 04-13-2012, 04:03 AM   #116
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default


orange crew signing in!
soviet is offline   Reply With Quote
Old 04-13-2012, 09:23 AM   #117
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,215
Total Cats: 750
Default

Quote:
Originally Posted by soviet View Post

orange crew signing in!
Everyone else is just hating on our orange fire sleeve.
shuiend is online now   Reply With Quote
Old 04-13-2012, 09:41 AM   #118
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

im hating on everything cause im jealous.
Braineack is offline   Reply With Quote
Old 04-17-2012, 09:54 AM   #119
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

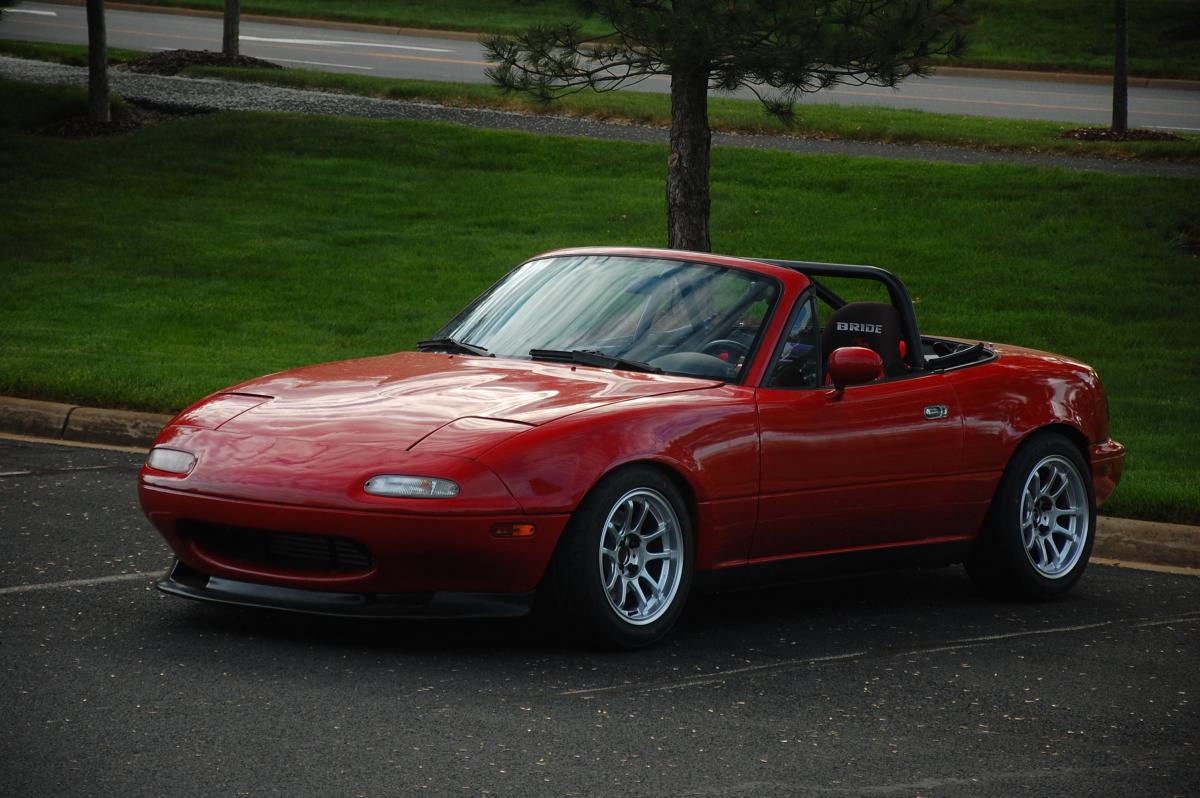

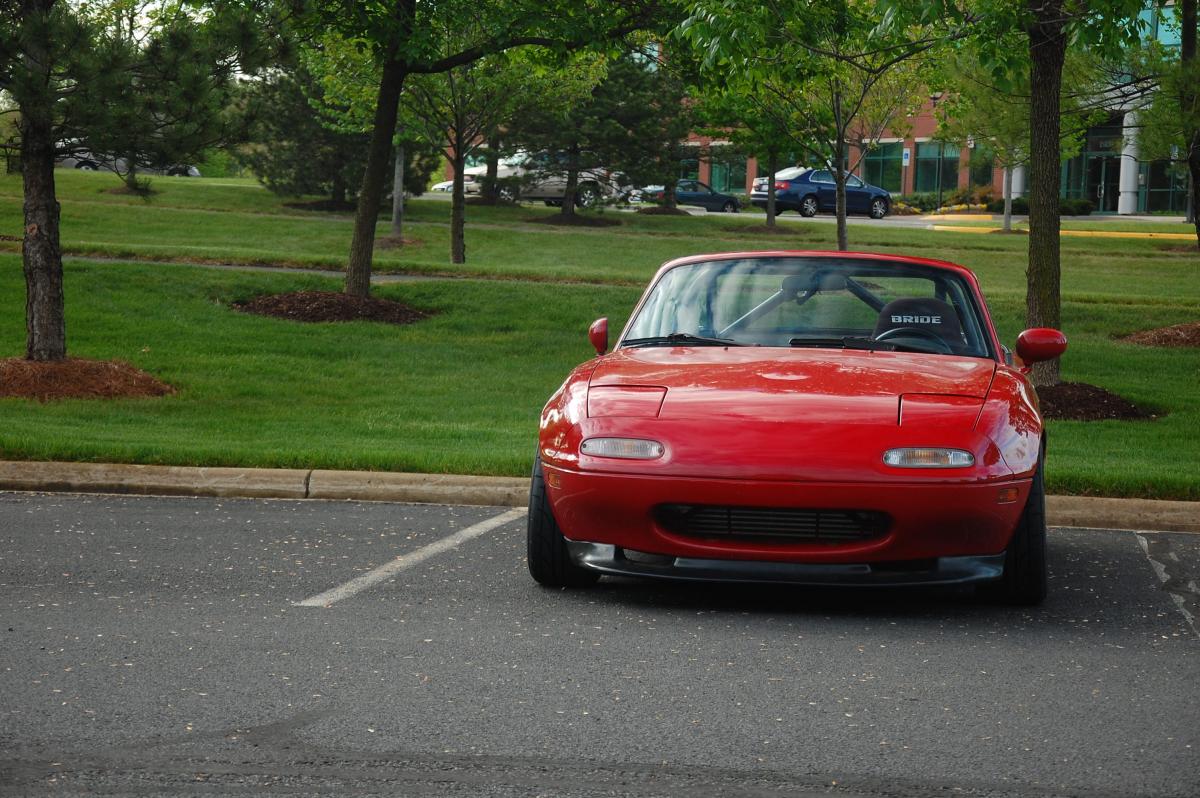

It runs and drives! Had a few set-backs starting it up but worked them out.

I drove it to work while doing the flyin miata break in procedure. 6 speed feels weird. seating position feels weird. clutch feels weird. brakes need a ton of adjustment. but i'll get used to it. ararararar so many emotions i can't even type omfg.


Attached Thumbnails
In Soviet Russia car build YOU!-dsc_0179.jpg   In Soviet Russia car build YOU!-dsc_0180.jpg
soviet is offline   Reply With Quote
Old 04-17-2012, 10:02 AM   #120
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

looks really nice. i mean if everythign is too weird for you, we can just trade.
