Old 07-09-2013, 11:19 AM   #1221
Elite Member
iTrader: (7)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,173
Total Cats: 116
Default

Can you make this work with an MS2 or do you need the usb port from the MS3?

EDIT: Nvm, I answered my own question by reading the app description.
Ryan_G is online now   Reply With Quote
Old 07-09-2013, 11:55 AM   #1222
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by shuiend View Post
What is funny is I just got MSDash up and running on my Samsung Galaxy Nexus in the past few days. The fact that I can go over USB and not use bluetooth is amazing. Why are you using the USB hub?

I also did not have to install any .ini files on my phone. It automatically pulled in the correct one and started working on the first time I plugged it in.
Because I'm planning on doing a fixed installation. So I will potentially connect more devices to the Nexus.

Quote:
Originally Posted by thenuge26 View Post
Wow, so the wired is a huge advantage over the bluetooth? I have been considering not getting a wideband or boost gauge and just using shadowdash or MSDash as my gauges on my Nexus 4, so I guess I will have to look into running it wired like that.
You can run both on bluetooth, while only msDash supports wired mode.
msDash is $0.00, ShadowDash is $9.99.
msDash is in alpha, ShadowDash is pretty mature
soviet is offline   Reply With Quote
Old 07-09-2013, 01:36 PM   #1223
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

I can't pretend to be any expert, but the MSdroid app looked to be in that sweet spot where the authors are excited and there are some features.

Powering the hub would seem ok, though I don't think they are set up to power the host device. Huh, interesting side effect of OTG. Certainly nothing wrong with setting it up your way.

28 gauge wire? Awesome. I was afraid it'd be something small. :-) I've certainly dealt with worse. The problem I keep finding is small wires in some USB cables don't charge very well.
AbeFM is offline   Reply With Quote
Old 07-09-2013, 02:19 PM   #1224
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

To power the device through the hub you would still use a Y cable and plug the "power" end of it into the hub's powered outlets.

I like my current setup because its simple. Just have to secure all the cables and change how the cigarette outlet is powered.
soviet is offline   Reply With Quote
Old 07-09-2013, 02:19 PM   #1225
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

To power the device through the hub you would still use a Y cable and plug the "power" end of it into the hub's powered outlets.

I like my current setup because its simple. Just have to secure all the cables and change how the cigarette outlet is powered.
soviet is offline   Reply With Quote
Old 07-09-2013, 03:50 PM   #1226
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

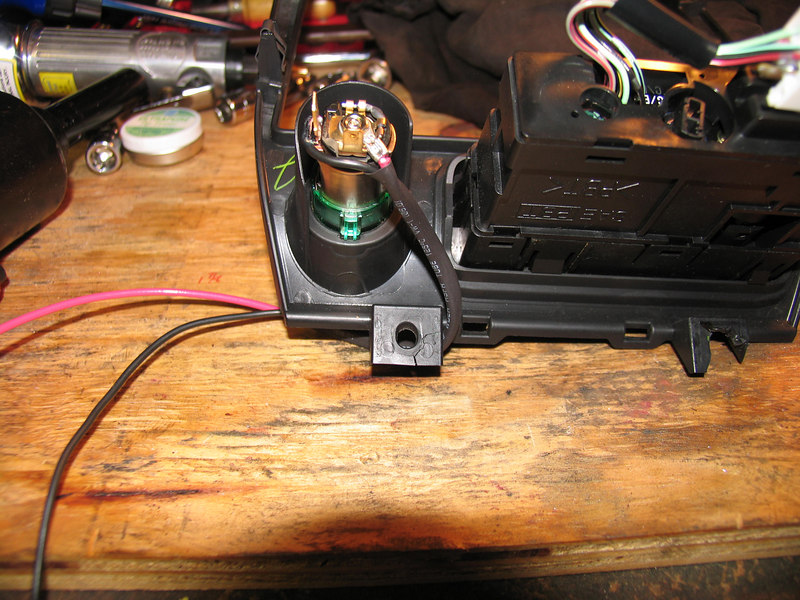

Not saying I'd recommend that. It was kinda a pain in the butt. :-) This one is switched, I also put 3 ports behind the passenger seat which I ran (fused but) direct to the battery. Nice to have the choice from always on versus not.
Attached Thumbnails
In Soviet Russia car build YOU!-img_7330-l.jpg
AbeFM is offline   Reply With Quote
Old 07-10-2013, 01:23 PM   #1227
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Talked to DeatschWerks. Plan for the pump is as follows:
- take it out of the tank to see if the sock is gunked up
- possibly re-wire with higher gauge wires
- lower base fuel pressure and see if it holds better
soviet is offline   Reply With Quote
Old 07-10-2013, 01:26 PM   #1228
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,169
Total Cats: 1,990
Default

I know on other cars re-wiring the pump past 400 is mandatory. They even sell re-wire kits and what not.
18psi is offline   Reply With Quote
Old 07-10-2013, 01:28 PM   #1229
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

yeah it sounds like a good idea and easy to do.
re-wire kits are for chumps, though.
soviet is offline   Reply With Quote
Old 07-11-2013, 12:10 AM   #1230
Elite Member
iTrader: (9)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,707
Total Cats: 17
Default

Don't feel like reading, what pump is it?
I have a A1000 on my Mustang that lost major power with stock wiring. I went with 10G and a 90amp relay right to battery. Should be easy on Miata that had battery 3' from tank.
IcantDo55 is offline   Reply With Quote
Old 07-11-2013, 02:59 PM   #1231
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

In case there's more opinions on this whole alternator thing (and to keep this thread uncluttered) Alternator Options And Opinions
AbeFM is offline   Reply With Quote
Old 07-11-2013, 02:59 PM   #1232
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

In case there's more opinions on this whole alternator thing (and to keep this thread uncluttered) Alternator Options And Opinions
AbeFM is offline   Reply With Quote
Old 07-12-2013, 01:03 PM   #1233
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by IcantDo55 View Post
Don't feel like reading, what pump is it?
I have a A1000 on my Mustang that lost major power with stock wiring. I went with 10G and a 90amp relay right to battery. Should be easy on Miata that had battery 3' from tank.
Its a DW300 - Fuel Pumps : DW300 In-Tank Fuel Pump | DeatschWerks
I'm going to rewire it, yeah. 12ga wires.
soviet is offline   Reply With Quote
Old 07-12-2013, 01:50 PM   #1234
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

12 gauge? Wow. What's stock wiring?
AbeFM is offline   Reply With Quote
Old 07-12-2013, 01:58 PM   #1235
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

like 20g.
Braineack is offline   Reply With Quote
Old 07-12-2013, 02:17 PM   #1236
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Yeah like 18ga or 20ga
Stock pump probably uses like 5amp of current vs 10-15amp or so that DW300 drains.

Voltage drop over 10ft of 18ga wire @ 15amp/13VDC is 2 volts.
Voltage drop over 10ft of 12ga wire @ 15amp/13VDC is 0.5 volts
soviet is offline   Reply With Quote
Old 07-12-2013, 02:25 PM   #1237
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

p.s. the fun fact is that I probably had weak-*** fuel pressure this whole time. But while I was running gas, the combination of big pump + big injectors could overcome weak fuel pump voltage and pressure.

With E85 the injectors are suddenly not that big and I actually have a way to monitor fuel pressure - so the problem becomes much more obvious.
soviet is offline   Reply With Quote
Old 07-12-2013, 02:30 PM   #1238
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

Note to self, rewire fuel pump this winter.
Leafy is offline   Reply With Quote
Old 07-12-2013, 03:12 PM   #1239
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

yeah - same deal. A friend told me to use this corvette fuel filter/regulator combo - big flow, low dollar, reasonable quality.... but not manifold referenced. With 1000cc injectors and a walbro 400lph, I don't expect a lot of problems at 250 hp.... But e85 or higher boost is going to be problematic.

Also, I find anytime the battery is weak, the car has issues....18 amps is the top of the current draw curve.

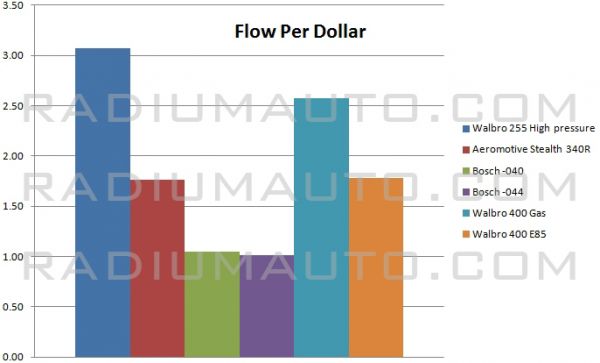

OMG, check out this article - near the end there's a "flow per dollar" chart I love.

Radium Engineering - Tech Articles


I wish they had your pump on there, curious how it would do - noise included.

Also not bad - shows characteristics when you ask to much pressure from it New Walbro 400 lph Fuel Pump is now available at T1 Race Development
Attached Thumbnails
In Soviet Russia car build YOU!-flow-vs-dollar.jpg
AbeFM is offline   Reply With Quote
Old 07-12-2013, 03:27 PM   #1240
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

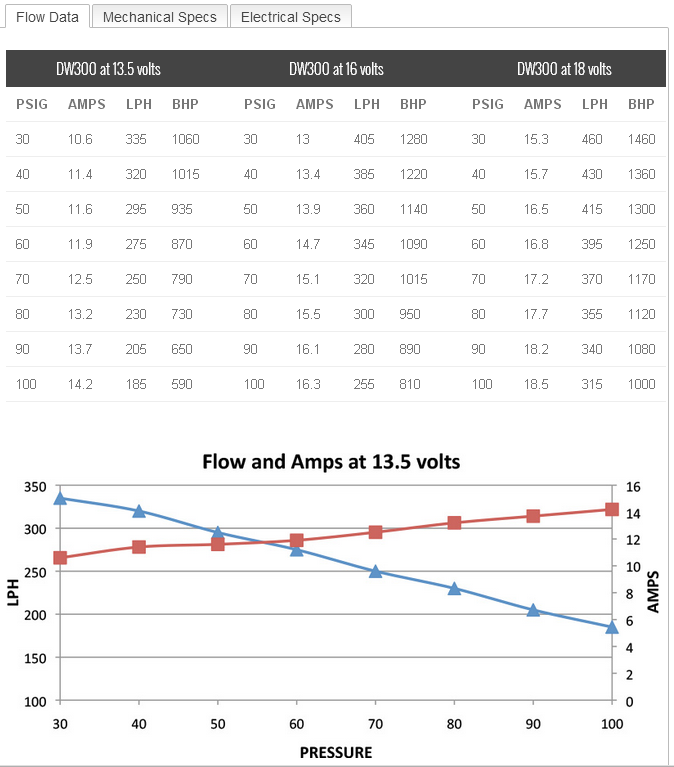

Walbro 400 eh
at 80-90psi it looks about 20-25% better than DW300. Neat.

Too bad I don't have $180 to play around with a new pump.


Attached Thumbnails
In Soviet Russia car build YOU!-dw300.png
soviet is offline   Reply With Quote
