Old 04-07-2014, 02:26 AM   #1801
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Yeah - I was going to say washing it for sure. I bought a used bike which a PO had used "gas tank sealer" in.... which had all rotted away. I carried three replaceable filters with me (after turning chain over and over with 20 feet of chain in it for an hour), and I swapped them constantly - at least with every tank. It got better over time, but.... ick!
AbeFM is offline   Reply With Quote
Old 04-07-2014, 02:45 PM   #1802
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Yeah I haz a sad about fuel pump. And I don't look forward to pulling the gas tank.

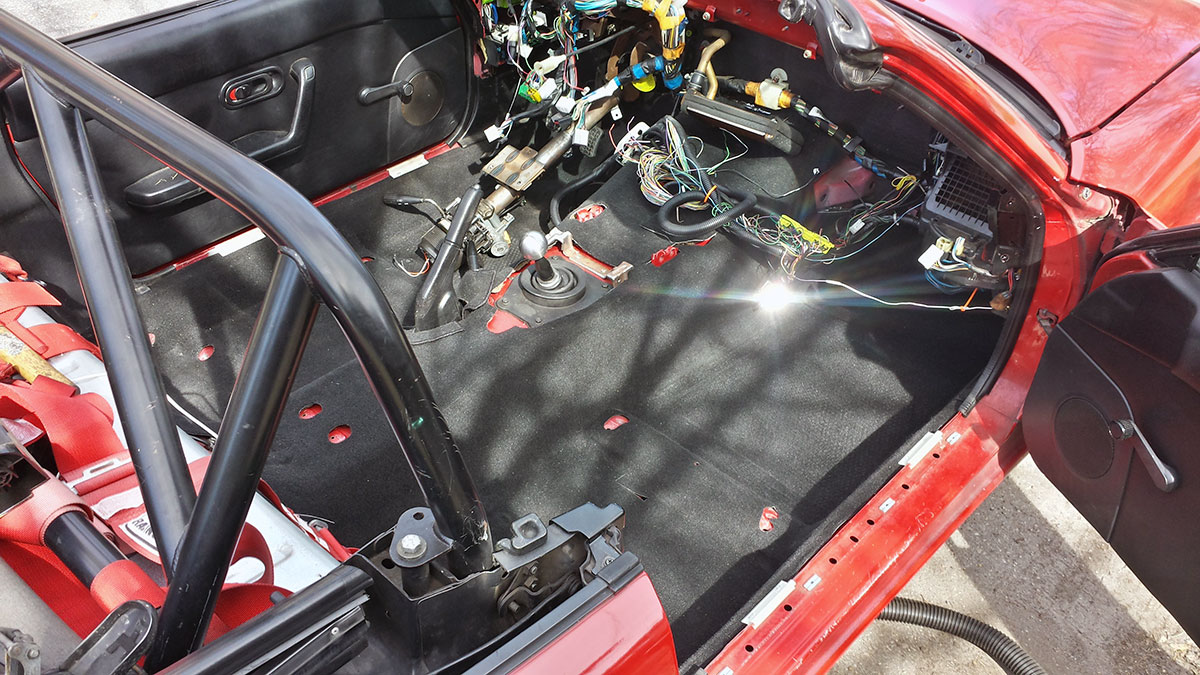

In good news, the 2003 carpet I got ages ago fits perrrrfectly.


And I'm finally going to clean up the super-messy wiring harness a little bit.
Attached Thumbnails
In Soviet Russia car build YOU!-20140406_155619.jpg
soviet is offline   Reply With Quote
Old 04-21-2014, 12:52 PM   #1803
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

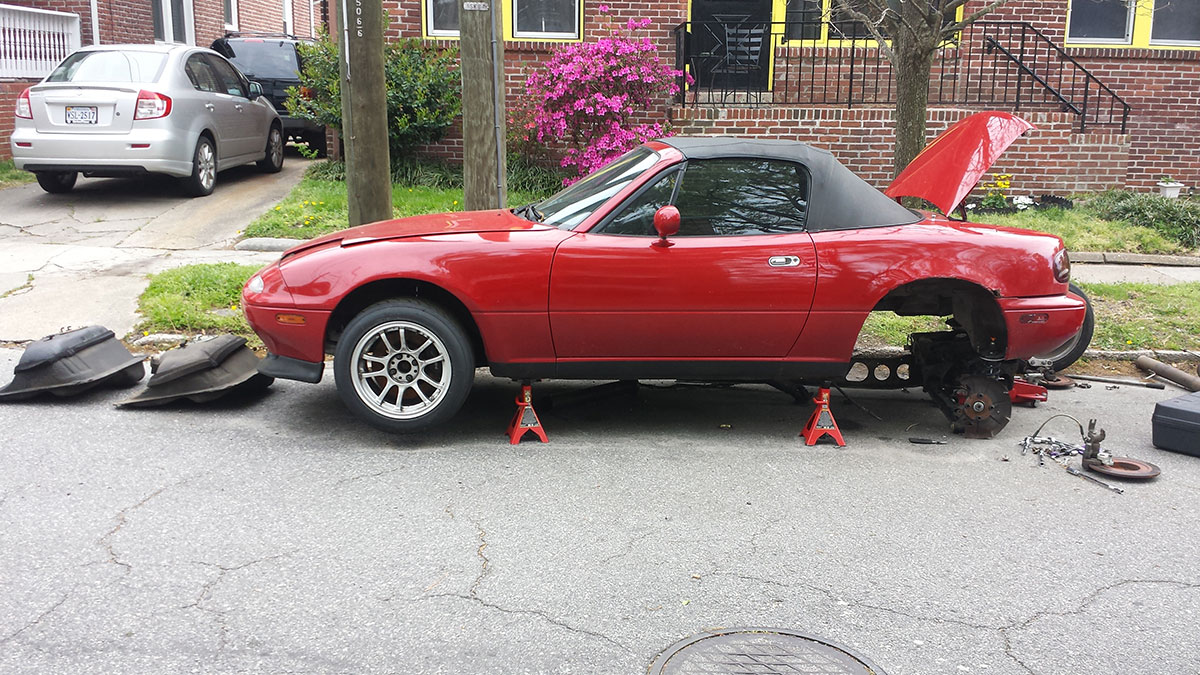

Yesterday I swapped the gas tank on side of the street. Took all of 5 hours, solo, with hand tools. Really easy.



Today just gotta go get some E85 and should be ready to go driving again
Attached Thumbnails
In Soviet Russia car build YOU!-2014-04-20-16.34.18.jpg
soviet is offline   Reply With Quote
Old 04-21-2014, 01:12 PM   #1804
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

LOL, awesome. Just drop the entire rear subframe, eh? "easy", i like the way you roll.
Fireindc is offline   Reply With Quote
Old 04-21-2014, 01:18 PM   #1805
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

It is really easy if you have v-bands and all the bolts have been loosend in the past 1-2 years Don't need a fancy jack!

A vaccum nipple over the looong brake hard line works like a charm. Just slide the compression nut out of the way and tada! No leaking brake fluid.
soviet is offline   Reply With Quote
Old 04-22-2014, 02:02 AM   #1806
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,967
Total Cats: 9
Default

Quote:
Originally Posted by soviet View Post
A vaccum nipple over the looong brake hard line works like a charm. Just slide the compression nut out of the way and tada! No leaking brake fluid.
I'm having a hard time visualizing this. I'll be dropping my rear subframe soon and if I don't have to deal w/ brake fluid...let's just say BJ city.
kenzo42 is offline   Reply With Quote
Old 04-22-2014, 12:55 PM   #1807
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by kenzo42 View Post
I'm having a hard time visualizing this. I'll be dropping my rear subframe soon and if I don't have to deal w/ brake fluid...let's just say BJ city.

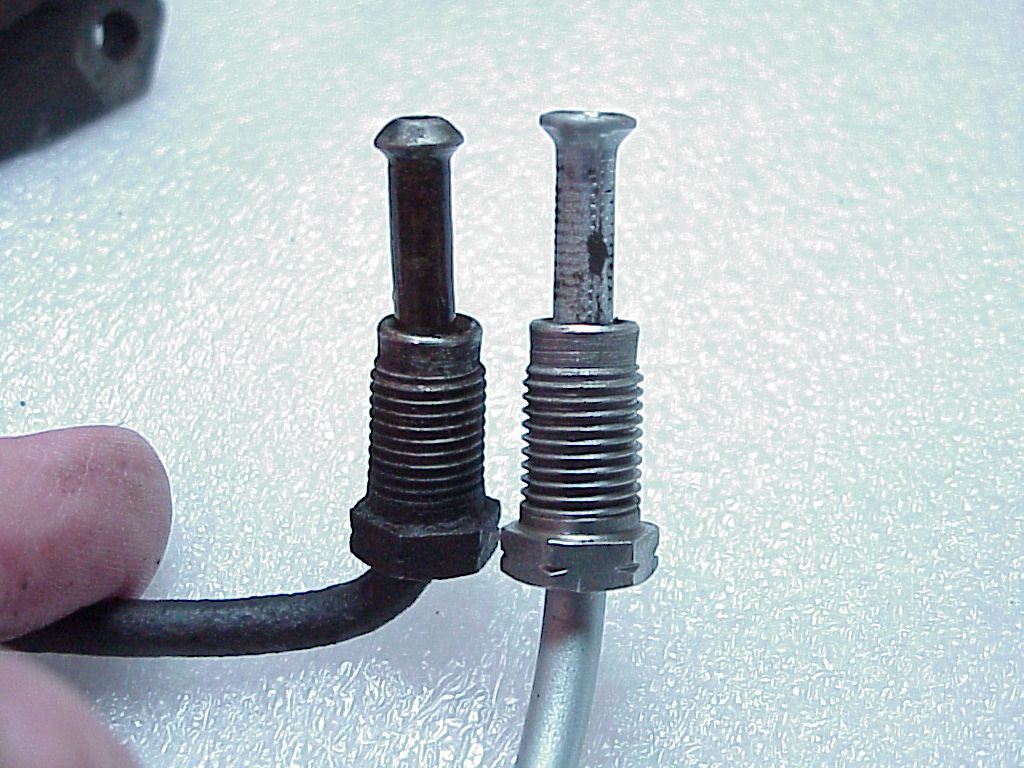

I'm talking about the loooooong hardline that goes under the car to a distribution block on the rear subframe. After you disconnect it from the distribution block, simply slide the "nut" and put a cap on the flare.

v This is what it looks like. Just move the nut part out of the way v






In other news, E85 pump closest to my home was out of order :(
Attached Thumbnails
In Soviet Russia car build YOU!-rearbrakeline3.jpg
soviet is offline   Reply With Quote
Old 04-22-2014, 01:02 PM   #1808
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

My flex-fuel sensor is going to be the best part of my car.

Way better than the owner.
AbeFM is offline   Reply With Quote
Old 04-22-2014, 02:41 PM   #1809
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

lol yeah, I have to install mine. Just need the fittings, really.

Just did a deal on ABS parts, from a Mazdaspeed, including both subframes. So, sometime within a year my car will have ABS and then, hopefully, Racelogic traction control

Since labor is so damn cheap here in Norfolk, I will try to get all new parts sandblasted and powdercoated before I leave the area.
soviet is offline   Reply With Quote
Old 04-22-2014, 03:05 PM   #1810
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

That's pretty much where I am. Except for the whole fuel system.

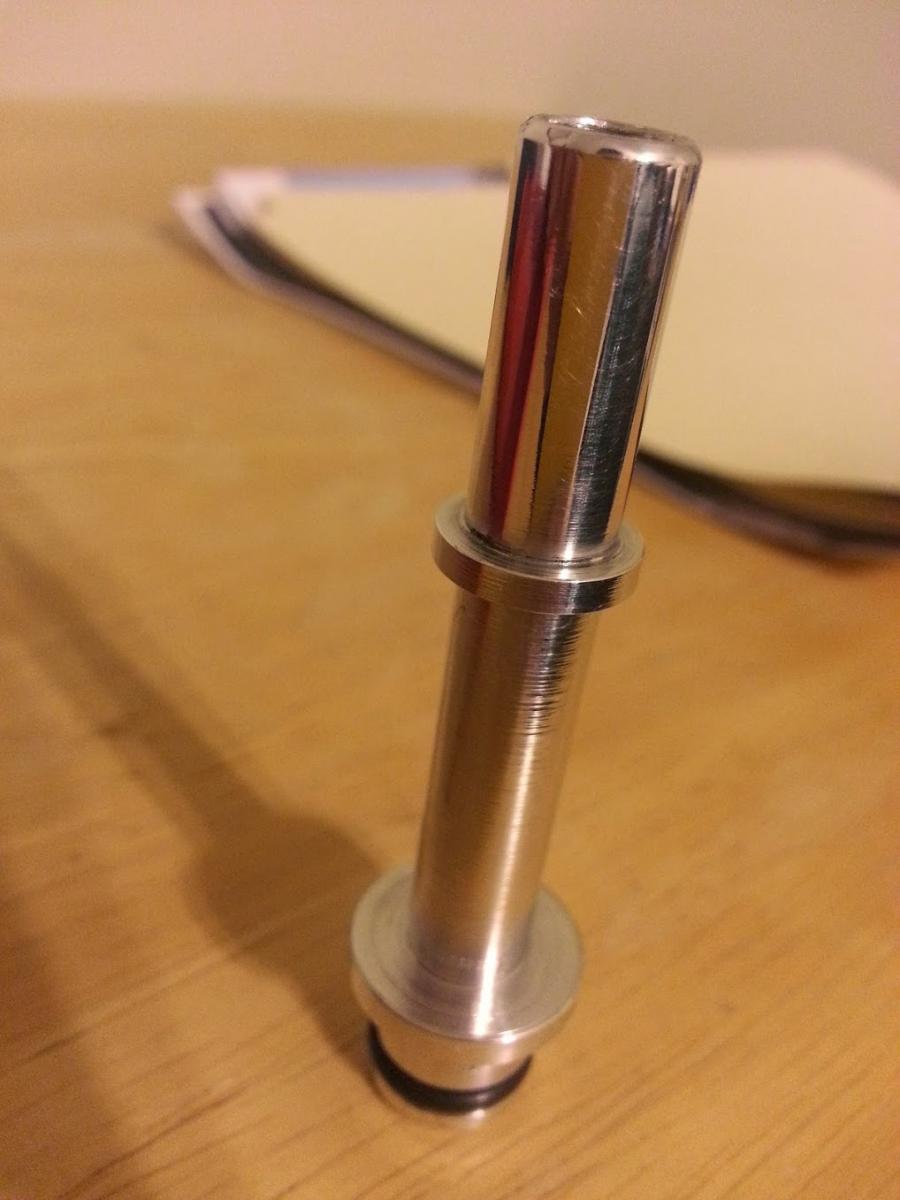

I made this: so replace the OEM "damper" with a fuel rail return, using the standard mazda quick disconnects.

We'll see if it works, but the whole system is suffering from a lack of definition.

(Huh, don't know how to make that pic smaller)
Attached Thumbnails
In Soviet Russia car build YOU!-20140419_203247.jpg
AbeFM is offline   Reply With Quote
Old 04-22-2014, 03:32 PM   #1811
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Intersting...
I'm just too cheap to buy a couple of AN fittings
soviet is offline   Reply With Quote
Old 04-22-2014, 03:32 PM   #1812
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

That's not polished enough Abe, Jeffbucc would be disappointed.
thenuge26 is offline   Reply With Quote
Old 04-22-2014, 03:48 PM   #1813
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

AN? What sensor are you using? I have a taurus sensor with some weird nut things on it.... Those go to steel lines, and those have plastic fuel hose over it. So I guess I'll do the same, hose + clamps.

Er, I guess. I figured better safe than sorry on the sealing. Then I'll reuse some fourty-connect/disconnect cycle OEM junkyard plug on it, which was sitting in brake fluid for a month. Cause I have my priorities straight.

AbeFM is offline   Reply With Quote
Old 04-22-2014, 04:46 PM   #1814
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Aren't flex fuel sensors cheap, new?
concealer404 is offline   Reply With Quote
Old 04-22-2014, 05:07 PM   #1815
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 29
Default

There seem to be two styles. The Continental made $75 GMPP sensor 13577394, also used by Haltech and Zeitronix, and a $300+ VDO made unit that came out of Taurii, S10's, Silverados, etc. etc. GM PN 12570260.
TheScaryOne is offline   Reply With Quote
Old 04-22-2014, 05:16 PM   #1816
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Is there an advantage to one or the other?

The "$300 VDO made unit" you mention with that part number is available from FM for around $100. It's the one Hydra "likes."


Haltech also uses 13577379, not 13577394 to the best of my knowledge. (Probably no difference worth talking about.) $70 here: http://www.gmpartsdirect.com/results...umber=13577379

13577394 is the same price at the same site. Can be found elsewhere for $70 shipped.

Last edited by concealer404; 04-22-2014 at 05:29 PM.
concealer404 is offline   Reply With Quote
Old 04-22-2014, 05:23 PM   #1817
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Huh, that's pretty cheap. I guess I was linking the read out electronics in my perceived price. Almost worth it for a small, easy to connect to unit.
This one is siemen's unit.
AbeFM is offline   Reply With Quote
Old 04-22-2014, 10:22 PM   #1818
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,876
Total Cats: 487
Default

Sucks E85 is such garbage tolerance. Half the time its 30% difference. Hard to get a good afr without a sensor.
triple88a is offline   Reply With Quote
Old 04-23-2014, 03:20 AM   #1819
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,967
Total Cats: 9
Default

Quote:
Originally Posted by soviet View Post
I'm talking about the loooooong hardline that goes under the car to a distribution block on the rear subframe. After you disconnect it from the distribution block, simply slide the "nut" and put a cap on the flare.

v This is what it looks like. Just move the nut part out of the way v






In other news, E85 pump closest to my home was out of order :(
Got it. Thanks.

For some reason, when I looked up vacuum nipple I got results that confused my noggin.

kenzo42 is offline   Reply With Quote
Old 04-24-2014, 10:26 AM   #1820
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

lol
yeah...


Some news - car starts, idles for anywhere between 5 to 30 seconds then AFR goes super lean and it dies. I have little idea as to what is causing this, but while looking at the logs I noticed that my voltage is hitting 16V (what the ****). What would cause the alternator to overvolt like this? Its a Mazda 626 alternator, internally regulated just like the NA units. Could it be just a shitty sense wire?

**** this car.
soviet is offline   Reply With Quote
