Old 09-19-2014, 01:45 PM   #41
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Ouch... was that the stock IHI turbo?
EO2K is offline   Reply With Quote
Old 09-19-2014, 02:29 PM   #42
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 688
Total Cats: 26
Default

Quote:
Originally Posted by midpack View Post
It's expensive, especially once you upgrade to a 3" exhaust. But oh so easy and complete. FM kit will install in an afternoon, diy will take me weeks trying to find and get parts. It's the oil and water lines I really want, I think those will be the hardest to source. What turbo are you going with?



Thanks!
Probably the same as you, the 2560r. I was considering sourcing a 2860rgtx since their almost the same price, but I as well don't really have the funds for a built motor right now and the 2860 is just too much of a tease. I can always upgrade down the road later and recoupe some costs selling the 2560.

The goal is 230-240hp stock motor. I can only seem to flow about 210 on the stock ihi. Kinda expensive for a 20-30hp increase, but I figure the 2560 will give some better top end and be under less stress than maxing out the little IHI.

I was considering just going to BNR and having the stocker rebuilt and upgraded to a small 16g, that way I can retain my piping and stuff, put for the $1300 they want, mineswell just do the whole thing.

What do you run for a front swaybar? Do you run one in the rear?
Mazduh is offline   Reply With Quote
Old 09-19-2014, 05:20 PM   #43
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Yes, stock IHI turbo.

Wow we really are in the same boat and are thinking the same things. Either we're both crazy or we're on to something. Savington recommends the 2871 vs 2860 but I don't know if that changes vs the GTX. It gives yuou a more headroom with minimal loss of spool.

Front sway: FM
Rear sway: stock MSM
Running the original version of FM VMaxxxxxxxxxxxxx. Xida upgrade funds have been redirected to a new turbo setup
midpack is offline   Reply With Quote
Old 09-23-2014, 08:54 AM   #44
Junior Member

Join Date: Mar 2012
Location: Searcy, AR
Posts: 149
Total Cats: -3
Default

Did the tip of the shaft break? Happen at Hallett?
FrankL is offline   Reply With Quote
Old 09-23-2014, 11:58 PM   #45
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

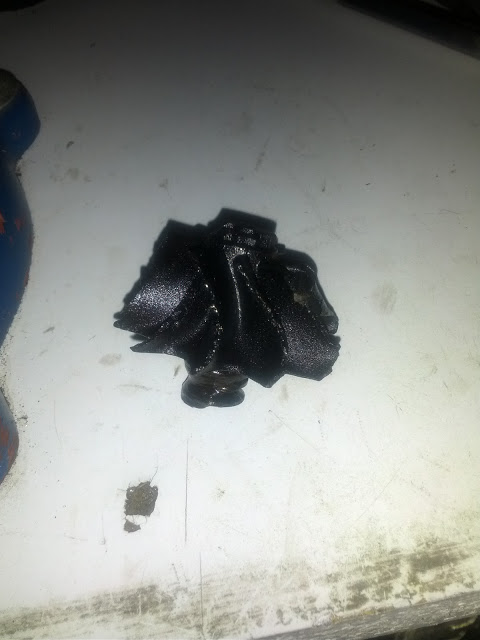

Yep, end of my 3rd session Friday morning of Miatas@Hallett.

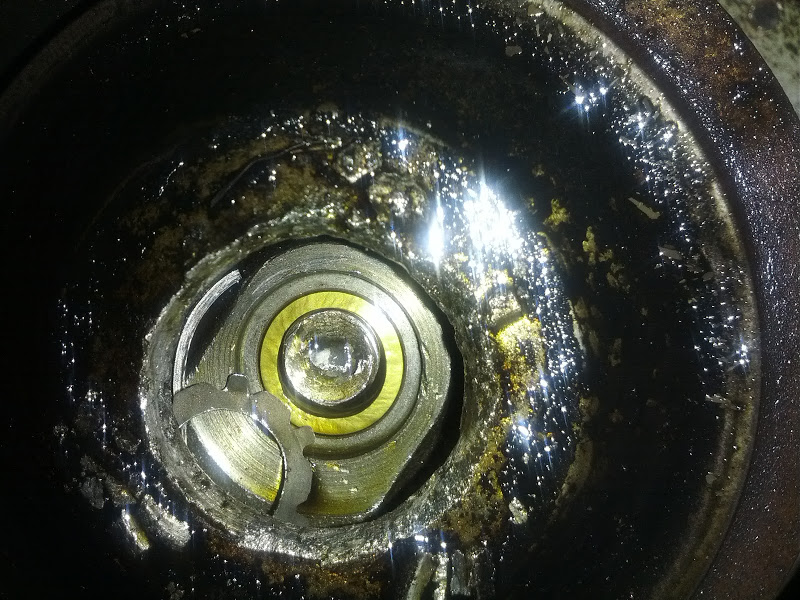

Shaft broke on the exhaust side. There's just a tiny bit of shaft play now



I think this turbine is totally salvageable, just need a file and bit of JB Weld

Attached Thumbnails
Track and occasional street MSM-img_20140919_205535.jpg   Track and occasional street MSM-img_20140919_205452.jpg
midpack is offline   Reply With Quote
Old 09-24-2014, 12:12 AM   #46
The Discreet
iTrader: (1)

Ryephile's Avatar

Join Date: Jun 2014
Location: Metro Detroit
Posts: 265
Total Cats: 26
Default

Fun read up until the broken turbo. Any idea what caused it?
Ryephile is offline   Reply With Quote
Old 09-24-2014, 11:04 AM   #47
Junior Member

Join Date: Mar 2012
Location: Searcy, AR
Posts: 149
Total Cats: -3
Default

Wow. That's serious carnage. Sucks!
FrankL is offline   Reply With Quote
Old 09-26-2014, 08:05 PM   #48
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Ordered some parts today.

1.8 NB Axial Manifold
3" SG Downpipe
Test Pipe
Exhaust w/ 5x8x18 Magnaflow
midpack is offline   Reply With Quote
Old 09-27-2014, 12:22 AM   #49
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Did someone drop some cheddar on ARTech?
EO2K is offline   Reply With Quote
Old 09-28-2014, 02:49 AM   #50
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

That I did. Trying to decide if I want to wait 3 additional weeks to have it ceramic coated.
midpack is offline   Reply With Quote
Old 12-05-2014, 08:57 PM   #51
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

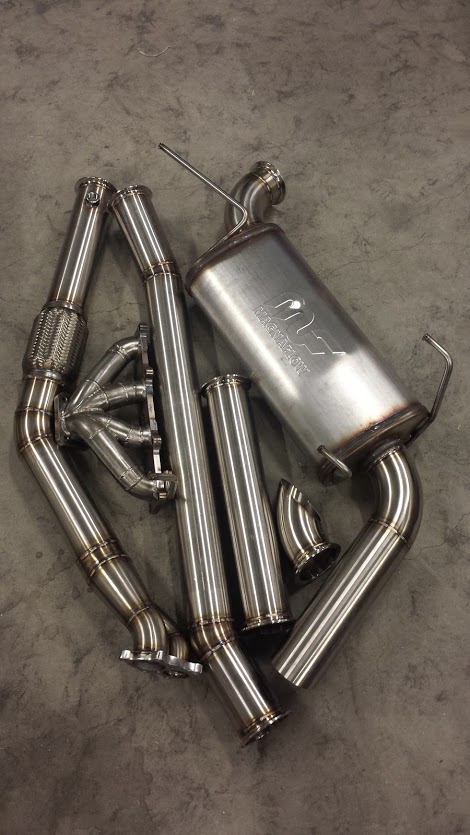

The wait is almost over.

Attached Thumbnails
Track and occasional street MSM-20141204_230405.jpg
midpack is offline   Reply With Quote
Old 12-15-2014, 01:41 AM   #52
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Installed some parts this weekend. Abe does some fantastic work, very impressed. Waiting on a few things to button it up, maybe next weekend it will be ready for a first start.

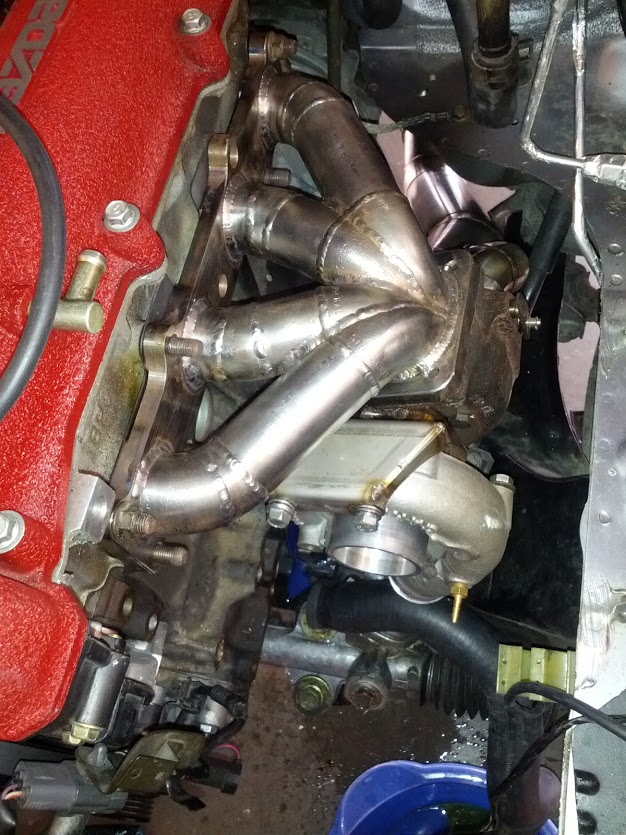

So much room around the turbo. Installation was a breeze.

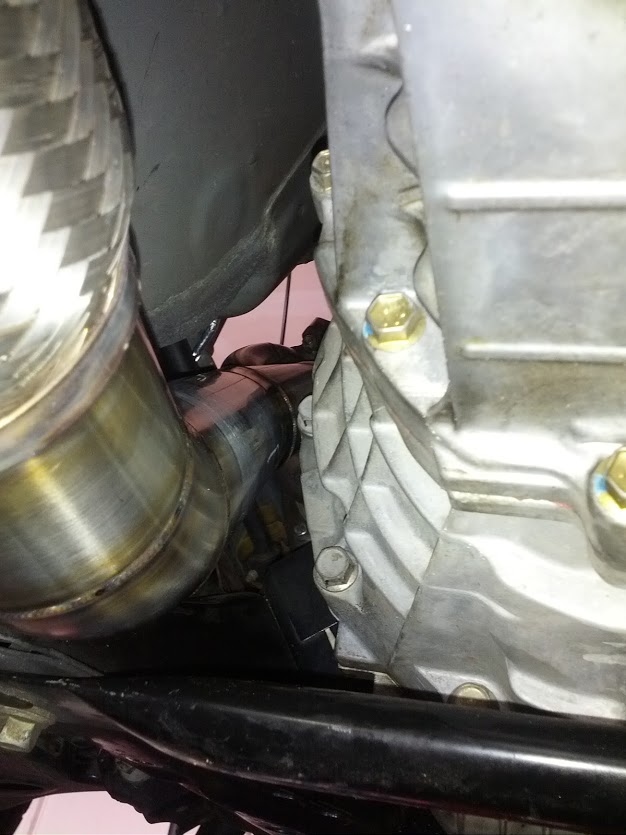

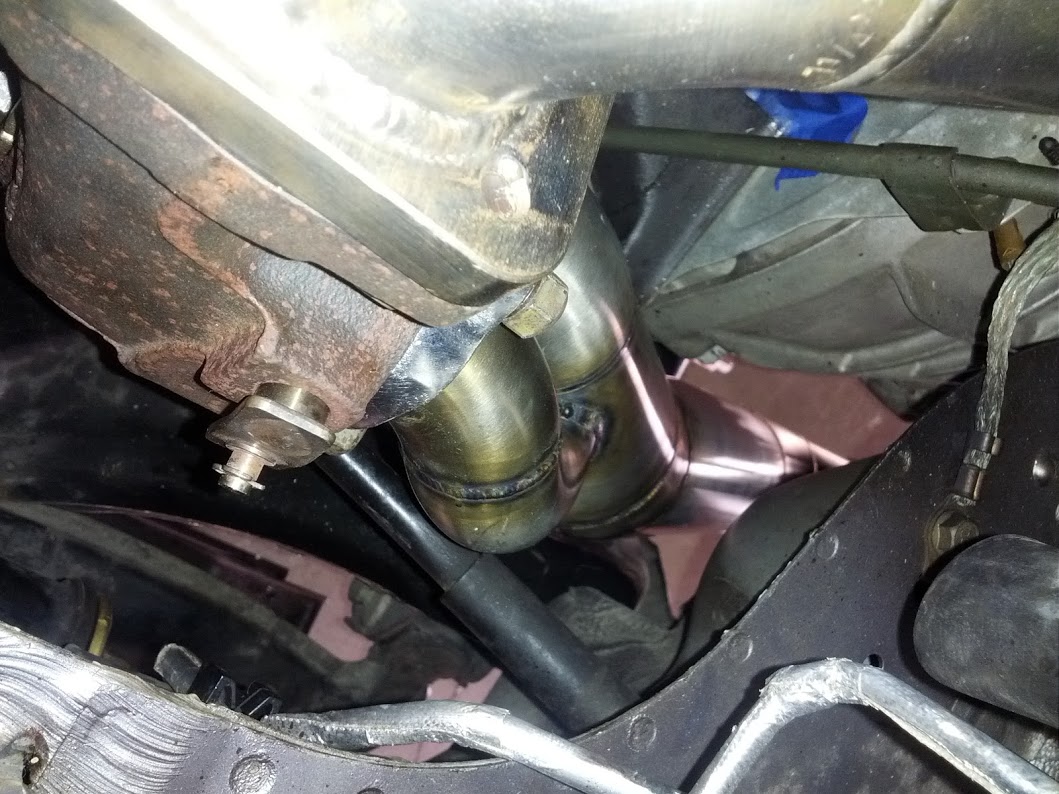

I don't know how, but there is plenty of clearance around this big *** exhaust.

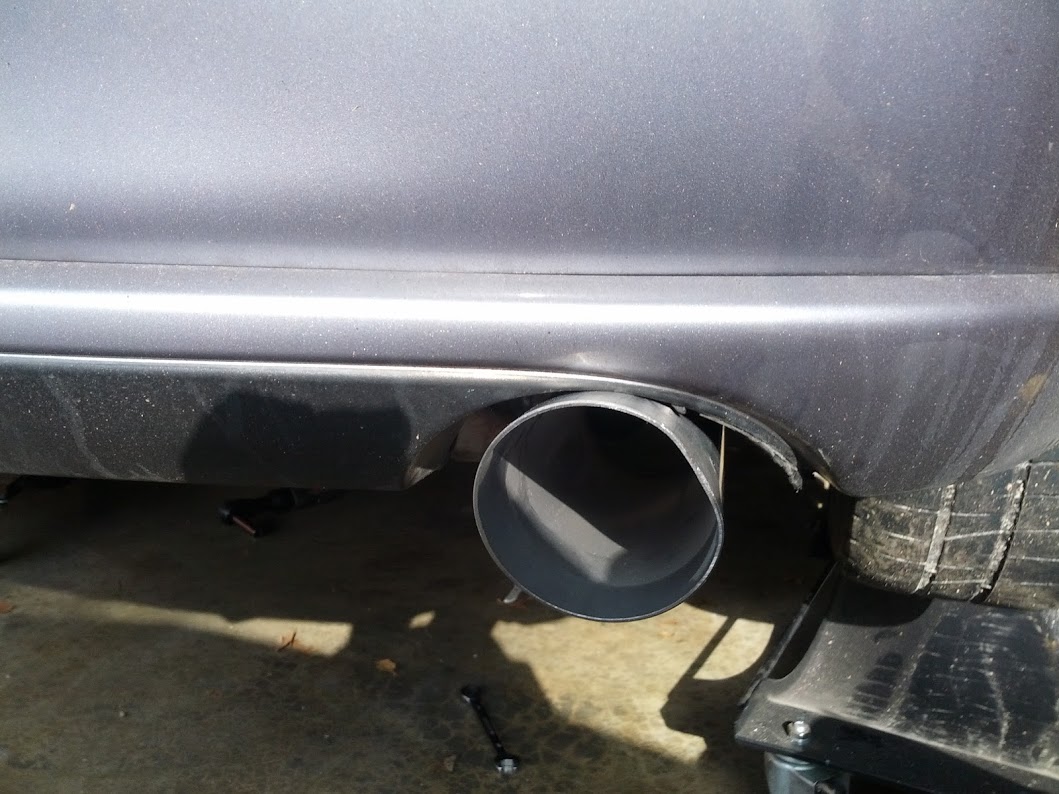

Lots of clearance everywhere...but here. The tip also get crushed slightly in transit, a lack of packaging no doubt contributed to the damage.
Attached Thumbnails
Track and occasional street MSM-img_20141213_123105.jpg   Track and occasional street MSM-img_20141213_115725.jpg   Track and occasional street MSM-img_20141213_115656.jpg   Track and occasional street MSM-img_20141213_115432.jpg   Track and occasional street MSM-img_20141213_115516.jpg

midpack is offline   Reply With Quote
Old 12-19-2014, 11:13 AM   #53
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 549
Total Cats: 37
Default

Hey that Turbo looks familiar

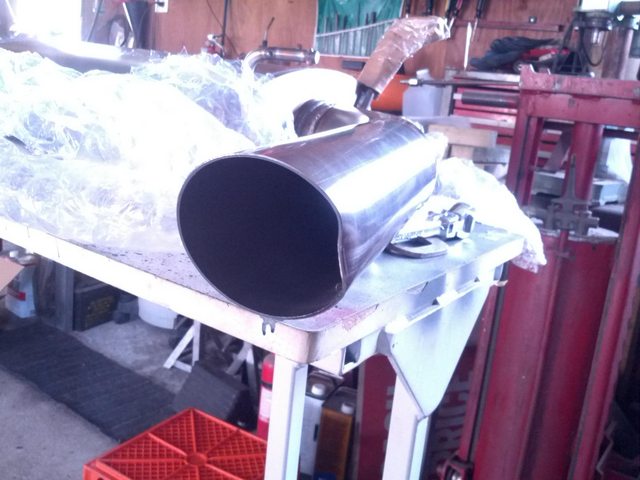

Looks good. The tip on my Artech exhaust was bent from shipping as well. Looked almost exactly like that. I straightened it with a few good hits from a ball peen hammer.

Onyxyth is offline   Reply With Quote
Old 12-21-2014, 05:48 PM   #54
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Abe offered to send an exhaust expander to fix the tip. That guy is seriously awesome.

I got pissed off and quit yesterday when I got to the oil drain. No way are the AN fittings going to fit, they run straight into the steering shaft. Not that it matters, I'd need some angled fittings anyway. Didn't realize just how short of a line I need.

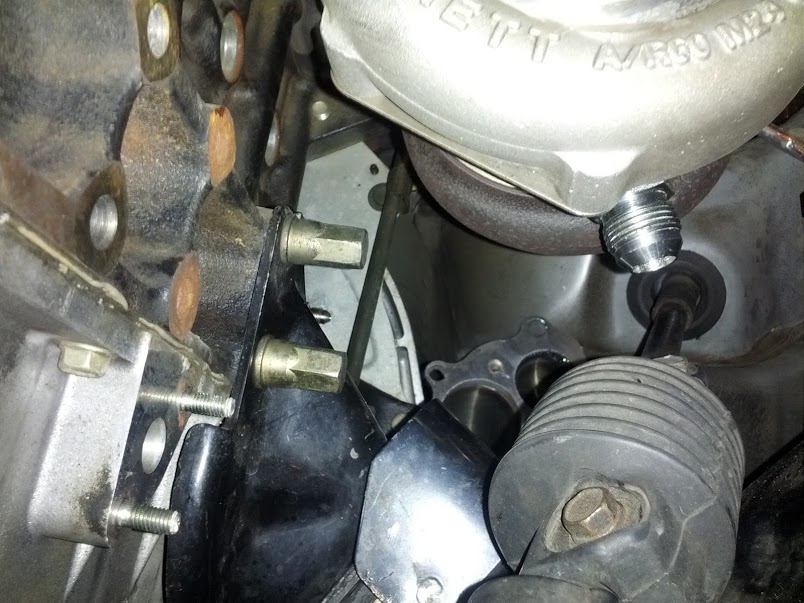

Here's a shot with the 1/2" NPT to AN10 fitting installed.

Attached Thumbnails
Track and occasional street MSM-img_20141220_202836.jpg
midpack is offline   Reply With Quote
Old 12-21-2014, 06:01 PM   #55
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,294
Total Cats: 72
Default

Is that one v-band 90 piece to replace the axle-back with a turn down? And if so, what are you doing about the lack of hangers on the midpipe?
Schuyler is offline   Reply With Quote
Old 12-21-2014, 06:08 PM   #56
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Quote:
Originally Posted by midpack View Post
Abe offered to send an exhaust expander to fix the tip. That guy is seriously awesome.

I got pissed off and quit yesterday when I got to the oil drain. No way are the AN fittings going to fit, they run straight into the steering shaft. Not that it matters, I'd need some angled fittings anyway. Didn't realize just how short of a line I need.

Here's a shot with the 1/2" NPT to AN10 fitting installed.

I just dealt with this. Check out the last couple posts in my build thread for how I fixed it. I ended up with push lock fittings because they were shorter.

Also doesn't the oil drain need to be pointed straight down?
aidandj is offline   Reply With Quote
Old 12-21-2014, 07:12 PM   #57
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Thanks, I might give that a try. Integrated AN10 fitting on the flange would also give me a little more room.

I've got a 90* AN fitting for the feed and it doesn't fit with the drain pointed straight down. Garrett says the oil drain can be clocked up to 35*
midpack is offline   Reply With Quote
Old 12-22-2014, 02:09 AM   #58
Elite Member
iTrader: (9)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,707
Total Cats: 17
Default

Subed for info. Good build man. Hope to be working on my MSM soon.
IcantDo55 is offline   Reply With Quote
Old 12-22-2014, 11:21 PM   #59
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 360
Total Cats: 29
Default

Quote:
Originally Posted by midpack View Post
:
Do whatever you can to make some decent clearance between the exhaust and bumper, even if it means cutting up your bumper to achieve it - burnt rear bumpers look and smell nasty.
Lokiel is offline   Reply With Quote
Old 12-23-2014, 12:51 AM   #60
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by Lokiel View Post
Do whatever you can to make some decent clearance between the exhaust and bumper, even if it means cutting up your bumper to achieve it - burnt rear bumpers look and smell nasty.
No need to cut things up, longer exhaust hangers will do the trick. The melted bits in the picture are from my old exhaust, before replacing rubber hangers with urethane.

FM sells a nice set of urethane "long" hangers, I think they are a bit too long for my use. May pickup another set somewhere between stock and the FM long ones, it hangs a bit too low for my liking. After I get it running that is. Ordered a box of parts to redo the oil feed and drain lines.
midpack is offline   Reply With Quote
