Old 02-07-2016, 05:39 PM   #81
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Quote:
Originally Posted by aidandj View Post
We need the following to help you.

-msq
-composite log
-normal log
-picture of front cam lobes at TDC
-picture of cam timing at TDC

Posting from phone. Will get stuff tonight if it doesn't fire tonight.

-scarred to post MSQ due to general ineptitude with tuning. Trying to learn, but also don't know what to research based on sypmtoms. (brain will have a field day )
-will take log of cranking
-composite log of what in particular?
-I'm 6-sigma positive that my mechanical timing is correct. I've checked that at least half a dozen times.

Appreciate the quick reply.

Also, props for coil tester. didn't know it had it. Will try that and report.
I presume un-plug coils when doing test? Just test triggers?
Chooofoojoo is offline   Reply With Quote
Old 02-07-2016, 05:40 PM   #82
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Quote:
Originally Posted by Chooofoojoo View Post
Welp...

She didn't start. Having a hard time figuring out why.

Everything together and figured she'd start right up with prior known-good tune.

Symptoms are as follows :

-Cranked with CAS unplugged to prime oil
-Plugged CAS back in, cranked for 2-3s then flood-cleared cranked for another 2-3s.
-Cranked again and POW the loudest backfire i've heard. I actually checked the block because it sounded like I ventilated my block at first. Scary loud.

-This happened 2 more times. Thought the neighbors were going to call the police with all these loud gun-shots happening.


Pulled a plug, it smelled of gas, but wasn't wet. FPR shows correct fuel psi, vac-guage shows I have vacuum while cranking (compression), and so I would think that I have spark due to back-fires.

-The one thing I thought of last night was that I may have mixed-up the COP connectors to the factory coil connectors. Would having 1/4 & 2/3 firing order mixed up cause the loud backfires?? Will pull off sheathing tonight and check wire color to verify correct triggers.

At any rate, I haz sad.

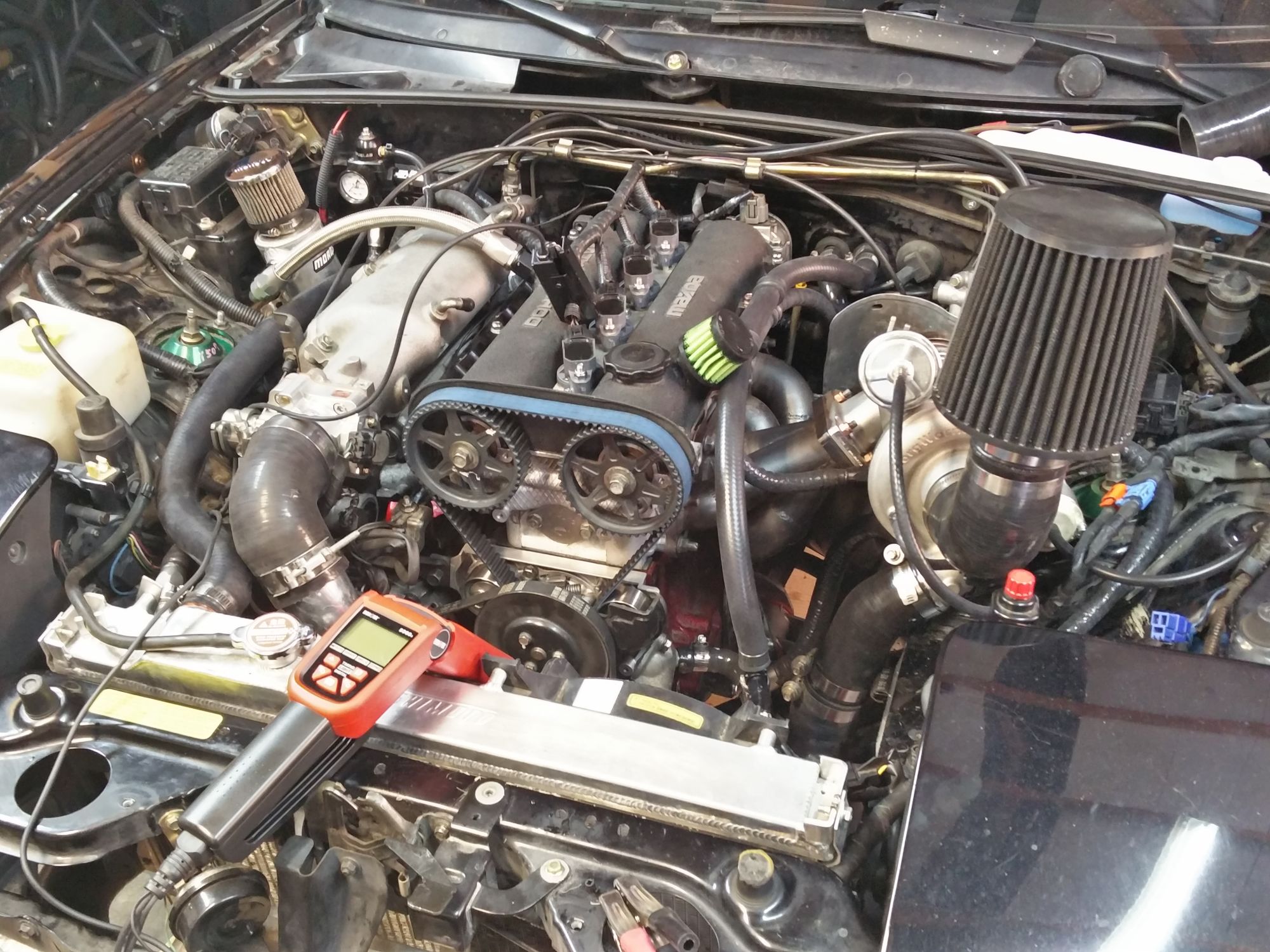

The ugliest engine bay of all time :


Backfire = cam timing or firing order wrong. Check both.
patsmx5 is offline   Reply With Quote
Old 02-07-2016, 05:54 PM   #83
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

Composite log is in the diagnostic tab. It shows the cam and crank teeth signals. But if you have backfire it means you got fuel which means it probably isn't cranks/cam sensor related.
aidandj is offline   Reply With Quote
Old 02-07-2016, 06:16 PM   #84
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,190
Total Cats: 325
Default

Like pat said. Backfires are usually timing.
rleete is offline   Reply With Quote
Old 02-07-2016, 07:14 PM   #85
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

I was an idiot. Had coil connectors backwards. Verified trigger wires and she fired right up. Sitting idling now breaking turbo in.

Last edited by Chooofoojoo; 02-08-2016 at 01:07 AM.
Chooofoojoo is offline   Reply With Quote
Old 02-07-2016, 10:35 PM   #86
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

aidandj is offline   Reply With Quote
Old 02-07-2016, 11:53 PM   #87
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,514
Total Cats: 219
Default

Bout' time

Post some videos!!
Girz0r is offline   Reply With Quote
Old 02-08-2016, 02:31 PM   #88
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Videos will likely have to wait. Busy week for me.

Just have a stupid snap video of her idling. Forgot the GoPro.

Next weekend will consist of maybe getting bumper back on and addressing the hood-no-hit-turbo problem.

But she idled for 45 minutes and zero leaks (except the damn valve cover... I can NEVER get a valvecover to seal. ever. )

Never been in a turbo miata before, let alone drive one. This could get interesting quick. Will have to drive out of boost for a few hundred miles to break in new clutch, so hopefully I can get all the little quirks out before I delve deep into positive pressure land.
Chooofoojoo is offline   Reply With Quote
Old 02-08-2016, 04:28 PM   #89
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 754
Total Cats: 28
Default

Unless you are a very, very self controled person, I reccomend tieing the waste gate open if you want to stay out of boost for a bit. Pressing the loud pedal is a huge temptation on a turbo miata...
x_25 is offline   Reply With Quote
Old 02-08-2016, 04:38 PM   #90
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Yea I plan on making some sort of an all-thread 'perma-open' wastegate rod.

I'm pretty self-controlled.

Told myself I'd keep this car 'mostly stock', just suspension/roll bar.
Told myself I'd only do a 'rod-only refresh' engine build
Told myself I'd be ok with Naturally aspirated
Told myself a 2560r would suffice



Edit :

Proof that it was doing something.


Last edited by Chooofoojoo; 02-08-2016 at 08:06 PM.
Chooofoojoo is offline   Reply With Quote
Old 02-08-2016, 05:14 PM   #91
Newb

Join Date: Mar 2014
Posts: 19
Total Cats: 1
Default

Congrats on the start-up, I bet that felt good. Excited to see this tearing up CO.
wrengel is offline   Reply With Quote
Old 02-08-2016, 09:07 PM   #92
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Oh man, I need to check back on this thread more often. Good progress!
EO2K is offline   Reply With Quote
Old 02-08-2016, 10:12 PM   #93
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

G what treadstone intercooler are you running? Tr6/8? I'm torn on one of those vs the Fab9 stage 2. Not particularly interested in the trimming to core support that the Fab9 involves, nor the sealed-to-mouth mounting aspect of it either.
Chooofoojoo is offline   Reply With Quote
Old 02-09-2016, 05:38 AM   #94
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

The moment you realise you should have gone efr... dammit it seems everyone is going this way at the moment! Looks like that is going to be an absolute blast
jimmyneutron is offline   Reply With Quote
Old 02-09-2016, 11:45 AM   #95
Newb

Join Date: Mar 2014
Posts: 19
Total Cats: 1
Default

Choofoojoo, I am mounting a Treadstone TR6 this week (Wednesday), I can send you some pictures once I have it mounted up to show the trimming of the bumper opening and how it sits compared to the mouth.

I went with the TR6 over the 350HP Fab 9 intercooler due to the fin count and turbulators present in the TR6 over the Fab9 core. From the pictures I have seen of the 350 Fab 9 unit, there is much higher density in the TR6, however there are rumors of the vibrant core that Fab 9 uses being updated.
wrengel is offline   Reply With Quote
Old 02-09-2016, 11:55 AM   #96
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Sweet. Thanks Will! I'd come lend a hand if I wasn't working all Wednesday. I found in EO2K's thread the section about him mountimg his TR8. Looks pretty tight but not unmanageable.

I've read/seen the same vibrant vs treadstone core pics. Supposedly the new updated high-turbulator core has been in use on the 500 for a while, and now the 350 core has been updated as well. My FM unit should do just fine for interim power levels, but I'm after keeping intake charges as cool as reasonably possible with my high-comp bottom-end.

Also, my OEM knock sensor is not being recognized by megasquirt anymore. Need to test it somehow to see if the sensor is dead, or if I fubar'd some wires somewhere along the way.
Chooofoojoo is offline   Reply With Quote
Old 02-09-2016, 04:50 PM   #97
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Quote:
Originally Posted by Chooofoojoo View Post
G what treadstone intercooler are you running? Tr6/8? I'm torn on one of those vs the Fab9 stage 2. Not particularly interested in the trimming to core support that the Fab9 involves, nor the sealed-to-mouth mounting aspect of it either.
TR8 sir! I think I've got a 1" gap between the front of the intercooler and the bumper support thing? LMK and I can shoot some pics, but remember I have an NB and no AC

From what I've measured, I think the TR8 is about as tight as you can get before you really have to start cutting things up and making serious compromises.
EO2K is offline   Reply With Quote
Old 02-14-2016, 11:28 PM   #98
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

#noneofit

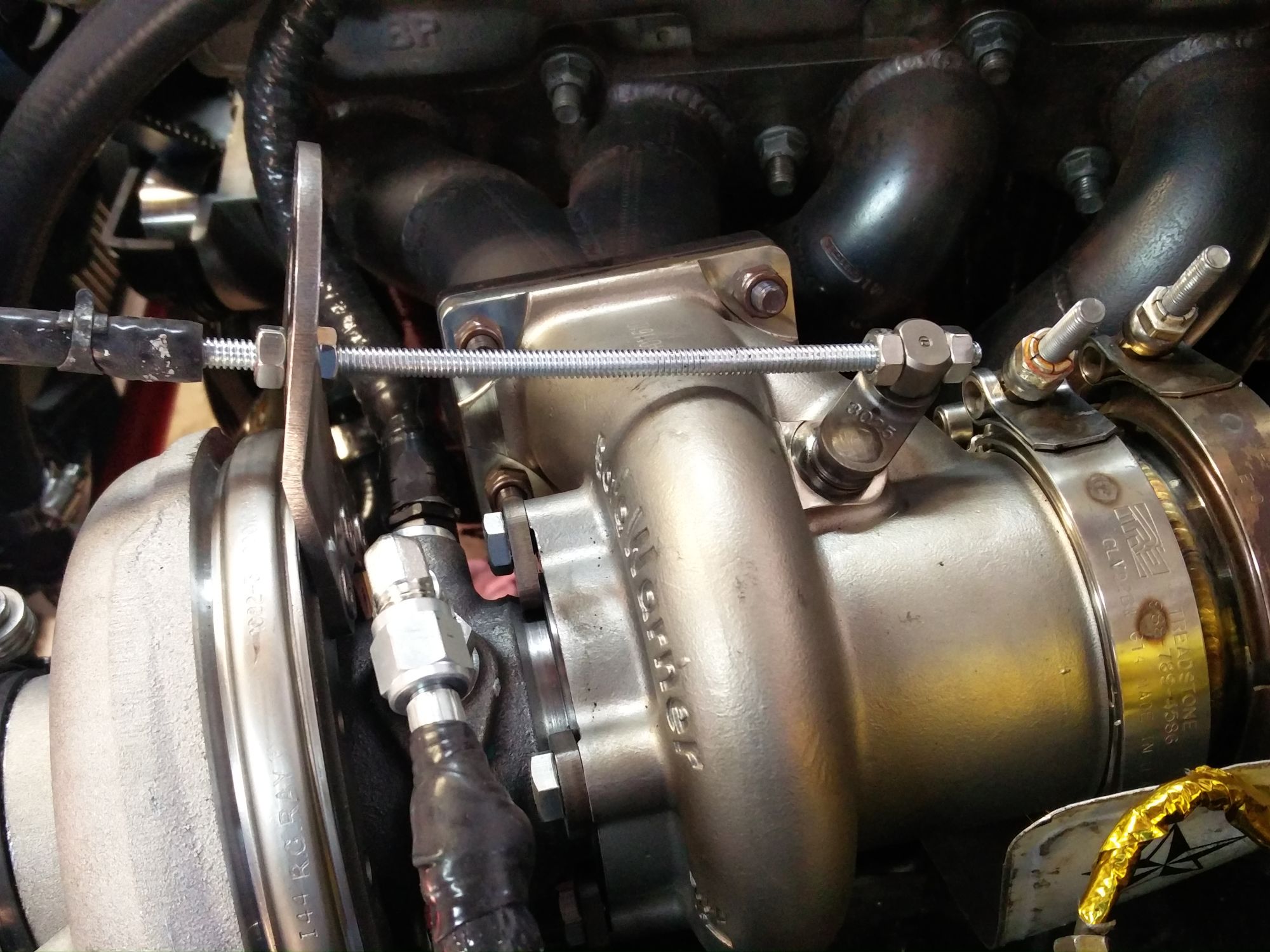

Made my #noneofit I-have-no-self-control break-in thingamajig.

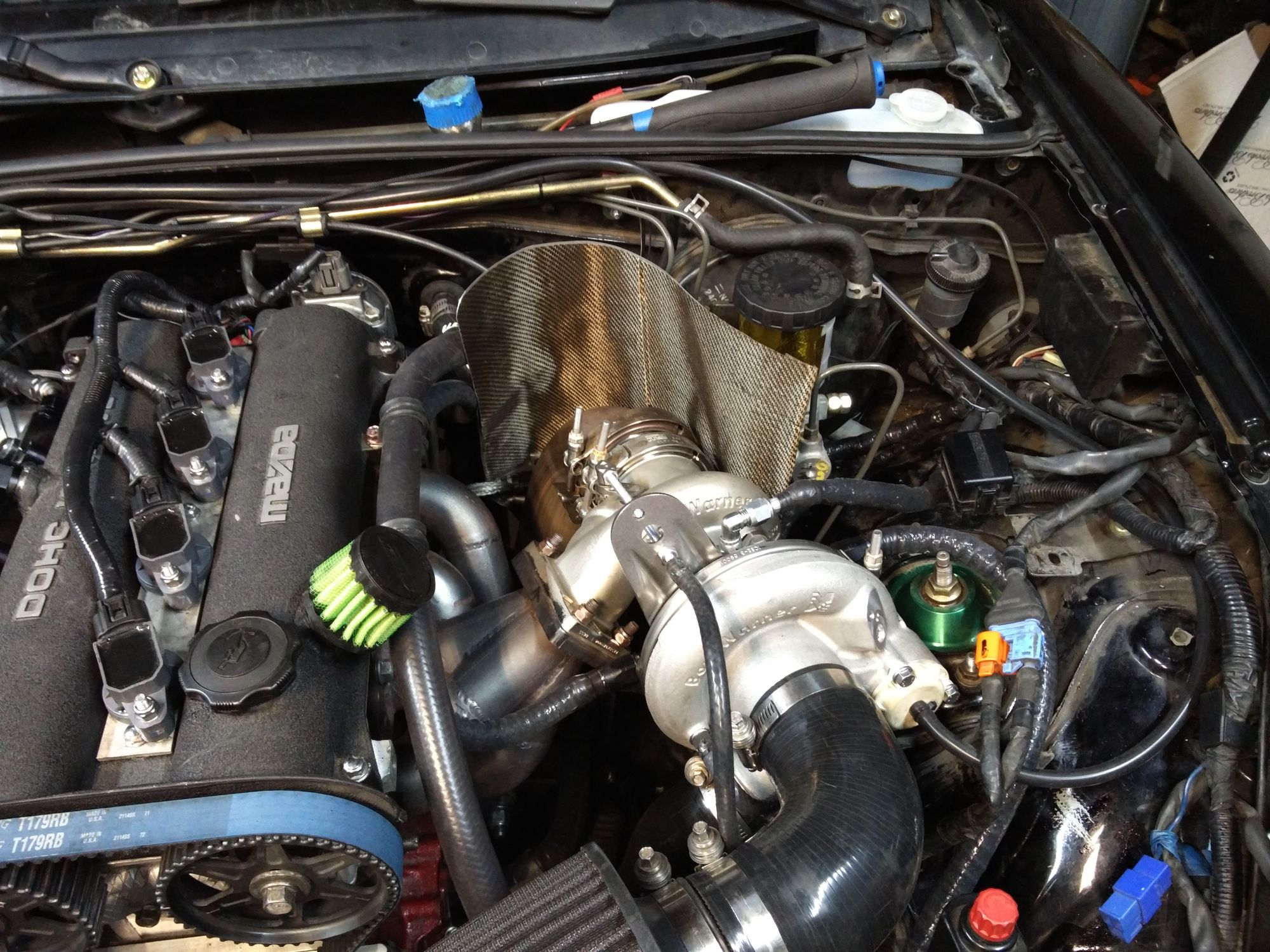

Also made up a heat shield.. thing. Two licence plates with some Summit Lava crap sticky heat-shield material. It kinda works. Had it idling for ~45 min today checking for leaks everywhere and could comfortably touch the back side of the shield with bare skin.


Attached Thumbnails
Ze Potato Build-80-img_20160214_165049_386aaa011d2eabb54d17c4c4e98e5765fc4a75d8.jpg   Ze Potato Build-80-img_20160214_183657_47ac0e9375496f69fe168200ab06d58ebc332eb3.jpg
Chooofoojoo is offline   Reply With Quote
Old 02-14-2016, 11:37 PM   #99
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

Sexy heat shield
aidandj is offline   Reply With Quote
Old 02-15-2016, 12:13 AM   #100
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,514
Total Cats: 219
Default

That looks good!

Some sort of barrier is better than nothing. Your brake fluid will thank you

Last edited by Girz0r; 02-15-2016 at 12:33 PM.
Girz0r is offline   Reply With Quote
