Old 11-03-2011, 01:10 AM   #21
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-topbob030.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-03-2011, 01:17 AM   #22
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,813
Total Cats: 138
Default

What did you do, google images "homo welder"?

Way to kill it for me.

Tim's going to love the addition to his worklog.
Stein is offline   Reply With Quote
Old 11-03-2011, 01:19 AM   #23
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

I actually searched "sexy welder", but when that came up I decided it was better.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-03-2011, 01:47 AM   #24
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by y8s View Post
a run of adapter plates. that's funny.

I mean it'd be cool, but I think it's unrealistic unless you plan to front several hundred dollars for one.
Thats what they go for alright. You can get T5s for less than 300 bucks plus 400 or so for an adapter. Thats still less than what most miata 6-speeds go for and stronger to boot.

Transmission conversion is common in the GTX/Protege community since mazda FWD and AWD transmissions are glass.
wayne_curr is offline   Reply With Quote
Old 11-03-2011, 01:59 AM   #25
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 18
Default

If you can hook up a T5 you can do a T56 right? Why not get you another gear?
gearhead_318 is offline   Reply With Quote
Old 11-03-2011, 02:22 AM   #26
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

T56 is quite a bit bigger. I bet you would have to open up the tunnel quite a bit down by the output shaft.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-03-2011, 04:02 AM   #27
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,532
Total Cats: 17
Default

T56 is huge.

And expensive.

Dann
nitrodann is offline   Reply With Quote
Old 11-03-2011, 04:07 AM   #28
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 18
Default

Eh, that's too bad. I'd like another gear but I guess it's not necessary.
gearhead_318 is offline   Reply With Quote
Old 11-03-2011, 07:10 AM   #29
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 263
Total Cats: 13
Default

In regards to fronting the money, I figured that would be a given, or if nothing else, I would hope to pay for the right to purchase his cad dimensions, ( with a signed non-duplicate Clause in hand, don't want to rip anyone off.) Given the quality of Tim's work, I am willing to bet that it would be well worth the cost.
glade is offline   Reply With Quote
Old 11-03-2011, 10:53 AM   #30
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,174
Total Cats: 198
Default

I :heart: MT.net. OK I'll try to hit it all up:
Quote:
Originally Posted by Efini~FC3S View Post
How about you be the trailblazer, figure out all of the tough bits, and then I'll copy.

Sound good?
Yeah that's fine. I will attempt to document it well and not disappear in the future.

Quote:
Originally Posted by wittyworks View Post
Tim, how hard was it to learn solidworks? Every time i see solidworks drawings i get closer and closer to buying the student software.
It's pretty darn simple. If you can't figure it out on your own, the built in tutorials are pretty good.

Quote:
Originally Posted by Faeflora View Post
What is KLDE HP potential?
I am not sure. There's talk that it's fine as-is for my goals (a few more HP than whatever you make) but I can't seem to find anyone making that power on an internally stock engine. The rods/pistons are the weak link so that's what I'll replace with forgings. I'm still learning how to spec a custom piston.

Stock crank is forged. HLA's so I won't be spinning it to your RPM :(

Quote:
Originally Posted by wayne_curr View Post
Are you considering making a run of adapter plates?
If someone wants them, sure.

Quote:
Originally Posted by y8s View Post
a run of adapter plates. that's funny.

I mean it'd be cool, but I think it's unrealistic unless you plan to front several hundred dollars for one.
They will be machined here at work, both the adapter plate and the flywheel adapter gizmo. I couldn't afford this otherwise. A 12"x18"x1" plate of aluminum isn't cheap, but I come to find out we have had over 24 feet of 'obsolete' 12" x 1" plate on the shelf for the past 9 years. The flywheel adapter will be made from the cutoffs from our steel upper camshaft pulleys. I am lucky and must take advantage of the opportunities here while I still have the chance.

I can certainly get a cost together once it's all done, if it all works.

Quote:
Originally Posted by Stein View Post
Saw your thread "over there"

Am I the only one who is oddly drawn to wanting to know what Claire looks like?

For those that don't follow it, Claire lives in England, is building a KLDE Miata, her scratch built subframe looks like a million bucks and she fabricates like a house on fire but we don't know what she looks like.

Probably don't want to know and spoil the illusion.
haha yeah I think anyone that reads that thread thinks that. She's pretty good. It's definitely the 'kit' to buy if anyone want's to run this V6 with safe power levels/miata drivetrain. Her subframe quote shipped to me from England was slightly cheaper than the V8R subframe.

Quote:
Originally Posted by wayne_curr View Post
Thats what they go for alright. You can get T5s for less than 300 bucks plus 400 or so for an adapter. Thats still less than what most miata 6-speeds go for and stronger to boot.
Making a flywheel/bellhousing adapter for the BP/T5 is doable. The problem is the PPF, driveshaft yolk, and the costs of the donor (mustang?) flywheel/clutch/starter. That will all add to the cost of the trans swap. You could probably find a way to use the miata starter/flywheel/pressureplate with a clutch with a T5 spline, and rig up a way to work throwout bearing. I'm starting from scratch to it's much easier to just use all inexpensive mustang parts.

Quote:
Originally Posted by Gearhead_318 View Post
If you can hook up a T5 you can do a T56 right? Why not get you another gear?
Because:
Quote:
Originally Posted by Full_Tilt_Boogie View Post
T56 is quite a bit bigger. I bet you would have to open up the tunnel quite a bit down by the output shaft.
Quote:
Originally Posted by nitrodann View Post
T56 is huge.

And expensive.

Dann
I budgeted buying a brand new Ford "T5z" for $1200, and the bellhousing for $155. I can definitely get a used one for cheaper and I may, if I can find one I trust. I do not want to explode a junkyard trans after getting this thing together.

Quote:
Originally Posted by glade View Post
In regards to fronting the money, I figured that would be a given, or if nothing else, I would hope to pay for the right to purchase his cad dimensions, ( with a signed non-duplicate Clause in hand, don't want to rip anyone off.) Given the quality of Tim's work, I am willing to bet that it would be well worth the cost.
If this all works and someone wanted to copy this drivetrain in the future, I will make everything available to buy or the files available to make it yourself. I do not think there will be much demand so it shouldn't be a problem making another set or two 'on the side' at work.

Last edited by TurboTim; 11-03-2011 at 11:03 AM.
TurboTim is online now   Reply With Quote
Old 11-03-2011, 11:12 AM   #31
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

Quote:
I am not sure. There's talk that it's fine as-is for my goals (a few more HP than whatever you make) but I can't seem to find anyone making that power on an internally stock engine. The rods/pistons are the weak link so that's what I'll replace with forgings. I'm still learning how to spec a custom piston.

Stock crank is forged. HLA's so I won't be spinning it to your RPM :(

350-400 can be achieved on stock internals but is the limit of the rods, those with aftermarket rods see north of that but around 500 oiling issues start popping up.

if you want solid lifter search out KLG4 heads from 1998-02 626 KL's they are solid lifters.
MD323 is offline   Reply With Quote
Old 11-03-2011, 11:20 AM   #32
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,174
Total Cats: 198
Default

I plan to have north of 500. What sort of oiling issues?
TurboTim is online now   Reply With Quote
Old 11-03-2011, 11:26 AM   #33
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 28,966
Total Cats: 327
Default

You're building a screamer engine that will not make 300wtq, use a Miata 6-speed to save weight and engineering time.
hustler is online now   Reply With Quote
Old 11-03-2011, 11:41 AM   #34
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

the rod bearings end up starved for oil at higher loads, here is a good thread about it, some of the fixes suggested and his rebuild: http://forums.probetalk.com/showthre...d+bearing+soup

though a local car made 500 wheel without oiling issues on a precision 6265 with just rods/pistons so it is not a guaranteed death either.
MD323 is offline   Reply With Quote
Old 11-03-2011, 01:43 PM   #35
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

If I recall correctly there was a small displacement version of the KL (1.8 I think), which had a great bore/stroke and rod ratio. Someone tried to build a 9k rpm screamer based on that, but found that the oiling system was ****.

Im sure if you keep the redline not much north of stock it should be fine, regardless of power.

It would probably be worth porting and shimming the oil pump though, Its usually not difficult to do, depending on the pumps design.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-03-2011, 01:47 PM   #36
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

yeah the K8 came in mx3 GS's

the oiling issue can be resolved by downsizing the oil squirters and enlarging the crank oiling ports (i never got that far with my KLZE so forgive me if my details are alittle vague) as well as some have moved to external oil pumps.
MD323 is offline   Reply With Quote
Old 11-03-2011, 05:33 PM   #37
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,174
Total Cats: 198
Default

Quote:
Originally Posted by hustler View Post
You're building a screamer engine that will not make 300wtq, use a Miata 6-speed to save weight and engineering time.
Running a miata 6 speed would require me to still fabricate some sort of bell housing and flywheel adapter cause, ya know, the V6 doesn't have the same bellhousing or flywheel flanges as the BP. And the same goes for the starter but I could go the same route that the european people do. I would be able to run the PPF and the torsen, but I don't think that'll last long with the torques I'll hopefully be making

Quote:
Originally Posted by MD323 View Post
yeah the K8 came in mx3 GS's

the oiling issue can be resolved by downsizing the oil squirters and enlarging the crank oiling ports (i never got that far with my KLZE so forgive me if my details are alittle vague) as well as some have moved to external oil pumps.
My block doesn't have oil squirters, making it a later block. it does have a forged crank though, that was my only real requirement. I do plan to enlarge the main bearing feed passages. I could also run an external oil pump, there's large ports/plugs on the oil pressure side everywhere.
TurboTim is online now   Reply With Quote
Old 11-03-2011, 09:01 PM   #38
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,962
Total Cats: 140
Default

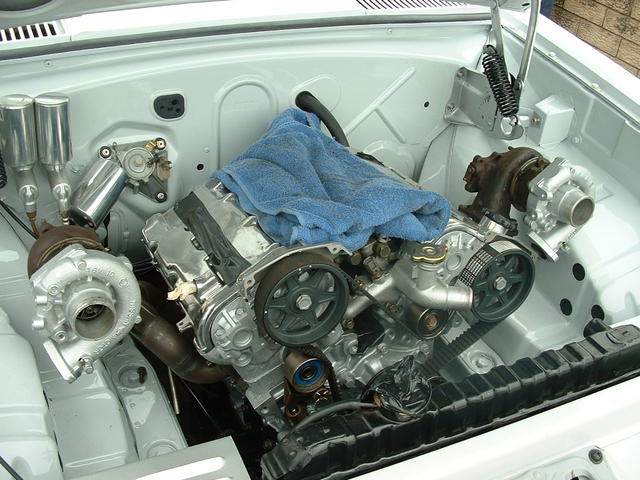

I used to be an mx6 junkie, back when a KLZE was all the 'rage'. There's some twinT'd making 1000whp - why in a FWD car who knows (dyno queens). Subscribed for V6 destructornator

You gonna use the oem intake manifold with the VRIS?


Make it fit!

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-dscf0009.jpg
GeneSplicer is offline   Reply With Quote
Old 11-03-2011, 09:23 PM   #39
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

o lawd
18psi is offline   Reply With Quote
Old 11-03-2011, 10:17 PM   #40
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

All that work, and using IWG?
*sigh*
Full_Tilt_Boogie is offline   Reply With Quote
