Old 02-02-2013, 10:34 PM   #441
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 38
Default

boner alert
aaronc7 is offline   Reply With Quote
Old 02-04-2013, 02:54 PM   #442
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Fireindc View Post
****. This is beyond sick, i can only imagine the torque curve that thing makes.

Proper miata right here.

Any chance you did a 3rd/4th gear datalog so we can see the virtual dyno results? Looks like an easy 300whp and tons of torque.

I somewhat doubt it's that high on only 6psi, but it's probably already around what most people make on a BP with a 2560 or so.
concealer404 is offline   Reply With Quote
Old 02-04-2013, 03:40 PM   #443
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

I didn't get a solid feel for it, I just went out and back and was nervous as anything. And it was cold and tires were rock hard. But yeah, sorta maybe felt like my old 2560 setup ~260rwhp, once the turbo spooled. 2560 BP feels faster due to quicker spool for sure.
TurboTim is offline   Reply With Quote
Old 02-04-2013, 07:10 PM   #444
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,934
Total Cats: 222
Default

viperormiata is offline   Reply With Quote
Old 02-05-2013, 12:03 AM   #445
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,813
Total Cats: 138
Default

Very nice! Congratulations on a job well done.
Stein is offline   Reply With Quote
Old 02-05-2013, 01:01 AM   #446
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Mother of God. That sounds amazing.
miatamania is offline   Reply With Quote
Old 02-06-2013, 04:56 PM   #447
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,688
Total Cats: 93
Default

Want. So bad.
Pen2_the_penguin is offline   Reply With Quote
Old 02-06-2013, 08:37 PM   #448
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Niagara Falls NY/ Ontario, CA
Posts: 61
Total Cats: 2
Default

The sound of it is just perfect
Neilv is offline   Reply With Quote
Old 02-07-2013, 09:44 PM   #449
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Amazing car!! Can't wait to hear some drive-by's and maybe a idle and takeoff from behind?
dwink is offline   Reply With Quote
Old 02-07-2013, 10:00 PM   #450
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Thanks, thanks, thanks more videos will come eventually for sure. After the winter. Sooooo much salt at the moment. I'm going to try a third shop to balance the driveshaft, hopefully pull it this weekend.
TurboTim is offline   Reply With Quote
Old 02-07-2013, 11:57 PM   #451
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 25
Default

Quote:
Originally Posted by ZX-Tex View Post
The potential epic-ness of this build is... well, epic.
Update: The epic-ness of this build IS epic.
ZX-Tex is offline   Reply With Quote
Old 02-08-2013, 04:15 AM   #452
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,688
Total Cats: 93
Default

sooo, are you going to sell this after you build it like everything else...?

just curious...
Pen2_the_penguin is offline   Reply With Quote
Old 02-08-2013, 08:46 AM   #453
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Quote:
Originally Posted by ZX-Tex View Post
Update: The epic-ness of this build IS epic.
hahaha. I hope the new intake mani will be further epic. Parts of it are/were, it's just a bitch getting it to fit under the hood.

Quote:
Originally Posted by Pen2_the_penguin View Post
sooo, are you going to sell this after you build it like everything else...?

just curious...
I dunno. Probably most likely, yes.
TurboTim is offline   Reply With Quote
Old 02-08-2013, 10:52 AM   #454
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,997
Total Cats: 409
Default

Quote:
Originally Posted by turbotim View Post
hahaha. I hope the new intake mani will be further epic. Parts of it are/were, it's just a bitch getting it to fit under the hood.


I dunno. Probably most likely, yes.
dibs.
turbofan is offline   Reply With Quote
Old 07-15-2013, 10:33 PM   #455
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Wow it's been a while. Lots of rain up in these parts. Replaced all the alignment eccentrics and stayed off the roads until I got an alignment, which took way too long than it should have.

But cruising on the back roads or the highway showed me that I need an oil cooler of some sort. Eventually the oil temps would reach north of 240F at the remote oil filter housing, not sure how high it would ultimately go but I don't want to find out. This would cause the engine coolant to also climb into the mid 210's (low 200's typical). Also oil pressure at idle when the oil temps were that high was not where I want to see it.

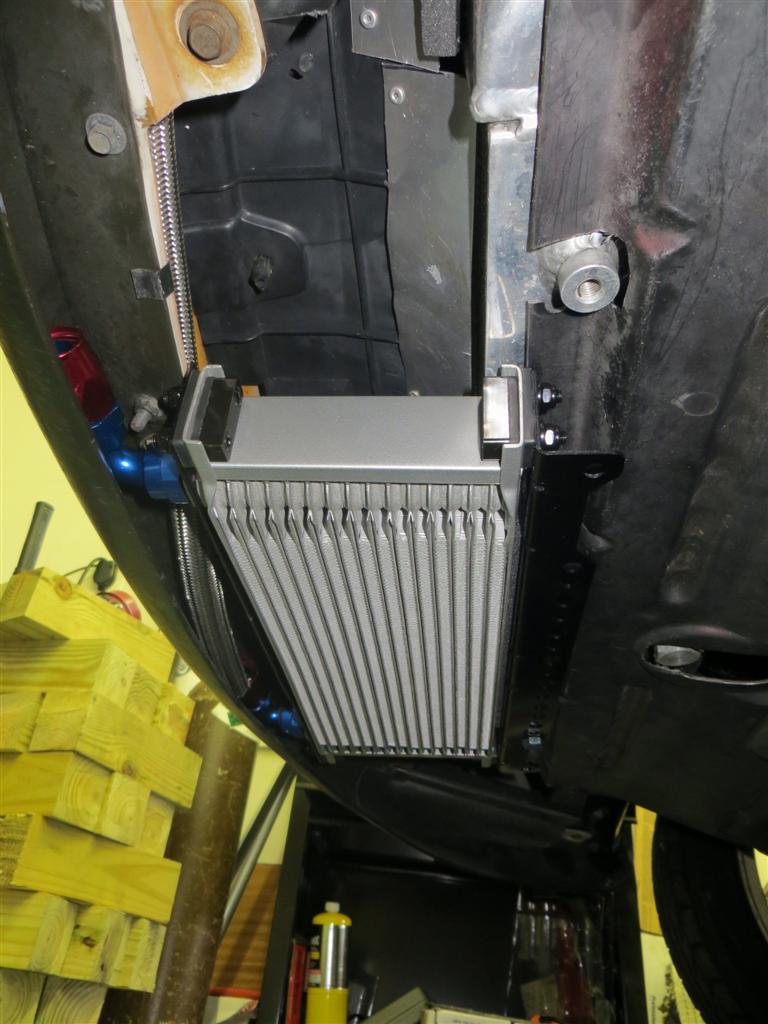

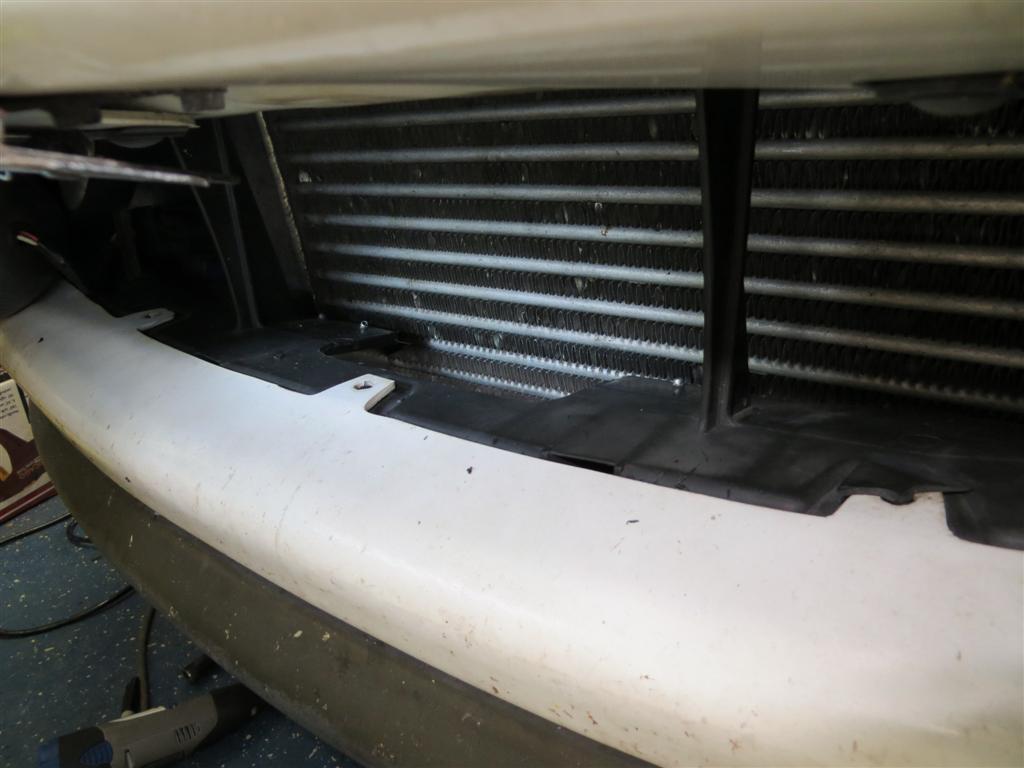

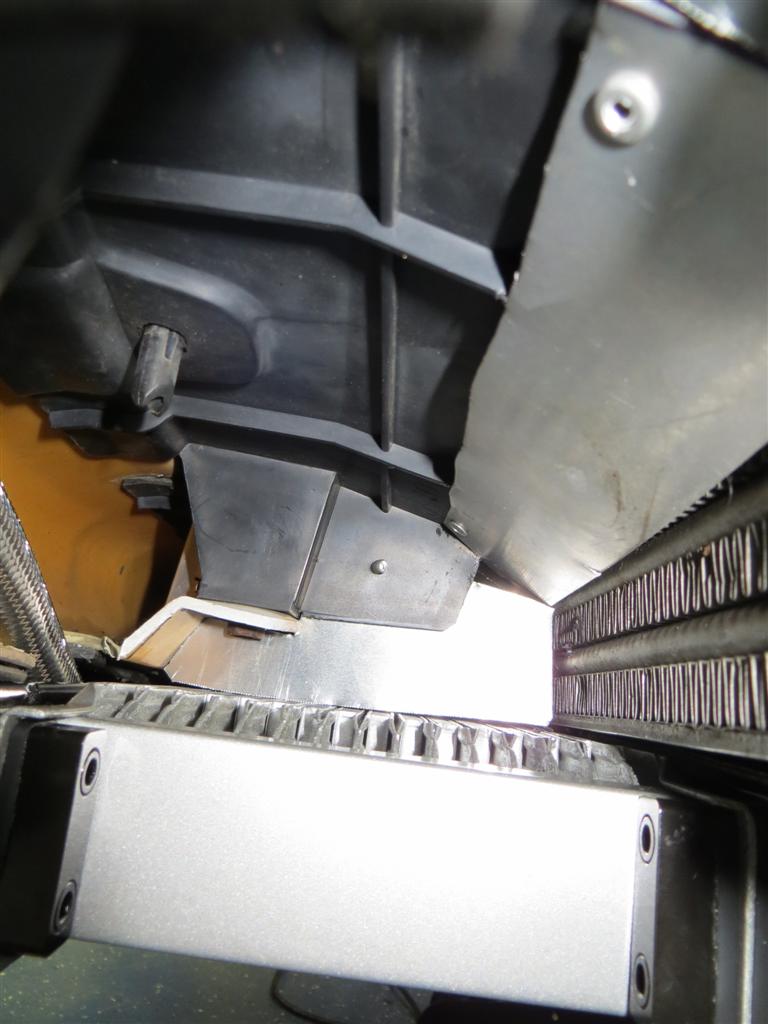

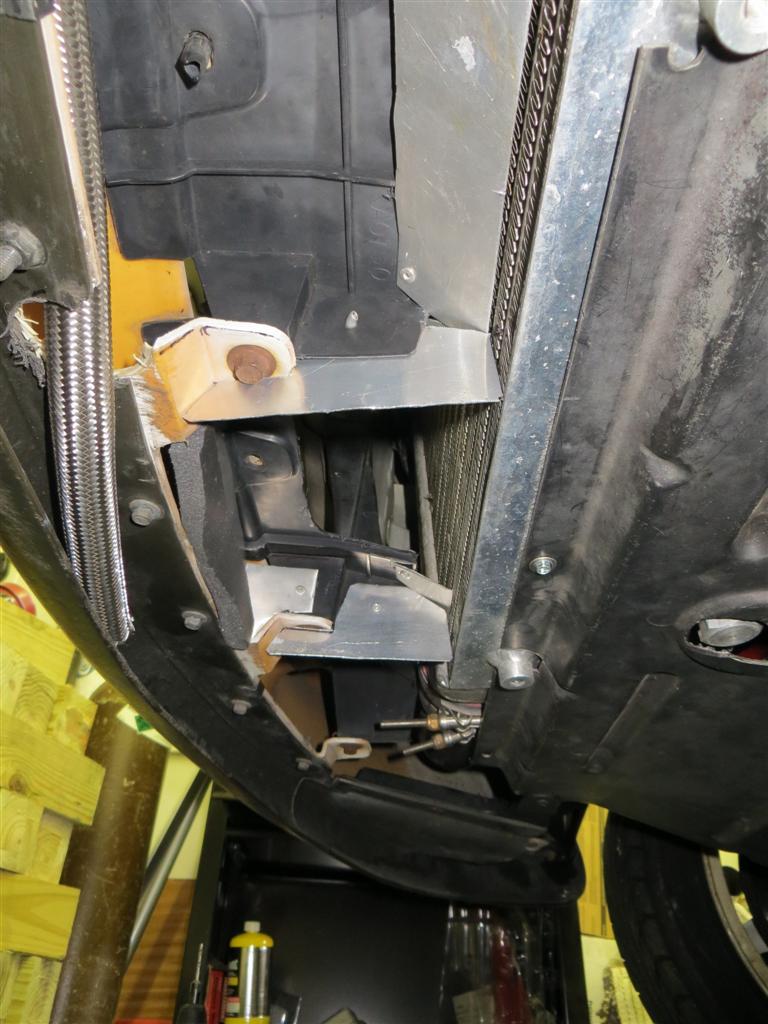

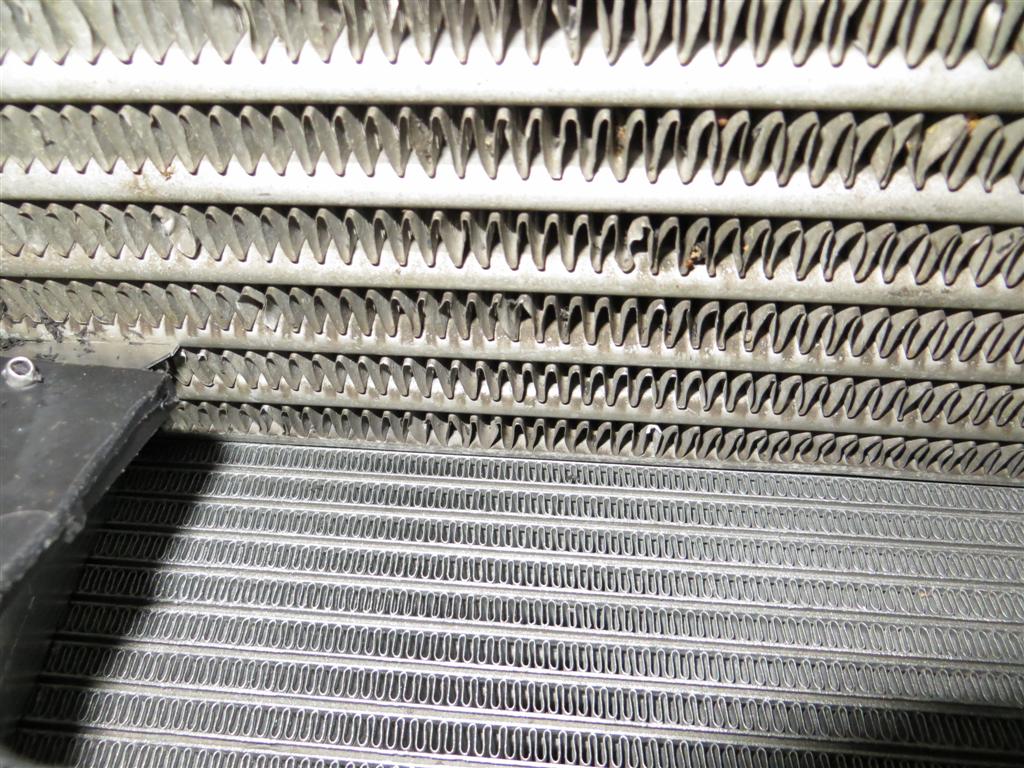

I went with the Earl's 16 row ~15x6x2" cooler and their new brackets which look like the Setrab brackets. The Earl's cooler uses common -10AN o-ring fittings and the cooler is inexpensive. Looks to be decent enough quality. The brackets fit the car with minimal drama. Typical oil cooler locations on my car are already occupied so after too much staring I decided to mount it horizontally below the opening in the bumper. I cut a small hole to feed it and built sealing shrouds to keep the air pressure in. Everything is above the bottom of the front lip. I will just have to be extra careful when backing out some driveways. I may build a skid plate on the front but probably not.

Enough words, more pics. I swear I will get more videos at some point in my life.

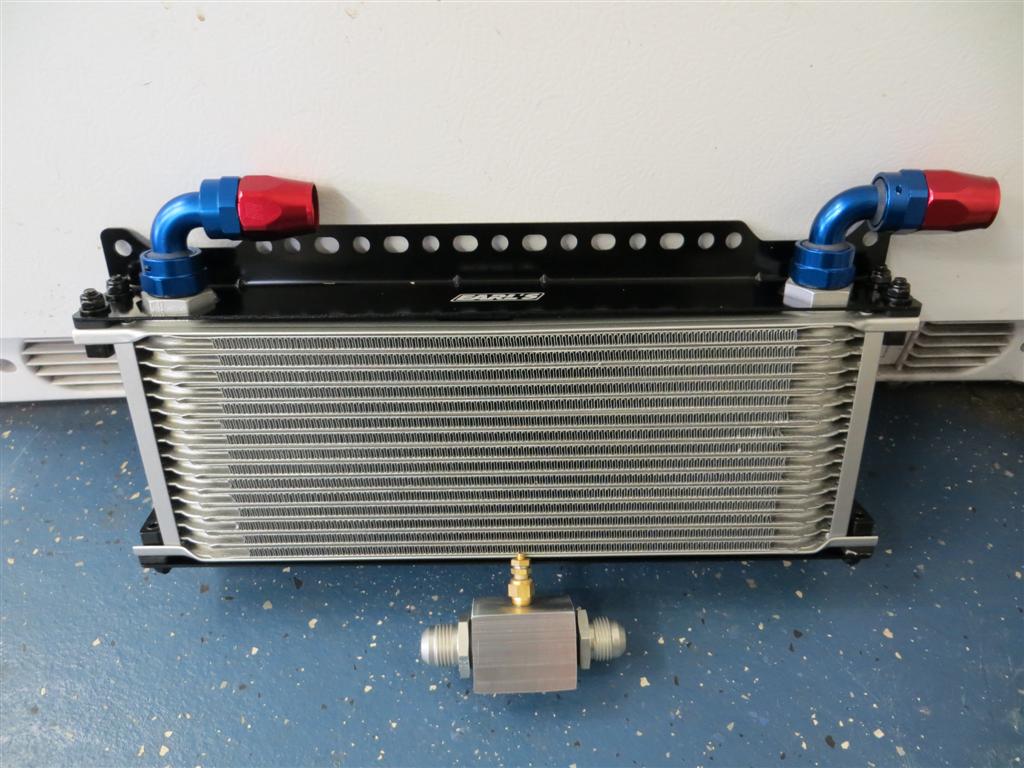

The cooler with brackets and a simple temp sensor mount block I made which conveniently uses the -10AN o-ring fittings supplied with the cooler. I used Russel tight R 90's screwed into the cooler to save a half inch or so.












Now to finish making the lines, screw everything together, change the 5W30 Royal Purple out for some 5W40 Rotella T6.
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-oilcooler1.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-oilcooler2.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-oilcooler3.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-oilcooler4.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-oilcooler5.jpg

ABSURDflow Turbo KLDE Mazda V6 Thread-oilcooler6.jpg
TurboTim is offline   Reply With Quote
Old 07-15-2013, 10:38 PM   #456
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Looks awesome !!!
Sean is offline   Reply With Quote
Old 07-15-2013, 11:15 PM   #457
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

Running the hoses that far out into the lip would worry me every time I drove the car.
vehicular is offline   Reply With Quote
Old 08-09-2013, 12:54 PM   #458
Senior Member
iTrader: (8)

cyotani's Avatar

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,353
Total Cats: 80
Default

You sir, have an awesome job... Amazing build.
cyotani is offline   Reply With Quote
Old 08-09-2013, 12:58 PM   #459
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Is it can be tiem for moar bewsties nao plz?
concealer404 is offline   Reply With Quote
Old 08-09-2013, 01:14 PM   #460
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Quote:
Originally Posted by cyotani View Post
You sir, have an awesome job... Amazing build.
Thanks. Yeah, I get to play on MT.net while I'm at work (unofficially). Currently designing a new lifter tie bar for some Roush roundy-round engine.

Quote:
Originally Posted by concealer404 View Post
Is it can be tiem for moar bewsties nao plz?
Umm. What? Brewsties? beer? sure.

Once the rain stops. Seriously, this summer has been a wash.

Wife and I took it out last weekend to make sure no oil leaks on the oil cooler. I probably will invest the $90 into a thermostat. Yeah yeah I know.

But I was too inebriated to drive home, so she drove it, and did not like the lack of power steering, just like me.

I want to find a spare hood to hack up and install an EVO vent. LIke this one:
EVO Extractor hood vent on Miata

Not that I need it, but I think it may help.

I still want to finish the new intake manifold, and do a large fuel system, and grow ***** to rev it to 8k, and get some 9" 6UL's/Rivals, and paint it, and....never ends.
TurboTim is offline   Reply With Quote
