Old 02-06-2014, 09:57 AM   #521
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 6,949
Total Cats: 139
Default

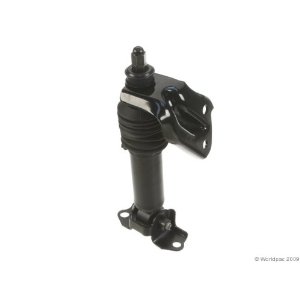

I barely started searching and came up with the following popular pull apart cars that use them: Towncar, Camry (pic), ES300 and stopped there. I just need to make a trip- but wanted to make sure I grabbed anything else I might need while there. I'd pull the piece with the mounts for easier adaption and no added cost. Seems that all these V engine mounts are compact due to the engine size- which will work fine for my inline 4. Thinking of running from the upper part of the block to the driver side frame rail - like over top of the AC compressor.
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-319d%252bfi-vel._sl500_aa300_.jpg
m2cupcar is online now   Reply With Quote
Old 02-19-2014, 09:25 PM   #522
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

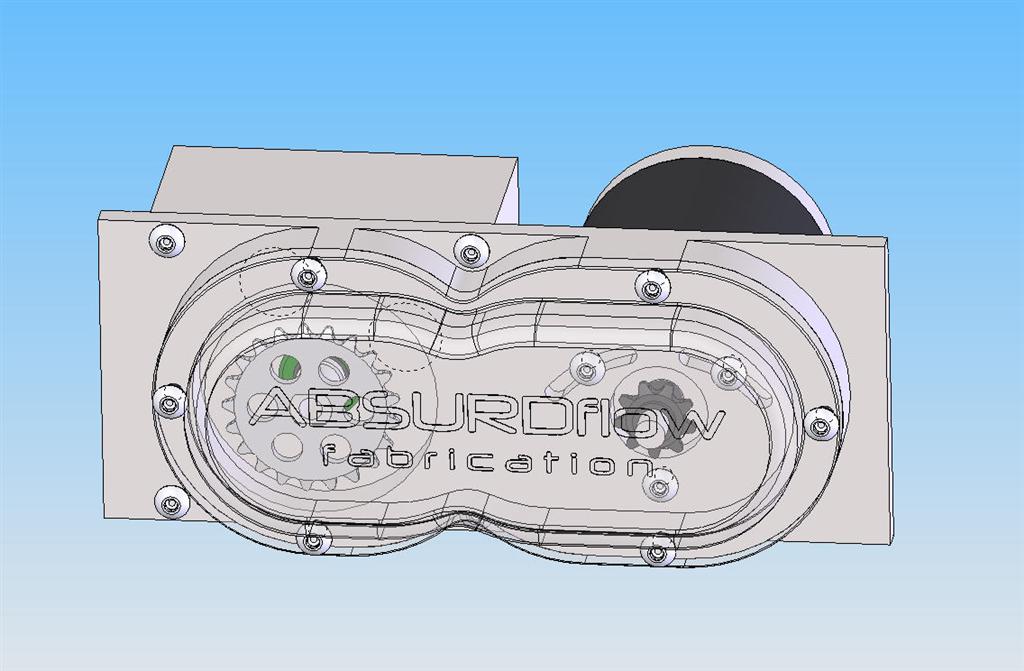

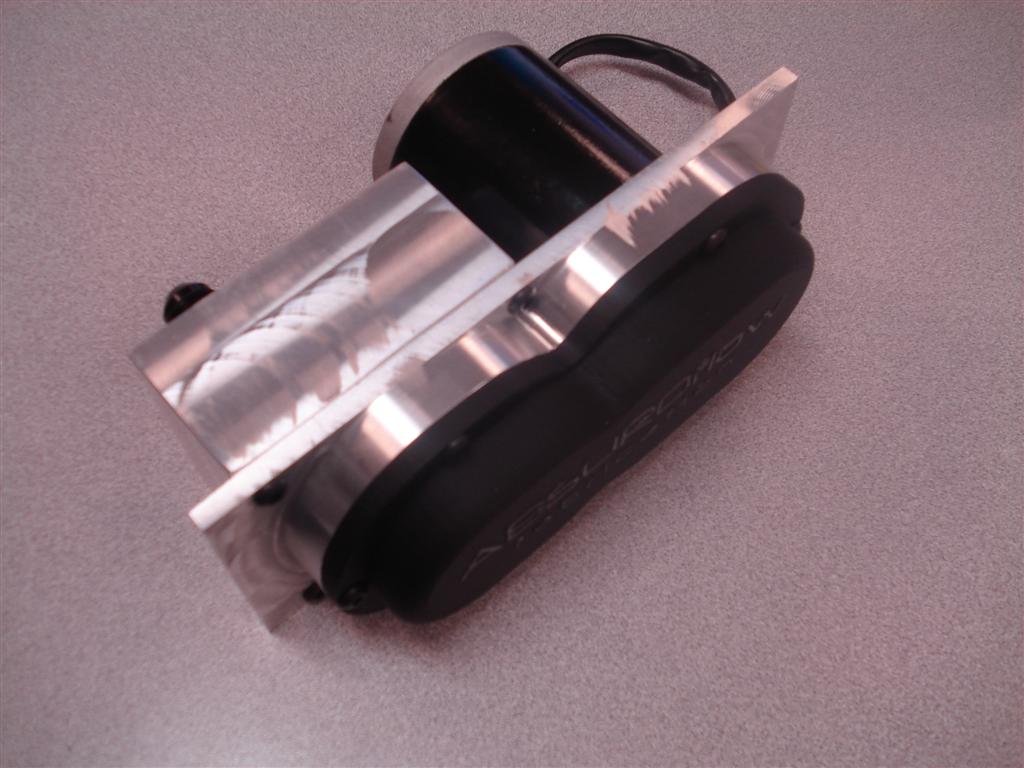

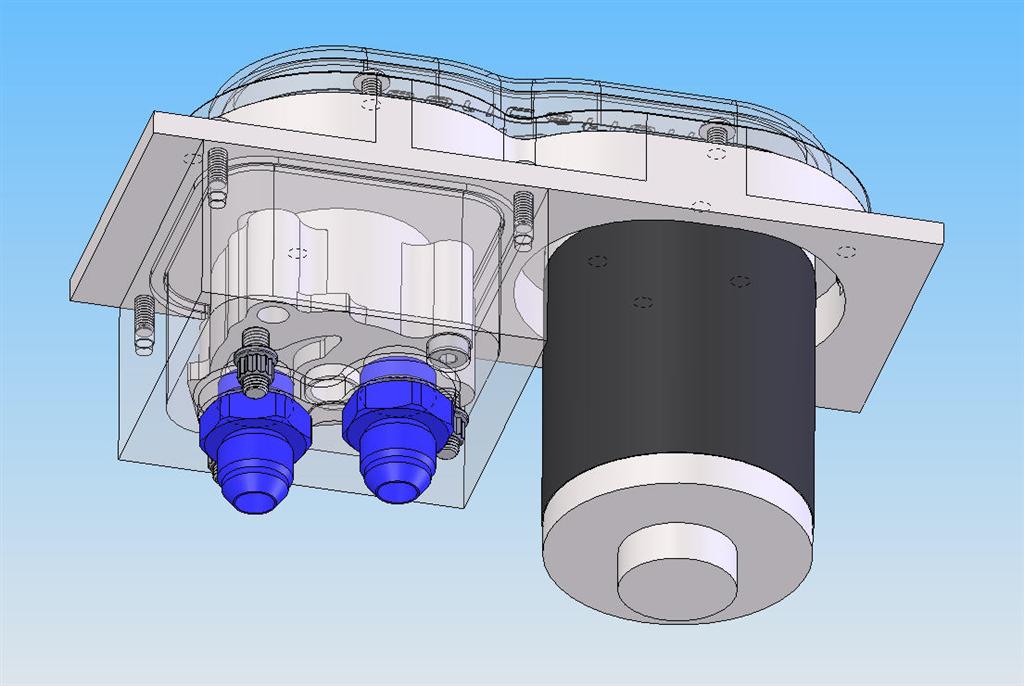

As mentioned in post #510, I was working on an electric oil primer pump. I assembled it today. I am still scouring up adapter fittings to attach it to our spintron oil system at work, to see how much pressure and flow it will produce. I'm about $80 into it including all the fittings and hardware. Raw material from the scrap bin and my time is free. I have the cost spreadsheet at work, I will update.

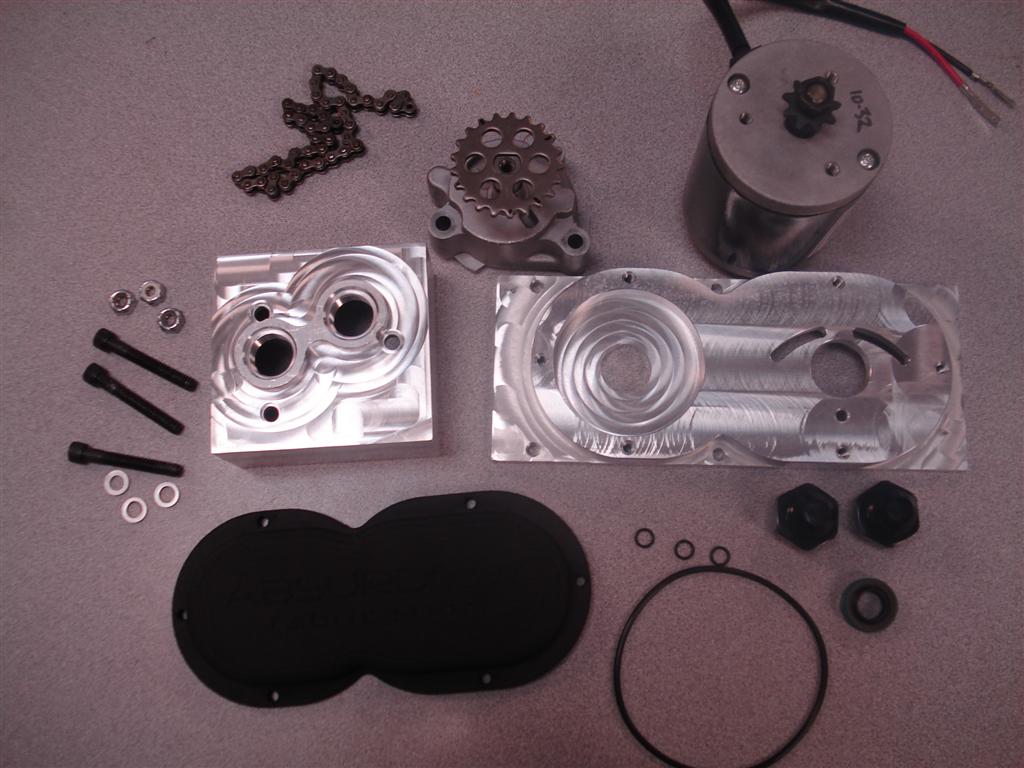

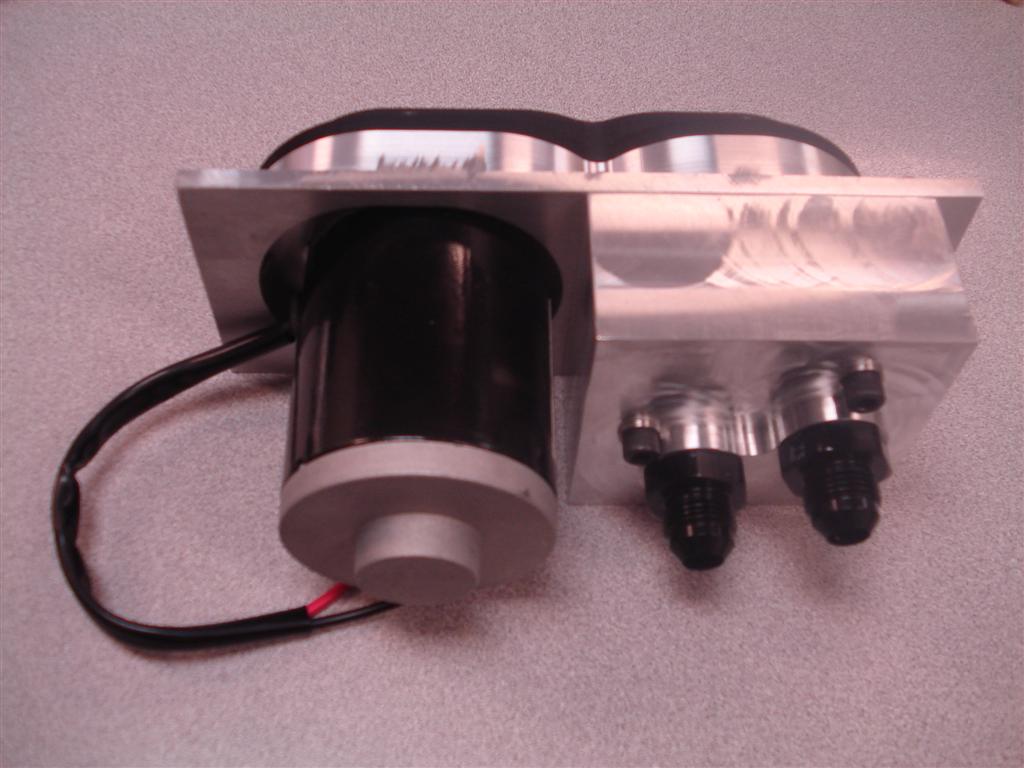

It's a Honda RC51 Gerotor pump driven off a Razor scooter motor. 2500rpm at 24v, somewhat less at 12 I assume. 9/21 tooth sprockets. So the pump will spin pretty good assuming the motor has enough torque. I'll see soon.

Pics or it didn't happen!








Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-primerpump1.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-primerpump2.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-primerpump6.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-primerpump8.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-primerpump9.jpg

TurboTim is offline   Reply With Quote
Old 02-19-2014, 09:39 PM   #523
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

very very nice... although I'm running an accusump to provide about the same thing.

Although I am thinking of constructing something similar as your electric primer pump, mounted to a bench so it can prime a dry accusump outside the car prior to installation...
GT42R is offline   Reply With Quote
Old 02-19-2014, 09:42 PM   #524
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Thank you. Yeah, everyone at work said just get an accusump. Or buy a $130 remote turbo oil pump. Those spur gear pumps will do 20psi or so. But I don't know where to fit a good sized accusump, and I'm cheap. And of course I like building silly **** like this. Pump was $15 shipped, motor $23. The chain, shaft seal, orings, AN fittings were another $25. I'm probably missing something, so $80 seems right.
TurboTim is offline   Reply With Quote
Old 02-19-2014, 11:59 PM   #525
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Tim, this is why I love watching your projects.

Reasonable accusump << Lets build something and see how well it does, for cheaper!
Gryff is offline   Reply With Quote
Old 02-20-2014, 12:09 AM   #526
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Love your mindset and the build is coming along awesome.
bikersam717 is offline   Reply With Quote
Old 02-21-2014, 02:43 PM   #527
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,688
Total Cats: 93
Default

Its crazy awesome stuff like this that sometimes changes everything we know as "reasonable" and "usually the norm", I love it!
Pen2_the_penguin is offline   Reply With Quote
Old 02-22-2014, 04:08 PM   #528
Newb
iTrader: (1)

Join Date: Feb 2014
Location: Palm Harbor FL
Posts: 16
Total Cats: -2
Default

Wow! What an incredible display of comitment and ability!
This thread has exceeded my expectations of this forum by leaps and bounds.
If i may ask a question, what made you choose the KL over a BP4W or BPVE/Z3? As incredible as this swap is i wonder if, for functionality sake its worth it. If not it certainly is worth it for the sake of not only accomplishing something abnormal but mastering it.
MrSauce is offline   Reply With Quote
Old 02-22-2014, 06:01 PM   #529
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by MrSauce View Post
Wow! What an incredible display of comitment and ability!
This thread has exceeded my expectations of this forum by leaps and bounds.
If i may ask a question, what made you choose the KL over a BP4W or BPVE/Z3? As incredible as this swap is i wonder if, for functionality sake its worth it. If not it certainly is worth it for the sake of not only accomplishing something abnormal but mastering it.

Once the KL is up and running, it's like having your cake and eating it, too. It'll make more power AND have a much bigger curve than any B-motor doing it.
concealer404 is offline   Reply With Quote
Old 02-24-2014, 09:40 AM   #530
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Thanks fellas. I should have oil primer pump testing done soon. It is attached to our spintron, just have to tighten the 30 or so AN fittings & adapters and fire it up. Maybe tomorrow...i have someplace I have to be after work today and I can't be dirty.

Quote:
Originally Posted by MrSauce View Post
Wow! What an incredible display of comitment and ability!
This thread has exceeded my expectations of this forum by leaps and bounds.
If i may ask a question, what made you choose the KL over a BP4W or BPVE/Z3? As incredible as this swap is i wonder if, for functionality sake its worth it. If not it certainly is worth it for the sake of not only accomplishing something abnormal but mastering it.
Concealer is right. Even NA, the KL is very fun. This time around I'm building a more legit turbine replacement piece so I can tune the NA regions more accurately, and I'll put the air filter on the intake instead of sucking thru the intercooler. So I can get a good feel for it being NA properly, besides being a better base map.

If running NA and the Miata trans, you can run the factory subframe and fit exhaust. 200rwhp and 8000rpm would be simple and reliable. If i were younger (or kid(s) were older) I would consider selling a swap kit: bellhousing adapter, motor mounts and oil pan for factory subframe/steering rack, and intake manifold. Either run the factory iron exhaust manifolds or ebay headers.

Ehh, anyway.
TurboTim is offline   Reply With Quote
Old 02-26-2014, 10:49 AM   #531
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

I just finished testing the primer pump. It had to suck up about 6 inches and pump up 5 feet to the flow meter.

0 psi: 1.42 gal/min
40psi: .9 gal/min
60psi: .6 gal/min
80psi: .24 gal/min

Any more than 85psi and it will start to surge.
TurboTim is offline   Reply With Quote
Old 05-17-2014, 12:12 AM   #532
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

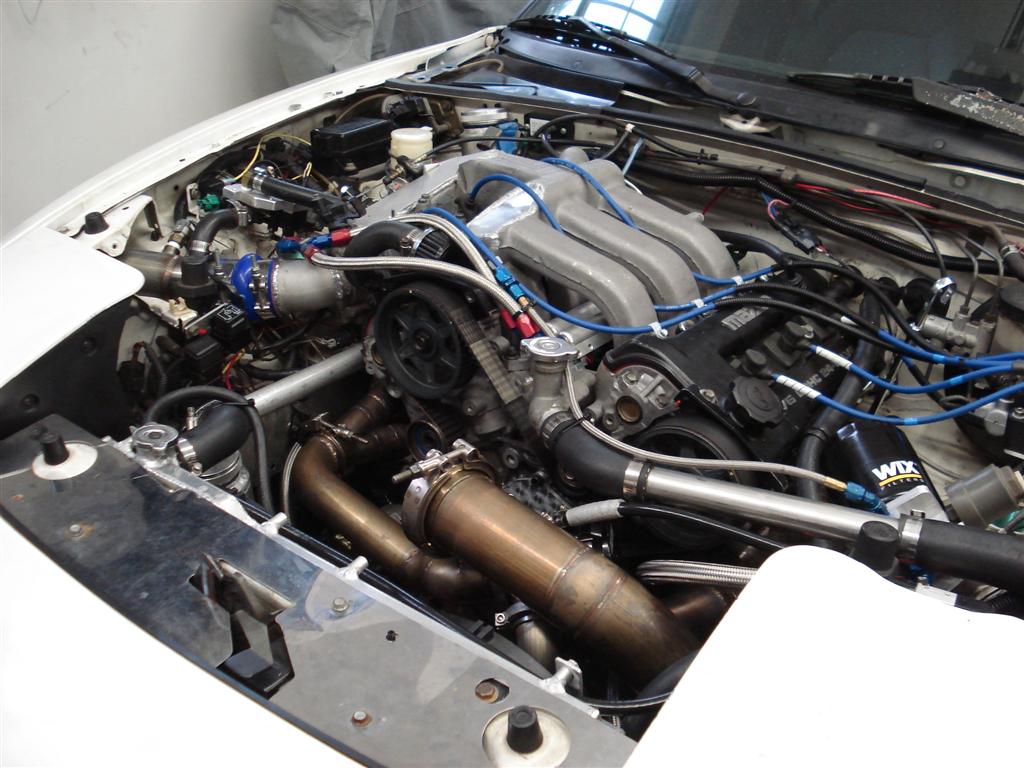

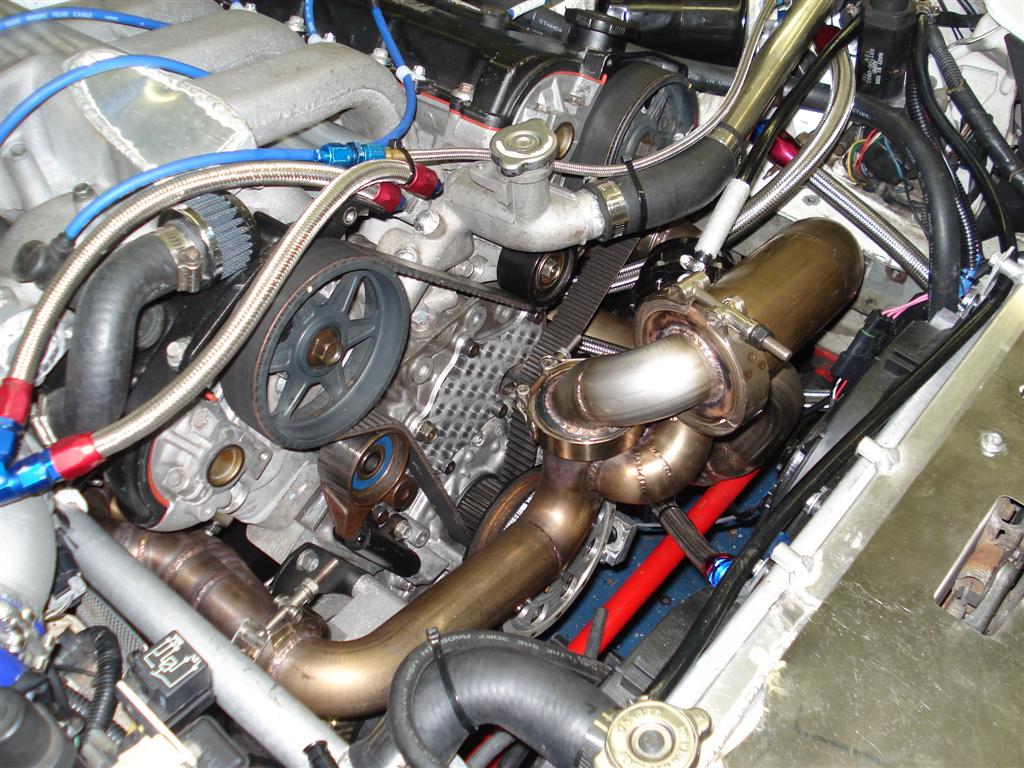

Engine is back in and running.

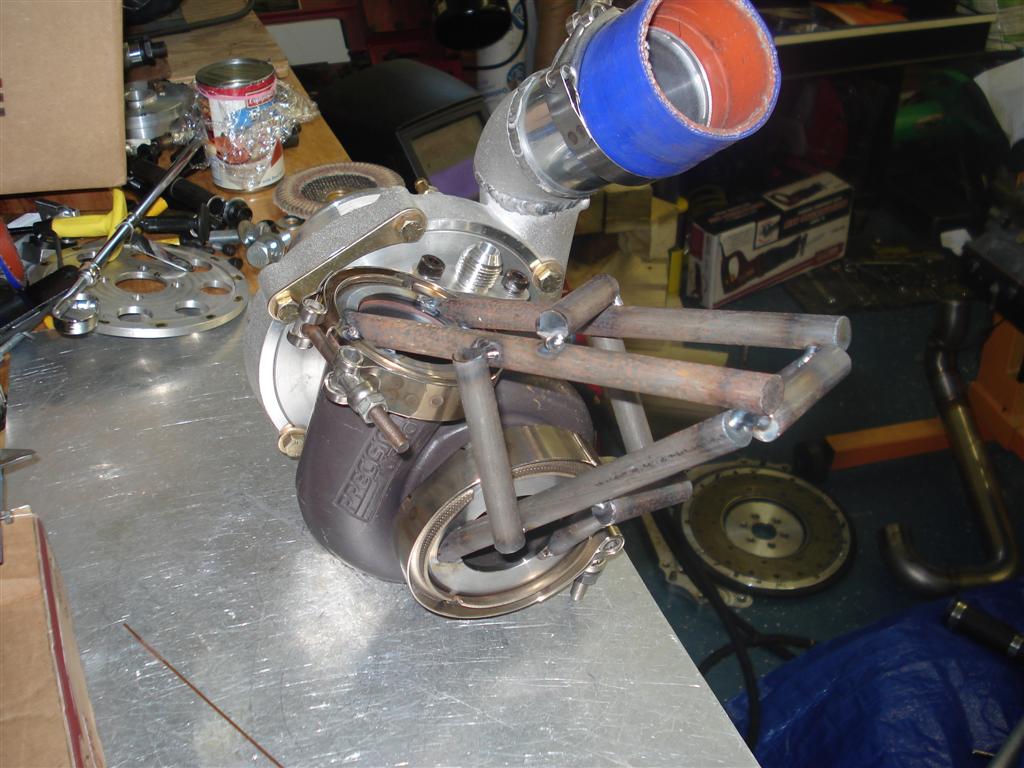

I made a new tubular turbine replacement so I can make a better base map. Last time I just blocked off the CHRA hole and ran the turbine. That's probably a bigger restriction than I figured because my fuel map was very strange.

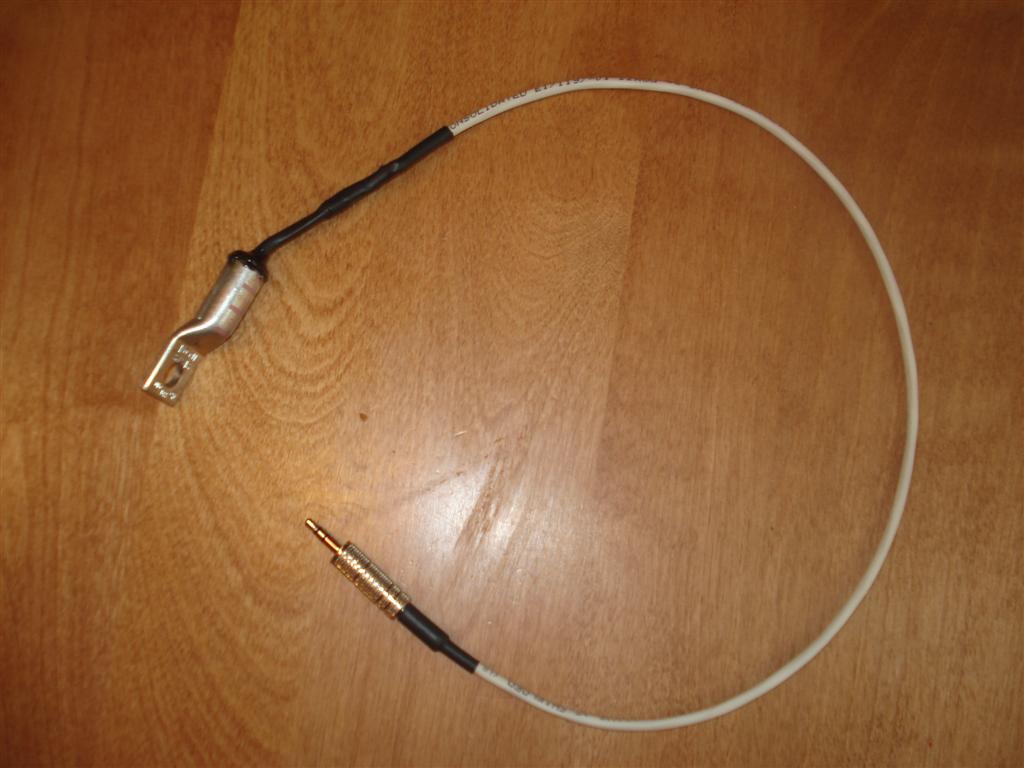

Electric Det can, build instructions from this forum of course:


Oil primer pump works pretty damn good, ~40psi on the factory gauge. It still takes 'a while' for the main oil pump to produce pressure but at least I know there's oil on the bearings until then. I'll try to get a video through the oil filler cap of oil squirting thru the cam journals.

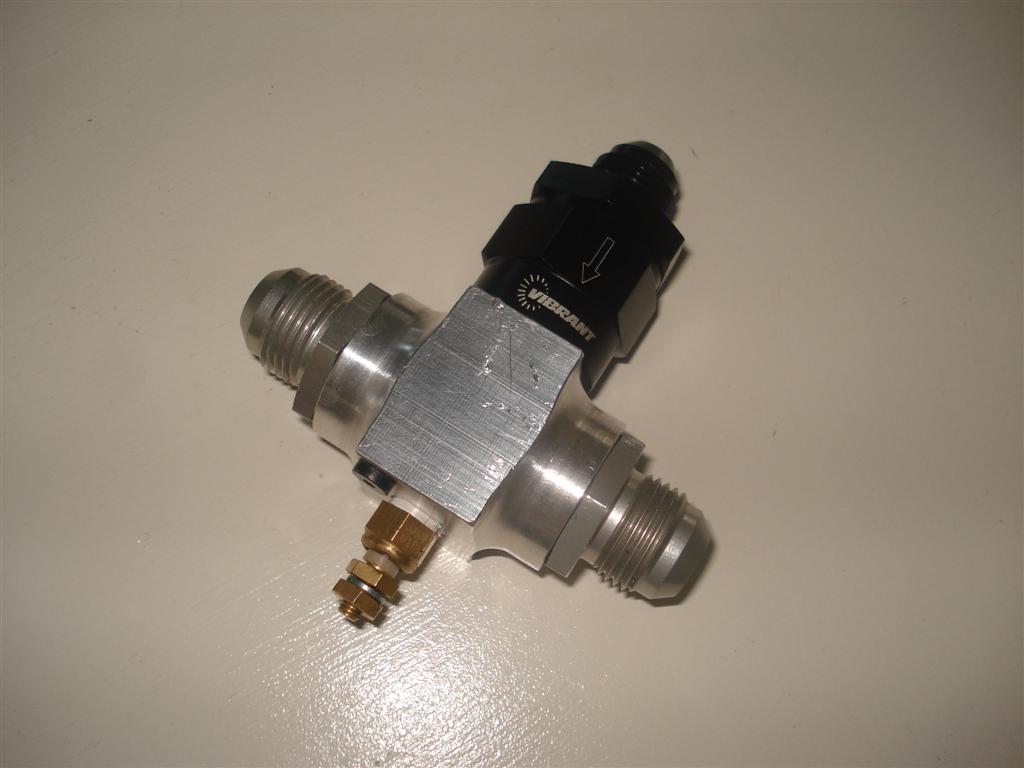

My oil temp housing was the perfect place to put the Vibrant -8AN check valve.

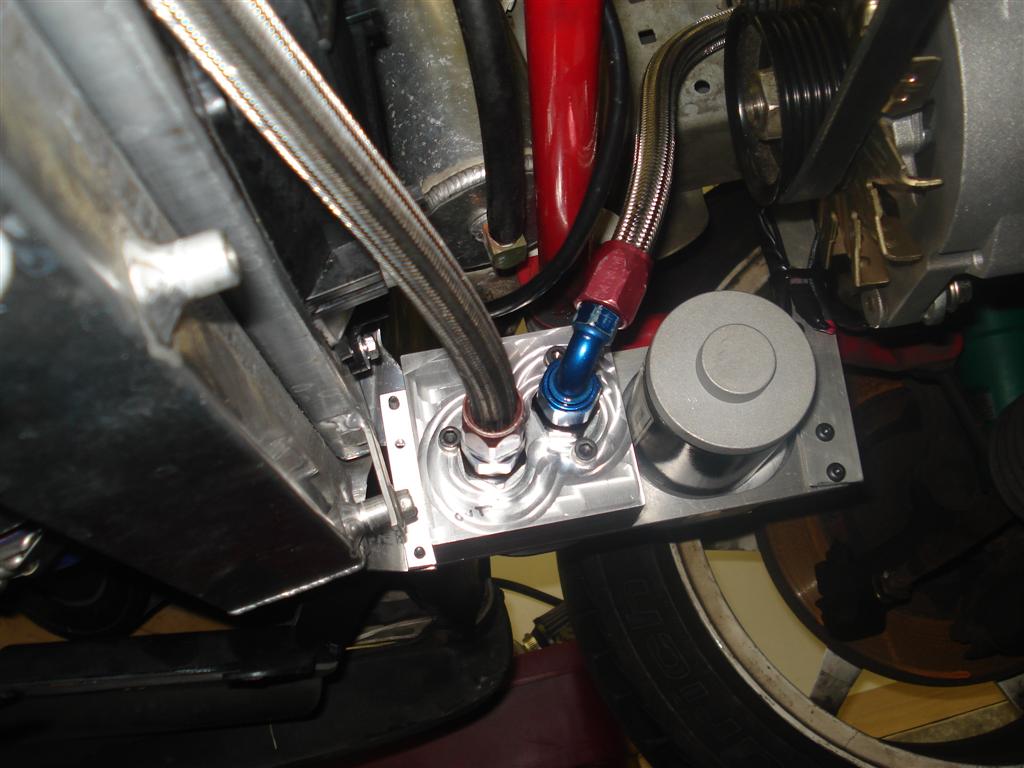

Primer pump mounted on the passenger side. It mounts up against the factory undertray somewhat snugly.


I just bought-it-now a white '90 hood which I plan to pick up tomorrow morning. I'll cut it up and install the EVO8 hood vent mesh screen I picked up over the winter. Hopefully the ladies will be able to see my big turbo through my ricer hood vent.
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-0516141.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-turbinereplacement1.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-0516142.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-detcan1.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-oilcooler12.jpg

ABSURDflow Turbo KLDE Mazda V6 Thread-primerpump11.jpg
TurboTim is offline   Reply With Quote
Old 06-01-2014, 10:26 PM   #533
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

I got this idea from slmhofy here:
EVO Extractor hood vent on Miata

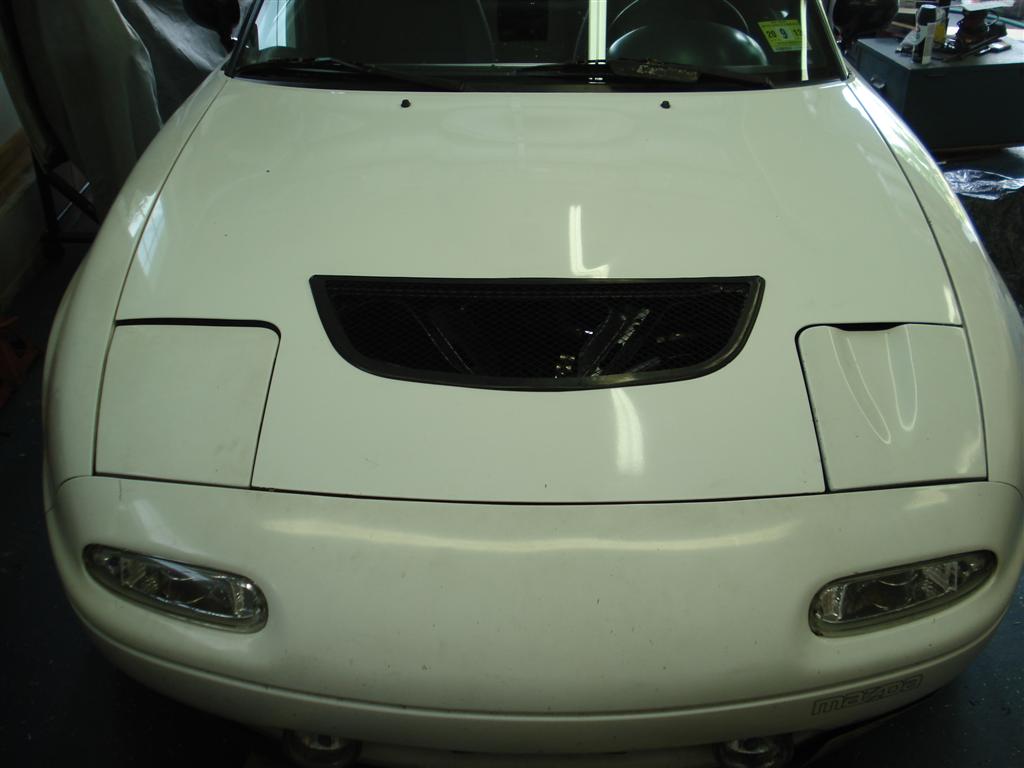

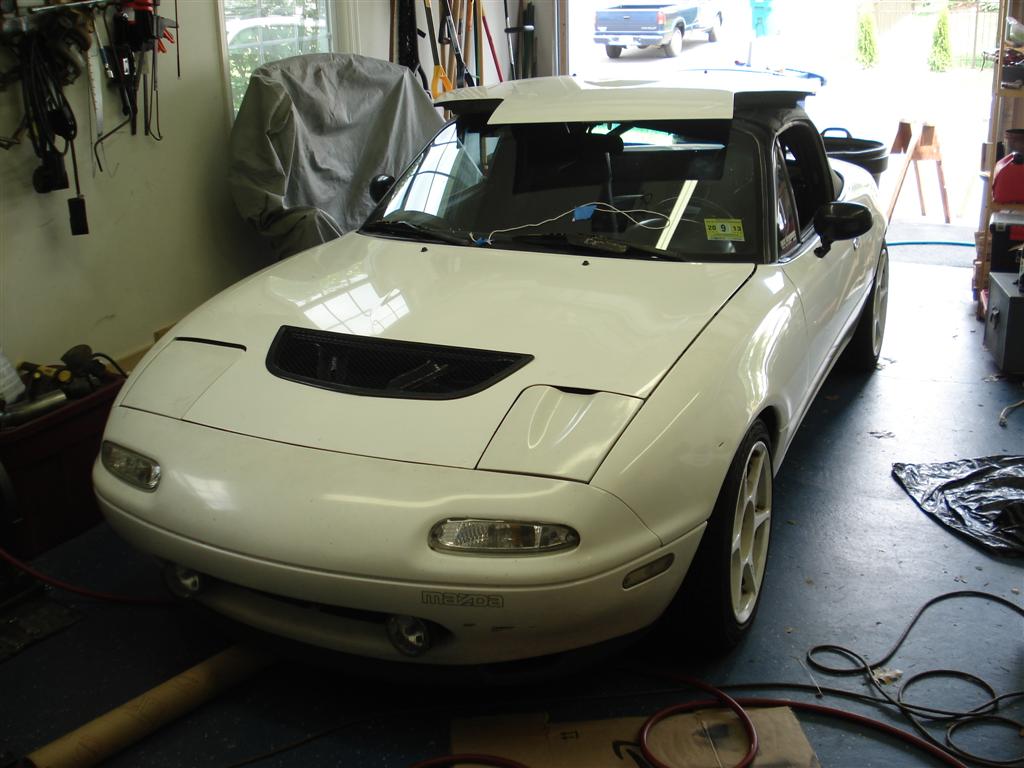

I scored a proper-color OEM hood locally off eBay a few weeks ago. That (well actually I used my hood as the eBay hood is in much nicer condition), the EVO8 hood vent screen I got off ebay over the winter, and 2 days with my angle grinder and dremel got me what I like for a hood vent. I still have a spare hood to go back to if I get tired of the rice, plus I know I don't have a cooling issue with a stock hood. This was just for fun.

I am keeping the factory bracing intact for the moment. It's not toooooo obvious...well ok it is so I may remove it and possibly replace it with some .500" aluminum tubing instead, if it's limpdick without it.

I'll post more pics in the original thread above, but for now here's a pic:

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-evohood6.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-evohood7.jpg
TurboTim is offline   Reply With Quote
Old 06-01-2014, 11:01 PM   #534
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

What headlight vent thing is that?
concealer404 is offline   Reply With Quote
Old 06-01-2014, 11:07 PM   #535
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Rats ***? rat tail? something like that.
TurboTim is offline   Reply With Quote
Old 06-01-2014, 11:09 PM   #536
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,604
Total Cats: 91
Default

Quote:
Originally Posted by concealer404 View Post
What headlight vent thing is that?
Why are you asking about all the ricer boy body parts in random threads. First bobs silly spoiler now this. Please just install the complete autozone stick on vent catalog to the FE3T miata.
Leafy is offline   Reply With Quote
Old 06-01-2014, 11:11 PM   #537
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Yeah here ya go:
Ratsback Headlight Lid Intake Duct

most of my old pics are on urbansoot's/miatapaul's now gone server.
TurboTim is offline   Reply With Quote
Old 06-02-2014, 10:06 AM   #538
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

THAT is one of the few extractor hoods i can get behind. Nice job Tim, i'd love to see some pictures of it out in the sun sometime.
Fireindc is offline   Reply With Quote
Old 06-02-2014, 10:23 AM   #539
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Leafy View Post
Why are you asking about all the ricer boy body parts in random threads. First bobs silly spoiler now this. Please just install the complete autozone stick on vent catalog to the FE3T miata.

Because I'm curious. Please service my *****.
concealer404 is offline   Reply With Quote
Old 06-05-2014, 11:25 AM   #540
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

I chopped the bracing out of my hood in that area for a Ford GT500 vent, and it was VERY limp. I took the latch out and ran hood pins because I was afraid of the hood buckling under latching forces.
vehicular is offline   Reply With Quote
