Default newbs. allofit build.

hey guys,
been reading into a lot of your builds for a while now mainly sav and faes... well i figured it was time actually made an account and chimed in.
I have a 01 NB and the build is just starting to come along.
01 block bored 1mm over for true.
01 head full port and polish with 29mm SS exhaust valves
eagle rods
wiseco forged pistons
holset hy35
LS2 coils
850cc injectors
ms3pnp pro
Rx7 TII trans
6 puck china clutch
walbro 255
tial 44MM WG

I have yet to obtain some of my parts on my list but this is what the builds going to consist of. my goal is 400whp on pump gas. E85 if i have too.
Laurent is offline   Reply With Quote
Old 02-18-2015, 12:39 AM   #2
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,270
Total Cats: 32
Default

timk is offline   Reply With Quote
Old 02-18-2015, 12:51 AM   #3
Newb
Thread Starter

Join Date: Feb 2015
Location: MN
Posts: 44
Total Cats: 3
Default

Will post in the am, will have most of the car gutted by tomorrow night.
Laurent is offline   Reply With Quote
Old 02-18-2015, 07:41 AM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,390
Total Cats: 776
Default

Wait you are spending gobs of cash and want to use a cheap china clutch. If you want to run all of it, send 949 your money and get a twin disk.
shuiend is offline   Reply With Quote
Old 02-18-2015, 08:19 AM   #5
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,705
Total Cats: 1,057
Default

Welcome to the forum. It looks like you have spent money on some proper parts.

I guess most clutches will hold with a good strong pressure plate.
More of this stuff is made in China than we probably realize, so I won't cast aspersions for that.
Most of the forged rods on this forum are from China.
sixshooter is online now   Reply With Quote
Old 02-18-2015, 09:54 AM   #6
Newb
Thread Starter

Join Date: Feb 2015
Location: MN
Posts: 44
Total Cats: 3
Default

Haha well still waiting on funds for pistons rods and mega squirt. I managed to get an rx7 TII trans, t3 mani, tial waste gate and the flywheel clutch setup for 500$ and i wasnt gonna pass that up! Waste gate hasnt been used. Alone there 300$ im ln the process of basically stripping the car down right now, havent decided on clutch but being im not 100% how well the rx7 trans will adapt up clutching wise. The guy gave me the adapter plate so id rather bolt it up and work out any clutching kinks with a 50$ chines clutch then a 600$ one.... Just my thought but thats why i chimed in! I havent built a miata and you guys have so you guys know more then me! As far as miata wise! So good or bad i value your guys input!
Laurent is offline   Reply With Quote
Old 02-18-2015, 10:16 AM   #7
Newb
Thread Starter

Join Date: Feb 2015
Location: MN
Posts: 44
Total Cats: 3
Default

And as far as gobs of cash with everything including the price i paid for the car i will be in it at about 6500$, so if i reach my 400whp goal (which i only want to for the sake it did it) then was gonna lower my boost a bit. But i dont see 6500$ for a 400whp car a bad price. I just dont want it to end up like faes car. Ha. I read a bunch of threads and basically wanna build the car once. Not 12 times pulling it apart making changes. I wanna do it all in one build.
Laurent is offline   Reply With Quote
Old 02-18-2015, 10:21 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,408
Total Cats: 2,035
Default

Less talking more pics please.

It's usually a bad idea to say stuff like "6500 for 400whp is not bad" as though you've already achieved it.

I do hope you achieve your goals though, and sounds like you're on the right track I just want to know how much of the stuff you already have and how far along you are, cause we get way too many newbs with huge plans and goals only to find out they have almost nothing and done almost nothing and it's just a pipe dream.

I love me a holset run at full tilt. Should bee a hoot. Good luck
18psi is offline   Reply With Quote
Old 02-18-2015, 10:52 AM   #9
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,390
Total Cats: 776
Default

Quote:
Originally Posted by Laurent View Post
Haha well still waiting on funds for pistons rods and mega squirt. I managed to get an rx7 TII trans, t3 mani, tial waste gate and the flywheel clutch setup for 500$ and i wasnt gonna pass that up! Waste gate hasnt been used. Alone there 300$ im ln the process of basically stripping the car down right now, havent decided on clutch but being im not 100% how well the rx7 trans will adapt up clutching wise. The guy gave me the adapter plate so id rather bolt it up and work out any clutching kinks with a 50$ chines clutch then a 600$ one.... Just my thought but thats why i chimed in! I havent built a miata and you guys have so you guys know more then me! As far as miata wise! So good or bad i value your guys input!
Quote:
Originally Posted by Laurent View Post
And as far as gobs of cash with everything including the price i paid for the car i will be in it at about 6500$, so if i reach my 400whp goal (which i only want to for the sake it did it) then was gonna lower my boost a bit. But i dont see 6500$ for a 400whp car a bad price. I just dont want it to end up like faes car. Ha. I read a bunch of threads and basically wanna build the car once. Not 12 times pulling it apart making changes. I wanna do it all in one build.
You will be far above $6500 when it is all said and done I bet. I wish you good luck on it, but **** adds up very quickly.

The reason I am against cheap clutches is they are a pain to replace. After having to replace a cheap one 3 times in a week, I will no longer go with any clutch that is not FM/ACT/949 branded.
shuiend is offline   Reply With Quote
Old 02-18-2015, 11:14 AM   #10
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 403
Total Cats: 64
Default

I was just gonna skip over this but figured I'd post since I'm in the middle of a big power build with the same trans setup you want to use. Go in my build thread and look at what is actually needed to use the TII trans. There is a decent amount of fab needed. Clutchnet can make you a custom clutch disk that will work with the swap. You'll also need a new driveshaft.
But you better be ready to open up your wallet/paypal account if you actually want to make 400whp.
BoostedSmurf is offline   Reply With Quote
Old 02-18-2015, 11:24 AM   #11
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,705
Total Cats: 1,057
Default

BP engines really don't want to make 400hp. They aren't Hondissans.
sixshooter is online now   Reply With Quote
Old 02-18-2015, 02:56 PM   #12
Newb
Thread Starter

Join Date: Feb 2015
Location: MN
Posts: 44
Total Cats: 3
Default

Thanks for the input, im at the shop cleaning/disassembling my head so it can be ported polished and cut for my 29mm valves now i will try to get some pics of where im at tonight.
Laurent is offline   Reply With Quote
Old 02-18-2015, 11:59 PM   #13
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

Ban if next post still doesn't contain pics.
turbofan is offline   Reply With Quote
Old 09-09-2015, 09:38 PM   #14
Newb
Thread Starter

Join Date: Feb 2015
Location: MN
Posts: 44
Total Cats: 3
Default Plz no ban haha

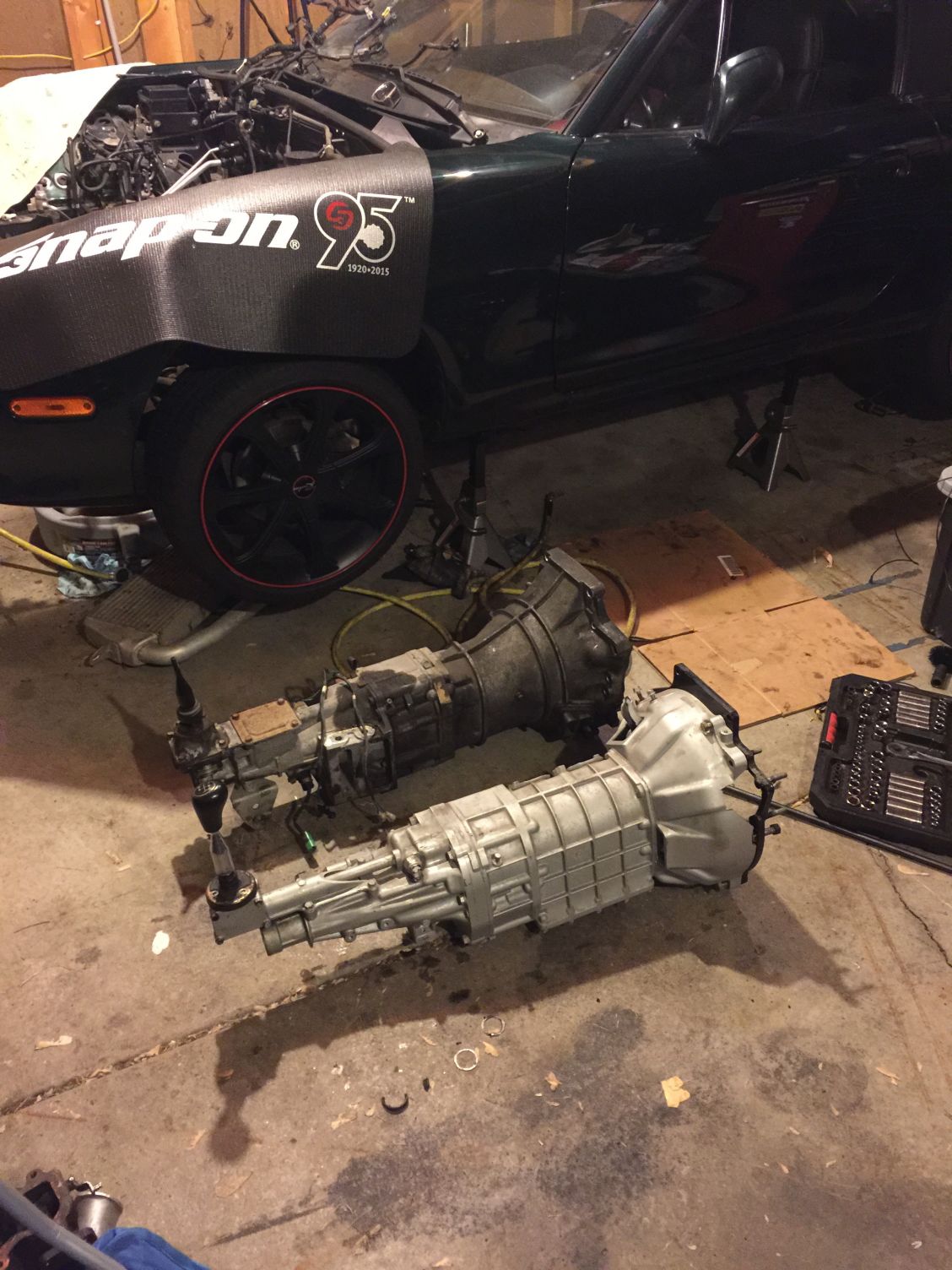

The rx7 turbo trans that's going in.

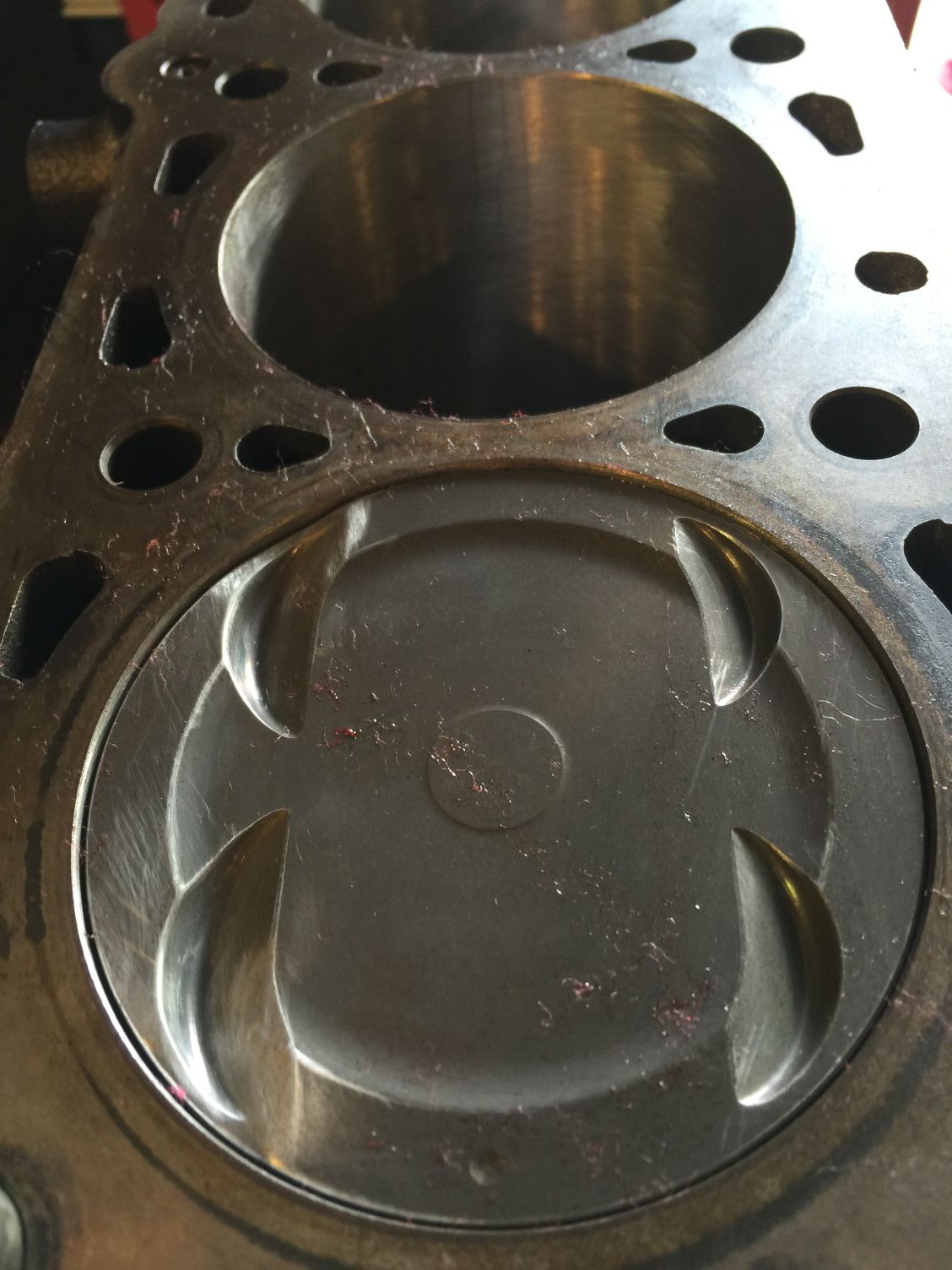

Modified the valve relief in hopes to cut down heat then all weight matched

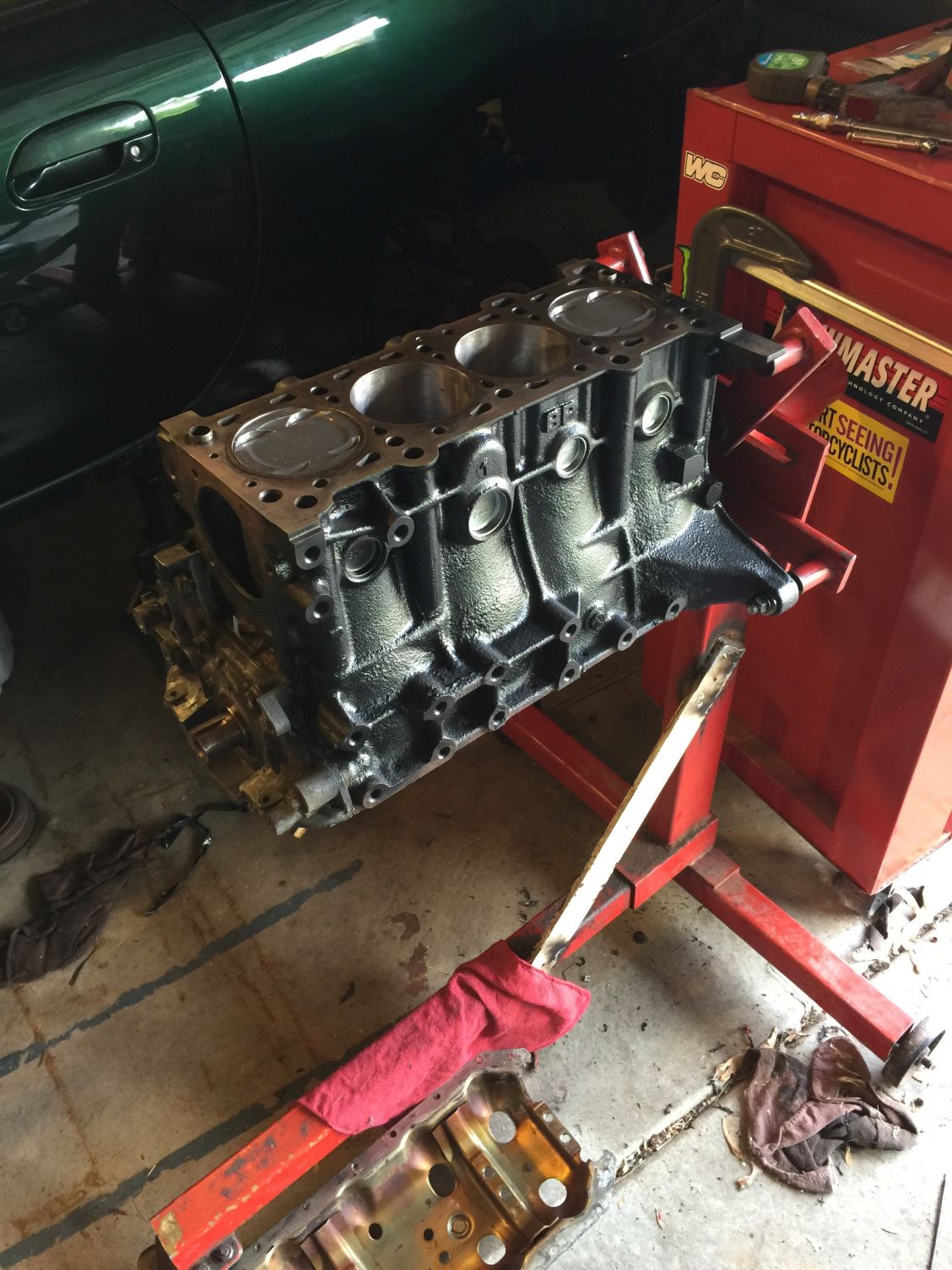

Assembled short block with ARP everything. 8:6 super tech modified Pistons, eagle rods, acl race bearings,

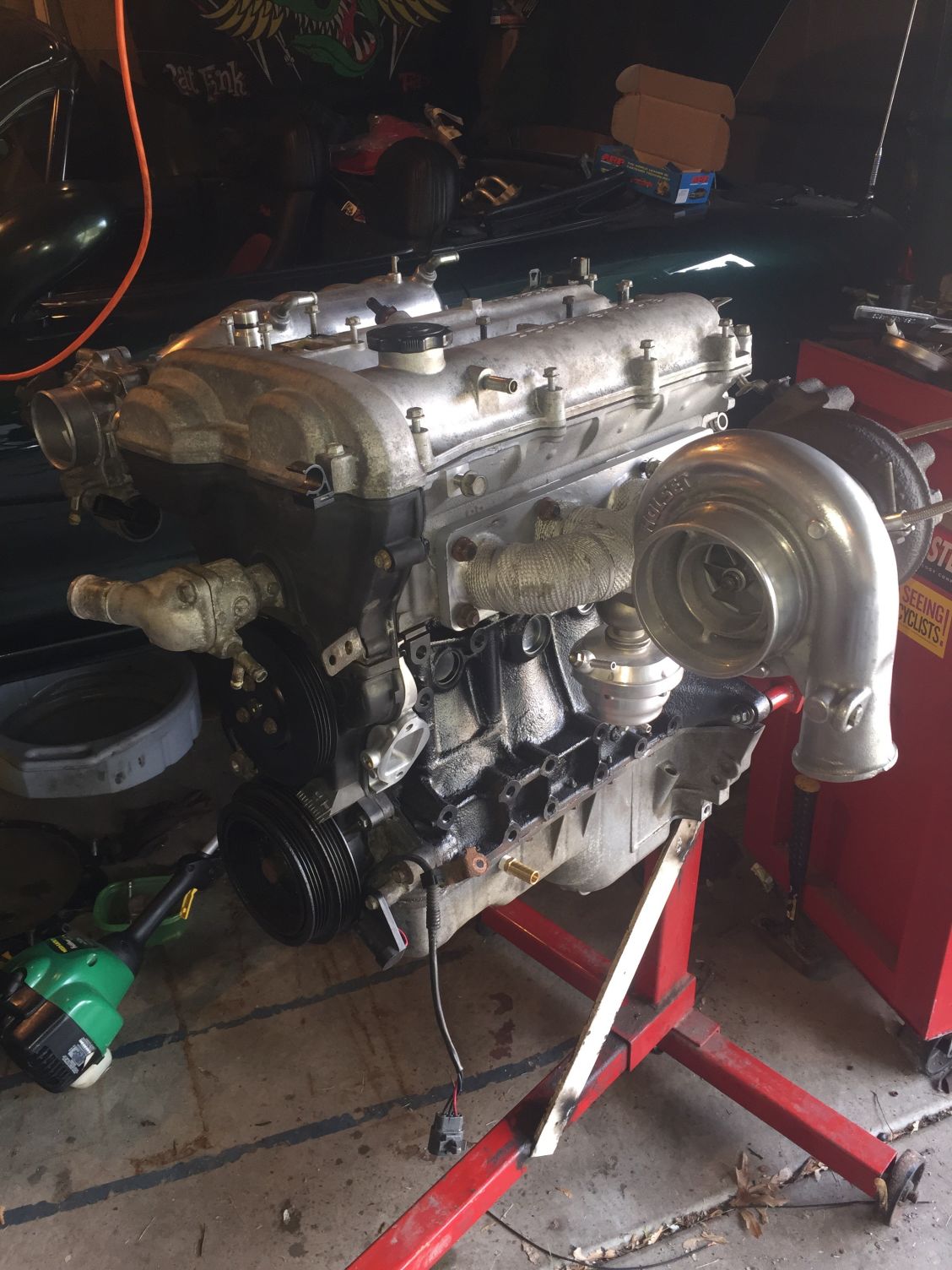

Almost together just mocked up

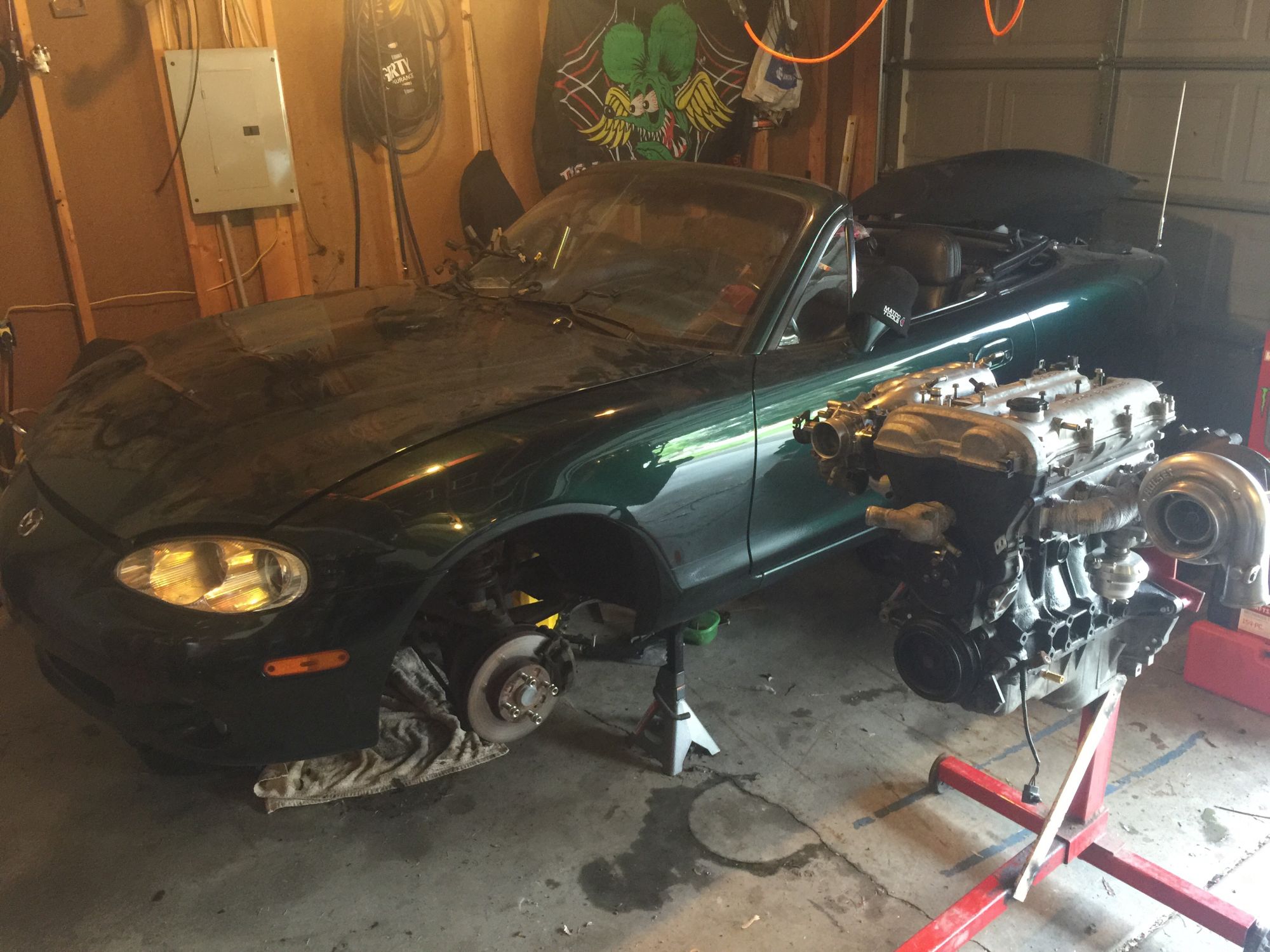

Next to the rusted dented beat up turd it's going into
Attached Thumbnails
newbs. allofit build.-80-image_0296702ec61584060f05d22d85d1feb0e17a49fd.jpg   newbs. allofit build.-80-image_c2f50950cd87b1928ac8a986c2e6a85bd758ba6f.jpg   newbs. allofit build.-80-image_338e34d76f01899e31ddb532e7c548837ea18b31.jpg   newbs. allofit build.-80-image_4f6f06e4ba85f7c0f5770ffa479a925c2f28007a.jpg   newbs. allofit build.-80-image_b50d90ac2e4499c4ead58e37de33c60352fd22ed.jpg

Laurent is offline   Reply With Quote
Old 09-09-2015, 09:42 PM   #15
Newb
Thread Starter

Join Date: Feb 2015
Location: MN
Posts: 44
Total Cats: 3
Default It's been a while since I've been on

This build is gonna take a bit yet as I still don't know if I wanna run a mega dirt for my engine management along with money but it is moving along. The only pipe dreams here are me affording what I'm still doing haha
Laurent is offline   Reply With Quote
Old 09-13-2015, 06:42 AM   #16
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,724
Total Cats: 120
Default

No coolant re route?
ryansmoneypit is offline   Reply With Quote
Old 09-13-2015, 12:32 PM   #17
Newb
Thread Starter

Join Date: Feb 2015
Location: MN
Posts: 44
Total Cats: 3
Default Reroute

I wanted to but from what I understood reading around the updated 2001 HG is changed to flow more through the rear of the head so I was gonna at least give it a try. Car never got hot prior to build even with a/c on sitting in 95+ weather. Was gonna get a bigger radiator and see how it cools with some good fans on it. It's nothin to change it later 😁
Laurent is offline   Reply With Quote
Old 09-13-2015, 01:12 PM   #18
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,390
Total Cats: 776
Default

I would pull the head and swap to the earlier head gasket and do a reroute. It is easy to do with everything out of the car.
shuiend is offline   Reply With Quote
Old 09-13-2015, 01:44 PM   #19
Junior Member

Join Date: Feb 2014
Location: Chicago, IL
Posts: 94
Total Cats: 1
Default

+1 on the Reroute. It is really cheap to do.
The build is going to nickel and dime you to hell, expect to go way beyond that $6,500 mark.
AdrianD2 is offline   Reply With Quote
Old 09-13-2015, 01:49 PM   #20
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,203
Total Cats: 974
Default

<p>For that much boost you are going to need a whole lot more crank case venting. There are some good threads around.</p><p>You need a rear trans mount solution, diff mount solution.</p><p>Interested in holset spool. I'm currently on the hunt for a hx30.</p>
aidandj is offline   Reply With Quote
