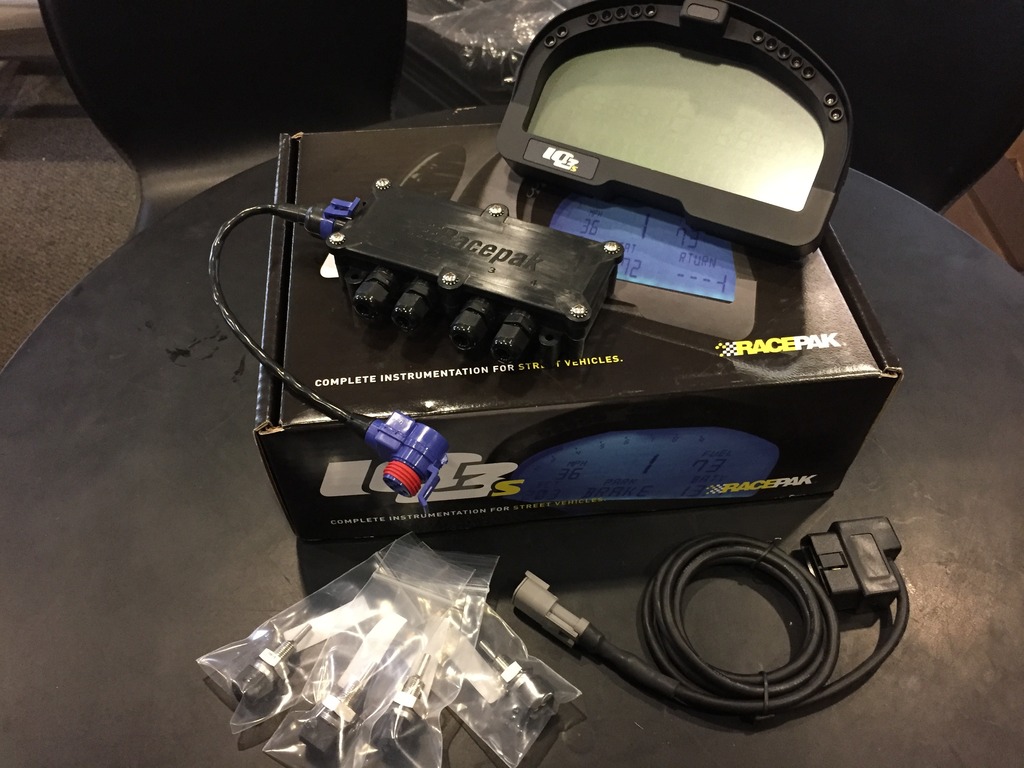

Some goodies arrived.



As the list of things I want to keep an eye on with gauges kept growing, I realized I was going to end up with far more gauges than I wanted cluttering the interior up. Need a clean solution that does some of that monitoring work for me instead of needing to scan 8 gauges on every straight..

The new and improved plan comes in the form of the Racepak IQ3S dash. In the bottom of the photo is the OBDII interface cable, so it can pull a long list of info straight from the ECU. The black box is Racepak's USM (Universal Sensor Module) which you can run any of about 20 different types of sensors to and then that condenses all those signals into one and plugs into the dash with one connector. The dash can be set with warning values for each sensor so I can set up the main page without any of the extra clutter from the sensors and the dash will warn me if any of the sensors see something amiss.



ThePass is online now   Reply With Quote
Old 09-22-2016, 12:52 PM   #368
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 711
Total Cats: 16
Default

Is there much data out there on LFX oiling issues (or preferably lack there of) on track?

I am building up a 99 wheel to wheel car that had a dry sump LS in it. A friend bought it for the motor and I took the chassis and everything else.

I am about to pull the trigger on getting my LS motor built but it seems that with out a dry sump it's just a matter of when (not if) it goes. I have been toying with going with the LFX which could be bought for the price of the dry sump system alone.

rlogan is offline   Reply With Quote
Old 09-22-2016, 02:30 PM   #369
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,574
Total Cats: 234
Default

Not much info there yet. I think the Miata community will be putting the LFX through more track testing than it ever was in its original shell

We'll find out!
ThePass is online now   Reply With Quote
Old 10-11-2016, 02:51 AM   #370
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,574
Total Cats: 234
Default

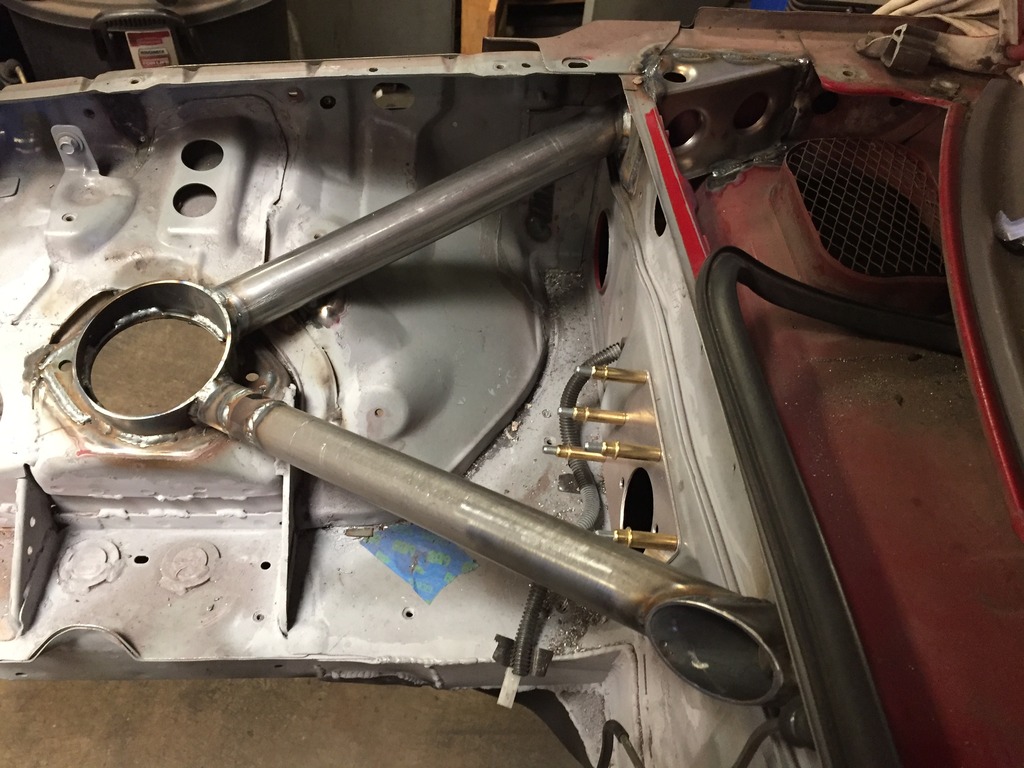

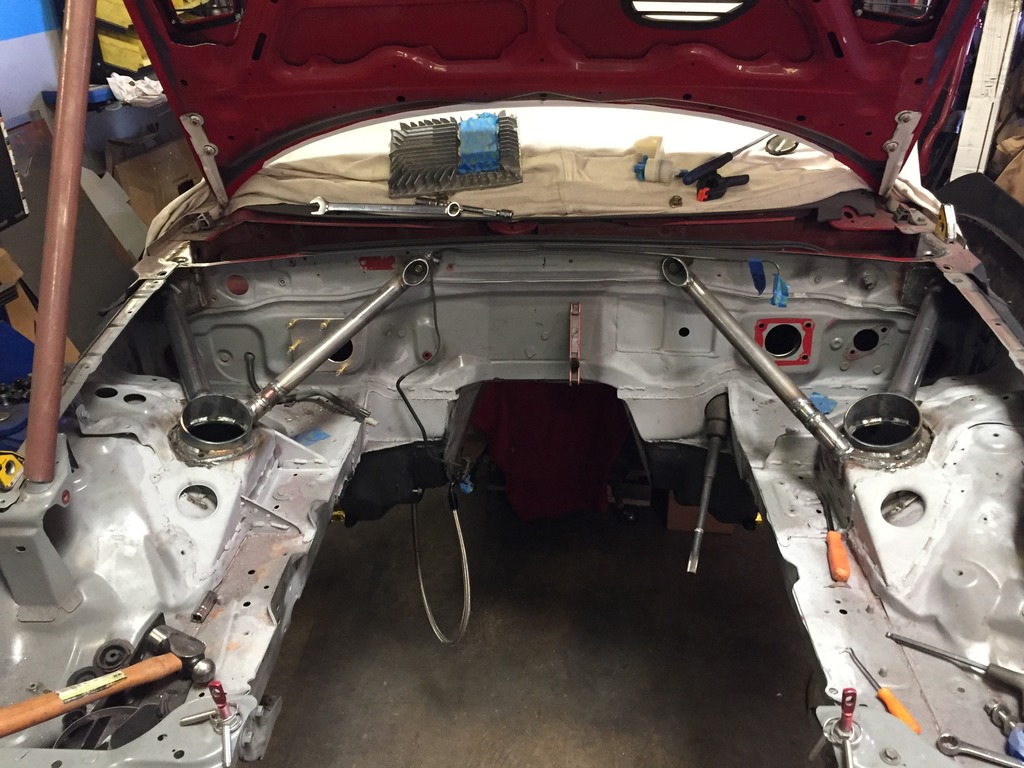

While the engine is out for the last time, I had some final things on the list to take care of in there. Modified/Limited classes allow the cage to pass through the firewall so... Not messing around any more, tying the shock towers into the chassis and cage

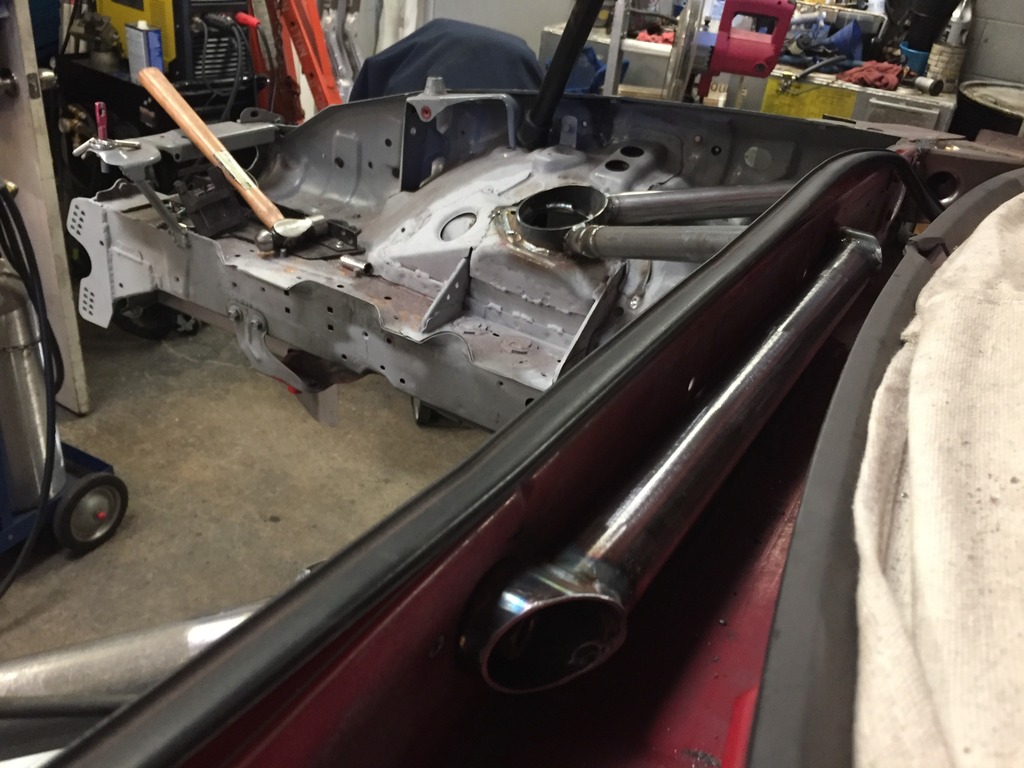

The inner tubes are removable for engine work, and assymetric to clear the brake master cylinder.



The end plan is for the center tubes to continue on the other side of the firewall to form an X and tie in to the cage on opposing corners. I'll finish that portion up later, but needed this part done so I can paint it and get the engine in there. For now, there's a temporary cross-tube behind the firewall tying the two together:

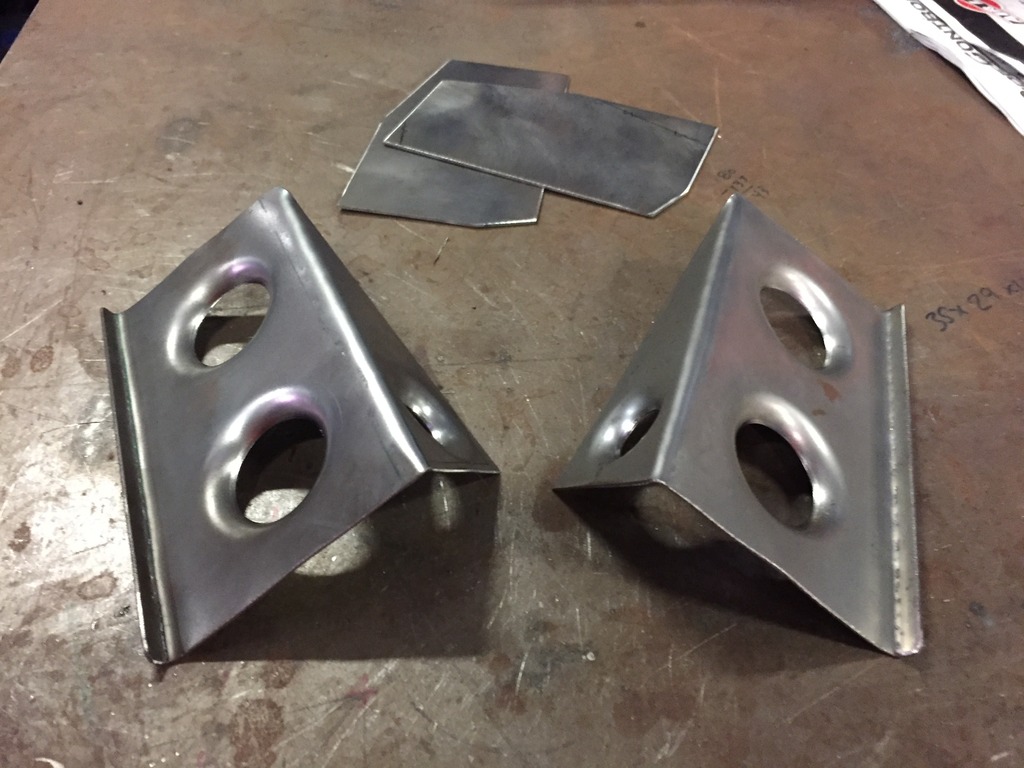

The tubes going to the corners tie in to a very strong part of the chassis, with a bit of additional gusseting:



ThePass is online now   Reply With Quote
Old 10-11-2016, 02:53 AM   #371
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,709
Total Cats: 126
Default

I've got a set of assorted dimple die sizes if you need them.
cordycord is offline   Reply With Quote
Old 10-11-2016, 06:20 PM   #372
I'm Miserable!

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 652
Total Cats: 8
Default

I thought the consensus on the miata platform was that the sub frame took all the load and strut bracing wasn't necessary.....I know you are very well thought out in your mods and you factor in weight penalty of everything so am intrigued about why you have done this?
mx5-kiwi is offline   Reply With Quote
Old 10-11-2016, 08:24 PM   #373
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,574
Total Cats: 234
Default

The Miata shock towers are decent, but they aren't perfect. You have several loads going into this area. Most directly, you have the spring load from a 16-18kg/mm spring in my case. But, you also have most of the forces from the subframe going into the frame rail on either side of the engine bay - and on the opposite side of the frame rail is the shock tower. By triangulating the shock towers with the chassis and cage you create a load path from the subframe to the chassis and cage. Of course, off the shelf shock tower braces don't do any of this, and are generally not worth their weight.

The tubes I used are thin wall stuff. Like, special-order thin. So the weight penalty is small.

Also, keep in mind on this car the frame rails are no longer connected at the front.

Last edited by ThePass; 10-11-2016 at 08:36 PM.
ThePass is online now   Reply With Quote
Old 10-21-2016, 04:34 AM   #374
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,574
Total Cats: 234
Default

In classic "if you give a mouse a cookie" fashion...

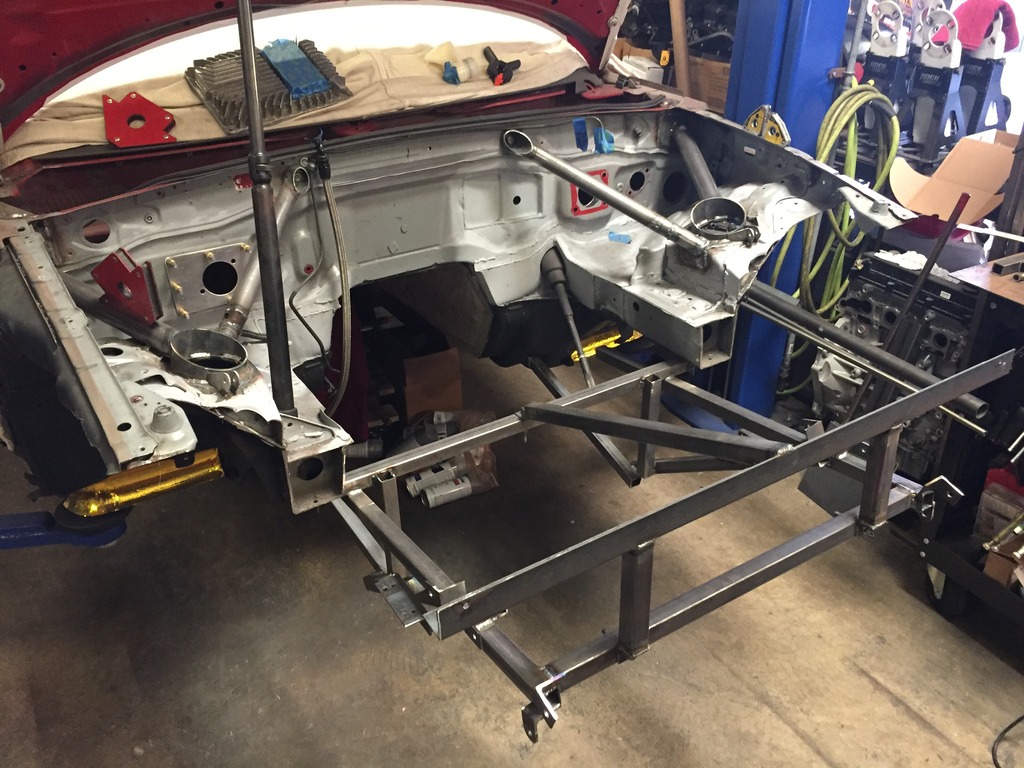

Modified/Limited TA rules allow free reign on the chassis for everything forward of the shock towers. So, I started trimming excess weight out from the nose of the frame/chassis... Started with just a little - taking out mounting points that were no longer being used etc. and weighing what I had taken off... aaaand kept trimming more and more.

Got to the point that the sway bar mounts were the only thing left forwards of the towers, and still wanted more weight out of it. So in the end I made a jig for every forward mounting point that needs to exist for the new setup - including the sway bar mount points - and chopped the whole nose off.

It was the logical conclusion to take the full advantage of the rule's allowance.



Currently in the middle of building a new tubular nose section as light as possible. Hey, the project has taken this long, what's another 50-hour detour right??
ThePass is online now   Reply With Quote
Old 10-21-2016, 08:47 PM   #375
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,997
Total Cats: 409
Default

You are insane. This means you have to redo all that beautiful work you'd already done on the nose of the car for ducting and rad mount and such, right?

Normally it's "do it once, do it right"

You're like "do it right once, then do it righter."
turbofan is offline   Reply With Quote
Old 10-21-2016, 09:59 PM   #376
Junior Member

Scaxx's Avatar

Join Date: Sep 2015
Location: Seattle, WA
Posts: 321
Total Cats: 118
Default

I'm interested to see the weight savings from this. I've been considering tubing the front end since I'm self conscious about weight upfornt because of the v8 lol.
Scaxx is offline   Reply With Quote
Old 10-22-2016, 03:19 AM   #377
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,574
Total Cats: 234
Default

Quote:
Originally Posted by turbofan View Post
You are insane. This means you have to redo all that beautiful work you'd already done on the nose of the car for ducting and rad mount and such, right?

Normally it's "do it once, do it right"

You're like "do it right once, then do it righter."
I made the jig in order to "earmark" all the mounting locations for the stuff I've already made. This way I can replicate each of those points with the new structure so that everything I already have will bolt right in. But yes, hindsight is 20/20 and I'd have definitely saved myself some time if I'd known from the beginning that I was going to cut this much out. Oh well! Eventually It'll be "rightest"
ThePass is online now   Reply With Quote
Old 10-22-2016, 03:22 AM   #378
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,574
Total Cats: 234
Default

Quote:
Originally Posted by Scaxx View Post
I'm interested to see the weight savings from this. I've been considering tubing the front end since I'm self conscious about weight upfornt because of the v8 lol.
If I told you to guess how much had come out, I'm sure you'd overestimate. Everything in this chassis is surprisingly thin. But that doesn't detract from the significance of taking any weight right off the very front of the car past the axle line. Once I have the new structure built and weighed I'll post the numbers.

Last edited by ThePass; 10-22-2016 at 04:02 AM.
ThePass is online now   Reply With Quote
Old 10-22-2016, 01:29 PM   #379
Junior Member

Scaxx's Avatar

Join Date: Sep 2015
Location: Seattle, WA
Posts: 321
Total Cats: 118
Default

Quote:
Originally Posted by ThePass View Post
If I told you to guess how much had come out, I'm sure you'd overestimate. Everything in this chassis is surprisingly thin.
Especially in the front, seems as though mazda went to great lengths to reduce weight in the front and then didn't care as much about the rear. Although it makes sense since they were just trying to even out the distribution, I cringe just a tiny bit everytime I take a chunk of weight from the rear though. Either way, I'll probably do it once I get my bender/notcher set up. Like you said, it's weight up front, anything will help.
Scaxx is offline   Reply With Quote
Old 10-22-2016, 01:44 PM   #380
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,359
Total Cats: 56
Default

Having moved my chopped tub around many times I'd be surprised at two digit pound gains in front of the suspension.
Remember that you would it to be stiff enough so you still can stand on the splitter without much flex.

But if you focus only on the up/down stiffness and ignore the tank-like behaviour when racing w2w (front against other hard things) you may avoid making it heavier

But you also have the opportunity to redo all you old perfection, since the pickup points doesn't have to be the same...
NiklasFalk is offline   Reply With Quote
