Old 12-16-2011, 08:16 PM   #21
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

Quote:
Originally Posted by triple88a View Post

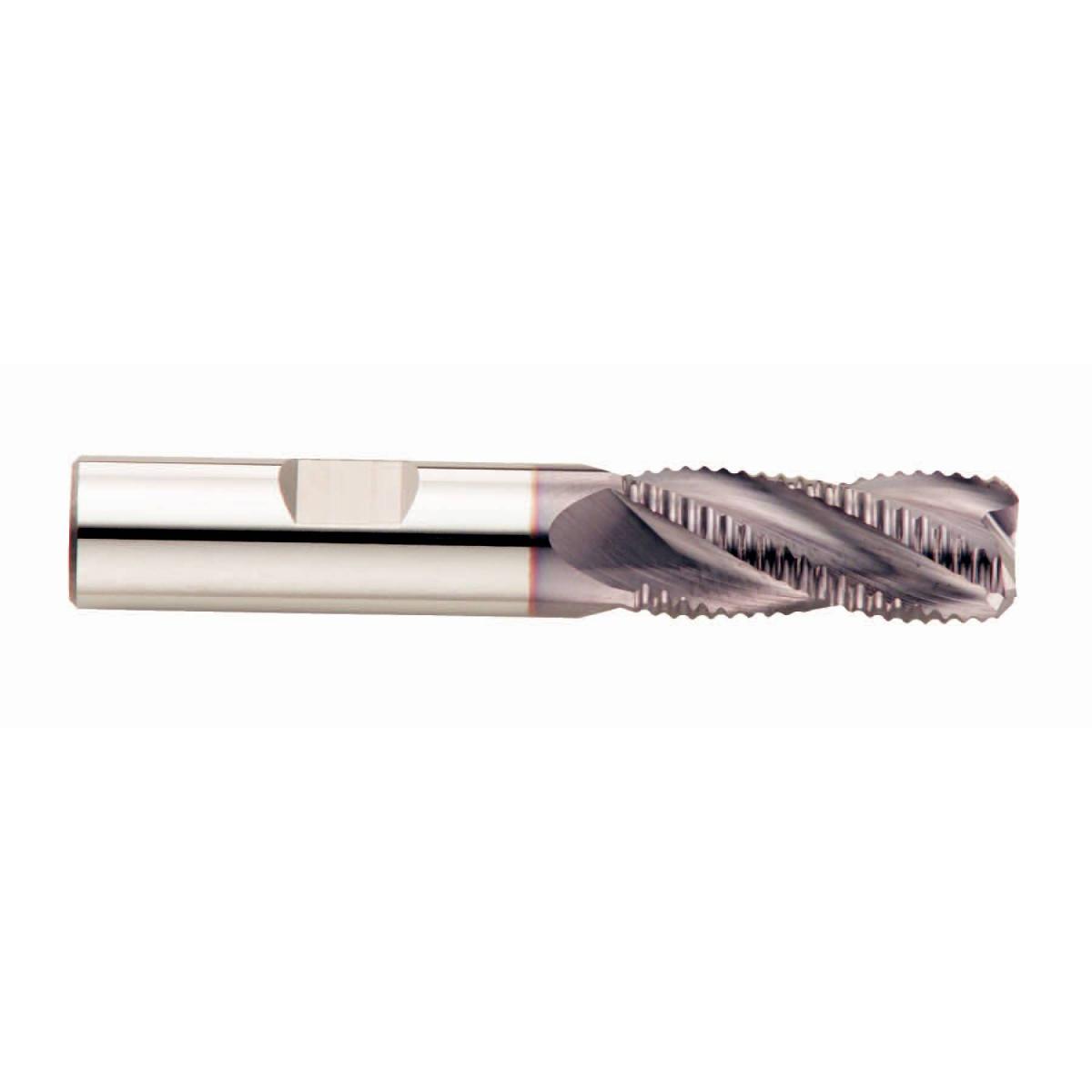

Use a 4 flute hog mill.
ftfy Granted, that's if he has access to that stuff.
Attached Thumbnails
? re: Milling the 01 VVT valve cover for COPs-vhm.jpg
curly is offline   Reply With Quote
Old 12-18-2011, 04:30 PM   #22
IHI
Junior Member

Join Date: Oct 2009
Location: The Netherlands
Posts: 200
Total Cats: 1
Default

Quote:
Originally Posted by emilio700 View Post
Source for those COPs?
VW/Audi 1.8 20v engine. (Bam,Aum, and many others). You can find cheap China stuff on Ebay starting at $25 or so. 06B-905-115

http://www.ebay.com/sch/i.html?_nkw=06b905115
IHI is offline   Reply With Quote
Old 10-18-2016, 03:17 PM   #23
Junior Member

Join Date: Jun 2009
Posts: 46
Total Cats: 0
Default

Quote:
Originally Posted by IHI View Post
I have posted this pic in other treats before, but wouldn't this be the solution for the VVT guys ?

Has anyone confirmed that this VAG Audi R8 Coil Over Plug will work with VVT Miata ?
etang789 is offline   Reply With Quote
Old 10-18-2016, 03:20 PM   #24
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,757
Total Cats: 217
Default

Why not LS coils

SADFab has a bracket that clears all valve covers and offers wires with them. It works.
psyber_0ptix is offline   Reply With Quote
Old 10-18-2016, 03:38 PM   #25
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,370
Total Cats: 814
Default

+1, LS coils are what you want if you need an ignition upgrade. The stock VVT coils with iridium plugs are solid to 20+psi, though.
Savington is offline   Reply With Quote
Old 10-18-2016, 03:52 PM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,151
Total Cats: 1,990
Default

on pump gas
18psi is offline   Reply With Quote
Old 10-18-2016, 07:58 PM   #27
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,323
Total Cats: 182
Default

The hottest ignition coil is still the S2000 coil, capable of sustained power of almost 300hp/cylinder, 60psi of boost, 11000+ rpm.
Reverant is offline   Reply With Quote
Old 10-19-2016, 12:03 PM   #28
Junior Member

Join Date: Jun 2009
Posts: 46
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
+1, LS coils are what you want if you need an ignition upgrade. The stock VVT coils with iridium plugs are solid to 20+psi, though.
yea I know the LS2 Truck Coils are powerful, but I want a Coil Over Plug solution and eliminate all spark plug wires. May be someone should start making plug boots that will adapt to LS2 directly like used in 1JZ or 2JZ or RB25 or RB26 . Please refer to this kit for using LS2 Coil as COP , http://www.mojoperf.com

Last edited by etang789; 10-19-2016 at 10:20 PM.
etang789 is offline   Reply With Quote
Old 10-19-2016, 02:31 PM   #29
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 918
Total Cats: 20
Default

There may be a few of us here that sell coils and/or brackets.

SADFab being the other option of course. Both very adequate options depending on your preferences. I should have plug wires available for our version within the next few weeks.
TheBandit is offline   Reply With Quote
Old 10-19-2016, 04:21 PM   #30
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,301
Total Cats: 399
Default

Quote:
Originally Posted by etang789 View Post
yea I know the LS2 Truck Coils are powerful, but I want a Coil Over Plug solution and eliminate all spark plug wires. May be someone should start making plug boots that will adapt to LS2 directly like used in 1JZ or 2JZ or RB25 or RB26 . Please refer to this kit for using LS2 Coil as COP , http://www.mojoperf.com
Dead link, but I found what you were referring to in any case. The JZ plugs stick up a bit in the VC, so that setup is pretty easy to do and the boots already exist.



The plugs in the Miata head are recessed significantly in comparison. So the boot and terminal would be custom made, and would require R&D as well as substantial buy in($$$) for the mold, etc. The VC valley also doesn't lend itself to having the 585 coils stand up on end and to make a clean bracket.

SADFab products thread
hi_im_sean is online now   Reply With Quote
Old 10-19-2016, 10:25 PM   #31
Junior Member

Join Date: Jun 2009
Posts: 46
Total Cats: 0
Default

Quote:
Originally Posted by hi_im_sean View Post
Dead link, but I found what you were referring to in any case. The JZ plugs stick up a bit in the VC, so that setup is pretty easy to do and the boots already exist.



The plugs in the Miata head are recessed significantly in comparison. So the boot and terminal would be custom made, and would require R&D as well as substantial buy in($$$) for the mold, etc. The VC valley also doesn't lend itself to having the 585 coils stand up on end and to make a clean bracket.

SADFab products thread
link fixed.

yea the trick is to find the correct boot or find one that's very similar and modify it. If not the VAG R8 Coil seems pretty good alternative for now.
etang789 is offline   Reply With Quote
Old 10-21-2016, 05:53 PM   #32
Junior Member

Join Date: Aug 2014
Posts: 116
Total Cats: -135
Default

I recently have my wires made by Firecore50, Rick can make custom wires LS3/LS7 that will plug in your Mazda cylinder head, he already did mine.
Welcome to FireCore50.com!
https://www.customwiresets.com/home.php
StealthNB is offline   Reply With Quote
