Old 07-13-2015, 10:33 PM   #61
Junior Member

Join Date: Jan 2015
Posts: 56
Total Cats: 4
Default

Deleted - back on topic.

Last edited by Voltwings; 07-13-2015 at 11:35 PM.
Voltwings is offline   Reply With Quote
Old 07-13-2015, 10:45 PM   #62
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

Quote:
Originally Posted by Ben View Post
<p>We have 2 nearly identical builds at the shop:</p><p>(1) My car.&nbsp; 2001 chassis, BP6D VVT motor, VTCS manifold</p><p>(2) Kevin's car.&nbsp; 1990 chassis, BP6D VVT motor, VICS manifold</p><p>Both cars have RB headers, 2.5&quot; exhaust, and MS3-Pro ECUs.&nbsp; Both cars have good compression and leakdown.&nbsp; My car has a virgin VTCS manifold.&nbsp; Kevin's car has a ported VICS manifold with the flaps removed, and has light port matching on the head (CSP rules).&nbsp; Kevin's car makes 12whp peak more than mine on pump 93.&nbsp; The shape of the curve is the same between my car and his until about 6500, where my power falls off and his keeps climibing.&nbsp; I've played with exhaust and traded intake tubes to no meaningful change.&nbsp; The seat of pants difference is large, and frankly this has bothered me to no end, and of course he reminds me of it frequently.<br /><br />Not sure if I have a spare VICS manifold (I might), but I do have a Euro flat top.&nbsp; I'll try to get some back to back with a before/after manifold swap.&nbsp; I need 8 or 10 extra hp like I need air and water.&nbsp;</p><p>&nbsp;</p>
Useful info and it seems to echo everyone elses results. No ones dynos have been controlled A/B but an informal scatter plot of all the combined dynos seems to support the ~8whp nose dive past 6400 with the butterflies present vs a VICS. I'm a little frustrated that it took me this long to get a clear picture and bring the info to the fore so so more people could benefit.
emilio700 is offline   Reply With Quote
Old 07-13-2015, 11:00 PM   #63
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,393
Total Cats: 822
Default

Every dyno chart I've ever seen shows that gutting a VICS manifold essentially ruins it. I bet removing your VCTS butterflies nets you power everywhere over your friend's setup, Ben.
Savington is offline   Reply With Quote
Old 07-15-2015, 06:30 PM   #64
Junior Member

Join Date: Dec 2014
Posts: 59
Total Cats: 0
Default

Excuse the simple question please, but doesn't a 'Square Top' manifold still have VTCS?
Neddy is offline   Reply With Quote
Old 07-15-2015, 06:34 PM   #65
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,393
Total Cats: 822
Default

Quote:
Originally Posted by Neddy View Post
Excuse the simple question please, but doesn't a 'Square Top' manifold still have VTCS?
It does not
Savington is offline   Reply With Quote
Old 07-15-2015, 06:50 PM   #66
Junior Member

Join Date: Dec 2014
Posts: 59
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
It does not
Thanks for clearing that up for me.
Neddy is offline   Reply With Quote
Old 07-15-2015, 08:14 PM   #67
Ben
Supporting Vendor

iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,662
Total Cats: 72
Default

<p>
Quote:
Originally Posted by emilio700 View Post
Useful info and it seems to echo everyone elses results. No ones dynos have been controlled A/B but an informal scatter plot of all the combined dynos seems to support the ~8whp nose dive past 6400 with the butterflies present vs a VICS. I'm a little frustrated that it took me this long to get a clear picture and bring the info to the fore so so more people could benefit.
I can swap the manifold with the car on the dyno.&nbsp; I'll try to get some dyno time next week, if I can work it around real shop work.</p>
Ben is offline   Reply With Quote
Old 07-15-2015, 09:36 PM   #68
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,163
Total Cats: 1,401
Default

I still want to see a tuned dual runner length ported VICS manifold. no one has done that yet.
Braineack is offline   Reply With Quote
Old 07-16-2015, 10:53 AM   #69
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,769
Total Cats: 324
Default

Quote:
Originally Posted by Ben View Post
<p>I can swap the manifold with the car on the dyno.&nbsp; I'll try to get some dyno time next week, if I can work it around real shop work.</p>
You plan to re-tune the fuel briefly before doing the comparison run?
y8s is offline   Reply With Quote
Old 07-16-2015, 11:00 AM   #70
Junior Member

Join Date: Mar 2010
Location: Melissa, TX
Posts: 172
Total Cats: 20
Default

I would think just looking at how the fueling wants to be adjusted would be informative. Injecting the same amount of fuel before and after, and then looking at the feedback from the wide band can't be a bad way of evaluating airflow changes. If you are able to flow more air you should be able to make more power.
Ziggo is offline   Reply With Quote
Old 07-16-2015, 11:57 AM   #71
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,634
Total Cats: 463
Default

Too much run to run inconsistencies. So many things change fuel, from voltage to temperature. 5hp is only a 3.8% difference at 130hp. It'd be hard to notice that
curly is online now   Reply With Quote
Old 07-16-2015, 01:14 PM   #72
Senior Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,255
Total Cats: 105
Default

Quote:
Originally Posted by 18psi View Post
...



agreed. I've owned 3 vtcs cars over the past few years, both bp4w and bp6d.

IIRC the "feel" of transition actually varies depending on the solenoid (newer/older solenoids actuate with different speed, this is even more evident with the MSM "bog" solenoid in addition to the vtcs solenoid)

*edit: Emilio just mentioned a similar thing in regards to the ecu calibration end of it too. I'd tend to agree.

My 04 MSM did this vtcs transition WAY smoother than my 01 vvt
Just to add another thought regarding the varying levels of severity with which people perceive the "annoyingness" of the cold running operation of the early NB2's; there was also an ECU recall which, while improving cold emissions, apparently added a much more pronounced transition around the 3K rpm mark.

My '02 has the post-recall ECU and it is absolutely noticeable, and somewhat annoying, but it does go away within a mile or so as it warms up. Further, on the other forum, I've seen numerous posting from '01 and '02 owners who've never had their ECU recall done and they do not report the same level of light switch transition during cold operation. SO much so, in fact, that the remaining non-recalled ECU's are coveted by some for that very reason. It seems plausible to me that recalled vs. non-recalled ECU's could account for a lot of discrepancy as to the drive-ability accounts we're seeing.

.02
good2go is online now   Reply With Quote
Old 08-04-2015, 08:04 PM   #73
Ben
Supporting Vendor

iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,662
Total Cats: 72
Default

<p>
Quote:
Originally Posted by Ben View Post
I can swap the manifold with the car on the dyno.&nbsp; I'll try to get some dyno time next week, if I can work it around real shop work.
We don't have anything business related going on the dyno until next week, so I went ahead and put my car on it.&nbsp; I'm going to swap manifolds and take pulls at lunch time every day for the rest of the week, so should have 1 comparison per day.&nbsp; Tomorrow I will compare stock VTCS vs butterfly removed VTCS.&nbsp; VICS possibly Thursday, if we can find a spare VICS manifold (we have 2 or 3, but can't put our hands on them).&nbsp; Square top Friday.</p><p>
Quote:
Originally Posted by y8s View Post
You plan to re-tune the fuel briefly before doing the comparison run?
If/as needed.</p>
Ben is offline   Reply With Quote
Old 08-05-2015, 12:52 AM   #74
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

Quote:
Originally Posted by Ben View Post
<p>We don't have anything business related going on the dyno until next week, so I went ahead and put my car on it.&nbsp; I'm going to swap manifolds and take pulls at lunch time every day for the rest of the week, so should have 1 comparison per day.&nbsp; Tomorrow I will compare stock VTCS vs butterfly removed VTCS.&nbsp; VICS possibly Thursday, if we can find a spare VICS manifold (we have 2 or 3, but can't put our hands on them).&nbsp; Square top Friday.</p><p>If/as needed.</p>
Cool. I know it's extra work but can you hook up the MAP sensor on the dyno? Display the SAE correction factors too.
emilio700 is offline   Reply With Quote
Old 08-08-2015, 06:11 PM   #75
Mr Broke Pants
iTrader: (4)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,062
Total Cats: 61
Default

Quote:
Originally Posted by codrus View Post
I've read that the stock NB2 ECU has some trouble idling properly on cold start with the butterflies missing.

--Ian
Is this true? Even with the sensors still intact?
thumpetto007 is offline   Reply With Quote
Old 08-08-2015, 07:54 PM   #76
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

it might be a bit rough for the 1st minute or so, but it will still idle just fine
18psi is offline   Reply With Quote
Old 08-08-2015, 11:14 PM   #77
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

Quote:
Originally Posted by 18psi View Post
it might be a bit rough for the 1st minute or so, but it will still idle just fine
Yah. Stock NB2 ECU on the 01-03 run 14.7:1 closed loop and 0 advance even when stone cold. Runs like poo until CLT hits 100 or so
emilio700 is offline   Reply With Quote
Old 08-09-2015, 02:16 AM   #78
Mr Broke Pants
iTrader: (4)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,062
Total Cats: 61
Default

Ok, that just scared me a little, I already ordered the flat top kit to eliminate the terrible driveability when cold, and as a future power mod...
thumpetto007 is offline   Reply With Quote
Old 08-09-2015, 10:24 AM   #79
Ben
Supporting Vendor

iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,662
Total Cats: 72
Default

<p>
Quote:
Originally Posted by emilio700 View Post
Cool. I know it's extra work but can you hook up the MAP sensor on the dyno? Display the SAE correction factors too.
Yup of course.&nbsp; Ended up having 2 guys out last week, so I didn't get very far, but I do have the butterflies removed and ready to put the manifold back on.</p>
Ben is offline   Reply With Quote
Old 08-10-2015, 10:12 AM   #80
Newb

Join Date: Jul 2014
Location: Birmingham, AL
Posts: 15
Total Cats: 6
Default VTCS With Butterflies Removed

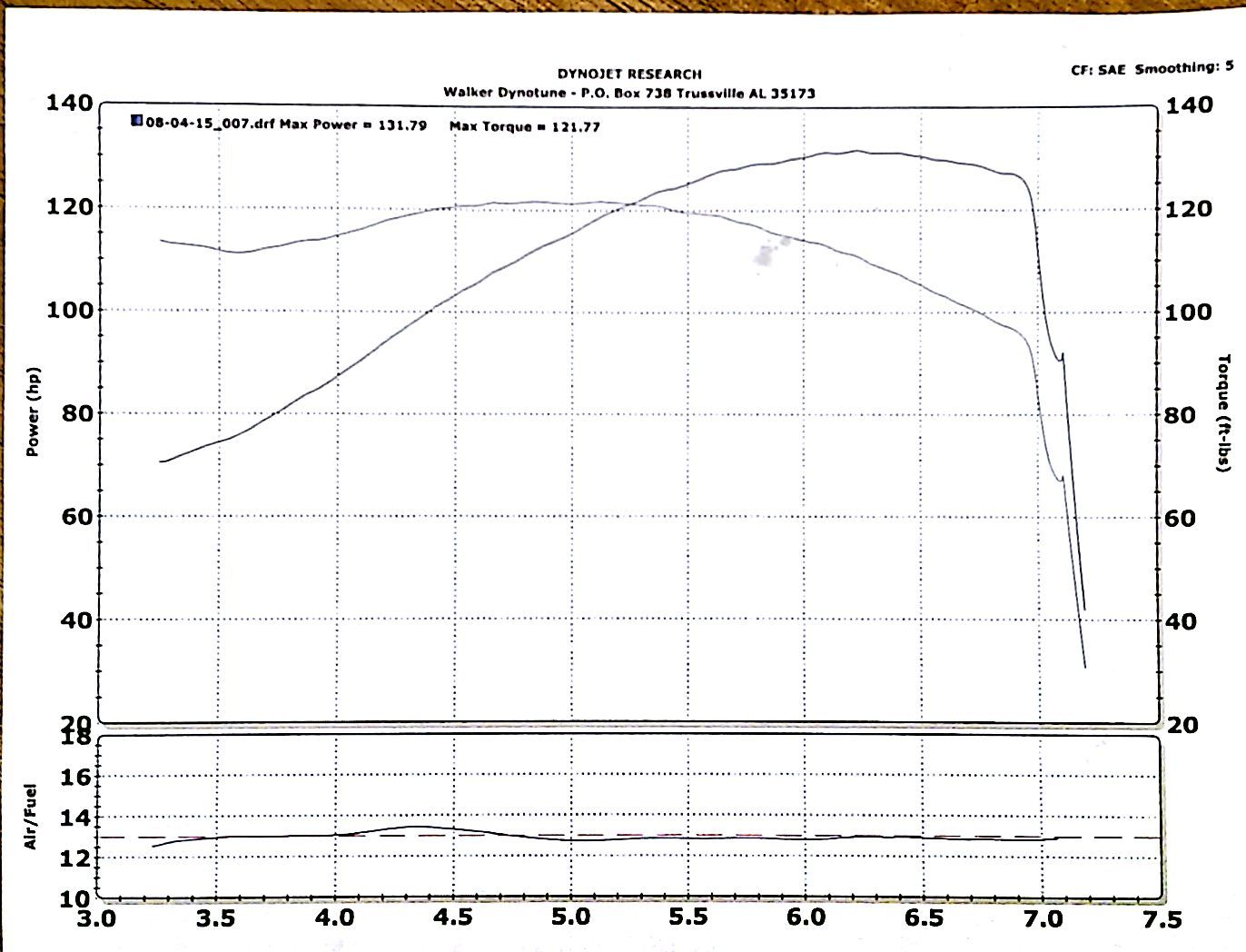

Here's a little more scattered data for ya.

This is from a rebuilt 2001 motor (nothing special, no porting just a slight shave) with the butterflies removed and the end holes tapped and plugged. MS1, VVTuner, typical diy intake with no MAF, cheap OBX header and exhaust with no cat. I was pretty happy with the numbers but keeping an eye out for a flat top.
Attached Thumbnails
VTCS manifold unpleasantness-80-new_doc_1_38c9c5ffd55f1d37adda8db9e1f4361bab47d686.jpg
DelanieC is offline   Reply With Quote
