Old 06-17-2016, 07:25 PM   #361
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,639
Total Cats: 292
Default

Quote:
Originally Posted by portabull View Post
before doing your exhaust, check out: Project Binky - Episode 12 - Austin Mini GT-Four - Turbocharged 4WD Mini - YouTube
at 13:00 he starts fabricating his exhaust. also builds a most clever jig for a cutoff saw. i love project binky. the best fabricator i've ever seen.
That rack/rotisserie is full of awesome.

Thanks for showing me this, I'm going to copy that saw jig.
ThePass is offline   Reply With Quote
Old 06-21-2016, 09:21 AM   #362
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

3 month follow up on my eastwood 135. This thing is way under powered. The settings chart with c25 tops out at 12 gauge and it won't penetrate 1/8 plate properly in a single pass. They advertise it as "up to 3/16 with solid core wire". I'm not sure how they came to that conclusion. To do 3/16 I think you would be limited to a few types of joints and you would need big bevels and a torch preheat. Im going to get rid of it and pick up a decent small lincoln or horbart/miller.
asmasm is offline   Reply With Quote
Old 06-21-2016, 12:51 PM   #363
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,000
Total Cats: 167
Default

I think there's some thing wrong with the welder if all the settings are correct. I've welded 1/8" w/o issue on some cheap 110v MIGs- CH, HF and Clarke. You need to take advantage of Eastwood customer service and explain to them what's up. They've been great to me.
m2cupcar is offline   Reply With Quote
Old 06-21-2016, 01:15 PM   #364
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 733
Total Cats: 65
Default

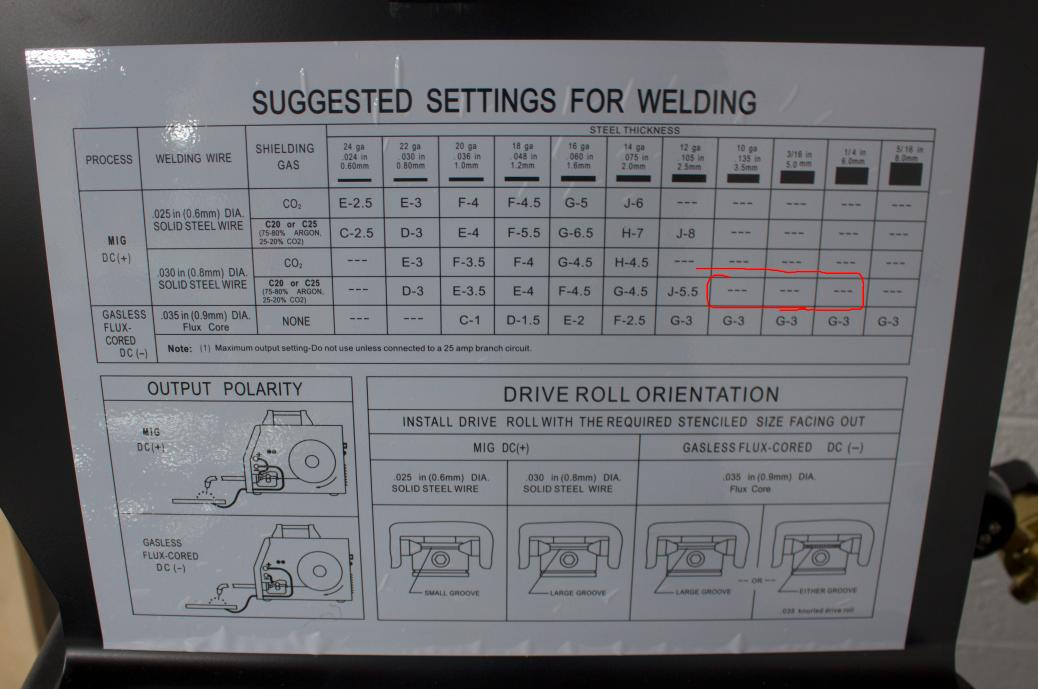

FWIW this is the settings chart:
asmasm is offline   Reply With Quote
Old 06-21-2016, 03:00 PM   #365
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,000
Total Cats: 167
Default

I guess there's no grounds for a phone call then. What a pity.
m2cupcar is offline   Reply With Quote
Old 06-27-2016, 04:18 PM   #366
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 500
Total Cats: 25
Default

Just showed up. I'm pumped.
williams805 is offline   Reply With Quote
Old 06-27-2016, 05:23 PM   #367
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,639
Total Cats: 292
Default

Nice! You're going to be very happy with it.
ThePass is offline   Reply With Quote
Old 06-27-2016, 06:26 PM   #368
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 500
Total Cats: 25
Default

Thanks Ryan. I think you buying one pushed me over the edge.
williams805 is offline   Reply With Quote
Old 07-14-2016, 11:34 AM   #369
Junior Member

Join Date: Jul 2015
Location: grayson, ga
Posts: 109
Total Cats: 7
Default

if you want a cabinet for your welder, now is the time. this one from northern tool ($169) has a drawer on the bottom for your helmet. the harbor freight one has a cubbyhole on the bottom and is $154.99 this week. i think the drawer is worth the $15, and they are ball-bearing drawer slides.
http://www.northerntool.com/shop/tools/product_200395734_200395734

edit:

i don't know why, but the link above says the item is no longer available. i bought one yesterday. perhaps you can still find one on the shelf in your local store. good luck.
edit:
ah, i see what they've done there. they've discontinued 164782 and replaced it with 48348 which is now branded as "klutch" and btw, they raised the non-sale price to $229 (48348) from $219 (164782). best plan, search your local store shelves.

Last edited by portabull; 07-14-2016 at 12:03 PM.
portabull is offline   Reply With Quote
Old 07-14-2016, 01:15 PM   #370
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 500
Total Cats: 25
Default

Looks like a nice enough cart however I built my own. I have limited shop space so my cart fits into a small space between my tool box and shelving. Also, has a small table built into the top of it and more places to hang torch, ground, power lead, ect. Plus it's always a good first welder project.
williams805 is offline   Reply With Quote
Old 07-14-2016, 06:50 PM   #371
Junior Member

Join Date: Jul 2015
Location: grayson, ga
Posts: 109
Total Cats: 7
Default

Quote:
Originally Posted by williams805 View Post
I built my own
show it to us....
portabull is offline   Reply With Quote
Old 07-16-2016, 01:12 PM   #372
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,853
Total Cats: 1,086
Default

Tig welding gloves: my harbor freight work gloves keep catching on fire when my filler gets too short. Any suggestions?
aidandj is offline   Reply With Quote
Old 07-16-2016, 01:37 PM   #373
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 708
Total Cats: 61
Default

I use McMaster deerskin TIG gloves. They're annoying for the first 2 uses because the material sheds a little bit, but after that they are wonderful. Super soft, thin, and still protective. They are good at keeping radiant heat way, but not conductive at all, so don't except to be able to pick up freshly welded joints and stuff. McMaster-Carr
acedeuce802 is online now   Reply With Quote
Old 07-17-2016, 04:49 PM   #374
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,639
Total Cats: 292
Default

Steiner IronFlex TIG gloves work great, lots more feel through them than regular MIG gloves but still insulate pretty well. Also highly recommend a Tig Finger - particularly for aluminum but once you have it you'll use it on everything.
ThePass is offline   Reply With Quote
Old 07-17-2016, 08:11 PM   #375
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,853
Total Cats: 1,086
Default

Quote:
Originally Posted by acedeuce802 View Post
I use McMaster deerskin TIG gloves. They're annoying for the first 2 uses because the material sheds a little bit, but after that they are wonderful. Super soft, thin, and still protective. They are good at keeping radiant heat way, but not conductive at all, so don't except to be able to pick up freshly welded joints and stuff. McMaster-Carr
Similar to these? https://www.amazon.com/Leather-Split.../dp/B002D8Y8E6

Quote:
Originally Posted by ThePass View Post
Also highly recommend a Tig Finger - particularly for aluminum but once you have it you'll use it on everything.
Like this? https://www.amazon.com/Welding-Tips-.../dp/B00GYHT8PG
aidandj is offline   Reply With Quote
Old 07-17-2016, 08:24 PM   #376
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,987
Total Cats: 233
Default

Exactly that.
Erat is offline   Reply With Quote
Old 07-17-2016, 08:25 PM   #377
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,853
Total Cats: 1,086
Default

Kewl. Thanks guys. I'll report back when I get to try them out next. I burnt too many holes in my harbor freight work gloves. And yesterday my filler rod melted a chunk of glove and it stuck to my hand with a nice burn.
aidandj is offline   Reply With Quote
Old 07-17-2016, 09:22 PM   #378
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 708
Total Cats: 61
Default

Yep, I think those are the exact ones. Pretty sure the McMaster are Tillman.
acedeuce802 is online now   Reply With Quote
Old 07-18-2016, 07:20 PM   #379
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,810
Total Cats: 92
Default

yup tig finger is awesome.

I use the deerskin for anything delicate and the goat skins for anything less so or just hot.
Leafy is offline   Reply With Quote
Old 09-15-2016, 09:24 PM   #380
afm
Junior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 483
Total Cats: 45
Default

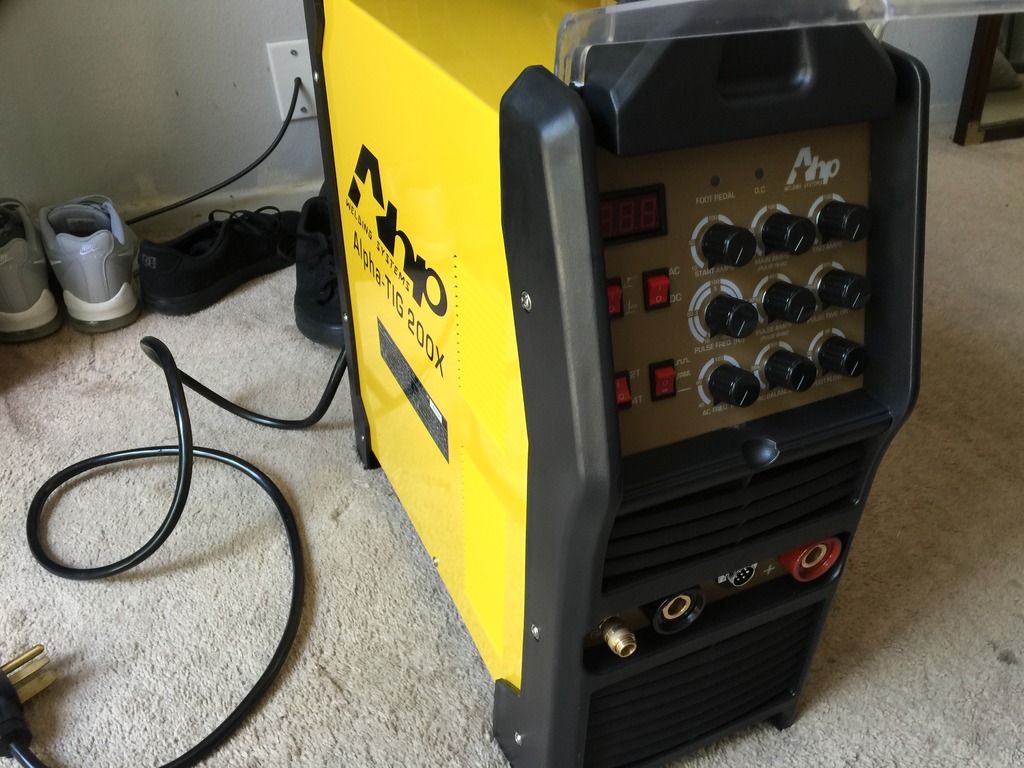

Just upgraded to an Alpha TIG, largely based off this thread. Ordered on Amazon for $690, and it showed up the next day.

I'm really psyched to start using it for its inaugural master cylinder brace project.
afm is offline   Reply With Quote
