Old 03-13-2013, 01:18 AM   #321
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,813
Total Cats: 138
Default

Quote:
Originally Posted by shuiend View Post
So looking online it seems that the Grizzy 4x6 bandsaw looks exactly the same as the HF 4x6 band saw. Any reason why in the future I should decide to spend an extra $150 to go with the Grizzly one over the HF one?
Sorry for the very late response. Probably made in the exact same factory so I wouldn't sweat the Grizzly vs HF issue. Go with the HF. At the time there was no local HF store and I was in Springfield MO a lot for work and the Grizzly showroom/warehouse is there and the price was about the same. I've had mine for 8-10 years.
Stein is offline   Reply With Quote
Old 03-31-2013, 07:49 PM   #322
Junior Member
iTrader: (4)

Join Date: Jul 2009
Location: Denver, CO
Posts: 274
Total Cats: 10
Default

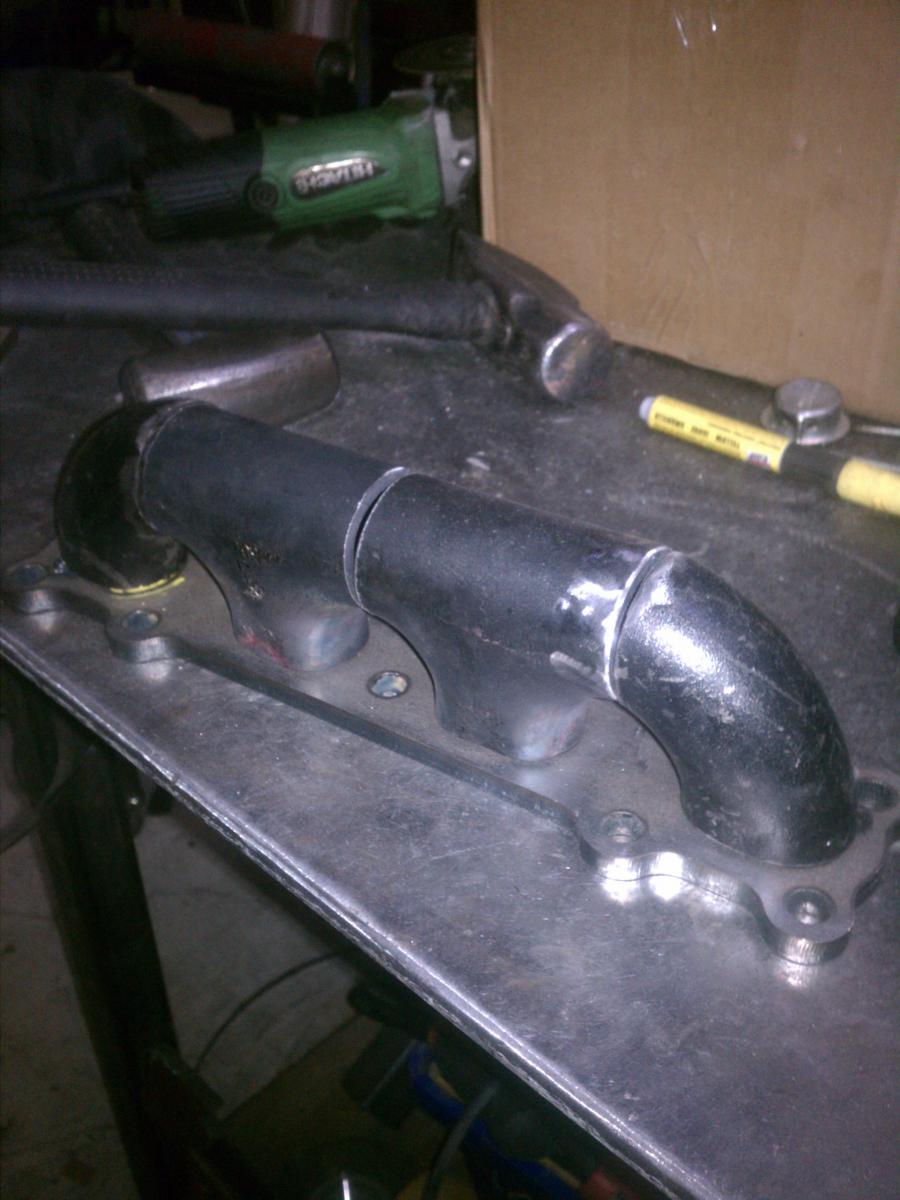

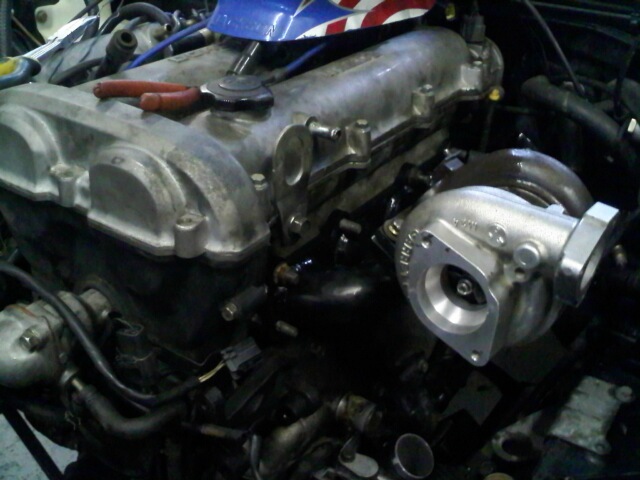

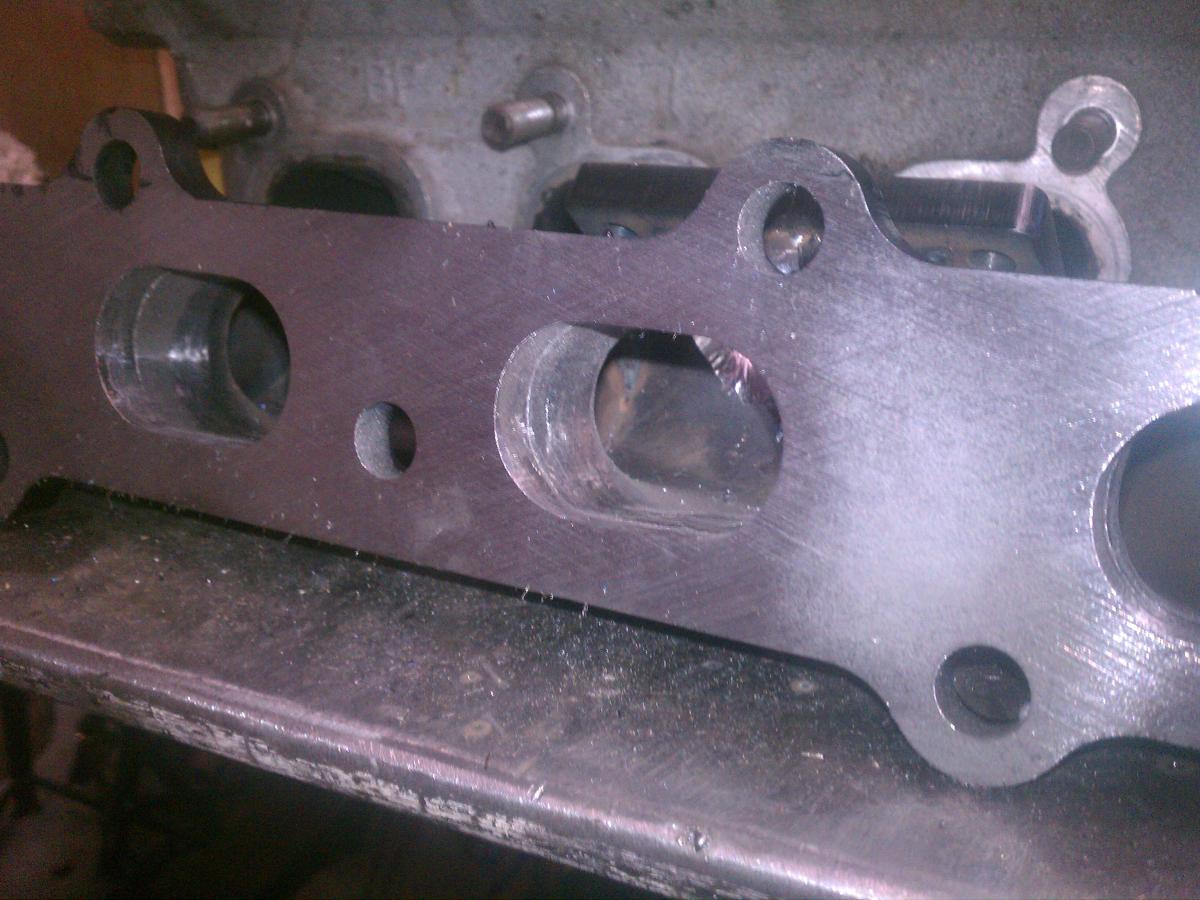

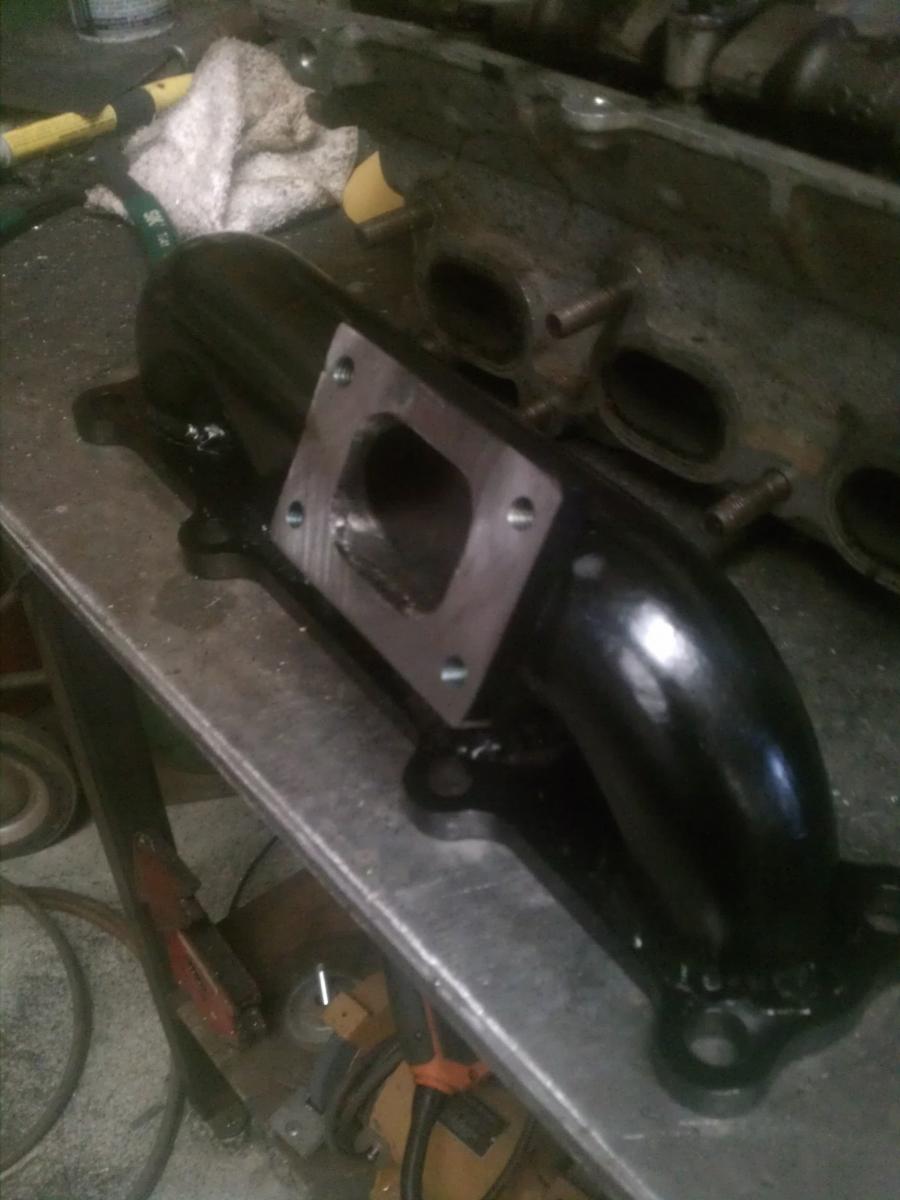

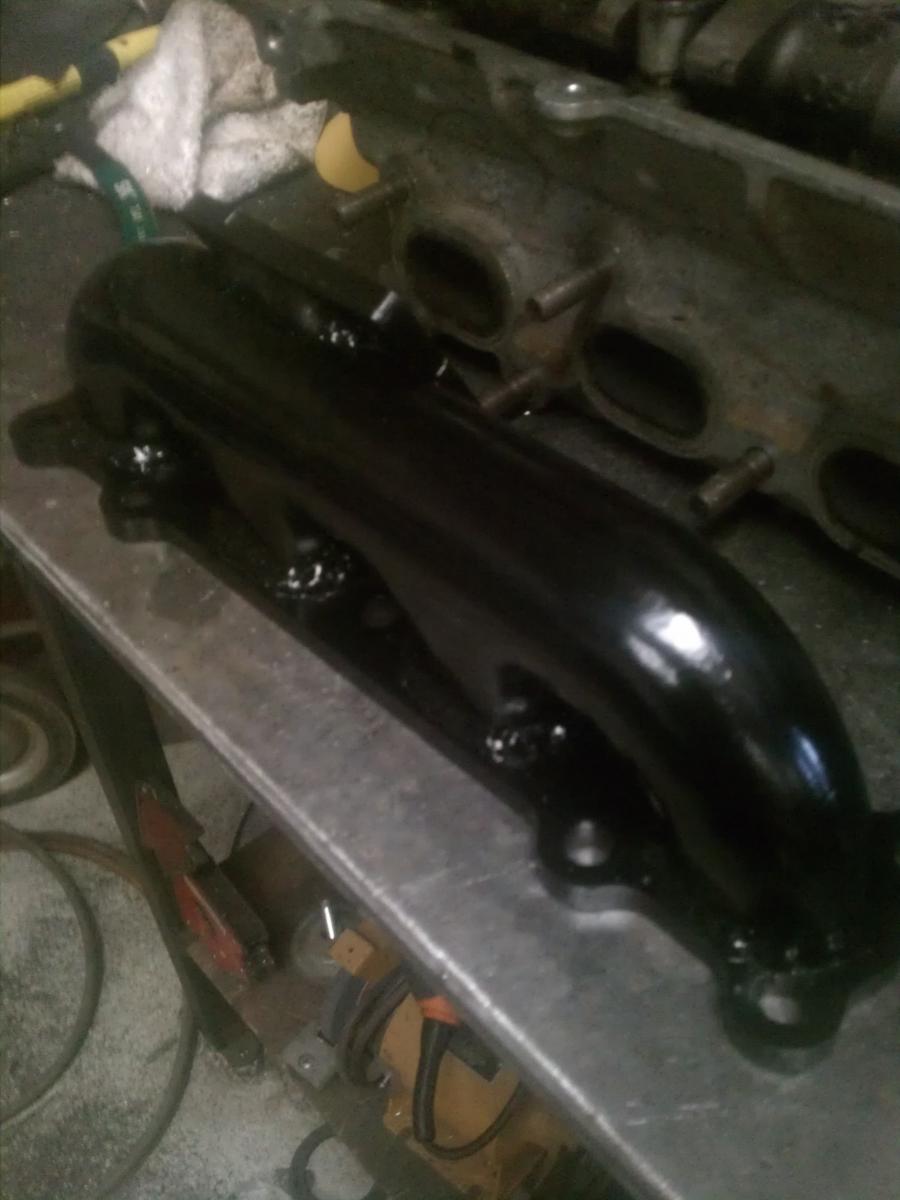

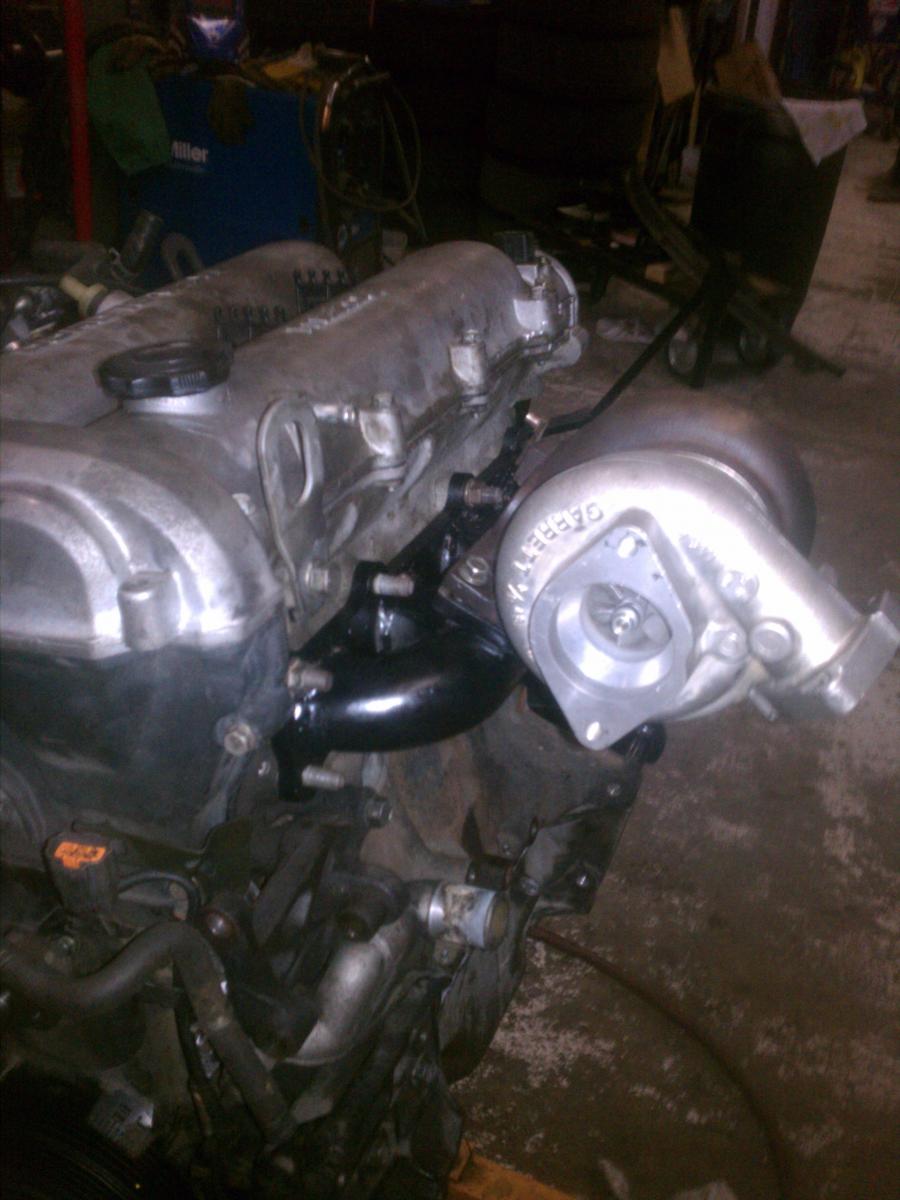

Look good?

Not sure where I want the outlet to go, I'm thinking straight up and over the front so I can keep my PS and the intake behind the headlight.
Attached Thumbnails
DIY manifold-imag0603.jpg   DIY manifold-imag0605.jpg   DIY manifold-imag0614.jpg   DIY manifold-imag0611.jpg   DIY manifold-imag0610.jpg

DIY manifold-imag0617.jpg   DIY manifold-imagejpeg_2_4.jpg
vitamin j is offline   Reply With Quote
Old 05-02-2013, 05:28 AM   #323
Newb

Join Date: Sep 2012
Posts: 17
Total Cats: 0
Default

Quote:
Originally Posted by HHammerly View Post
I am getting a 1.8l flange cut 1/2" 304 stainless for my EFR build ( EDIT THE GROUP BUY OUT, I AM NOT A SUPPORTING MEMBER )
Glad to give out free of charge the DWG and DXF file for it.

PM me if interested on cad file or flange
Interested in getting a copy of the file please, would have sent PM but have not yet reached the mandatory 15 posts. But getting there.
Rasc is offline   Reply With Quote
Old 05-02-2013, 08:39 AM   #324
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

Quote:
Originally Posted by AkaZero View Post
I need a tig welder.....
Posted that awhile back In this thread.
Well I bought a syncrowave 250. Couldn't bring myself to mig a manifold after seeing all the pretty ones. And now I need to do some wiring and get an argon bottle.
AkaZero is offline   Reply With Quote
Old 05-02-2013, 09:38 AM   #325
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,674
Total Cats: 93
Default

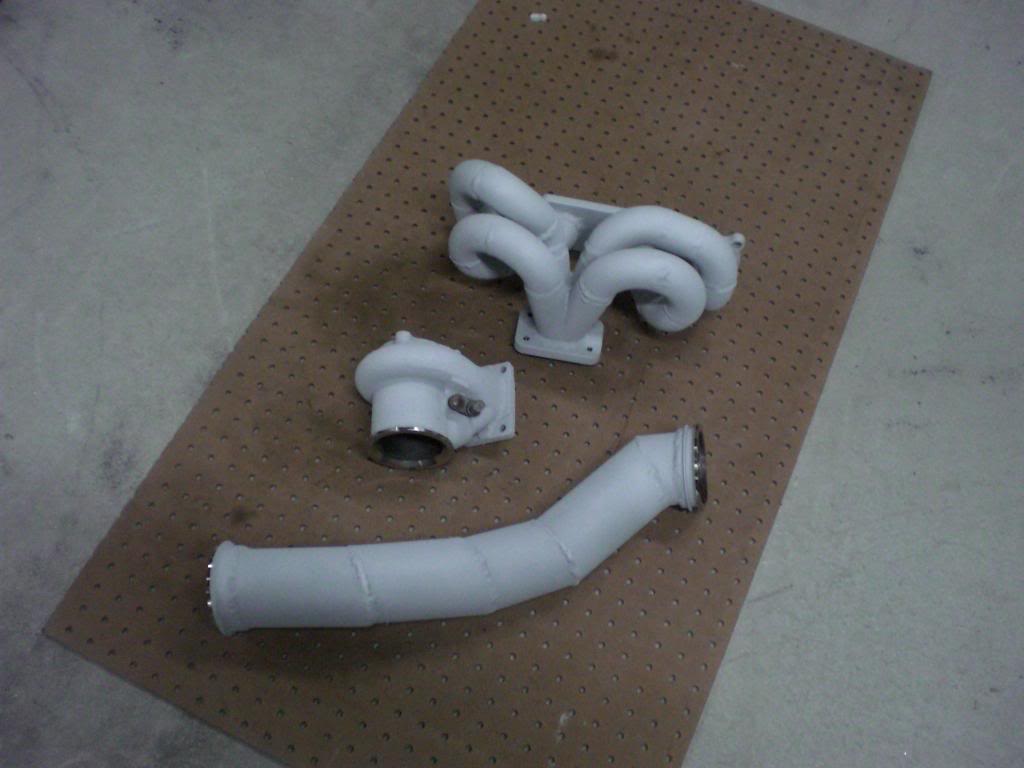

Parts came back from swain yesterday.

Leafy is offline   Reply With Quote
Old 05-02-2013, 09:49 AM   #326
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,535
Total Cats: 18
Default

downpipe..?
nitrodann is offline   Reply With Quote
Old 05-02-2013, 09:53 AM   #327
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,674
Total Cats: 93
Default

Quote:
Originally Posted by nitrodann View Post
downpipe..?
Yeah, I'm not too happy with it. But that only has like 40 bucks worth of swain coating on it, so if I really get pissed off at it I wont be broke up at re-doing it... And not letting my dad cut it this time.
Leafy is offline   Reply With Quote
Old 05-02-2013, 12:33 PM   #328
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default

Wow, so they coated over the clamping surfaces for the bolt heads & washers? I'm wondering how that is going to hold up, especially on the turbine housing to CHRA bolts.
EO2K is offline   Reply With Quote
Old 05-02-2013, 12:34 PM   #329
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,674
Total Cats: 93
Default

Quote:
Originally Posted by EO2K View Post
Wow, so they coated over the clamping surfaces for the bolt heads & washers? I'm wondering how that is going to hold up, especially on the turbine housing to CHRA bolts.
Not sure. Swain pretty much told me, really make sure you're done with this, if you need to weld something to it or drill a hole in it you're gonna spend a couple hours with the grinder trying to get through the coating.
Leafy is offline   Reply With Quote
Old 05-02-2013, 12:39 PM   #330
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default

Interesting.

I'd be worried about torquing a bolt down and having the coating chip out from under the head. I called them literally yesterday to ask about this and they couldn't give me a decent response. I probably got a sales guy.

How did they do masking off through holes and threaded holes? I'm guessing no coating on the sealing surfaces or inside the manifold & housing?
EO2K is offline   Reply With Quote
Old 05-02-2013, 12:46 PM   #331
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,674
Total Cats: 93
Default

Yeah no coating on the sealing surfaces or inside. They cant really coat the inside, for proper adhesion they need their media blaster to be able to hit the surface almost perpendicular. I'm not too worried about it chipping, supposedly I can hit this stuff with a BFH and not chip it.
Leafy is offline   Reply With Quote
Old 05-02-2013, 02:55 PM   #332
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,913
Total Cats: 499
Default

The manifold is sick though.
triple88a is offline   Reply With Quote
Old 05-02-2013, 03:02 PM   #333
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,674
Total Cats: 93
Default

Thanks. Trying to cram the EFR in a low mount is not something I want to try again, at least not with a 4" long collector. Its not even the length that is the problem, its the diameter of the compressor housing and the location of the wastegate actuator. What does worry me is that my thermal simulations of this manifold show it either trying to tuck the turbo closer to the block or just twist it forward depending on how I setup the conditions. So I might end up with turbo hit block, but only if hot. It'll only be hitting the webbing where the AC bracket mounts, which I'm sure is safe to grind out.
Leafy is offline   Reply With Quote
Old 05-02-2013, 03:06 PM   #334
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,913
Total Cats: 499
Default

You can ask Fae for some help.

triple88a is offline   Reply With Quote
Old 05-02-2013, 03:11 PM   #335
I'm Miserable!
iTrader: (13)

Join Date: Oct 2012
Posts: 255
Total Cats: 0
Default

Good choice in color. I to am a fan of light color.
DoapParts is offline   Reply With Quote
Old 05-02-2013, 03:13 PM   #336
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,674
Total Cats: 93
Default

Quote:
Originally Posted by triple88a View Post
You can ask Fae for some help.

Yeah, when I was trying to make a 3.5" down pipe fit I was like "How the **** did fae do this?!" and then I was like "This must what all the sawall jokes are from." lol. I think though I'm going to need to cut the little tab off my tranny thats right near the down pipe to prevent it from rattling against it. And I'm still trying to figure out how exactly I want to do the rest of the exhaust, I have my mufflers, resonators, and I know how they'll be laid out. I just need to figure out how I want to do the mounts.

Doap, white is the only color option. And I dont care what it looks like, racecar parts.
Leafy is offline   Reply With Quote
Old 05-07-2013, 04:05 AM   #337
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Has any one got a drawing for a 1.6 exhaust flange?
(I would like to compare dimensions before fail cutting my sketch.)

edit: searched more
Seeking 1.6 Exhaust Flange Cad file
Attached Thumbnails
DIY manifold-1.6-exhaust.jpg

Last edited by sturovo; 05-07-2013 at 04:51 AM. Reason: searched some more
sturovo is offline   Reply With Quote
Old 05-07-2013, 04:15 AM   #338
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,913
Total Cats: 499
Default

Hell of a drawing Dimensions all over the place.
triple88a is offline   Reply With Quote
Old 05-07-2013, 08:12 AM   #339
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

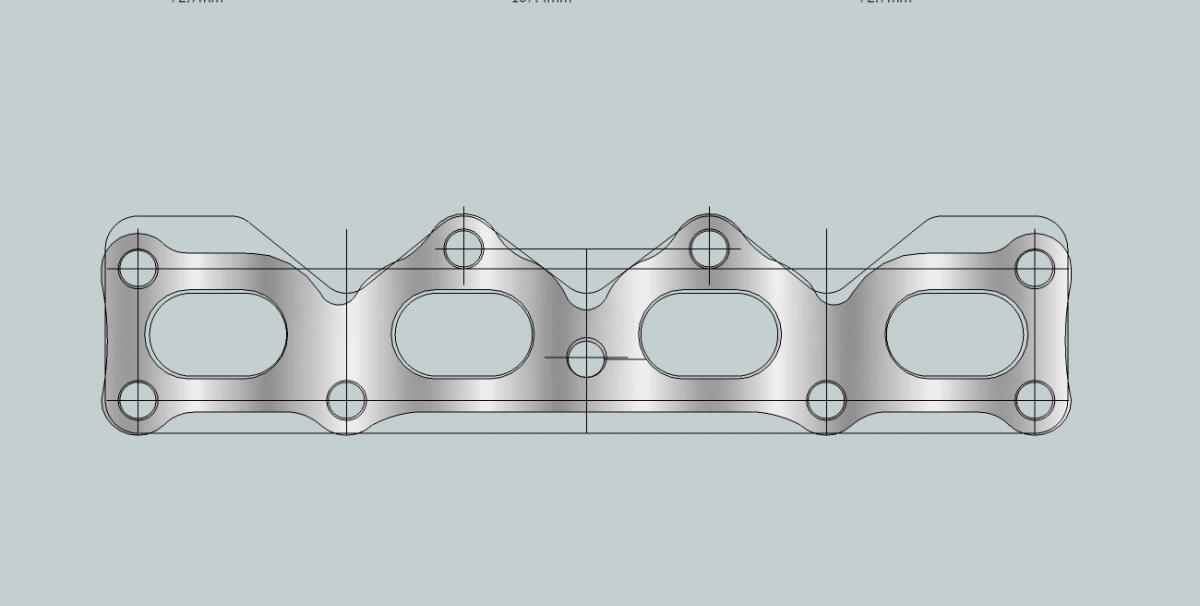

pretty close
Attached Thumbnails
DIY manifold-overlay.jpg
sturovo is offline   Reply With Quote
Old 05-08-2013, 12:22 PM   #340
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,635
Total Cats: 60
Default

Look at the head itself and see where you can leave material. It wont add cost to cutting the flange and having a little more meat on the head flange will help both with welding and even torque over the flange once your done and tighten it down. If its laser cut the extra girth in the flange will keep warping down too.

Cut the overlay flange you just posted.
shlammed is offline   Reply With Quote
