Default SuperMiata Crossflow radiator

We have finished prototype testing and started production. Long lead time for the first batch so they won't be here until the end of October, 2014.

The SuperMiata Crossflow is a single 31mm core. The core itself is a highly optimized 19.5 fpi fin pitch with tight 6.5mm fin height. Good for everything from a bone stock NA6 daily driver to a 2.0L F/I enduro car. This radiator is a step or two above the venerable Koyo 55m m in terms of cooling efficiency.

Without A/C or a vented hood but with a reroute, this will keep 250whp track car cool in the hottest weather. Above that power you will need a substantially vented hood. For cars with A/C or 300whp+, a vented hood is a must for track use. The radiator is optimized for use with just a single OEM fan for track use. Cars used primarily autocross and/or street driving with A/C should retain the A/C side fan and wire them in parallel.

Our radiator is the lightest we have weighed except for the OEM plastic/aluminum. 20psi stainless cap with silicone seals is included. The radiator ships with hardware to fit into the NA or NB. One size fits all.

Visit the Miata cooling system thread over in Race Prep to learn more about getting your cooling system track ready


Attached Thumbnails

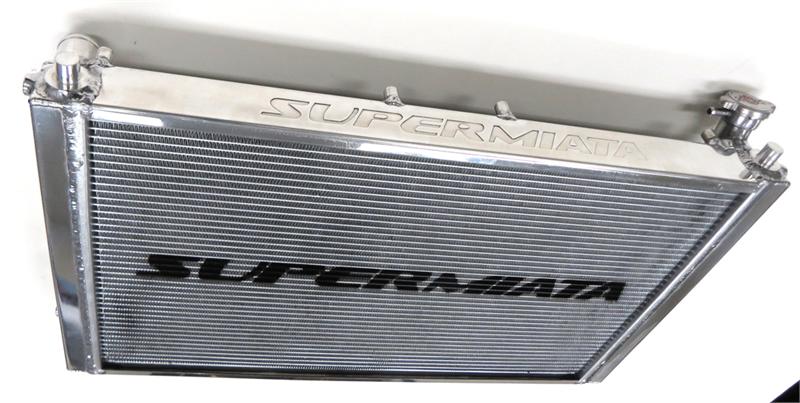

SuperMiata Crossflow radiator-supermiata_crossflow_radiator_p1.jpg

Last edited by emilio700; 08-21-2014 at 12:38 PM.
emilio700 is offline   Reply With Quote
Old 07-23-2014, 09:54 PM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,683
Total Cats: 98
Default

Very excite. May be perfect for the Exocet.

FYI, your hyperlink goes to the wrong page. I think you meant this one:
SuperMiata Crossflow aluminum radiator Miata 90-05

Ben is offline   Reply With Quote
Old 07-23-2014, 10:15 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

very nice.
I love that its pnp. I'm guessing those without re-route would need a longer/different hose?
18psi is offline   Reply With Quote
Old 07-23-2014, 11:19 PM   #4
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,756
Total Cats: 922
Default

Quote:
Originally Posted by 18psi View Post
very nice.
I love that its pnp. I'm guessing those without re-route would need a longer/different hose?
Yup. By the time we ship, we will offer the correct upper hose for non-reroute cars.
emilio700 is offline   Reply With Quote
Old 07-24-2014, 09:54 PM   #5
Newb

Join Date: Mar 2012
Posts: 38
Total Cats: 0
Default

Thanks Emilio for your support of our aging cars !
AlwaysOnKill is offline   Reply With Quote
Old 07-24-2014, 10:08 PM   #6
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 500
Total Cats: 25
Default

Good cooling for decent price! Nice man. Might have to swoop on one of these.
williams805 is offline   Reply With Quote
Old 07-24-2014, 10:13 PM   #7
Junior Member

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

Looks huge, agree'd on the vented hood as well.
ACiFiC is offline   Reply With Quote
Old 07-25-2014, 10:04 PM   #8
Newb

RyanY's Avatar

Join Date: Jul 2011
Location: North Phoenix, AZ
Posts: 28
Total Cats: 3
Default

How does this radiator compare to the existing crossflow radiator that you already have on your site? Crossflow aluminum radiator Miata 90-05

It seems to be less efficient yet costs $525 vs. only $349 for the Supermiata version. SuperMiata Crossflow aluminum radiator Miata 90-05
RyanY is offline   Reply With Quote
Old 07-26-2014, 02:37 AM   #9
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,756
Total Cats: 922
Default

Quote:
Originally Posted by RyanY View Post
How does this radiator compare to the existing crossflow radiator that you already have on your site? Crossflow aluminum radiator Miata 90-05

It seems to be less efficient yet costs $525 vs. only $349 for the Supermiata version. SuperMiata Crossflow aluminum radiator Miata 90-05
They're very similar actually. The SPM just costs a bunch less but isn't in stock yet. We have one remaining FM crossflow in stock.

I asked Andrew of TSE to build us a custom 30mm single pass back in 2009 I think. Had a custom radiator on my to do list forever. Been using FM's for a year or so until our crossflow was finally ready for production.
emilio700 is offline   Reply With Quote
Old 07-26-2014, 10:12 AM   #10
Junior Member

Join Date: May 2010
Location: Tampa, Florida
Posts: 124
Total Cats: -38
Default

I take it the stock cooling fan, the Mishimoto and the FM cooling fans will fit to this radiator with no issues?
my97miata is offline   Reply With Quote
Old 07-26-2014, 12:22 PM   #11
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,756
Total Cats: 922
Default

Quote:
Originally Posted by my97miata View Post
I take it the stock cooling fan, the Mishimoto and the FM cooling fans will fit to this radiator with no issues?
OEM yes. I have not tested the FM shroud. We never use shrouds. I specifically recommend against the use of the poorly designed Mishimoto fans. Seen them fall apart and get into the radiator. We use Mishimoto hoses but frankly, everything else of theirs we have tested has been junk.
emilio700 is offline   Reply With Quote
Old 08-13-2014, 08:28 PM   #12
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,756
Total Cats: 922
Default

Update:

We just discovered that our website was setup for the wrong carton dimensions and overcharged several customers on shipping. Oops. We just corrected the error and refunded each overcharged sale order. Sorry for the mix up! So yeah, they're now about half price shipping cost from what the website showed this morning.
emilio700 is offline   Reply With Quote
Old 08-14-2014, 04:09 AM   #13
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,647
Total Cats: 294
Default

Quote:
Originally Posted by emilio700 View Post
They're very similar actually. The SPM just costs a bunch less but isn't in stock yet. We have one remaining FM crossflow in stock.

I asked Andrew of TSE to build us a custom 30mm single pass back in 2009 I think. Had a custom radiator on my to do list forever. Been using FM's for a year or so until our crossflow was finally ready for production.
Ah, so the $525 one is the FM and the $349 is the new SPM unit? I had been confused about that, at a glance the two pages/images looked similar, I had seen the SPM out of stock page a couple months ago and then recently saw the $525 one and thought it was all one unit and the price had been adjusted.
Excited about a killer crossflow at such a great price point. Expecting to be running one of these down the road. Will take some modification for it to work in the v-mount but will be worth it.

-Ryan
ThePass is offline   Reply With Quote
Old 08-14-2014, 11:46 AM   #14
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: France
Posts: 74
Total Cats: 1
Default

Quote:
Originally Posted by emilio700 View Post
Update:

We just discovered that our website was setup for the wrong carton dimensions and overcharged several customers on shipping. Oops. We just corrected the error and refunded each overcharged sale order. Sorry for the mix up! So yeah, they're now about half price shipping cost from what the website showed this morning.
Well, that changed a lot for internationnal shipping to France !

(Pre) Order placed.
joeldc13 is offline   Reply With Quote
Old 08-14-2014, 06:05 PM   #15
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 976
Total Cats: 24
Default

Do you have any recommendations for aftermarket fans for this radiator?
TheBandit is offline   Reply With Quote
Old 08-14-2014, 06:16 PM   #16
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Anything spal is really nice.
cardriverx is offline   Reply With Quote
Old 08-14-2014, 07:30 PM   #17
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,756
Total Cats: 922
Default

Quote:
Originally Posted by TheBandit View Post
Do you have any recommendations for aftermarket fans for this radiator?
Single primary stock fan is fine unless it's a street/autcross only car with A/C. In which case a big single Spal works about as well as the OEM primary & A/C fans.

For most users, just stock with the stock fans. They have been plenty for any engine package we have tried.
emilio700 is offline   Reply With Quote
Old 08-16-2014, 10:22 PM   #18
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 509
Total Cats: 16
Default

Very nice piece for a reasonable price.
njn63 is offline   Reply With Quote
Old 08-20-2014, 07:53 PM   #19
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,826
Total Cats: 222
Default

If for some reason you have no access to stock fans, or simply want to move to the better Spal fans anyway: For single big Spal I'd recommend VA10-AP70/LL-61A.
For secondary, VA10-AP50/C-61A.

These are what came with my FM airflow kit and I have been very pleased with them. I now use only the big AP70 by itself, and it's plenty to keep the car cool under idling/traffic conditions. I have removed the AC from my car entirely, however.

These are not inexpensive fans.
Mobius is offline   Reply With Quote
Old 08-20-2014, 08:53 PM   #20
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,756
Total Cats: 922
Default

Quote:
Originally Posted by Mobius View Post
If for some reason you have no access to stock fans, or simply want to move to the better Spal fans anyway: For single big Spal I'd recommend VA10-AP70/LL-61A.
For secondary, VA10-AP50/C-61A.

These are what came with my FM airflow kit and I have been very pleased with them. I now use only the big AP70 by itself, and it's plenty to keep the car cool under idling/traffic conditions. I have removed the AC from my car entirely, however.

These are not inexpensive fans.
The peak current draw on some of the big Spals is ornery too. Enough to make you go back and check your battery offset table and PID settings for idle control.
