Old 12-29-2014, 03:05 PM   #41
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

Quote:
Originally Posted by emilio700 View Post
Radiators arrived last week. We will start shipping today. This batch sold out. Next batch not due here until March unfortunately.
Yay!
krazykarl is offline   Reply With Quote
Old 12-29-2014, 04:52 PM   #42
The Discreet
iTrader: (1)

Ryephile's Avatar

Join Date: Jun 2014
Location: Metro Detroit
Posts: 265
Total Cats: 26
Default

Quote:
Originally Posted by emilio700 View Post
Radiators arrived last week. We will start shipping today. This batch sold out. Next batch not due here until March unfortunately.
I'll be able to jump on it as soon as it arrives. Hopefully you ordered plenty for your next batch so you have some stock between batches.
Ryephile is offline   Reply With Quote
Old 12-29-2014, 05:34 PM   #43
I'm Miserable!
iTrader: (3)

Join Date: Dec 2013
Location: Central Texas
Posts: 245
Total Cats: 0
Default

^^^Agreed that should give me time to start "saving my pennies". Selling out before even receiving inventory must be a businesses "dream come true".
Greasemonkey2000 is offline   Reply With Quote
Old 01-03-2015, 04:50 PM   #44
Junior Member

Join Date: Aug 2010
Location: Texas
Posts: 162
Total Cats: 11
Default

Woo, received my radiator this afternoon. As expected, it looks very nice. I may have time to install it tomorrow and certainly should have time before my next track weekend. Will try and get pictures this evening.

robert
robertcope is offline   Reply With Quote
Old 01-03-2015, 05:13 PM   #45
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

FIRST!!!


got mine yesterday and installed it this morning

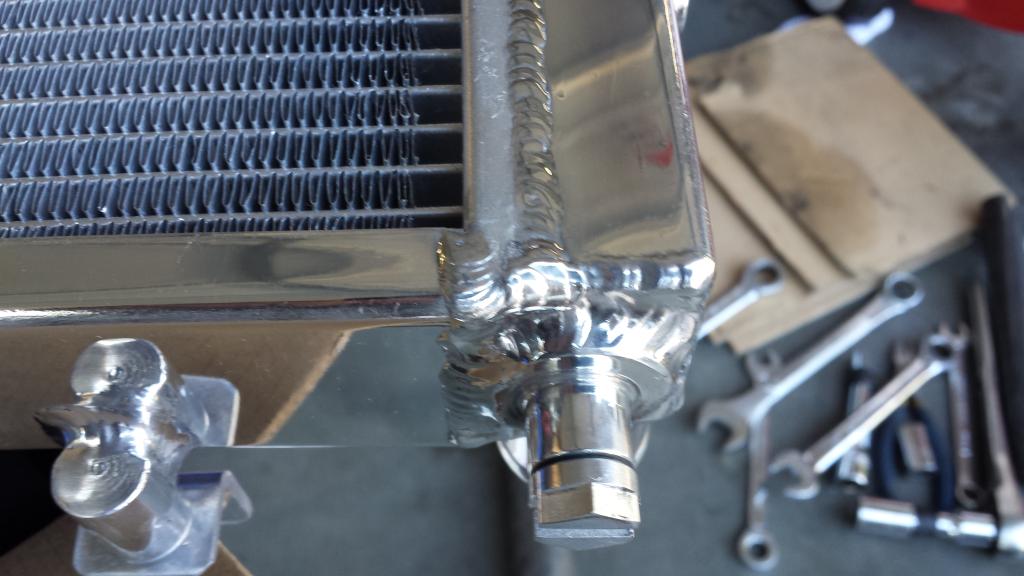

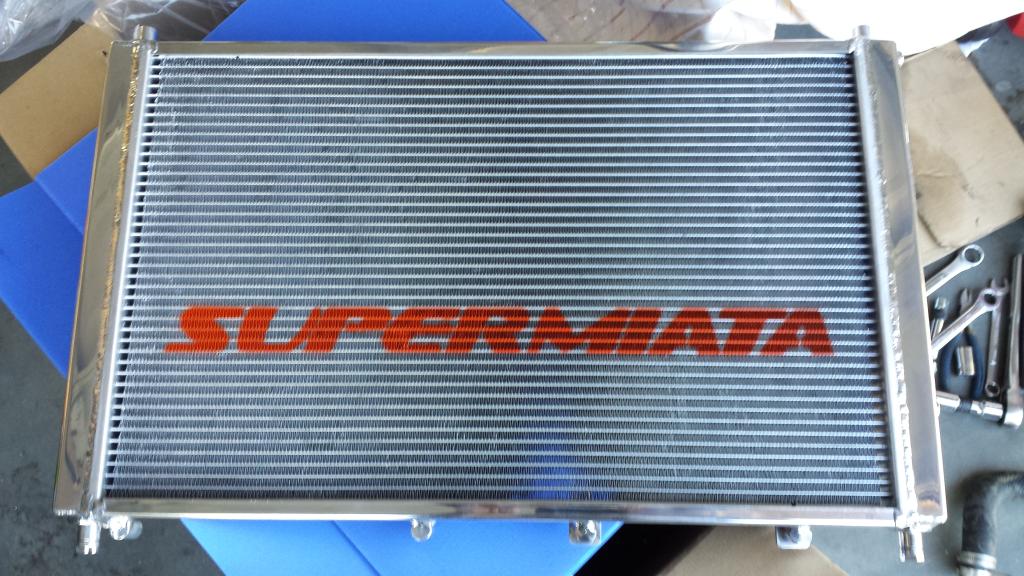

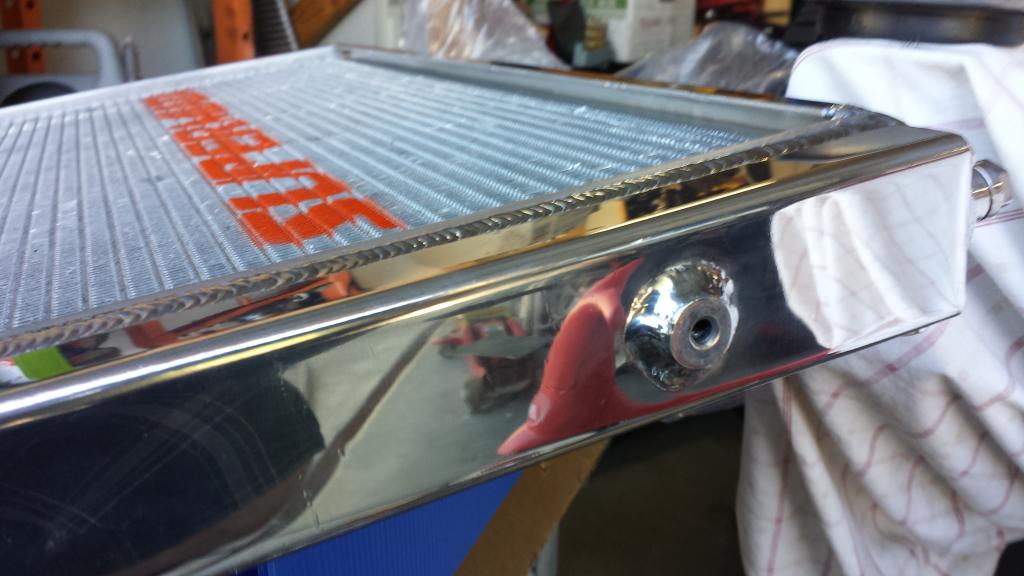

im very impressed with it. very nice finishing emilio, and the fit is perfect. it was packaged very well.















details pertaining to NA fitment

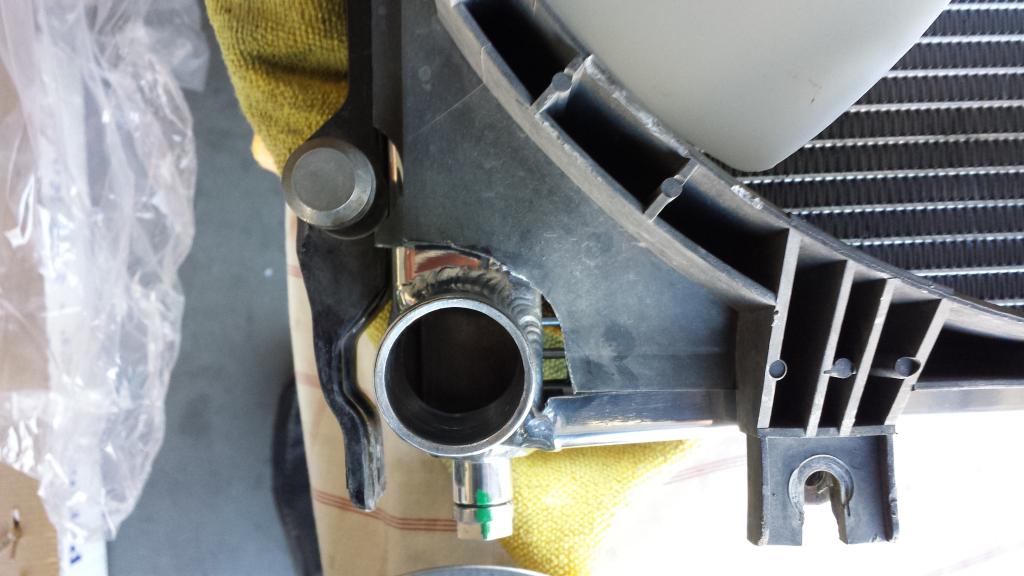

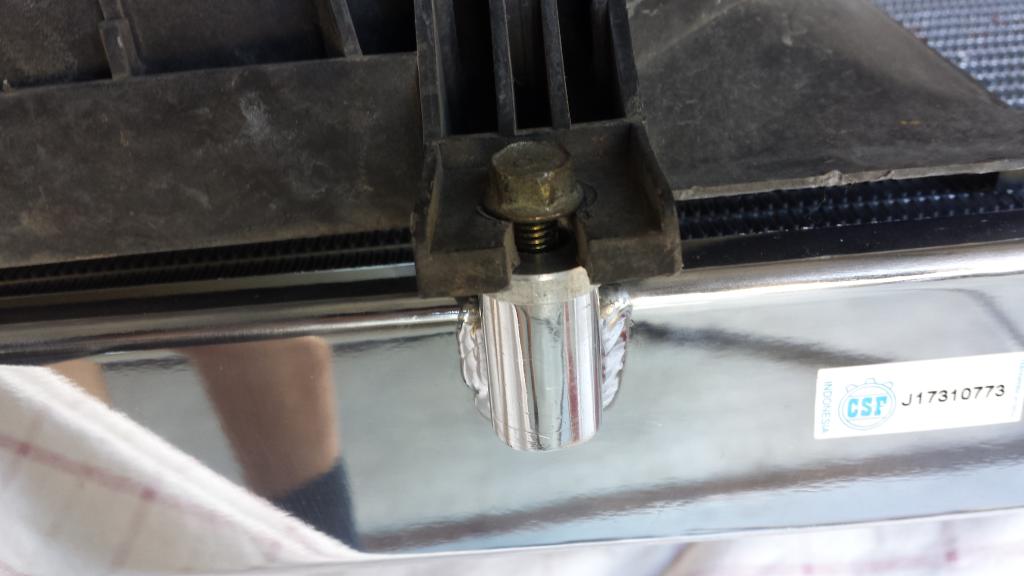

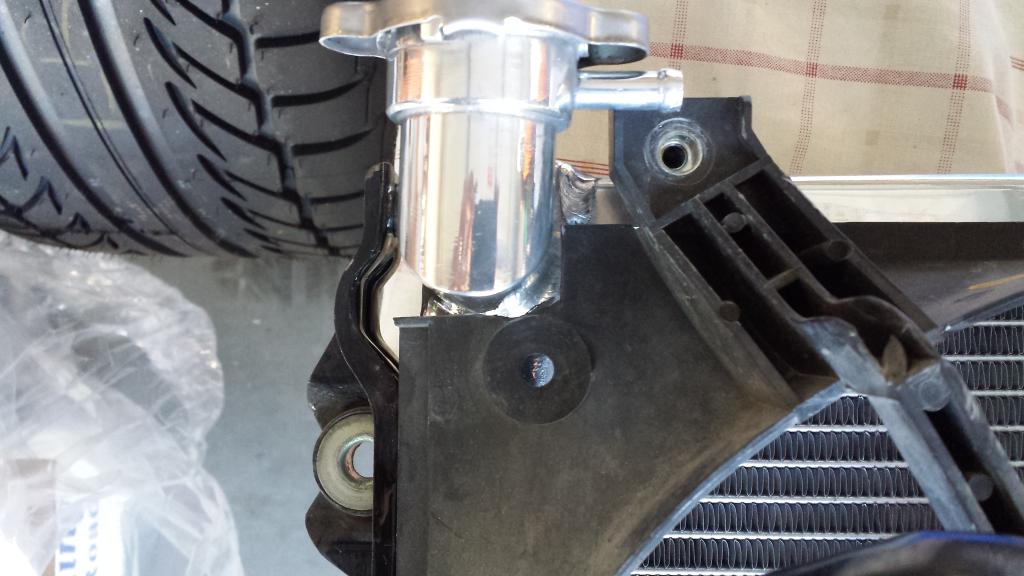

im pretty sure this is the fault of my shroud and not the rad, but i added a spacer so the shroud wouldnt rub against the core.

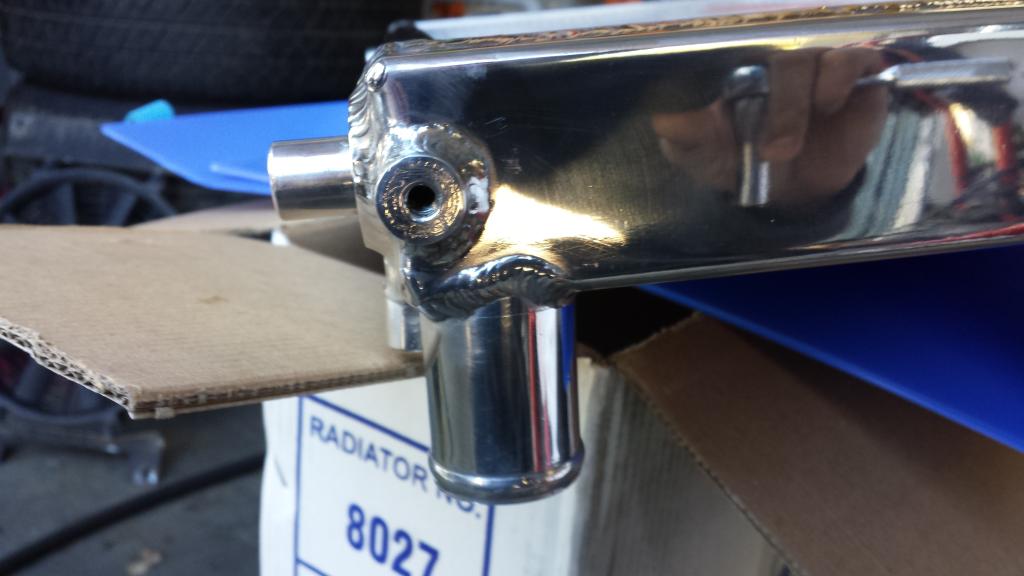

i had to use one of the supplied shorter screws in the location next to the filler neck to clear the overflow nipple.

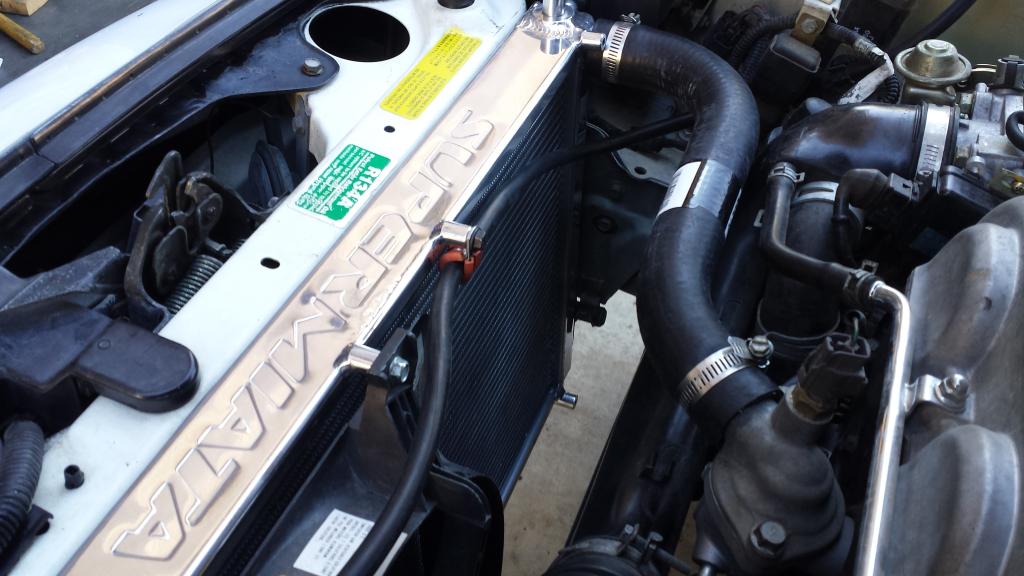

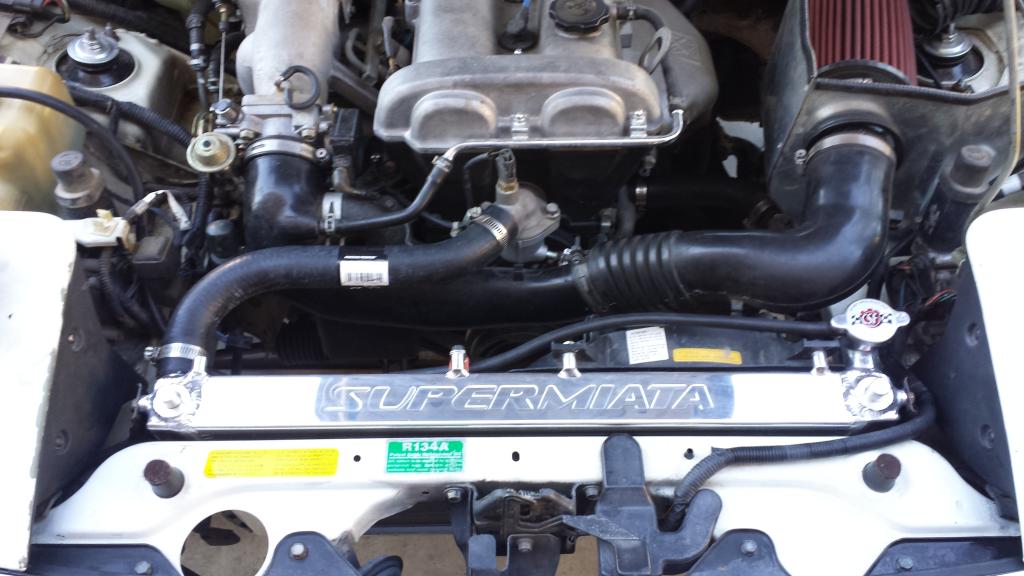

heres how i routed the overflow line with no A/C fan


yay! it went right in, i didnt have to hammer the lips on the frame rails at all, and it clears my FM sway bar. the only thing i would make note of is the lower neck is a little higher so you have to loosen the hose at the "connector pipe" and side it up more.
Attached Thumbnails
SuperMiata Crossflow radiator-20150103_125952_zpsc0muqks9.jpg   SuperMiata Crossflow radiator-20150103_125957_zpswexjffwx.jpg   SuperMiata Crossflow radiator-20150103_130123_zpsgkmbdeeo.jpg   SuperMiata Crossflow radiator-20150103_130128_zpsizeuxa5i.jpg   SuperMiata Crossflow radiator-20150103_130859_zpst0dp2u87.jpg

SuperMiata Crossflow radiator-20150103_130903_zpsqfbymzgl.jpg   SuperMiata Crossflow radiator-20150103_132640_zpscikr5guz.jpg   SuperMiata Crossflow radiator-20150103_144520_zpscttwzqfo.jpg   SuperMiata Crossflow radiator-20150103_144510_zpst5woyu44.jpg
hi_im_sean is online now   Reply With Quote
Old 01-03-2015, 11:04 PM   #46
I'm Miserable!
iTrader: (3)

Join Date: Dec 2013
Location: Central Texas
Posts: 245
Total Cats: 0
Default

Looks great!
Greasemonkey2000 is offline   Reply With Quote
Old 01-04-2015, 02:33 AM   #47
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,829
Total Cats: 2,122
Default

Looks great indeed.
So the shrouds needed to be cut/trimmed.
Is this also the case with OEM NB shrouds Emilio?
Anything else that would require trimming/cutting/modifying?

The upper hose doesn't rub/interfere with a 2.5" elbow on a boosted nb?
18psi is offline   Reply With Quote
Old 01-04-2015, 01:34 PM   #48
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

Quote:
Originally Posted by 18psi View Post
Looks great indeed.
So the shrouds needed to be cut/trimmed.
Is this also the case with OEM NB shrouds Emilio?
Anything else that would require trimming/cutting/modifying?

The upper hose doesn't rub/interfere with a 2.5" elbow on a boosted nb?
Any OEM shrouds will need to be trimmed. Dunno on the pipe, that's up to you eye to estimate. One customer has already returned his because it would not clear turbo intake pipes.
emilio700 is offline   Reply With Quote
Old 01-04-2015, 02:30 PM   #49
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,659
Total Cats: 306
Default

What a shame as the intake piping should be routed around the radiator, not the other way around.

-Ryan
ThePass is offline   Reply With Quote
Old 01-04-2015, 02:34 PM   #50
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

one of the primary deciding factors for me to get this rad is that the upper hose isnt pointing right at the TB for reroute+turbo. i dont get it.
hi_im_sean is online now   Reply With Quote
Old 01-04-2015, 02:54 PM   #51
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

Quote:
Originally Posted by hi_im_sean View Post
one of the primary deciding factors for me to get this rad is that the upper hose isnt pointing right at the TB for reroute+turbo. i dont get it.
It looks perfect for reroute and turbo to me. Even more perfect for my IC routing that goes over the top. Reroute hose stays completely on top of the frame rail, so it doesnt have to cut in front of the TB, and you have less worry about it swinging onto the alternator and getting a puncture.
Leafy is offline   Reply With Quote
Old 01-04-2015, 02:59 PM   #52
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

Quote:
Originally Posted by Leafy View Post
It looks perfect for reroute and turbo to me.
thats my point. if you have turbo: you should have reroute too. if you dont have a reroute and you get a rad designed for one, and the piping hits, then i say its time for a reroute, not a different rad.
hi_im_sean is online now   Reply With Quote
Old 01-04-2015, 03:41 PM   #53
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,992
Total Cats: 235
Default

Agreed. This may be one of the reasons i ditch my current radiator for this one at some point. I had to cut the neck and weld it back on at an angle to get it to work with my IC piping and reroute. From the looks of it, this radiator should solve that issue.


I am interested in seeing more pictures of this radiator with a reroute charge pipes.
Erat is offline   Reply With Quote
Old 01-04-2015, 04:51 PM   #54
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

Quote:
Originally Posted by Erat View Post
Agreed. This may be one of the reasons i ditch my current radiator for this one at some point. I had to cut the neck and weld it back on at an angle to get it to work with my IC piping and reroute. From the looks of it, this radiator should solve that issue.


I am interested in seeing more pictures of this radiator with a reroute charge pipes.
i have empirical data you can use to check

the neck is about 3" offset to the pass side
hi_im_sean is online now   Reply With Quote
Old 01-06-2015, 04:49 PM   #55
The Discreet
iTrader: (1)

Ryephile's Avatar

Join Date: Jun 2014
Location: Metro Detroit
Posts: 265
Total Cats: 26
Default

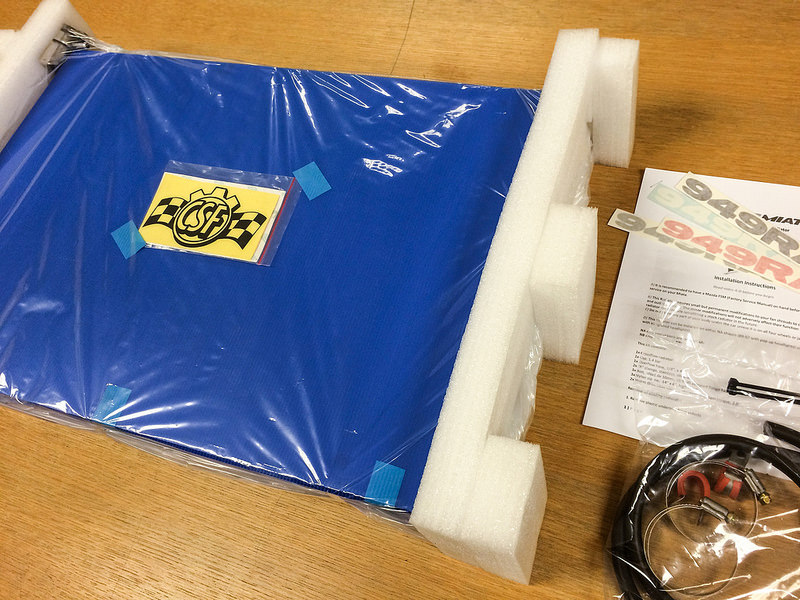

Mine has arrived!

Supermiata radiator! by Ryephile, on Flickr

Excellent packaging, and it even has instructions that show where to clearance the fan shrouds. I also was blessed with the ever-elusive orange 949Racing decal.

Attached Thumbnails
SuperMiata Crossflow radiator-16029884030_a4f355fb15_c.jpg
Ryephile is offline   Reply With Quote
Old 01-09-2015, 01:40 AM   #56
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: France
Posts: 74
Total Cats: 1
Default

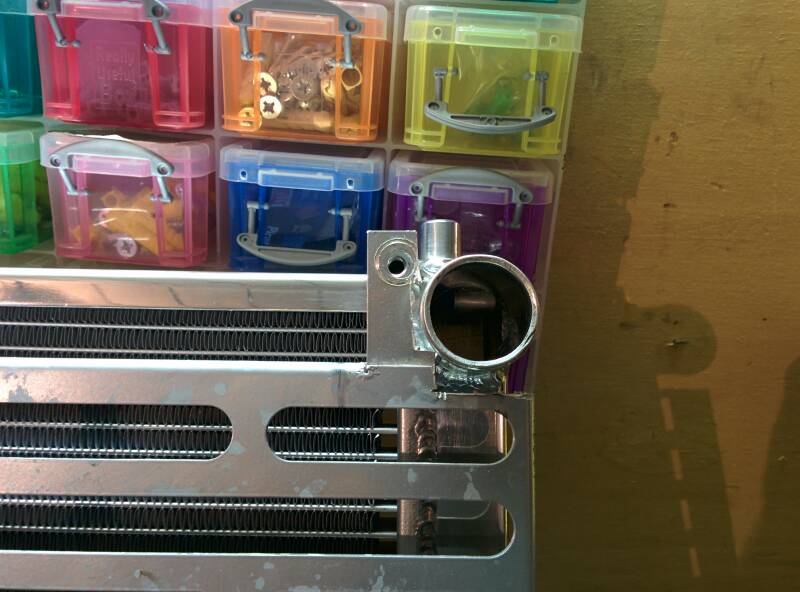

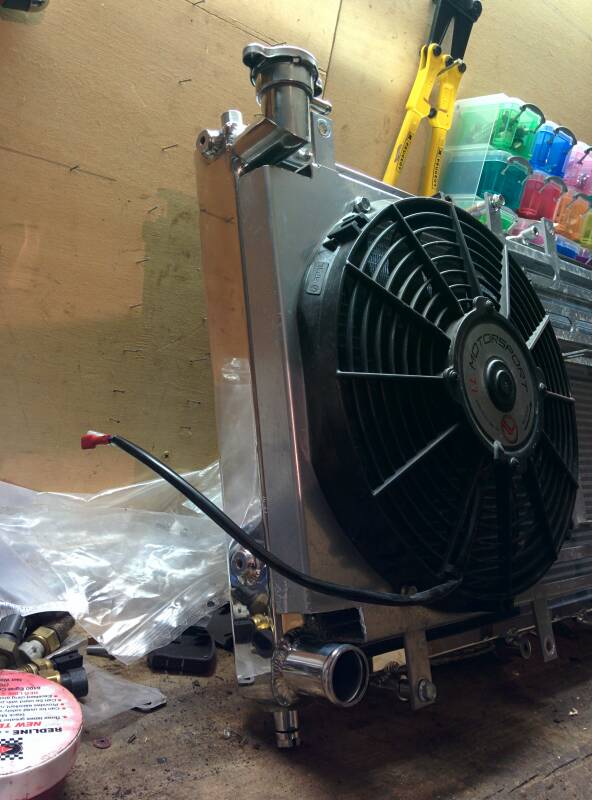

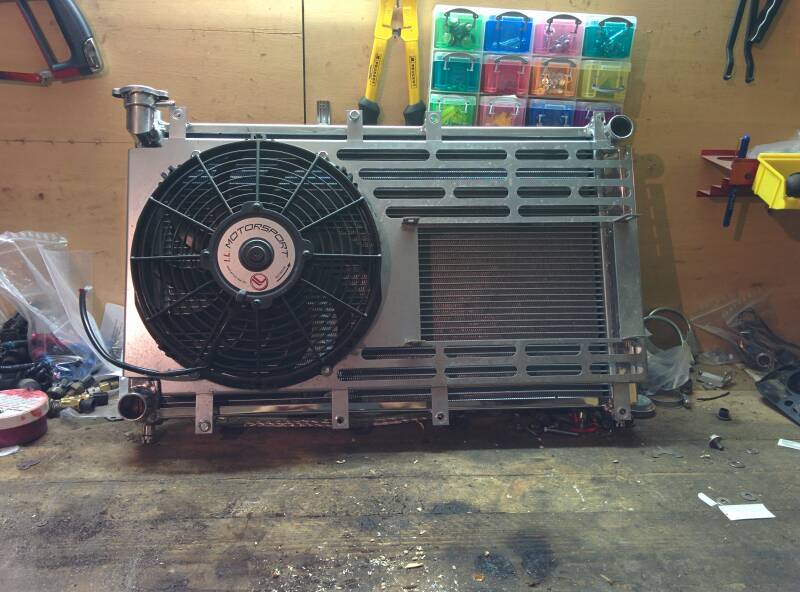

Mine also arrived to France, I am using an ILMotorsport shroud with a Spal fan and Oil Cooler, I also had to trim a bit the shroud but it's not a big issue :





Will need to trim a little more here for the hose to slide perfectly and doesn't rub.

But it's seems good to me so far :
Attached Thumbnails
SuperMiata Crossflow radiator-c3641f4d853914e2007183b2f13b5e9f.jpg   SuperMiata Crossflow radiator-5a34d11e0f466029447e336db7d13f56.jpg   SuperMiata Crossflow radiator-b1994af1175471ce85c25c17b2a7f334.jpg
joeldc13 is offline   Reply With Quote
Old 01-09-2015, 09:27 AM   #57
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

What keeps the fan from drawing air from the other holes in the shroud rather than through the radiator?
sixshooter is offline   Reply With Quote
Old 01-09-2015, 01:33 PM   #58
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Chattanooga, TN
Posts: 187
Total Cats: -1
Default

Noticed on the website that this radiator isn't compatible with A/C on NB's... Curious as to why?
flipt86 is offline   Reply With Quote
Old 01-09-2015, 02:44 PM   #59
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

Quote:
Originally Posted by flipt86 View Post
Noticed on the website that this radiator isn't compatible with A/C on NB's... Curious as to why?
By the next production run it will be compatible with NB A/C fans
emilio700 is offline   Reply With Quote
Old 01-09-2015, 03:30 PM   #60
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Chattanooga, TN
Posts: 187
Total Cats: -1
Default

Quote:
Originally Posted by emilio700 View Post
By the next production run it will be compatible with NB A/C fans
By this next upcoming shipment in March, or the next one?

In your opinion, would this radiator work well for a V8R L33 street/autocross car?

Thanks,
flipt86 is offline   Reply With Quote
