Default VTA dump pipe. Good or bad idea?

Just want some feedback on VTA dump pipe setups. Abe from ARTech is going to be making my new manifold and downpipe and this is one of my options. I don't want to deal with fumes coming in the car, or having the exhaust make a mess of the engine bay. I don't know much about the VTA wastegate setups, so maybe I'm thinking things about it that aren't true.

Who here runs theirs like this and whats you opinion on it vs. a routed dump pipe?

Vashthestampede is online now   Reply With Quote
Old 11-29-2009, 11:55 AM   #2
Junior Member
Join Date: Aug 2009
Posts: 58
Total Cats: 0

It's really loud on boost and it sucks to do any sort of street tuning with it since you can't hear **** when the wastegate opens.

It does make for easier downpipe fabrication, and when they are completely seperate like that you also have the benefit of the wastegate exhaust not making your exhaust flow turbulent. I've heard setups with small mufflers on the wastegate dumps and that helps significantly with these issues.

The other bad thing is the reports of people heating up the undersides of the cars with exhausts (like the fuel tanks and diffs). I think that's the only reason why I wouldn't run it.
mafoose is offline   Reply With Quote
Old 11-29-2009, 12:42 PM   #3
Senior Member
iTrader: (7)
Join Date: Dec 2006
Location: Chicagoland
Posts: 1,342
Total Cats: 1

I have mine dumped near the drivers side wheel, it doesn't seem that loud....doesn't bother me at all; nor have I had any problems with it.
jtothawhat is offline   Reply With Quote
Old 11-29-2009, 01:36 PM   #4
Elite Member
iTrader: (12)
Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: -1

I have mine dumped and I wouldn't have it any other way. Since the wastegate stays closed until you hit your boost target, you have to ask yourself is what kind of setup will you end up with? If it's a baby setup running low boost it would probably get annoying pretty quickly. If it's a monster setup running big boost then it's very easy to live with.
JayL is offline   Reply With Quote
Old 11-29-2009, 01:58 PM   #5
Supporting Vendor
iTrader: (31)
Savington's Avatar
Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,223
Total Cats: 784

It needs to be braced if it's going to reach from the manifold down to the bottom of the car. The harmonics on mine broke the wastegate off the manifold, and that is the primary reason I ended up recirculating it later on.
Savington is online now   Reply With Quote
Old 11-29-2009, 02:07 PM   #6
Elite Member
iTrader: (10)
leatherface24's Avatar
Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,027
Total Cats: -1

Mines going vta again. I miss those fd days lol
leatherface24 is offline   Reply With Quote
Old 11-29-2009, 02:33 PM   #7
Elite Member
iTrader: (6)
Join Date: Sep 2007
Location: CA
Posts: 1,966
Total Cats: 9

The more you boost, the quieter it is.

Vash, check this:

SuperTrapp 344-2005 - SuperTrapp Disc-Only Mufflers - Overview - SummitRacing.com

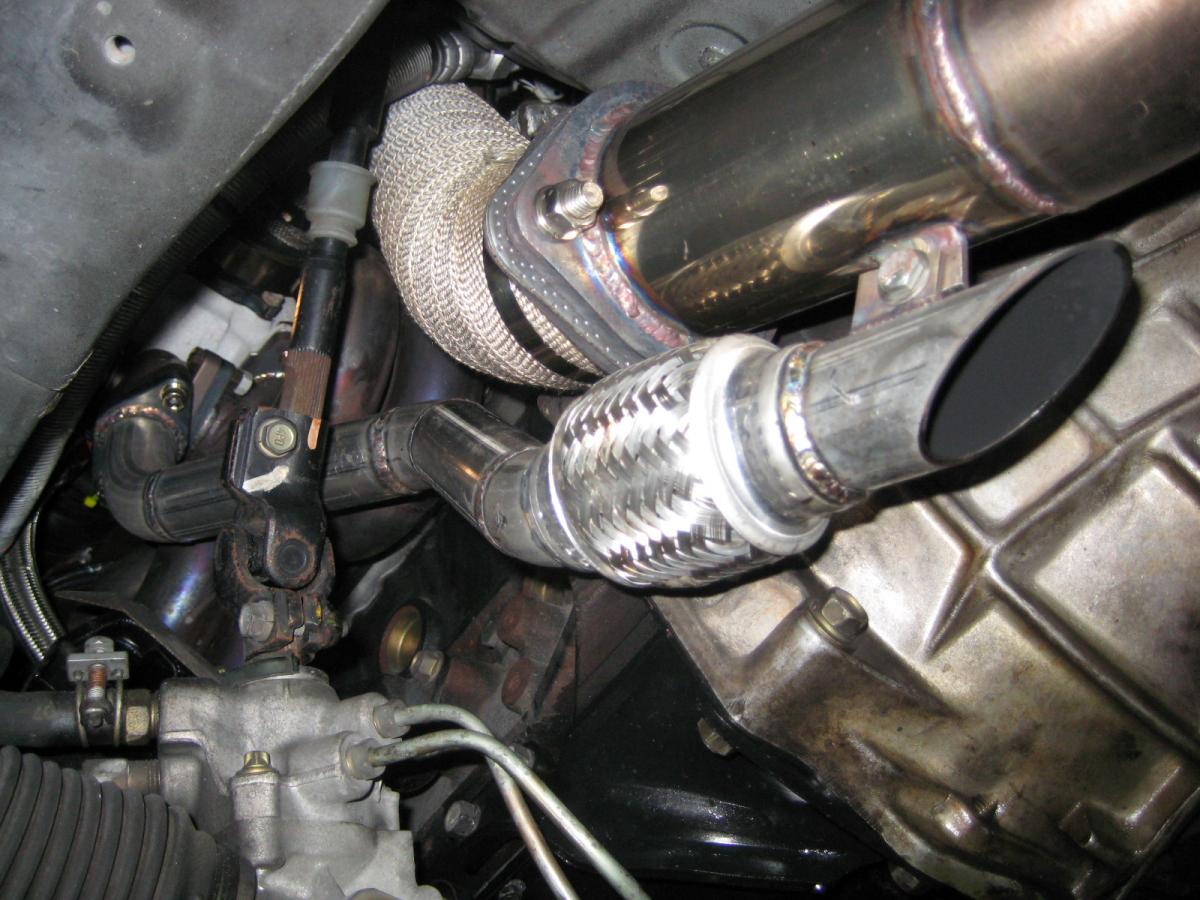

Attached is a picture of a braced dump tube. Also, Corky stresses the use of expansion pipes (slip joints or flex tube) since the dump tube will heat up at very different rates vs the downpipe. I heard on a VW forum that heat wrapping the two pipes together will lessen the temperature difference, but who knows. Corky wasn't sure, but he thinks wrapping the two together will make failure the same or quicker.
Attached Thumbnails
VTA dump pipe. Good or bad idea?-65a0cd5a.jpg
kenzo42 is offline   Reply With Quote
