Default trouble starting up below 70*

I've got an MS2 built by Rev. Initially, startup would take lots of cranks to get running at any temp. I changed some stuff (just from googling and trial and error) and got it to normal above 70* which was good for summer. Now that it's cooling down I wanted to post up my settings and see if I can get some tips to fix my startup when it's cold.

If it is below 70* It will take 3-5 seconds to crank (exponentially longer the colder it is), and will stutter for another couple seconds before idling properly.. but before I just add more fuel I thought I'd get input.

'95 with stock injectors. have not messed with cranking timing settings at all. regular timing is offset because it was at 15 when I put turbo in. let me know what other info is needed for diagnosis.







babydriver is offline   Reply With Quote
Old 09-27-2016, 06:43 AM   #2
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,931
Total Cats: 1,469
Default

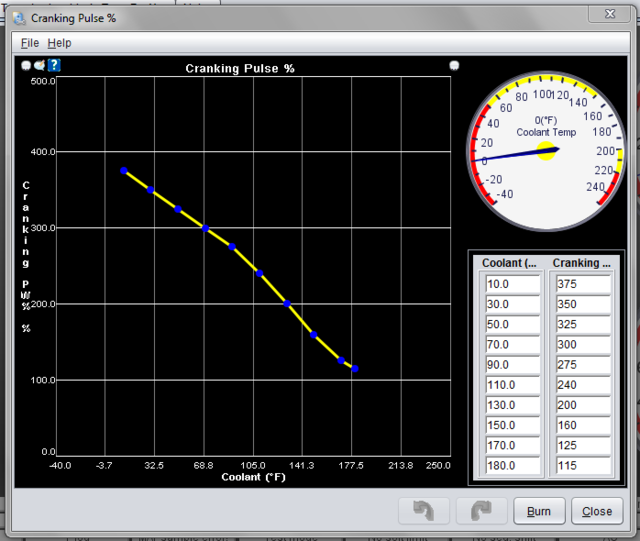

Next time you start the car in the morning. Drag the cranking pulse down low at that CLT temp.

So adding fuel until the car starts, adding a little more more for good measure. You're probably injecting too much currently (but keep laptop handy and be smart about the curve -- you dont wanna get stuck somewhere cause you now dont have enough fuel to ever start)
Braineack is online now   Reply With Quote
Old 09-27-2016, 12:28 PM   #3
Newb
Thread Starter

Join Date: Apr 2014
Posts: 42
Total Cats: 4
Default

so you're thinking too much fuel? I've added so much at this point that's probable.. will try that tonight/tomorrow.

can you (or Rev) post suggested startup setting for fuel and spark you put on your builds with stock injectors? or do you leave that to the customer. I'm wondering if my startup settings were overlooked or not set properly.

Last edited by babydriver; 09-27-2016 at 12:47 PM.
babydriver is offline   Reply With Quote
Old 09-27-2016, 01:30 PM   #4
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 493
Total Cats: 15
Default

I agree that you're adding too much fuel

Tune your VE table first

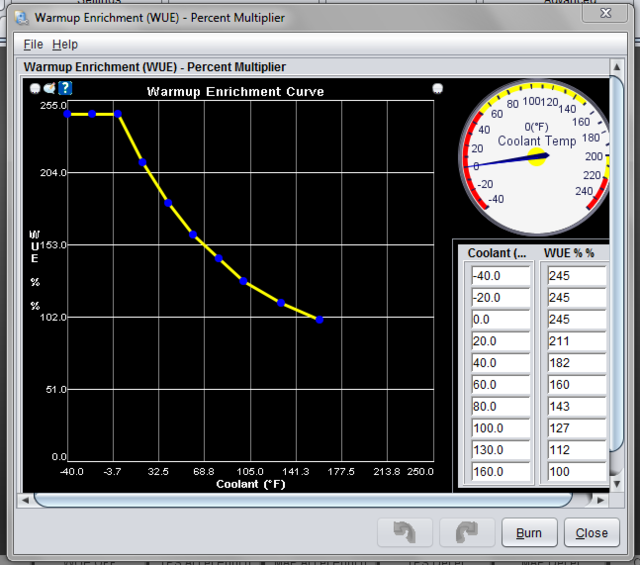

Warm up enrichment is crazy high

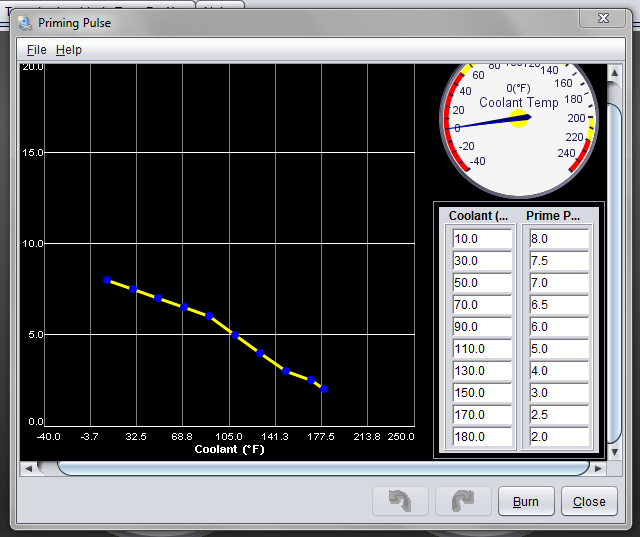

priming pulse is a bit much. I'd probably half the values to start

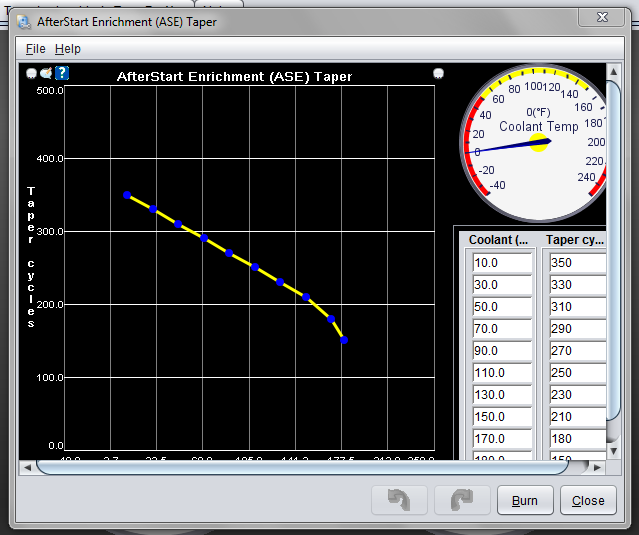

After start enrichment is normal ish looking, but only adjust the values at the temps you are trying to start at.
bmxfuel007 is offline   Reply With Quote
Old 10-27-2016, 09:18 AM   #5
Newb
Thread Starter

Join Date: Apr 2014
Posts: 42
Total Cats: 4
Default

edit:nvm

Last edited by babydriver; 02-03-2017 at 01:56 PM.
babydriver is offline   Reply With Quote
Old 10-27-2016, 09:20 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,825
Total Cats: 2,121
Default

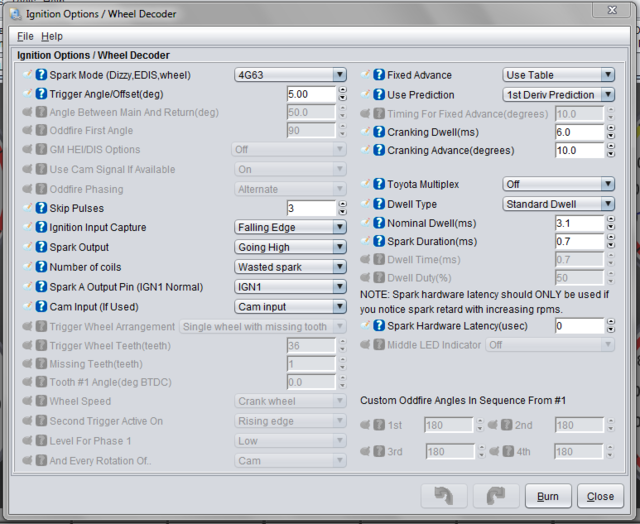

why are your triggers set to 4G63?
18psi is offline   Reply With Quote
Old 10-27-2016, 09:26 AM   #7
Newb
Thread Starter

Join Date: Apr 2014
Posts: 42
Total Cats: 4
Default

uhhhh that may be a question for rev.. i don't think i've touched that
babydriver is offline   Reply With Quote
Old 10-27-2016, 09:38 AM   #8
Newb
Thread Starter

Join Date: Apr 2014
Posts: 42
Total Cats: 4
Default

so I just looked up what that is.. yeah that doesn't seem right hahah.. but it seems like it runs great (??)

is it supposed to be on wheel?
babydriver is offline   Reply With Quote
Old 10-27-2016, 10:02 AM   #9
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 621
Total Cats: 46
Default

Quote:
Originally Posted by 18psi View Post
why are your triggers set to 4G63?
4g63 is correct for CAS triggering I think?
Onyxyth is offline   Reply With Quote
Old 10-27-2016, 10:07 AM   #10
Newb
Thread Starter

Join Date: Apr 2014
Posts: 42
Total Cats: 4
Default

https://www.diyautotune.com/support/...rt-your-miata/

ctrl+f 4g63

seems to be correct for miatas
babydriver is offline   Reply With Quote
Old 10-27-2016, 10:14 AM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,825
Total Cats: 2,121
Default

is it really? Ok. I tune mostly NB's and they don't use that code.
18psi is offline   Reply With Quote
Old 10-27-2016, 11:12 AM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,840
Total Cats: 345
Default

too much fuel: sputters to a start
too little fuel: dies smoothly
y8s is offline   Reply With Quote
Old 10-27-2016, 11:26 AM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,825
Total Cats: 2,121
Default

sometimes it goes full circle and you don't know which one you're at

which is what makes cold start tuning such a time consuming task

You only get 1 real shot at it every time
18psi is offline   Reply With Quote
Old 10-27-2016, 11:41 AM   #14
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,699
Total Cats: 847
Default

Quote:
Originally Posted by 18psi View Post
why are your triggers set to 4G63?
Because he has a 95 and that is the setting you use for the CAS.
shuiend is offline   Reply With Quote
Old 10-27-2016, 11:45 AM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,825
Total Cats: 2,121
Default

switch to 2jz settings for more power
18psi is offline   Reply With Quote
Old 10-27-2016, 11:47 AM   #16
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,012
Total Cats: 41
Default

Quote:
Originally Posted by bmxfuel007 View Post
[...]
priming pulse is a bit much. I'd probably half the values to start
[...]
Priming pulse can vary a LOT depending on your injector size since it's given in PW and not %.
stefanst is offline   Reply With Quote
Old 10-27-2016, 03:04 PM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

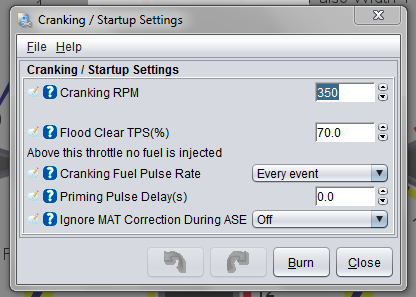

You could also check the idle and cranking settings. If it starts better with the throttle open a little bit, I'd start there.
curly is offline   Reply With Quote
Old 10-27-2016, 03:11 PM   #18
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,728
Total Cats: 978
Default

Too much ASE, too much WUE, too much cranking fuel IMO. Start with cranking fuel, then tune warm idle, then tune WUE on your next cold start, then tune ASE on the cold start after that. Use the WUE Autotune feature, it's quite good.
Savington is offline   Reply With Quote
Old 02-03-2017, 02:06 PM   #19
Newb
Thread Starter

Join Date: Apr 2014
Posts: 42
Total Cats: 4
Default

Quote:
Originally Posted by bmxfuel007 View Post
I agree that you're adding too much fuel

Tune your VE table first

Warm up enrichment is crazy high

priming pulse is a bit much. I'd probably half the values to start

After start enrichment is normal ish looking, but only adjust the values at the temps you are trying to start at.
reviving this thread as it isn't fixed yet but I just haven't been driving the miata much.

so my WUE, ASE, and cranking pw are now a lot lower/normal. The weird thing is nothing I do makes it better/worse. It always just starts like crap (cranks for like 3-5 seconds, small sputter, then catch) and runs fine once it catches. There must be some setting I'm overlooking. What part of my fuel table exactly affects startup? I'd guess the "below 500" column.. but does it factor in my idle rpm somehow?

could I have one of the MS builders post recommended startup settings for stock injectors.. (shouldn't those be the same regardless of whether you're turbo or not?)

so once it's started everything is perfect.. I'd just love my car to start up like stock. thanks for help on this.

edit: I just thought of something (I'm at work or i'd go try it out, but I plan on fixing this tomorrow come hell or high water.. I just don't get a lot of time to work on my car).. so in rev's instructions it said to not let autotune tune my VE below (i think) 1500 rpm. so I set that limit when autotuning and adjusted my fuel below that manually. I added fuel in a few places to adjust for correction and mostly just made sure it was smooth. should I go ahead and autotune below 1500? I was warned autotuning would lead to oscilating idle..The thing that makes me think it isn't that is that it runs so good when started.. but just an idea. i'll give that a try first thing tomorrow

edit again: ran VE autotune again and changed a few things. if startup isnt perfect now i have no idea.. oh well i'll wait until tonight or tomorrow to find out i guess. everything seems to be where it should.

Last edited by babydriver; 02-04-2017 at 01:32 PM.
babydriver is offline   Reply With Quote
Old 02-04-2017, 06:28 PM   #20
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

The fuel table is not used during cranking.

Post the msq and a log of a starting attempt. Otherwise we can only give the same general advice from the posts above.
southernmx5 is offline   Reply With Quote
