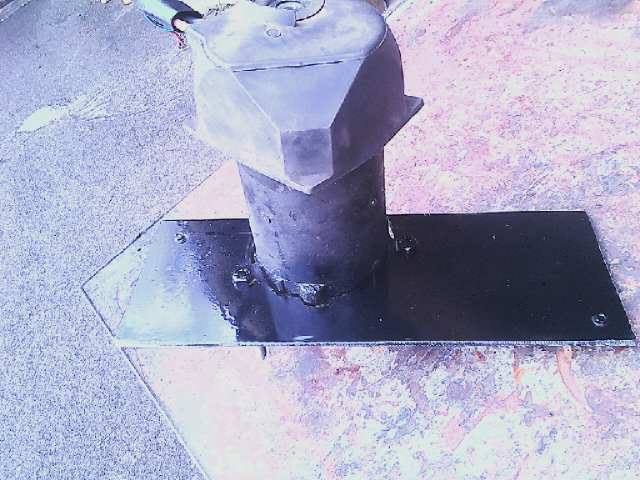

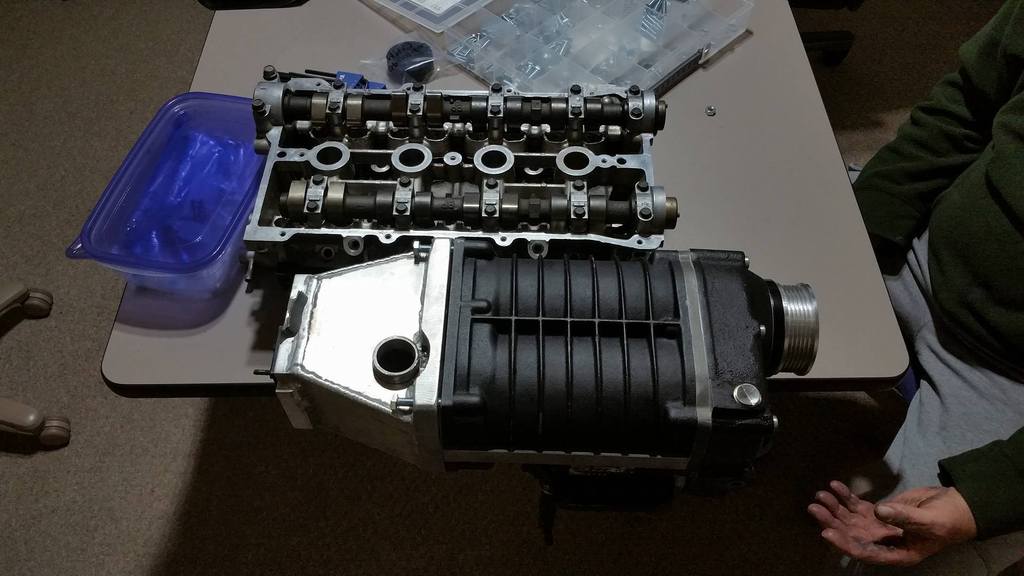

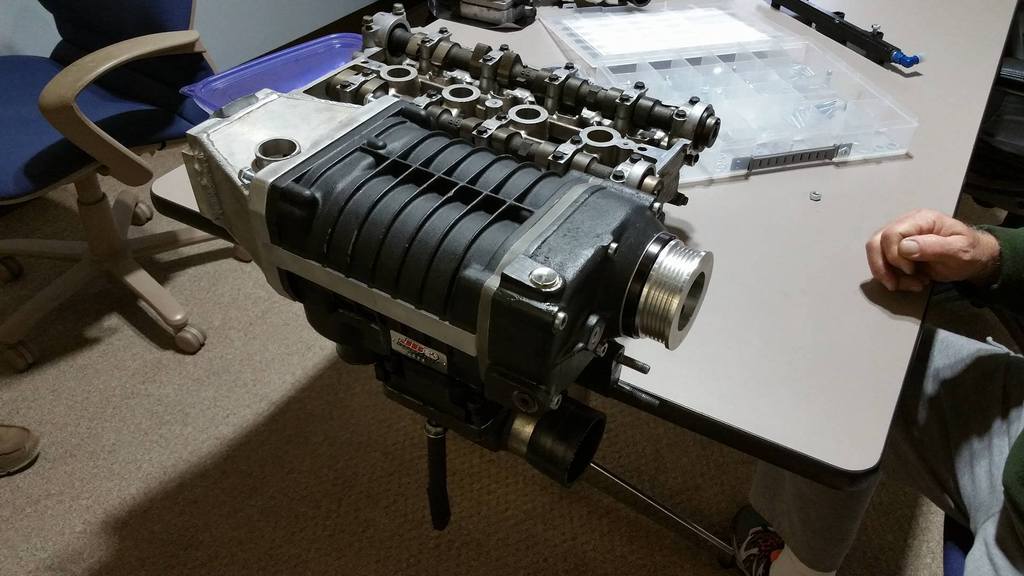

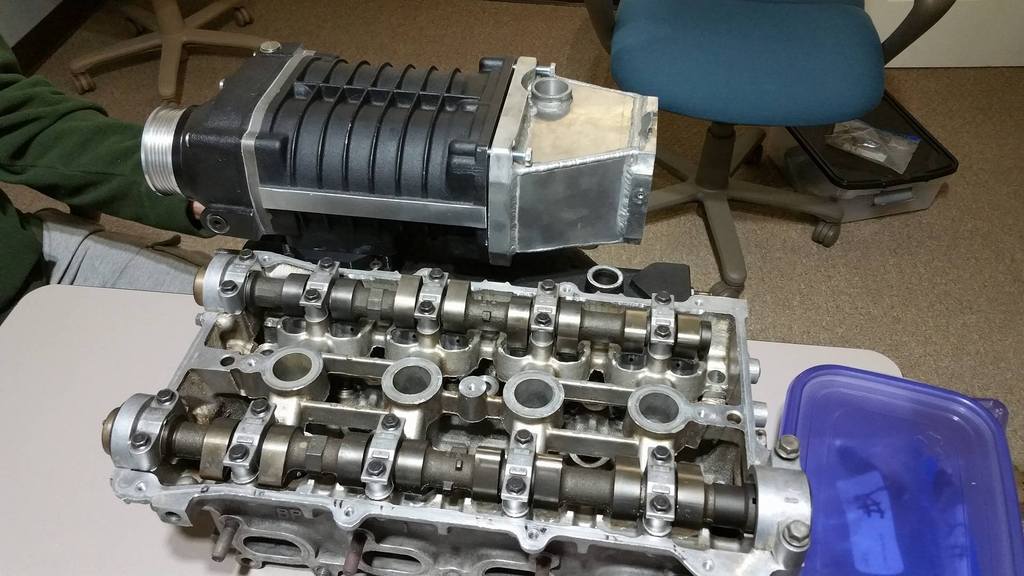

Here are some more pictures of the off-season progress on the car. We designed an adapter in solidworks which would allow the new blower to mount to the "old" manifold. Once we had it all laid out we used the 3d printer to make a "prototype" and mocked everything up. Made a few tweaks then loaded the program in the CNC machine and made the final parts.







As part of the MASSIVE weight "program" for the winter...I went away from the belt driver PS pump to the Toyota MR2 electric pump in the trunk. With the new control arms, ABS brick relocation, PS and a few other projects we will have moved almost 50lbs off the nose of the car. That 50lbs along with a few other LBS we have removed with the seats and a few other projects....we will have a total of 70lbs of new weight in the trunk...That was MUCH needed as the F/R bias of the car last year was like 57/43

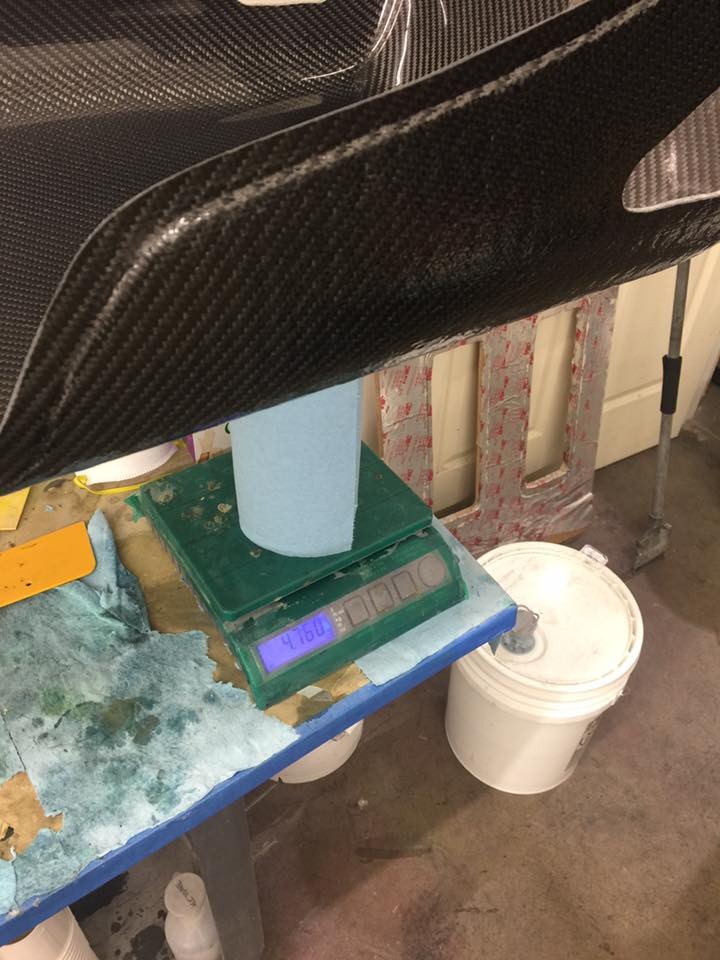

And just as a teaser.......here is one of the new seats on the digital scale

Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-12633067_10153828439309242_1468471715_o_zpsolctrbpk.jpg   Eric Anderson's Supercharged SSM Miata-12632882_10153828439399242_352761281_o_zpswk63zjmu.jpg   Eric Anderson's Supercharged SSM Miata-12631115_10153828439569242_1895189041_o_zpsik0bbe1i.jpg   Eric Anderson's Supercharged SSM Miata-12665885_10153841908424242_1533038685_n_zpsohr668sx.jpg   Eric Anderson's Supercharged SSM Miata-12674637_10153841908409242_1063267862_n_zpsunuajjzk.jpg

Eric Anderson's Supercharged SSM Miata-12642609_1034536809946634_2096248012188002755_n_zps2wj2pwgs.jpg
TNTUBA is offline   Reply With Quote
Old 02-06-2016, 01:57 PM   #382
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,402
Total Cats: 835
Default

Required to run a full-size seat on both sides, or can you cut the passenger side down?
Savington is offline   Reply With Quote
Old 02-06-2016, 02:01 PM   #383
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

What's the min weight?

When does the BP get thrown out. That's great ta be a big chunk of nose weight.
aidandj is offline   Reply With Quote
Old 02-06-2016, 04:21 PM   #384
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,430
Total Cats: 1,015
Default

Are you using the super lightweight control arms V8R has just come out with? They aren't on their website except for a placeholder but I think they are aluminum and the name is X-treme or something? Being on the bleeding edge I figured you would have them.
sixshooter is offline   Reply With Quote
Old 02-06-2016, 04:35 PM   #385
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Quote:
Originally Posted by sixshooter View Post
Are you using the super lightweight control arms V8R has just come out with? They aren't on their website except for a placeholder but I think they are aluminum and the name is X-treme or something? Being on the bleeding edge I figured you would have them.
They are supposed to be here in a couple weeks. They are supposed to save 12 lbs off the nose. They don't have the aluminum ones for the rear yet but I will be using their "pro series" rears

Quote:
Originally Posted by aidandj View Post
What's the min weight?

When does the BP get thrown out. That's great ta be a big chunk of nose weight.
2057lbs is my min. And I'm not getting rid of the BP.

Quote:
Originally Posted by Savington View Post
Required to run a full-size seat on both sides, or can you cut the passenger side down?
Yea. We have to run a full size, fully upholstered seat on both sides.
TNTUBA is offline   Reply With Quote
Old 02-06-2016, 07:22 PM   #386
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Time to bust out the spray glue and an old bed sheet to meet the upholstery rule.
stoves is offline   Reply With Quote
Old 02-06-2016, 09:40 PM   #387
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

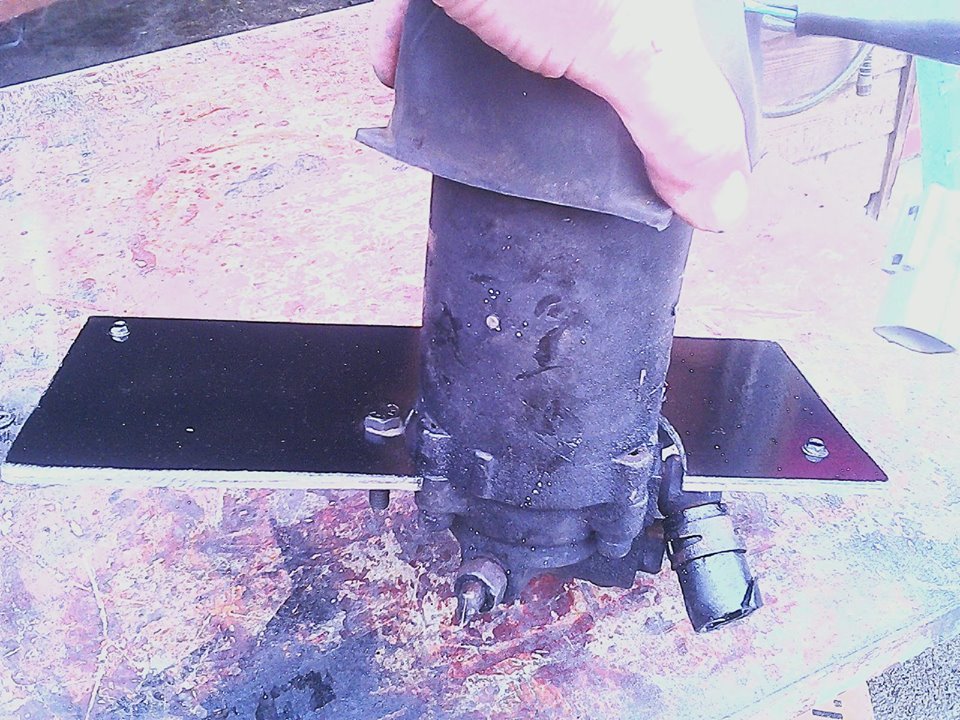

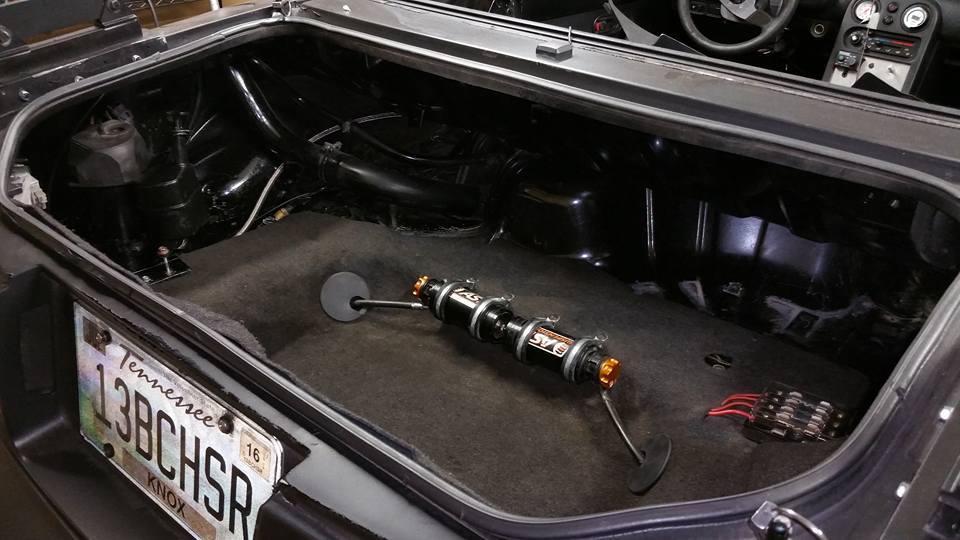

Annnnd there is the Power Steering pump mounted. That was an easier project than I thought it was going to be.
Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-12654423_10153848049309242_3166619366255138027_n_zpsk9ubh7vv.jpg
TNTUBA is offline   Reply With Quote
Old 02-07-2016, 11:18 AM   #388
Junior Member

Join Date: Feb 2015
Posts: 121
Total Cats: 16
Default

Was the electric PS pump a net weight savings or a f/r balance improvement?
Bronson M is offline   Reply With Quote
Old 02-07-2016, 12:11 PM   #389
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Quote:
Originally Posted by Bronson M View Post
Was the electric PS pump a net weight savings or a f/r balance improvement?
Yes
TNTUBA is offline   Reply With Quote
Old 02-07-2016, 02:29 PM   #390
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

Quote:
Originally Posted by TNTUBA View Post
Yes
The MR2 pump is under 6 pounds? I know the volvo pump isnt, heck the hydraulic hose front to back is like 5 pounds once you put ps fluid in it. I know I did mine just for getting weight off the nose and because my huge turbo was in the way of the stock one.
Leafy is offline   Reply With Quote
Old 02-07-2016, 02:45 PM   #391
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

By the time you factor in the weight of the pump, the bracket, the fasteners, the PS cooler and the stock lines. Yes it is. The 10' braided SS line is actually lighter than the 2ft long stock hose.
TNTUBA is offline   Reply With Quote
Old 02-07-2016, 04:13 PM   #392
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Eric, I'm sure you have numbers. What's the weight of each system with fluid? As mentioned you have longer lines, so they might hold more fluid weight than the factory lines?
patsmx5 is offline   Reply With Quote
Old 02-12-2016, 08:00 AM   #393
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

First diagnostic checks of Power steering pump, relocated ABS and re wired fans, ignition harness and fuel pumps worked flawlessly.

Pretty stoked I don't have to spend weeks going back through all that mess.
TNTUBA is offline   Reply With Quote
Old 02-14-2016, 11:10 AM   #394
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

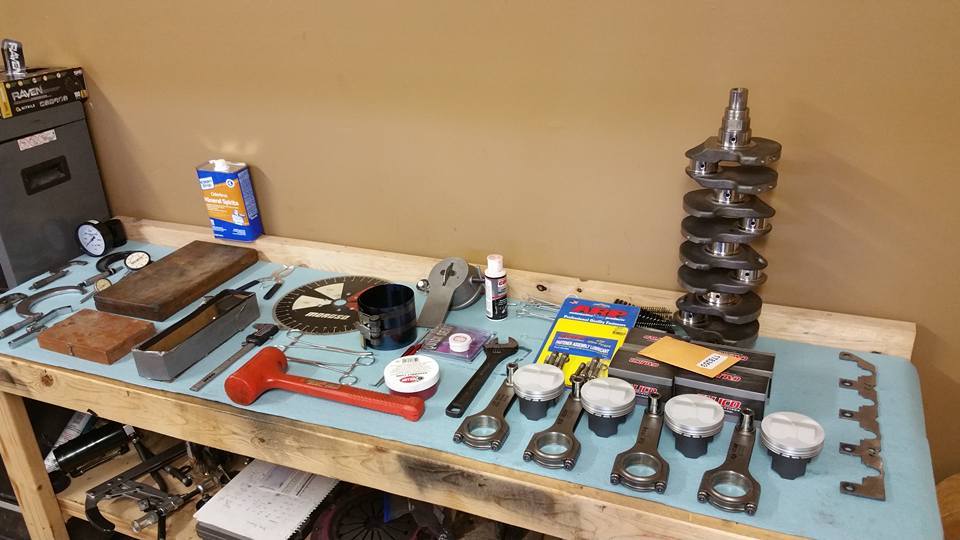

Started the day like this

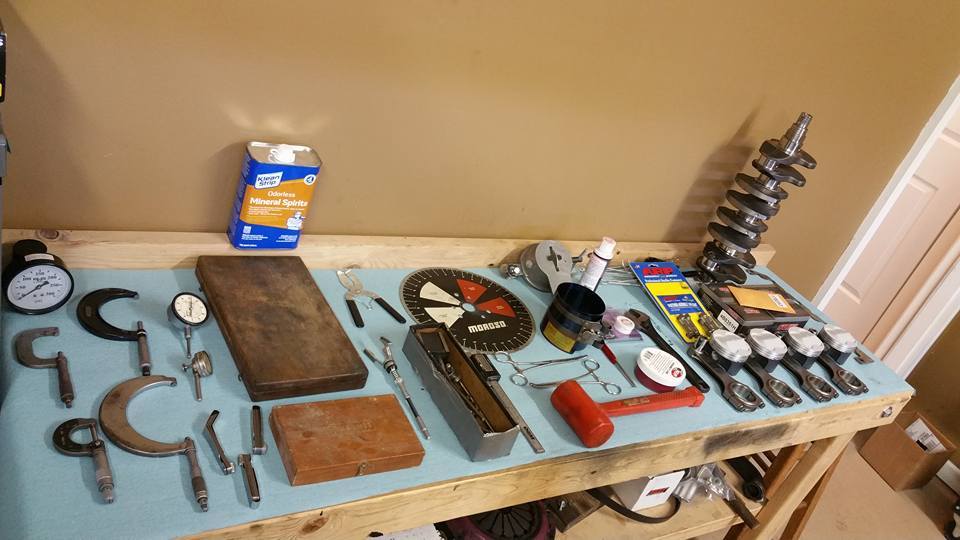

How I spent most of the day Saturday

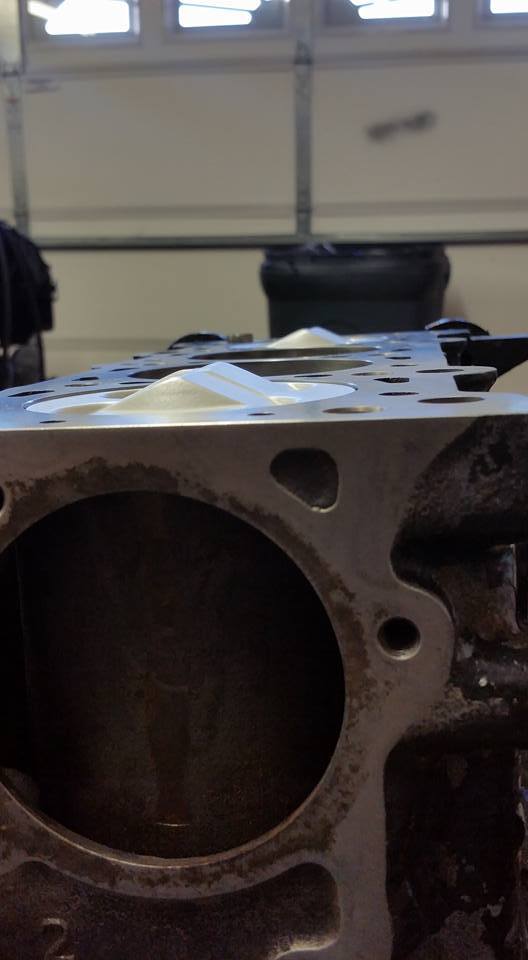

Progress

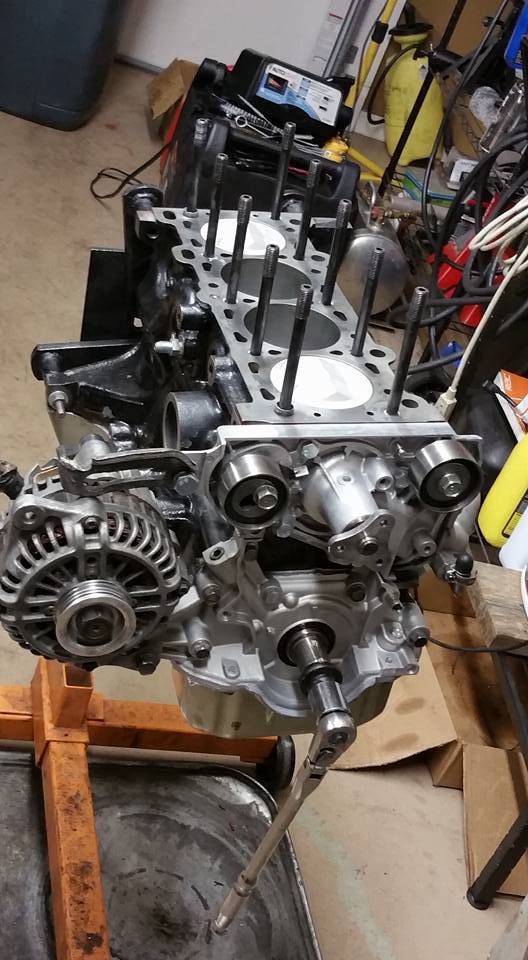

How the day ended

Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-12743961_10153862543449242_3046438947603977884_n_zps31f0m6sd.jpg   Eric Anderson's Supercharged SSM Miata-12729236_10153862543364242_6322769864592086547_n_zps5hljic7y.jpg   Eric Anderson's Supercharged SSM Miata-12717626_10153863737799242_3277623126969917393_n_zpsjxkhxag5.jpg   Eric Anderson's Supercharged SSM Miata-12717709_10153863352034242_7920732350632750216_n_zpsgdyjbq4x.jpg   Eric Anderson's Supercharged SSM Miata-12734154_10153863795719242_5205995573738245164_n_zpsbk3z3t3f.jpg

TNTUBA is offline   Reply With Quote
Old 02-14-2016, 11:22 AM   #395
Junior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 399
Total Cats: 11
Default

Is that a soft blow hammer?

I see something in one of those pics that I despised the last time I built an engine (way over ten years ago). Manual ring filer, I still ******* hate you!
hector is offline   Reply With Quote
Old 02-14-2016, 01:38 PM   #396
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 389
Total Cats: 5
Default

who did you have coat the pistons?
Twibs415 is offline   Reply With Quote
Old 02-14-2016, 04:53 PM   #397
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

There is a STRONG hint who did it in a couple of the pictures.
TNTUBA is offline   Reply With Quote
Old 02-14-2016, 04:59 PM   #398
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 389
Total Cats: 5
Default

just checking
Twibs415 is offline   Reply With Quote
Old 02-14-2016, 05:09 PM   #399
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Quote:
Originally Posted by TNTUBA View Post
There is a STRONG hint who did it in a couple of the pictures.
How does their price and turn around compare to swaintech? I've got a bunch of things that will get coated this year.
stoves is offline   Reply With Quote
Old 02-14-2016, 06:47 PM   #400
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

I really can't compare them to Swain tech as I have never used Swain Tech. But I met the guys from Calico at PRI and was very impressed.

If you are interested, call their office and ask for Brad. He will work you up a quote. I had a TON of stuff coated, valves, wrist pins, 2 sets of bearings, pistons, etc etc etc. So it's hard to remember what each part was...I just remember the total.

Turn around on every thing other than the DLC coating was just 2 or 3 days. The DLC is about 14 days.
TNTUBA is offline   Reply With Quote
